Abstract

The invention provides a medical infusion fixing device, comprising a base plate, a wrist strap, a joint pressure plate, two uprights, two steering connecting pieces, a first splint, a second splint and an operating mechanism. The device holds the patient's palm firmly in place, and because the patient's interphalangeal joints are restricted, the patient's palm cannot bend (i.e., the palm cannot make a gripping motion), so that it does not pull on the back of the hand The skin and muscles can be removed, thereby avoiding vascular damage caused by the phenomenon of "running needles", ensuring the smoothness of the infusion process, and improving the infusion efficiency and therapeutic effect.

Description

A medical infusion fixation device

technical field

The invention relates to the technical field of medical nursing, in particular to a medical infusion fixing device.

Background technique

At present, intravenous infusion has become one of the most important means in medical work. By using intravenous infusion, the patient's condition recovers quickly and the balance of body fluids and electrolytes can be maintained. In clinical infusion, the back of the patient's hand is generally punctured. When the patient's hand movement reaches a certain intensity during the infusion process, the needle will be prolapsed from the blood vessel or the blood vessel will be partially prolapsed and the blood vessel will be subcutaneously or the needle will penetrate the blood vessel. down, commonly known as "running the needle". After "running the needle", there may be edema, bleeding, pain and other phenomena at the infusion site. In severe cases, there may be a large amount of bleeding and bruising, and the function of continuing infusion may be lost.

Now there are some support tools for infusion on the market, most of which are combined with a sticky buckle and a base plate. However, the current support tools have the problem of not being fixed firmly, and the palm and back of the patient's infusion side are still prone to bending, If the position changes, it is easy to pull the skin and muscles on the back of the hand, affecting the fixation of the needle, resulting in poor infusion and blood vessel damage. At the same time, these support tools still have the problems of low comfort in use and little room for adjustment.

SUMMARY OF THE INVENTION

In view of the defects in the prior art, the purpose of the present invention is to provide a medical infusion fixing device, so as to improve the firmness of the patient's palm, so that the patient's palm cannot be bent, ensure the smoothness of the infusion process, and improve the infusion efficiency and therapeutic effect. .

In order to achieve the above object, the present invention provides a medical infusion fixing device, comprising:

a bottom plate, the upper surface of which is provided with a groove;

wrist straps, which secure the wrist;

The joint pressure plate is provided with a column at both ends;

two steering connectors, the middle of each steering connector is rotatably connected to the bottom of the groove, and the two steering connectors are arranged at intervals;

a first splint, the two ends of which are respectively hinged with one end of the two steering connectors;

A second clamping plate, which is arranged in parallel with the first clamping plate, and two ends of which are hinged with the other ends of the two steering connections respectively, the second clamping plate, the first clamping plate and the two steering connections pieces form a parallelogram structure; and

The operating mechanism is connected to the end of the first clamping plate, and the operating mechanism is used for clamping or releasing the first clamping plate and the second clamping plate.

Preferably, the joint pressure plate includes a first plate body, one end surface of which is provided with a sliding hole, the sliding hole extends along the length direction of the first plate body, and the first plate body is far from the sliding hole. one end is attached to the top of one of the uprights; and

The second plate body is movably sleeved in the sliding hole, and one end of the second plate body extends out of the sliding hole and is connected to the top of the other column.

Preferably, a positioning groove is formed in the bottom of the groove, and the positioning groove extends along the width direction of the bottom plate. on both sides of the positioning groove.

Preferably, a cover plate is provided on the groove, a through hole runs through the cover plate, and the positioning groove is located within the projection range of the through hole on the bottom of the groove.

Preferably, the steering connector includes a first rotating shaft, which is vertically fixed in the groove;

a support plate, which is rotatably sleeved on the first rotating shaft, and the plate surface of the support plate is parallel to the axis of the first rotating shaft;

Two U-shaped frame bodies are respectively arranged on the left and right ends of the support plate, and the openings of the two U-shaped frame bodies are opposite; and

The two second rotating shafts are respectively arranged vertically in one of the corresponding U-shaped frame bodies, and the ends of the first clamping plate and the second clamping plate are respectively rotatably sleeved on the second rotating shaft.

Preferably, anti-skid pads are provided on opposite surfaces of the first clamping plate and the second clamping plate.

Preferably, the bottom surface of the first plate body is provided with a sponge pad.

Preferably, the wrist strap includes a first adhesive strip, one end of which is fixed on the bottom plate, and one side of the first adhesive strip is provided with a Velcro surface; and a second adhesive strip, one end of which is fixed on the On the bottom plate, one side of the second adhesive strip is provided with a hook surface of Velcro, and the hook surface of the Velcro and the wool surface of the Velcro can be bonded to each other.

Preferably, the operating mechanism includes a reset member, a pull wire, a fixed pulley and an operating rod; one end of the reset member is connected to the groove wall of the groove, and the other end of the reset member is connected to the first clamp plate. The ends are connected, the reset piece is used to reset the first splint, and one end of the pull wire is connected to the end of the first splint on the side of the reset piece;

The side wall of the bottom plate is sequentially provided with a connecting accommodating groove and a screw hole from the outside to the inside along the width direction thereof, and a wire-passing hole is opened between the accommodating groove and the groove, and the wire-passing hole is respectively connected with the The groove is communicated with the accommodating groove;

The fixed pulley is rotatably arranged at the bottom of the groove, the operating rod includes a stud, a winding column and a connecting column connected in sequence, the stud is threadedly fitted in the screw hole, and the winding The post is arranged in the accommodating groove, the pulling wire goes around the fixed pulley and passes through the wire-passing hole and then is wound on the wire winding post; the connecting post extends out of the accommodating groove and is provided with handle.

Beneficial effects of the present invention:

The invention discloses a medical infusion fixation device. By pressing a joint pressing plate on the interphalangeal joints of a patient's index finger, middle finger, ring finger and little finger, and placing two uprights between a first splint and a second splint, Since the first clamping plate, the second clamping plate and the two steering connectors form a parallelogram structure, the first clamping plate is pulled by the operating mechanism, under the linkage action of the two steering connection parts, the first clamping plate and the second clamping plate can be connected. Clamping action close to each other, thus clamping the two uprights. At the same time, a wrist strap is used to fix the patient's wrist. In this way, the patient's palm can be firmly fixed on the device. Since the interphalangeal joints are restricted, the patient's palm cannot bend (that is, the palm cannot make In this way, the skin and muscles on the back of the hand will not be pulled, thereby avoiding vascular damage caused by the phenomenon of "running the needle", ensuring the smoothness of the infusion process, and improving the infusion efficiency and therapeutic effect. .

Description of drawings

In order to illustrate the specific embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings that are required to be used in the description of the specific embodiments or the prior art. Similar elements or parts are generally identified by similar reference numerals throughout the drawings. In the drawings, each element or section is not necessarily drawn to actual scale.

1 is a schematic structural diagram (top view) of a medical infusion fixing device provided by an embodiment of the present invention;

Fig. 2 is the A-A sectional schematic diagram in Fig. 1;

3 is a schematic cross-sectional view of a steering connector;

4 is a schematic structural diagram of a first splint and a second splint clamping a column;

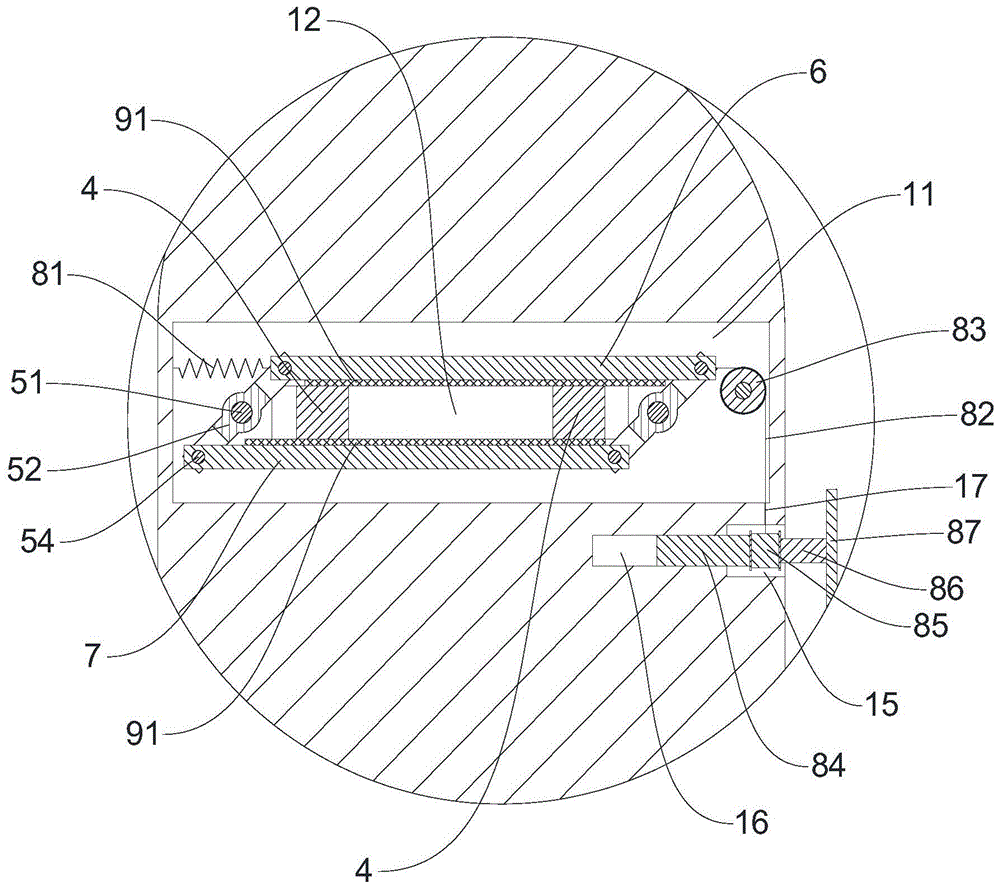

Fig. 5 is a partial enlarged view in the state of Fig. 4;

FIG. 6 is a schematic structural diagram of the first clamping plate and the second clamping plate releasing the column.

Reference number:

1- Bottom plate, 11- Groove, 12- Positioning slot, 13- Cover plate, 14- Through hole, 15- Receiving slot, 16- Screw hole, 17- Cable hole, 21- First adhesive strip, 22- Section Two adhesive strips, 3-joint pressure plate, 31-first plate body, 311-sliding hole, 32-second plate body, 4-upright column, 5-steering connector, 51-first shaft, 52-support plate, 53 -U-shaped frame, 54-second shaft, 6-first splint, 7-second splint, 8-operating mechanism, 81-reset, 82-pull wire, 83-fixed pulley, 84-stud, 85- Reel post, 86-connection post, 87-handle, 91-slip pad, 92-sponge pad.

Detailed ways

Embodiments of the technical solutions of the present invention will be described in detail below with reference to the accompanying drawings. The following examples are only used to more clearly illustrate the technical solutions of the present invention, and are therefore only used as examples, and cannot be used to limit the protection scope of the present invention.

It should be noted that, unless otherwise specified, the technical or scientific terms used in this application should have the usual meanings understood by those skilled in the art to which the present invention belongs.

In the description of this application, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", " Rear, Left, Right, Vertical, Horizontal, Top, Bottom, Inner, Outer, Clockwise, Counterclockwise, Axial, The orientations or positional relationships indicated by "radial direction", "circumferential direction", etc. are based on the orientations or positional relationships shown in the accompanying drawings, which are only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying the indicated devices or elements. It must have a specific orientation, be constructed and operate in a specific orientation, and therefore should not be construed as a limitation of the present invention.

In addition, the terms "first", "second", etc. are used for descriptive purposes only, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

In this application, unless otherwise expressly specified and limited, the terms "installed", "connected", "connected", "fixed" and other terms should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection , or integrated; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be the internal connection of the two elements or the interaction relationship between the two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

In this application, unless otherwise expressly stated and defined, a first feature "on" or "under" a second feature may be in direct contact with the first and second features, or the first and second features indirectly through an intermediary touch. Also, the first feature being "above", "over" and "above" the second feature may mean that the first feature is directly above or obliquely above the second feature, or simply means that the first feature is level higher than the second feature. The first feature being "below", "below" and "below" the second feature may mean that the first feature is directly below or obliquely below the second feature, or simply means that the first feature has a lower level than the second feature.

As shown in Figures 1-6, in an embodiment of the present invention, a medical infusion fixation device is provided, including a base plate 1, a wrist strap, a joint pressure plate 3, two uprights 4, two steering connectors 5, a first A splint 6 , a second splint 7 and an operating mechanism 8 .

The bottom plate 1 is used to support the patient's palm, the upper surface of the bottom plate 1 is provided with a groove 11 , a wrist strap is arranged on the bottom plate 1 , and the wrist strap is used to fix the patient's wrist. Two ends of the joint pressure plate 3 are respectively provided with a column 4, and the joint pressure plate 3 and the two columns 4 form a door-shaped structure, so as to form a space for restricting the index finger, middle finger, ring finger and little finger of the patient by enclosing with the bottom plate 1.

The middle of each steering connector 5 is rotatably connected to the bottom of the groove 11 , and the two steering connectors 5 are arranged at intervals. The two ends of the first clamping plate 6 are hinged with one end of the two steering connectors 5 respectively, the second clamping plate 7 is arranged in parallel with the first clamping plate 6, and the two ends of the second clamping plate 7 are respectively connected with the other ends of the two steering connecting members 5. One end is hinged, and the second clamping plate 7, the first clamping plate 6 and the two steering connecting pieces 5 form a parallelogram structure. The operating mechanism 8 is connected to the end of the first clamping plate 6 , and the operating mechanism 8 is used for clamping or releasing the first clamping plate 6 and the second clamping plate 7 .

In the medical infusion fixation device of this embodiment, the joint pressing plate 3 is pressed against the interphalangeal joints of the index finger, middle finger, ring finger and little finger of the patient, and two uprights 4 are placed between the first splint 6 and the second splint 7 Since the first clamping plate 6, the second clamping plate 7 and the two steering connecting pieces 5 form a parallelogram structure, by using the operating mechanism 8 to pull the first clamping plate 6, under the linkage action of the two steering connecting pieces 5, the The first clamping plate 6 and the second clamping plate 7 perform a clamping action close to each other, thereby clamping the two uprights 4 . At the same time, a wrist strap is used to fix the patient's wrist. In this way, the patient's palm can be firmly fixed on the device. Since the interphalangeal joints are restricted, the patient's palm cannot bend (that is, the palm cannot make In this way, the skin and muscles on the back of the hand will not be pulled, thereby avoiding vascular damage caused by the phenomenon of "running the needle", ensuring the smoothness of the infusion process, and improving the infusion efficiency and therapeutic effect. .

In one embodiment, the joint pressing plate 3 includes a first plate body 31 and a second plate body 32 . A sliding hole 311 is formed on one end surface of the first plate body 31 . The sliding hole 311 extends along the length direction of the first plate body 31 . The second plate body 32 is movably sleeved in the sliding hole 311 , and one end of the second plate body 32 protrudes out of the sliding hole 311 and is connected to the top of another column 4 . By designing the joint pressure plate 3 into a structure whose length can be telescopically adjusted, the length of the joint pressure plate 3 has a certain amount of adjustment, so that it can be adjusted according to the width of the patient's four fingers (index finger, middle finger, ring finger and little finger), so that the patient can More comfortable to use.

In one embodiment, a positioning groove 12 is formed in the groove bottom of the groove 11. The positioning groove 12 extends along the width direction of the bottom plate 1. The upright column 4 can be fitted into the positioning groove 12, and the two steering connectors 5 are arranged in the positioning groove 12. Both sides of the slot 12. By designing the positioning slot 12 , when the upright column 4 can be quickly positioned between the first clamping plate 6 and the second clamping plate 7 , the operation is convenient. At the same time, the depth of the positioning groove 12 can ensure that the joint pressure plate 3 and the two uprights 4 can be adjusted in the height direction, so that they can be adjusted according to different finger thicknesses of the patient. Of course, the uprights 4 can also be adjusted by sliding left and right in the positioning groove 12. , which further increases the practicability and use range of the device.

In one embodiment, in order to improve the aesthetics of the device, a cover plate 13 is provided on the groove 11 , a through hole 14 runs through the cover plate 13 , and the positioning groove 12 is located in the projection range of the through hole 14 on the bottom of the groove 11 . In this way, the column 4 can be easily inserted into the positioning groove 12 from the through hole 14 .

In one embodiment, the opposite surfaces of the first clamp plate 6 and the second clamp plate 7 are provided with anti-skid pads 91, so that the friction force when the first clamp plate 6 and the second clamp plate 7 clamp the two uprights 4 can be increased, Of course, the column 4 is preferably a rectangular column, so as to further increase the working surface between the column 4 and the first clamping plate 6 and the second clamping plate 7 .

In one embodiment, in order to improve the comfort of the joint pressing plate 3 , a sponge pad 92 is provided on the bottom surface of the first plate body 31 .

In one embodiment, the wrist strap includes a first adhesive strip 21 and a second adhesive strip 22 . One end of the first adhesive strip 21 is fixed on the base plate 1 , and one side of the first adhesive strip 21 is provided with a Velcro matte surface. One end of the second adhesive strip 22 is fixed on the bottom plate 1, and one side of the second adhesive strip 22 is provided with a hook surface of the Velcro, and the hook surface of the Velcro and the wool surface of the Velcro can be bonded to each other. Through the bonding and cooperation of the first adhesive strip 21 and the second adhesive strip 22 , the wrist strap can adjust the degree of tightness during fixation, and also increases the firmness of fixation, thereby restricting the movement of the back of the patient's hand.

In one embodiment, the operating mechanism 8 includes a reset member 81, a pull wire 82, a fixed pulley 83 and an operating rod; one end of the reset member 81 is connected to the groove wall of the groove 11, and the other end of the reset member 81 is connected to the first clamp plate 6 The reset member 81 is used to reset the first splint 6 , and one end of the pull wire 82 is connected to the end of the first splint 6 far from the reset member 81 . The side wall of the bottom plate 1 is sequentially provided with accommodating grooves 15 and screw holes 16 which communicate with each other from the outside to the inside along its width direction. A wire-passing hole 17 is opened between the accommodating groove 15 and the groove 11, and the wire-passing hole 17 is respectively connected with the groove 11. It communicates with the accommodating groove 15 . The fixed pulley 83 is rotatably arranged at the bottom of the groove 11, and the operating rod includes a stud 84, a winding column 85 and a connecting column 86 that are connected in sequence. Inside the slot 15, the pulling wire 82 bypasses the fixed pulley 83 and passes through the wire hole 17, and then is wound on the winding post 85; the connecting post 86 extends out of the accommodating slot 15 and is provided with a handle 87.

The steering connector 5 includes a first rotating shaft 51 , a support plate 52 , two U-shaped frame bodies 53 and two second rotating shafts 54 . The first rotating shaft 51 is vertically fixed in the groove 11 , the support plate 52 is rotatably sleeved on the first rotating shaft 51 , and the plate surface of the support plate 52 is parallel to the axis of the first rotating shaft 51 . The two U-shaped frame bodies 53 are respectively arranged at the left and right ends of the support plate 52 , the openings of the two U-shaped frame bodies 53 are opposite to each other, and the two second rotating shafts 54 are respectively vertically arranged on a corresponding U-shaped frame body 53 . Inside, the ends of the first clamping plate 6 and the second clamping plate 7 are respectively rotatably sleeved on the second rotating shaft 54 .

When it is necessary to clamp the fixed column 4, by rotating the handle 87 to make the winding column 85 perform the winding action, the pulling wire 82 will pull the first clamping plate 6 to move towards the fixed pulley 83. Since the two ends of the first clamping plate 6 are respectively Hinged with the U-shaped frame body 53, during the movement of the first plywood 6, the two support plates 52 rotate at the same time, and drive the second plywood 7 to move toward the side away from the fixed pulley 83, thereby making the first plywood 6 and the second plywood 6 move at the same time. The splint 7 performs a clamping action close to each other, and clamps the two uprights 4 to ensure that the joint pressure plate 3 is always pressed on the patient's interphalangeal joint. During the rotation process, since the stud 84 is threaded into the screw hole 16, the stud 84 and the screw hole 16 are self-locking with each other, therefore, the winding post 85 will not have the problem of paying off the wire, avoiding the first The looseness of the first clamping plate 6 and the second clamping plate 7 occurs.

When the first splint 6 and the second splint 7 are required, by rotating the handle 87 to make the reel 85 perform a pay-off action, the reset member 81 will gradually pull the first splint 6 to move away from the fixed pulley 83 and drive The second splint 7 moves toward the side facing the fixed pulley 83 , so that the first splint 6 and the second splint 7 move away from each other to loosen, so that the two uprights 4 and the joint pressure plate 3 can be removed.

In the description of the present invention, numerous specific details are set forth. It will be understood, however, that embodiments of the invention may be practiced without these specific details. In some instances, well-known methods, structures and techniques have not been shown in detail in order not to obscure an understanding of this description.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present invention, but not to limit them; although the present invention has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: The technical solutions described in the foregoing embodiments can still be modified, or some or all of the technical features thereof can be equivalently replaced; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the technical solutions of the embodiments of the present invention. The scope of the invention should be included in the scope of the claims and description of the present invention.

Claims (7)

1. a medical transfusion fixing device, is characterized in that: comprise: a bottom plate, the upper surface of which is provided with a groove; wrist straps, which secure the wrist; The joint pressure plate is provided with a column at both ends; two steering connectors, the middle of each steering connector is rotatably connected to the bottom of the groove, and the two steering connectors are arranged at intervals; a first splint, the two ends of which are respectively hinged with one end of the two steering connectors; A second clamping plate, which is arranged in parallel with the first clamping plate, and two ends of which are hinged with the other ends of the two steering connections respectively, the second clamping plate, the first clamping plate and the two steering connections pieces form a parallelogram structure; and an operating mechanism, which is connected to the end of the first splint, and the operating mechanism is used for clamping or releasing the first splint and the second splint; Wherein, the operating mechanism includes a reset piece, a pull wire, a fixed pulley and an operating rod, one end of the reset piece is connected to the groove wall of the groove, and the other end of the reset piece is connected to the end of the first clamp plate connected to the part, the reset piece is used to reset the first splint, and one end of the pull wire is connected to the end face of the first splint away from the reset piece; The side wall of the bottom plate is sequentially provided with a connecting accommodating groove and a screw hole from the outside to the inside along the width direction thereof, and a wire-passing hole is opened between the accommodating groove and the groove, and the wire-passing hole is respectively connected with the The groove is communicated with the accommodating groove; The fixed pulley is rotatably arranged at the bottom of the groove, the operating rod includes a stud, a winding column and a connecting column connected in sequence, the stud is threadedly fitted in the screw hole, and the winding The post is arranged in the accommodating groove, the pulling wire goes around the fixed pulley and passes through the wire-passing hole and then is wound on the wire winding post; the connecting post extends out of the accommodating groove and is provided with handle; The steering connector includes a first rotating shaft, a support plate, two U-shaped frame bodies and two second rotating shafts, the first rotating shaft is vertically fixed in the groove, and the support plate is rotatably sleeved in the groove. On the first rotating shaft, the plate surface of the support plate is parallel to the axis of the first rotating shaft; the two U-shaped frames are respectively arranged at the left and right ends of the support plate, and the two U-shaped The openings of the frame body are in opposite directions; the two second rotating shafts are respectively arranged vertically in the corresponding one of the U-shaped frame bodies, and the ends of the first clamping plate and the second clamping plate are respectively rotatably sleeved in the corresponding one of the U-shaped frame bodies. on the second shaft. 2. The medical infusion fixation device according to claim 1, wherein the joint pressure plate comprises: The first plate body is provided with a sliding hole on one end surface, the sliding hole extends along the length direction of the first plate body, and the end of the first plate body facing away from the sliding hole is connected to one of the the top of the column; and The second plate body is movably sleeved in the sliding hole, and one end of the second plate body extends out of the sliding hole and is connected to the top of the other column. 3 . The medical infusion fixing device according to claim 1 , wherein a positioning groove is formed in the groove bottom of the groove, the positioning groove extends along the width direction of the bottom plate, and the upright column is conformable. 4 . Inserted into the positioning slot, the two steering connecting pieces are arranged on both sides of the positioning slot. 4 . The medical infusion fixing device according to claim 3 , wherein a cover plate is provided on the groove, a through hole is formed through the cover plate, and the positioning groove is located in the through hole at the end of the through hole. 5 . within the projected range of the groove bottom. 5 . The medical infusion fixing device according to claim 1 , wherein the opposite surfaces of the first splint and the second splint are provided with anti-skid pads. 6 . 6 . The medical infusion fixing device according to claim 2 , wherein a sponge pad is provided on the bottom surface of the first plate body. 7 . 7. The medical infusion fixing device according to claim 1, wherein the wrist strap comprises: a first sticky strip, one end of which is fixed on the bottom plate, and one side of the first sticky strip is provided with a Velcro wool surface; and One end of the second adhesive strip is fixed on the bottom plate, and one side of the second adhesive strip is provided with a hook surface of the Velcro, and the hook surface of the Velcro and the fleece surface of the Velcro can be bonded to each other.
