CN113081591A - Portable pharynx swab collection isolation workbench - Google Patents
Portable pharynx swab collection isolation workbench Download PDFInfo
- Publication number
- CN113081591A CN113081591A CN202110363699.8A CN202110363699A CN113081591A CN 113081591 A CN113081591 A CN 113081591A CN 202110363699 A CN202110363699 A CN 202110363699A CN 113081591 A CN113081591 A CN 113081591A
- Authority
- CN
- China
- Prior art keywords
- isolation
- plate
- collection
- workbench
- protective film
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61G—TRANSPORT, PERSONAL CONVEYANCES, OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
- A61G10/00—Treatment rooms or enclosures for medical purposes
- A61G10/005—Isolators, i.e. enclosures generally comprising flexible walls for maintaining a germ-free environment
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61B—DIAGNOSIS; SURGERY; IDENTIFICATION
- A61B10/00—Instruments for taking body samples for diagnostic purposes; Other methods or instruments for diagnosis, e.g. for vaccination diagnosis, sex determination or ovulation-period determination; Throat striking implements
- A61B10/0045—Devices for taking samples of body liquids
- A61B10/0051—Devices for taking samples of body liquids for taking saliva or sputum samples
Landscapes
- Health & Medical Sciences (AREA)
- Life Sciences & Earth Sciences (AREA)
- General Health & Medical Sciences (AREA)
- Animal Behavior & Ethology (AREA)
- Veterinary Medicine (AREA)
- Public Health (AREA)
- Pulmonology (AREA)
- Biomedical Technology (AREA)
- Medical Informatics (AREA)
- Molecular Biology (AREA)
- Surgery (AREA)
- Heart & Thoracic Surgery (AREA)
- Pathology (AREA)
- Engineering & Computer Science (AREA)
- Hematology (AREA)
- Dental Tools And Instruments Or Auxiliary Dental Instruments (AREA)
Abstract
本发明涉及一种便携式咽拭子采集隔离工作台，其特征在于：包括工作台面，所述工作台面两侧分别设置有立柱，所述立柱上设置有第一轨道；以及透明的隔离板，所述隔离板以插接的形式设置于所述第一轨道中，并且所述隔离板中间位置开设有操作口。本发明提供的咽拭子采集工作台结构简单，操作方便，在大规模采集咽拭子的过程中能够对医护人员提供有效防护。
The present invention relates to a portable throat swab collection and isolation workbench, which is characterized by comprising: a workbench, two sides of the workbench are respectively provided with uprights, and first rails are arranged on the uprights; The isolation plate is disposed in the first track in a plug-in form, and an operation port is opened in the middle of the isolation plate. The throat swab collection workbench provided by the invention has a simple structure and convenient operation, and can provide effective protection for medical staff during the large-scale collection of throat swabs.
Description
Technical Field
The invention belongs to the field of medical instruments, and particularly relates to a portable throat swab collecting and isolating workbench.
Background
In practice, infected persons are usually screened by means of nucleic acid detection, which requires collecting pharyngeal swabs of the subject. Medical personnel are carrying out pharynx swab sample collection in-process to the disease, need use tongue depressor extrusion patient's tongue usually, and the collection of the pharynx swab sample of being convenient for can arouse patient's violent cough when the improper position of tongue depressor oppression or touch and touch the sensitive position of disease throat, and carry the droplet of virus this moment and spout in to the air to the virus still can contact with the aerosol in the air, seriously threatens medical personnel's safety. In addition, a plurality of people gather together, and cross infection is easy to form. Therefore, there is an urgent need for a portable pharyngeal swab collection device to protect medical personnel, while accommodating the need for large-scale collection, facilitating handling, storage and transportation, and preventing cross-contamination between the collected objects.
Disclosure of Invention
In order to solve the problems in the prior art, the invention aims to provide a portable pharynx swab collection and isolation workbench which can meet the requirement of large-scale detection, avoid the contact of spray and aerosol sprayed from the oral cavity of a collected object with medical staff in the pharynx swab collection process of the medical staff, and guarantee the safety of the medical staff. Meanwhile, the whole workbench is simple in structure, convenient to operate, convenient to carry and transport and particularly suitable for large-scale collection requirements. On the other hand, the cross infection of the collected object in the collection process of the pharyngeal swab can be prevented.
In order to achieve the above purpose, the invention provides the following technical scheme:
the utility model provides a workstation is kept apart in collection of portable pharynx swab which characterized in that: the device comprises a working table top, wherein two sides of the working table top are respectively provided with an upright post, and a first rail is arranged on each upright post; the transparent isolation plate is arranged in the first track in an inserting mode, and an operation opening is formed in the middle of the isolation plate; wherein, the size of the operation opening is set to be 40-65mm, preferably 45 mm; the working table is also provided with an acquisition area and an acquired area, wherein the acquisition area and the acquired area are arranged on the working table in a manner of sinking towards the middle of the working table.
Furthermore, a magnifier which is convenient for medical staff to observe the oral cavity of the collected object is arranged on the upper side of the operation opening. The magnifier and the isolation plate are integrally formed; or a through hole is formed in the middle of the isolation plate, the magnifier is assembled in the through hole in an interference fit mode, the magnifier is provided with a shell and a lens, the shell is internally provided with an arc-shaped track, a stopping part is arranged at the edge of the track, the periphery of the lens is arranged to be matched with the arc-shaped track in outline, and therefore the lens can adjust the direction relative to the shell to facilitate observation.
Furthermore, a collecting device for blocking the spray is further arranged on the isolating plate facing one side of the collected object, the collecting device comprises a mounting seat fixedly arranged on the upright post, a roller is arranged on the mounting seat, and a protective film is arranged on the roller; a protective film placing seat is correspondingly arranged on the isolation plate, and a groove for mounting the protective film is also arranged on the placing seat; the protective film is provided with tear tapes in sequence along the length direction, the tear tapes are perpendicular to the length direction of the protective film, the distance between the tear tapes is greater than or equal to the length of the protective film placing seat, and small holes corresponding to the operation openings are formed in the protective film.
Further, a lighting device is arranged on the isolation plate; the lighting device comprises a transparent lampshade and LED lamp beads arranged in the lampshade, and is arranged around the operation opening and positioned on one side of the collected area and arranged towards the collected object; and/or the lighting device is arranged on the upright post, is positioned at one side of the collected area and faces the collected object.
Furthermore, foldable supporting devices are arranged on two sides of the working table surface, and the supporting devices are connected with the working table surface in an inserting mode; the supporting device comprises supporting legs, the supporting legs are connected with the base in a hinged mode, and a connecting plate is fixedly arranged on the side face of the base; the supporting device also comprises an elastic piece, and the elastic piece is used for adjusting the angle of the supporting leg; wherein, the one end of elastic component with the installation department that sets up on the connecting plate is articulated, the other end of elastic component with one of them is connected in a plurality of elastic hook that the supporting leg side set up, the opening has been seted up to one side that elastic hook deviates from the workstation face.
Furthermore, the collection area is further provided with three article placing grooves along the length direction of the working table, the collected area is provided with one article placing groove, wherein the first article placing groove and the second article placing groove are respectively used for containing a first storage box and a second storage box which are matched with the first storage box in shape, the third article placing groove and the fourth article placing groove are used for installing a flexible bag, annular grooves are formed in the periphery of the third article placing groove and the periphery of the fourth article placing groove, and the annular grooves are used for installing and fixing a gland of the flexible bag.
Furthermore, a second rail perpendicular to the working table surface and the partition board is arranged on the upright post, the second rail is communicated with the first rail, and the cross section of the second rail in the direction parallel to the working table surface is L-shaped; the workbench is also provided with a top plate and side plates at two sides, the top plate and the isolation plate are integrally formed into an L shape, the side plates are installed by inserting the side plates along the second rail, and meanwhile, the isolation plate is inserted along the first rail perpendicular to the workbench surface to complete the installation of the isolation plate and the top plate; or the top plate, the side plate and the isolation plate are integrally formed, and the isolation plate and the side plate are inserted and connected along the first rail and the second rail which are perpendicular to the working table surface to complete the installation of the top plate, the side plate and the isolation plate.
Compared with the prior art, the portable throat swab collecting and isolating workbench provided by the invention has the following advantages:
through set up the operation mouth on the division board, simple structure, convenient operation can effectively reduce the infection at the in-process medical personnel of large-scale collection pharynx swab. And the magnifier is arranged on the upper side of the operation opening, so that medical personnel can observe the oral condition of the collected object conveniently in the collection process of the throat swab, and the collection position can be conveniently determined. Set up lighting device through the one side to being gathered the object on the division board, for medical personnel provide the illumination when light is dim, make things convenient for medical personnel to observe, prevent to cause the discomfort to being gathered the object, especially be fit for the pharynx swab collection work at night.
Meanwhile, the protective film is arranged on the isolation plate and used for collecting the splashed foam sprayed by the collected object in the collecting process, and the protective film is torn off after the pharynx swab sample is collected, so that the risk of cross infection among the collected objects is reduced.
The bracket that sets up provides the support for being gathered the object to make things convenient for medical personnel to gather, can also provide certain travelling comfort for gathering the object. And the supporting plate is connected by adopting a spherical hinge, so that the adjusting range of the supporting plate is wider, and the adaptability is better.
Simultaneously, provide folding strutting arrangement, make things convenient for accomodating and the transport of whole device, practice thrift the space, the transportation of goods and materials when convenient extensive the gathering. In addition, the partition board and the supporting device adopt a plug-in type installation mode, so that the operation is simple, the assembly is convenient, and the use of medical personnel is convenient. The curb plate and the roof of setting can further improve the safeguard effect to with curb plate and/or roof and the integrative setting of division board, further improve the convenience of equipment, also convenient storage and transportation.
Set up different thing grooves of putting on table surface and be used for placing the receiver, make things convenient for medical personnel to collect the medical supplies such as pharynx swab sample and antiseptic solution, cotton swab of collection. Simultaneously, the flexible bag is arranged in a groove matching mode and used for accommodating medical garbage, and medical staff can use and operate the flexible bag conveniently. And the storage groove and the storage box which are arranged in a split mode are adopted, so that the weight of the workbench is reduced, and the centralized transportation and carrying are convenient.
Description of the drawings:

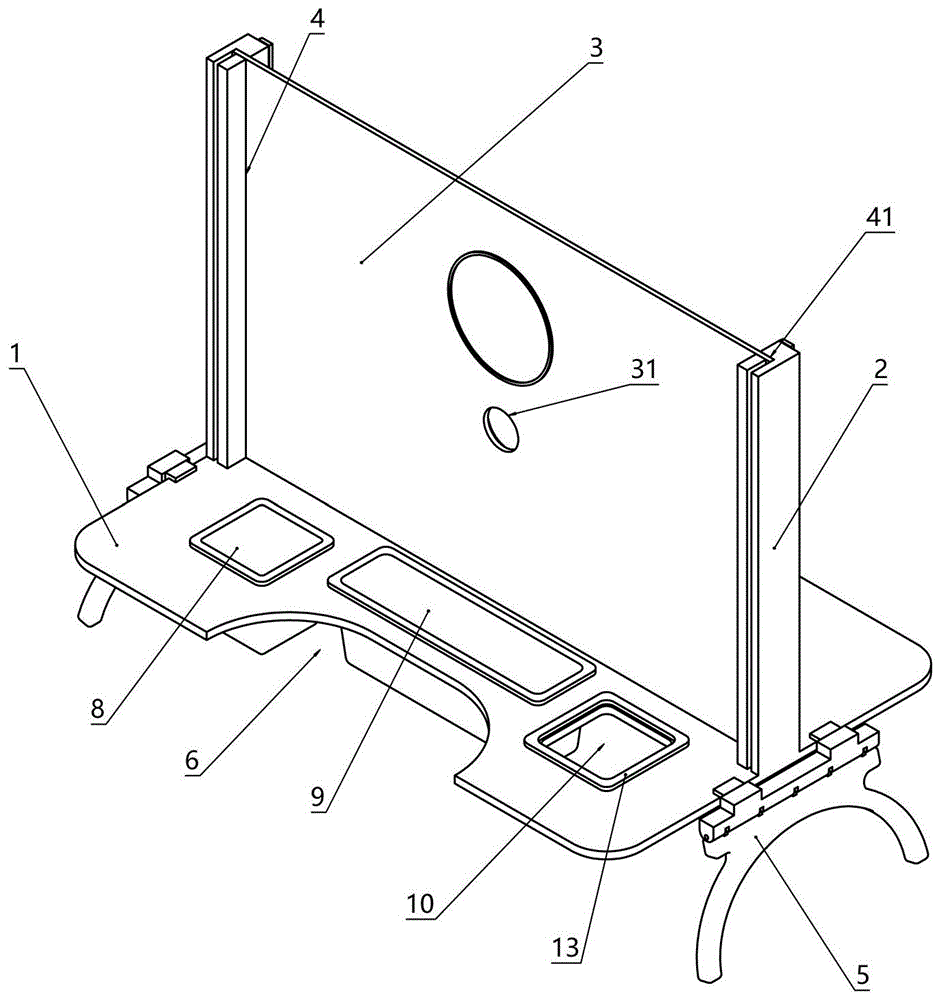

FIG. 1 is a schematic view of the pharyngeal swab collection station;
FIG. 2 is a schematic view of the pharyngeal swab collection station;
FIG. 3 is a schematic view of the pharyngeal swab collection station;
FIG. 4 is a schematic view of the pharyngeal swab collection station;
FIG. 5 is an enlarged view of a portion of the mounting base;
FIG. 6 is an enlarged view of a portion of the support device;
FIG. 7 is an enlarged view of a portion of the support device;
FIG. 8 is an enlarged view of a portion of the support device;
FIG. 9 is a cross-sectional view of the pharyngeal swab collection station;
FIG. 10 is an enlarged view of a portion of the location of the stud of FIG. 9;
FIG. 11 is an enlarged view of a portion of the access opening of FIG. 9;
FIG. 12 is a schematic view of the structure of the bracket;
FIG. 13 is a partial enlarged view of the magnifier structure;
FIG. 14 is an enlarged partial view of a magnifier structure according to another embodiment;
fig. 15 is a schematic structural view of another embodiment of the pharyngeal swab collection station.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings. It is to be understood that the embodiments described are only a few embodiments of the present invention, and not all embodiments.
Thus, the following detailed description of the embodiments of the invention is not intended to limit the scope of the invention as claimed, but is merely representative of some embodiments of the invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that the embodiments of the present invention and the features and technical solutions thereof may be combined with each other without conflict.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.
In the description of the present invention, it should be noted that the terms "upper", "lower", and the like refer to orientations or positional relationships based on the orientations or positional relationships shown in the drawings, or orientations or positional relationships that a product of the present invention is conventionally placed when in use, or orientations or positional relationships that a person skilled in the art conventionally understands, and such terms are only used for convenience of description and simplification of description, and do not refer to or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and the like are used merely to distinguish one description from another, and are not to be construed as indicating or implying relative importance.
As shown in fig. 1-4, the present invention provides a portable throat swab collection and isolation workbench, which comprises a workbench surface 1, wherein two sides of the workbench surface 1 are respectively provided with an upright post 2, and the upright posts 2 are provided with a first rail 41; and a transparent isolation plate 3, wherein an operation port 31 is formed in the middle of the isolation plate 3, and the isolation plate 3 is arranged in the first track 41 in an inserted manner. The operation port with the proper size is formed in the isolation plate, so that spray and aerosol sprayed out of the oral cavity of the collection object can be effectively prevented from contacting medical care personnel, and the medical care personnel can be effectively protected. The size of the operation opening 31 is set to be 40-65mm, preferably, the size of the operation opening 31 is set to be 50mm, and the size of the operation opening set by the embodiment can provide the best protection effect under the condition that the operation of medical staff is not influenced. Of course, in the present embodiment, one operation port is provided, but the present invention is not limited to the above arrangement, and two or more operation ports may be provided on the isolation board to adapt to simultaneous operation of a plurality of medical care personnel. Of course, the number of the operation openings is not so large in consideration of the protection effect, and two operation openings are preferably provided. In addition, because the division board adopts the form setting of pegging graft, make whole device assemble easily and dismantle to convenient storage, transport and transportation, especially when extensive pharynx swab is gathered, the effect is more obvious. In addition, an acquisition area 6 and an acquired area 7 are respectively arranged on the working table top, wherein the acquisition area 6 and the acquired area 7 are arranged on the working table top in a manner of sinking towards the middle of the working table top; the distance between the medical care personnel and the collected object can be shortened by the arrangement, so that the medical care personnel can conveniently collect samples, and the specific conditions in the oral cavity can be conveniently observed. When the collecting device is used, medical staff and a collected object are respectively seated in the grooves of the collecting area 6 and the collected area 7, and the medical staff collects a throat swab sample from the operation opening.
Referring to fig. 1-4 and 13-14, a magnifying glass 36 is disposed on the upper side of the operation opening 31 for facilitating observation by the medical staff; specifically, the magnifying glass 36 and the isolation plate 3 are integrally formed. Through setting up the magnifying glass, make things convenient for medical personnel to observe the oral cavity condition by the collection object, avoid causing the discomfort to the collection object at the process of gathering. And through setting up magnifying glass and division board integrated into one piece, not only convenient manufacturing like this also conveniently accomodate and transport simultaneously. However, without being limited to the above arrangement, as shown in fig. 14, a through hole may be provided in the spacer, and the magnifying lens 36 may be fitted in the through hole by interference fit. The whole structure is simple, and the manufacture and the assembly are convenient. Specifically, the magnifying lens 36 includes a housing 361 and a lens 362, and the lens 362 is mounted in the housing 361. As shown in fig. 14, the inner periphery of the housing 361 is provided with a track 3611 having an arc-shaped cross section, and the outer periphery of the lens 362 is provided with a contour 3621 matching the track 3611 having an arc-shaped cross section. The arc-shaped track is adopted, so that the angle of the lens can be conveniently adjusted, and the oral cavity adjusting device can be suitable for different medical workers, and the condition in the oral cavity can be observed more easily. Meanwhile, a stopping part 3612 is arranged at the edge of the arc track 3611, so that the angle adjustment of the lens is limited to a certain extent, and the lens is prevented from being separated from the track in the adjusting process. Of course, the arrangement of the magnifying glass is not limited to the above manner, and an adjusting arm may be further provided, and the magnifying glass is arranged on the adjusting arm to achieve the same function, which is not described herein again.
Furthermore, when the pharyngeal swab is collected on site at night, the light is dim, and the collection work of medical staff is not facilitated. Therefore, the invention also arranges the lighting device 37 on the isolation plate 3 to provide lighting for medical staff at night, thereby being convenient for observing the condition in the oral cavity. As shown in fig. 9-11, the present invention provides an illumination device on one side of the collected area, i.e. toward the collected object, and preferably provides an illumination device 37 matching with the shape of the outer periphery of the operation opening 31, the illumination device has a transparent lampshade and a lamp bead 371 located in the lampshade, the lamp bead 371 preferably adopts an LED lamp, the LED has small size, very low power consumption, long service life, high brightness and low heat, and is very suitable for the illumination device in the present embodiment. Of course, the lighting device can be arranged at other positions to provide lighting without influencing the operation of the medical staff. As shown in fig. 10, a light strip 39 is provided on the two side columns 2 in a direction perpendicular to the work surface 1, and similarly, the light strip is provided with a transparent lampshade and a light bead 391 located in the lampshade, and the light bead 391 preferably adopts an LED lamp. The lamp strip is arranged on the upright post, so that the operation of medical personnel is not hindered, and a large-range illumination can be provided. Wherein the lighting device is powered by an additional power source (not shown in the figure), and those skilled in the art should understand that the power source is disposed at a position that does not affect the operation, such as the lower side of the working table, or the upright column, and the description thereof is omitted here.
Further, as shown in fig. 1 to 5, a collecting device for stopping the spray is further provided on the partition board 3 on the side facing the object to be collected; the collecting device comprises a mounting seat 33 fixedly arranged on the upright post 2, a roller 34 is arranged on the mounting seat 33, and a protective film 35 is arranged on the roller 34; a protective film placing seat 32 is correspondingly arranged on the separating plate 3, and a groove 321 for installing the protective film is also arranged on the placing seat 32. As shown in fig. 4, the protective film 35 is sequentially provided with tear tapes 352 along the length direction, so that the whole protective film can be formed by a plurality of unit protective films 351, the tear tapes 352 are perpendicular to the length direction of the protective film 35, the distance between two tear tapes is greater than or equal to the length of the protective film placing seat 32, and the protective film is further provided with small holes 353 corresponding to the operation openings. The mode of tearing the strip is adopted, and the protective film is torn off after being used, so that the method is simple and convenient. During the use, the last protective film of pull cylinder is fixed to the recess on placing the seat with the protective film both ends to along recess direction pull, after protective film pull to suitable position, fixed the protective film to placing the seat on, can carry out pharynx swab collection work this moment. Naturally, the present invention is not limited to the above arrangement, and it is also possible to arrange the bonding portions or the bonded portions at the two ends of the protective film, and arrange the corresponding bonded portions or the bonding portions on the placing base correspondingly, and after the protective film is drawn to a suitable position, the bonding portions or the bonded portions of the protective film are bonded to the bonded portions or the bonding portions on the placing base in a drawing manner, so as to fix the protective film, perform the subsequent throat swab collecting work, and tear off the protective film after the collecting work is completed.
Referring to fig. 3-4 and 12, to facilitate pharyngeal swab collection, the present invention also provides a cradle 38 on one side of the collected area for supporting the chin of the subject to be collected, thereby facilitating collection by the medical practitioner while providing some comfort to the subject. Specifically, the bracket 38 is disposed on the work surface 1 and located at one side of the collected region 7, and includes a base 384 fixedly mounted on the work surface 1, a connecting column 382 cooperatively connected with the base 384, the connecting column 382 is connected with a support plate 381 through a spherical hinge, and the support plate 381 is used for supporting the chin of the collected object. Furthermore, in order to improve the adaptability of the bracket, a plurality of annular fixing grooves are formed in the lower side of the connecting column 382, a base for installing a positioning pin 383 is arranged on the base 384, and the height of the supporting plate 381 can be adjusted through the positioning pin 383, so that the bracket is suitable for different people. And, the angle that adopts spherical hinge to make the layer board can be adjusted is wider, and adaptability is better. Of course, instead of a ball-and-socket joint, the connecting post 382 may be directly integral with the support plate 381, preferably with a ball-and-socket joint.
Secondly, the foldable supporting device is arranged on the working table top. As shown in fig. 1 to 8, foldable support devices 5 are arranged on both sides of the work table 1, and the support devices 5 are connected with the work table 1 in a plugging manner. Specifically, the support device comprises a support leg 51, a base 52 and a connecting plate 53. The support leg 51 is connected to the base 52 in a hinged manner, specifically, via a pivot 521. The connecting plate 53 is fixedly disposed on the side surface of the base 52, the connecting plate may be integrally formed with the base, or may be fixedly connected by a screw connection or other fixing methods, in this embodiment, a shaft hole is used for realizing the fixing connection in an interference fit manner, wherein the shaft and the hole are respectively disposed on the base and the connecting plate. In addition, as shown in fig. 1-2, the present embodiment has two connecting plates symmetrically disposed on the left and right sides of the base. Referring to fig. 7, the present embodiment has several protrusions 512 fixed on the upper part of the supporting leg, and several matching grooves 522 on the base. During assembly, the protrusion 512 is inserted into the groove 522 for positioning, and then the rotating shaft 521 is inserted into the holes respectively arranged at the lower part of the protrusion 512 and the base, so as to complete the assembly of the protrusion 512 and the base.
In addition, referring to fig. 6 to 8, the supporting device 5 further comprises an elastic member 54, and the elastic member 54 is used for adjusting the angle of the supporting leg 51; specifically, a plurality of elastic hooks 511 are arranged on the side of the supporting leg 51, correspondingly, an installation part 531 is arranged on the lower part of the connecting plate, the installation part 531 is provided with a closed hole, and an opening 5111 is arranged on one side of the elastic hook 511, which is far away from the working table surface 1. The elastic member 54 is a substantially U-shaped elastic member, and a transverse connecting portion (not shown) is disposed at an upper portion thereof, and the connecting portion is inserted into a closed hole of the mounting portion 531, so that one end of the elastic member 54 is hinged to the connecting plate 53. Meanwhile, the other end of the elastic piece 54 is hooked into an opening 5111 formed in one side, which is far away from the workbench surface 1, of the elastic hooks 511 arranged on the side surface of the supporting leg 51, so that the connection between the elastic piece and the supporting leg is realized. Adopt a plurality of elastic hook can adjust the angle that the supporting leg opened to the outside to can adjust isolating device's height, with the adaptability that improves the device. And simultaneously, the stability of the whole device can be improved. The opening 5111 is arranged on the side away from the working table, and is convenient for the installation of the elastic piece, and when the elastic piece 54 is used, the elastic piece is directly pressed into the corresponding hook. Furthermore, since the support legs 51 are opened outward, the elastic hook 511 is pulled upward by the elastic member 54, thereby preventing the elastic member 54 from being separated from the elastic hook 511, and improving the stability of the device.
As shown in fig. 1 to 4, the rail 41 is used for installing and fixing the partition board along the length direction of the work table, however, the above-mentioned arrangement is not limited, and side plates or top plates and the like on both sides of the rail installation may be additionally provided. As shown in fig. 10, a rail 42 perpendicular to the work table 1 and the partition plate 3 is additionally provided on the column 2, the rail 42 communicates with the rail 41, and the cross section in the direction parallel to the work table 1 is "L" shaped. Therefore, the top plate 3-1 and the isolation plate 3 can be integrally formed, namely the top plate 3-1 and the isolation plate 3 are in an inverted L shape, the side plates 3-2 on two sides are inserted along the rails 42 to complete the installation of the side plates 3-2, and meanwhile, the isolation plate 3 is directly inserted along the rails 41 perpendicular to the working table surface to complete the installation of the isolation plate and the top plate. Or the top plate 3-1, the side plates 3-2 on the two sides and the isolation plate 3 can be integrally formed, and the isolation plate and the side plates are inserted along the rails 41 and 42 perpendicular to the working table surface to complete the installation of the top plate, the side plates on the two sides and the isolation plate. Set up like this, make things convenient for overall installation, dismantlement, packing and transportation promptly, provide further protective effect for medical personnel again simultaneously.
As shown in fig. 1-4, three article holding grooves, namely an article holding groove 8, an article holding groove 8 and an article holding groove 10, are further arranged on one side of the collecting area 6, and are arranged along the length direction of the working table, wherein the length of the article holding groove 9 is greater than that of the article holding groove 8. As shown in fig. 1, a storage case 11 having a shape adapted to the storage compartment 8 is placed in the storage compartment 9, and a storage case 12 having a shape adapted to the storage compartment is placed in the storage compartment 9. Wherein, receiver 11 is used for holding the pharynx swab sample of collection, and is used for holding medical supplies such as antiseptic solution, cotton swab, gloves in the receiver 12. The length of putting thing groove 9 sets up to be greater than the aim at who puts thing groove 8's length, and medical personnel need use the medical supplies project more, sets up like this and conveniently arranges medical supplies, makes things convenient for medical personnel to select to use. In addition, a ring of annular grooves are further formed around the storage tank 10, and a pressing cover 13 matched with the annular grooves in shape is used for installing a flexible bag, wherein the flexible bag can be a plastic bag or a paper bag and the like, and is mainly used for containing medical waste in the throat swab collection process to prevent environmental pollution. The gland 13 preferably has a T-shaped cross-section for engaging with the annular groove and further a cover plate for covering the opening of the flexible bag is provided on the gland to further prevent the medical waste from contaminating the environment. In addition, as shown in fig. 3, a storage groove 14 is further formed on one side of the collected area 7, and similarly, a ring-shaped groove is further formed around the storage groove 14, and a pressing cover matched with the shape of the ring-shaped groove is used for installing a flexible bag, which can be a plastic bag or a paper bag and the like, and the flexible bag is mainly used for facilitating the collected object to tear off a protective film used by the collected object conveniently after the sample collection is completed and placed in the flexible bag.
When there is a need for pharyngeal swab collection, the isolation panels, countertops, support devices, etc. of the present invention may be separately housed and transported to a collection site. When the isolating device is used, medical staff firstly inserts the supporting device on the workbench surface, and simultaneously the elastic piece is connected with one of the elastic hooks, so that the isolating device is adjusted to be in proper height. Meanwhile, the isolation plates are inserted into the corresponding tracks, so that protection is provided for medical staff. The two storage boxes and the flexible bag are respectively fixed in the storage slots matched with the two storage boxes, so that the assembly of the isolation device is completed rapidly. Before gathering the pharynx swab, medical personnel perhaps by the at first pull protective film of collection object to on being fixed in the protective film who sets up on the division board and placing the seat, be used for collecting the spun droplet of pharynx swab collection in-process. When gathering the pharynx swab, medical personnel sit to stand in gathering district department, sit to stand in being gathered district department by the collection object, and medical personnel gather the pharynx swab from the handle hole on the division board, observe the oral cavity by the collection object through the magnifying glass that sets up on the division board simultaneously, conveniently confirm the collection position. After gathering the pharynx swab, place the sample of gathering in first receiver, tear the protective film after using, use the antiseptic solution of placing in the second receiver simultaneously and disinfect to place it in corresponding flexible bag and collect. If be in during dim environment of light, turn on lighting device this moment, make things convenient for medical personnel to observe the oral cavity situation, confirm the collection position, prevent to cause the discomfort to the object of being gathered.
The whole device is simple to assemble and convenient to operate, and is very suitable for the field collection work of throat swabs.
The above embodiments are only used for illustrating the invention and not for limiting the technical solutions described in the invention, and although the present invention has been described in detail in the present specification with reference to the above embodiments, the present invention is not limited to the above embodiments, and therefore, any modification or equivalent replacement of the present invention is made; all such modifications and variations are intended to be included herein within the scope of this disclosure and the appended claims.
Claims (10)
