Abstract
本发明公开了一种智能横向椭圆训练装置，包括显示面板和电机，所述显示面板的左侧设置有连接组件，且连接组件的左侧固定连接有立柱，并且立柱的底部固定连接有动力主体，所述电机安装于动力主体的内部，且电机的右侧下端连接有驱动齿轮，并且驱动齿轮的前后两侧均连接有从动齿轮，同时两组从动齿轮的右端均固定连接有曲轴，两组所述曲轴的右侧均连接有踏板，且两组踏板的下方设置有底座，并且底座的底部四角均设置有座脚。该智能横向椭圆训练装置，电机带动驱动齿轮进行转动，驱动齿轮带动对称的从动齿轮进行相反方向转动，从动齿轮转动的同时带动曲轴进行转动，从而带动踏板转动，实现设备自转，带动患者双腿进行运动。
The invention discloses an intelligent lateral elliptical training device, comprising a display panel and a motor, a connection component is arranged on the left side of the display panel, a column is fixedly connected to the left side of the connection component, and a power main body is fixedly connected to the bottom of the column , the motor is installed inside the power main body, and the lower end of the right side of the motor is connected with a driving gear, and the front and rear sides of the driving gear are connected with driven gears, and the right ends of the two sets of driven gears are fixedly connected with a crankshaft, The right sides of the two sets of crankshafts are all connected with pedals, and bases are provided below the two sets of pedals, and four corners of the bottom of the bases are provided with feet. In this intelligent lateral elliptical training device, the motor drives the drive gear to rotate, the drive gear drives the symmetrical driven gear to rotate in the opposite direction, and the driven gear rotates while driving the crankshaft to rotate, thereby driving the pedal to rotate, realizing the rotation of the equipment, and driving the patient to double Legs exercise.
Description
Technical Field
The invention relates to the technical field of oval training devices, in particular to an intelligent transverse oval training device.
Background
With the improvement of living standard of people, more and more equipment related to exercise is provided, people usually use a running machine to carry out running exercise, however, when people with heavy weight run, the knee is subjected to large impact force and is easy to be damaged, and in order to avoid the damage of the knee, technical personnel invent an elliptical machine.
The mode that current oval trainer adopted vertically or sat greatly takes exercise and resumes, does not have horizontal training, and the equipment is not convenient for adjust to current oval trainer does not have the supplementary rotation of machinery, and the patient of being not convenient for is recovered, and when equipment rotated simultaneously, equipment caused the injury to the patient because inertial force easily.
Accordingly, one skilled in the art provides an intelligent transverse ellipse training device to solve the problems set forth in the background above.
Disclosure of Invention
The invention aims to provide an intelligent transverse elliptical training device to solve the problems that the equipment provided by the background technology does not have auxiliary rotation, is inconvenient for patient rehabilitation training and is inconvenient to adjust.
In order to achieve the purpose, the invention provides the following technical scheme: an intelligent transverse oval training device comprises a display panel and a motor, wherein a connecting assembly is arranged on the left side of the display panel, a stand column is fixedly connected to the left side of the connecting assembly, a power main body is fixedly connected to the bottom of the stand column, the motor is installed inside the power main body, a driving gear is connected to the lower end of the right side of the motor, driven gears are connected to the front side and the rear side of the driving gear, crankshafts are fixedly connected to the right ends of two groups of driven gears, pedals are connected to the right sides of the two groups of crankshafts, a base is arranged below the two groups of pedals, seat feet are arranged at four corners of the bottom of the base, limiting rods are installed inside the four groups of seat feet, first springs are arranged outside the tops of the four groups of limiting rods, limiting sleeves are connected to the tops of the four groups of first springs, and second springs, the right side of the opposite end of the two groups of pedals is provided with an adjusting rod, an adjusting hole is reserved in the outer wall of the rear side of the adjusting rod, the outer portion of the adjusting rod is connected with a seat, wheels are arranged between the seat and the adjusting rod, a rotating shaft is arranged inside the seat, and a limiting bolt is installed on the rear side of the seat.
Optionally, the connecting assembly comprises a steering head, a fastener and a fixing member, the steering head is located at the leftmost end of the connecting assembly, the fastener is located on the right side of the steering head, and the fixing member is located on the right side of the fastener.
Optionally, the steering head is connected with the fixing piece in a clamping manner, and the fixing piece is connected with the fastening piece in a threaded manner.
Optionally, the driven gear, the crankshaft and the pedal are symmetrical about a longitudinal center line of the power body, the driven gear is in meshed connection with the driving gear, and the pedal and the crankshaft form a rotating structure through a rotary bearing in the crankshaft.
Optionally, the seat leg is symmetrical about the longitudinal center line of the base, and the seat leg and the base are in sliding connection.
Optionally, be sliding connection between stop collar and the gag lever post, and stop collar and gag lever post all are connected with first spring block.
Optionally, the adjusting holes are distributed on the outer wall of the rear side of the adjusting rod at equal intervals, the adjusting rod is in sliding connection with the wheels, and the wheels and the seat form a rotating structure through a rotating shaft.
Compared with the prior art, the invention has the beneficial effects that:
1. according to the intelligent transverse elliptical training device, the angle of the display panel is adjusted to an appropriate angle by loosening the fastener and rotating the fixing piece at the steering head, the fastener is tightened, the position of the seat is adjusted upwards by loosening the limit bolt, meanwhile, the seat drives the wheels to slide in the adjusting rod, and the limit bolt is tightened to fix the position of the seat after the appropriate height and distance are adjusted, so that the adjustment of the angle of the display panel and the position of the seat is realized;
2. according to the intelligent transverse elliptical training device, when a arthritis patient carries out rehabilitation training, the motor drives the driving gear to rotate, the driving gear drives the symmetrical driven gears to rotate in opposite directions, the driven gears rotate and simultaneously drive the crankshafts to rotate, so that the pedals are driven to rotate, equipment rotation is realized, and the legs of the patient are driven to move;
3. this horizontal oval trainer of intelligence, equipment operation in-process, when the footboard drove the rotation of patient's both legs, the inertial force effect of production can produce reaction force to ground, to influencing patient rehabilitation training easily, through the seat foot that the symmetry set up, the cooperation second spring cushions the shock attenuation, when equipment operation, the base is through driving the first spring of stop collar extrusion, the reaction force of first spring provides the buffering shock attenuation for the stop collar to avoid equipment to cause the injury because being used to the patient.
Drawings

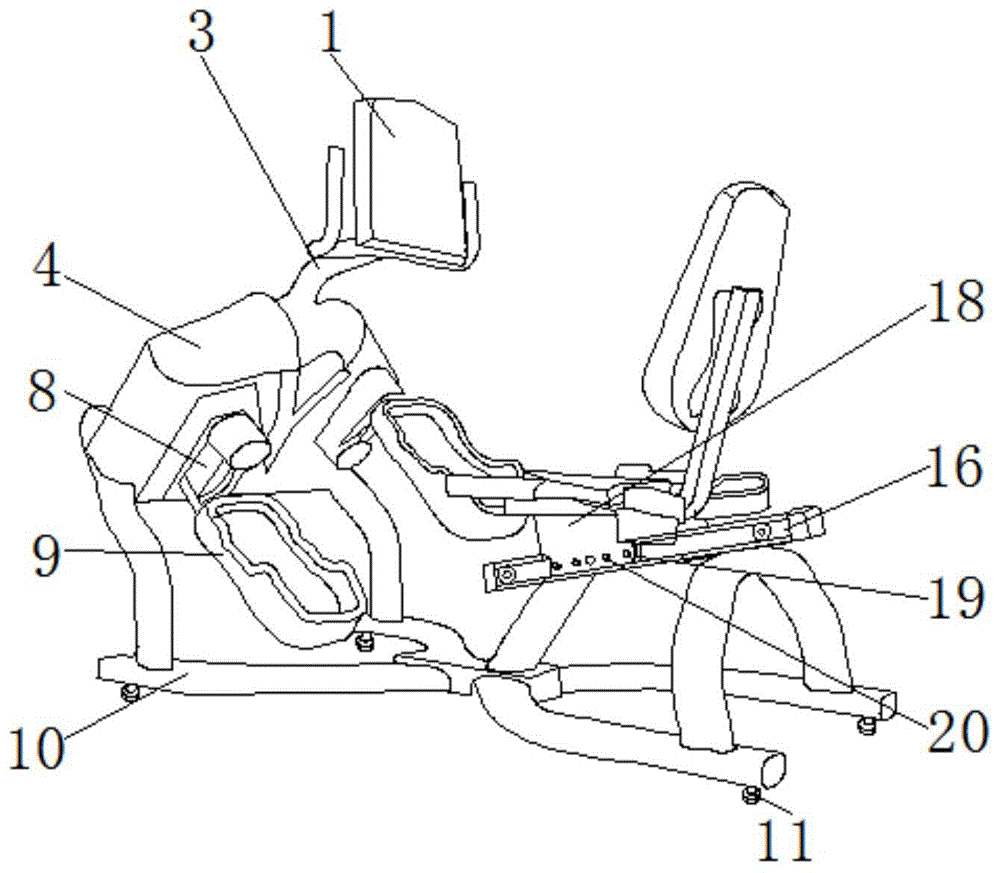

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a left side view of the display panel of the present invention;
FIG. 3 is a schematic view of an exploded view of a connecting assembly of the present invention;
FIG. 4 is a schematic structural view of a front cross section of the power body of the present invention;
FIG. 5 is a schematic front sectional view of the seat foot of the present invention;
fig. 6 is a rear view of the adjusting lever of the present invention.
In the figure: 1. a display panel; 2. a connecting assembly; 201. a steering head; 202. a fastener; 203. a fixing member; 3. a column; 4. a power body; 5. a motor; 6. a drive gear; 7. a driven gear; 8. a crankshaft; 9. a pedal; 10. a base; 11. a seat leg; 12. a limiting rod; 13. a first spring; 14. a limiting sleeve; 15. a second spring; 16. adjusting a rod; 17. an adjustment hole; 18. a seat; 19. a wheel; 20. a rotating shaft; 21. and a limiting bolt.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: an intelligent transverse oval training device comprises a display panel 1, a connecting assembly 2, stand columns 3, a power main body 4, a motor 5, a driving gear 6, driven gears 7, crankshafts 8, pedals 9, a base 10, a seat foot 11, a limiting rod 12, a first spring 13, a limiting sleeve 14, a second spring 15, an adjusting rod 16, an adjusting hole 17, a seat 18, wheels 19, a rotating shaft 20 and a limiting bolt 21, wherein the connecting assembly 2 is arranged on the left side of the display panel 1, the stand columns 3 are fixedly connected to the left side of the connecting assembly 2, the power main body 4 is fixedly connected to the bottoms of the stand columns 3, the motor 5 is installed inside the power main body 4, the driving gear 6 is connected to the lower end of the right side of the motor 5, the driven gears 7 are connected to the front side and the rear side of the driving gear 6, the crankshafts 8 are fixedly connected to the right ends of the two groups, a base 10 is arranged below the two groups of pedals 9, seat legs 11 are arranged at four corners of the bottom of the base 10, limiting rods 12 are arranged inside the four groups of seat legs 11, first springs 13 are arranged outside the tops of the four groups of limiting rods 12, limiting sleeves 14 are connected to the tops of the four groups of first springs 13, second springs 15 are arranged at the tops of the four groups of seat legs 11, an adjusting rod 16 is arranged on the right side of one end, opposite to the two groups of pedals 9, of the right side of the opposite end of the two groups of pedals 9, an adjusting hole 17 is reserved in the outer wall of the rear side of the adjusting rod 16, a seat 18 is connected to the outside of the adjusting rod 16, wheels 19 are arranged between the seat 18 and the adjusting rod 16, a rotating shaft 20 is arranged inside the seat 18, and a.
In this example, the connecting assembly 2 is composed of a steering head 201, a fastener 202 and a fixing piece 203, the steering head 201 is located at the leftmost end of the connecting assembly 2, the fastener 202 is located on the right side of the steering head 201, and the fixing piece 203 is located on the right side of the fastener 202, the structure of the connecting assembly 2 is more stable due to the design, and the direction adjustment of the display panel 1 is realized through the cooperation among the steering head 201, the fastener 202 and the fixing piece 203;
the steering head 201 is connected with the fixing piece 203 in a clamping mode, the fixing piece 203 is connected with the fastener 202 in a threaded mode, the fixing piece 203 is rotated to adjust the angle by loosening the fastener 202, and the angle is fixed by tightening the fixing piece 203;
the driven gear 7, the crankshaft 8 and the pedal 9 are symmetrical about the longitudinal central line of the power main body 4, the driven gear 7 is meshed with the driving gear 6, and the pedal 9 and the crankshaft 8 form a rotating structure through a rotating bearing in the crankshaft 8, so that the driving gear 6 drives the driven gear 7 to rotate, the driven gear 7 drives the crankshaft 8 to rotate, the crankshaft 8 drives the pedal 9 to rotate, and the pedal 9 drives the feet of a patient to perform rehabilitation movement;
the seat legs 11 are symmetrical about the longitudinal center line of the base 10, and the seat legs 11 are in sliding connection with the base 10, so that the base 10 and the seat legs 11 can buffer and absorb shock through the second springs 15, and pain of a patient caused by inertia force is reduced;
the limiting sleeve 14 is in sliding connection with the limiting rod 12, the limiting sleeve 14 and the limiting rod 12 are tightly attached to the first spring 13, and the design facilitates the counterforce of the first spring 13 to buffer and absorb shock for the limiting sleeve 14;
the adjusting holes 17 are distributed on the outer wall of the rear side of the adjusting rod 16 at equal intervals, the adjusting rod 16 is in sliding connection with the wheels 19, the wheels 19 and the seat 18 form a rotating structure through the rotating shaft 20, the position of the seat 18 is adjusted through the sliding of the wheels 19 in the adjusting rod 16 due to the design, and the seat 18 is fixed through the adjusting holes 17 distributed at equal intervals and matched with the limiting bolts 21.
The working principle is as follows: the intelligent transverse elliptical training device comprises the steps that firstly, the fastener 202 is loosened, the fixing piece 203 is rotated on the steering head 201 to adjust the angle of the display panel 1 to an appropriate angle, the fastener 202 is tightened, the position of the seat 18 is adjusted upwards by loosening the limiting bolt 21, meanwhile, the seat 18 drives the wheel 19 to slide in the adjusting rod 16, and the limiting bolt 21 is tightened to fix the position of the seat 18 after the appropriate height and distance are adjusted, so that the adjustment of the angle of the display panel 1 and the position of the seat 18 is realized;
when a patient with arthritis carries out rehabilitation training, the motor 5 drives the driving gear 6 to rotate, the driving gear 6 drives the symmetrical driven gears 7 to rotate in opposite directions, the driven gears 7 rotate and simultaneously drive the crankshafts 8 to rotate, so that the pedals 9 are driven to rotate, equipment rotation is realized, and the legs of the patient are driven to move;
in the equipment operation process, when footboard 9 drove the patient both legs and rotates, the inertial force effect of production can produce reaction force to ground, to influencing patient rehabilitation training easily, seat foot 11 through the symmetry setting, the shock attenuation is cushioned in cooperation second spring 15, when the equipment operation, base 10 is through driving stop collar 14 extrusion first spring 13, the reaction force of first spring 13 provides the buffering shock attenuation for stop collar 14, thereby avoid equipment to cause the injury because being used to the patient.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a horizontal oval trainer of intelligence, includes display panel (1) and motor (5), its characterized in that: the left side of the display panel (1) is provided with a connecting component (2), the left side of the connecting component (2) is fixedly connected with an upright post (3), the bottom of the upright post (3) is fixedly connected with a power main body (4), the motor (5) is installed inside the power main body (4), the lower end of the right side of the motor (5) is connected with a driving gear (6), the front side and the rear side of the driving gear (6) are respectively connected with a driven gear (7), meanwhile, the right ends of the two groups of driven gears (7) are respectively and fixedly connected with a crankshaft (8), the right sides of the two groups of crankshafts (8) are respectively connected with a pedal (9), a base (10) is arranged below the two groups of pedals (9), base feet (11) are respectively arranged at the four corners of the bottom of the base (10), limiting rods (12) are respectively installed inside the four groups of base feet (11), and first springs (, and the tops of the four groups of first springs (13) are all connected with limiting sleeves (14), the tops of the four groups of seat feet (11) are all provided with second springs (15), the right side of one end, opposite to the pedals (9), of the two groups of pedals (9) is provided with an adjusting rod (16), an adjusting hole (17) is reserved in the outer wall of the rear side of the adjusting rod (16), a seat (18) is connected to the outer portion of the adjusting rod (16), wheels (19) are arranged between the seat (18) and the adjusting rod (16), a rotating shaft (20) is arranged inside the seat (18), and a limiting bolt (21) is installed on the rear side of the seat (18).
2. The intelligent transverse ellipse training device of claim 1, wherein: the connecting assembly (2) is composed of a steering head (201), a fastener (202) and a fixing piece (203), the steering head (201) is located at the leftmost end of the connecting assembly (2), the fastener (202) is located on the right side of the steering head (201), and the fixing piece (203) is located on the right side of the fastener (202).
3. The intelligent transverse ellipse training device of claim 1, wherein: the steering head (201) is connected with the fixing piece (203) in a clamping mode, and the fixing piece (203) is connected with the fastening piece (202) in a threaded mode.
4. The intelligent transverse ellipse training device of claim 1, wherein: the driven gear (7), the crankshaft (8) and the pedal (9) are symmetrical about a longitudinal central line of the power main body (4), the driven gear (7) is in meshed connection with the driving gear (6), and the pedal (9) and the crankshaft (8) form a rotating structure through a rotating bearing in the crankshaft (8).
5. The intelligent transverse ellipse training device of claim 1, wherein: the seat legs (11) are symmetrical about the longitudinal center line of the base (10), and the seat legs (11) are in sliding connection with the base (10).
6. The intelligent transverse ellipse training device of claim 1, wherein: be sliding connection between stop collar (14) and gag lever post (12), and stop collar (14) and gag lever post (12) all are connected with first spring (13) block.
7. The intelligent transverse ellipse training device of claim 1, wherein: the adjusting holes (17) are distributed on the outer wall of the rear side of the adjusting rod (16) at equal intervals, the adjusting rod (16) is in sliding connection with the wheels (19), and the wheels (19) and the seat (18) form a rotating structure through a rotating shaft (20).
