CN113068367A

CN113068367A - Noise reduction cooling formula machine controller

Info

Publication number: CN113068367A
Application number: CN202110489561.2A
Authority: CN
Inventors: 王万年; 王天甜; 唐慧; 唐洪珍; 孙会昌
Original assignee: Keda Automation Group Co ltd
Current assignee: Keda Automation Group Co ltd
Priority date: 2021-05-06
Filing date: 2021-05-06
Publication date: 2021-07-02
Anticipated expiration: 2041-05-06
Also published as: CN113068367B

Abstract

A noise reduction and cooling type motor controller, comprising: a box body, a controller body, and an operation panel; first support rods are respectively fixed at four corners on the bottom surface of the box body, and a first rubber is independently fixed on each of the first support rods The second support rods are respectively fixed at the four corners of the outer bottom surface of the controller body, each second support rod is independently installed with a second rubber plug, a support frame is installed inside the box body, the piston cylinder is fixed on the support frame, and the first rubber plug is installed Both the plug and the second rubber plug are located inside the piston cylinder, a buffer spring is arranged between the first rubber plug and the second rubber plug, a gap is left between the box body and the control box body, and the gap is filled with coolant. The controller body is wrapped by the coolant, and the coolant can absorb the noise generated when the controller body works, reduce noise diffusion, and then achieve overall noise reduction.

Description

Noise reduction cooling formula machine controller

Technical Field

The invention relates to the technical field of motor controllers, in particular to a noise-reducing and temperature-reducing motor controller.

Background

The motor controller is an integrated circuit which controls the motor to work according to the set direction, speed, angle and response time through active work. The simplest motor controller is a switch that connects the motor to a power source, such as a small household appliance or power tool. The switch may be operated manually or the motor may be automatically started or stopped using a relay or contactor connected to some sensor. The switch may have different selectable positions to allow the motor to be connected to the power source in different ways, which may include reducing the voltage at the start of the motor, reversing the operation, or selecting different speeds. Small controllers may omit overload and overcurrent protection devices, where external overcurrent protection circuitry is used to prevent excessive current flow, and small motors have built-in overload protection, which automatically opens to prevent overload. Larger motors may incorporate overload or temperature sensing relays in the controller, and fuses or circuit breakers to protect the machine from overcurrents, and may also include limit switches or other devices to protect the machine. The large motor controller integrates various circuit elements, so that the inside of the large motor controller can generate larger heat when in use, the existing large motor controller has poor heat dissipation effect, the internal elements of the controller are easily damaged due to overhigh heat generated by the controller when in use, the noise of the controller is larger when in use, and the noise reduction effect is poor.

Disclosure of Invention

The invention aims to solve the problems of high noise and poor noise reduction effect generated when a controller works, and aims to provide a noise-reducing and temperature-reducing motor controller.

The technical problem to be solved by the invention is realized by adopting the following technical scheme:

a noise-reducing and temperature-reducing motor controller comprising:

the controller comprises a box body, a controller body and an operation panel;

operating panel installs at the box lateral part, the controller body is located inside the box, the control box body passes through the wire with operating panel and is connected, four corners department is fixed with first bracing piece respectively on the inside bottom surface of box, independently is fixed with first rubber buffer on every first bracing piece, the second bracing piece is fixed respectively in controller body outside bottom surface four corners department, independently installs the second rubber buffer on every second bracing piece, box internally mounted has the support frame, be fixed with a piston section of thick bamboo on the support frame, first rubber buffer and second rubber buffer all are located inside the piston section of thick bamboo, be equipped with buffer spring between first rubber buffer and the second rubber buffer, leave the clearance between box and the control box body, it has the coolant liquid to fill in the clearance.

Further, controller body lateral part is equipped with vertical guide slot, slidable mounting has the locating lever in the vertical guide slot, equidistant connecting seat that is equipped with on the locating lever, articulated on every connecting seat be connected with head rod and second connecting rod, and the head rod end of the connection on the same locating lever is connected on first vaulting pole, and the second connecting rod end of connecting on the same locating lever is connected on the second vaulting pole, be equipped with the constant head tank on the box inside wall, first vaulting pole and the second vaulting pole of connecting on the same locating lever are located same constant head tank, be equipped with traction spring between head rod and the second connecting rod, the ring cover has the buffering gum cover on first vaulting pole and the second vaulting pole respectively.

Further, controller body lateral part is equipped with radiating fin, radiating fin runs through inside controller body lateral wall stretches into to the controller body, radiating fin is located and is equipped with horizontal spout on the outside part of control body, slidable mounting has the horizon bar in the horizontal spout, be equipped with the extrusion spring between horizon bar and the controller body, be located and be equipped with the bar groove on the head rod and the second connecting rod of locating lever the top respectively, be fixed with spacing projection on the horizon bar, spacing projection is located the bar groove.

Further, controller body internal portion is fixed with the heat dissipation frame, heat dissipation frame fixed mounting is on the radiating fin, the installation has the radiator fan on the heat dissipation frame, controller body internally mounted has the circulating pump, the radiating fan pivot is connected through the connecting axle to the circulating pump pivot, the circulating pump input is connected with the input pipeline, and the output is connected with the cooling return bend, the cooling return bend is fixed on the radiating fin, the cooling return bend all communicates the controller body outside with the input pipeline.

Further, a panel frame is arranged on the box body, a sealing groove is formed in the side portion of the panel frame, the operation panel is inserted into the sealing groove, a sealing rubber ring is arranged between the side portion of the operation panel and the panel frame, a first connecting cylinder is arranged on the side portion of the operation panel, a first outer convex ring is arranged at one end of the first connecting cylinder, a first limiting sleeve is sleeved on the first connecting cylinder, a first supporting spring is arranged between the first limiting sleeve and the operation panel, a second connecting cylinder is arranged on the controller body, a second outer convex ring is arranged on the second connecting cylinder, a second limiting sleeve is sleeved on the second connecting cylinder, a second supporting spring is arranged between the second limiting sleeve and the controller body, a rubber pipe is connected between the first connecting cylinder and the second connecting cylinder, one end of the rubber pipe is located between the first limiting sleeve and the first outer convex ring, and the other end of the rubber pipe is located between the second limiting sleeve and the second outer convex ring, the wire connected between the controller body and the operation panel passes through the rubber tube.

Furthermore, a supporting foot rest is arranged at the bottom of the box body.

Furthermore, a lifting handle is arranged on the side part of the box body.

The invention has the beneficial effects that:

the controller body is supported by the first support rod, the second support rod, the first rubber plug, the second rubber plug and the piston cylinder, so that the controller body is positioned in the box body, a gap between the box body and the controller body is filled with cooling liquid, heat generated by the controller can be cooled by the cooling liquid, and the controller body is wrapped by the cooling liquid, so that noise generated when the controller body works can be absorbed by the cooling liquid, noise diffusion is reduced, and further, integral noise reduction is realized.

Drawings

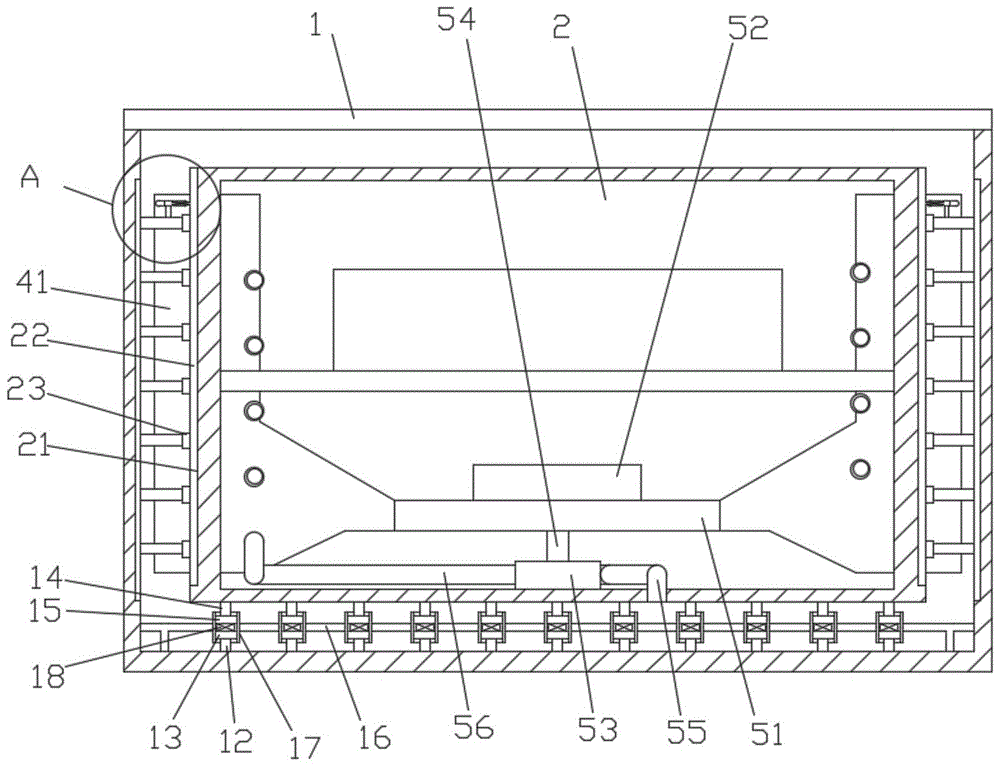

FIG. 1 is a vertical sectional view of the present invention;

FIG. 2 is a block diagram of the present invention;

FIG. 3 is an enlarged view of portion A of FIG. 1 in accordance with the present invention;

FIG. 4 is a transverse sectional view of the present invention;

FIG. 5 is an enlarged view of B in FIG. 4 according to the present invention;

FIG. 6 is a connection structure of the controller body and the operation panel according to the present invention;

in the figure: 1. a box body; 2. a controller body; 3. an operation panel; 12. a first support bar; 13. a first rubber plug; 14. a second support bar; 15. a second rubber plug; 16. a support frame; 17. a piston cylinder; 18. a buffer spring; 21. a vertical guide groove; 22. positioning a rod; 23. a connecting seat; 24. a first connecting rod; 25. a second connecting rod; 26. a first stay bar; 27. a second stay bar; 28. positioning a groove; 29. a traction spring; 30. a buffer rubber sleeve; 41. a heat dissipating fin; 42. a horizontal chute; 43. a horizontal bar; 44. a compression spring; 45. a strip-shaped groove; 46. a limiting convex column; 51. a heat dissipation frame; 52. a heat radiation fan; 53. a circulation pump; 54. a connecting shaft; 55. an input pipe; 56. cooling the bent pipe; 61. a panel frame; 62. a sealing groove; 63. sealing the rubber ring; 64. a first connecting cylinder; 65. a first outer convex ring; 66. a first stop collar; 67. a first support spring; 68. a second connecting cylinder; 69. a second male ring; 70. a second stop collar; 71. a rubber tube; 72. a supporting foot rest; 73. lifting the handle; 74. a second support spring.

Detailed Description

In order to make the technical means, the creation characteristics, the achievement purposes and the effects of the invention easy to understand, the invention is further explained below by combining the specific drawings.

Example 1

As shown in fig. 1; a noise-reducing and temperature-reducing motor controller comprising:

the device comprises a box body 1, a controller body 2 and an operation panel 3;

operating panel 3 installs at 1 lateral part of box, controller body 2 is located inside box 1, the control box body passes through the wire with operating panel 3 and is connected, four corners department is fixed with first bracing piece 12 respectively on the inside bottom surface of box 1, independently is fixed with first rubber buffer 13 on every first bracing

piece

12, 2 outside bottom surface four corners departments of controller body respectively fix second bracing piece 14, independently installs second rubber buffer 15 on every second bracing

piece

14, 1 internally mounted of box has support frame 16, be fixed with piston barrel 17 on the support frame 16, first rubber buffer 13 and second rubber buffer 15 all are located inside piston barrel 17, be equipped with buffer spring 18 between first rubber buffer 13 and the second rubber buffer 15, leave the clearance between box 1 and the control box body, it has the coolant liquid to fill in the clearance.

A noise reduction cooling formula motor controller, theory of operation:

utilize first bracing piece 12, second bracing piece 14, first rubber buffer 13, second rubber buffer 15 and piston cylinder 17 support controller body 2, make controller body 2 fix a position inside box 1, clearance department fills the coolant liquid between box 1 and controller body 2, utilize the coolant liquid can cool down the heat that the controller produced, and because controller body 2 receives the parcel of coolant liquid, the coolant liquid can adsorb the noise that controller body 2 during operation produced, noise reduction diffusion, and then realize holistic making an uproar that falls.

Example 2

On the basis of example 1, as shown in FIGS. 4-5; the side portion of the controller body 2 is provided with a vertical guide groove 21, a positioning rod 22 is slidably mounted in the vertical guide groove 21, connecting seats 23 are equidistantly arranged on the positioning rod 22, a first connecting rod 24 and a second connecting rod 25 are hinged to each connecting seat 23, the end of the first connecting rod 24 connected to the same positioning rod 22 is connected to a first support rod 26, the end of the second connecting rod 25 connected to the same positioning rod 22 is connected to a second support rod 27, a positioning groove 28 is formed in the inner side wall of the box body 1, the first support rod 26 and the second support rod 27 connected to the same positioning rod 22 are located in the same positioning groove 28, a traction spring 29 is arranged between the first connecting rod 24 and the second connecting rod 25, and buffer rubber sleeves 30 are respectively sleeved on the first support rod 26 and the second support rod 27 in a ring manner.

Through setting up vertical guide slot 21 and locating lever 22 at 2 lateral parts of controller body, connecting seat 23 on the locating lever 22 connects head rod 24 and second connecting rod 25 to and set up traction spring 29 between head rod 24 and second connecting rod 25, utilize head rod 24 second connecting rod 25 to support between box 1 and controller body 2, avoid controller body 2 to take place the skew in box 1 inside, improve the location effect to controller body 2.

Example 3

On the basis of example 2, as shown in FIGS. 1-5; if 2 lateral parts of controller body are equipped with radiating fin 41, radiating fin 41 runs through 2 lateral walls of controller body and stretches into to controller body 2 inside, radiating fin 41 is located and is equipped with horizontal spout 42 on the outside part of control body, slidable mounting has horizontal pole 43 in the horizontal spout 42, be equipped with extrusion spring 44 between horizontal pole 43 and the controller body 2, be located and be equipped with bar groove 45 on the head rod 24 and the second connecting rod 25 of locating lever 22 the top respectively, be fixed with spacing projection 46 on the horizontal pole 43, spacing projection 46 is located bar groove 45.

Through set up the horizon bar 43 in horizontal spout 42, set up spacing projection 46 on the horizon bar 43, through promoting the horizon bar 43 along horizontal spout 42 and removing, and then drive spacing projection 46 and remove, because spacing projection 46 is arranged in bar groove 45 on head rod 24 and the second connecting rod 25 for contained angle between head rod 24 and the second connecting rod 25 that controller body 2 is with one side all keeps the same size, avoids controller body 2 to take place the slope.

Example 4

On the basis of example 3, as shown in fig. 1; the inside heat dissipation frame 51 that is fixed with of controller body 2, heat dissipation frame 51 fixed mounting is on radiating fin 41, install cooling fan 52 on the

heat dissipation frame

51, 2 internally mounted of controller body has circulating pump 53, the rotating shaft of circulating pump 53 passes through connecting axle 54 and connects the pivot of cooling fan 52, the circulating pump 53 input is connected with input pipeline 55, and the output is connected with cooling return bend 56, cooling return bend 56 is fixed on radiating fin 41, cooling return bend 56 all communicates controller body 2 outsidely with input pipeline 55.

Utilize inside radiator fan 52 of controller body 2 to rotate the inside air current flow of drive controller body 2, it is outside to drive the heat and transmit to controller body 2 through radiator fin 41, radiator fin 41 can contact the coolant liquid, and then the inside heat transmission of controller is accelerated, improve the cooling effect to controller body 2, and radiator fan 52 drives connecting axle 54 and drives circulating pump 53 work when rotating, make the outside coolant liquid of controller body 2 can flow in to cooling return bend 56, improve the cooling effect to controller body 2 inside.

Example 5

On the basis of embodiment 1, as shown in fig. 1 to 6, a panel frame 61 is arranged on the box body 1, a sealing groove 62 is arranged on the side portion of the panel frame 61, the operation panel 3 is inserted into the sealing groove 62, a sealing rubber ring 63 is arranged between the side portion of the operation panel 3 and the panel frame 61, a first connecting cylinder 64 is arranged on the side portion of the operation panel 3, a first outward protruding ring 65 is arranged at one end of the first connecting cylinder 64, a first limit sleeve 66 is sleeved on the first connecting cylinder 64, a first support spring 67 is arranged between the first limit sleeve 66 and the operation panel 3, a second connecting cylinder 68 is arranged on the controller body 2, a second outward protruding ring 69 is arranged on the second connecting cylinder 68, a second limit sleeve 70 is sleeved on the second connecting cylinder 68, a second support spring 74 is arranged between the second limit sleeve 70 and the controller body 2, a rubber tube 71 is connected between the first connecting cylinder 64 and the second connecting cylinder 68, one end of the rubber tube 71 is positioned between the first limiting sleeve 66 and the first outer convex ring 65, the other end is positioned between the second limiting sleeve 70 and the second outer convex ring 69, and a conducting wire connected between the controller body 2 and the operation panel 3 passes through the rubber tube 71. Utilize the rubber tube 71 to keep apart between operating panel 3 and the controller body 2, reduce the vibrations transmission of controller body 2, rubber tube 71 is connected with first connecting cylinder 64, second connecting cylinder 68 again and can plays sealed effect, avoids the coolant liquid adhesion on the wire of being connected between controller body 2 and operating panel 3.

The bottom of the box body 1 is provided with a supporting foot rest 72.

The side of the box body 1 is provided with a lifting handle 73.

The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. a noise reduction cooling type motor controller, is characterized in that, comprises:

Box, controller body, operation panel;

The operation panel is installed on the side of the box body, the controller body is located inside the box body, the control box body and the operation panel are connected by wires, and first support rods are respectively fixed at the four corners of the bottom surface of the box body, Each first support rod is independently fixed with a first rubber plug, the four corners of the outer bottom surface of the controller body are respectively fixed with a second support rod, and each second support rod is independently installed with a second rubber plug. A support frame is installed inside, a piston cylinder is fixed on the support frame, the first rubber plug and the second rubber plug are both located inside the piston cylinder, and a buffer spring is arranged between the first rubber plug and the second rubber plug , a gap is left between the box body and the control box body, and the gap is filled with coolant.

2 . The noise reduction and cooling type motor controller according to claim 1 , wherein a vertical guide groove is provided on the side of the controller body, and a positioning rod is slidably installed in the vertical guide groove. 3 . The positioning rods are provided with connecting seats at equal intervals, and each connecting seat is hingedly connected with a first connecting rod and a second connecting rod. The end of the second connecting rod connected to the positioning rod is connected to the second strut, the inner side wall of the box is provided with a positioning groove, and the first and second struts connected to the same positioning rod are located in the same positioning groove Among them, a traction spring is arranged between the first connecting rod and the second connecting rod, and a buffer rubber sleeve is respectively sleeved on the first strut and the second strut.

3 . The noise-reducing and cooling-type motor controller according to claim 2 , wherein radiating fins are provided on the side of the controller body, and the radiating fins extend through the side wall of the controller body to reach 3 . Inside the controller body, the cooling fins are located on the outer part of the controller body and are provided with a horizontal chute, a horizontal rod is slidably installed in the horizontal chute, and a compression spring is arranged between the horizontal rod and the controller body, The first connecting rod and the second connecting rod located at the top of the positioning rod are respectively provided with strip-shaped grooves, and the horizontal rod is fixed with a position-limiting convex column, and the position-limiting convex column is located in the strip-shaped groove.

4 . The noise reduction and cooling type motor controller according to claim 3 , wherein a heat dissipation frame is fixed inside the controller body, the heat dissipation frame is fixedly installed on the heat dissipation fins, and the heat dissipation frame is fixed on the heat dissipation frame. 5 . A cooling fan is installed, a circulating pump is installed inside the controller body, the rotating shaft of the circulating pump is connected to the rotating shaft of the cooling fan through a connecting shaft, an input pipe is connected to the input end of the circulating pump, and a cooling elbow is connected to the output end. The cooling elbow is fixed on the radiating fins, and the cooling elbow and the input pipe are both connected to the outside of the controller body.

5 . The noise reduction and cooling type motor controller according to claim 1 , wherein a panel frame is provided on the box body, a sealing groove is provided on the side of the panel frame, and the operation panel is inserted into the In the sealing groove, a sealing rubber ring is arranged between the side part of the operation panel and the panel frame; The first connecting cylinder is sleeved with a first limiting sleeve, a first supporting spring is arranged between the first limiting sleeve and the operation panel, the controller body is provided with a second connecting cylinder, the first A second outer convex ring is arranged on the two connecting cylinders, a second limiting sleeve is arranged on the upper ring of the second connecting cylinder, and a second supporting spring is arranged between the second limiting sleeve and the controller body. A rubber tube is connected between a connecting cylinder and a second connecting cylinder. One end of the rubber tube is located between the first limiting sleeve and the first outer convex ring, and the other end is located between the second limiting sleeve and the second outer convex ring. During this time, the wires connecting the controller body and the operation panel are passed through between the rubber tubes.

6 . The noise-reducing and cooling-type motor controller according to claim 1 , wherein the bottom of the box body is provided with a support leg. 7 .

7 . The noise-reducing and cooling-type motor controller according to claim 1 , wherein a pull handle is provided on the side of the box body. 8 .
