Abstract

本发明提供了一种灌装封盖机，属于封盖设备技术领域。该灌装封盖机，包括设置于底座上用于输送瓶体的输送装置、灌装装置和封盖装置；灌装装置通过设置的计量筒保证灌装的精确度，封盖装置通过振荡器保证输送瓶盖的稳定性。本发明提供的灌装封盖机，提高了生产效率、提高了灌装的精确度和降低了劳动成本。

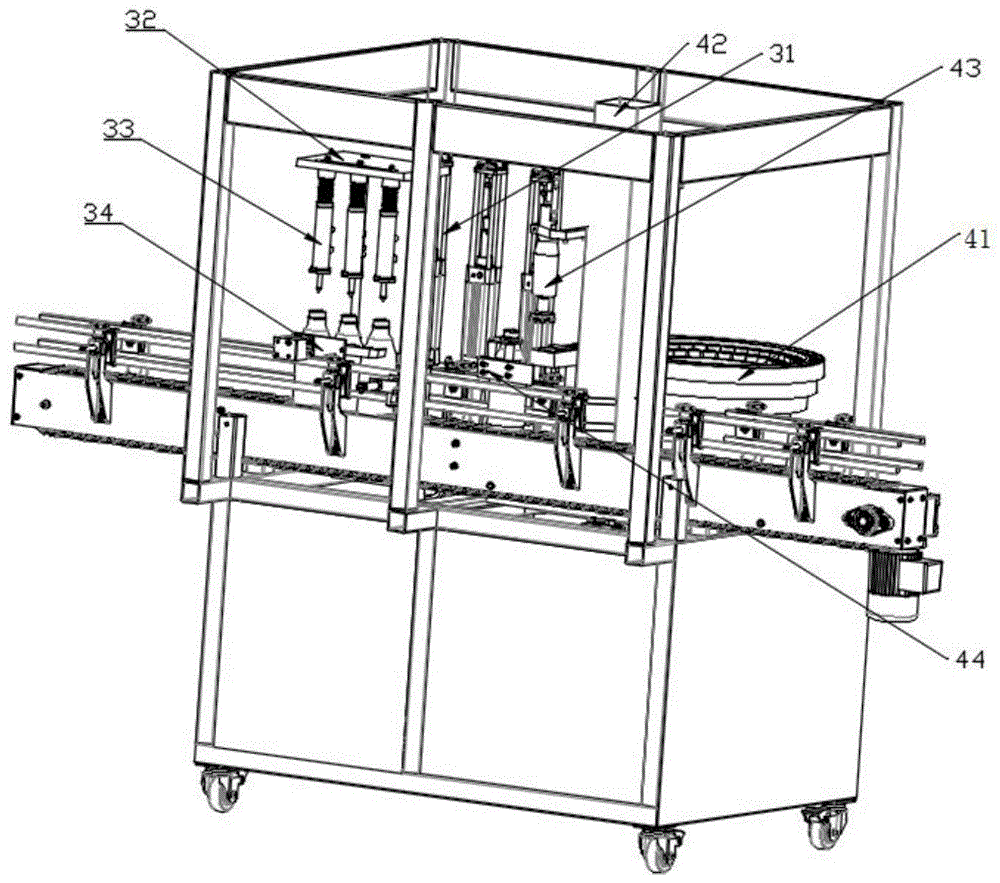

Figure 202110432427

The invention provides a filling and capping machine, which belongs to the technical field of capping equipment. The filling and capping machine includes a conveying device, a filling device and a capping device arranged on the base for conveying the bottle body; the filling device ensures the filling accuracy through the set measuring cylinder, and the capping device passes the oscillator Ensure the stability of conveying caps. The filling and capping machine provided by the invention improves the production efficiency, improves the filling accuracy and reduces the labor cost.

Figure 202110432427

Description

Filling and capping machine
Technical Field
The invention relates to the technical field of capping equipment, in particular to a filling capping machine.
Background
Filling machines are mainly a small class of products in a packaging machine and can be divided into a liquid filling machine, a paste filling machine, a powder filling machine and a particle filling machine from the aspect of packaging materials; the production automation degree is divided into a semi-automatic filling machine and a full-automatic filling production line. Recently, with QS certification of foods, manufacturers of edible oils have begun to focus on product quality and packaging, so oil filling machines have gained prominence in filling machines.
Conventional liquid filling machines are commonly used in the beverage making industry. When the beverage is made, the liquid filling machine can only fill the beverage into the plastic bottle, and can not seal the plastic bottle. And after filling, the workers carry the bottle to capping equipment and then cap the bottle. Such a working mode affects production efficiency and increases labor cost.
Disclosure of Invention
In view of the above, the present invention is directed to solving the above-mentioned shortcomings in the prior art, and therefore, the present invention provides a filling and capping machine, which improves the production efficiency, improves the filling accuracy and reduces the labor cost.
In order to achieve the above purpose, the invention provides the following technical scheme:
a filling and capping machine comprises a conveying device, a filling device and a capping device, wherein the conveying device is arranged on a base and used for conveying bottle bodies;
the filling device comprises a first lifting cylinder arranged on the base, a connecting plate connected to the output end of the first lifting cylinder and a metering cylinder connected to the lower end of the connecting plate, wherein a liquid inlet is formed in the side wall of the metering cylinder, and a liquid outlet is formed in the bottom end of the metering cylinder;
the cover sealing device comprises an oscillator arranged on the base and a supporting frame arranged on the base, the oscillator is connected to the base through an oscillator tray, an oscillator fixing column and an oscillator adjusting bolt, the oscillator is provided with a material containing cavity and a feeding rail, an outlet of the feeding rail is connected with a cover hanging rail, and the cover hanging rail corresponds to the cover sealing assembly;
the utility model discloses a sealing cover assembly, including support frame, first telescopic cylinder of fixedly connected with, on the mounting panel, the part of support frame contact is provided with the slide on the mounting panel, the output and the sliding connection of first telescopic cylinder in the one end of the second lift cylinder on the slide is connected, the output of second lift cylinder is connected with the closing cap subassembly.
Preferably, the conveying device comprises limiting blocks arranged at two ends of the conveying platform and limiting plates connected to the limiting blocks.
Preferably, the filling device further comprises a first positioning mechanism, the first positioning mechanism comprises a first positioning plate connected to the output end of a second telescopic cylinder, the second telescopic cylinder is arranged on the side wall of the conveying platform, a first positioning groove corresponding to the liquid outlet of the metering cylinder is arranged on the first positioning plate, and the opening of the first positioning groove is matched with the bottle body.
Preferably, one side of conveying platform is provided with linking bridge, linking bridge's bottom with conveying platform is connected, linking bridge's top with the limiting plate is connected, the flexible cylinder of second connect in linking bridge is last.
Preferably, the metering cylinder is connected with the connecting plate through a one-way valve, the one-way valve is communicated with the metering cylinder, the one-way valve comprises a valve body connected with the connecting plate and a valve core arranged in the valve body, and a spring is sleeved on a valve rod of the valve core.
Preferably, the retainer plate extends to be inwardly curved adjacent the capping device.
Preferably, the capping device further comprises a second positioning mechanism arranged on the limiting plate, the second positioning mechanism comprises a second positioning plate, the second positioning plate comprises an upper plate and a lower plate which are connected through a stand column, a second positioning groove matched with the bottle diameter is formed in the upper plate, and a third positioning groove matched with the bottle body is formed in the lower plate.
Preferably, a through hole is formed in the hanging cover rail, a push rod is correspondingly arranged below the through hole, and the push rod is connected with the output end of a third lifting cylinder arranged on the base.
Preferably, universal wheels are arranged at four corners of the base.
Compared with the prior art, the invention has the following beneficial effects:
1. according to the filling and capping machine, the metering cylinder is adopted in the filling device, so that the capacity of the bottle body which can be filled can be accurately controlled, waste caused by overflow of materials is avoided, the filling accuracy is improved, and the working efficiency is improved.
2. The filling and capping machine provided by the invention has the advantages that the capping device adopts the oscillator to convey the bottle caps, the oscillator is simple in structure, the bottle cap conveying efficiency is higher than that of other bottle cap conveying devices in the prior art, and the conveying stability of the oscillator is far better than that of other bottle cap conveying devices in the prior art.
3. According to the filling and capping machine provided by the invention, the limiting blocks and the limiting plates arranged on the conveying device are matched for use, so that the phenomenon that the bottle body is toppled in the conveying process is prevented, and the limiting plates are provided with the guide openings, so that the bottle body after filling can be matched with the second positioning mechanism, and the stability of the capping device is further improved.
4. According to the filling and capping machine provided by the invention, through holes are formed in the cap hanging rail, the through holes correspond to the ejector rods, the third lifting cylinder is used for realizing upward conveying of the bottle caps by the ejector rods, and the cooperation of the ejector rods and the capping assembly improves the capping efficiency.
Drawings
FIG. 1 is a front view of the present invention;
FIG. 2 is a schematic perspective view of the present invention;
FIG. 3 is a schematic view of the delivery apparatus of the present invention;
FIG. 4 is an enlarged view of the filling apparatus;
FIG. 5 is an enlarged view of the capping device;
FIG. 6 is a schematic view of the valve body and the valve core;
FIG. 7 is a schematic view of a second positioning mechanism;
in the figure, 1, a base, 2, a conveying device, 21, a conveying platform, 22, a conveying belt, 23, a limiting block, 24, a limiting plate, 25, a connecting bracket, 3, a filling device, 31, a first lifting cylinder, 32, a connecting plate, 33, a metering cylinder, 331, an liquid inlet, 332, a liquid outlet, 333, a spring, 334, a valve body, 335, a valve core, 336, a valve rod, 34, a first positioning mechanism, 341, a second telescopic cylinder, 342, a first positioning plate, 3421, a first positioning groove, 4, a capping device, 41, an oscillator, 411, a material containing cavity, 412, a feeding rail, 413, a hanging cover rail, 4131, a through hole, 4132, a mandril, 4133, a third lifting cylinder, 42, a supporting bracket, 421, a mounting plate, 422, a first telescopic cylinder, 423, a slideway, 424, a second lifting cylinder, 43, a capping assembly, 44, a second positioning mechanism, 441, a second positioning plate, 442, 443. the upper plate, 4431, the second positioning groove, 444, the lower plate, 4441, the third positioning groove and 5, the universal wheel.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention more apparent, the technical solutions of the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings of the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be obtained by a person skilled in the art without any inventive step based on the embodiments of the present invention, are within the scope of the present invention. Thus, the following detailed description of the embodiments of the present invention, presented in the figures, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention.
As shown in fig. 1-5, the present invention provides a filling and capping machine, which comprises a conveying device 2, a filling device 3 and a capping device 4, which are arranged on a base 1 and used for conveying bottle bodies;
the filling device 31 comprises a first lifting cylinder 31 arranged on the base, a connecting plate 32 connected to the output end of the first lifting cylinder 31, and a metering cylinder 33 connected to the lower end of the connecting plate 32, wherein a liquid inlet 331 is arranged on the side wall of the metering cylinder 33, and a liquid outlet 332 is arranged at the bottom end of the metering cylinder 33;
the cover sealing device 4 comprises an oscillator 41 arranged on the base 1 and a supporting frame 42 arranged on the base 1, the oscillator 41 is connected to the base 1 through an oscillator tray, an oscillator fixing column and an oscillator adjusting bolt, the oscillator 41 is provided with a material containing cavity 411 and a feeding rail 412, the outlet of the feeding rail 412 is connected with a cover hanging rail 413, and the cover hanging rail 413 corresponds to the cover sealing component 43;
support frame 42 upper end is provided with the mounting panel 421 of L type, the first telescopic cylinder 422 of fixedly connected with on the mounting panel 421, on the mounting panel 421 with the part of support frame 42 contact is provided with slide 423, first telescopic cylinder 422's output with sliding connection in the one end of the second lift cylinder 424 on the slide 423 is connected, the output of second lift cylinder 24 is connected with closing cap subassembly 43.
In the invention, in order to be convenient to disassemble and maintain, the connection mode among all parts in the structure is selected to be bolt connection. For example: the cylinder is connected with the base through bolts, the metering cylinder is connected with the connecting plate through bolts, and the like, and the description is omitted.
In the present invention, the conveyor 2 is conveyed by the conveyor belt 22.
In order to prevent the bottle bodies from falling down during the conveying process, in the invention, the conveying device 2 comprises limiting blocks 23 arranged at two ends of the conveying platform 21 and limiting plates 24 connected to the limiting blocks 23.
In order to improve the filling stability, in the present invention, the filling device 2 further includes a first positioning mechanism 34, the first positioning mechanism 34 includes a first positioning plate 342 connected to an output end of a second telescopic cylinder 341, the second telescopic cylinder 341 is disposed on a side wall of the conveying platform 21, a first positioning groove 3421 corresponding to the liquid outlet 332 of the metering cylinder 33 is disposed on the first positioning plate 342, and an opening of the first positioning groove 3421 is adapted to the bottle body.
In the present invention, a connecting bracket 25 is disposed on one side of the conveying platform 21, the bottom end of the connecting bracket 25 is connected to the conveying platform 21, the top end of the connecting bracket 25 is connected to the limiting plate 24, and the second telescopic cylinder 341 is connected to the connecting bracket 25.
In the invention, the metering cylinder 33 is connected with the connecting plate through a one-way valve, the one-way valve is communicated with the metering cylinder 33, the one-way valve comprises a valve body 334 connected with the connecting plate 32 and a valve core 335 arranged in the valve body 334, and a valve rod 336 of the valve core 335 is sleeved with a spring 333.
In the present invention, the retainer plate 24 extends to be bent inward near the capping device 4.
In the present invention, the capping device 4 further includes a second positioning mechanism 44 disposed on the stopper plate 24, the second positioning mechanism 44 includes a second positioning plate 441, the second positioning plate 441 includes an upper plate 443 and a lower plate 444 connected by a column 442, the upper plate 443 is provided with a second positioning slot 4431 adapted to the diameter of the bottle, and the lower plate 444 is provided with a third positioning slot 4441 adapted to the bottle.
The inwardly bent stopper plate 24 cooperates with the second positioning mechanism 44 to improve the stability of the closure.
In order to improve the stability of the cover closing assembly 43, in the present invention, a through hole 4131 is formed in the cover hanging rail 413, a top rod 4132 is correspondingly formed below the through hole 4131, and the top rod 4132 is connected to an output end of a third lifting cylinder 4133 provided on the base 1.
In order to realize the convenient movement of the cover sealing device, universal wheels 5 are arranged at four corners of the base 1.
The working principle of the invention is as follows:
when the filling and capping machine is used for production, workers sequentially place the bottles on the conveying device 2, and the bottles are conveyed to the filling device 3 under the action of the conveying belt 22, and the phenomenon that the bottles topple over in the conveying process is avoided due to the fact that the limiting block 23 and the limiting rod 24 are arranged on the conveying device 2.
The second telescopic cylinder 341 in the first positioning mechanism 34 of the filling device 3 starts to move, and drives the first positioning plate 342 to start to move, so that the first positioning groove 3421 on the first positioning plate 342 is adapted to the bottle body, so as to ensure the stability of filling, at this time, the first lifting cylinder 31 drives the metering cylinder 33 on the connecting plate 32 to move downwards, so that the liquid outlet 332 of the metering cylinder 33 corresponds to the bottle opening, filling is completed under the action of the valve body 334 and the valve core 335, and the capacity of bottle body containing can be accurately controlled due to the arrangement of the metering cylinder 33.
After filling, the bottle body enters the capping device 4, the bottle body enters the second positioning mechanism 44 through the inward bending part of the limiting plate 24, the stability of the capping is further ensured by the second positioning mechanism 44, at this time, the oscillator 41 is opened, the bottle cap enters the hanging-capping track 413 along the feeding track 412 under the action of the oscillator 41, at this time, the bottle cap on the hanging-capping track 413 is picked up by the capping component 43 under the action of the second lifting air rod 424, and the capping component 43 is enabled to finish the capping corresponding to the bottle mouth under the action of the first telescopic air cylinder 422.
In order to further improve the capping efficiency of the capping device 4, in the present invention, a through hole 4131 is further formed on the capping rail 413, a lift rod 4132 and a third lifting cylinder 4133 are correspondingly disposed below the through hole 4131, and the cap is lifted up under the action of the lift rod 4132 and the third lifting cylinder 4133, so that the capping assembly 43 can pick up the cap more quickly for capping.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (9)

1.一种灌装封盖机，其特征在于，包括设置于底座上用于输送瓶体的输送装置、灌装装置和封盖装置；1. A filling and capping machine, characterized in that it comprises a conveying device, a filling device and a capping device that are arranged on a base for conveying bottle bodies; 所述灌装装置包括设置于所述底座上的第一升降气缸、连接于所述第一升降气缸输出端的连接板和连接于所述连接板下端的计量筒，所述计量筒的侧壁设置有进液口，所述计量筒的底端设置有出液口；The filling device includes a first lifting cylinder arranged on the base, a connecting plate connected to the output end of the first lifting cylinder, and a measuring cylinder connected to the lower end of the connecting plate, and the side wall of the measuring cylinder is provided with There is a liquid inlet, and the bottom end of the measuring cylinder is provided with a liquid outlet; 所述封盖装置包括设置于所述底座上的振荡器和设置于所述底座上的支撑架，所述振荡器通过振荡器托板盘、振荡器固定柱和振荡器调节螺栓连接于所述底座上，所述振荡器具有盛料腔和送料轨道，所述送料轨道的出口连接有挂盖轨道，所述挂盖轨道与封盖组件相对应；The capping device includes a vibrator set on the base and a support frame set on the base, the vibrator is connected to the vibrator through the vibrator tray, the vibrator fixing column and the vibrator adjusting bolt. On the base, the oscillator has a material holding cavity and a feeding track, the outlet of the feeding track is connected with a cover-hanging track, and the cover-hanging track corresponds to the cover assembly; 所述支撑架上端设置有L型的安装板，所述安装板上固定连接有第一伸缩气缸，所述安装板上与所述支撑架接触的部分设置有滑道，所述第一伸缩气缸的输出端与滑动连接于所述滑道上的第二升降气缸的一端相连接，所述第二升降气缸的输出端连接有所述封盖组件。The upper end of the support frame is provided with an L-shaped mounting plate, the first telescopic cylinder is fixedly connected to the mounting plate, and the part of the mounting plate in contact with the support frame is provided with a slideway, and the first telescopic cylinder is The output end of the second lift cylinder is connected to one end of the second lift cylinder slidably connected to the slideway, and the cover assembly is connected to the output end of the second lift cylinder. 2.根据权利要求1所述的一种灌装封盖机，其特征在于，所述输送装置包括设置于输送平台两端的限位块和连接于所述限位块的限位板。2 . The filling and capping machine according to claim 1 , wherein the conveying device comprises limit blocks arranged at both ends of the conveying platform and limit plates connected to the limit blocks. 3 . 3.根据权利要求2所述的一种灌装封盖机，其特征在于，所述灌装装置还包括第一定位机构，所述第一定位机构包括连接于第二伸缩气缸输出端的第一定位板，所述第二伸缩气缸设置于所述输送平台的侧壁上，所述第一定位板上设置有与所述计量筒的出液口相对应的第一定位槽，所述第一定位槽的开口与瓶体相适应。3 . The filling and capping machine according to claim 2 , wherein the filling device further comprises a first positioning mechanism, and the first positioning mechanism comprises a first positioning mechanism connected to the output end of the second telescopic cylinder. 4 . a positioning plate, the second telescopic cylinder is arranged on the side wall of the conveying platform, the first positioning plate is provided with a first positioning groove corresponding to the liquid outlet of the measuring cylinder, the first positioning groove The opening of the positioning groove is adapted to the bottle body. 4.根据权利要求3所述的一种灌装封盖机，其特征在于，所述输送平台的一侧设置有连接支架，所述连接支架的底端与所述输送平台相连接，所述连接支架的顶端与所述限位板相连接，所述第二伸缩气缸连接于所述连接支架上。4 . The filling and capping machine according to claim 3 , wherein a connecting bracket is provided on one side of the conveying platform, and the bottom end of the connecting bracket is connected with the conveying platform. 5 . The top end of the connecting bracket is connected to the limiting plate, and the second telescopic cylinder is connected to the connecting bracket. 5.根据权利要求1所述的一种灌装封盖机，其特征在于，所述计量筒通过单向阀与所述连接板相连接，所述单向阀与所述计量筒相连通，所述单向阀包括连接于所述连接板的阀体和设置于所述阀体内的阀芯，所述阀芯的阀杆上套设有弹簧。5. A filling and capping machine according to claim 1, wherein the measuring cylinder is connected with the connecting plate through a one-way valve, and the one-way valve is communicated with the measuring cylinder, The one-way valve includes a valve body connected to the connecting plate and a valve core arranged in the valve body, and a valve stem of the valve core is sleeved with a spring. 6.根据权利要求2所述的一种灌装封盖机，其特征在于，所述限位板延伸至靠近所述封盖装置处向内弯曲。6 . The filling and capping machine according to claim 2 , wherein the limiting plate extends to a position close to the capping device and bends inward. 7 . 7.根据权利要求2所述的一种灌装封盖机，其特征在于，所述封盖装置还包括设置于所述限位板上的第二定位机构，所述第二定位机构包括第二定位板，所述第二定位板包括通过立柱相连接的上板和下板，所述上板上开设有与瓶径相适应的第二定位槽，所述下板上开设有与瓶体相适应的第三定位槽。7 . The filling and capping machine according to claim 2 , wherein the capping device further comprises a second positioning mechanism arranged on the limiting plate, and the second positioning mechanism comprises a first positioning mechanism. 8 . Two positioning plates, the second positioning plate includes an upper plate and a lower plate connected by a column, the upper plate is provided with a second positioning groove adapted to the diameter of the bottle, and the lower plate is provided with a bottle body A suitable third positioning groove. 8.根据权利要求1所述的一种灌装封盖机，其特征在于，所述挂盖轨道内开设有通孔，所述通孔下方对应设置有顶杆，所述顶杆与设置于底座上的第三升降气缸的输出端相连接。8 . The filling and capping machine according to claim 1 , wherein a through hole is opened in the cover hanging track, and a top rod is correspondingly provided below the through hole, and the top rod is connected with the top rod. 9 . The output end of the third lifting cylinder on the base is connected. 9.根据权利要求1-8中任一项所述的一种灌装封盖机，其特征在于，所述底座的四个角上设置有万向轮。9 . The filling and capping machine according to claim 1 , wherein the four corners of the base are provided with universal wheels. 10 .
