Abstract

The invention discloses an integrated fruit peeling, pitting, and juicing machine for food processing, comprising a base, an air pump is fixedly arranged on the top of the base, and a filter tube is fixedly installed on the left side of the air pump, and one end of the filter tube is Runs through the interior of the receiving box. The integrated fruit peeling, pitting, and juicing machine for food processing has a fixed block, a mobile block, a first screw, a turntable, a fixed box, a telescopic frame, an annular blade, a support block, a second screw, and a first drive motor. , The moving plate, the second driving motor, the rotating rod, the telescopic sleeve, the bottom shell, the electric push rod and the clamping claw cooperate with each other to facilitate the annular blade to extend into the inside of the fruit and contact the core, and the second driving motor drives the The gripping claw rotates to take out the pulp, so that the core will stay on the annular blade, which reduces the difficulty of people juicing the fruit, improves the use effect of the integrated juicer, meets people's requirements for the quality of fruit juicing, and improves the quality of fruit juice.

Description

A fruit peeling, pitting and juicing integrated machine for food processing

technical field

The invention relates to the technical field of food processing, in particular to an integrated fruit peeling, pitting, and juicing machine for food processing.

Background technique

Food processing refers to grain grinding, feed processing, vegetable oil and sugar processing, slaughtering and meat processing, aquatic product processing, and food such as vegetables, fruits and nuts directly using agricultural, forestry, animal husbandry, and fishery products as raw materials It is a type of agricultural product processing industry in a broad sense. At present, when people on the market are processing fruits, they often use a fruit peeling, pitting, and juicing integrated machine, but the existing peeling, pitting, and juicing integrated machine is used. The machine still has certain defects, such as:

1. The existing fruit peeling, pitting, and juicing machine is generally not very effective in removing the fruit, which increases the difficulty of people juicing the fruit, reduces the use effect of the juicer, and is easy to cause fruit. The core cannot be removed cleanly, which can not well meet people's requirements for the quality of fruit juice, which reduces the quality of fruit juice;

2. It is generally difficult to clean the juicer with the existing fruit peeling, pitting, and juicer. Because the juicer and the drive mechanism are integrated devices, when people clean the juicer, it is easy to cause people's cleaning. The increase in difficulty reduces people's cleaning efficiency, increases people's daily cleaning process, and cannot well meet people's daily cleaning needs;

3. The existing fruit peeling, pitting, and juicing machines are generally inconvenient to separate the peel and pit from the pulp. Most juicers are likely to cause the peel to be mixed into the pulp, which in turn increases people's concerns about the peel and the pulp. The difficulty of separation brings inconvenience to people's daily juicing;

In view of the above problems, it is urgent to carry out innovative design on the basis of the original structure of the fruit peeling, pitting, and juicing machine.

SUMMARY OF THE INVENTION

The object of the present invention is to provide a fruit peeling, pitting, juicing and pressing integrated machine for food processing, so as to solve the problem that the fruit peeling, pitting, and juicing integrated machine proposed in the above-mentioned background technology is generally not very good for fruit removal and fruit removal. It is generally not easy to clean the juicer with an integrated peeling and pitting juicer, and it is generally inconvenient to separate the peel and pit from the pulp.

In order to achieve the above purpose, the present invention provides the following technical solutions: an integrated fruit peeling, pitting, and juicing machine for food processing, comprising a base, the top of the base is fixedly provided with an air pump, and the left side of the air pump is fixedly installed with a A filter tube, and one end of the filter tube runs through the interior of the receiving box, and the receiving box is fixedly installed on the lower right side of the casing, and the top of the casing is movably connected with a top cover, and the inner top wall of the casing is fixedly installed There is a fixed block, and the inner top wall of the casing is movably connected with a movable block, and the right side of the mobile block is movably connected with a first screw, and the right end of the first screw penetrates the inner wall of the shell and is fixedly connected to the turntable, so The inner right wall of the casing is fixedly installed with a support block, and the inner wall of the support block is fixedly installed with a second screw rod, and the left end of the second screw rod is fixed with a first drive motor, and the outer wall of the second screw rod is threadedly connected with a At the same time, the top of the moving plate is fixedly installed with a second drive motor, the output shaft of the second drive motor is fixedly connected with a rotating rod through a coupling, and the bottom of the rotating rod is fixedly connected with a clamping claw, and the rotating rod It is fixedly installed on the inner wall of the telescopic sleeve, and the bottom of the telescopic sleeve is fixedly installed with a bottom shell, and the inner wall of the bottom shell is fixedly installed with an electric push rod. The outer wall of the screw is threadedly connected with a moving blade, and the left end of the third screw is fixed with a third drive motor, the inner bottom wall of the casing is fixedly installed with a fixed box, and the top of the fixed box is fixed with a telescopic frame, And the top of the telescopic frame is fixedly provided with an annular blade, the bottom of the right side of the casing is provided with a feeding port, and the bottom of the feeding port is fixedly provided with a juice extraction box, and the bottom of the juice extraction box is fixedly installed with a fixed motor, And the output shaft of the fixed motor is movably connected with a fixed rod through a coupling, and at the same time a limit slot is set at the bottom of the fixed rod, the outer wall of the fixed rod is movably connected with a belt, and the outer wall of the belt is movably connected with a rotating shaft, and the top of the rotating shaft is movably connected. A stirring blade is fixedly arranged, a regulating plate is fixedly installed on the front of the base, and a discharge port is fixedly arranged on the front of the juice box.

Preferably, the air suction pump forms a fixed structure with the receiving box through the filter tube, and the right end of the filter tube is fixedly connected to the air suction pump, and the right end of the filter tube penetrates the right side wall of the casing and extends into the receiving box. Connect inside the tank.

Preferably, the turntable constitutes a movable structure by a first screw rod and a moving block, and the shapes of the moving block and the fixed block are both concave, and the left side of the first screw of the turntable is attached to the right side of the moving block combine.

Preferably, the first driving motor forms a screw structure with the moving plate through the second screw, and the outer wall of the second screw is abutted with the inner wall of the moving plate.

Preferably, the third driving motor forms a screw structure with the moving blade through the third screw rod, and the moving blade is arranged on the outer wall of the third screw rod.

Preferably, the telescopic frame and the annular blade form a fixed structure, and the size of the annular blade is smaller than that of the fruit, and the size of the annular blade is larger than that of the fruit core.

Preferably, the fixed motor forms a rotating structure through a limit slot and a fixed rod, the shape of the limit slot is a cross shape, and the inner wall of the limit slot is in contact with the output shaft of the fixed motor.

Preferably, the stirring blades and the rotating shaft form a fixed structure, and the number of the stirring blades and the rotating shafts are both four, and the four stirring blades are equally spaced inside the juice extraction box.

Compared with the prior art, the beneficial effects of the present invention are: the integrated fruit peeling, pitting, and juicing machine for food processing;

1. There are fixed block, moving block, first screw, turntable, fixed box, telescopic frame, annular blade, support block, second screw, first drive motor, moving plate, second drive motor, rotating rod, With the cooperation of the telescopic sleeve, the bottom shell, the electric push rod and the clamping claw, it is convenient to fix the fruit by moving the block, and the annular blade extends into the fruit to contact the core, and the second drive motor drives the clamping claw. Rotating, the pulp can be taken out, so that the core will stay on the annular blade, thereby reducing the difficulty of people juicing the fruit, improving the use effect of the integrated juicer, and removing the fruit core cleanly, which can be very good. It can meet people's requirements for the quality of fruit juice, and improve the quality of fruit juice;

2. Through the cooperation of the feeding port, the juice box, the fixed motor, the fixed rod, the limit groove, the belt, the rotating shaft, the stirring blade, the adjusting disc and the discharging port, the fixed motor can be fixed by rotating the adjusting disc. Move downward, so that the output shaft of the fixed motor is separated from the limit groove on the fixed rod, so that the rotating mechanism can be separated from the juice box. The juice box is removed, which facilitates the cleaning of the juice box, which can effectively reduce the difficulty of people's cleaning, improve people's cleaning efficiency, reduce people's daily cleaning process, and meet people's needs. daily cleaning needs;

3. Through the cooperation of the base, the air pump, the filter tube, the receiving box and the casing, and under the action of the air pump, the peel and core inside the casing can be inhaled and collected through the receiving box. The inside of the material box, and under the action of the filter tube, can well prevent impurities from entering the inside of the receiving box, thereby reducing the difficulty of separating the peel and pulp, and bringing convenience to people's daily juicing.

Description of drawings

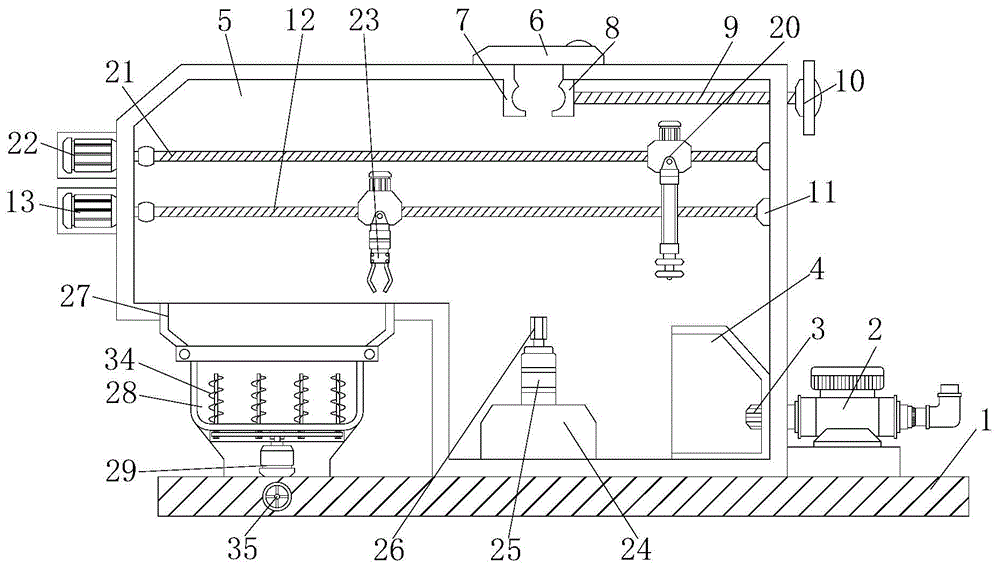

Fig. 1 is the front sectional structure schematic diagram of the present invention;

Fig. 2 is the structural schematic diagram of bottom shell and electric push rod of the present invention;

3 is a schematic diagram of the lifting structure of the telescopic frame according to the present invention;

FIG. 4 is a schematic structural diagram of the fixing rod and the limiting groove of the present invention;

Fig. 5 is the front structure schematic diagram of the present invention;

Fig. 6 is the top view structure schematic diagram of the present invention;

FIG. 7 is a schematic structural diagram of the telescopic frame and the annular blade of the present invention.

In the picture: 1. Base; 2. Air pump; 3. Filter tube; 4. Receiving box; 5. Housing; 6. Top cover; 7. Fixed block; 8. Moving block; 9. First screw 10, turntable; 11, support block; 12, second screw; 13, first drive motor; 14, moving plate; 15, second drive motor; 16, rotating rod; 17, telescopic sleeve; 18, bottom shell ;19, electric push rod; 20, moving blade; 21, third screw; 22, third drive motor; 23, clamping jaw; 24, fixed box; 25, telescopic frame; 26, annular blade; 27, feeding mouth; 28, juice box; 29, fixed motor; 30, fixed rod; 31, limit groove; 32, belt; 33, rotating shaft; 34, stirring blade; 35, adjusting disc; 36, discharge port.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

1-7, the present invention provides a technical solution: an integrated fruit peeling, pitting, and juicing machine for food processing, comprising a base 1, an air pump 2, a filter tube 3, a receiving box 4, and a casing 5 , top cover 6, fixed block 7, moving block 8, first screw 9, turntable 10, support block 11, second screw 12, first drive motor 13, moving plate 14, second drive motor 15, rotating rod 16. Telescopic sleeve 17, bottom shell 18, electric push rod 19, moving blade 20, third screw 21, third drive motor 22, clamping claw 23, fixed box 24, telescopic frame 25, annular blade 26, feeding Port 27, juice extraction box 28, fixed motor 29, fixed rod 30, limit groove 31, belt 32, rotating shaft 33, stirring blade 34, adjusting plate 35 and discharge port 36, the top of the base 1 is fixedly provided with an air pump 2 , and the filter tube 3 is fixedly installed on the left side of the air pump 2, and one end of the filter tube 3 runs through the interior of the receiving box 4, and the receiving box 4 is fixedly installed on the lower right side of the casing 5, while the casing 5 The top of the casing 5 is movably connected with a top cover 6, the inner top wall of the casing 5 is fixedly installed with a fixed block 7, and the inner top wall of the casing 5 is movably connected with a mobile blocking block 8, and the right side of the mobile blocking block 8 is movably connected with a The first screw 9, and the right end of the first screw 9 penetrates the inner wall of the casing 5 and is fixedly connected to the turntable 10, the inner right wall of the casing 5 is fixedly installed with a support block 11, and the inner wall of the support block 11 is fixedly installed with a second screw 12, and the left end of the second screw 12 is fixedly provided with a first drive motor 13, and the outer wall of the second screw 12 is threadedly connected with a moving plate 14, while the top of the moving plate 14 is fixedly installed with a second drive motor 15. The output shafts of the two driving motors 15 are fixedly connected with the rotating rod 16 through the coupling, and the bottom of the rotating rod 16 is fixedly connected with the clamping claw 23, and the rotating rod 16 is fixedly installed on the inner wall of the telescopic sleeve 17, and the telescopic sleeve The bottom shell 18 is fixedly installed on the bottom of 17, and the electric push rod 19 is fixedly installed on the inner wall of the bottom shell 18. The inner wall of the casing 5 is fixedly installed with a third screw 21, and the outer wall of the third screw 21 is threadedly connected with a moving blade. 20, and the left end of the third screw 21 is fixed with a third drive motor 22, the inner bottom wall of the casing 5 is fixed with a fixed box 24, and the top of the fixed box 24 is fixed with a telescopic frame 25, and the telescopic frame is fixed The top of 25 is fixedly provided with an annular blade 26, the bottom of the right side of the casing 5 is provided with a feeding port 27, and the bottom of the feeding port 27 is fixedly provided with a juicer box 28, and the bottom of the juicer box 28 is fixedly installed with a fixed The motor 29, and the output shaft of the fixed motor 29 is movably connected with a fixed rod 30 through a coupling, and a limiting slot 31 is opened at the bottom of the fixed rod 30, the outer wall of the fixed rod 30 is movably connected with a belt 32, and the outer wall of the belt 32 is movable A rotating shaft 33 is connected, and a stirring blade 34 is fixedly arranged on the top of the rotating shaft 33 , a regulating plate 35 is fixedly installed on the front of the base 1 , and a discharge port 36 is fixedly arranged on the front of the juice box 28 .

The air pump 2 forms a fixed structure with the receiving box 4 through the filter tube 3, and the right end of the filter tube 3 is fixedly connected with the air pump 2, and the right end of the filter tube 3 penetrates the right side wall of the casing 5 and extends. The inside of the receiving box 4 is connected, so that the air pump 2 can suck the peel and the fruit core in the casing 5 into the inside of the receiving box 4;

The turntable 10 forms a movable structure by the first screw 9 and the moving block 8, and the shapes of the moving block 8 and the fixed block 7 are both concave, and the left side of the first screw 9 of the turntable 10 and the right side of the moving block 8 are concave. It is convenient to rotate the turntable 10, and then drive the first screw 9 to rotate, so that the first screw 9 can push the moving block 8 to move, and approach the fixed block 7;

The first driving motor 13 forms a threaded structure through the second screw 12 and the moving plate 14, and the outer wall of the second screw 12 is in contact with the inner wall of the moving plate 14, which is convenient for the second screw 12 to be driven by the first driving motor 13. Rotate, so that the moving plate 14 can move on the second screw 12;

The third driving motor 22 forms a thread structure with the moving blade 20 through the third screw 21, and the moving blade 20 is arranged on the outer wall of the third screw 21, so that the third driving motor 22 can drive the third screw 21 to rotate, so that the moving blade 20 can be moved. The blade 20 can move on the third screw 21;

The telescopic frame 25 and the annular blade 26 constitute a fixed structure, and the size of the annular blade 26 is smaller than the size of the fruit, and the size of the annular blade 26 is larger than the size of the fruit core, which strengthens the fixing effect of the annular blade 26 and the telescopic frame 25, and facilitates expansion and contraction. The frame 25 can drive the annular blade 26 to move upward;

The fixed motor 29 forms a rotating structure through the limit slot 31 and the fixed rod 30, and the shape of the limit slot 31 is a cross shape, and the inner wall of the limit slot 31 is in contact with the output shaft of the fixed motor 29;

The stirring blades 34 and the rotating shaft 33 constitute a fixed structure, and the number of the stirring blades 34 and the rotating shafts 33 are both four, and the four stirring blades 34 are arranged in the juice box 28 at equal distances, so that the rotating shaft 33 can drive the stirring blades 34. Rotation is performed inside the juice extraction box 28, which improves the juice extraction effect of the device.

Working principle: When using the fruit peeling, pitting and juicing machine for food processing, according to Figure 1, Figure 2, Figure 3 and Figure 7, take out the top cover 6 on the casing 5, and place the fruit vertically On the fixed block 7, the turntable 10 on the casing 5 can be rotated at this time, so that the turntable 10 can drive the first screw 9 to rotate, and the first screw 9 is connected with the moving block 8, which can make the first screw 9 rotate. The screw 9 pushes the mobile block 8 to the left to move, so that the mobile block 8 can squeeze and fix the fruit on the fixed block 7. After the fixing is completed, the telescopic frame 25 on the fixed box 24 can be activated, so that the telescopic frame 25 The annular blade 26 can be driven to move, so that the annular blade 26 can extend into the interior of the fruit, and fit with the core, so as to bring the fruit to the interior of the casing 5. At this time, the third drive motor 22 can be activated to make The third driving motor 22 drives the third screw 21 to rotate, so that the moving blade 20 on the third screw 21 can peel the fruit. After the peeling is completed, the second driving motor 15 can be started, so that the second driving motor 15 can Drive the second screw 12 to rotate, so that the moving plate 14 on the second screw 12 can move, so that the moving plate 14 can move directly above the fruit, at this time, the electric push rod 19 in the bottom shell 18 can be activated to make the electric push rod 19 The rod 19 can push the clamping claw 23 to move downward, clamp and fix the peeled fruit, and activate the first driving motor 13 at the same time, so that the first driving motor 13 can drive the rotating rod 16 to rotate, so that the rotating rod 16 can rotate. Drive the clamping claw 23 to rotate, and at the same time, the clamping claw 23 can drive the peeled fruit to rotate, so that the inner pulp of the peeled fruit is separated from the core, and after separation, the clamping claw 23 can clamp the pulp away, and then in The core on the annular blade 26 will fall into the bottom of the casing 5, thereby achieving the purpose of removing the core;

According to Fig. 1, Fig. 4, Fig. 5 and Fig. 6, the clamped fruit will be directly thrown into the feeding port 27, and dropped into the juice box 28 through the feeding port 27, and the fixed motor can be activated at this time. 29, so that the fixed motor 29 can drive the fixed rod 30 to rotate, and the belt 32 is connected to the fixed rod 30, so that the belt 32 can drive the rotating shaft 33 to rotate, so that the rotating shaft 33 can drive the stirring blade 34 to rotate. The fruit in 28 is stirred and juiced, and the juiced liquid will be discharged through the discharge port 36. When the interior needs to be cleaned, the adjustment disk 35 can be rotated by rotating the adjustment disk 35. Various steering gears and screws are connected to the adjustment disk 35. , so that the fixed motor 29 can be moved downward, so that the output shaft on the fixed motor 29 can be separated from the limit groove 31 on the fixed rod 30, and the feeding port 27 and the juice box 28 are connected by bolts. At this time, the bolts can be removed, so that the juice box 28 can be removed and cleaned;

According to FIG. 1 and FIG. 3 , when it is necessary to clean the inner peel and fruit core of the casing 5, the air suction pump 2 on the base 1 can be activated, so that the air suction pump 2 can generate a larger suction force on the inside of the casing 5, It can make the peel and fruit core inside the casing 5 can be sucked into the inside of the receiving box 4, and the air pump 2 is provided with a filter tube 3, so that the filter tube 3 can filter the peel and the fruit core to avoid the peel and the fruit core. The fruit core enters the air pump 2, and after being collected and processed by the receiving box 4, the internal peel and fruit core can be easily cleaned.

Contents not described in detail in this specification belong to the prior art known to those skilled in the art.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. A fruit peeling, denucleating and juicing integrated machine for food processing, comprising a base (1), characterized in that: the top of the base (1) is fixedly provided with an air pump (2), and the air pump (2) A filter tube (3) is fixedly installed on the left side of the filter tube (3), and one end of the filter tube (3) runs through the interior of the receiving box (4), and the receiving box (4) is fixedly installed on the lower right side of the casing (5), At the same time, a top cover (6) is movably connected to the top of the casing (5), a fixing block (7) is fixedly installed on the inner top wall of the casing (5), and the inner top wall of the casing (5) is movably connected with a The block (8) is moved, and the right side of the block (8) is movably connected with a first screw (9), and the right end of the first screw (9) penetrates the inner wall of the casing (5) and is fixed to the turntable (10) connection, a support block (11) is fixedly installed on the inner right wall of the casing (5), a second screw (12) is rotatably installed on the inner wall of the support block (11), and the left side of the second screw (12) A first driving motor (13) is fixedly arranged at the end, and a moving plate (14) is threadedly connected to the outer wall of the second screw (12), and a second driving motor (15) is fixedly installed on the top of the moving plate (14), so The output shaft of the second drive motor (15) is fixedly connected with a rotating rod (16) through a coupling, and the bottom of the rotating rod (16) is fixedly connected with a clamping claw (23), and the rotating rod (16) is fixedly installed A bottom shell (18) is fixedly installed on the inner wall of the telescopic sleeve (17) and the bottom of the telescopic sleeve (17), and an electric push rod (19) is fixedly installed on the inner wall of the bottom shell (18). (5) A third screw (21) is rotatably mounted on the inner side wall of the third screw (21), and a movable blade (20) is threadedly connected to the outer wall of the third screw (21), and a third screw (21) is fixedly provided on the left end of the third screw (21). A drive motor (22), a fixing box (24) is fixedly installed on the inner bottom wall of the casing (5), and a telescopic frame (25) is fixedly arranged on the top of the fixing box (24), and the telescopic frame (25) is An annular blade (26) is fixedly arranged at the top, a feeding port (27) is provided at the bottom of the left side of the casing (5), and a juice extraction box (28) is fixedly arranged at the bottom of the feeding port (27), and A fixed motor (29) is fixedly installed on the bottom of the juice extraction box (28), and the output shaft of the fixed motor (29) is movably connected with a fixed rod (30) through a coupling, and a limit position is provided at the bottom of the fixed rod (30). groove (31), the outer wall of the fixing rod (30) is movably connected with a belt (32), and the outer wall of the belt (32) is movably connected with a rotating shaft (33), and the top of the rotating shaft (33) is fixedly provided with a stirring blade ( 34), a regulating plate (35) is fixedly installed on the front of the base (1), and a discharge port (36) is fixed on the front of the juice extraction box (28). 2. A kind of fruit peeling, pitting, and juicing integrated machine for food processing according to claim 1, characterized in that: the air pump (2) is fixed by the filter pipe (3) and the receiving box (4) structure, and the right end of the filter tube (3) is fixedly connected with the air pump (2), and the right end of the filter tube (3) penetrates the right side wall of the casing (5) and extends into the receiving box (4). ) inside the connection. 3. The fruit peeling, pitting, and juicing integrated machine for food processing according to claim 1, characterized in that: the turntable (10) constitutes a movement through the first screw (9) and the moving block (8). In addition, the shapes of the moving block (8) and the fixed block (7) are concave, and the left side of the first screw rod (9) is in contact with the right side of the moving block (8). 4. The fruit peeling, pitting, and juicing integrated machine for food processing according to claim 1, characterized in that: the first drive motor (13) passes through the second screw (12) and the moving plate (14) A screw structure is formed, and the outer wall of the second screw (12) is in contact with the inner wall of the moving plate (14). 5. The fruit peeling, pitting, and juicing integrated machine for food processing according to claim 1, characterized in that: the third drive motor (22) passes through the third screw (21) and the moving blade (20) A screw structure is formed, and the moving blade (20) is arranged on the outer wall of the third screw (21). 6. The fruit peeling, pitting, and juicing integrated machine for food processing according to claim 1, characterized in that: the telescopic frame (25) and the annular blade (26) constitute a fixed structure, and the annular blade (26) forms a fixed structure. ) is smaller than the size of the fruit, and the size of the annular blade (26) is larger than the size of the fruit pit. 7. The integrated fruit peeling, pitting, and juicing machine for food processing according to claim 1, characterized in that: the fixed motor (29) rotates through a limit groove (31) and a fixed rod (30) The shape of the limit slot (31) is a cross shape, and the inner wall of the limit slot (31) is in contact with the output shaft of the fixed motor (29). 8. A kind of fruit peeling, pitting, and juicing integrated machine for food processing according to claim 1, characterized in that: the stirring blade (34) and the rotating shaft (33) constitute a fixed structure, and the stirring blade (34) The number of the rotating shafts (33) is 4, and the 4 stirring blades (34) are arranged at the same distance inside the juice box (28).
