Abstract

The application discloses a camera module and an electronic device, and relates to the technical field of camera. The camera module includes: a casing; a lens; a suspension assembly, the suspension assembly is suspended in the casing, the suspension assembly includes a circuit board, an image sensor, an elastic connector and a focus motor, the image sensor is disposed on the circuit board, and the image sensor is opposite to the lens One end of the elastic connecting piece is connected with the housing, the other end of the elastic connecting piece is connected with the circuit board, the elastic connecting piece is a conductive piece, and the focusing motor is arranged in the housing , the focusing motor is connected with the lens, and the focusing motor is electrically connected with the circuit board through the elastic connecting piece; the driving mechanism, the driving mechanism is located between the casing and the suspension assembly, and the driving mechanism is connected with the circuit board, And drive the circuit board movement. The above solution can solve the problems of the current camera module having a large external size and high power consumption.

Description

Camera module and electronic equipment

technical field

The application belongs to the technical field of photography, and in particular relates to a camera module and electronic equipment.

Background technique

Nowadays, shooting technology has been applied to people's work, life, entertainment and other aspects, and consumers' demand for shooting is getting higher and higher, and how to get high-quality videos or photos has become an important issue that people pay attention to.

However, in the actual shooting process, camera shake is still an inevitable pain point. The traditional camera anti-shake is to correct the image offset caused by the shaking by panning or tilting the lens assembly when the hand shakes. However, with the rapid development of cameras towards large bottoms and high pixels, the weight of the lens is gradually increasing. In order to achieve greater thrust, a motor composed of coils, magnets and other components around the side of the lens drives the lens to focus. Or in the process of anti-shake, more coils and larger magnets are required to interact to provide greater driving force, which leads to a corresponding increase in the size of the motor, which is not conducive to the stacking of the whole machine. At the same time, the motor is focusing and The power consumption will also be greater during anti-shake.

Contents of the invention

The purpose of the embodiment of the present application is to provide a camera module and an electronic device, which can solve the problems of large external dimensions and high power consumption of the current camera module.

In order to solve the above-mentioned technical problems, the application is implemented as follows:

In the first aspect, the embodiment of the present application provides a camera module, the camera module includes:

case;

a lens, the lens is mounted on the casing, and one end of the lens is located outside the casing;

Suspension assembly, the suspension assembly is suspended in the housing, the suspension assembly includes a circuit board, an image sensor, an elastic connector and a focus motor, the image sensor is arranged on the circuit board, and the image sensor and the The lens is arranged opposite to each other, one end of the elastic connector is connected to the housing, the other end of the elastic connector is connected to the circuit board, the elastic connector is a conductive member, and the focus motor is arranged on the In the housing, the focus motor is connected to the lens, and the focus motor is electrically connected to the circuit board through the elastic connector;

A driving mechanism, the driving mechanism is arranged in the casing, the driving mechanism is located between the casing and the suspension assembly, the driving mechanism is connected with the circuit board, and drives the circuit board to move.

In a second aspect, the embodiment of the present application further provides an electronic device, the electronic device includes the above-mentioned camera module.

In the embodiment of the present application, the image sensor is installed on the circuit board. When shooting, the driving mechanism drives the circuit board to move, so that the shifted light rays converge to the center of the image sensor again, thereby realizing the lifting of the camera module. The purpose of anti-shake effect. Since the weight of the circuit board and the image sensor is smaller, the driving mechanism can be provided smaller and requires less energy to operate the driving mechanism. Therefore, the camera module disclosed in the embodiment of the present application can solve the problems of large external dimensions and high power consumption existing in the anti-shake of the current camera module.

Description of drawings

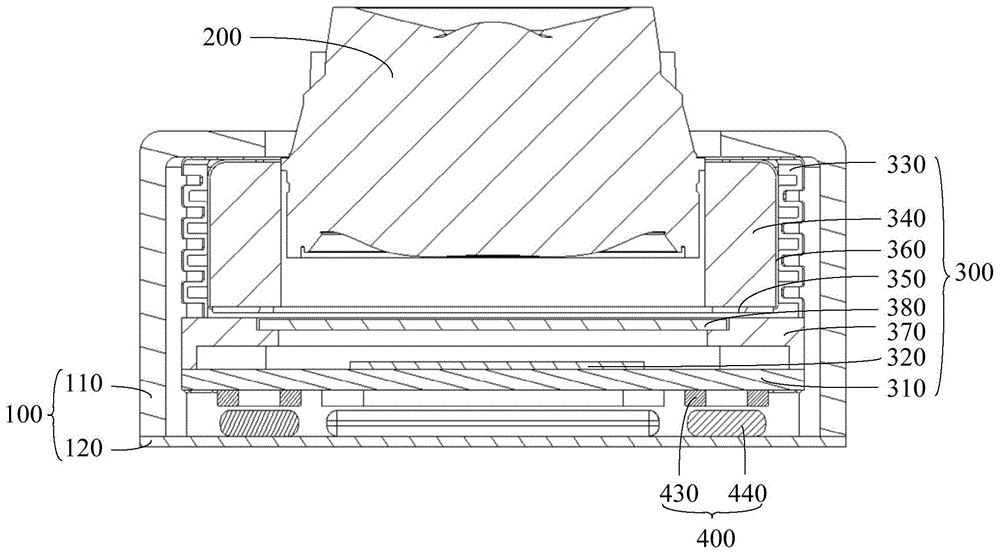

1 is a sectional view of a camera module disclosed in an embodiment of the present application;

FIG. 2 is an exploded view of the camera module disclosed in the embodiment of the present application;

3 to 4 are structural schematic diagrams of the focus motor in FIG. 2;

5 to 6 are schematic structural views of the bracket in FIG. 2;

Fig. 7 is a schematic structural diagram of the elastic connector in Fig. 2;

Fig. 8 is a schematic structural view of the first cover in Fig. 2;

Figures 9 to 15 are schematic diagrams of the assembled parts of the structure in Figure 2

Fig. 16 is a cross-sectional view of part of the structure in Fig. 2 after assembly;

Fig. 17 is a schematic structural diagram of the camera module disclosed in the embodiment of the present application;

FIG. 18 is a cross-sectional view of FIG. 17 .

Explanation of reference signs:

100-shell, 101-first surface, 102-third surface, 110-first cover, 120-second cover;

200-lens;

300-suspension component, 310-circuit board, 311-second surface, 312-flexible circuit board, 320-image sensor, 330-elastic connector, 331-first connecting plate, 332-bending section, 332a-first Strip part, 332b-second strip part, 333-second connecting plate, 340-focus motor, 341-first electrical conduction part, 342-bottom surface, 350-loading plate, 351-second electrical conduction part, 360 -electrical conductor, 361-first end, 362-second end, 370-support, 380-optical filter;

400-driving mechanism, 410-first driving mechanism, 420-second driving mechanism, 430-coil, 440-magnetic part.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present application with reference to the drawings in the embodiments of the present application. Obviously, the described embodiments are part of the embodiments of the present application, not all of them. Based on the embodiments in this application, all other embodiments obtained by persons of ordinary skill in the art without creative efforts fall within the protection scope of this application.

The terms "first", "second" and the like in the specification and claims of the present application are used to distinguish similar objects, and are not used to describe a specific sequence or sequence. It should be understood that the terms so used are interchangeable under appropriate circumstances such that the embodiments of the application can be practiced in sequences other than those illustrated or described herein, and that references to "first," "second," etc. distinguish Objects are generally of one type, and the number of objects is not limited. For example, there may be one or more first objects. In addition, "and/or" in the specification and claims means at least one of the connected objects, and the character "/" generally means that the related objects are an "or" relationship.

The camera module provided by the embodiment of the present application will be described in detail below through specific embodiments and application scenarios with reference to the accompanying drawings.

As shown in FIGS. 1 to 18 , the embodiment of the present application provides a camera module, which includes a casing 100 , a lens 200 , a suspension assembly 300 and a driving mechanism 400 .

The casing 100 provides the installation base for other components of the camera module, and the casing 100 can protect its internal components from the interference of the external environment.

The lens 200 is installed in the casing 100, and the lens 200 can be fixed relative to the casing 100. It can specifically include a lens barrel and a number of lenses installed in the lens barrel. The lenses can be made of one or more curved optical glass or Optical components made of plastic parts. The lens 200 can focus light to facilitate imaging. One end of the lens 200 can be located outside the housing 100 , that is, the light incident surface of the lens 200 is located outside the housing 100 , so that external light can enter the camera module smoothly.

The suspension assembly 300 is suspended in the casing 100. The suspension assembly 300 includes a circuit board 310 and an image sensor 320. The image sensor 320 is arranged on the circuit board 310. The image sensor 320 is arranged opposite to the lens 200. The light passing through the lens 200 can irradiate the image On the sensor 320, the image sensor 320 can convert light signals into electrical signals.

The driving mechanism 400 is disposed in the casing 100 , the driving mechanism 400 is located between the casing 100 and the suspension assembly 300 , the driving mechanism 400 is connected with the circuit board 310 , and drives the circuit board 310 to move. When shooting, when the user's hand shakes and the whole camera module shakes, the driving mechanism 400 drives the circuit board 310 to move, so as to achieve the purpose of anti-shaking of the camera module.

In the embodiment of the present application, the image sensor 320 is installed on the circuit board 310. When shooting, the driving mechanism 400 moves by driving the circuit board 310, so that the shifted light rays converge to the center of the image sensor 320 again, thereby The purpose of improving the anti-shake effect of the camera module is achieved. Since the weight of the circuit board 310 and the image sensor 320 is small, the driving mechanism 400 can be set smaller, and the driving mechanism 400 requires less energy to work. Therefore, the camera module disclosed in the embodiment of the present application can solve the problems of large external dimensions and high power consumption existing in the anti-shake of the current camera module.

In an optional embodiment, the driving mechanism 400 can drive the circuit board 310 to rotate relative to the lens 200 . When the circuit board 310 rotates relative to the lens 200 , the distance between the center point of the lens 200 and the center point of the image sensor 320 needs to remain constant, and the way to drive the circuit board 310 to rotate is complicated, so the control is difficult. In another optional embodiment, the driving mechanism 400 can drive the circuit board 310 to move along the direction perpendicular to the optical axis of the lens 200. In this way, it is only necessary to keep the center point of the lens 200 to the vertical direction of the image sensor 320. The distance remains unchanged, and the driving circuit board 310 only needs to move, the movement mode is simple, and the control difficulty is less.

In a further optional embodiment, the number of the driving mechanism 400 is one. When the driving mechanism 400 drives the circuit board 310 to move in a direction perpendicular to the optical axis of the lens 200, the circuit board 310 has only one moving direction. In this way, It is difficult to ensure the accuracy of the position of the image sensor 320 after the movement. Therefore, the number of driving mechanisms 400 is at least two, including a first driving mechanism 410 and a second driving mechanism 420, the first driving mechanism 410 drives the circuit board 310 to move along the first direction, and the second driving mechanism 420 drives the circuit board 310 to move along the first direction. The second direction moves; wherein, both the first direction and the second direction are perpendicular to the optical axis of the lens 200 , and the first direction intersects the second direction. In this embodiment, there are multiple moving directions of the circuit board 310. When the driving mechanism 400 drives the circuit board 310 to move in a direction perpendicular to the optical axis of the lens 200, it can ensure that the displacement of the image sensor 320 is more accurate. The location is more accurate.

In another optional embodiment, the suspension assembly 300 further includes a rigid connector, one end of the rigid connector is slidably connected to the housing 100 , and the other end of the rigid connector is connected to the circuit board 310 . When the drive mechanism 400 drives the circuit board 310, since one end of the rigid connector is slidably connected to the housing 100, the circuit board 310 can move in a direction perpendicular to the optical axis of the lens 200. However, in this way, the housing 100 It is necessary to leave a large space for the movement of the rigid connection. Therefore, one end of the rigid link can be hinged to the casing 100 , and the rigid link can be stretched. However, in this way, the suspension assembly 300 may collide with the casing 100 due to the inertia of the movement. Therefore, the suspension assembly 300 may further include an elastic connector 330, one end of the elastic connector 330 is connected to the housing 100, the elastic connector 330 has elasticity, and when the elastic connector 330 is deformed, it can counteract at least part of the inertial force, thereby Collision between the circuit board 310 and the casing 100 can be avoided, and even if a collision occurs, the elastic connecting member 330 can also play a buffering role. The elastic connecting member 330 may be a component made of a copper alloy material, or may be a component made of other materials with elastic properties.

One end of the elastic connecting member 330 may be connected to the side wall of the housing 100 , but this structure will result in a force component of the force exerted by the elastic connecting member 330 on the circuit board 310 , which cannot be fully utilized. Based on this, optionally, the casing 100 has a first surface 101, the first surface 101 faces the image sensor 320, and the elastic connecting member 330 may be movably connected to the first surface 101, or may be fixedly connected to the first surface 101, the present application The embodiment does not limit this. The first surface 101 is located above the image sensor 320, so the elastic connecting member 330 can extend approximately along the optical axis of the lens 200, and the force exerted by the elastic connecting member 330 basically has no component force, so that the effect can be more fully utilized force, thereby improving the stability of the suspension assembly 300.

In a further embodiment, the elastic connector 330 can be a non-conductive member. In this case, the camera module needs to be provided with some wires for power supply connection. However, using wires in the internal space of the camera module is easy to make The circuit board 310 is entangled with the wires during movement. Therefore, the elastic connector 330 is a conductive member. At this time, the elastic connector 330 can also be electrically connected when the circuit board 310 is suspended, thereby reducing the internal wires of the camera module and avoiding contact between the circuit board 310 and the wires when moving. Winding occurs. In addition, the suspension assembly 300 may further include a focus motor 340 , the focus motor 340 is connected to the lens 200 , and the focus motor 340 is electrically connected to the circuit board 310 through the elastic connector 330 . The focus motor 340 may be a closed-loop drive motor, or an open-loop or mid-set drive motor. The focus motor 340 is electrically connected to the circuit board 310 through the conductive properties of the elastic connector 330 , so as to realize the focus function of the camera module, which is beneficial for the camera module to capture clearer images.

In a further optional embodiment, the focus motor 340 is bonded to the first surface 101 of the casing 100, and the focus motor 340 is connected to the elastic connector 330 through wires. However, in this way, since the focus motor 340 is connected to the first surface 101 has a limited connection area, and its own weight tends to detach the focus motor 340 from the first surface 101 of the housing 100 , and in addition, the connection between the wire and the elastic connecting member 330 is prone to entanglement. Therefore, the suspension assembly 300 may further include a bearing plate 350 and an electrical conductor 360, the bearing plate 350 is connected to the focus motor 340, and the bearing plate 350 is located between the focus motor 340 and the image sensor 320, the first end 361 of the electrical conductor 360 The second end 362 of the electrical conductor 360 extends to the side of the focus motor 340 facing away from the image sensor 320 , and the elastic connecting member 330 is connected and electrically conductive to the second end 362 of the electrical conductor 360 . In this embodiment, the carrier plate 350 has a supporting force for the focus motor 340 towards the first surface 101, therefore, the connection between the focus motor 340 and the first surface 101 can be made firmer and more reliable, and through the electrical conductor 360 Tangling can be avoided.

In one embodiment, the electrical conductor 360 may be a cylindrical strip. When the second end 362 of the electrical conductor 360 is connected to the side of the focus motor 340 facing away from the image sensor 320, it is easy to cause insufficient connection due to too small connection area. reliable. Therefore, the second end 362 of the electrical conductor 360 can be arranged in a sheet-like structure, which is bonded and connected to the side of the focus motor 340 facing away from the image sensor 320 , so that the connection area between the electrical conductor 360 and the focus motor 340 can be increased. , so that the connection between the electrical conductor 360 and the focus motor 340 is more reliable.

In another embodiment, the side of the focus motor 340 is provided with a first electrical conduction portion 341, and the side of the carrier plate 350 facing the focus motor 340 is provided with a second electrical conduction portion 351. In this case, the first electrical conduction portion 341 and The second electrical conduction portion 351 is in contact with and conducts electricity, however, this way of achieving electrical conduction only through contact is less reliable. Therefore, the focus motor 340 is provided with a first electrical conduction portion 341, the focus motor 340 has a bottom surface 342, the bottom surface 342 faces the image sensor 320, the first electrical conduction portion 341 is arranged on the bottom surface 342, the first electrical conduction portion 341 and the second electrical conduction portion 351 abuts against and conducts electricity. In this way, pressure is formed between the first electrical conduction portion 341 and the second electrical conduction portion 351 to conduct electrical conduction, and the first electrical conduction portion 341 and the second electrical conduction portion 351 abut more compactly, therefore, reliable Sex is better.

In one embodiment, the elastic connecting member 330 includes a first connecting plate 331, a spring and a second connecting plate 333, the first connecting plate 331 is connected to the second connecting plate 333 through a spring, the first connecting plate 331 is connected to the housing 100 The inner surface is bonded and connected, and the first connecting plate 331 is bonded and connected to the side of the focus motor 340 facing away from the image sensor 320 , and the second connecting plate 333 is bonded and connected to the side of the circuit board 310 facing away from the image sensor 320 . In this method, since the spring is generally a cylindrical structure, the space occupied by the spring is relatively large. Therefore, the elastic connecting member 330 may also include a bent section 332 through which the first connecting plate 331 is connected to the second connecting plate 333. In this way, the spring may be replaced by the bent section 332, and the bent section The volume of 332 can be made smaller, therefore, the space occupied by the bent section 332 is smaller. In a further embodiment, the shape of the bent section 332 is flat, and the space occupied by the bent section 332 of this shape is smaller.

In an optional embodiment, the bent section 332 includes at least two first strip portions 332a and at least two second strip portions 332b, and an acute angle may be formed between the first strip portions 332a and the second strip portions 332b , at this moment, the bending section 332 is a V-shaped structure, and this kind of bending section 332 has relatively high elasticity. When the bending section 332 is deformed, it cannot provide a large force. Therefore, in other embodiments, the first strip-shaped portion 332a extends along a direction perpendicular to the optical axis of the lens 200, the second strip-shaped portion 332b extends along the optical axis direction of the lens 200, and each first strip-shaped portion 332a extends along the direction of the optical axis of the lens 200. 200 are arranged in the direction of the optical axis, and each first strip-shaped portion 332a is located in the same plane, and the ends of adjacent first strip-shaped portions 332a are connected by the second strip-shaped portion 332b. In this embodiment, each first strip-shaped portion 332a is parallel to each other, and the angle between the first strip-shaped portion 332a and the second strip-shaped portion 332b is 90°, so the elasticity of the bending section 332 is more moderate. Therefore, greater force can be provided to ensure the reliability of the suspension.

In a further optional embodiment, in order to prevent the image sensor 320 from being interfered by the external environment, the suspension assembly 300 may also include a bracket 370 and a filter 380, the bracket 370 is covered on the image sensor 320, and the bracket 370 is connected to the circuit board 310 In connection with each other, the filter 380 is disposed on the bracket 370 . The circuit board 310 , the bracket 370 and the filter 380 can form a relatively closed space to enclose the image sensor 320 , so as to prevent the external environment from interfering with the image sensor 320 . The bracket 370 can be an injection-molded plastic part for carrying the filter 380 . The filter 380 can filter the received light so that the image sensor 320 can achieve a better image effect.

In one embodiment, the distance between every two adjacent first bar-shaped portions 332a may be equal, in other words, each first bar-shaped portion 332a may be arranged at equal intervals. In this embodiment, the bonding area between the first bar-shaped portion 332a provided corresponding to the circuit board 310 and the bracket 370 and the side walls of the circuit board 310 and the bracket 370 is relatively large, thereby causing a large impact on the movement of the circuit board 310. resistance. In order to solve this problem, the distance between two adjacent first bar-shaped portions 332a opposite to the circuit board 310 and the bracket 370 can be made larger than the distance between the remaining two adjacent first bar-shaped portions 332a. In this embodiment, the number of first bar-shaped parts 332a close to the circuit board 310 and the bracket 370 is relatively small, and the distribution is relatively sparse, so that the first bar-shaped parts 332a can be connected with the circuit board 310 suspended on the elastic connector 330 The bonding area with the side wall of the bracket 370 is smaller, so that the circuit board 310 moves more smoothly. Moreover, the structure of the bending section 332 in this embodiment is simpler.

In an optional embodiment, the driving mechanism 400 may be a mechanism such as a motor and a gear assembly, which need to be in contact with the circuit board 310. Therefore, during the driving process, the gear assembly and the circuit board 310 will have Therefore, in other embodiments, the driving mechanism 400 may include a coil 430 and a magnetic member 440. In the circuit board 310 and the housing 100, one is provided with the coil 430, and the other is provided with the coil 430. There is a magnetic piece 440 . The driving between the coil 430 and the magnetic member 440 is in a non-contact manner, thereby reducing wear and ensuring driving accuracy. In addition, using the coil 430 and the magnetic element 440 as the driving mechanism 400 can make the driving mechanism 400 more flexible and simpler in structure. The manufacturing material of the magnetic element 440 may be magnetic materials such as aluminum iron boron. The coil 430 can be fixed on the circuit board 310 by an adhesive material such as solder paste or conductive glue, so as to realize electrical conduction between the coil 430 and the circuit board 310 . After the coil 430 is energized, the magnetic field force generated by it interacts with the magnetic field force generated by the magnetic member 440, thereby realizing the movement of the circuit board 310. By controlling the current direction and magnitude of the coil 430, the circuit board 310 is controlled to move accurately, and then Realize anti-shake function.

In a further optional embodiment, the casing 100 has a side surface, the circuit board 310 has a second surface 311, and the second surface 311 faces away from the image sensor 320, and one of the side surface and the second surface 311 is provided with the coil 430, and the other The magnetic element 440 is provided. In this way, the distance between the coil 430 and the magnetic element 440 is relatively large, and the magnetic fields of the two overlap less, so that the driving effect is poor. In order to solve this problem, the housing 100 has a third surface 102, the third surface 102 is opposite to the second surface 311, and one of the second surface 311 and the third surface 102 is provided with a coil 430, and the other is provided with a magnetic member 440. In this manner, the distance between the coil 430 and the magnetic element 440 is closer, and the magnetic fields overlap more, so the driving effect is better.

In an optional embodiment, the housing 100 includes a first cover 110 and a second cover 120. The first cover 110 may be a component made of plastic, which has high plasticity and low mass. The second cover 120 may be a component made of metal material, so as to prevent external interference. The first cover 110 is detachably connected to the second cover 120, and the two form an accommodation space, the suspension assembly 300 and the driving mechanism 400 are at least partially located in the accommodation space, and the first cover 110 or the second cover 120 is provided with a perforation , the circuit board 310 includes a flexible circuit board 312, and one end of the flexible circuit board 312 protrudes out of the receiving space through the perforation. In the above embodiment, the casing 100 includes the first cover 110 and the second cover 120, and the first cover 110 and the second cover 120 are detachably connected, so that not only the various components of the camera module can be assembled conveniently, but also It is convenient to maintain the camera module. However, when one end of the flexible circuit board 312 needs to protrude out of the receiving space, it is necessary to make one end of the flexible circuit board 312 pass through the through hole, which is cumbersome. Therefore, a perforation is formed between the edge of the first cover 110 and the edge of the second cover 120. When the flexible circuit board 312 needs to be extended, the flexible circuit board 312 can be placed on the first cover 110 or the second cover. The edge of the perforation of the body 120, and then fasten the second cover 120 or the first cover 110, so the operation is simpler and more convenient.

Further, the flexible circuit board 312 can be fixed to the edge of the first cover 110 and the edge of the second cover 120 by means of bonding, so that the part of the circuit board 310 outside the housing 100 is not easy to be displaced, In order to improve the connection reliability between the circuit board 310 and the main board or sub-board of the electronic device.

An embodiment of the present application also provides an electronic device, which includes the camera module in any of the above embodiments.

The electronic devices disclosed in the embodiments of the present application may be smart phones, tablet computers, e-book readers, wearable devices (such as smart watches), electronic game consoles and other devices, and the embodiments of the present application do not limit the specific types of electronic devices.

The embodiments of the present application have been described above in conjunction with the accompanying drawings, but the present application is not limited to the above-mentioned specific implementations. The above-mentioned specific implementations are only illustrative and not restrictive. Those of ordinary skill in the art will Under the inspiration of this application, without departing from the purpose of this application and the scope of protection of the claims, many forms can also be made, all of which belong to the protection of this application.

Claims (12)

1. The utility model provides a camera module which characterized in that includes:

a housing;

the lens is arranged on the shell, and one end of the lens is positioned outside the shell;

the suspension assembly is arranged in the shell in a suspension mode and comprises a circuit board, an image sensor, an elastic connecting piece and a focusing motor, the image sensor is arranged on the circuit board, the image sensor is arranged opposite to the lens, one end of the elastic connecting piece is connected with the shell, the other end of the elastic connecting piece is connected with the circuit board, the elastic connecting piece is a conductive piece, the focusing motor is arranged in the shell and is connected with the lens, and the focusing motor is electrically connected with the circuit board through the elastic connecting piece;

the driving mechanism is arranged in the shell and positioned between the shell and the suspension assembly, and the driving mechanism is connected with the circuit board and drives the circuit board to move.

2. The camera module of claim 1, wherein the driving mechanism drives the circuit board to move in a direction perpendicular to an optical axis of the lens.

3. The camera module according to claim 2, wherein the number of the driving mechanisms is at least two, and the driving mechanisms include a first driving mechanism and a second driving mechanism, the first driving mechanism drives the circuit board to move along a first direction, and the second driving mechanism drives the circuit board to move along a second direction;

the first direction and the second direction are both perpendicular to the optical axis of the lens, and the first direction intersects with the second direction.

4. The camera module of claim 1, wherein the housing has a first surface facing the image sensor, and one end of the resilient connecting member is connected to the first surface.

5. The camera module of claim 1, wherein the suspension assembly further comprises a carrier plate and an electrically conductive member, the carrier plate is connected to the focusing motor and located between the focusing motor and the image sensor, a first end of the electrically conductive member is connected to the carrier plate and electrically conductive, a second end of the electrically conductive member extends to a side of the focusing motor away from the image sensor, and the elastic connecting member is connected to a second end of the electrically conductive member and electrically conductive.

6. The camera module of claim 5, wherein a second end of the electrical conductor is attached to a side of the focus motor facing away from the image sensor.

7. The camera module according to claim 5, wherein the focusing motor is provided with a first conductive portion, the focusing motor has a bottom surface facing the image sensor, a second conductive portion is provided on a surface of the carrier plate facing the focusing motor, and the first conductive portion abuts against and is electrically conducted with the second conductive portion.

8. The camera module according to claim 1, wherein the elastic connecting member comprises a first connecting plate, a bending section and a second connecting plate, the first connecting plate is connected with the second connecting plate through the bending section, the first connecting plate is attached to and connected with an inner surface of the housing, the first connecting plate is attached to and connected with a side of the focusing motor away from the image sensor, and the second connecting plate is attached to and connected with a side of the circuit board away from the image sensor.

9. The camera module according to claim 8, wherein the bending section includes at least two first strip portions and at least two second strip portions, the first strip portions extend in a direction perpendicular to an optical axis of the lens, the second strip portions extend in the optical axis direction of the lens, each first strip portion is arranged in the optical axis direction of the lens, each first strip portion is located in the same plane, and ends of adjacent first strip portions are connected by the second strip portions.

10. The camera module according to claim 9, wherein the suspension assembly further includes a bracket and an optical filter, the bracket covers the image sensor, the bracket is connected to the circuit board, the optical filter is disposed on the bracket, and a distance between two adjacent first bar-shaped portions opposite to the circuit board and the bracket is greater than a distance between the other two adjacent first bar-shaped portions.

11. The camera module of claim 1, wherein the driving mechanism comprises a coil and a magnetic member, one of the circuit board and the housing is provided with the coil, and the other is provided with the magnetic member.

12. An electronic device, comprising the camera module of any one of claims 1-11.
