Abstract
一种混凝土管道高效吊装工具，其包括起吊钢丝绳、钢丝绳固定片、销栓杆、钢吊盘、预埋件、平衡钢丝绳、平衡钩；预埋件对称安装在预制混凝土管道两侧的中心位置；销栓杆一端插入预埋件中，另一端与钢吊盘固定连接；钢吊盘外沿设置有钢丝绳绳槽；钢丝绳固定片与钢吊盘固定连接，钢丝绳固定片将起吊钢丝绳固定在钢丝绳绳槽上；起吊钢丝绳一端与钢吊盘连接，另一端与起吊设备吊钩连接；平衡钢丝绳一端与平衡钩连接，另一端与起吊设备吊钩连接；平衡钩卡于预制混凝土管道的承口端上。采用该吊装工具进行混凝土管道吊运、安装，不仅能够保证吊运的安全、减少混凝土管道在吊装过程中发生磨损和破损，而且能快速吊运安装到位、降低了安装成本。
A high-efficiency hoisting tool for a concrete pipeline, comprising a lifting wire rope, a wire rope fixing piece, a bolt rod, a steel hanging plate, an embedded part, a balance wire rope, and a balance hook; the embedded part is symmetrically installed at the center of both sides of the precast concrete pipeline; One end of the bolt rod is inserted into the embedded part, and the other end is fixedly connected to the steel hanging plate; the outer edge of the steel hanging plate is provided with a wire rope groove; One end of the hoisting wire rope is connected to the steel hanging plate, and the other end is connected to the hook of the hoisting equipment; one end of the balance wire rope is connected to the balance hook, and the other end is connected to the hook of the hoisting equipment; the balance hook is clamped on the socket end of the precast concrete pipe . Using the hoisting tool to hoist and install the concrete pipeline can not only ensure the safety of hoisting and transportation, reduce the wear and tear of the concrete pipeline during the hoisting process, but also can quickly hoist and install it in place and reduce the installation cost.
Description
The technical field is as follows:
the invention relates to the technical field of building construction, in particular to the technical field of hoisting of precast concrete pipelines, and specifically relates to an efficient hoisting tool for concrete pipelines.
Background art:
at present, the common pipeline hoisting modes at home have two types: the first is to use wire rope to tie up and hoist, and the second is to use hooks or wire rope to longitudinally cross the pipeline and hoist at two sides. The first hoisting method is troublesome to install and disassemble, square timbers must be padded, and the steel wire ropes have the risk of sliding in the hoisting process, so that the potential safety hazard is high; the second lifting method is relatively quick, simple and convenient, but because the two ends of the pipeline are stressed intensively, the pipeline is easy to wear and even damage. The two methods can not be directly installed in place after being hoisted to the installation position, and the hoisted steel wire rope or the hoisting hook needs to be removed and then pushed in place by other machines or more workers, so that the problems of time and labor waste and capital expense exist.
The invention content is as follows:
in view of the above situation, the invention provides an efficient hoisting tool for a concrete pipeline, which can safely, conveniently and efficiently perform auxiliary hoisting and installation on a precast concrete pipeline, and solves the technical problems of large potential safety hazard, high damage rate, low installation efficiency, high installation cost and the like of the conventional hoisting method for the concrete pipeline.
In order to achieve the purpose, the invention adopts the following technical scheme:
the invention provides a high-efficiency hoisting tool for a concrete pipeline, which comprises a hoisting steel wire rope, a steel wire rope fixing piece, a pin bolt rod, a steel hanging scaffold, an embedded part, a balance steel wire rope and a balance hook, wherein the steel wire rope fixing piece is fixedly connected with the steel hanging scaffold; the embedded parts are symmetrically arranged at the central positions of two sides of the precast concrete pipeline; one end of the pin bolt rod is inserted into the embedded part, and the other end of the pin bolt rod is fixedly connected with the steel hanging plate; a steel wire rope groove is arranged on the outer edge of the steel hanging disc; the steel wire rope fixing piece is fixedly connected with the steel hanging plate and fixes the hoisting steel wire rope on a steel wire rope groove of the steel hanging plate; one end of the hoisting steel wire rope is connected with the steel hoisting disc, and the other end of the hoisting steel wire rope is connected with a hoisting hook of the hoisting equipment; one end of the balance steel wire rope is connected with the balance hook, and the other end of the balance steel wire rope is connected with the lifting hook of the lifting equipment; the balance hook is clamped on the socket end of the precast concrete pipeline.
The length of the embedded part is determined by the wall thickness of the precast concrete pipeline, and the size of the embedded part is matched with the pin bolt rod; the embedded part is of a cylindrical structure and is formed by welding a steel pipe, a steel plate and reinforcing steel bars, the length of the steel pipe is determined by the wall thickness of the precast concrete pipeline, the size of the steel pipe is matched with that of the pin bolt rod, one end of the steel pipe is sealed by welding the steel plate, and the other end of the steel pipe is provided with the reinforcing steel bars; the embedded parts are arranged at the center positions of the two sides of the precast concrete pipeline and can slightly deviate from the socket end of the precast concrete pipeline.
The pin bolt rod is made of high-strength round steel solid materials, and one end of the pin bolt rod is connected with the steel hanging disc in a welding or threaded mode.
The steel hanging scaffold is made of profile steel, and the diameter of the steel hanging scaffold is set according to the minimum bending radius of a hoisting steel wire rope; the size of the steel wire rope groove on the steel hanging plate is matched with the hanging steel wire rope.
The center of the steel hanging scaffold is provided with a hole matched with the pin bolt rod, and the steel hanging scaffold is connected with the pin bolt rod through welding or screw threads.
The steel wire rope fixing pieces are connected with the steel hanging scaffold in a welding mode, and the steel hanging scaffold is symmetrically provided with 3 steel wire rope fixing pieces.
The balance hook is made of profile steel.
And a rubber protective pad is arranged at the contact position of the balance hook and the precast concrete pipeline.
The contact position of the balance hook and the precast concrete pipeline adopts a binding mode, and the net size in the hook of the balance hook is matched with the wall thickness of the precast concrete pipeline.
One end of the hoisting steel wire rope is fixed into a soft cable sleeve by a U-shaped clamp and then is connected with the steel hoisting disc, and the other end of the hoisting steel wire rope is fixed into a soft cable sleeve by a U-shaped clamp and then is connected with a hoisting equipment hook; one end of the balance steel wire rope is fixed into a lantern ring by a U-shaped clamp and then is connected with the balance hook, and the other end of the balance steel wire rope is fixed into a soft cable sleeve by the U-shaped clamp and then is connected with the lifting hook of the lifting equipment.
Compared with the prior art, the invention has the following beneficial effects:
1. the invention is processed in factories, has light weight, and is convenient and quick to mount and dismount during operation.
2. When the lifting and mounting device is used for lifting and mounting the precast concrete pipeline, the lifting and mounting in place can be completed only by simple assistance of a small amount of personnel, other machines are not required to be pushed in place, the whole process is simple, rapid and efficient to operate, extra machines and labor are not increased, and the construction cost is greatly reduced.
3. The lifting steel wire rope is a main stressed structure, the pin bolt rod connected with the precast concrete pipeline is stressed by the structure to reduce unhooking, safety risks are reduced, the stress of the position of the balance hook is extremely small, and the rubber protective pad is arranged, so that the abrasion and damage conditions of the precast concrete pipeline in the lifting and mounting processes can be greatly reduced.
4. The invention has wide application range, can be used for hoisting precast concrete pipelines with different diameter models and different lengths, and particularly has strong applicability to pipelines with larger diameters.
5. The invention is suitable for wide construction environment, can install the precast concrete pipeline in place by simple assistance of fewer personnel, is not limited by equipment operation conditions and operation space of more personnel, and is less influenced by construction environment conditions.
In conclusion, the lifting and mounting device for the precast concrete pipeline can ensure the lifting safety, reduce the abrasion and damage of the precast concrete pipeline in the lifting process, quickly lift and mount the precast concrete pipeline in place and reduce the mounting cost.
Description of the drawings:
FIG. 1 is a front view of the present invention;
FIG. 2 is a side view of the present invention;

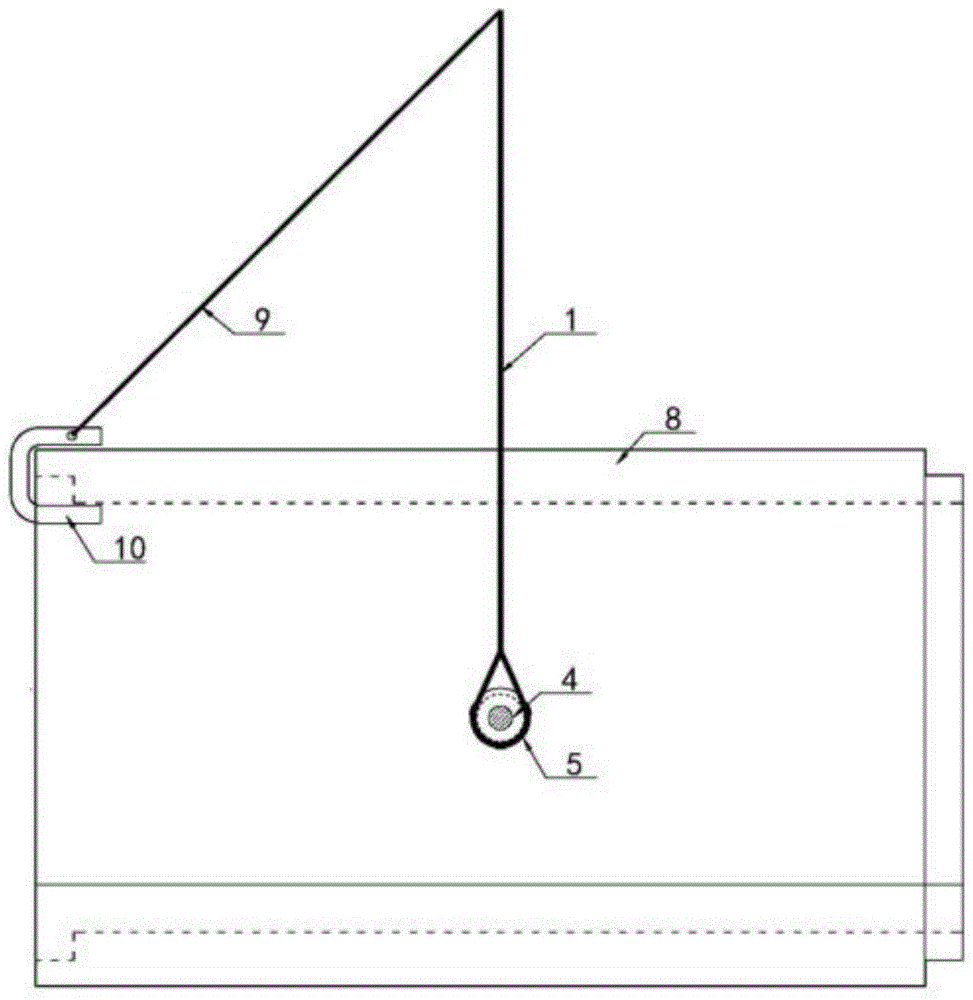

FIG. 3 is a front view of a precast concrete pipe hoisted by the present invention;
fig. 4 is a side view of a state of hoisting a precast concrete pipe using the present invention.
Reference numbers in the figures:
1-hoisting a steel wire rope; 2-steel wire rope grooves; 3-fixing a steel wire rope; 4-pin bolt bar; 5-a steel hanging scaffold; 6-embedded parts; 7-reinforcing steel bars; 8-prefabricating a concrete pipeline; 9-balancing the steel wire rope; 10-balance hook.
The specific implementation mode is as follows:
the present invention is further described below in conjunction with the following detailed description, which is intended to further illustrate the principles of the invention and is not intended to limit the invention in any way, but is equivalent or analogous to the present invention without departing from its scope.
Referring to fig. 1-4, the invention provides an efficient hoisting tool for a concrete pipeline, which comprises a hoisting steel wire rope 1, a steel wire rope fixing piece 3, a pin bolt rod 4, a steel hoisting disc 5, an embedded part 6, a balance steel wire rope 9 and a balance hook 10. The embedded parts 6 are symmetrically arranged at the central positions of two sides of the precast concrete pipeline 8 and can be slightly deviated to the socket end of the precast concrete pipeline 8, the length of the embedded parts 6 is determined by the wall thickness of the precast concrete pipeline 8, and the size of the embedded parts is matched with the pin bolt rod 4; the embedded part 6 is of a cylindrical structure and is formed by welding a steel pipe, a steel plate and reinforcing steel bars, the length of the steel pipe is determined by the wall thickness of the precast concrete pipeline 8, the steel pipe is matched with the pin bolt rod 4 in size, one end of the steel pipe is sealed by welding the steel plate, the reinforcing steel bars 7 are installed at the other end of the steel pipe, and the embedded part 6 is installed in place along with the reinforcing steel bars in the precast concrete pipeline 8. The pin bolt rod 4 is made of high-strength round steel solid materials, one end of the pin bolt rod is inserted into the embedded part 6, and the other end of the pin bolt rod is connected with the steel hanging disc 5 in a welding or screw thread mode. The steel hanging scaffold 5 is made of profile steel, the diameter of the steel hanging scaffold is set according to the minimum bending radius of the hoisting steel wire rope 1, a hole matched with the pin bolt rod 4 is formed in the center of the steel hanging scaffold 5 and is connected with the pin bolt rod 4 in a welding or screw thread mode, a steel wire rope groove 2 is formed in the outer edge of the steel hanging scaffold 5, and the size of the steel wire rope groove 2 is matched with the hoisting steel wire rope 1; the steel wire rope fixing pieces 3 are fixedly connected with the steel hanging plate 5 in a welding mode, after the hoisting steel wire rope 1 is installed, the hoisting steel wire rope 1 is fixed on the steel wire rope groove 2 of the steel hanging plate 5 through the steel wire rope fixing pieces 3, and the steel hanging plate 5 is symmetrically provided with the 3 steel wire rope fixing pieces 3. One end of the hoisting steel wire rope 1 is fixed into a soft cable sleeve by a U-shaped card and then is connected with the steel hoisting disc 5, and the other end of the hoisting steel wire rope is fixed into a soft cable sleeve by a U-shaped card and then is connected with a hoisting equipment hook. One end of the balance steel wire rope 9 is fixed into a lantern ring by a U-shaped card and then is connected with the balance hook 10, and the other end of the balance steel wire rope is fixed into a soft cable sleeve by the U-shaped card and then is connected with the lifting hook of the lifting equipment. The balance hook 10 is made of profile steel, the contact position of the balance hook 10 and the precast concrete pipeline 8 is bound, and a rubber protective pad with good elasticity is arranged at the contact position, so that the precast concrete pipeline 8 is prevented from being worn and damaged in the hoisting process; the net size in the hook of the balance hook 10 is matched with the wall thickness of the precast concrete pipeline 8, and the balance hook 10 is clamped on the socket end of the precast concrete pipeline 8.
When the hoisting tool is used for hoisting and installing the precast concrete pipeline 8, the pin bolt rod 4 of the hoisting tool is firstly inserted into the embedded part 6 on the precast concrete pipeline 8, the balance hook 10 is installed at the socket end of the precast concrete pipeline 8, and the other ends of the hoisting steel wire rope 1 and the balance steel wire rope 9 are both connected with the lifting hook of the hoisting equipment. After the hoisting to the installation position, the socket end of the precast concrete pipeline 8 is aligned to the socket end of the installed precast concrete pipeline 8 by the manual auxiliary hoisting equipment, the precast concrete pipeline 8 is adjusted and installed in place, and the next precast concrete pipeline 8 can be installed by disassembling the hoisting tool after the completion.
Claims (10)
1. The utility model provides a high-efficient lifting device of concrete pipe, characterized by: the hoisting tool comprises a hoisting steel wire rope (1), a steel wire rope fixing piece (3), a pin bolt rod (4), a steel hoisting disc (5), an embedded part (6), a balance steel wire rope (9) and a balance hook (10); the embedded parts (6) are symmetrically arranged at the central positions of two sides of the precast concrete pipeline (8); one end of the pin bolt rod (4) is inserted into the embedded part (6), and the other end of the pin bolt rod is fixedly connected with the steel hanging scaffold (5); a steel wire rope groove (2) is arranged on the outer edge of the steel hanging scaffold (5); the steel wire rope fixing piece (3) is fixedly connected with the steel hanging scaffold (5), and the hoisting steel wire rope (1) is fixed on the steel wire rope groove (2) of the steel hanging scaffold (5) by the steel wire rope fixing piece (3); one end of a hoisting steel wire rope (1) is connected with a steel hanging scaffold (5), and the other end of the hoisting steel wire rope is connected with a hoisting hook of hoisting equipment; one end of a balance steel wire rope (9) is connected with a balance hook (10), and the other end of the balance steel wire rope is connected with a lifting hook of the lifting equipment; the balance hook (10) is clamped on the socket end of the precast concrete pipeline (8).
2. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: the length of the embedded part (6) is determined by the wall thickness of the precast concrete pipeline (8), and the size of the embedded part is matched with that of the pin bolt rod (4); the embedded part (6) is of a cylindrical structure and is formed by welding a steel pipe, a steel plate and reinforcing steel bars, the length of the steel pipe is determined by the wall thickness of the precast concrete pipeline (8), the steel pipe is matched with the pin bolt rod (4) in size, one end of the steel pipe is sealed by welding the steel plate, and the other end of the steel pipe is provided with the reinforcing steel bars (7); the embedded parts (6) are arranged at the center positions of two sides of the precast concrete pipeline (8) and can be slightly deviated to the socket end of the precast concrete pipeline (8).
3. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: the pin bolt rod (4) is made of high-strength round steel solid materials, and one end of the pin bolt rod (4) is welded or screwed with the steel hanging scaffold (5).
4. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: the steel hanging scaffold (5) is made of profile steel, and the diameter of the steel hanging scaffold is set according to the minimum bending radius of the hoisting steel wire rope (1); the size of the steel wire rope groove (2) on the steel hanging scaffold (5) is matched with the size of the hoisting steel wire rope (1).
5. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: the center of the steel hanging disc (5) is provided with a hole matched with the pin bolt rod (4), and the steel hanging disc (5) is connected with the pin bolt rod (4) through welding or screw threads.
6. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: the steel wire rope fixing pieces (3) are connected with the steel hanging scaffold (5) in a welding mode, and the steel hanging scaffold (5) is symmetrically provided with 3 steel wire rope fixing pieces (3).
7. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: the balance hook (10) is made of profile steel.
8. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: and a rubber protective pad is arranged at the contact position of the balance hook (10) and the precast concrete pipeline (8).
9. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: the contact position of the balance hook (10) and the precast concrete pipeline (8) adopts a binding mode, and the net size in the hook of the balance hook (10) is matched with the wall thickness of the precast concrete pipeline (8).
10. The efficient hoisting tool for the concrete pipeline as claimed in claim 1, wherein: one end of the hoisting steel wire rope (1) is fixed into a soft cable sleeve by a U-shaped card and then is connected with the steel hoisting disc (5), and the other end of the hoisting steel wire rope is fixed into a soft cable sleeve by a U-shaped card and then is connected with a hoisting equipment hook; one end of the balance steel wire rope (9) is fixed into a lantern ring by a U-shaped card and then is connected with the balance hook (10), and the other end of the balance steel wire rope is fixed into a soft cable sleeve by the U-shaped card and then is connected with the lifting hook of the lifting equipment.
