Abstract

本发明涉及一种档案柜，尤其涉及一种带有应急抽出功能的档案柜。提供一种方便取放，工作效率高的带有应急抽出功能的档案柜。一种带有应急抽出功能的档案柜，包括有：框架；第一盖板，转动式安装在框架上；第二盖板，第二盖板为两个，均转动式安装在框架上；放置板，滑动式安装在框架上；支撑板，支撑板至少为两个，均安装在框架上；放置架，滑动式安装在框架上；储物框，储物框至少为两个，均滑动式安装在支撑板上；固定组件，安装在第二盖板上；移动组件，安装在框架上。本发明通过固定组件能够在不使用时固定第二盖板，避免第二盖板打开，通过移动组件能够在打开第二盖板的同时使第一盖板打开。

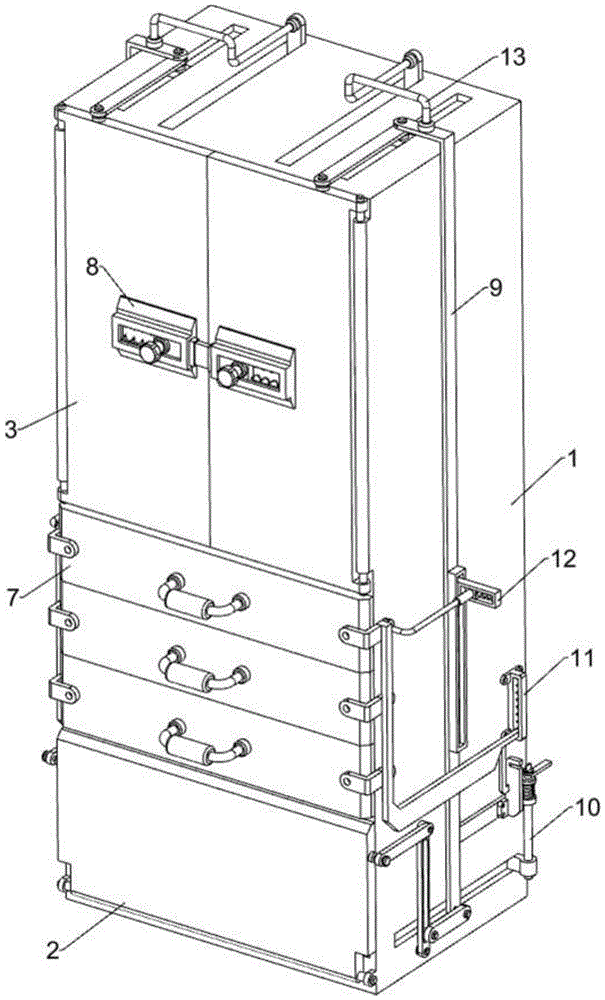

Figure 202110194301

The invention relates to a filing cabinet, in particular to a filing cabinet with an emergency extraction function. Provides a filing cabinet with an emergency extraction function that is easy to pick and place and has high work efficiency. A filing cabinet with emergency extraction function, comprising: a frame; a first cover plate, which is rotatably installed on the frame; a second cover plate, with two second cover plates, which are both rotatably installed on the frame; Plate, slide-mounted on the frame; support plate, at least two supporting plates, both mounted on the frame; placement rack, slide-mounted on the frame; storage frame, at least two storage frames, both sliding It is installed on the support plate; the fixed component is installed on the second cover; the movable component is installed on the frame. In the present invention, the second cover can be fixed when not in use by the fixing component, so as to avoid the opening of the second cover, and the first cover can be opened while the second cover is opened by the moving component.

Figure 202110194301

Description

Filing cabinet with emergent function of taking out
Technical Field
The invention relates to a file cabinet, in particular to a file cabinet with an emergency extraction function.
Background
Filing cabinet belongs to office furniture series, as the name implies, and filing cabinet is exactly used for saving archival data, mainly is used in some office of unit and the office furniture of archives, though filing cabinet's function is single, but the storing ability is extremely strong.
When using the filing cabinet, generally all be a plurality of filing cabinets and place side by side together, open the filing cabinet and can take out the article that needs in needs, but use because the filing cabinet is more, it is just more troublesome to look for, will appear taking out the lower problem of speed, influences work efficiency's problem, and the time of taking out when needing a certain material occasionally even urgently is not enough, still very big influence job schedule.
Therefore, it is necessary to provide a file cabinet with an emergency drawing-out function, which is convenient to take and place and has high working efficiency, to solve the above problems.
Disclosure of Invention
In order to overcome inconvenient archives of looking for, influence work efficiency's shortcoming, technical problem: the file cabinet with the emergency extraction function is convenient to take and place and high in working efficiency.
The utility model provides a filing cabinet with emergent function of taking out, including: a frame; the first cover plate is rotatably arranged on the frame; two second cover plates are rotatably arranged on the frame; a placing plate slidably mounted on the frame; at least two support plates are arranged and are arranged on the frame; the placing rack is arranged on the frame in a sliding mode; at least two storage frames are arranged and are arranged on the supporting plate in a sliding manner; the fixing component is arranged on the second cover plate; and the moving assembly is mounted on the frame.
Optionally, the fixing assembly comprises: two first sliding rails are arranged on the second cover plate; the first handle is slidably arranged in the first sliding rail; the second handle is slidably arranged in the first sliding rail and matched with the first handle; the first springs are at least two and are respectively arranged between the first handle and the first slide rail and between the second handle and the first slide rail.
Optionally, the moving assembly comprises: two circular shafts are arranged and are both arranged on the frame in a sliding manner; two pulling plates are rotatably arranged on the circular shaft and rotatably connected with the second cover plate; two strip-shaped plates are arranged on the circular shaft; two connecting plates are arranged and are mounted on the strip-shaped plate; the two swing plates are rotatably arranged on the frame and are connected with the connecting plate in a sliding manner; the push pedal, the push pedal is two, and equal rotary type is installed on the swing board, and the push pedal all is connected with first apron rotary type.
Optionally, the apparatus further comprises an insertion assembly, wherein the insertion assembly comprises: two connecting blocks are arranged and are arranged on the placing frame; two fixing plates are arranged and are mounted on the strip-shaped plate; two limiting plates are arranged and are mounted on the fixing plate; the two inserting rods are arranged on the fixed plate in a sliding mode and are matched with the connecting blocks; two second springs are arranged and are arranged between the inserted rod and the fixing plate; the cardboard, the cardboard is two, all installs on the inserted bar, and the cardboard all cooperates with the limiting plate.
Optionally, still include the chucking subassembly, the chucking subassembly includes: at least two right-angle plates are arranged on the storage frame; two second slide rails are arranged on the frame; two special-shaped plates are arranged and are arranged in the second slide rail in a sliding manner, and the special-shaped plates are matched with the right-angle plates; the two third springs are arranged between the special-shaped plate and the second slide rail; the catch plates are two and are all installed on the limiting plate, and the catch plates are all matched with the special-shaped plate.
Optionally, the device further comprises a push-out assembly, wherein the push-out assembly comprises: two third slide rails are arranged on the strip-shaped plate; two guide rails are arranged and are both arranged on the third slide rail in a sliding manner; the two telescopic rods are arranged in the guide rail in a sliding mode, the right-angle plate is provided with two clamping grooves, and the clamping grooves are matched with the telescopic rods; and the two fourth springs are arranged and are both arranged between the telescopic rod and the guide rail.
Optionally, still including the coupling assembling, the coupling assembling includes: two special-shaped rods are arranged and are arranged on the strip-shaped plate; the connecting plate is two and is arranged on the special-shaped rod.
The invention has the beneficial effects that: according to the invention, the second cover plate can be fixed through the fixing component when the storage rack is not used, the second cover plate is prevented from being opened, the first cover plate can be opened while the second cover plate is opened through the moving component, the storage rack can slide forwards according to the needs of people through the inserting component, so that the files can be conveniently taken and placed by people, the storage frame can be clamped through the clamping component when the storage rack is not used, the storage frame is prevented from being opened, the storage frame can be automatically opened through the pushing component, the placing plate can slide forwards when the second cover plate is opened through the connecting component, and the files can be more conveniently taken and placed by people.
Drawings
Fig. 1 is a schematic perspective view of the present invention.
Fig. 2 is a schematic perspective view of the present invention.
Fig. 3 is a perspective view of the fixing member of the present invention.
Fig. 4 is a schematic perspective view of the moving assembly of the present invention.
Fig. 5 is a perspective view of the insert assembly of the present invention.
Fig. 6 is a perspective view of the clamping assembly of the present invention.
FIG. 7 is a perspective view of the push-out assembly of the present invention.
Fig. 8 is a schematic perspective view of a connection assembly of the present invention.
Reference numbers in the drawings: 1: frame, 2: first cover plate, 3: second cover plate, 4: placing plate, 5: support plate, 6: rack, 7: storage frame, 8: fixing component, 81: first slide rail, 82: first grip, 83: second grip, 84: first spring, 9: moving assembly, 91: round shaft, 92: pulling plate, 93: strip, 94: connecting plate, 95: swing plate, 96: push plate, 10: insertion assembly, 101: connection block, 102: fixing plate, 103: a limiting plate, 104: insertion rod, 105: second spring, 106: card board, 11: clamping assembly, 111: right-angle plate, 112: second slide rail, 113: third spring, 114: profile plate, 115: push plate, 12: push-out assembly, 121: third slide rail, 122: guide rail, 123: telescopic rod, 124: fourth spring, 125: card slot, 13: connection assembly, 131: profile bar, 132: and (7) connecting plates.
Detailed Description
Embodiments of the present invention will be described below with reference to the drawings.
Example 1
The utility model provides a filing cabinet with emergent function of taking out, as shown in fig. 1, including frame 1, first apron 2, second apron 3, place board 4, backup pad 5, rack 6, storing frame 7, fixed subassembly 8 and removal subassembly 9, frame 1 lower part front side rotation type is equipped with first apron 2, frame 1 upper portion front side left and right sides equal rotary type of two is equipped with second apron 3, upper portion slidingtype is equipped with places board 4 in the frame 1, frame 1 is inside to be equipped with three backup pad 5, frame 1 inner lower part slidingtype is equipped with rack 6, all slidingtype is equipped with storing frame 7 on the backup pad 5, be equipped with fixed subassembly 8 on the second apron 3, be equipped with removal subassembly 9 on the frame 1.
When using the device, the staff can be with archives to placing board 4, in rack 6 and the storing frame 7, when needs take out archives, the staff opens fixed subassembly 8, afterwards, staff pulling second apron 3 rotates backward and opens, second apron 3 drives first apron 2 through removing subassembly 9 and rotates downwards and open when opening, use the completion back, the staff closes second apron 3, it is fixed through fixed subassembly 8, first apron 2 is closed thereupon, so, can place archives.
As shown in fig. 1 and 3, the fixing assembly 8 includes a first sliding rail 81, a first handle 82, a second handle 83 and first springs 84, the second cover plate 3 is provided with the first sliding rail 81, the first sliding rail 81 at the left part is provided with the first handle 82 in an inward sliding manner, the first sliding rail 81 at the right part is provided with the second handle 83 in an inward sliding manner, the second handle 83 is matched with the first handle 82, two first springs 84 are connected between the first handle 82 and the first sliding rail 81, and two identical first springs 84 are connected between the second handle 83 and the first sliding rail 81.
When the device is used, a worker pushes the first handle 82 and the second handle 83 to slide back in the first sliding rail 81 to be separated from the first sliding rail and not clamp the second cover plate 3, the first spring 84 is compressed, after the device is used, the worker loosens the first handle 82 and the second handle 83, and under the reset action of the first spring 84, the first handle 82 and the second handle 83 slide in opposite directions to reset, so that the second cover plate 3 can be fixed when the device is not used, and the second cover plate 3 is prevented from being opened.
As shown in fig. 1, fig. 2 and fig. 4, the moving assembly 9 includes a circular shaft 91, a pull plate 92, a strip-shaped plate 93, a connecting plate 94, a swinging plate 95 and a push plate 96, the circular shaft 91 is slidably arranged on the left and right sides of the top of the frame 1, the pull plate 92 is rotatably arranged on the circular shaft 91, the pull plate 92 is rotatably connected with the second cover plate 3, the strip-shaped plate 93 is arranged on the circular shaft 91, the connecting plate 94 is arranged on the lower portion of the strip-shaped plate 93, the swinging plate 95 is rotatably arranged on the left and right sides of the lower portion of the frame 1, the swinging plate 95 is slidably connected with the connecting plate 94, the push plate 96 is rotatably arranged on the swinging plate 95, and the push plate 96 is.
When using the device, second apron 3 rotates dorsad and drives circle axle 91 through arm-tie 92 and slide forward, and circle axle 91 slides forward and drives strip shaped plate 93 and move forward, and strip shaped plate 93 moves forward and promotes swing plate 95 and swing down through connecting plate 94, and swing plate 95 swings down and promotes first apron 2 and rotate downwards through push pedal 96 and open, so, can make first apron 2 open when opening second apron 3.
Example 2
On embodiment 1's basis, as shown in fig. 1, fig. 2, fig. 5 and fig. 6, still including inserting component 10, inserting component 10 is including connecting block 101, fixed plate 102, limiting plate 103, inserted bar 104, second spring 105 and cardboard 106, the rack 6 rear portion left and right sides all is equipped with connecting block 101, bar 93 lower part all is equipped with fixed plate 102, all be equipped with limiting plate 103 on the fixed plate 102, fixed plate 102 rear portion all slidingtype is equipped with inserted bar 104, the equal connecting block 101 cooperation of inserted bar 104, all be connected with second spring 105 between inserted bar 104 and the fixed plate 102, the equal rotary type in inserted bar 104 upper portion is equipped with cardboard 106, cardboard 106 all cooperates with limiting plate 103.
When using the device, the bar plate 93 moves forward and drives fixed plate 102 and move forward, fixed plate 102 moves forward and drives connecting block 101 through inserted bar 104 and moves forward, connecting block 101 moves forward and drives rack 6 and slide forward, when need not make rack 6 slide forward, the staff can stimulate inserted bar 104 and upwards slide on fixed plate 102 and break away from with connecting block 101, second spring 105 is compressed, at this moment, the staff rotates cardboard 106 and blocks it on limiting plate 103, so, can make rack 6 slide forward according to people's needs, make things convenient for people to get and put archives.
On embodiment 1's basis, as shown in fig. 1, fig. 2, fig. 6 and fig. 7, still including chucking subassembly 11, chucking subassembly 11 is including right-angle plate 111, second slide rail 112, third spring 113, heterotypic board 114 and slurcam 115, storing frame 7 front side left and right sides portion all is equipped with right-angle plate 111, frame 1 lower part left and right sides all is equipped with second slide rail 112, second slide rail 112 is interior all to be slided and is equipped with heterotypic board 114, heterotypic board 114 all cooperates with right-angle plate 111, all be connected with third spring 113 between heterotypic board 114 and the second slide rail 112, all be equipped with slurcam 115 on the limiting plate 103, slurcam 115 all cooperates with heterotypic board 114.
When the device is used, the fixing plate 102 moves forwards to drive the pushing plate 115 to move forwards through the limiting plate 103, the pushing plate 115 moves forwards to push the special-shaped plate 114 to slide upwards in the second sliding rail 112 without clamping the right-angle plate 111, the third spring 113 is compressed, after the limiting plate 103 drives the pushing plate 115 to move backwards to be separated from the special-shaped plate 114, the special-shaped plate 114 slides downwards to reset under the reset effect of the third spring 113, and therefore the storage frame 7 can be clamped when the device is not used, and the storage frame 7 is prevented from being opened.
On the basis of embodiment 1, as shown in fig. 1, fig. 2 and fig. 7, the device further comprises a push-out assembly 12, the push-out assembly 12 comprises a third slide rail 121, a guide rail 122, a telescopic rod 123 and a fourth spring 124, the strip-shaped plate 93 is provided with the third slide rail 121, the third slide rail 121 is provided with the guide rail 122 in a sliding manner, the telescopic rod 123 is arranged in the guide rail 122 in a sliding manner, the fourth spring 124 is connected between the telescopic rod 123 and the guide rail 122, the right-angle plate 111 is provided with two clamping grooves 125, and the clamping grooves 125 are matched with the telescopic rod 123.
When using the device, the staff promotes telescopic link 123 and slides backward no longer blocks draw-in groove 125 on guide rail 122, fourth spring 124 is compressed, subsequently, the staff promotes guide rail 122 and slides to suitable position on third slide rail 121, subsequently, the staff loosens telescopic link 123, under the effect that fourth spring 124 resets, telescopic link 123 slides in the draw-in groove 125 of inserting one of them right-angle plate 111 along with it, when bar plate 93 moves forward, third slide rail 121 drives guide rail 122 and moves forward along with it, guide rail 122 moves forward and drives right-angle plate 111 through telescopic link 123 and moves forward, and then drive storing frame 7 and move forward and open, so, can open storing frame 7 automatically.
On the basis of embodiment 1, as shown in fig. 1, 2 and 8, the utility model further comprises a connecting assembly 13, wherein the connecting assembly 13 comprises a special-shaped rod 131 and a connecting plate 132, the special-shaped rod 131 is arranged on the top of the strip-shaped plate 93, the connecting plate 132 is arranged on the special-shaped rod 131, and the connecting plate 132 is connected with the placing plate 4.
When using the device, the bar-shaped plate 93 moves forward and drives the special-shaped rod 131 to move forward, the special-shaped rod 131 moves forward and drives the connecting plate 132 to move forward, the connecting plate 132 moves forward and drives the placing plate 4 to slide forward, so that the placing plate 4 can slide forward when the second cover plate 3 is opened, and the file is more convenient for people to take and place.
The above description is only for the specific embodiments of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art can easily conceive of the changes or substitutions within the technical scope of the present invention, and all the changes or substitutions should be covered within the scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.

Claims (8)

1.一种带有应急抽出功能的档案柜，其特征在于，包括有：1. a filing cabinet with emergency extraction function, is characterized in that, comprises: 框架(1)；frame(1); 第一盖板(2)，转动式安装在框架(1)上；The first cover plate (2) is rotatably mounted on the frame (1); 第二盖板(3)，第二盖板(3)为两个，均转动式安装在框架(1)上；The second cover plate (3) has two second cover plates (3), both of which are rotatably mounted on the frame (1); 放置板(4)，滑动式安装在框架(1)上；The placing plate (4) is slidably mounted on the frame (1); 支撑板(5)，支撑板(5)至少为两个，均安装在框架(1)上；Supporting plates (5), at least two supporting plates (5) are installed on the frame (1); 放置架(6)，滑动式安装在框架(1)上；The placing rack (6) is slidably mounted on the frame (1); 储物框(7)，储物框(7)至少为两个，均滑动式安装在支撑板(5)上；Storage frames (7), there are at least two storage frames (7), both of which are slidably mounted on the support plate (5); 固定组件(8)，安装在第二盖板(3)上；a fixing assembly (8), mounted on the second cover plate (3); 移动组件(9)，安装在框架(1)上。The moving assembly (9) is mounted on the frame (1). 2.根据权利要求1所述的一种带有应急抽出功能的档案柜，其特征在于，固定组件(8)包括有：2. A filing cabinet with an emergency extraction function according to claim 1, wherein the fixing assembly (8) comprises: 第一滑轨(81)，第一滑轨(81)为两个，均安装在第二盖板(3)上；There are two first slide rails (81), and two first slide rails (81) are installed on the second cover plate (3); 第一握把(82)，滑动式安装在第一滑轨(81)内；The first handle (82) is slidably installed in the first slide rail (81); 第二握把(83)，滑动式安装在第一滑轨(81)内，第二握把(83)与第一握把(82)配合；The second handle (83) is slidably installed in the first slide rail (81), and the second handle (83) is matched with the first handle (82); 第一弹簧(84)，第一弹簧(84)至少为两个，分别安装在第一握把(82)与第一滑轨(81)之间和第二握把(83)与第一滑轨(81)之间。The first spring (84), there are at least two first springs (84), which are respectively installed between the first handle (82) and the first slide rail (81) and between the second handle (83) and the first slide. between rails (81). 3.根据权利要求2所述的一种带有应急抽出功能的档案柜，其特征在于，移动组件(9)包括有：3. A filing cabinet with emergency extraction function according to claim 2, characterized in that, the moving assembly (9) comprises: 圆轴(91)，圆轴(91)为两个，均滑动式安装在框架(1)上；There are two circular shafts (91), both of which are slidably mounted on the frame (1); 拉板(92)，拉板(92)为两个，均转动式安装在圆轴(91)上，拉板(92)均与第二盖板(3)转动式连接；There are two pull plates (92), both of which are rotatably mounted on the circular shaft (91), and the pull plates (92) are all rotatably connected with the second cover plate (3); 条形板(93)，条形板(93)为两个，均安装在圆轴(91)上；There are two strip-shaped plates (93), and two strip-shaped plates (93) are installed on the circular shaft (91); 连接板(94)，连接板(94)为两个，均安装在条形板(93)上；There are two connecting plates (94), and two connecting plates (94) are installed on the strip plate (93); 摆动板(95)，摆动板(95)为两个，均转动式安装在框架(1)上，摆动板(95)均与连接板(94)滑动式连接；There are two swing plates (95), both of which are rotatably mounted on the frame (1), and the swing plates (95) are all slidably connected to the connecting plate (94); 推板(96)，推板(96)为两个，均转动式安装在摆动板(95)上，推板(96)均与第一盖板(2)转动式连接。There are two push plates (96), both of which are rotatably mounted on the swing plate (95), and both push plates (96) are rotatably connected to the first cover plate (2). 4.根据权利要求3所述的一种带有应急抽出功能的档案柜，其特征在于，还包括有插入组件(10)，插入组件(10)包括有：4. A filing cabinet with emergency extraction function according to claim 3, characterized in that, further comprising an insertion assembly (10), and the insertion assembly (10) includes: 连接块(101)，连接块(101)为两个，均安装在放置架(6)上；a connecting block (101), two connecting blocks (101) are installed on the placing rack (6); 固定板(102)，固定板(102)为两个，均安装在条形板(93)上；There are two fixing plates (102), both of which are installed on the strip-shaped plate (93); 限位板(103)，限位板(103)为两个，均安装在固定板(102)上；There are two limit plates (103), and two limit plates (103) are installed on the fixing plate (102); 插杆(104)，插杆(104)为两个，均滑动式安装在固定板(102)上，插杆(104)均连接块(101)配合；There are two insertion rods (104), both of which are slidably mounted on the fixing plate (102), and the insertion rods (104) are matched with the connection block (101); 第二弹簧(105)，第二弹簧(105)为两个，均安装在插杆(104)与固定板(102)之间；There are two second springs (105), and two second springs (105) are installed between the insertion rod (104) and the fixing plate (102); 卡板(106)，卡板(106)为两个，均安装在插杆(104)上，卡板(106)均与限位板(103)配合。There are two clamping plates (106), and two clamping plates (106) are installed on the insertion rods (104), and the clamping plates (106) are matched with the limiting plates (103). 5.根据权利要求4所述的一种带有应急抽出功能的档案柜，其特征在于，还包括有卡紧组件(11)，卡紧组件(11)包括有：5. A filing cabinet with an emergency extraction function according to claim 4, characterized in that, further comprising a clamping assembly (11), and the clamping assembly (11) includes: 直角板(111)，直角板(111)至少为两个，均安装在储物框(7)上；Right-angle plates (111), at least two right-angle plates (111) are installed on the storage frame (7); 第二滑轨(112)，第二滑轨(112)为两个，均安装在框架(1)上；There are two second sliding rails (112), both of which are installed on the frame (1); 异型板(114)，异型板(114)为两个，均滑动式安装在第二滑轨(112)内，异型板(114)均与直角板(111)配合；There are two special-shaped plates (114), both of which are slidably installed in the second slide rail (112), and the special-shaped plates (114) are matched with the right-angle plates (111); 第三弹簧(113)，第三弹簧(113)为两个，均安装在异型板(114)与第二滑轨(112)之间；There are two third springs (113), and two third springs (113) are installed between the special-shaped plate (114) and the second slide rail (112); 推动板(115)，推动板(115)为两个，均安装在限位板(103)上，推动板(115)均与异型板(114)配合。There are two push plates (115), both of which are installed on the limiting plate (103), and both push plates (115) are matched with the special-shaped plates (114). 6.根据权利要求5所述的一种带有应急抽出功能的档案柜，其特征在于，还包括有推出组件(12)，推出组件(12)包括有：6. A filing cabinet with emergency extraction function according to claim 5, characterized in that, further comprising a push-out assembly (12), and the push-out assembly (12) includes: 第三滑轨(121)，第三滑轨(121)为两个，均安装在条形板(93)上；There are two third sliding rails (121), and the third sliding rails (121) are installed on the strip plate (93); 导轨(122)，导轨(122)为两个，均滑动式安装在第三滑轨(121)上；There are two guide rails (122), both of which are slidably mounted on the third sliding rail (121); 伸缩杆(123)，伸缩杆(123)为两个，均滑动式安装在导轨(122)内，直角板(111)上均开有两个卡槽(125)，卡槽(125)均与伸缩杆(123)配合；There are two telescopic rods (123), both of which are slidably installed in the guide rails (122). The telescopic rod (123) is matched; 第四弹簧(124)，第四弹簧(124)为两个，均安装在伸缩杆(123)与导轨(122)之间。There are two fourth springs (124), both of which are installed between the telescopic rod (123) and the guide rail (122). 7.根据权利要求6所述的一种带有应急抽出功能的档案柜，其特征在于，还包括有连接组件(13)，连接组件(13)包括有：7. A filing cabinet with emergency extraction function according to claim 6, characterized in that, further comprising a connecting assembly (13), and the connecting assembly (13) includes: 异型杆(131)，异型杆(131)为两个，均安装在条形板(93)上；There are two special-shaped rods (131), and two special-shaped rods (131) are installed on the strip plate (93); 连板(132)，连板(132)为两个，均安装在异型杆(131)上。There are two connecting plates (132), both of which are installed on the special-shaped rods (131). 8.根据权利要求7所述的一种带有应急抽出功能的档案柜，其特征在于，还包括有：条形板(93)，条形板(93)为L型。8 . The filing cabinet with emergency extraction function according to claim 7 , further comprising: a strip plate ( 93 ), and the strip plate ( 93 ) is L-shaped. 9 .
