The invention relates to a scaly fish processing device, and belongs to the technical field of fish processing equipment. The fish scaling treatment device comprises a frame, a fish collecting basket, a conveying chain, a fishhook, a scaling device, a cutting knife, a viscera removing device, a guide device A and a guide device B; the rack is provided with a transmission chain through a chain wheel and a motor; a plurality of fishhooks are arranged at intervals on the outer side of the conveying chain; bearing plates A are symmetrically arranged on the machine frame on the two sides above the conveying chain; a bearing plate B is arranged on the rack at one end of the bearing plate A; a descaler is arranged on the frame between the bearing plate A and the bearing plate B; a cutting knife is arranged on the rack above the bearing plate B at one side of the conveying chain through a motor; the machine frame at one side of the sectioning knife is provided with a viscera removing part through a motor. The scaly fish processing device solves the problems that the existing scaly fish processing device cannot thoroughly remove dirt and easily damages fish bodies, and is particularly suitable for the use requirements of fish processing enterprises.

Description

Scale fish processing apparatus

Technical Field

The invention relates to a scaly fish processing device, and belongs to the technical field of fish processing equipment.

Background

In aquatic food deep processing enterprises, scaly fishes need to be subjected to treatments of descaling, laparotomy and viscera removal before deep processing so as to meet the requirements of subsequent processing. The prior work of descaling, laparotomy and viscera removal of the scaly fish is manually completed, which has the problems of high labor intensity and low work efficiency. With the progress of the development era of science and technology, various processing devices are available on the market at present, and can mechanically complete the descaling, laparotomy and viscera removing work of the scaly fish. The prior processing device, such as the pretreatment device for processing scaly fish disclosed in the invention patent with the publication number of CN110477082B, generally adopts a rolling brush to extend to the inside of the belly of the fish body and then completes the dirt removing work by a rotary brushing way. However, the fish cavity with the scaly fish has the characteristic of being of an arc structure, and in the dirty removing process is completed by the rotary brushing mode of the rolling brush, the rolling brush is very easy to contact the middle bottom position of the fish cavity, so that the problems that the cleaning is not thorough and the cleaning of the end positions at the two ends of the fish cavity by the rolling brush is excessive, so that the fish body is damaged, occur. Therefore, there is a need to develop a new dissecting and killing dirty-removing device to solve the above problems of the existing devices.

Disclosure of Invention

The invention aims to: the scaly fish processing device is compact in structure and ingenious in design, and solves the problems that the existing scaly fish processing device cannot thoroughly remove dirt and easily damages fish bodies.

The technical scheme of the invention is as follows:

a scaly fish processing device comprises a frame, a fish basket, a conveying chain, a fishhook, a descaler, a cutting knife, a viscera removing part, a guider A and a guider B; the method is characterized in that: the rack is provided with a transmission chain through a chain wheel and a motor; a plurality of fishhooks are arranged at intervals on the outer side of the conveying chain; bearing plates A are symmetrically arranged on the machine frame on the two sides above the conveying chain; a bearing plate B is arranged on the rack at one end of the bearing plate A; a fish collecting basket is arranged below one end of the bearing plate B; the fishhook extends to the upper part from the position between the bearing plates A; a descaler is arranged on the frame between the bearing plate A and the bearing plate B; a cutting knife is arranged on the rack above the bearing plate B at one side of the conveying chain through a motor; the machine frame at one side of the sectioning knife is provided with a viscera removing part through a motor; a guide device A and a guide device B are sequentially arranged on the rack above the bearing plate B at the other side of the conveying chain; the guider A and the sectioning knife are arranged oppositely; the guide B is arranged opposite to the organ to be removed.

The descaler consists of two groups of descaler units; the descaling units are arranged above and below one side of the conveying chain; the descaling unit comprises a descaling motor, a flexible shaft, a descaling roller, double gear rows and a reversing gear shaft; the rack is provided with double rows of gear shafts through a descaling motor; two sides of the double-row gear shaft are respectively provided with a reversing gear shaft; the double-row gear shaft is meshed with the reversing gear shaft; the ends of the double-row gear shaft and the reversing gear shaft are respectively provided with a descaling roller through a flexible shaft; the surface of the descaling roller is provided with a descaling steel brush.

The sectioning knife consists of a limiting disc and a sectioning ring edge; the middle part of the circumference surface of the limiting disc is provided with a sectioning ring edge.

The viscera removing device comprises a rotating disk and a viscera removing claw; a plurality of assembling notches are uniformly arranged on the circumferential surface of the rotating disc; a dirt removing claw is hinged in the assembly notch; a buffer spring is arranged between the dirt removing claw and the assembly notch; the outer surface of the dirt removing claw and the outer surface of the rotating disk are both provided with dirt removing bristles.

The guider A consists of a guide arc rod and a guide cross rod; two groups of guide arc rods are arranged above the bearing plate B at intervals; one end of the guide arc rod is hinged with a guide cross rod; the guide arc rod and the guide cross rod are connected with the frame on one side through the extrusion spring.

The guider B consists of a front arc-shaped guide rod, a rear arc-shaped guide rod and an arc-shaped guide rod; two groups of arched guide rods are arranged above the bearing plate B at intervals; one end of the arched guide rod is hinged with a front arched guide rod; the other end of the arched guide rod is hinged with a rear arched guide rod; the front arc-shaped guide rod, the arc-shaped guide rod and the rear arc-shaped guide rod are connected with the machine frame on one side through the extrusion springs.

The invention has the advantages that:

the scaly fish processing device is compact in structure and ingenious in design, and can control the advancing posture of the scaly fish under the action of the guide device A and the guide device B during working; the sectioning knife can exactly carve the fish maw without damaging the viscera; the viscera removing device can perform 'profile modeling' cleaning along the inside of the fish belly, solves the problems of incomplete viscera removing and easy fish body damage existing in the existing scaly fish processing device, and is particularly suitable for the use requirements of fish processing enterprises.

Drawings

FIG. 1 is a schematic front view of the present invention;

FIG. 2 is a schematic top view of the present invention;

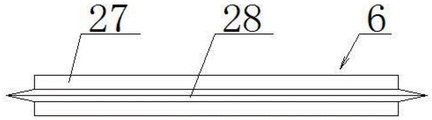

FIG. 3 is a schematic view of the cutting blade of the present invention;

FIG. 4 is an enlarged schematic view of the structure at A in FIG. 2;

FIG. 5 is an enlarged view of the structure at C in FIG. 2;

FIG. 6 is an enlarged view of the structure of FIG. 2 at D;

FIG. 7 is an enlarged view of the structure at B in FIG. 2;

FIG. 8 is an enlarged view of the structure at E in FIG. 1;

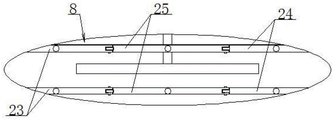

FIG. 9 is an enlarged view of the structure of FIG. 1 at F;

FIG. 10 is a structural diagram illustrating an operating state of the present invention;

FIG. 11 is a structural diagram illustrating an operating state of the present invention;

fig. 12 is a schematic structural diagram of the working state of the present invention.

In the figure: 1. a frame; 2. collecting the fish basket; 3. a conveyor chain; 4. a fish hook; 5. a descaler; 6. cutting a cutter; 7. a guide A; 8. a guide B; 9. a bearing plate A; 10. a bearing plate B; 11. a descaling motor; 12. a flexible shaft; 13. a descaling roller; 14. double rows of gear shafts; 15. a reversing gear shaft; 16. rotating the disc; 17. assembling the notch; 18. removing dirty claw; 19. a buffer spring; 20. dirt removing bristles; 21. a guide arc rod; 22. a guide rail; 23. a front arc guide rod; 24. a rear arc guide; 25. an arched guide rod; 26. a compression spring; 27. a limiting disc; 28. sectioning the ring edge.

Detailed Description

The scaly fish processing device comprises a frame 1, a fish basket 2, a conveying chain 3, a fishhook 4, a descaler 5, a cutting knife 6, a viscera removing device, a guider A7 and a guider B8 (refer to the attached figures 1 and 2 of the specification).

A transmission chain 3 is arranged on the frame 1 through a chain wheel and a motor (see the attached figure 1 in the specification); when the conveying device works, the motor can drive the conveying chain 3 to rotate clockwise at a constant speed through the chain wheel.

A plurality of fishhooks 4 are arranged at intervals outside the conveying chain 3; the transmission chain 3 can drive the fishhook 4 to rotate synchronously when rotating.

Bearing plates A9 are symmetrically arranged on the rack 1 at two sides above the conveying chain 3; a bearing plate B10 (see the description and the attached figure 2) is arranged on the frame 1 at one end of the bearing plate A9; the fishhook 4 extends from between and above the carrier plate a9 (see figure 1 of the specification). The purpose of thus providing the carrier plate a9, the carrier plate B10 and the fishhook 4 is: so that during operation, after the scaled fish is hung on the fishhook 4 through the fisheye position, the scaled fish can be driven by the fishhook 4 to smoothly move on the bearing plate A9 and the bearing plate B10 under the supporting action of the bearing plate A9 and the bearing plate B10, and the problem of derailing of the scaled fish is avoided.

A fish collecting basket 2 (see the attached figures 1 and 2 in the specification) is arranged below one end of the bearing plate B10; the fish basket 2 has the function of scaling fish after the collection treatment.

A descaler 5 is mounted on the frame 1 between the carrying floor A9 and the carrying floor B10 (see figures 1 and 2 of the specification). The descaler 5 is composed of two groups of descaler cells; the descaling units are arranged above and below one side of the conveying chain 3 (see the attached figure 1 in the specification); the descaling unit is arranged in such a way that: because the descaling units have the function of brushing scales on the outer surfaces of the scaled fishes when the descaling units work, after the descaling units are arranged above and below one side of the conveying chain 3, when the conveying chain 3 drives the scaled fishes to pass through the descaling units through the fishhooks 4, the descaling units can support the scaled fishes, and the problem that the scaled fishes derail is solved; and secondly, the scale removing unit can process the upper and lower surfaces of the scaled fish, so that the purpose of removing scales is achieved, and the 'omission problem' is avoided.

The descaling unit comprises a descaling motor 11, a flexible shaft 12, a descaling roller 13, a double-row gear shaft 14 and a reversing gear shaft 15 (see the attached figure 7 in the specification).

A double-row gear shaft 14 is arranged on the frame 1 through a descaling motor 11; two sides of the double-row gear shaft 14 are respectively provided with a reversing gear shaft 15; the double-row gear shaft 14 is meshed with the reversing gear shaft 15; the ends of the double-row gear shaft 14 and the reversing gear shaft 15 are both provided with a descaling roller 13 through a flexible shaft 12 (see the attached figure 7 in the specification); the surface of the descaling roll 13 is provided with a descaling steel brush (not shown in the attached drawings).

The descaling unit is arranged in such a way that: firstly, the descaling motor 11 drives each descaling roller 13 to rotate in different rotation directions through a double-row gear shaft 14 and a reversing gear shaft 15; the scale on the surface of the fish to be descaled can be removed by the descaling steel brush in the rotating process of the descaling roller 13, so that the purpose of descaling from multiple directions and enhancing the descaling effect is achieved. Secondly, after the scale removing roller 13 is installed through the flexible shaft 12, when scaly fishes extrude the scale removing roller 13, the flexible shaft 12 can deform after being pressed, and a certain operation space is provided for the scaly fishes, so that the purpose that the scale removing steel brush of the scale removing roller 13 can be attached to the surfaces of the scaly fishes is guaranteed, and the problem that the scale removing roller 13 obstructs the movement of the scaly fishes when the scale removing roller 13 is lack of an avoiding function can be avoided.

A cutting knife 6 is arranged on the rack 1 above the bearing plate B10 on one side of the conveying chain 3 through a motor (see the attached figures 1 and 2 in the specification); the sectioning cutter 6 consists of a limiting disc 27 and a sectioning ring edge 28; the middle position of the circumference surface of the limiting disc 27 is provided with a cutting ring edge 28 (refer to the attached figure 3 in the specification). So set up the aim at of cutting open 6: so that dissect sword 6 dissects the in-process to having the fish scale through dissecting the ring edge 28, dissect the inside back that the ring edge 28 extends to having the fish scale, spacing dish 27 can be followed the outside and carried on spacingly to having the fish scale, so that dissect sword 6 can be under the prerequisite of ensureing to dissect the fish maw, avoid dissecting the emergence that ring edge 28 gets into inside too much and lead to damaging the fish body inner chamber problem of fish maw.

The machine frame 1 at one side of the cutting knife 6 is provided with a viscera removing part through a motor (see the attached figure 2 of the specification); the viscera removing part comprises a rotating disk 16 and a viscera removing claw 18 (see the attached figure 4 of the specification); a plurality of assembly notches 17 are uniformly arranged on the circumferential surface of the rotating disc 16; a dirt removing claw 18 is hinged in the assembly notch 17; a buffer spring 19 is arranged between the dirt removing claw 18 and the assembly notch 17; the outer surface of the dirt removing claw 18 and the outer surface of the rotating disc 16 are both provided with dirt removing bristles 20 (see the description and the attached figure 4).

When the device works, the motor drives the viscera to rotate; after the viscera is removed to enter the fish maw, the fish viscera can be hooked out by the rotating viscera removing claw 18, and the viscera attached to the inside of the fish maw can be cleaned by the viscera removing brush 20, so that the purpose of cleaning the viscera can be achieved.

The dirty-removing claw 18 is mounted on the rotary disk 16 through the mounting notch 17, and a buffer spring 19 is arranged between the dirty-removing claw 18 and the mounting notch 17 for the purpose of: each dirty claw 18 can have certain elasticity and be connected with the bottom laminating of fish maw after making the viscera that goes enter into the inside of fish maw, and it can avoid dirty claw 18 and fish maw to take place the problem of damage fish maw when being connected firmly from, can reach again and make dirty claw 18 and fish maw of going to laminate well, make its mesh that can well hook fish dirty out.

A guide A7 is provided on the frame 1 above the carrying plate B10 on the other side of the conveying chain 3. The guide a7 is provided to face the cutting blade 6.

The guide A7 is composed of a guide arc rod 21 and a guide cross rod 22; two groups of guide arc rods 21 are arranged above the bearing plate B10 at intervals (see the attached figure 8 in the specification); one end of the guide arc rod 21 is hinged with a guide cross rod 22 (see the description attached figures 5 and 8); the guide arc rod 21 and the guide cross rod 22 are connected with the frame 1 on one side through a compression spring 26 (see the description and the attached figure 5).

The guide a7 is thus provided for the purpose of: so that during operation, the conveying chain 3 drives the scaly fish to pass through between the guider A7 and the sectioning knife 6 through the fishhook 4, the guide arc rod 21 can extrude the scaly fish from the side surface under the action of the elastic force of the extrusion spring 26, and the scaly fish rotates towards the sectioning knife 6 around the fishhook 4, so that the fish belly of the scaly fish is forced to keep a certain pressure contact with the sectioning knife 6, and further the smooth operation of sectioning is ensured.

The purpose of arranging the guide cross bar 22 at one side of the guide arc bar 21 is as follows: so that in the course of the work, the fish with scales keeps the back in contact with dissecting sword 6 under the direction of guide arc pole 21, when the fish with scales contacts with guide horizontal pole 22, guide horizontal pole 22 forces the fish maw of fish with scales to continue dissecting sword 6 and keep certain pressure contact, has avoided the fish with scales to take place to dissect the problem that can not dissect smoothly with dissecting sword 6 separation.

The two groups of guide arc rods 21 above the bearing plate B10 are arranged at intervals for the purpose of: so that during operation, two sets of guide arc rods 21 can guide the scaled fish to move forward in a clamping state at the back of the fish, and the purpose of stably running the scaled fish under the guide of the two sets of guide arc rods 21 is achieved.

One side of the guide A7 is provided with a guide B8; the guide B8 is disposed opposite to the organ to be removed (see fig. 2 in the specification). The guide B8 is composed of a front arc guide 23, a rear arc guide 24, and an arc guide 25 (see fig. 6 in the specification).

Two groups of arched guide rods 25 are arranged above the bearing plate B10 at intervals (see the description and the attached figure 9); one end of the arched guide rod 25 is hinged with a front arched guide rod 23; the other end of the arched guide rod 25 is hinged with a rear arched guide rod 24; the front arc guide rod 23, the arc guide rod 25 and the rear arc guide rod 24 form a bent arc structure.

The front arc guide rod 23, the arc guide rod 25 and the rear arc guide rod 24 are all connected with the frame 1 on one side through a compression spring 26 (see the attached figures 6 and 9 in the specification).

Due to the characteristic of arc-shaped structure of the fish cavity with the scaly fish, after the guide B8 is arranged, when the conveying chain 3 drives the scaly fish to pass through the guide B8 and the viscera through the fishhook 4; the front arc-shaped guide rod 23 firstly presses the scaly fish from the side under the action of the elastic force of the pressing spring 26, so that the scaly fish rotates around the fishhook 4 towards the cutting knife 6, and the rotated viscera removing part is forced to enter the fish belly to clean the viscera; then the arched guide rod 25 can further extrude the scaly fish from the side surface, so that when the viscera in the middle of the fish maw are cleaned by removing the viscera, the scaly fish can further rotate around the fishhook 4 under the compression of the arched guide rod 25, and the viscera can further enter the middle of the fish maw to clean the viscera; when the scaly fish contacts the rear arc-shaped guide rod 24, the scaly fish rotates towards the rear arc-shaped guide rod 24 under the action of the viscera-removing pressure and keeps sliding contact with the rear arc-shaped guide rod. Thus, the scaled fish can adaptively rotate around the fishhook 4 under the guidance of the front arc-shaped guide rod 23, the arc-shaped guide rod 25 and the rear arc-shaped guide rod 24, so that viscera can be removed by a certain pressure along the bottom of the fish belly; the problem that when the scaly fish passes through the visceral organ removing side in a straight line track, the visceral organs cannot contact the middle position of the fish maw to cause incomplete cleaning and the problem that the visceral organs damage the fish body due to overlarge pressure at the two ends of the fish maw are solved.

When the scaly fish processing device works, firstly, the scaly fish is processed into dead fish by knocking or other methods, and then the scaly fish is sequentially hung on the fishhook 4 through the fisheye position. The rotating conveyor chain 3 will now bring the scaly fish by means of the hooks 4 backwards along the carrier plate a 9.

When the conveyor chain 3 drives the scaly fish to pass through the descaling units through the fishhooks 4, the rotating descaling rolls 13 brush the scales on the surfaces of the scaly fish through the descaling steel brushes on the surfaces in a squeezing brushing mode, so that the purpose of descaling is achieved.

When the conveying chain 3 drives the scaly fishes to pass through the descaling unit through the fishhooks 4 and then moves backwards along the bearing plate B10, the guide arc rods 21 in the guide device A7 can extrude the scaly fishes from the side under the action of the elastic force of the extrusion spring 26, so that the scaly fishes rotate around the fishhooks 4 towards the sectioning knife 6, and then the fish bellies of the scaly fishes can be always in certain pressure contact with the sectioning knife 6 under the guide of the guide cross rods 22, and the purpose of enabling the rotating sectioning knife 6 to complete fish belly sectioning work is achieved.

When the conveying chain 3 drives the scaly fish to pass through the dissecting knife 6 through the fishhook 4, the scaly fish passes through the guide B8 and the viscera of the fish; the front arc-shaped guide rod 23 firstly presses the scaly fish from the side under the action of the elastic force of the pressing spring 26, so that the scaly fish rotates around the fishhook 4 towards the cutting knife 6, and the rotated viscera removing part enters the fish belly from the cutting part to clean the viscera (see the attached figure 10 of the specification); then the arched guide rod 25 further presses the scaly fish from the side surface, so that when the viscera in the middle of the fish maw are cleaned by removing the viscera, the scaly fish further rotates around the fishhook 4 under the compression of the arched guide rod 25, and the viscera can further enter the middle of the fish maw to clean the viscera (see the attached figure 11 in the specification); when the scaly fish contacts the rear arc-shaped guide rod 24, the scaly fish rotates towards the rear arc-shaped guide rod 24 under the action of the viscera-removing pressure and keeps sliding contact with the rear arc-shaped guide rod (see the attached figure 11 in the specification). Therefore, the scaly fish can adaptively rotate around the fishhook 4 under the guidance of the front arc-shaped guide rod 23, the arc-shaped guide rod 25 and the rear arc-shaped guide rod 24, so that viscera can be cleaned along the bottom of the fish belly by removing viscera with certain pressure all the time.

When the conveyor chain 3 drives the scaled fish to pass through the viscera through the fishhooks 4 and run to the tail end of the bearing plate B10, the fishhooks 4 rotate downwards along with the conveyor chain 3 to be separated from the scaled fish, and then the scaled fish slides down into the snakeheads 2 under the action of inertia. The scaly fish processing device can completely complete the 'descaling', 'sectioning' and 'dirty-removing' work of the scaly fish.

As an improvement of the present invention, the scaly fish processing apparatus may be provided in a cabinet, and a cleaning nozzle may be provided in the cabinet so that the cleaning nozzle can clean the descaler 5 and the viscera by the sprayed cleaning water during operation.

The scaly fish processing device is compact in structure and ingenious in design, and can control the advancing posture of the scaly fish under the action of the guide A7 and the guide B8 during working; the sectioning knife 6 can exactly carve the fish maw without damaging the viscera; the viscera removing device can perform 'profile modeling' cleaning along the inside of the fish belly, solves the problems of incomplete viscera removing and easy fish body damage existing in the existing scaly fish processing device, and is particularly suitable for the use requirements of fish processing enterprises.

Claims

1. A scaly fish processing device comprises a frame (1), a fish basket (2), a conveying chain (3), a fishhook (4), a descaler (5), a sectioning knife (6), a viscera, a guider A (7) and a guider B (8); the method is characterized in that: the rack (1) is provided with a transmission chain (3) through a chain wheel and a motor; a plurality of fishhooks (4) are arranged at intervals on the outer side of the conveying chain (3); bearing plates A (9) are symmetrically arranged on the machine frame (1) on the two sides above the conveying chain (3); a bearing plate B (10) is arranged on the frame (1) at one end of the bearing plate A (9); a fish collecting basket (2) is arranged below one end of the bearing plate B (10); the fishhook (4) extends to the upper part from the part between the bearing plates A (9); a descaler (5) is arranged on the frame (1) between the bearing plate A (9) and the bearing plate B (10); a cutting knife (6) is arranged on the rack (1) above the bearing plate B (10) on one side of the conveying chain (3) through a motor; the machine frame (1) at one side of the dissecting knife (6) is provided with a viscera removing part through a motor; a guide A (7) and a guide B (8) are sequentially arranged on the rack (1) above the bearing plate B (10) at the other side of the conveying chain (3); the guider A (7) and the sectioning knife (6) are arranged in opposite directions; the guide B (8) is arranged opposite to the organ to be removed.

2. A scaled fish processing apparatus according to claim 1, wherein: the descaler (5) consists of two groups of descaler units; the upper part and the lower part of one side of the conveying chain (3) are provided with a descaling unit; the descaling unit comprises a descaling motor (11), a flexible shaft (12), a descaling roller (13), a double-row gear shaft (14) and a reversing gear shaft (15); a double-row gear shaft (14) is arranged on the frame (1) through a descaling motor (11); two sides of the double-row gear shaft (14) are respectively provided with a reversing gear shaft (15); the double-row gear shaft (14) is meshed with the reversing gear shaft (15); the ends of the double-row gear shaft (14) and the reversing gear shaft (15) are provided with a descaling roller (13) through a flexible shaft (12); the surface of the descaling roller (13) is provided with a descaling steel brush.

3. A scaled fish processing apparatus according to claim 1, wherein: the cutting knife (6) consists of a limiting disc (27) and a cutting ring edge (28); a cutting ring edge (28) is arranged at the middle part of the circumferential surface of the limiting disc (27).

4. A scaled fish processing apparatus according to claim 1, wherein: the viscera removing device comprises a rotating disc (16) and a viscera removing claw (18); a plurality of assembly notches (17) are uniformly arranged on the circumferential surface of the rotating disc (16); a dirt removing claw (18) is hinged in the assembly notch (17); a buffer spring (19) is arranged between the dirt removing claw (18) and the assembly notch (17); the outer surface of the dirt removing claw (18) and the outer surface of the rotating disc (16) are both provided with dirt removing bristles (20).

5. A scaled fish processing apparatus according to claim 1, wherein: the guider A (7) is composed of a guide arc rod (21) and a guide cross rod (22); two groups of guide arc rods (21) are arranged above the bearing plate B (10) at intervals; one end of the guide arc rod (21) is hinged with a guide cross rod (22); the guide arc rod (21) and the guide cross rod (22) are connected with the frame (1) on one side through an extrusion spring (26).

6. A scaled fish processing apparatus according to claim 1, wherein: the guider B (8) is composed of a front arc-shaped guide rod (23), a rear arc-shaped guide rod (24) and an arc-shaped guide rod (25); two groups of arched guide rods (25) are arranged above the bearing plate B (10) at intervals; one end of the arched guide rod (25) is hinged with a front arched guide rod (23); the other end of the arched guide rod (25) is hinged with a rear arched guide rod (24); a curved structure is formed among the front arc-shaped guide rod (23), the arc-shaped guide rod (25) and the rear arc-shaped guide rod (24); the front arc-shaped guide rod (23), the arc-shaped guide rod (25) and the rear arc-shaped guide rod (24) are connected with the frame (1) on one side through an extrusion spring (26).
