Abstract

The invention discloses an electric power dustproof electric power cabinet in the technical field of electric power cabinets, which comprises a box body, wherein the box body is provided with a first cavity, a long rod is arranged in the middle of a first plate body, a special-shaped rotary table is fixedly arranged at the top of the long rod, fixing pieces are uniformly and fixedly arranged on the top cavity wall of the first cavity, fixing plates are uniformly arranged at the bottoms of the left end and the right end of each fixing piece, a connecting frame rod is arranged on the fixing plate positioned at the inner end, hollow sleeves are uniformly arranged on the fixing plates positioned at the outer ends of the fixing pieces, and brushes are uniformly and fixedly arranged at the outer ends of the hollow sleeves. According to the invention, through the matching of the bevel gear, the dustproof net, the belt pulley, the fan, the dust receiving plate, the brush and the rotating sleeve, the internal equipment of the electric power cabinet is cooled and radiated, meanwhile, the dustproof nets are arranged at the two ends of the electric power cabinet, and the dustproof nets at the two ends are cleaned, so that the blockage of the dustproof nets is avoided, the cleaned dust can be collected, the practicability of the electric power cabinet is improved, and the dustproof effect of the electric power cabinet is enhanced.

Description

An electric dust-proof power cabinet

technical field

The invention relates to the technical field of power cabinets, in particular to an electric dust-proof power cabinet.

Background technique

The power cabinet is a box used to store power equipment. After a period of use in the power cabinet, the equipment inside the power cabinet needs to be cleaned to prevent dust from affecting the operation.

To clean the inside of the chassis and cabinet, it is best to disassemble each component into eight pieces, and remove each board and card for cleaning separately. For boards, cleaning is mainly dust removal. It is unrealistic to prevent dust from entering the chassis cabinet, because external heat dissipation is required, and each fan exchanges air externally. It is inevitable to enter the dust. Therefore, it is necessary to regularly remove dust from the power cabinet.

In order to prevent dust from falling into the power equipment and affecting the power equipment, dust-proof nets are usually set up to block the dust. After the dust-proof net is used for a long time, the dust will block the dust-proof net, resulting in low heat dissipation efficiency. Cleaning the dust-proof net increases the labor intensity of the staff, and manually cleaning the dust-proof net by the staff will cause the staff to absorb a large amount of dust and enter the body, affecting the physical and mental health of the staff.

Based on this, the present invention designs an electric dust-proof power cabinet to solve the above-mentioned problems.

Contents of the invention

The purpose of the present invention is to provide an electric dust-proof power cabinet to solve the problem in the above-mentioned background art that in order to prevent dust from falling into the electric equipment and affecting the electric equipment, a dust-proof net is usually set up to block the dust, and the dust-proof After the net is used for a long time, the dust will block the dust-proof net, resulting in low heat dissipation efficiency. It is necessary to clean the dust-proof net regularly, which increases the labor intensity of the staff, and manually cleaning the dust-proof net by the staff will make the The staff absorbs a large amount of dust into the body, which affects the physical and mental health of the staff.

In order to achieve the above object, the present invention provides the following technical solutions: an electric dustproof power cabinet, including a box body, the box body is provided with a first cavity, and the upper parts of the cavity walls at the left and right ends of the first cavity are uniformly arranged There is a dust-proof net, a first plate is fixedly installed on the upper part of the first cavity, a long rod is installed in the middle of the first plate, and a special-shaped turntable is fixedly installed on the top of the long rod. The cavity wall at the top of the cavity is evenly fixed with fixing parts, the bottoms of the left and right ends of the fixing parts are evenly provided with fixing plates, the fixing plates at the inner end are provided with connecting rods, and the fixing parts at the outer ends of the fixing parts are evenly provided with Hollow sleeve, the hollow sleeve is rotatably connected with the fixed plate, the outer end of the hollow sleeve is evenly fixed with a brush, the middle part of the connecting rod is provided with a rectangular groove, and a short rod is arranged in the rectangular groove, and the short rod rotates A rotating rod is connected, and a rectangular block is fixed at the midpoint of the top of the connecting frame rod. The rectangular block is provided with an inner chamber with an opening downward, and a spring is installed in the inner chamber, and an abutment rod is embedded therein. The left and right ends of the rotating rod are evenly fixed with circular blocks, the bottom of the long rod runs through the first plate body, and a rotating sleeve is arranged, and the left and right ends of the rotating sleeve are evenly fixed with a second rod body, The top of the outer end of the second rod body is evenly fixed with a third rod body, and the third rod body uniformly runs through the first plate body, and the second pulley is fixedly installed on the lower part of the rod body of the long rod body, and the A fan is fixedly installed at the bottom of the rod body, a first rod body is provided at the bottom of the right end of the first plate body, a first pulley is provided at the lower part of the first rod body, and the first pulley and the second pulley are driven by a belt. connected, the bottom of the first pulley is fixedly installed with a first bevel gear, the right part of the box is fixedly installed with a storage box, a motor is installed in the storage box, and the right end wall of the first cavity is provided with a connection The inner end of the connecting rod is fixedly equipped with the second bevel gear, and the outer end of the connecting rod penetrates the right end cavity wall of the first cavity and is fixedly connected with the output end of the motor.

Preferably, the inner wall of the rotating sleeve is provided with a reciprocating chute, the rod body of the long rod is provided with a limit rod, and the limit rod is inserted into the reciprocating chute provided on the inner wall of the rotating sleeve.

Preferably, the top of the special-shaped turntable is provided with a spiral chute, the bottom of the circular block is rotatably connected with a roller, the roller is embedded in the spiral chute on the top of the special-shaped turntable, and the outer ring of the spiral chute is provided with an inclined slope .

Preferably, the bottom of the abutting rod is configured as an inverted triangle, and the top of the rotating rod at the midpoint is configured as an equilateral triangle.

Preferably, the inner wall of the hollow sleeve and the outer walls of the left and right ends of the connecting rod are uniformly provided with helical teeth, and the hollow sleeve meshes with the helical teeth of the connecting rod.

Preferably, the top of the first plate body is evenly provided with an ash collecting tank, the left and right ends of the first cavity are evenly fixed with fixed blocks, and the inner ends of the fixed blocks are evenly hinged with ash plates, and the connected The inner end of the gray plate abuts against the top of the outer periphery of the ash collecting tank, and the middle part of the first plate body is uniformly provided with ventilation slots.

Preferably, rubber pads are uniformly arranged on the top of the outer periphery of the ash collecting tank at the top of the first plate.

Preferably, a spherical cavity is evenly opened on the top of the third rod body, and universal balls are uniformly arranged in the spherical cavity, and the universal ball abuts against the bottom of the gray plate.

Compared with the prior art, the beneficial effect of the present invention is that the present invention realizes the cooling and heat dissipation of the internal equipment of the power cabinet through the cooperation of bevel gears, dust-proof nets, belt pulleys, fans, dust boards, brushes and rotating sleeves At the same time, dust-proof nets are installed at both ends of the power cabinet, and the dust-proof nets at both ends are cleaned to avoid blockage of the dust-proof nets, and the dust after cleaning can be collected, which improves the practicability of the power cabinet and enhances the power The dustproof effect of the cabinet.

Of course, any product implementing the present invention does not necessarily need to achieve all the above-mentioned advantages at the same time.

Description of drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the following will briefly introduce the accompanying drawings that are required for the description of the embodiments. Obviously, the accompanying drawings in the following description are only some embodiments of the present invention. Those of ordinary skill in the art can also obtain other drawings based on these drawings without any creative effort.

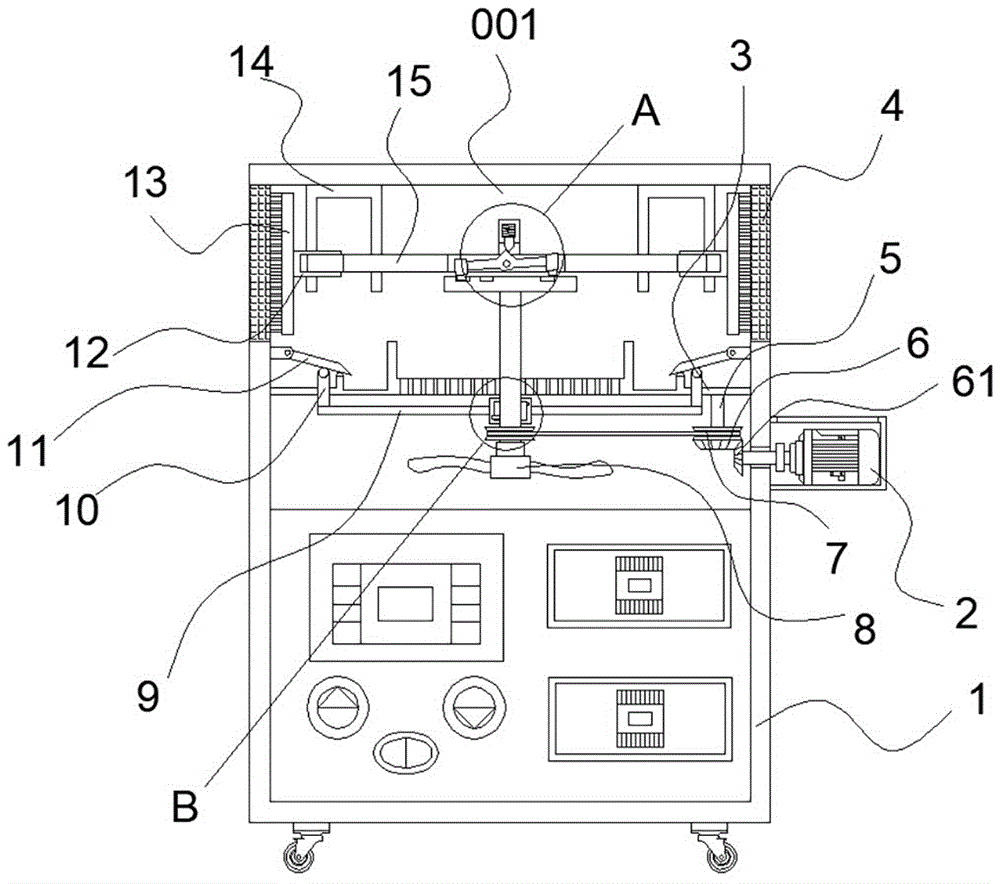

Fig. 1 is a schematic diagram of the internal structure of the present invention;

Fig. 2 is the enlarged schematic diagram of the structure at A place of the present invention;

Fig. 3 is the enlarged schematic diagram of the structure at B place of the present invention;

Fig. 4 is a schematic diagram of the top structure of the special-shaped turntable of the present invention.

In the accompanying drawings, the list of parts represented by each label is as follows:

1-box, 001-first cavity, 2-motor, 3-first plate, 4-dust filter, 5-first rod, 6-first bevel gear, 61-second bevel gear, 7 -The first pulley, 71-the second pulley, 8-fan, 9-the second rod body, 10-the third rod body, 11-connect the gray board, 12-hollow sleeve, 13-hair brush, 14-fixed piece, 15- Connecting frame rod, 16-rotating rod, 17-abutting rod, 18-rectangular block, 19-circular block, 20-special-shaped turntable, 21-long rod, 22-rotating sleeve.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative efforts fall within the protection scope of the present invention.

Please refer to Figures 1-4, the present invention provides a technical solution: an electric dust-proof power cabinet, including a box body 1, the box body 1 is provided with a first cavity 001, and the walls of the left and right ends of the first cavity 001 The upper part is evenly provided with a dust-proof net 4, the upper part of the first cavity 001 is fixedly installed with the first plate body 3, the middle part of the first plate body 3 is provided with a long rod 21, and the top of the long rod 21 is fixedly installed with a special-shaped turntable 20, The top cavity wall of the first cavity 001 is uniformly fixed with a fixing piece 14, the bottom of the left and right ends of the fixing piece 14 is evenly provided with a fixing plate, the fixing plate at the inner end is provided with a link rod 15, and the fixing piece 14 is located at the fixing plate at the outer end The hollow sleeve 12 is evenly arranged, and the hollow sleeve 12 is connected with the fixed plate in rotation. The outer end of the hollow sleeve 12 is evenly fixed with a brush 13, and the middle part of the connecting rod 15 is provided with a rectangular groove, and a short rod is arranged in the rectangular groove. The rod is rotatably connected with a rotating rod 16, and a rectangular block 18 is fixedly arranged at the midpoint of the top of the connecting frame rod 15. The rectangular block 18 is provided with an inner cavity with an opening downward, and a spring is installed in the inner cavity, and an abutting rod 17 is embedded therein. , the left and right ends of the rotating rod 16 are evenly fixed with a circular block 19, the bottom of the long rod 21 runs through the first plate body 3, and a rotating sleeve 22 is arranged, and the left and right ends of the rotating sleeve 22 are evenly fixed with a second rod body 9. The top of the outer end of the second rod body 9 is evenly fixed with the third rod body 10, the third rod body 10 evenly runs through the first plate body 3, the lower part of the rod body of the long rod 21 is fixedly installed with the second pulley 71, and the rod body of the long rod 21 The bottom end is fixedly equipped with a fan 8, the bottom of the right end of the first plate body 3 is provided with a first rod body 5, and the bottom of the first rod body 5 is provided with a first pulley 7, and the first pulley 7 and the second pulley 71 are connected through a belt transmission. The bottom of the first pulley 7 is fixedly installed with the first bevel gear 6, the right part of the box body 1 is fixedly installed with a placement box, and a motor 2 is installed in the placement box, and the right end cavity wall of the first cavity 001 is provided with a connecting rod. A second bevel gear 61 is fixedly mounted on the inner end of the rod, and the outer end of the connecting rod penetrates the right end wall of the first cavity 001 and is fixedly connected with the output end of the motor 2 .

Further, the inner wall of the rotating sleeve 22 is provided with a reciprocating chute, the rod body of the long rod 21 is provided with a limit rod, and the limit rod is embedded in the reciprocating chute provided on the inner wall of the rotating sleeve 22, which is beneficial to drive the rotation when the long rod 21 rotates. Cover 22 reciprocates up and down.

Further, the top of the special-shaped turntable 20 is provided with a spiral chute, and the bottom of the circular block 19 is rotatably connected with a roller, and the roller is embedded in the spiral chute at the top of the special-shaped turntable 20, and the outer ring of the spiral chute is provided with an inclined slope, which is conducive to Drive turning bar 16 and turn to tilt.

Further, the bottom of the abutting rod 17 is set in an inverted triangle shape, and the top of the rotating rod 16 at the midpoint is set in an equilateral triangle shape, which is beneficial to limit the rotating rod 16 .

Further, the inner wall of the hollow sleeve 12 and the outer walls of the left and right ends of the connecting rod 15 are evenly provided with helical teeth, and the hollow sleeve 12 is meshed with the helical teeth of the connecting rod 15, which is beneficial when the connecting rod 15 is embedded in the hollow sleeve. During 12, drive hollow cover 12 to rotate.

Further, the top of the first plate body 3 is evenly provided with ash collecting grooves, the left and right ends of the first cavity 001 are evenly fixed with fixed blocks, and the inner ends of the fixed blocks are evenly hinged with ash boards 11, and ash boards 11 The inner end abuts against the top of the outer periphery of the ash collecting tank, and the middle part of the first plate body 3 is evenly provided with ventilation grooves, which is beneficial to the heat dissipation of the equipment in the first cavity 001.

Further, rubber pads are evenly provided on the top of the outer periphery of the ash collection tank on the top of the first plate body 3, which is beneficial to avoid collision between the ash receiving plate 11 and the top of the outer circumference of the ash collection tank.

Further, the top of the third rod body 10 is uniformly provided with a spherical cavity, and universal balls are uniformly arranged in the spherical cavity, and the universal ball abuts against the bottom of the gray plate 11, which is beneficial to drive the gray plate 11 to shake.

A specific application of this embodiment is: by starting the motor 2, the second bevel gear 61 is driven to rotate after the motor 2 runs, the second bevel gear 61 meshes with the first bevel gear 6, and the first pulley 7 and the second pulley 71 belt drive , so the long rod 21 is driven to rotate, and the fan 8 at the bottom of the long rod 21 performs air-cooling and heat dissipation for the equipment in the first cavity 001. Rotate in the spiral chute on the top of the special-shaped turntable 20, when the roller at one end of the rotating rod 16 rotates to the outer ring of the spiral chute, because the outer ring is provided with an inclined slope, the roller drives one end of the rotating rod 16 to move upward, so the rotating rod The midpoint of 16 abuts against the bottom of the abutment rod 17, and the abutment rod 17 is forced to move upwards. At this time, the rotating rod 16 is inclined to one end, and the abutment rod 17 drives the abutment rod 17 to reset under the effect of spring rebound, and The middle point of the rotating rod 16 is abutted, so under the action of the roller threaded chute, the rotating rod 16 is driven to move left and right. When the rotating rod 16 drives the connecting rod 15 to move to one end, the outer end of the connecting rod 15 is set The helical tooth pattern meshes with the helical tooth pattern on the inner wall of the hollow sleeve 12, which drives the hair brush 13 to rotate, so the hair brush 13 cleans the dust adsorbed on the dust-proof net 4, and the dust will fall on the top of the gray plate 11. Due to the long The lower part of the rod body of the rod 21 is provided with a rotating sleeve 22, and the limit rod provided by the rod body of the long rod 21 falls into the reciprocating chute of the rotating sleeve 22, so when the long rod 21 rotates, the rotating sleeve 22 is driven to reciprocate up and down. At this time, the second rod body 9. The third rod body 10 at the left and right ends moves upwards simultaneously, driving the ash-connecting plate 11 to shake up and down, so that dust falls into the ash-collecting groove on the top of the first plate body 3 .

In the description of the present invention, it should be noted that unless otherwise specified and limited, the terms "installation", "connection" and "setting" should be understood in a broad sense, for example, it can be a fixed connection or a detachable connection. Connected, or integrally connected; it may be mechanically connected, may be directly connected, or may be indirectly connected through an intermediary. Those of ordinary skill in the art will understand the specific meanings of the above terms in the present invention according to specific situations. In the description of this specification, descriptions with reference to the terms "one embodiment", "example", "specific example" and the like mean that the specific features, structures, materials or characteristics described in conjunction with the embodiment or example are included in at least one embodiment of the present invention. In an embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the specific features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the invention disclosed above are only to help illustrate the invention. The preferred embodiments are not exhaustive in all detail, nor are the inventions limited to specific embodiments described. Obviously, many modifications and variations can be made based on the contents of this specification. This description selects and specifically describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The invention is to be limited only by the claims, along with their full scope and equivalents.

Claims (6)

1. An electric dust-proof power cabinet, comprising a box body (1), characterized in that: the box body (1) is provided with a first cavity (001), and the left and right ends of the first cavity (001) The upper part of the cavity wall is uniformly provided with a dust-proof net (4), the upper part of the first cavity (001) is fixedly installed with a first plate (3), and the middle part of the first plate (3) is provided with a long Rod (21), the top of the long rod (21) is fixedly equipped with a special-shaped turntable (20), and the top cavity wall of the first cavity (001) is evenly fixed with a fixture (14), and the fixture (14) The bottoms of the left and right ends are evenly provided with fixed plates, the fixed plates at the inner ends are provided with connecting frame rods (15), and the fixed members (14) are evenly provided with hollow sleeves (12) at the fixed plates at the outer ends. The hollow sleeve (12) is rotatably connected with the fixed plate, the outer end of the hollow sleeve (12) is evenly fixed with a brush (13), the middle part of the connecting frame rod (15) is provided with a rectangular groove, and the rectangular groove is set There is a short rod, and the short rod is connected with a rotating rod (16) in rotation, and a rectangular block (18) is fixedly arranged at the midpoint of the top of the connecting frame rod (15), and the rectangular block (18) is provided with a downward opening. Inner cavity, a spring is installed in the inner cavity, and an abutment rod (17) is embedded, the left and right ends of the rotating rod (16) are evenly fixed with circular blocks (19), and the long rod (21) The bottom runs through the first plate body (3), and is provided with a rotating sleeve (22), and the left and right ends of the rotating sleeve (22) are evenly fixed with a second rod body (9), and the second rod body (9) ) is evenly and fixedly installed with a third rod body (10), the third rod body (10) uniformly runs through the first plate body (3), and the rod body lower part of the long rod (21) is fixedly installed with a second rod body (10). Two pulleys (71), the bottom end of the rod body of the long rod (21) is fixedly equipped with a fan (8), the bottom right end of the first plate body (3) is provided with a first rod body (5), the first The bottom of the rod body (5) is provided with a first pulley (7), and the first pulley (7) is connected to the second pulley (71) through a belt drive, and the bottom of the first pulley (7) is fixedly installed with The first bevel gear (6), the right part of the box body (1) is fixedly installed with a placement box, and a motor (2) is installed in the placement box, and the right end cavity wall of the first cavity (001) is provided with a connection Rod, the inner end of the connecting rod is fixedly equipped with a second bevel gear (61), the outer end of the connecting rod runs through the right end cavity wall of the first cavity (001), and is fixed with the output end of the motor (2) connection; in addition, the top of the special-shaped turntable (20) is provided with a spiral chute, the bottom of the circular block (19) is rotatably connected with rollers, and the rollers are embedded in the spiral chute at the top of the special-shaped turntable (20), The outer ring of the spiral chute is provided with an inclined slope; the top of the first plate body (3) is evenly provided with an ash collecting groove, and the left and right ends of the first cavity (001) are evenly fixed with fixed blocks to fix The inner end of the block is uniformly hinged with a gray board (11), and the inner end of the gray board (11) is connected to the The top of the outer periphery of the ash collecting tank abuts against each other, and the middle part of the first plate body (3) is uniformly provided with ventilation grooves. 2. An electric dust-proof power cabinet according to claim 1, characterized in that: the inner wall of the rotating sleeve (22) is provided with a reciprocating chute, and the rod body of the long rod (21) is provided with a limit rod, The limit rod is embedded in the reciprocating chute provided on the inner wall of the rotating sleeve (22). 3. An electric dust-proof power cabinet according to claim 1, characterized in that: the bottom of the abutting rod (17) is set in an inverted triangle shape, and the top of the middle point of the rotating rod (16) is set It is an equilateral triangle. 4. An electric dustproof power cabinet according to claim 1, characterized in that: the inner wall of the hollow sleeve (12) and the outer walls of the left and right ends of the connecting rod (15) are evenly provided with helical teeth , the hollow sleeve (12) meshes with the helical teeth of the connecting rod (15). 5. An electric dustproof power cabinet according to claim 1, characterized in that rubber pads are uniformly arranged on the top of the ash collecting tank on the top of the first board (3). 6. An electric dust-proof power cabinet according to claim 1, characterized in that: the top of the third rod body (10) is evenly provided with a spherical cavity, and universal balls are uniformly arranged in the spherical cavity, and the universal balls It abuts against the bottom of the gray board (11).
