Abstract

本发明属于平开窗技术领域，具体公开了一种防水隔音的高密封平开窗系统，包括窗框和窗体，窗体内侧面一侧设置有推把组件，窗体上下两端设置有连接件，窗体通过连接件与窗框铰接；所述连接件包括连接杆、固定杆和安装板；所述连接杆一端通过第一销轴A与窗框转动连接，另一端通过第一销轴B与窗体转动连接；所述窗框表面一侧开设有条形凹槽，条形凹槽内固定有安装板，安装板通过螺栓与窗框固定连接，安装板表面设置有固定杆，固定杆一端通过第二销轴A与安装板转动连接，另一端通过第二销轴B与窗体转动连接；所述窗体包括第二内框、第一内框和玻璃板；所述第二内框尺寸与窗框尺寸匹配，第二内框表面边缘位置处粘结固定有密封条。

Figure 202110359414

The invention belongs to the technical field of casement windows, and specifically discloses a waterproof and soundproof high-sealing casement window system, comprising a window frame and a window. A connecting piece, the window is hinged with the window frame through the connecting piece; the connecting piece includes a connecting rod, a fixing rod and a mounting plate; one end of the connecting rod is rotatably connected with the window frame through the first pin shaft A, and the other end is connected with the window frame through the first pin The axis B is rotatably connected with the window; a strip-shaped groove is opened on one side of the surface of the window frame, a mounting plate is fixed in the strip-shaped groove, the mounting plate is fixedly connected with the window frame by bolts, and the surface of the mounting plate is provided with a fixing rod, One end of the fixing rod is rotatably connected with the mounting plate through the second pin shaft A, and the other end is rotatably connected with the window through the second pin shaft B; the window includes a second inner frame, a first inner frame and a glass plate; The size of the second inner frame matches the size of the window frame, and a sealing strip is bonded and fixed at the edge position of the surface of the second inner frame.

Figure 202110359414

Description

Waterproof and soundproof high-sealing casement window system
Technical Field
The invention relates to the technical field of casement windows, in particular to a waterproof and sound-proof high-sealing casement window system.
Background
In view of safety problems, the casement window in the prior art is generally opened towards one indoor side, especially in high-rise houses. The sealing between the window sash and the window frame can only depend on the sealing strip clamped between the outer side of the window sash frame and the inner side of the window frame, but the deformation (or the defect in production) of the window and the aging of the sealing strip can cause the sealing between the window sash and the window frame to be not tight, and rainwater splashed to the outer side of the window sash can leak indoors in rain, so that the water leakage phenomenon is caused.
Disclosure of Invention
The invention aims to provide a waterproof and soundproof high-sealing casement window system to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: a waterproof and soundproof high-sealing casement window system comprises a window frame and a window body, wherein a push handle assembly is arranged on one side of the inner side surface of the window body, connecting pieces are arranged at the upper end and the lower end of the window body, and the window body is hinged with the window frame through the connecting pieces; the connecting piece comprises a connecting rod, a fixed rod and a mounting plate; one end of the connecting rod is rotatably connected with the window frame through a first pin shaft A, and the other end of the connecting rod is rotatably connected with the window body through a first pin shaft B; a strip-shaped groove is formed in one side of the surface of the window frame, an installation plate is fixed in the strip-shaped groove and fixedly connected with the window frame through a bolt, a fixed rod is arranged on the surface of the installation plate, one end of the fixed rod is rotatably connected with the installation plate through a second pin shaft A, and the other end of the fixed rod is rotatably connected with the window body through a second pin shaft B;
the window body comprises a second inner frame, a first inner frame and a glass plate; the size of the second inner frame is matched with that of the window frame, the edge position of the surface of the second inner frame is fixedly bonded with a sealing strip, the inner wall of the window frame is provided with a notch, an air bag is fixedly arranged in the notch, the surface of the air bag is communicated with an air inlet pipe, the inner side surface of the window frame is positioned on one side of the notch, and the air inlet pipe penetrates through the round hole and is communicated with the pressure ball.
Preferably, the push handle assembly comprises a wedge block, a chuck and a round rod; a strip-shaped through hole is formed in the side face of the first inner frame, a chuck is arranged in the strip-shaped through hole, and a wedge-shaped block is fixedly connected to the side face of the circumference of the chuck.
Preferably, the center of the surface of the chuck is fixedly connected with a round rod, and the other end of the round rod penetrates through the first inner frame and is fixedly connected with the handle; and a wedge-shaped groove is formed in the side surface of the window frame corresponding to the wedge-shaped block.
Preferably, the surface of the round rod is sleeved with a return spring.
Preferably, the outer frame is arranged on the outer side of the second inner frame, the size of the outer frame is larger than that of the window frame, the first magnetic sheet is fixedly bonded on the inner side face of the outer frame, the second magnetic sheet is fixedly bonded on the surface of the window frame correspondingly, and the outer frame is connected with the window frame through the matching magnetism of the first magnetic sheet and the second magnetic sheet.
Preferably, the upper end and the lower end of the outer side of the window frame are provided with reinforcing members, and each reinforcing member comprises a chain, a fixed plate and a sliding block; the fixed plate is vertically arranged at the upper end and the lower end of the outer side of the window frame, and the surface of the fixed plate is fixedly connected with a fixed ring.
Preferably, the surface of the fixed ring is fixedly connected with a chain, and the other end of the chain is fixedly connected with a sliding block; the bar spout has been seted up at both ends about the frame outside, the inside sliding block that is provided with of bar spout, sliding block and bar spout sliding connection.
Preferably, the top end of the outer side of the window frame is provided with a rain shielding plate, and the width of the rain shielding plate is larger than that of the window body and the rain shielding plate is obliquely arranged.
Preferably, the glass plate is double-layer laminated glass, and the surface of the glass plate is adhered with a transparent sound-insulating film.
Compared with the prior art, the invention has the beneficial effects that: according to the invention, through the matching of the first magnetic sheet, the second magnetic sheet, the sealing strip, the air bag, the air inlet pipe and the pressure ball bag, when the window body is closed, the air in the pressure ball bag is extruded into the air bag so as to expand the air bag, the air bag extrudes the sealing strip when expanding, so that the air bag is tightly connected with the sealing strip, the sealing effect is achieved, and the sealing effect of the window body and the window frame is enhanced through the matching of the first magnetic sheet and the second magnetic sheet, so that the purpose of high sealing is finally realized.
According to the invention, through the arranged reinforcing member, the fixed supporting effect of the window body during windowing can be enhanced on the premise of not influencing the use of the window body, the falling of the window body is prevented, and the safety performance is improved.
The rain shielding plate is arranged on the outer side of the window frame, so that rainwater can be prevented from permeating into the window frame and the window body through a gap between the window frame and the window body when sliding down along the window frame and the window body, a water leakage phenomenon is avoided, a waterproof purpose is achieved, and the window frame is more practical.
The glass plate adopts double-layer laminated glass, the double-layer laminated glass has better sound insulation effect compared with common glass, and the transparent sound insulation film is bonded and fixed on the surface of the glass plate, so that the aim of sound insulation is fulfilled on the premise of not influencing the light transmission of the glass.
Drawings

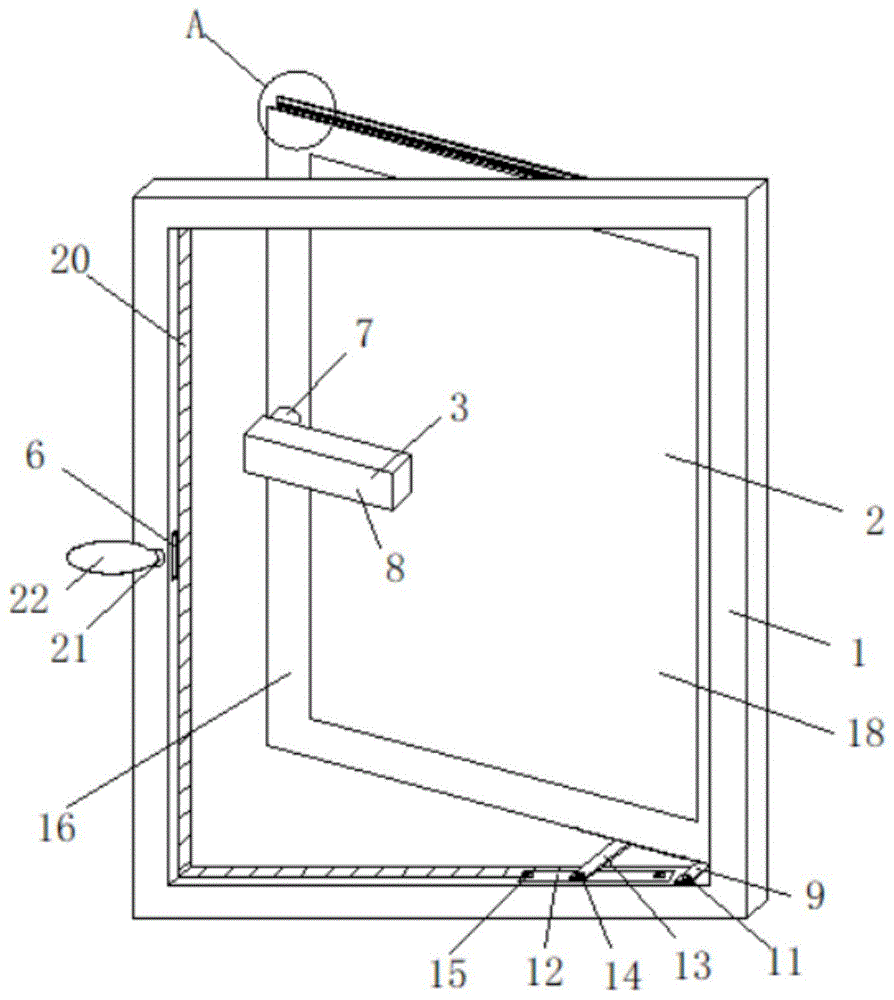

Fig. 1 is an overall perspective view of embodiment 1 of the present invention;
FIG. 2 is an enlarged schematic view at A in FIG. 1;
FIG. 3 is a front view of the entire inner side of example 1 of the present invention;
FIG. 4 is a top view of example 2 of the present invention;
FIG. 5 is a front view of the entire outer side of example 3 of the present invention;
fig. 6 is a front view of the entire outer surface in example 4 of the present invention.
In the figure: 1. a window frame; 2. a window body; 3. a push handle assembly; 4. a chuck; 5. a wedge block; 6. a wedge-shaped groove; 7. a round bar; 8. a handle; 9. a connecting member; 10. a connecting rod; 11. a first pin shaft; 12. mounting a plate; 13. fixing the rod; 14. a second pin shaft; 15. a bolt; 16. a first inner frame; 17. a second inner frame; 18. a glass plate; 19. a sealing strip; 20. an air bag; 21. an air inlet pipe; 22. a pressure balloon; 23. a first magnetic sheet; 24. a second magnetic sheet; 25. a reinforcement; 26. a chain; 27. a fixing plate; 28. a fixing ring; 29. a slider; 30. a chute; 31. a flashing; 32. and (4) an outer frame.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
Example 1:
as shown in fig. 1-3; the invention provides a waterproof and soundproof high-sealing casement window system, which is characterized in that: the window comprises a window frame 1 and a window body 2, wherein a connecting piece 9 is arranged between the window body 2 and the window frame 1, and the connecting piece 9 comprises a connecting rod 10, a fixed rod 13 and a mounting plate 12; one end of a connecting rod 10 is rotatably connected with the window frame 1 through a first pin shaft 11A, the other end of the connecting rod is rotatably connected with the window body 2 through a first pin shaft 11B, the window body 2 and the window frame 1 can be rotatably connected in a staggered manner through the connecting rod 10, the window body 2 is opened, a strip-shaped groove is formed in one side of the surface of the window frame 1, a mounting plate 12 is fixed in the strip-shaped groove, the mounting plate 12 is fixedly connected with the window frame 1 through a bolt 15, a fixing rod 13 is arranged on the surface of the mounting plate 12, one end of the fixing rod 13 is rotatably connected with the mounting plate 12 through a second pin shaft 14A; the fixed rod 13 can play a role of fixing and supporting when the window body 2 is opened, so that the normal use of the window body 2 is ensured;
the window 2 includes a second inner frame 17, a first inner frame 16 and a glass panel 18; the size of the second inner frame 17 is matched with that of the window frame 1, the edge position of the surface of the second inner frame 17 is fixedly bonded with a sealing strip 19, the inner wall of the window frame 1 is provided with a notch, an air bag 20 is fixedly arranged in the notch, the surface of the air bag 20 is communicated with an air inlet pipe 21, one side of the notch, which is positioned on the inner side surface of the window frame 1, is provided with a round hole, the air inlet pipe 21 penetrates through the round hole and is communicated with a pressure balloon 22, the air bag 20 in the notch can be expanded under the action of the pressure balloon 22 and the air inlet pipe 21, and then the sealing strip 19 fixedly bonded with;
the push handle component 3 comprises a wedge-shaped block 5, a chuck 4 and a round rod 7; a strip-shaped through hole is formed in the side face of the first inner frame 16, a chuck 4 is arranged in the strip-shaped through hole, and a wedge-shaped block 5 is fixedly connected to the circumferential side face of the chuck 4; the center of the surface of the chuck 4 is fixedly connected with a round rod 7, and the other end of the round rod 7 penetrates through a first inner frame 16 and is fixedly connected with a handle 8; a wedge-shaped groove 6 is formed in the side face of the window frame 1 corresponding to the wedge-shaped block 5, and a return spring is sleeved on the surface of the round rod 7; round bar 7 can rotate with first inside casing 16 and be connected to when windowing, thereby push down by the user and push away to make round bar 7 rotate and drive chuck 4 and rotate, chuck 4 drives wedge 5 when rotating and rotates, thereby makes wedge 5 break away from in the wedge 6, can window, and when closing the window, accessible above-mentioned mode makes wedge 5 imbed in the wedge 6, thereby makes window body 2 carry out the closure fixed, guarantees to use.
Glass plate 18 in window body 2 adopts double-deck doubling glass, and double-deck doubling glass has better syllable-dividing effect than ordinary glass to 18 surface bonds and is fixed with transparent sound-proof membrane at glass plate, under the non-light tight prerequisite of glass, further improves syllable-dividing effect.
Example 2:
as shown in fig. 4, in embodiment 2, a first magnetic sheet 23 is disposed on an inner side surface of the outer frame 32, a second magnetic sheet 24 is correspondingly bonded and fixed on a surface of the window frame 1, and when the window 2 is closed, the window 2 is magnetically connected with the window frame 1 by cooperation of the first magnetic sheet 23 and the second magnetic sheet 24, so that a sealing effect when the window 2 is closed is further enhanced, and a sound insulation effect of the window 2 is further enhanced.
Example 3:
as shown in fig. 5, in embodiment 3, the window frame 1 is provided with the reinforcing members 25 at the upper and lower ends of the outer side thereof, and the reinforcing members 25 include the chain 26, the fixed plate 27 and the sliding block 29; the fixed plate 27 is vertically arranged at the upper end and the lower end of the outer side of the window frame 1, the fixed ring 28 is fixedly connected to the surface of the fixed plate 27, the chain 26 is fixedly connected to the surface of the fixed ring 28, the other end of the chain 26 is fixedly connected with the sliding block 29, the upper end and the lower end of the outer side of the outer frame 32 are provided with the bar-shaped sliding grooves 30, the sliding block 29 is arranged in the bar-shaped sliding grooves 30, and the sliding; fixed stay effect of window form 2 when windowing can be strengthened to reinforcement 25, and when windowing, drives sliding block 29 and slides in bar spout 30 by chain 26, and after window form 2 reachd the maximum aperture, sliding block 29 slided to bar spout 30 tip to can not influence the normal use of window form 2, can prevent again that the condition that window form 2 appears falling.
Example 4:
as shown in fig. 6, in embodiment 4, a rain shield 31 is disposed at the top end of the outer side of the window frame 1, the width of the rain shield 31 is greater than the width of the window body 2, and the rain shield 31 is disposed at the top end of the outer side of the window frame 1 in an inclined manner, so that rainwater can be prevented from leaking into the window body 2 through the gap between the window frame 1 and the window body 2 when the rainwater slides down along the window frame 1 and the window body 2, thereby causing water leakage and achieving the purpose of water prevention.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (9)

1.一种防水隔音的高密封平开窗系统，其特征在于：包括窗框(1)和窗体(2)，窗体(2)内侧面一侧设置有推把组件(3)，窗体(2)上下两端设置有连接件(9)，窗体(2)通过连接件(9)与窗框(1)铰接；所述连接件(9)包括连接杆(10)、固定杆(13)和安装板(12)；所述连接杆(10)一端通过第一销轴(11)A与窗框(1)转动连接，另一端通过第一销轴(11)B与窗体(2)转动连接；所述窗框(1)表面一侧开设有条形凹槽，条形凹槽内固定有安装板(12)，安装板(12)通过螺栓(15)与窗框(1)固定连接，安装板(12)表面设置有固定杆(13)，固定杆(13)一端通过第二销轴(14)A与安装板(12)转动连接，另一端通过第二销轴(14)B与窗体(2)转动连接；1. A waterproof and soundproof high-sealing casement window system is characterized in that: comprising a window frame (1) and a window (2), a push handle assembly (3) is provided on one side of the inner side of the window (2), and the window The upper and lower ends of the body (2) are provided with connecting pieces (9), and the window (2) is hinged with the window frame (1) through the connecting pieces (9); the connecting pieces (9) include a connecting rod (10), a fixing rod (13) and a mounting plate (12); one end of the connecting rod (10) is rotatably connected to the window frame (1) through a first pin (11)A, and the other end is connected to the window through a first pin (11)B (2) Rotational connection; a strip groove is formed on one side of the surface of the window frame (1), a mounting plate (12) is fixed in the strip groove, and the mounting plate (12) is connected to the window frame (12) through bolts (15). 1) Fixed connection, the surface of the mounting plate (12) is provided with a fixing rod (13), one end of the fixing rod (13) is rotatably connected with the mounting plate (12) through the second pin (14)A, and the other end is connected by the second pin (14) B is rotationally connected with the window (2); 所述窗体(2)包括第二内框(17)、第一内框(16)和玻璃板(18)；所述第二内框(17)尺寸与窗框(1)尺寸匹配，第二内框(17)表面边缘位置处粘结固定有密封条(19)，窗框(1)内壁开设有槽口，槽口内固定有气囊(20)，气囊(20)表面连通有进气管(21)，窗框(1)内侧面位于槽口一侧开设有圆孔，进气管(21)贯穿圆孔与压力球囊(22)连通。The window (2) includes a second inner frame (17), a first inner frame (16) and a glass plate (18); the size of the second inner frame (17) matches the size of the window frame (1), and the A sealing strip (19) is bonded and fixed at the edge of the surface of the second inner frame (17), a slot is formed on the inner wall of the window frame (1), an airbag (20) is fixed in the slot, and an air intake pipe (20) is connected to the surface of the airbag (20). 21), the inner side of the window frame (1) is provided with a circular hole on one side of the notch, and the air inlet pipe (21) penetrates the circular hole and communicates with the pressure balloon (22). 2.根据权利要求1所述的一种防水隔音的高密封平开窗系统，其特征在于：所述推把组件(3)包括楔形块(5)、卡盘(4)和圆杆(7)；所述第一内框(16)侧面开设有条形通孔，条形通孔内设置有卡盘(4)，卡盘(4)圆周侧面固定连接有楔形块(5)。2. A waterproof and soundproof high-sealing casement window system according to claim 1, characterized in that: the push handle assembly (3) comprises a wedge-shaped block (5), a chuck (4) and a round rod (7) ); the side of the first inner frame (16) is provided with a bar-shaped through hole, a chuck (4) is arranged in the bar-shaped through hole, and a wedge-shaped block (5) is fixedly connected to the circumferential side of the chuck (4). 3.根据权利要求2所述的一种防水隔音的高密封平开窗系统，其特征在于：所述卡盘(4)表面中心固定连接有圆杆(7)，圆杆(7)另一端贯穿第一内框(16)与把手(8)固定连接；所述窗框(1)侧面对应楔形块(5)位置处开设有楔形槽(6)。3. A waterproof and soundproof high-sealing casement window system according to claim 2, characterized in that: the center of the surface of the chuck (4) is fixedly connected with a round rod (7), and the other end of the round rod (7) The first inner frame (16) is fixedly connected to the handle (8); a wedge-shaped groove (6) is provided on the side of the window frame (1) corresponding to the position of the wedge-shaped block (5). 4.根据权利要求3所述的一种防水隔音的高密封平开窗系统，其特征在于：所述圆杆(7)表面套设有复位弹簧。4. A waterproof and soundproof high-sealing casement window system according to claim 3, wherein a return spring is sleeved on the surface of the round rod (7). 5.根据权利要求1所述的一种防水隔音的高密封平开窗系统，其特征在于：所述第二内框(17)外侧设置有外框(32)，外框(32)尺寸大于窗框(1)尺寸，外框(32)内侧面粘结固定有第一磁片(23)，窗框(1)表面对应粘结固定有第二磁片(24)，外框(32)与窗框(1)通过第一磁片(23)和第二磁片(24)的配合磁性连接。5. A waterproof and soundproof high-sealing casement window system according to claim 1, characterized in that: an outer frame (32) is provided on the outside of the second inner frame (17), and the size of the outer frame (32) is larger than that of the second inner frame (17). The size of the window frame (1), the inner side of the outer frame (32) is bonded and fixed with a first magnetic sheet (23), the surface of the window frame (1) is bonded and fixed with a second magnetic sheet (24) correspondingly, and the outer frame (32) It is magnetically connected with the window frame (1) through the cooperation of the first magnetic sheet (23) and the second magnetic sheet (24). 6.根据权利要求1所述的一种防水隔音的高密封平开窗系统，其特征在于：所述窗框(1)外侧上下两端设置有加固件(25)，加固件(25)包括锁链(26)、固定板(27)和滑动块(29)；所述固定板(27)竖直安装与窗框(1)外侧上下两端，固定板(27)表面固定连接有固定环(28)。6. A waterproof and soundproof high-sealing casement window system according to claim 1, wherein the upper and lower ends of the outer side of the window frame (1) are provided with reinforcements (25), and the reinforcements (25) comprise A chain (26), a fixing plate (27) and a sliding block (29); the fixing plate (27) is vertically installed on the upper and lower ends of the outer side of the window frame (1), and the surface of the fixing plate (27) is fixedly connected with a fixing ring ( 28). 7.根据权利要求6所述的一种防水隔音的高密封平开窗系统，其特征在于：所述固定环(28)表面固定连接有锁链(26)，锁链(26)另一端与滑动块(29)固定连接；所述外框(32)外侧上下两端开设有条形滑槽(30)，条形滑槽(30)内部设置有滑动块(29)，滑动块(29)与条形滑槽(30)滑动连接。7. A waterproof and soundproof high-sealing casement window system according to claim 6, characterized in that: the surface of the fixing ring (28) is fixedly connected with a chain (26), and the other end of the chain (26) is connected to the sliding block (29) Fixed connection; bar-shaped sliding grooves (30) are provided at the upper and lower ends of the outer frame (32), and a sliding block (29) is arranged inside the bar-shaped sliding groove (30), and the sliding block (29) is connected to the bar-shaped sliding groove (30). The shaped chute (30) is slidably connected. 8.根据权利要求7所述的一种防水隔音的高密封平开窗系统，其特征在于：所述窗框(1)外侧顶端设置有遮雨板(31)，遮雨板(31)宽度大于窗体(2)宽度且遮雨板(31)倾斜设置。8. A waterproof and soundproof high-sealing casement window system according to claim 7, characterized in that: the outer top of the window frame (1) is provided with a flashing board (31), the width of the flashing board (31) It is larger than the width of the window (2) and the rain shield (31) is inclined. 9.根据权利要求1所述的一种防水隔音的高密封平开窗系统，其特征在于：所述玻璃板(18)采用双层夹胶玻璃，玻璃板(18)表面粘结有透明隔音膜。9. A waterproof and soundproof high-sealing casement window system according to claim 1, characterized in that: the glass plate (18) adopts double-layer laminated glass, and the surface of the glass plate (18) is bonded with transparent sound insulation membrane.
