Abstract
本发明涉及锻炼椅技术领域，且公开了一种神经内科康复锻炼椅，包括椅架、扶手和坐板，所述椅架的内部固定连接有所述坐板，所述椅架的上方固定连接有两个所述扶手，处在前方的所述扶手的前表面固定连接有凸型滑道，每个所述扶手的上表面嵌设有金属块，所述金属块与所述扶手固定连接；康复锻炼椅能够供用户手指灵活度锻炼，用户可以做在坐板上，将放置板放在扶手上，金属块与磁块吸附在一起，放置板稳定，用户一手上的五个手指放在按键条，用户轮流按动按键条，能够触发压力传感器，可以传输到集成MCU、芯片上，并控制压力传感器上方的变色灯亮起，根据手指施力范围不同，灯亮颜色不同，用户可以了解手指施力状况。
The invention relates to the technical field of exercise chairs, and discloses a neurology rehabilitation exercise chair, comprising a chair frame, armrests and a seat plate, the seat plate is fixedly connected to the inside of the chair frame, and the upper part of the chair frame is fixedly connected There are two handrails, the front surface of the handrail in the front is fixedly connected with a convex slide, the upper surface of each handrail is embedded with a metal block, and the metal block is fixedly connected with the handrail; The rehabilitation exercise chair can exercise the flexibility of the user's fingers. The user can do it on the sitting board, put the placing board on the armrest, the metal block and the magnetic block are adsorbed together, the placing board is stable, and the five fingers of the user's hand are placed on the button The user presses the button bar in turn, which can trigger the pressure sensor, which can be transmitted to the integrated MCU and chip, and control the color-changing light above the pressure sensor to light up. situation.
Description
Technical Field
The invention relates to the technical field of exercise chairs, in particular to a neurological rehabilitation exercise chair.
Background
Neurology is a secondary discipline on neurology. Mainly treats cerebrovascular diseases, migraine, brain inflammatory diseases, myelitis, epilepsy, dementia, metabolic diseases, hereditary diseases, trigeminal neuralgia, sciatic neuropathy, peripheral neuropathy, myasthenia gravis and the like. In department of neurology treatment, the user need take exercise through the health and better resume healthy, generally can use and temper the device, and it is more to temper the device apparatus, has pointed to take exercise, and user in some families just need a plurality of equipment to use in turn to taking exercise the health position, and it is big to consume the fund, and the apparatus is many to fill the family space again, has to improve a department of neurology rehabilitation exercise chair.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides a neurological rehabilitation exercise chair, which solves the problems in the background technology.
(II) technical scheme
In order to achieve the purpose, the invention provides the following technical scheme: a neurological rehabilitation exercise chair comprises a chair frame, handrails and a seat plate, wherein the seat plate is fixedly connected inside the chair frame, two handrails are fixedly connected above the chair frame, a convex slide way is fixedly connected to the front surface of the handrail positioned in front of the chair frame, a metal block is embedded on the upper surface of each handrail, the metal block is fixedly connected with the handrails, magnetic blocks are adsorbed on the upper surface of the metal block, a placing plate is fixedly connected to the upper surfaces of the magnetic blocks, a sliding strip is fixedly connected to the middle of the lower surface of the placing plate, the bottom of the sliding strip is in contact with the upper surface of the handrail, a blocking piece is fixedly connected to the rear surface of the sliding strip, five long grooves are integrally formed inside the placing plate, a frame plate is fixedly connected inside each long groove, and a plurality of springs are fixedly connected inside the frame plate, it is a plurality of last fixed surface of spring is connected with a rectangular, rectangular top fixedly connected with button strip, a plurality of color-changing lamps of inside fixedly connected with of button strip, the inside of deckle board just is located fixedly connected with pressure sensor between the spring, the front surface left side fixedly connected with control box of chair frame, the internally mounted of control box has battery, integrated MCU and chip, every the right side fixedly connected with of handrail supports the diaphragm, two the opposite side fixedly connected with round wheel of support diaphragm, the outside winding of round wheel has the bungee, just one side fixedly connected with hand (hold) of bungee, the opposite side of bungee is fixed in the round wheel lateral wall, the bottom fixedly connected with bottom plate of chair frame, leg motion is installed to the top of bottom plate.
Preferably, the leg exercise mechanism comprises a support plate, a connecting piece, a pedal frame, a screw, a base and a slide block, a sliding groove is integrally formed in the bottom plate, the inner side wall of the sliding groove is connected with the sliding block in a sliding manner, the front surface of the sliding block is provided with a round hole, the right side of the front surface of the bottom plate is integrally formed with a threaded hole, the connecting piece penetrates through the threaded hole and the round hole, the connecting piece is detachably connected with the threaded hole and the round hole, the upper surface of the sliding block is fixedly connected with the supporting plate, the right side of the upper surface of the supporting plate is integrally formed with a groove and a screw hole, the screw hole is communicated with the groove, the inner side wall of the groove is connected with the base in a sliding way, the screw is connected with the inner thread of the base, and the bottom end of the screw extends to the inside of the screw hole, and the upper surface of the base is fixedly connected with the pedal frame.
Preferably, the number of the pressure sensors is five, the five pressure sensors are all electrically connected with the integrated MCU, the integrated MCU is electrically connected with the chip, and the chip is electrically connected with the color-changing lamp.
Preferably, the metal block, the magnetic block, the convex slideway, the blocking piece, the key bar, the placing plate, the sliding bar, the color-changing lamp, the strip, the spring, the pressure sensor, the frame plate, the control box and internal elements thereof form a finger movement mechanism, and the supporting transverse plate, the circular wheel, the elastic rope and the handle form an arm force movement mechanism.
Preferably, the left side of the front surface and the left side of the rear surface of the seat plate are fixedly connected with metal hooks, and a back cushion is placed on the upper surface of the seat plate.
Preferably, the sliding strip is matched with the convex slideway, and the key strip is a milky acrylic product.
Preferably, the key bar is slidably connected to the elongated slot, and the elongated bar is slidably connected to the frame plate.
(III) advantageous effects
The invention provides a neurological rehabilitation exercise chair which has the following beneficial effects:
(1) the improved rehabilitation exercise chair can be used as a chair in daily life, in addition, the rehabilitation exercise chair can be used for exercising finger flexibility of a user, the user can do exercise on the seat plate, the placing plate is placed on the armrest, the metal block and the magnetic block are adsorbed together, the placing plate is stable, five fingers on one hand of the user are placed on the key strip, the user presses the key strip in turn, the pressure sensor can be triggered, the pressure sensor is pressed differently and can be transmitted to the integrated MCU and the chip, the color-changing lamps above the pressure sensor are controlled to light, the light color is different according to different finger force application ranges, the user can know the finger force application conditions, the fingers can be exercised, the brain flexibility can be improved, and the coordination is consistent.
(2) According to the improved rehabilitation exercise chair, the user can exercise the strength of the arm, the user can hold the handle by hand, the elastic rope is pulled up and down through the strength of the arm, the length of the elastic rope is long, the user can wind part of the elastic rope on the round wheel, at the moment, the length of the exposed elastic rope is short, and when the user reaches the same height, the force application difficulty is increased, so that the user can exercise the arm according to the self condition, and the arm exercise can be mentioned.
(3) The improved rehabilitation exercise chair has the advantages that a user can exercise the foot strength and the legs, family members can pull out the pedal frame from the chair frame and use the pedal frame, the pedal frame is collected into the chair frame after being used, the space is not occupied, structural elements such as the sliding groove, the sliding block, the screw hole and the connecting piece are additionally arranged, the position of the pedal frame can be adjusted by the user, in addition, the position of the pedal frame can be finely adjusted by the user through the sliding of the base, and the use of the user is facilitated.
Drawings

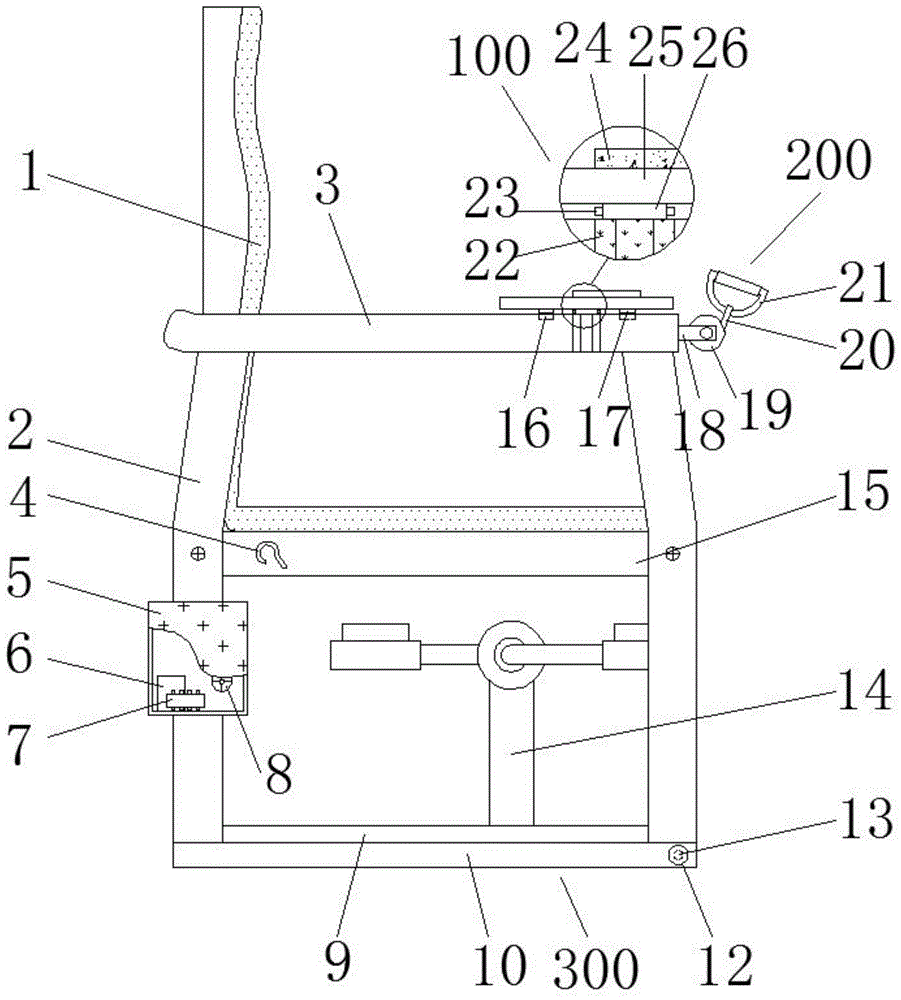

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged, fragmentary, cross-sectional schematic view of the finger movement mechanism of FIG. 1 in accordance with the present invention;
FIG. 3 is a top enlarged view of the arm force movement structure of FIG. 1 according to the present invention;
fig. 4 is an enlarged sectional view of the leg exercise mechanism of fig. 1 according to the present invention.
In the figure: 100. a finger movement mechanism; 200. an arm power movement mechanism; 300. a leg motion mechanism; 1. back cushion; 2. a chair frame; 3. a handrail; 4. a metal hook; 5. a control box; 6. a storage battery; 7. integrating the MCU; 8. a chip; 9. a support plate; 10. a base plate; 11. a groove; 12. a connecting member; 13. a threaded hole; 14. a pedal frame; 15. a seat plate; 16. a metal block; 17. a magnetic block; 18. supporting the transverse plate; 19. a round wheel; 20. a bungee cord; 21. a handle; 22. a convex slideway; 23. a baffle plate; 24. a key bar; 25. placing the plate; 26. a slide bar; 27. a color-changing lamp; 28. a strip; 29. a spring; 30. a pressure sensor; 31. a frame plate; 32. a long groove; 33. a screw; 34. a screw hole; 35. a base; 36. a circular hole; 37. a slider; 38. a chute.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1 to 4, the present invention provides a technical solution: a neurological rehabilitation exercise chair comprises a chair frame 2, handrails 3 and a seat plate 15, wherein the seat plate 15 is fixedly connected inside the chair frame 2, two handrails 3 are fixedly connected above the chair frame 2, a convex slide way 22 is fixedly connected to the front surface of the front handrail 3, a metal block 16 is embedded on the upper surface of each handrail 3, the metal block 16 is fixedly connected with the handrails 3, a magnetic block 17 is adsorbed on the upper surface of the metal block 16, a placing plate 25 is fixedly connected to the upper surfaces of the magnetic blocks 17, a slide bar 26 is fixedly connected to the middle of the lower surface of the placing plate 25, the bottom of the slide bar 26 is in contact with the upper surface of each handrail 3, a baffle 23 is fixedly connected to the rear surface of the slide bar 26, five long grooves 32 are integrally formed inside the placing plate 25, a frame plate 31 is fixedly connected inside each long groove 32, a plurality of springs 29 are fixedly connected to the frame plate 31, a long strip 28 is fixedly connected to the upper surfaces of the springs 29, the top end of the long strip 28 is fixedly connected with a key strip 24, the interior of the key strip 24 is fixedly connected with a plurality of color-changing lamps 27, the interior of a frame plate 31 and the position between springs 29 are fixedly connected with a pressure sensor 30, the left side of the front surface of the chair frame 2 is fixedly connected with a control box 5, the interior of the control box 5 is provided with a storage battery 6, an integrated MCU7 and a chip 8, the right side of each armrest 3 is fixedly connected with a supporting transverse plate 18, the opposite sides of the two supporting transverse plates 18 are fixedly connected with round wheels 19, the exterior of the round wheels 19 is wound with elastic ropes 20, and one side of the elastic rope 20 is fixedly connected with a handle 21, the other side of the elastic rope 20 is fixed on the outer side wall of the round wheel 19, the bottom of the chair frame 2 is fixedly connected with a bottom plate 10, and a leg movement mechanism 300 is arranged above the bottom plate 10.
Further, the leg moving mechanism 300 comprises a supporting plate 9, a connecting piece 12, a pedal frame 14, a screw 33, a base 35 and a sliding block 37, a sliding groove 38 is integrally formed in the bottom plate 10, the sliding block 37 is slidably connected to the inner side wall of the sliding groove 38, a round hole 36 is formed in the front surface of the sliding block 37, a threaded hole 13 is integrally formed in the right side of the front surface of the bottom plate 10, the connecting piece 12 penetrates through the inside of the threaded hole 13 and the round hole 36, the connecting piece 12 is detachably connected with the threaded hole 13 and the round hole 36, the supporting plate 9 is fixedly connected to the upper surface of the sliding block 37, a groove 11 and a screw hole 34 are integrally formed in the right side of the upper surface of the supporting plate 9, the screw hole 34 is communicated with the groove 11, the base 35 is slidably connected to the inner side wall of the groove 11, the screw 33 is threadedly connected to the, the user holds the supporting plate 9 to push, can slide the supporting plate 9 out, can fix the position of the supporting plate 9 by using the connecting piece 12, and can also push the base 35 to move, so that the position of the pedal frame 14 can be continuously adjusted, and the use by different users is convenient.
Further, the quantity of pressure sensor 30 is totally five, five pressure sensor 30 all with integrated MCU7 electric connection, integrated MCU7 and chip 8 electric connection, chip 8 and look variable color lamp 27 electric connection, because 8 record finger application of force numerical range in the chip, when the user's finger presses the application of pressure in different scopes to button strip 24, look variable color lamp 27 colour is different, change color with the help of look variable color lamp 27 and can know hand motion situation, a pressure sensor 30 and the look variable color lamp 27 looks adaptation of its top.
Further, the metal block 16, the magnetic block 17, the convex slideway 22, the blocking sheet 23, the key strip 24, the placing plate 25, the sliding strip 26, the color-changing lamp 27, the strip 28, the spring 29, the pressure sensor 30, the frame plate 31, the control box 5 and the internal elements thereof form a finger movement mechanism 100, the supporting transverse plate 18, the round wheel 19, the elastic rope 20 and the handle 21 form an arm force movement mechanism 200, after the finger movement, a user can detach the placing plate 25 from the armrest 3 and slide the sliding strip 26 into the convex slideway 22, so that the placing plate 25 can be placed on one side of the chair frame 2, the storage is convenient, and the use of the exercise chair by the user cannot be influenced.
Furthermore, the left side of the front surface and the left side of the rear surface of the seat plate 15 are fixedly connected with metal hooks 4, the back cushion 1 is placed on the upper surface of the seat plate 15, the metal hooks 4 are convenient for a user to hook articles, and the user can hook the family knee pad on the hook, so that the use is facilitated.
Further, slide 26 and protruding type slide 22 looks adaptation, button strip 24 are opalescent ya keli goods, and slide 26 is flat cuboid shape, and slide 26 can slide to protruding type slide 22 in, conveniently place board 25 and deposit, save space, and when the discolour lamp 27 in button strip 24 shines, button strip 24 is like luminous, discolour lamp 27 illumination is on button strip 24.
Further, the key bar 24 is slidably connected to the long groove 32, the bar 28 is slidably connected to the frame plate 31, and when the user presses the key bar 24, the key bar 24 slides downward, and at this time, the downward sliding of the bar 28 applies a force to the pressure sensor 30.
In conclusion, the working process of the invention is as follows: the user can place the placing plate 25 on the armrest 3, the metal block 16 and the magnetic block 17 are adsorbed together, the placing plate 25 is stable, the user can place five fingers on the key strip 24, the user presses the key strip 24 in turn to trigger the pressure sensor 30, the pressure sensor 30 is pressed differently, can be transmitted to the integrated MCU7 and the chip 8, and controls the color-changing lamp 27 above the pressure sensor 30 to light up, so that the user can know the force application condition of the fingers, can exercise the fingers and improve the flexibility and the coordination of the brain, the placing plate 25 is folded and unfolded, a user can hold the handle 21 by hand, the elastic rope 20 is pulled up and down by the strength of the arm, arm exercise can be mentioned, in addition, the family members can pull the pedal frame 14 out of the chair frame 2, the user can adjust the position of the pedal frame 14 to exercise the legs, and in addition, the user of the exercise chair can be used as a chair in daily life.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a recovered chair of taking exercise of department of neurology, includes chair frame (2), handrail (3) and seat (15), its characterized in that: the chair comprises a chair frame (2), a seat plate (15) is fixedly connected to the inside of the chair frame (2), two handrails (3) are fixedly connected to the upper portion of the chair frame (2), a convex slide way (22) is fixedly connected to the front surface of each handrail (3) in front of the chair frame, a metal block (16) is embedded on the upper surface of each handrail (3), the metal blocks (16) are fixedly connected with the handrails (3), magnetic blocks (17) are adsorbed on the upper surface of each metal block (16), a plurality of magnetic blocks (17) are fixedly connected with a placing plate (25), a sliding strip (26) is fixedly connected to the middle of the lower surface of the placing plate (25), the bottom of the sliding strip (26) is in contact with the upper surface of each handrail (3), a blocking piece (23) is fixedly connected to the rear surface of each sliding strip (26), and five long grooves (32) are integrally formed in the placing plate (25), a frame plate (31) is fixedly connected to the inside of each long groove (32), a plurality of springs (29) are fixedly connected to the inside of the frame plate (31), a strip (28) is fixedly connected to the upper surface of each spring (29), a key strip (24) is fixedly connected to the top end of each strip (28), a plurality of color-changing lamps (27) are fixedly connected to the inside of each key strip (24), a pressure sensor (30) is fixedly connected to the inside of each frame plate (31) and located between the springs (29), a control box (5) is fixedly connected to the left side of the front surface of the chair frame (2), a storage battery (6), an integrated MCU (7) and a chip (8) are installed inside the control box (5), a supporting transverse plate (18) is fixedly connected to the right side of each armrest (3), and round wheels (19) are fixedly connected to the opposite sides of the supporting transverse plates (18), the outside winding of circle wheel (19) has elasticity rope (20), just one side fixedly connected with hand (21) of elasticity rope (20), the opposite side of elasticity rope (20) is fixed in circle wheel (19) lateral wall, the bottom fixedly connected with bottom plate (10) of chair frame (2), leg motion (300) are installed to the top of bottom plate (10).
2. The neurological rehabilitation exercise chair of claim 1, wherein: the leg movement mechanism (300) comprises a supporting plate (9), a connecting piece (12), a pedal frame (14), a screw (33), a base (35) and a sliding block (37), a sliding groove (38) is integrally formed in the bottom plate (10), the sliding block (37) is connected to the inner side wall of the sliding groove (38) in a sliding mode, a round hole (36) is formed in the front surface of the sliding block (37), a threaded hole (13) is integrally formed in the right side of the front surface of the bottom plate (10), the connecting piece (12) penetrates through the threaded hole (13) and the round hole (36) and is detachably connected with the threaded hole (13) and the round hole (36), the supporting plate (9) is fixedly connected to the upper surface of the sliding block (37), and a groove (11) and a screw hole (34) are integrally formed in the right side of the upper surface of the supporting plate (9), the screw hole (34) is communicated with the groove (11), the inner side wall of the groove (11) is connected with the base (35) in a sliding mode, the screw (33) is connected to the inner thread of the base (35), the bottom end of the screw (33) extends to the inner portion of the screw hole (34), and the upper surface of the base (35) is fixedly connected with the pedal frame (14).
3. The neurological rehabilitation exercise chair of claim 1, wherein: the number of the pressure sensors (30) is five, the pressure sensors (30) are all electrically connected with the integrated MCU (7), the integrated MCU (7) is electrically connected with the chip (8), and the chip (8) is electrically connected with the color-changing lamp (27).
4. The neurological rehabilitation exercise chair of claim 1, wherein: the metal block (16), the magnetic block (17), the convex slideway (22), the blocking piece (23), the key bar (24), the placing plate (25), the sliding bar (26), the color-changing lamp (27), the strip (28), the spring (29), the pressure sensor (30), the frame plate (31), the control box (5) and internal elements thereof form a finger movement mechanism (100), and the supporting transverse plate (18), the round wheel (19), the elastic rope (20) and the handle (21) form an arm force movement mechanism (200).
5. The neurological rehabilitation exercise chair of claim 1, wherein: the seat is characterized in that metal hooks (4) are fixedly connected to the left side of the front surface and the left side of the rear surface of the seat plate (15), and a back cushion (1) is placed on the upper surface of the seat plate (15).
6. The neurological rehabilitation exercise chair of claim 1, wherein: the sliding strip (26) is matched with the convex slide way (22), and the key strip (24) is a milky acrylic product.
7. The neurological rehabilitation exercise chair of claim 1, wherein: the key strip (24) is in sliding connection with the long groove (32), and the strip (28) is in sliding connection with the frame plate (31).
