Abstract
本发明提供一种太阳能真空管连接架的冲孔设备，其结构包括：机身、输送台、控制面板，机身的上端面与控制面板的下端面进行焊接连接，输送台的右端嵌入于机身的内侧，本发明在驱动器的作用下，钻头旋转向下移动对工件进行冲孔，因此推动块在转动的作用下做离心运动，以致于推动块能够向外进行摆出，而钻头不断地向下旋转，使得摆出的推动块中的磨头能够与工件进行贴合而不断地进行旋转挤压，从而对工件冲孔位置的毛刺进行去除，故能够避免孔的边缘较为锐利且连接架的冲孔位置容易出现毛刺而导致进行安装时人员被刮伤的现象，且推动块做离心运动的同时，拉动伸缩杆且对压缩弹簧进行拉伸，以致于对摆动块进行限制，避免摆动块无法进入孔内的现象。
The invention provides a punching device for a solar vacuum tube connection frame. In the present invention, under the action of the driver, the drill bit rotates and moves downward to punch the workpiece, so the push block performs centrifugal motion under the action of rotation, so that the push block can swing out, and the drill bit continuously Rotate down, so that the grinding head in the swinging push block can fit with the workpiece and continuously rotate and squeeze, so as to remove the burr at the punching position of the workpiece, so it can avoid the sharp edge of the hole and the connection frame. The punching position is prone to burrs, which may cause the personnel to be scratched during installation. When the push block does centrifugal motion, the telescopic rod is pulled and the compression spring is stretched, so as to limit the swing block and prevent the swing block from being unable to The phenomenon of entering the hole.
Description
Technical Field
The invention relates to the field of vacuum tubes, in particular to punching equipment for a solar vacuum tube connecting frame.
Background
The solar vacuum tube is widely used in the solar water heater, so the vacuum tube is a core element of the solar water heater, the quality of the vacuum tube can directly influence the service life and the performance of the solar water heater, and the vacuum tube with high quality is uniformly embedded into the connecting frame with the hole after the vacuum tube is produced for use.
Disclosure of Invention
Aiming at the defects in the prior art, the invention aims to provide punching equipment for a solar vacuum tube connecting frame, which aims to solve the problems that the connecting frame and the vacuum tube are connected in a pipeline shape and have a small thickness, after punching, the edge of a hole is sharp, burrs are easy to appear at the punching position of the connecting frame, and the installation personnel are easily scratched.
In order to achieve the purpose, the invention is realized by the following technical scheme: a punching device for a solar vacuum tube connecting frame structurally comprises: the device comprises a machine body, a conveying table and a control panel, wherein the upper end surface of the machine body is welded with the lower end surface of the control panel, and the right end of the conveying table is embedded into the inner side of the machine body;
the fuselage includes guide plate, moving mechanism, driver, workstation, discharge gate, the guide plate is embedded solid and is installed in the inboard of fuselage, moving mechanism's inner ring is nested mutually with the outer loop of driver, workstation and fuselage structure as an organic whole, the discharge gate welds in the right-hand member face of fuselage, and carries out nested connection with the guide plate.
Preferably, the moving mechanism comprises a fixed cavity, an installation block, a drill rod and a drill bit, the upper end face of the fixed cavity is in bolted connection with the inner side of the drill rod, an inner ring of the installation block is nested with an outer ring of the drill rod, the drill rod and the drill bit are of an integrated structure, and the fixed cavity and the drill bit are located on the same axis.
Preferably, the fixed cavity comprises a rotating mechanism, an arc-shaped rod and a connecting hole, the arc-shaped rod is arranged in the rotating mechanism and is installed between the connecting holes, the connecting hole and the rotating mechanism are of an integrated structure and are in bolted connection with the drill rod, and the arc-shaped rod and the connecting hole are oval.
Preferably, the rotating mechanism comprises an auxiliary cavity, pushing blocks and a rotating disc, an inner ring of the auxiliary cavity is nested with an outer ring of the rotating disc, one side of each pushing block is fixedly connected with one end of the rotating disc, and the pushing blocks are symmetrically distributed on two sides of the rotating disc.
Preferably, the pushing block comprises a connecting mechanism, a connecting block and a groove, one end of the connecting mechanism is embedded into the inner side of the groove, the connecting block and the groove are of an integrated structure, and the connecting mechanism is inverted and is in a horizontal state with the drill rod.
Preferably, the connecting mechanism comprises a shell, a buckle, an arc-shaped rod and a grinding mechanism, the shell is attached to the outer ring of the arc-shaped rod, the buckle is welded to the front end face of the grinding mechanism, the inner ring of the buckle is nested with the shell, and the grinding mechanism is uniformly distributed on the arc-shaped rod and is provided with five parts.
Preferably, the grinding mechanism comprises an arc-shaped ring, an elastic spring, a connecting plate and a grinding head, the inner side of the arc-shaped ring is in sliding connection with the two ends of the connecting plate, the lower end of the elastic spring is in bolted connection with the connecting plate, the upper end of the elastic spring is fixedly connected with the inner ring of the arc-shaped ring, the grinding head is arranged below the connecting plate, and the grinding head is designed in a spherical shape.
Preferably, the rolling disc comprises an inclined rod, a support rod, a connecting rod, a compression spring, a cavity and a telescopic rod, wherein one end of the inclined rod is movably clamped with one end of the connecting rod away from the cavity, the support rod is connected to the inner side of the cavity in a welding mode, the other end of the connecting rod is fixedly connected to the inner side of the cavity, the inner ring of the compression spring surrounds the outer ring of the telescopic rod, the telescopic rod is arranged in the cavity, one end of the telescopic rod is fixedly connected with the inclined rod, and when the telescopic rod stretches out, the vertical outer end of the pushing block coincides with the drill bit.
Compared with the prior art, the invention has the following advantagesAdvantageous effects：
According to the invention, under the action of the driver, the drill bit rotates and moves downwards to punch a hole on the workpiece, so that the pushing block performs centrifugal motion under the action of rotation, the pushing block can swing outwards, and the drill bit continuously rotates downwards, so that a grinding head in the swung pushing block can be attached to the workpiece and continuously performs rotary extrusion, and burrs at the punching position of the workpiece are removed, therefore, the phenomenon that installation personnel are scratched due to the fact that the edge of the hole is sharp and burrs are easy to occur at the punching position of the connecting frame can be avoided, and the telescopic rod is pulled and the compression spring is stretched while the pushing block performs centrifugal motion, so that the swinging block is limited, and the phenomenon that the swinging block cannot enter the hole is avoided.
Drawings

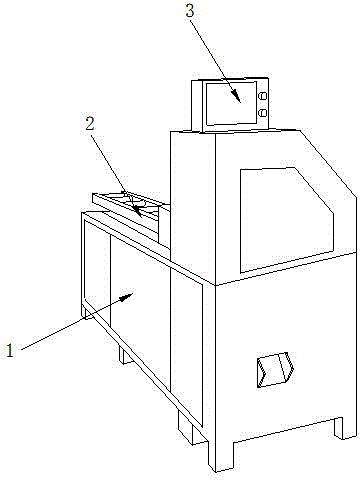

FIG. 1 is a schematic structural diagram of a punching device of a solar vacuum tube connecting frame.
Fig. 2 is a side view of the fuselage of the present invention.
Fig. 3 is a schematic structural diagram of the moving mechanism of the present invention.
FIG. 4 is a schematic top view of the fixing chamber of the present invention.
Fig. 5 is a schematic structural diagram of the rotating mechanism of the present invention.
Fig. 6 is a schematic front view of the pushing block of the present invention.
Fig. 7 is a schematic structural view of the connection mechanism of the present invention.
FIG. 8 is a schematic structural view of the removal mechanism of the present invention.
Fig. 9 is a schematic structural view of the rotating disk of the present invention.
In the figure: fuselage-1, conveying table-2, control panel-3, guide plate-11, moving mechanism-12, driver-13, workbench-14, discharge port-15, fixed cavity-a 1, installation block-a 2, drill rod-a 3, drill bit-a 4, rotating mechanism-b 1, arc rod-b 2, connecting hole-b 3, auxiliary cavity-b 31, pushing block-b 32, rotating disc-b 33, connecting mechanism-c 1, connecting block-c 2, groove-c 3, shell-d 1, buckle-d 2, arc rod-d 3, grinding mechanism-d 4, arc ring-e 1, elastic spring-e 2, connecting plate-e 3, grinding head-e 4, inclined rod-h 1, supporting rod-h 2, connecting rod-h 3, compression spring-h 4, A cavity-h 5 and a telescopic rod-h 6.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example 1
As shown in figures 1 to 8:
the invention provides punching equipment for a solar vacuum tube connecting frame, which structurally comprises: the device comprises a machine body 1, a conveying table 2 and a control panel 3, wherein the upper end face of the machine body 1 is connected with the lower end face of the control panel 3 in a welding mode, and the right end of the conveying table 2 is embedded into the inner side of the machine body 1.
Wherein, fuselage 1 includes guide plate 11, moving mechanism 12, driver 13, workstation 14, discharge gate 15, guide plate 11 is embedded and is installed in the inboard of fuselage 1, moving mechanism 12's inner ring is nested mutually with the outer loop of driver 13, workstation 14 and fuselage 1 structure as an organic whole, discharge gate 15 welds in the right-hand member face of fuselage 1, and carries out nested connection with guide plate 11.
The moving mechanism 12 comprises a fixed cavity a1, an installation block a2, a drill rod a3 and a drill bit a4, the upper end face of the fixed cavity a1 is connected with the inner side of the drill rod a3 through a bolt, an inner ring of the installation block a2 is nested with an outer ring of the drill rod a3, the drill rod a3 and the drill bit a4 are of an integrated structure, the fixed cavity a1 and the drill bit a4 are located on the same axis, and the phenomenon that punching cannot be uniformly performed due to the fact that stress on two sides of the drill bit a4 is not uniform is avoided.
Wherein, fixed chamber a1 includes slewing mechanism b1, arc pole b2, connecting hole b3, be equipped with arc pole b2 in slewing mechanism b1, arc pole b2 installs between connecting hole b3, connecting hole b3 and slewing mechanism b1 be the integrated structure, and carry out bolted connection with drilling rod a3, arc pole b2 is oval with connecting hole b3, arc pole b2 can play the supporting role to slewing mechanism b 1.
The rotating mechanism b1 comprises an auxiliary cavity b31, a pushing block b32 and a rotating disc b33, wherein an inner ring of the auxiliary cavity b31 is nested with an outer ring of the rotating disc b33, one side of the pushing block b32 is fixedly connected with one end of the rotating disc b33, the pushing blocks b32 are symmetrically distributed on two sides of the rotating disc b33, and then two sides of the pushing block b32 can perform centrifugal motion uniformly.
The pushing block b32 comprises a connecting mechanism c1, a connecting block c2 and a groove c3, one end of the connecting mechanism c1 is embedded into the inner side of the groove c3, the connecting block c2 and the groove c3 are of an integrated structure, the connecting mechanism c1 is of an inverted L shape and is in a horizontal state with a drill rod a3, and the phenomenon that the pushing block b32 is clamped above a workpiece after extending out is avoided.
Wherein, coupling mechanism c1 includes shell d1, buckle d2, arc pole d3, grinds mechanism d4, shell d1 laminating is installed in the outer loop of arc pole d3, buckle d2 welds in the preceding terminal surface that grinds mechanism d4, buckle d 2's inner ring is nested mutually with shell d1, it evenly distributed is on arc pole d3 to grind mechanism d4, and establishes five altogether, all can carry out the deburring to the work piece punching position.
The grinding mechanism d4 comprises an arc-shaped ring e1, an elastic spring e2, a connecting plate e3 and a grinding head e4, the inner side of the arc-shaped ring e1 is in sliding connection with two ends of the connecting plate e3, the lower end of the elastic spring e2 is in bolt connection with the connecting plate e3, the upper end of the elastic spring e2 is fixedly connected with an inner ring of the arc-shaped ring e1, a grinding head e4 is arranged below the connecting plate e3, and the grinding head e4 is designed in a spherical shape and can be suitable for various punching shapes.
The specific use mode and function of the embodiment are as follows:
the invention controls the switch of the driver 13 through the operation panel 3, thereby controlling the drill bit a4, making the drill bit a4 driven by the driver 13, the drill bit a4 will rotate and move downwards, thereby punching the workpiece, at the same time when the drill bit a4 rotates, because the fixed cavity a1 is connected with the drill bit a4 through the connecting hole b3, the fixed cavity a1 rotates, the pushing block b32 makes centrifugal movement under the rotation, so that the pushing block b32 can swing outwards, while the drill bit a4 rotates downwards constantly, making the left side of the connecting mechanism c1 on the swinging pushing block b32 and the left side of the drill bit a4 on the same axis, therefore the connecting mechanism c1 can move towards the punching position along with the drill bit a4, thereby the grinding head e 84 in the grinding mechanism d4 can be attached to the workpiece and rotate constantly, making the e3 move constantly in the arc-shaped ring 1 and press the elastic spring 2, therefore, burrs at the punching position of the workpiece are removed, and the phenomenon that the edges of the holes are sharp, and the burrs are easy to appear at the punching position of the connecting frame to cause scratch of personnel during installation can be avoided.
Example 2
As shown in fig. 5: promote piece b32 including coupling mechanism c1, link up piece c2, recess c3, coupling mechanism c 1's one end embedding recess c 3's inboard, link up piece c2 and recess c3 structure as an organic whole, coupling mechanism c1 is the type of falling L, and is the horizontality with drilling rod a3, avoids promoting piece b32 and stretches out the back and block in the phenomenon of work piece top.
As shown in fig. 9:
the invention provides punching equipment for a solar vacuum tube connecting frame, wherein a rotating disc b33 comprises an inclined rod h1, a supporting rod h2, a connecting rod h3, a compression spring h4, a cavity h5 and an expansion rod h6, one end of the inclined rod h1 is movably clamped with one end of a connecting rod h3 far away from the cavity h5, the supporting rod h2 is connected to the inner side of a cavity h5 through welding, the other end of the connecting rod h3 is fixedly connected to the inner side of the cavity h5, an inner ring of the compression spring h4 surrounds an outer ring of the expansion rod h6, an expansion rod h6 is arranged in the cavity h5, one end of the expansion rod h6 is fixedly connected with the inclined rod 1, when the expansion rod h6 extends out, the vertical outer end of a pushing block b32 is overlapped with a drill bit a4, and the pushing block b32 can move towards the hole along with the drill bit a 4.
The specific use mode and function of the embodiment are as follows:
according to the invention, when the rotating disc b33 rotates, the inclined rod h1 is movably clamped with the connecting rod h3, so that the inclined rod h1 drives the pushing block b32 to rotate around the connecting part of the inclined rod h1 and the connecting rod h3, so as to drive the telescopic rod h6 to extend out, when the telescopic rod h6 extends out completely, the vertical outer end of the pushing block b32 is overlapped with the drill bit a4, so that the pushing block b32 is prevented from continuously moving outwards, so that the pushing block b32 can move towards the hole along with the drill bit a4, when the use is stopped, as the compression spring h4 is stretched by the inclined rod h1, when the centrifugal motion dissipates, the compression spring h4 is gradually restored, so as to drive the inclined rod h1 to rotate, so that the telescopic rod h6 is contracted, and the next use is facilitated.
The embodiments of the present invention have been presented for purposes of illustration and description, and are not intended to be exhaustive or limited to the invention in the form disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to best explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention for various embodiments with various modifications as are suited to the particular use contemplated.
Claims (8)
1. A punching device for a solar vacuum tube connecting frame structurally comprises: fuselage (1), carry platform (2), control panel (3), welded connection is carried out with the lower terminal surface of control panel (3) to the up end of fuselage (1), carry the right-hand member of platform (2) to imbed in the inboard of fuselage (1), its characterized in that:
fuselage (1) includes guide plate (11), moving mechanism (12), driver (13), workstation (14), discharge gate (15), guide plate (11) are embedded to be installed in the inboard of fuselage (1), the inner ring of moving mechanism (12) is nested mutually with the outer loop of driver (13), workstation (14) and fuselage (1) structure as an organic whole, discharge gate (15) weld in the right-hand member face of fuselage (1), and carry out nested connection with guide plate (11).
2. The punching equipment for the solar vacuum tube connecting rack of claim 1, wherein: the moving mechanism (12) comprises a fixed cavity (a 1), a mounting block (a 2), a drill rod (a 3) and a drill bit (a 4), wherein the upper end face of the fixed cavity (a 1) is in bolted connection with the inner side of the drill rod (a 3), an inner ring of the mounting block (a 2) is nested with an outer ring of the drill rod (a 3), and the drill rod (a 3) and the drill bit (a 4) are of an integrated structure.
3. A punching apparatus for solar vacuum tube connection frame according to claim 2, characterized in that: fixed chamber (a 1) includes slewing mechanism (b 1), arc pole (b 2), connecting hole (b 3), be equipped with arc pole (b 2) in slewing mechanism (b 1), arc pole (b 2) are installed between connecting hole (b 3), connecting hole (b 3) and slewing mechanism (b 1) structure as an organic whole, and carry out bolted connection with drilling rod (a 3).
4. A punching apparatus for solar vacuum tube connection frame according to claim 3, characterized in that: the rotating mechanism (b 1) comprises an auxiliary cavity (b 31), a pushing block (b 32) and a rotating disc (b 33), wherein the inner ring of the auxiliary cavity (b 31) is nested with the outer ring of the rotating disc (b 33), and one side of the pushing block (b 32) is fixedly connected with one end of the rotating disc (b 33).
5. A punching device for a solar vacuum tube connecting rack according to claim 4, characterized in that: the pushing block (b 32) comprises a connecting mechanism (c 1), a connecting block (c 2) and a groove (c 3), one end of the connecting mechanism (c 1) is embedded into the inner side of the groove (c 3), and the connecting block (c 2) and the groove (c 3) are of an integrated structure.
6. A punching device for a solar vacuum tube connecting rack according to claim 5, characterized in that: coupling mechanism (c 1) include shell (d 1), buckle (d 2), arc pole (d 3), mill mechanism (d 4), the outer loop in arc pole (d 3) is installed in the laminating of shell (d 1), buckle (d 2) welds in the front end face of milling mechanism (d 4), the inner ring and shell (d 1) nestification of buckle (d 2).
7. A punching device for a solar vacuum tube connecting rack according to claim 6, characterized in that: the grinding mechanism (d 4) comprises an arc-shaped ring (e 1), an elastic spring (e 2), a connecting plate (e 3) and a grinding head (e 4), the inner side of the arc-shaped ring (e 1) is in sliding connection with two ends of the connecting plate (e 3), the lower end of the elastic spring (e 2) is in bolted connection with the connecting plate (e 3), the upper end of the elastic spring is fixedly connected with the inner ring of the arc-shaped ring (e 1), and the grinding head (e 4) is arranged below the connecting plate (e 3).
8. A punching device for a solar vacuum tube connecting rack according to claim 4, characterized in that: the utility model discloses a solar cell module, including rolling disc (b 33), rolling disc (b 1), bracing piece (h 2), connecting rod (h 3), compression spring (h 4), cavity (h 5), telescopic link (h 6), the one end of down tube (h 1) and connecting rod (h 3) keep away from the one end of cavity (h 5) and carry out the activity block, bracing piece (h 2) are through welded connection in the inboard of cavity (h 5), the other end fixed connection of connecting rod (h 3) is in the inboard of cavity (h 5), the inner ring of compression spring (h 4) encircles the outer loop in telescopic link (h 6), be equipped with telescopic link (h 6) in cavity (h 5), and the one end and the down tube (h 1) of telescopic link (h 6) carry out fixed connection.
