Abstract
The invention discloses a construction waste treatment device for separating grease, and relates to the technical field of construction waste treatment devices. This building garbage processing apparatus that separation grease was used, including unloading mechanism, the position that the inner wall of unloading mechanism is close to the center is provided with the fixed axle, the position fixedly connected with mount that the outer wall of unloading mechanism is close to the bottom, the top of mount is provided with power device, power device's outer wall and the outer wall swing joint of fixed axle, the bottom fixedly connected with alkaline solution mechanism of mount. This building rubbish processing apparatus that separation grease was used, through alkaline solution circulation mechanism, homogeneous mixing mechanism between the interact under, can make this device can carry out the homogeneous mixing to building rubbish and alkaline solution to can be favorable to grease separation afterwards, more be favorable to afterwards conveniently to the collection and the transportation of solid building rubbish.
Description
Technical Field
The invention relates to the technical field of construction waste treatment devices, in particular to a construction waste treatment device for separating grease.
Background
The construction waste is construction waste generated by human or natural reasons in engineering and comprises waste residue soil, waste soil, silt, waste materials and the like. The materials are not helpful to the construction itself, but are substances generated in the construction process, and need to be treated correspondingly, so that the ideal engineering project construction can be achieved, and the construction waste treatment is always an important part in the urban construction.
The construction waste treatment method is too simple, the landfill waste is likely to pollute soil nearby and cause great influence on the environment, particularly, the grease-containing waste in the construction waste has strong permeability and is not easy to decompose by itself and may cause certain influence on a water source and the land, so that normal use of the water source and the land can be influenced, people can be directly filled, and only drink 40489, thirst is quenched, and the problem of endless disease is solved, so that the environment is polluted and resources are greatly wasted.
Disclosure of Invention
Aiming at the defects of the prior art, the invention provides a construction waste treatment device for separating grease, which is used for decomposing the grease in construction waste so as to reduce the influence of the grease contained in the construction waste on water sources and land.
In order to achieve the purpose, the invention is realized by the following technical scheme: a construction waste treatment device for separating grease comprises a blanking mechanism, wherein a fixed shaft is arranged at a position, close to the center, of the inner wall of the blanking mechanism, a fixed frame is fixedly connected at a position, close to the bottom, of the outer wall of the blanking mechanism, a power device is arranged at the top end of the fixed frame, the outer wall of the power device is movably connected with the outer wall of the fixed shaft, an alkaline solution mechanism is fixedly connected with the bottom end of the fixed frame, the outer wall of the alkaline solution mechanism is fixedly connected with the outer wall of the blanking mechanism through the arranged fixed frame, a uniform mixing mechanism is fixedly connected with the bottom end of the alkaline solution mechanism, the outer wall of the uniform mixing mechanism is fixedly connected with the outer wall of the blanking mechanism through the arranged alkaline solution mechanism, a filtering and separating mechanism is fixedly connected with the bottom end of the uniform mixing mechanism, and the outer wall of the filtering and, the inside position that is close to the bottom of mount is provided with collects the mechanism, the outer wall swing joint of the mount through setting up and filtering and separating mechanism of collecting the mechanism.
Preferably, the structure of unloading mechanism includes feed bin and stirring board down, the outer wall of fixed axle is provided with the stirring board, the outer wall of stirring board is through the fixed axle swing joint of setting up and feed bin down.
Preferably, the structure of homogeneous mixing mechanism includes mixing tank, first blown down tank, first mixing mechanism and second mixing mechanism, first blown down tank has evenly been seted up to the position that the outer wall of mixing tank is close to the bottom, the inside of mixing tank is provided with first mixing mechanism, the outer wall swing joint of mixing tank and first blown down tank that first mixing mechanism's outer wall is through setting up, the position that the inside of mixing tank is close to the top is provided with first mixing mechanism, the position fixedly connected with second mixing mechanism that the inside of mixing tank is close to first mixing mechanism bottom, the outer wall swing joint of mixing tank and first mixing mechanism that sets up is passed through to the outer wall of second mixing mechanism.
Preferably, the structure of first mixing mechanism includes first conical plate, first fixed strip and fixed block, the even fixedly connected with fixed block of inner wall of blending bin, the outer wall swing joint of fixed block has first conical plate, the outer wall of first conical plate is through the inner wall swing joint of the fixed block that sets up and blending bin, the outer wall of first conical plate is close to the position on top or the first fixed strip of fixedly connected with, the outer wall of first fixed strip is through the outer wall swing joint of the first conical plate that sets up and fixed block, the outer wall of first conical plate is close to the outer wall fixed connection of the position at center and fixed axle.
Preferably, the structure of the second mixing mechanism comprises a second taper groove and a second discharge groove, the position of the inside of the mixing barrel, which is close to the bottom end of the first mixing mechanism, is fixedly connected with the second taper groove, and the position of the outer wall of the second taper groove, which is close to the center, is provided with the second discharge groove.
Preferably, the alkaline solution mechanism structurally comprises a pressure water sump and a water pipe, the outer wall of the blanking mechanism is fixedly connected with the pressure water sump at a position close to the bottom end, water spray nozzles are uniformly formed in the inner wall of the pressure water sump, the outer wall of the pressure water sump is fixedly connected with the water pipe, and the outer wall of the water pipe is movably connected with the inner wall of the collecting mechanism through the pressure water sump.
Preferably, the structure of the filtering and separating mechanism comprises a third conical plate, a second fixing strip, a water filtering net, a guide plate and a water outlet groove, a water filter screen is fixedly connected to the position, close to the bottom end, of the outer wall of the mixing barrel, a third conical plate is movably connected to the position, close to the center, of the outer wall of the water filter screen, the outer wall of the third conical plate is fixedly connected with the fixed shaft at a position close to the center, the upper surface of the third conical plate is uniformly provided with second fixed strips, the outer wall of the second fixing strip is movably connected with the outer wall of the fixing shaft through a third conical plate, the outer wall of the water filter screen is fixedly connected with a guide plate, the outer wall of the guide plate is fixedly connected with the outer wall of the mixing barrel through the arranged water filter screen, the outer wall of the guide plate is provided with a water outlet groove at a position close to the center, and the outer wall of the water outlet groove is fixedly connected with the outer wall of the collecting mechanism through the arranged guide plate.
The invention provides a construction waste treatment device for separating grease. The method has the following beneficial effects:
(1) this building rubbish processing apparatus that separation grease was used, through alkaline solution circulation mechanism, homogeneous mixing under the interact between the mechanism, can make this device can carry out the homogeneous mixing to building rubbish and alkaline solution to can be favorable to grease separation afterwards, more be favorable to afterwards conveniently to the collection and the transportation of solid building rubbish.
(2) This building rubbish processing apparatus that separation grease was used, through the homogeneous mixing mechanism who sets up, use centrifugal force and gravity to carry out the water conservancy diversion, thereby can make building rubbish and alkaline solution through flowing mix more evenly, be favorable to decomposing the grease in the building rubbish, can effectually get rid of the grease in the building rubbish, avoid the grease to the pollution of environment, improve the device's degree of automation simultaneously, more facilitate the use.
(3) This building rubbish processing apparatus that separation grease was used, through the first mixing mechanism that sets up, can carry out preliminary stopping to building rubbish and alkaline solution, make the building rubbish and the aquatic product of trickling to the first mixing mechanism upper surface bump into, increase the degree of consistency of mixing, through the rotation of first mixing mechanism, make building rubbish and alkaline solution move to the outside, increase the degree of consistency of mixing equally, reduce the grease in the building rubbish and remain.
(4) This building rubbish processing apparatus that separation grease was used, through alkaline solution circulation mechanism and filtration separating mechanism, can separate the recovery to the building rubbish and the alkaline solution of getting rid of the grease, convenient follow-up carries out secondary operation to building rubbish to the alkaline solution of recycling can increase the environmental protection performance of the device, and the comparison facilitates the use.
(5) This building rubbish processing apparatus that separation grease was used, through the filtration separating mechanism who sets up, can filter the alkaline solution in the building rubbish from the water strainer, conveniently collect and transport solid building rubbish to can collect alkaline liquid through the form of water conservancy diversion, convenient follow-up cyclic utilization that carries on.
Drawings
FIG. 1 is an isometric view of the structure of the present invention;
FIG. 2 is a front view of the structure of the present invention;
FIG. 3 is a front cross-sectional view of the structure of the present invention;
FIG. 4 is a front cross-sectional view of a first mixing mechanism of the present invention;
FIG. 5 is a front cross-sectional view of a second mixing mechanism of the present invention;

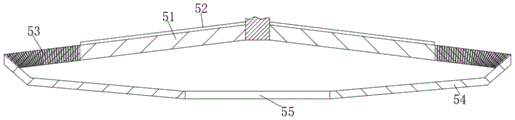

fig. 6 is a front sectional view of the filtering separation mechanism of the present invention.
In the figure: 1. a blanking mechanism; 11. discharging a bin; 12. a stirring plate; 2. a power plant; 3. a uniform mixing mechanism; 31. a mixing barrel; 32. a first discharge chute; 33. a first mixing mechanism; 331. a first tapered plate; 332. a first fixing strip; 333. a fixed block; 34. a second mixing mechanism; 341. a second tapered plate; 342. a second discharge chute; 4. an alkaline solution circulation mechanism; 41. a pressure water sump; 42. a water pipe; 5. a filtration and separation mechanism; 51. a third tapered plate; 52. a second fixing strip; 53. a water filtering net; 54. a baffle; 55. a water outlet groove; 6. and a collecting mechanism.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are illustrative and intended to be illustrative of the invention and are not to be construed as limiting the invention.
Referring to fig. 1-6, the present invention provides a technical solution: a construction waste treatment device for separating grease comprises a blanking mechanism 1, a fixed shaft is arranged at the position, close to the center, of the inner wall of the blanking mechanism 1, a fixed frame is fixedly connected at the position, close to the bottom end, of the outer wall of the blanking mechanism 1, a power device 2 is arranged at the top end of the fixed frame, the outer wall of the power device 2 is movably connected with the outer wall of the fixed shaft, an alkaline solution mechanism 4 is fixedly connected at the bottom end of the fixed frame, the outer wall of the alkaline solution mechanism 4 is fixedly connected with the outer wall of the blanking mechanism 1 through the arranged fixed frame, a uniform mixing mechanism 3 is fixedly connected at the bottom end of the alkaline solution mechanism 4, the outer wall of the uniform mixing mechanism 3 is fixedly connected with the outer wall of the blanking mechanism 1 through the arranged alkaline solution mechanism 4, a filtering and separating mechanism 5 is fixedly connected at the bottom end of the uniform mixing mechanism 3, the, the inside position that is close to the bottom of mount is provided with collects mechanism 6, collects the outer wall swing joint of mechanism 6 through the mount that sets up and the outer wall of filtering and separating mechanism 5, and the inside of collecting mechanism 6 is provided with the partition panel, and the inside that will collect mechanism 6 is divided into stock solution district and solid building rubbish collecting region.
The structure of unloading mechanism 1 includes feed bin 11 and stirring board 12 down, and the outer wall of fixed axle is provided with stirring board 12, and the outer wall of stirring board 12 is through the fixed axle swing joint of setting up and feed bin 11 down, and stirring board 12 rotates around the fixed axle that sets up.
The structure of homogeneous mixing mechanism 3 includes blending hopper 31, first blown down tank 32, first mixing mechanism 33 and second mixing mechanism 34, first blown down tank 32 has evenly been seted up to the position that the outer wall of blending hopper 31 is close to the bottom, the inside of blending hopper 31 is provided with first mixing mechanism 33, the outer wall of first mixing mechanism 33 is through the outer wall swing joint of blending hopper 31 with first blown down tank 32 that sets up, the inside of blending hopper 31 is close to the position on top and is provided with first mixing mechanism 33, the inside of blending hopper 31 is close to the position fixedly connected with second mixing mechanism 34 of first mixing mechanism 33 bottom, the outer wall of second mixing mechanism 34 is through the outer wall swing joint of blending hopper 31 with first mixing mechanism 33 that sets up, first mixing mechanism 33 centers on the center through the fixed axle that sets up and rotates.
The structure of the first mixing mechanism 33 includes a first tapered plate 331, a first fixing strip 332 and a fixing block 333, the inner wall of the mixing barrel 31 is uniformly and fixedly connected with the fixing block 333, the outer wall of the fixing block 333 is movably connected with the first tapered plate 331, the outer wall of the first tapered plate 331 is movably connected with the inner wall of the mixing barrel 31 through the fixing block 333, the outer wall of the first tapered plate 331 is close to the top end or is fixedly connected with the first fixing strip 332, the outer wall of the first fixing strip 332 is movably connected with the outer wall of the fixing block 333 through the first tapered plate 331, the position of the outer wall of the first tapered plate 331 close to the center is fixedly connected with the outer wall of the fixing shaft, the outer wall of the fixing block 333 is movably connected with the outer wall of the first tapered plate 331, and the fixing shaft is.
The second mixing mechanism 34 comprises a second taper groove 341 and a second discharge groove 342, the position of the inside of the mixing barrel 31 close to the bottom end of the first mixing mechanism 33 is fixedly connected with the second taper groove 341, and the position of the outer wall of the second taper groove 341 close to the center is provided with the second discharge groove 342.
The structure of the filtering and separating mechanism 5 comprises a third conical plate 51, a second fixing strip 52, a water filtering net 53, a guide plate 54 and a water outlet groove 55, the position of the outer wall of the mixing barrel 31 close to the bottom end is fixedly connected with the water filtering net 53, the position of the outer wall of the water filtering net 53 close to the center is movably connected with the third conical plate 51, the position of the outer wall of the third conical plate 51 close to the center is fixedly connected with a fixing shaft, the second fixing strip 52 is uniformly arranged on the upper surface of the third conical plate 51, the outer wall of the second fixing strip 52 is movably connected with the outer wall of the fixing shaft through the arranged third conical plate 51, the guide plate 54 is fixedly connected with the outer wall of the mixing barrel 31 through the arranged water filtering net 53, the water outlet groove 55 is arranged on the outer wall of the guide plate 54 close to the center, the outer wall of the water outlet groove 55 is fixedly connected with the outer wall of the collecting mechanism 6, the outer wall of the guide plate 54 is fixedly connected with the outer wall of the fixing frame.
When the device is used, the power device 2 is powered on, so that alkaline solution can flow into the pressure water bin 41 from the inside of the collecting mechanism 6 through the water pipe 42, and then is sprayed out through the water spray opening in the pressure water bin 41, meanwhile, the power device 2 drives the fixed shaft to rotate, the fixed shaft rotates to drive the stirring plate 12 to rotate, the broken construction waste is added into the device through the upper end of the lower bin 11, the rotation of the stirring plate 12 stirs the construction waste in the lower bin 11 to fall from the bottom end of the lower bin 11, and is soaked by the alkaline solution when passing through the water spray opening and falls onto the upper surface of the first mixing mechanism 33, the first conical plate 331 rotating along with the fixed shaft can enable the first fixing strip 332 to rotate around the fixed shaft, so that the construction waste and the alkaline solution move to the position of the fixing block 333 through centrifugal force and fall to the position of the inner wall of the mixing barrel 31, when the building garbage falls to the position of the second mixing mechanism 34, the building garbage flows to the position of the second discharging groove 342 due to the inverted cone angle of the second conical groove 341, and is uniformly mixed step by step in the process, when the building garbage and the alkaline solution fall to the upper surface of the third conical plate 51, the grease in the building garbage is decomposed by the alkaline water, the rotating shaft drives the third conical plate 51 to rotate, so as to drive the second fixing strip 52 to rotate to generate centrifugal force, the building garbage and the alkaline water are discharged from the first discharging groove 32, and the alkaline water flows to the upper surface of the guide plate 54 from the water strainer 53, and then falls to the center of the collecting mechanism 6 from the water outlet groove 55, and meanwhile, the building garbage falls to the inside of the collecting mechanism 6, so that subsequent collection and transportation are facilitated.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
Claims (7)
1. The utility model provides a building rubbish processing apparatus that separation grease was used, includes unloading mechanism (1), its characterized in that: the inner wall of the blanking mechanism (1) is provided with a fixed shaft at a position close to the center, the outer wall of the blanking mechanism (1) is close to a fixed frame at the bottom, a power device (2) is arranged at the top end of the fixed frame, the outer wall of the power device (2) is movably connected with the outer wall of the fixed shaft, an alkaline solution mechanism (4) is fixedly connected with the bottom end of the fixed frame, the outer wall of the alkaline solution mechanism (4) is fixedly connected with the outer wall of the blanking mechanism (1) through the arranged fixed frame, a uniform mixing mechanism (3) is fixedly connected with the bottom end of the alkaline solution mechanism (4), the outer wall of the uniform mixing mechanism (3) is fixedly connected with the outer wall of the blanking mechanism (1) through the arranged alkaline solution mechanism (4), and a filtering and separating mechanism (5) is fixedly connected with the bottom end of the, the outer wall of filtering and separating mechanism (5) is fixedly connected with the outer wall of alkaline solution mechanism (4) through the uniformly mixing mechanism (3) that sets up, the position that the inside of mount is close to the bottom is provided with collects mechanism (6), the outer wall swing joint of the outer wall of collecting mechanism (6) through the mount that sets up and filtering and separating mechanism (5).
2. The construction waste treatment device for separating oil and fat according to claim 1, wherein: the structure of unloading mechanism (1) is including feed bin (11) and stirring board (12) down, the outer wall of fixed axle is provided with stirring board (12), the outer wall of stirring board (12) is through the fixed axle that sets up and the inner wall swing joint of feed bin (11) down.
3. The construction waste treatment device for separating oil and fat according to claim 1, wherein: the structure of the uniform mixing mechanism (3) comprises a mixing barrel (31), a first discharge chute (32), a first mixing mechanism (33) and a second mixing mechanism (34), the outer wall of the mixing barrel (31) is evenly provided with a first discharge chute (32) at the position close to the bottom end, a first mixing mechanism (33) is arranged in the mixing barrel (31), the outer wall of the first mixing mechanism (33) is movably connected with the outer wall of the first discharging groove (32) through the arranged mixing barrel (31), a first mixing mechanism (33) is arranged in the mixing barrel (31) at a position close to the top end, a second mixing mechanism (34) is fixedly connected with the position, close to the bottom end of the first mixing mechanism (33), in the mixing barrel (31), the outer wall of the second mixing mechanism (34) is movably connected with the outer wall of the first mixing mechanism (33) through a mixing barrel (31).
4. The construction waste treatment device for separating oil and fat according to claim 3, wherein: the structure of first mixing mechanism (33) includes first conical plate (331), first fixed strip (332) and fixed block (333), the even fixedly connected with fixed block (333) of inner wall of mixing drum (31), the outer wall swing joint of fixed block (333) has first conical plate (331), the outer wall of first conical plate (331) is through the inner wall swing joint of fixed block (333) and mixing drum (31) that set up, the outer wall of first conical plate (331) is close to the first fixed strip (332) of position or fixedly connected with on top, the outer wall swing joint of the outer wall of first fixed strip (332) through the first conical plate (331) that sets up and fixed block (333), the outer wall fixed connection of the position and the fixed axle that the outer wall of first conical plate (331) is close to the center.
5. The construction waste treatment device for separating oil and fat according to claim 3, wherein: the structure of the second mixing mechanism (34) comprises a second taper groove (341) and a second discharge groove (342), the position, close to the bottom end of the first mixing mechanism (33), inside of the mixing barrel (31) is fixedly connected with the second taper groove (341), and the position, close to the center, of the outer wall of the second taper groove (341) is provided with the second discharge groove (342).
6. The construction waste treatment device for separating oil and fat according to claim 1, wherein: the structure of alkaline solution mechanism (4) includes pressure sump (41) and water pipe (42), the position fixedly connected with pressure sump (41) that the outer wall of unloading mechanism (1) is close to the bottom, the water jet has evenly been seted up to the inner wall of pressure sump (41), the outer wall fixedly connected with water pipe (42) of pressure sump (41), the outer wall of water pipe (42) through pressure sump (41) that set up with collect the inner wall swing joint of mechanism (6).
7. The construction waste treatment device for separating oil and fat according to claim 1, wherein: the structure of the filtering and separating mechanism (5) comprises a third conical plate (51), a second fixing strip (52), a water filtering net (53), a guide plate (54) and a water outlet groove (55), the outer wall of the mixing barrel (31) is close to the position fixedly connected with the water filtering net (53) at the bottom end, the outer wall of the water filtering net (53) is close to the position of the center and is movably connected with the third conical plate (51), the outer wall of the third conical plate (51) is close to the position of the center and is fixedly connected with a fixing shaft, the upper surface of the third conical plate (51) is uniformly provided with second fixing strips (52), the outer wall of the second fixing strip (52) is movably connected with the outer wall of the fixing shaft through the third conical plate (51), the outer wall of the water filtering net (53) is fixedly connected with the guide plate (54), the outer wall of the guide plate (54) is fixedly connected with the outer wall of the mixing barrel (31) through the water filtering, a water outlet groove (55) is formed in the position, close to the center, of the outer wall of the guide plate (54), and the outer wall of the water outlet groove (55) is fixedly connected with the outer wall of the collecting mechanism (6) through the guide plate (54).
