Abstract
本发明公开的属于建筑技术领域，具体为AI智能机械自动泊车建筑及施工方法，包括居住部分、停车装置和物流转运装置所述居住部分包括板式居住建筑，所述板式居住建筑外侧设有物流转运装置，所述板式居住建筑内侧设有合用前室，所述合用前室内侧固定连接走廊，所述走廊外侧设有停车装置，所述停车装置包括取车区一，所述取车区一位于居住部分一楼，所述取车区一位于板式居住建筑内侧，所述取车区一外侧设有候车台，所述取车区一右侧设有汽车电梯，本发明有益效果是：通过将独立车库设置在每层住户的家门口，方便车辆停放，避免传统地下车库停车后还需要步行较长路程影响出行效率，提高了用户的出行效率，更加节省车辆停放和取车时间。
The invention disclosed in the invention belongs to the technical field of construction, in particular to an AI intelligent mechanical automatic parking building and a construction method, including a residential part, a parking device and a logistics transfer device. A transfer device, the inner side of the panel-type residential building is provided with a shared front room, the inner side of the shared front room is fixedly connected to the corridor, and the outer side of the corridor is provided with a parking device, the parking device includes a car pick-up area 1, and the car pick-up area 1 It is located on the first floor of the residential part, and the car pick-up area is located on the inner side of the panel-type residential building, the outside of the car pick-up area is provided with a waiting platform, and the right side of the car pick-up area is provided with a car elevator. The beneficial effects of the present invention are: The independent garage is set up at the door of the households on each floor, which is convenient for vehicle parking, avoids the need to walk a long distance after parking in the traditional underground garage, which affects the travel efficiency, improves the travel efficiency of users, and saves the time for parking and picking up vehicles.
Description
Technical Field
The invention relates to the technical field of buildings, in particular to an AI intelligent mechanical automatic parking building and a construction method.
Background
Human development is in an infinite process, and urban development is in a limited space. Today's society is in a high-speed development stage, especially in the development and construction of cities in China. China has huge population in the world, with the acceleration of urbanization process, more and more people gush into in the middle of the city, and with the rapid development of the nearly forty years in China, people have been changed to high standard demand type by the type of being saturated to the living quality, people of city life, the demand of car is increasing day by day, many families have all possessed more than one car, people are in the future to the demand of car, not only in the quantity of possessing, but in more private, more comfortable, more convenient, more intelligent experience.
The prior art has the following defects: the existing traditional automobile parking mode is converted from ground parking to underground garage parking, although the problems of mixed running of people and vehicles and increase of environmental landscape are solved, a plurality of new problems are brought, the underground garage parking has a plurality of problems, such as no independent property right, no mortgage loan, the requirement of constructing two underground layers for meeting enough indexes, huge construction cost, long investment recovery period, no natural lighting underground, large electric power consumption, and the secret shady and dark garages of most residential areas, which brings very bad experience to people, each year, a plurality of urban districts exist, as the rainstorm drainage is not smooth, a plurality of vehicles in the underground garage are soaked, the economic loss is very large, the residential areas near the seaside or lakes and other humid environments have no natural ventilation due to large humidity, and the phenomenon of basement condensation is very serious, because the underground is excavated greatly, a large amount of residual soil is transported outside, underground water is discharged outside, huge dust and noise pollution are caused to cities, the construction method is not environment-friendly, people need to walk for a long distance from underground parking stalls to upstairs, the old people cannot move or carry a large amount of articles and heavy objects to go home, and the like, the new energy vehicles tend to be widely popularized in the future, and the underground garage is very inconvenient for providing a charging pile with independent metering.
Therefore, the AI intelligent mechanical automatic parking building is necessary.
Disclosure of Invention
The invention provides an AI intelligent mechanical automatic parking building and a construction method, wherein a parking device is arranged, a car is driven beside an automobile elevator entrance beside a building, an intelligent AGV carrier is controlled by an operation control console to adjust a parking space and transmit the parking space into an elevator, the car is transferred to an automobile elevator on an appointed building and ascends to an appointed floor, and an elevator door and a garage door are automatically opened to park the car, so that the problem of convenient automatic parking is solved.
In order to achieve the above purpose, the invention provides the following technical scheme: the AI intelligent mechanical automatic parking building comprises a living part, a parking device and a logistics transfer device, wherein the living part comprises a plate type living building, the outside of the plate type living building is provided with the logistics transfer device, the inside of the plate type living building is provided with a shared front room, the inner side of the shared front room is fixedly connected with a corridor, the outside of the corridor is provided with the parking device, the parking device comprises a first car taking area, the first car taking area is positioned on one floor of the living part, the first car taking area is positioned on the inner side of the plate type living building, the outer side of the first car taking area is provided with a car waiting platform, the left side or the right side of the first car taking area is provided with an automobile elevator, the left side or the right side of the automobile elevator is provided with an independent garage, a parking space is arranged inside the independent garage, the parking space is vertical to the position, the fire door is prevented in the garage is installed to independent garage entrance, the auto elevator inner wall is equipped with intelligent AGV carrier.
Preferably, the plate-type residential building is composed of three units, and each layer of the plate-type residential building meets the requirements of fire-fighting evacuation design and a stretcher ladder.
Preferably, an operation console is arranged on the outer side of the parking device and comprises a display screen, a face recognition system and an information storage.
Preferably, the car elevator receives a control command of the operation console through a wireless network and executes the operation command, and the car elevator receives the command and automatically ascends and descends to a specified floor.
Preferably, a car elevator of registering one's residence is installed to a resident suite room right side, the reciprocal lift one deck and the secret one deck of car elevator of registering one's residence, car elevator outside top fixed mounting canopy of registering one's residence, be equipped with transfer passage between car elevator of registering one's residence and the entry of car elevator secret one deck.
Preferably, commodity circulation transfer device includes the commodity circulation delivery elevator, the commodity circulation delivery elevator is installed on board-like residential architecture right side, commodity circulation delivery elevator left side is equipped with commodity circulation delivery car parking area, commodity circulation delivery car parking area top parks commodity circulation delivery car, commodity circulation delivery car passes through wireless network receiving operation control platform control command and carries out the operation command, commodity circulation delivery elevator underground one deck exit is equipped with the commodity circulation unloading mouth, commodity circulation article conveyer belt inboard is equipped with commodity circulation automatic sorting district, be connected the material distribution passageway between commodity circulation automatic sorting district and the commodity circulation article conveyer belt, the distribution passageway outside is equipped with commodity circulation article storing compartment.
Preferably, the living part further comprises a tower type living building, the tower type living building comprises a living suite two, the inner side of one layer of the living suite two is provided with a car taking area two, the outer side of the car taking area is provided with a car entering elevator two, the car entering elevator two is parallel to the position of the living suite two, and the car entering elevator two is provided with two groups of carrying parking spaces.
The AI intelligent mechanical automatic parking building construction method also comprises the following specific operation steps;
the method comprises the following steps: building a plate type residential building or a tower type residential building according to construction requirements, building a first car taking area on the inner side of a first building of a residential part, then arranging a waiting platform on the first car taking area, installing an automobile elevator on the left side of the waiting platform, and then building independent garages on two sides of each floor of the automobile elevator;
step two: parking an intelligent AGV carrier in an automobile elevator, arranging a parking space in a box body of an independent garage, then installing a logistics goods shelf beside the parking space of the independent garage, then installing a charging pile outside the logistics goods shelf, and installing a garage fireproof door at an entrance of the independent garage;
step three: installing an operation control console at one vehicle taking area, automatically controlling an intelligent AGV carrier, an automobile elevator and an automobile entrance elevator by scanning a code input control program in the operation control console, and inputting relevant information of an owner vehicle and an independent garage and storing face characteristics of an owner in the operation control console;
step four: the automobile home-entering elevator is arranged on the right side of the first residential suite room and can be led to one floor and the underground floor of the residential suite room;
step five: the logistics distribution elevator is installed on one outer side of the residential suite, the logistics distribution elevator is connected with the underground floor, a logistics article conveying belt is arranged at an outlet of the logistics distribution elevator on the underground floor, a logistics distribution vehicle parking area is arranged on the inner side of the logistics article conveying belt, a logistics distribution vehicle parking area is used for parking the logistics distribution vehicle in the logistics distribution vehicle parking area, a logistics automatic sorting area is arranged on the inner side of the logistics article conveying belt, a material distribution channel is arranged between the logistics automatic sorting area and the logistics article conveying belt, and a logistics article storage cabinet is arranged on the inner side.
The invention has the beneficial effects that:
1. the independent garage is arranged at the door of each layer of residents, and the garage is independent, so that the problem that the traditional underground garage has no property right and only has use right and the property right is unclear is solved;
2. the independent garage is arranged at the door of each layer of residents, so that the vehicles can be conveniently parked, the phenomenon that the traveling efficiency is influenced by a long walking distance after the traditional underground garage is parked is avoided, the traveling efficiency of the users is improved, and the vehicle parking and taking time is saved;
3. the automatic control operation enables the vehicle to be automatically carried to the automobile entrance elevator through the intelligent AGV carrier when being parked, and then the vehicle is transported to the independent garage of the appointed floor for parking, so that the use of drivers is facilitated, the vehicle damage caused by the driving problem is avoided, and the use safety of the vehicle is improved;
4. prevent through setting up the garage and prevent that the fire door leads to the vehicle impaired because of the conflagration, improved the security of vehicle effectively.
5. Through setting up commodity circulation transfer device convenience of customers and carrying article toward going upstairs family, improved the efficiency of transport, use manpower sparingly simultaneously, make things convenient for difficult crowd of transport such as old man children also can normal use, improved the convenience of using.
Drawings

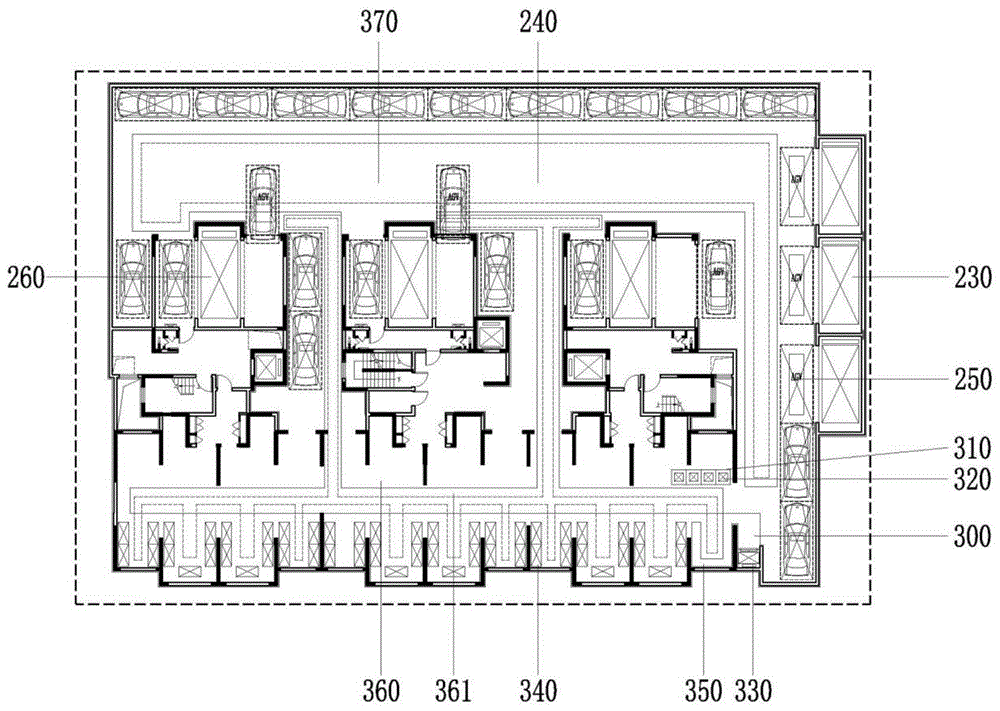

FIG. 1 is a diagram of the underground one-storey function distribution of the plate-type unit parking garage according to the present invention;
FIG. 2 is a first-level functional distribution diagram of a plate-type unit parking garage according to the present invention;
FIG. 3 is a plan functional partition diagram of a standard layer of a plate-type unit provided by the present invention;
FIG. 4 is a cross-sectional view of an automobile entrance elevator provided in accordance with the present invention;
FIG. 5 is a flow chart of the delivery of household items provided by the present invention;
FIG. 6 is a schematic view of a process of parking a car upstairs when the car is parked;
FIG. 7 is a schematic view of a process of getting a car down a building and getting a car from a home according to the present invention;
FIG. 8 is a plan view of a tower first-level unit provided by the present invention;
FIG. 9 is a plan view of a modular level tower unit provided in accordance with the present invention;
FIG. 10 is a first-level functional distribution diagram of a tower unit provided by the present invention;
FIG. 11 is a first layer partition function diagram of the plate-type unit according to the present invention;
FIG. 12 is a second functional diagram of the first layer partition of the plate unit according to the present invention;
FIG. 13 is a third functional diagram of the first layer partition of the plate unit according to the present invention;
FIG. 14 is a first floor partition functional diagram of a tower-type dwelling provided by the present invention;
FIG. 15 is a second functional diagram of the first floor partition of the tower-type dwelling house according to the present invention;
FIG. 16 is a third functional diagram of the first floor partition of the tower type dwelling house provided by the present invention.
In the figure: the system comprises a living part 100, a plate type living building 110, a first living suite 111, a shared front room 112, a tower type living part 120, a second living suite 121, a parking device 200, a first car taking area 210, a waiting platform 220, an automobile entrance elevator 230, a canopy 231, a transfer passage 240, an intelligent AGV (automated guided vehicle) 250, an automobile elevator 260, an independent garage 270, a parking space 271, a logistics shelf 272, a charging pile 273, a garage fireproof door 274, a second car taking area 280, a second automobile entrance elevator 290, a logistics transfer device 300, a logistics distribution car parking area 310, a logistics distribution car 320, a logistics distribution elevator 330, a logistics article storage cabinet 340, a logistics article conveying belt 350, an automatic logistics sorting area 360 and a material distribution passage 361.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are described herein for the purpose of illustration and explanation and not limitation.
Example 1:
referring to fig. 1 to 7 and fig. 11 to 13, the AI intelligent mechanical automatic parking building provided by the present invention includes a living part 100, a parking device 200, and a logistics transfer device 300, specifically, the logistics transfer device 300 is disposed on the outer side of the plate type living building 110, a shared front room 112 is disposed on the inner side of the plate type living building 110, a corridor is fixedly connected to the inner side of the shared front room 112, the parking device 200 is disposed on the outer side of the corridor, the parking device 200 includes a first car taking area 210, the first car taking area 210 is located on the first floor of the living part 100, the first car taking area 210 is located on the inner side of the plate type living building 110, a waiting platform 220 is disposed on the outer side of the first car taking area 210, an automobile elevator 260 is disposed on the left side or the right side of the first car taking area 210, independent garages 270 are disposed on the left side and the right side of the automobile elevator 260, a parking, a logistics shelf 272 is arranged on the inner side of the parking space 271, a charging pile 273 is arranged on the left side or the right side of the logistics shelf 272, a garage fireproof door 274 is installed at the entrance of the independent garage 270, and an intelligent AGV carrier 250 is arranged on the inner wall of the automobile elevator 260;
the living part 100 has the function of providing living places for users, the independent garage 270 is arranged perpendicular to the long direction of a plate-type house, the distance of more than 5 meters is reserved on the outer wall of the garage between the two units, so that the outer window of the house on one side of the independent garage 270 has good lighting and ventilation performance, the parking device 200 has the function of parking, the logistics transfer device 300 has the function of conveniently carrying articles to a logistics shelf 272 or a logistics article storage cabinet 340, a fire fighting and rescuing area outside a first floor is used as an automobile exit channel, land can be saved to a great extent, the first car taking area 210 has the function of taking and parking cars for carrying to an automobile elevator 260, the waiting platform 220 has the function of waiting when users take cars, the automobile elevator 260 has the function of conveniently lifting and carrying cars to a designated floor, and the independent garage 270 has the function of conveniently parking cars, the logistics goods shelf 272 has the effect of conveniently containing articles, the charging pile 273 has the effect of conveniently charging electric automobiles, the garage fireproof door 274 has the effects of preventing fire and avoiding disasters, the intelligent AGV 250 mainly has the functions of concentrating on automatic logistics carrying and transferring, the AGV 250 automatically transports the articles to a specified place through special landmark navigation, the AGV 250 has the effect of conveniently carrying the automobiles to the automobile elevator 260 or the automobile entrance elevator 230 and the parking space 271, the automobile entering the house is conveyed to the underground flow-down area through vertically arranging the automobile elevator 260, the scientific and reasonable separation of multi-unit multistrand incoming and outgoing traffic flow and multi-unit multistrand incoming and outgoing pedestrian flow is realized, the intersection of multistrand flow lines is avoided, and the efficiency of automobile transferring is improved;
further, the plate-type residential building 110 is composed of three units or two units, each floor of the plate-type residential building 110 meets the fire evacuation design and the stretcher ladder requirements, specifically, each floor of the residential part 110 can be grouped according to the actual construction condition of the plate-type residential building 110, the plate-type residential building 110 can be set to be a single group or multiple groups under the construction condition, the number of garages of each floor part of the independent garage 270 meets the number of residents of the corresponding floor unit, and the requirements of the number of residents and the parking space with the number of parking spaces of more than 1:1 can be realized;
further, an operation console (not labeled in the figure) is arranged on the outer side of the parking device 200, the operation console comprises a display screen, a face recognition system and an information storage device, specifically, the operation console is convenient for controlling the parking device 200 through software, a user inputs an operation command by touching the display screen, the face recognition system performs face feature recognition on the user so as to perform information matching on the independent garage 270 of the user, and the information storage device records use information;
further, the car elevator 260 receives a control command of the operation console through a wireless network and executes an operation command, a processor is arranged in the car elevator 260, the processor is set to 11900K, the car elevator 260 receives a signal of the operation console through the wireless network to operate, the car elevator 260 receives the command to automatically move up and down to a specified floor, the specific car elevator 260 controls the function of automatically transferring the car through software, the door can be automatically opened and closed during transferring, and the convenience of operation is improved;
further, an automobile entrance elevator 230 is installed on the right side of the living suite one 111, the automobile entrance elevator 230 reciprocally lifts one floor and one underground floor, a canopy 231 is fixedly installed at the top of the outer side of the automobile entrance elevator 230, a transfer passage 240 is arranged between the automobile entrance elevator 230 and an entrance of the one underground floor of the automobile elevator 260, specifically, the automobile entrance elevator 230 has an effect of conveniently transferring an automobile entering the house to the one underground floor for transferring to the automobile elevator 260, the transfer passage 240 has an effect of conveniently transferring the automobile, and the canopy 231 has a function of shielding rain;
further, the logistics transfer device 300 comprises a logistics distribution elevator 330, the logistics distribution elevator 330 is installed on the right side of the plate-type residential building 110, a logistics distribution car parking area 310 is arranged on the left side of the logistics distribution elevator 330, a logistics distribution car 320 is parked on the top of the logistics distribution car parking area 310, the logistics distribution car 320 receives a control command of an operation console through a wireless network and executes the operation command, a logistics article conveying belt 350 is arranged at an exit of a lower floor of the logistics distribution elevator 330, an automatic logistics sorting area 360 is arranged inside the logistics article conveying belt 350, a material distribution channel 361 is connected between the automatic logistics sorting area 360 and the logistics article conveying belt 350, a logistics article storage cabinet 340 is arranged outside the distribution channel 361, specifically, the logistics distribution elevator 330 has the function of transferring articles to a designated floor, and the logistics distribution car parking area 310 has the function of parking the logistics distribution car 320, the logistics distribution vehicle 320 is an intelligent unmanned AGV carrier, the logistics distribution vehicle 320 has the function of conveniently transferring articles, the logistics article conveying belt 350 has the function of conveniently transferring articles, the automatic sorting area 360 has the function of conveniently classifying articles, the distribution channel 361 has the function of driving the logistics distribution vehicle 320, the underground space of a house is utilized, the underground idle space is scientifically and reasonably utilized, the problem that congestion is caused by a very long waiting area on the roadside of an overground roadside is avoided, crossing of vehicles entering and exiting is ingeniously avoided, the pressure of traffic inside the community is greatly reduced, contradictions of neighborhood users caused by congestion are greatly reduced, community noise is greatly reduced, the environment quality of the community is greatly improved, unmanned operation is realized when vehicles enter and exit and articles go upstairs, and all operations are intelligently performed under software.
The AI intelligent mechanical automatic parking building construction method also comprises the following specific operation steps;
the method comprises the following steps: building a plate type residential building or a tower type residential building according to construction requirements, building a first car taking area 210 on the inner side of a first floor of a residential part 100, then arranging a waiting platform 220 on the first car taking area 210, installing an automobile elevator 260 on the left side of the waiting platform 220, and then building independent garages 270 on two sides of each floor of the automobile elevator 260;
step two: parking an intelligent AGV (automated guided vehicle) 250 in an automobile elevator 260, arranging a parking space 271 in a box body of an independent garage 270, installing a logistics shelf 272 beside the parking space of the independent garage 270, installing a charging pile 273 outside the logistics shelf 272, and installing a garage fireproof door 274 at the entrance of the independent garage 270;
step three: installing an operation control console at the first car taking area 210, automatically controlling the intelligent AGV carrier 250, the automobile elevator 260 and the automobile entrance elevator 230 by a code scanning input control program in the operation control console, and inputting relevant information of an owner vehicle and the independent garage 270 in the operation control console and storing face characteristics of an owner of the automobile;
step four: the automobile entrance elevator 230 is arranged on the right side of the first residential suite 111, and the automobile entrance elevator 230 can lead to the first 111 floor and the underground floor of the residential suite;
step five: the logistics distribution elevator 330 is installed on the outer side of the first residential suite 111, the logistics distribution elevator 330 is connected with the next floor, a logistics article conveying belt 350 is arranged at the outlet of the logistics distribution elevator 330 on the next floor, a logistics distribution vehicle parking area 310 is arranged on the inner side of the logistics article conveying belt 350, a logistics distribution vehicle 320 is parked in the logistics distribution vehicle parking area 310, an automatic logistics sorting area 360 is arranged on the inner side of the logistics article conveying belt 350, a material distribution channel 361 is arranged between the automatic logistics sorting area 360 and the logistics article conveying belt 350, and a logistics article storage cabinet 340 is arranged on the inner side of the logistics article conveying belt 350.
The using process of the invention is as follows: when the invention is used, a user wants to go upstairs by driving the automobile to the side of the entrance of the automobile entrance elevator 230 beside the road beside the building, the intelligent AGV carrier 250 is controlled by the operating console to carry the automobile into the automobile entrance elevator 230, the automobile is sent to the underground transfer room by the automobile entrance elevator 230 and is transferred to the automobile elevator 260 going upstairs by the intelligent AGV carrier, after the automobile rises to the floor appointed by the user, the automobile elevator 260 door and the garage fireproof door 274 are automatically opened, the intelligent AGV carrier 250 automatically sends the automobile to the appointed position, the garage fireproof door 274 and the automobile elevator 260 door are automatically closed, the unmanned automobile entrance is completed, when the user wants to go downstairs, the automobile elevator 260 automatically rises to the floor of the user by controlling the operating console to operate the downstairs instruction, the automobile elevator 260 door and the garage fireproof door 274 are automatically opened, the intelligent AGV carries the handle car and sends into in the elevator, close car elevator 260 door and the fire door 274 is prevented in the garage simultaneously, the car elevator descends to the first floor, intelligence AGV carrier 250 conveys out the car, the user goes up the handle car and drives away, when needing to carry article to appointed commodity circulation goods shelves 272 or commodity circulation goods storing compartment 340, carry article to commodity circulation delivery elevator 330 through operation control cabinet control commodity circulation delivery car 320 and transport to commodity circulation goods conveyer belt 350, then transport to car elevator 260, rise to the appointed floor of user after, automatic opening car elevator 260 door and the fire door 274 is prevented in the garage, intelligence AGV carrier 250 transports the goods to commodity circulation goods shelves 272 and accomplishes the transport.
Example 2:
referring to fig. 8-10 and 14-16, the AI intelligent mechanical automatic parking building provided by the invention comprises a tower-type living part 120, a living suite two 121, a car taking area two 280 and a car entrance elevator two 290;
further, the living part 100 further comprises a tower-type living part 120, the tower-type living part 120 comprises a second living suite 121, a second car taking area 280 is arranged on the inner side of one layer of the second living suite 121, a second car entering elevator 290 is arranged on the outer side of the second car taking area 280, the second car entering elevator 290 is parallel to the second living suite 121, the second car entering elevator 290 is provided with two groups of carrying parking spaces, specifically, the tower-type living part 120 has the function of improving the living residential space for a user, the second car taking area 280 has the function of conveniently taking and parking a car, and the second car entering elevator 290 conveniently carries two cars to go upstairs at the same time.
The using process of the invention is as follows: when the invention is used, a user wants to go upstairs by driving the automobile to the side of the entrance of the second automobile entrance elevator 290 beside the road beside the building, the intelligent AGV 250 is controlled by the operating console to transport the automobile to the second automobile entrance elevator 290, the automobile is sent to an underground transfer room by the second automobile entrance elevator 290, the intelligent AGV transports the automobile to the automobile elevator 260 of the appointed upstairs, after the automobile ascends to the floor appointed by the user, the door 260 of the automobile elevator and the door 274 of the garage are automatically opened, the intelligent AGV 250 automatically sends the automobile to the appointed position, the door 274 of the garage and the door 260 of the automobile elevator are automatically closed, the unmanned automobile entrance is completed, when the user wants to go downstairs, the automobile elevator 260 of the first floor is near the exit of the automobile elevator 260, the automobile elevator 260 automatically rises to the user floor by controlling the operating console to operate a downstairs instruction, automatic open car elevator 260 door and the fireproof door in garage 274, intelligence AGV transport is sent into in the elevator car, close car elevator 260 door and the fireproof door in garage 274 simultaneously, car elevator descends to the first floor, intelligence AGV carrier 250 conveys out the car, the user goes up the car and drives away, when needing to carry article to appointed commodity circulation goods shelves 272 or commodity circulation goods storing compartment 340, through operation control cabinet control commodity circulation delivery car 320 with article transport to commodity circulation delivery elevator 330 transport to commodity circulation goods conveyer belt 350, then transport to car elevator 260, rise to the appointed floor of user after, automatic open car elevator 260 door and the fireproof door in garage 274, intelligence AGV carrier 250 transports the goods to commodity circulation goods shelves 272 and accomplishes the transport.
The above description is only a preferred embodiment of the present invention, and any person skilled in the art may modify the present invention or modify it into an equivalent technical solution by using the technical solution described above. Therefore, any simple modifications or equivalent substitutions made in accordance with the technical solution of the present invention are within the scope of the claims of the present invention.
Claims (8)
- AI intelligent mechanical automatic parking building, including living portion (100), parking equipment (200) and commodity circulation transfer device (300), its characterized in that: the living part (100) comprises a plate-type living building (110), a logistics transfer device (300) is arranged on the outer side of the plate-type living building (110), a shared front chamber (112) is arranged on the inner side of the plate-type living building (110), a corridor is fixedly connected to the inner side of the shared front chamber (112), a parking device (200) is arranged on the outer side of the corridor, the parking device (200) comprises a first car taking area (210), the first car taking area (210) is located on one floor of the living part (100), the first car taking area (210) is located on the inner side of the plate-type living building (110), a car waiting platform (220) is arranged on the outer side of the first car taking area (210), an automobile elevator (260) is arranged on the left side or the right side of the first car taking area (210), independent garages (270) are arranged on the left side and the right side of the automobile elevator (260), a parking space (271) is arranged inside the independent garage, parking stall (271) inboard is equipped with commodity circulation goods shelves (272), commodity circulation goods shelves (272) left side or right side are equipped with fills electric pile (273), the fire door (274) are prevented in the garage is installed to independent garage (270) entrance, auto elevator (260) inner wall is equipped with intelligent AGV carrier (250).
- 2. The AI intelligent mechanical automated parking building of claim 1, wherein: the plate-type residential building (110) consists of three units, and each layer of the plate-type residential building (110) meets the requirements of fire-fighting evacuation design and a stretcher ladder.
- 3. The AI intelligent mechanical automated parking building of claim 1, wherein: an operation console is arranged on the outer side of the parking device (200) and comprises a display screen, a face recognition system and an information storage.
- 4. The AI intelligent mechanical automated parking building of claim 3, wherein: the automobile elevator (260) receives a control command of an operation console through a wireless network and executes the operation command, and the automobile elevator (260) receives the command and automatically moves up and down to a designated floor.
- 5. The AI intelligent mechanical automated parking building of claim 1, wherein: the automobile landing elevator (230) is installed on the right side of the residential suite one (111), the automobile landing elevator (230) reciprocates to lift one floor and an underground floor, the automobile landing elevator (230) is fixedly installed on the top of the outer side of the canopy (231), and a transfer passage (240) is arranged between the automobile landing elevator (230) and an underground floor of the automobile elevator (260).
- 6. The AI intelligent mechanical automated parking building of claim 1, wherein: the logistics transfer device (300) comprises a logistics distribution elevator (330), the logistics distribution elevator (330) is installed on the right side of the plate-type residential building (110), a logistics distribution car parking area (310) is arranged on the left side of the logistics distribution elevator (330), a logistics distribution car parking area (310) is used for parking the logistics distribution car (320) on the top of the logistics distribution car parking area (310), the logistics distribution car (320) receives an operation control console control command through a wireless network and executes the operation command, a logistics object (350) is arranged at an outlet of the underground layer of the logistics distribution elevator (330), an automatic logistics sorting area (360) is arranged on the inner side of the logistics object conveying belt (350), a material distribution channel (361) is connected between the automatic logistics sorting area (360) and the logistics object conveying belt (350), and a logistics object storage cabinet (340) is arranged on the outer side of the distribution channel (361.
- 7. The AI intelligent mechanical automated parking building of claim 1, wherein: the living part (100) further comprises a tower type living part (120), the tower type living part (120) comprises a living suite II (121), a vehicle taking area II (280) is arranged on the inner side of one layer of the living suite II (121), a vehicle entrance elevator II (290) is arranged on the outer side of the vehicle taking area II (280), the positions of the vehicle entrance elevator II (290) are parallel to the position of the living suite II (121), and two groups of carrying parking spaces are arranged on the vehicle entrance elevator II (290).
- 8. The AI intelligent mechanical automatic parking building construction method is characterized in that: the method also comprises the following specific operation steps;the method comprises the following steps: building a plate type residential building or a tower type residential building according to construction requirements, building a first car taking area (210) on the inner side of a first floor of a residential part (100), then arranging a waiting platform (220) on the first car taking area (210), installing an automobile elevator (260) on the left side of the waiting platform (220), and then building independent garages (270) on two sides of each floor of the automobile elevator (260);step two: parking an intelligent AGV (250) in an automobile elevator (260), arranging a parking space (271) in a box body of an independent garage (270), then installing a logistics shelf (272) beside the parking space of the independent garage (270), then installing a charging pile (273) at the outer side of the logistics shelf (272), and installing a garage fireproof door (274) at the entrance of the independent garage (270);step three: installing an operation control console at the first car taking area (210), automatically controlling an intelligent AGV (250), an automobile elevator (260) and an automobile entrance elevator (230) by a code scanning input control program in the operation control console, and inputting relevant information of an owner vehicle and an independent garage (270) and storing face characteristics of an owner in the operation control console;step four: an automobile home-entering elevator (230) is arranged on the right side of the first residential suite (111), and the automobile home-entering elevator (230) can lead to one floor of the first residential suite (111) and the underground floor;step five: the logistics distribution elevator (330) is installed on the outer side of the residential suite one (111), the logistics distribution elevator (330) is connected with the underground floor, a logistics article conveying belt (350) is arranged at the outlet of the logistics distribution elevator (330) on the underground floor, a logistics distribution vehicle parking area (310) is arranged on the inner side of the logistics article conveying belt (350), a logistics distribution vehicle (320) is parked in the logistics distribution vehicle parking area (310), a logistics automatic sorting area (360) is arranged on the inner side of the logistics article conveying belt (350), a material distribution channel (361) is arranged between the logistics automatic sorting area (360) and the logistics article conveying belt (350), and a logistics article storage cabinet (340) is arranged on the inner side of the logistics article conveying belt (350).
