Abstract
本发明公开了平面旋转式智能存取物储物柜，包括下箱，所述下箱上端面固定连接有上箱，所述上箱内部固定连接有两个支架、电机、四个连接杆和剪叉式推出交互机构，两个所述支架固定连接有导轨，所述上箱正面固定连接有控制器，所述上箱正面开设有槽口，所述槽口内部铰接有门板，所述下箱内部连接有控制组件，所述电机地输出端连接有第一键轮，四个所述连接杆均分别连接有一个第二键轮，且其中一个所述第二键轮与所述第一键轮之间啮合连接有第一同步带，四个所述第二键轮之间啮合连接有第二同步带，所述第二同步带侧面固定连接有连接块，连接块均分别连接有一个支杆。
The invention discloses a plane-rotating intelligent storage cabinet, comprising a lower box, an upper box is fixedly connected to the upper end surface of the lower box, and two brackets, a motor, four connecting rods and The scissor-type push-out interaction mechanism, the two brackets are fixedly connected with guide rails, the front of the upper box is fixedly connected with a controller, the front of the upper box is provided with a notch, the inside of the notch is hinged with a door panel, the lower A control assembly is connected inside the box, a first key wheel is connected to the output end of the motor, a second key wheel is connected to each of the four connecting rods, and one of the second key wheels is connected to the first key wheel. A first synchronous belt is meshed and connected between the key wheels, a second synchronous belt is meshed and connected between the four second key wheels, and a connecting block is fixedly connected to the side of the second synchronous belt, and each of the connecting blocks is respectively connected with one strut.
Description
Technical Field
The invention relates to the field of storage cabinets, in particular to a plane rotary type intelligent storage cabinet.
Background
The storage cabinet is generally divided into a household storage cabinet, a business storage cabinet and the like, and is mainly used for facilitating the use of people, storing different articles and classifying the articles. And to the less family in space or dormitory, more indispensable article, can make full use of the space and hold more articles for daily use, the decoration people's environment at home that moreover also can be fine.
But current locker leads to being not convenient for get the article of darker storing position in the locker and puts because of lacking rotation type storage structure in the use, and the problem that storing efficiency is lower for this reason, we propose plane rotation type intelligence access thing locker.
Disclosure of Invention
In order to overcome the defects of the prior art, the invention provides the plane rotary type intelligent object storing and taking cabinet, and the problem that the storage efficiency is low because articles at a deeper storage position in the cabinet are inconvenient to take and place in the use process due to the lack of a rotary type storage structure of the conventional cabinet can be solved by arranging the rotary type storage structure.
In order to solve the technical problems, the invention provides the following technical scheme: the plane rotation type intelligent object storing and taking cabinet comprises a lower box, wherein the upper end surface of the lower box is fixedly connected with an upper box, the inner part of the upper box is fixedly connected with two supports, a motor, four connecting rods and a scissor type pushing and interacting mechanism, the two supports are fixedly connected with a guide rail, the front surface of the upper box is fixedly connected with a controller, the front surface of the upper box is provided with a notch, the inner part of the notch is hinged with a door plate, the inner part of the lower box is connected with a control assembly, the ground output end of the motor is connected with a first key wheel, the four connecting rods are respectively connected with a second key wheel, a first synchronous belt is meshed and connected between one of the second key wheels and the first key wheel, a second synchronous belt is meshed and connected between the four second key wheels, the side surface of the second synchronous belt is fixedly connected with a connecting block, the connecting block is, and the slider divide equally do not with the guide rail is connected, and a bottom plate of other fixedly connected with is divided equally to the slider, and two slide rails of other fixedly connected with are divided equally to the bottom plate, and the slide rail is divided equally and is connected with a stopper respectively, and per two the stopper is connected with a box, go up incasement portion upper surface fixedly connected with recognizer.
As a preferred technical scheme of the invention, the back surfaces of the lower box and the upper box are respectively provided with a group of ventilation grooves, and the two groups of ventilation grooves respectively form twenty-degree included angles with the horizontal plane.
As a preferred technical scheme of the invention, the central positions of the front surfaces of the box bodies are respectively and fixedly connected with a handle, and the interior of the box body is fixedly provided with an infrared sensing device.
As a preferable aspect of the present invention, the inner dimension of the notch is larger than the outer dimension of the case.
As a preferable technical scheme of the invention, the two brackets are arranged in a T shape.
As a preferable technical scheme of the invention, the lower surface of the lower box is fixedly connected with four supporting legs, and the four supporting legs are all arranged in a height-adjustable manner.
As a preferred technical scheme of the invention, the lower surfaces of the four supporting legs are respectively fixedly connected with a rubber ring.
Compared with the prior art, the invention can achieve the following beneficial effects:
1. an operator controls the control assembly, the control assembly is provided with a voice control assembly and a touch display screen input assembly, then a motor drives a first key wheel to rotate, the first key wheel drives a first synchronous belt to move, then the first synchronous belt drives a connected second key wheel to rotate, then the second key wheel drives a second synchronous belt to move, at the moment, four second key wheels synchronously move, then connecting blocks respectively drive connecting parts to move in a displacement manner, a sliding rail limits a displaced sliding block, and simultaneously the box body and internal load articles can be supported, so that insufficient supporting strength of the sliding block is avoided, an identifier identifies the internal articles of the box body, when the box body loaded with the taken articles is identified to reach a notch position, a scissor type pushing interaction mechanism pushes the box body and pushes open a door plate, and a limiting block limits the pushing box body through the sliding rail, avoid the box landing, then operating personnel take can, this embodiment is convenient for get the article of darker storing position in the locker and puts, and storing efficiency is higher.
2. The two sets of ventilation grooves are convenient for effective ventilation and heat dissipation of the lower box and the upper box, and the included angle of twenty degrees between the two sets of ventilation grooves and the horizontal plane is set to avoid a large amount of dust from directly falling into the lower box and the upper box, so that the lower box and the upper box are convenient to clean and maintain.
3. The operating personnel hand of being convenient for directly carries out the push-and-pull to the box through setting up the handle, and the inside infrared induction device of box can respond to the inside situation of box, when sensing the people and not having taken out article yet, the box can be closed by automatic time delay, makes people get the thing time controllable, gets that the thing finishes the back box and withdraws automatically to return according to former way, continue to keep the locker balance.
Drawings

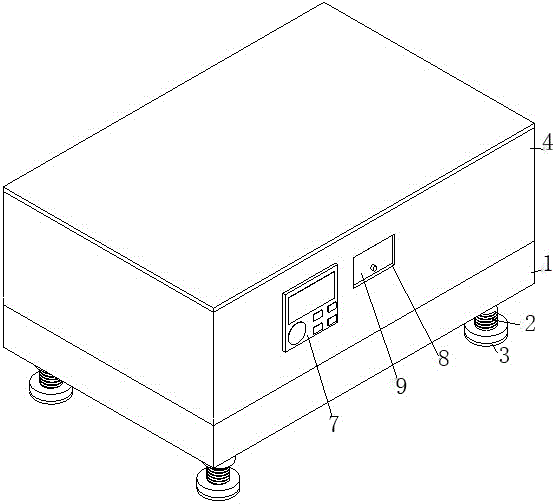

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a top cross-sectional view of FIG. 1 in accordance with the present invention;
FIG. 3 is a right side cross-sectional view of FIG. 1 in accordance with the present invention;
FIG. 4 is a schematic perspective view of the interior of the upper box of the present invention;
fig. 5 is a right side cross-sectional view of fig. 4 in accordance with the present invention.
Wherein: 1. discharging the box; 2. supporting legs; 3. a rubber ring; 4. feeding the box; 5. a support; 6. a guide rail; 7. a controller; 8. a notch; 9. a door panel; 10. a control component; 11. a motor; 12. a first key wheel; 13. a first synchronization belt; 14. a connecting rod; 15. a second key wheel; 16. a second synchronous belt; 17. connecting blocks; 18. a strut; 19. a slider; 20. a base plate; 21. a slide rail; 22. a limiting block; 23. a box body; 24. a ventilation slot; 25. a scissor-fork type push-out interaction mechanism; 26. an identifier; 27. an infrared sensing device.
Detailed Description
The present invention will be further described with reference to specific embodiments for the purpose of facilitating an understanding of technical means, characteristics of creation, objectives and functions realized by the present invention, but the following embodiments are only preferred embodiments of the present invention, and are not intended to be exhaustive. Based on the embodiments in the implementation, other embodiments obtained by those skilled in the art without any creative efforts belong to the protection scope of the present invention. The experimental methods in the following examples are conventional methods unless otherwise specified, and materials, reagents and the like used in the following examples are commercially available unless otherwise specified.
Example (b):
as shown in fig. 1-5, the invention provides a planar rotary intelligent object storage cabinet, which comprises a lower box 1, wherein an upper box 4 is fixedly connected to the upper end surface of the lower box 1, two brackets 5, a motor 11, four connecting rods 14 and a scissor type push-out interaction mechanism 25 are fixedly connected to the inside of the upper box 4, guide rails 6 are fixedly connected to the two brackets 5, a controller 7 is fixedly connected to the front surface of the upper box 4, a notch 8 is formed in the front surface of the upper box 4, a door panel 9 is hinged to the inside of the notch 8, a control assembly 10 is connected to the inside of the lower box 1, the output end of the motor 11 is connected with a first key wheel 12, the four connecting rods 14 are respectively connected with a second key wheel 15, a first synchronous belt 13 is meshed between one of the second key wheels 15 and the first key wheel 12, a second synchronous belt 16 is meshed between the four second key wheels 15, and a, the connecting blocks 17 are respectively connected with a supporting rod 18, the supporting rods 18 are respectively fixedly connected with a sliding block 19, the sliding blocks 19 are respectively connected with the guide rails 6, the sliding blocks 19 are respectively fixedly connected with a bottom plate 20, the bottom plate 20 is respectively fixedly connected with two sliding rails 21, the sliding rails 21 are respectively connected with a limiting block 22, each two limiting blocks 22 are connected with a box body 23, and the upper surface of the inner part of the upper box 4 is fixedly connected with an identifier 26;
an operator controls the control assembly 10, the control assembly 10 is provided with a voice control assembly and a touch display screen input assembly, then the motor 11 drives the first key wheel 12 to rotate, the first key wheel 12 drives the first synchronous belt 13 to move, then the first synchronous belt 13 drives the connected second key wheel 15 to rotate, then the second key wheel 15 drives the second synchronous belt 16 to move, at the moment, the four second key wheels 15 synchronously move, then the connecting blocks 17 respectively drive the connecting parts to move in a displacement manner, the sliding rails 21 limit the displaced sliding blocks 19, meanwhile, the box body 23 and internal load articles can be supported, the situation that the sliding blocks 19 are insufficient in supporting strength is avoided, the recognizer 26 recognizes objects in the box body 23, when the box body 23 loaded with the taken articles is recognized to reach the position of the notch 8, the scissor type pushing-out interaction mechanism 25 pushes the box body 23 and pushes the door panel 9 open, stopper 22 carries on spacingly to promoting box 23 through slide rail 21, avoids box 23 landing, then operating personnel take can, the article of the darker storing position in the locker of being convenient for of this embodiment are got and are put, and storing efficiency is higher, and required consumer all links to each other with external power source electrical property in this embodiment.
In other embodiments, a group of ventilation grooves 24 are respectively formed in the back surfaces of the lower box 1 and the upper box 4, and the two groups of ventilation grooves 24 respectively form an included angle of twenty degrees with the horizontal plane;
through setting up two sets of ventilation grooves 24 and being convenient for carry out effectual ventilation cooling to nowel 1 and top box 4 inside, set up to and be twenty degrees contained angles between the horizontal plane and avoid a large amount of dusts directly to fall into nowel 1 and top box 4 inside, the sanitary clean maintenance of being convenient for.
In other embodiments, a handle is fixedly connected to the center of the front surface of the box 23, and the infrared sensing device 27 is fixedly arranged inside the box 23;
be convenient for the operating personnel hand through setting up the handle and directly carry out the push-and-pull to box 23, the inside infrared induction device 27 of box 23 can respond to the inside situation of box 23, when sensing the people and not having taken out article yet, box 23 can automatic time delay close, makes people get the thing time controllable, gets that box 23 is automatic to be withdrawed after the thing ends to return according to former way, continue to keep the locker balanced.
In other embodiments, the internal dimensions of the slot 8 are greater than the external dimensions of the box 23;
facilitating displacement of the casing 23 from inside the notch 8.
In other embodiments, both brackets 5 are "T" shaped;
so as to stably support and connect the guide rail 6.
In other embodiments, the lower surface of the lower box 1 is fixedly connected with four supporting legs 2, and the four supporting legs 2 are all arranged in a height-adjustable manner;
the four supporting legs 2 stably support the whole storage cabinet, and are height-adjustable installation planes which can be conveniently and better adapt to different heights.
In other embodiments, the lower surfaces of the four supporting legs 2 are respectively fixedly connected with a rubber ring 3;
through setting up rubber circle 3 and being convenient for increase frictional force, avoid rotatory in-process locker acutely tremble of taking, make the locker place more steadily.
In the present invention, unless otherwise expressly stated or limited, "above" or "below" a first feature means that the first and second features are in direct contact, or that the first and second features are not in direct contact but are in contact with each other via another feature therebetween. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the preferred embodiments of the present invention are described in the above embodiments and the description, and are not intended to limit the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
