本发明提供一种新型汽车座椅打孔设备，涉及汽车座椅生产技术领域。该一种新型汽车座椅打孔设备，包括底箱与安装板，所述底箱的顶面与安装板的顶面固定连接在一起，所述安装板的内侧设置有槽体，所述底箱的内壁与定位板的两端固定连接在一起，所述定位板的顶面与固定槽的底端固定连接在一起，所述固定槽的内侧与电动伸缩杆的底端固定连接在一起，所述电动伸缩杆的顶端与锁定板的底端固定连接在一起。通过在底箱的内壁安装定位架，在定位架的顶面安装电动伸缩杆，在电动伸缩杆的顶端安装锁定板，利用电动伸缩杆带动锁定板向上运动，将工作台进行支撑，增加加工时的稳定，防止造成生产材料的浪费。
The invention provides a novel automobile seat punching device, which relates to the technical field of automobile seat production. The novel car seat drilling equipment comprises a bottom box and a mounting plate, the top surface of the bottom box and the top surface of the mounting plate are fixedly connected together, the inner side of the mounting plate is provided with a groove body, and the bottom The inner wall of the box is fixedly connected with the two ends of the positioning plate, the top surface of the positioning plate is fixedly connected with the bottom end of the fixing groove, and the inner side of the fixing groove is fixedly connected with the bottom end of the electric telescopic rod, The top end of the electric telescopic rod is fixedly connected with the bottom end of the locking plate. By installing a positioning frame on the inner wall of the bottom box, installing an electric telescopic rod on the top surface of the positioning frame, and installing a locking plate on the top of the electric telescopic rod, the electric telescopic rod is used to drive the locking plate to move upward to support the worktable and increase the processing time. stability and prevent the waste of production materials.
Description
Technical Field
The invention relates to the technical field of automobile seat production, in particular to novel automobile seat punching equipment.
Background
The so-called car seat is a seat to be seated when sitting on a car, and the car seat can be divided into a split seat and a bench seat according to the shape, can be divided into a fixed type, a detachable type and an adjustable type according to the function, can be divided into a single seat, a double seat and a multi-seat according to the number of passengers, and is developed from the earliest fixed type seat to a multifunctional power adjusting seat according to the service performance of the seat, and comprises an air cushion seat, an electric seat, a stereo seat, a spirit recovery seat, and the like until the electronic adjusting seat, and is divided into a genuine leather seat, a flannelette seat and the like according to the material, and also comprises seats of special using objects, such as a child seat, a racing seat and the like, wherein the driver and the passengers of the car seat provide convenient operation, comfortable and safe driving and sitting positions, and the car seat has the following conditions, the arrangement of the seats in the whole carriage, the seat is attractive on the premise of ensuring comfort, the seat is required to be safe and reliable, the seat has enough strength, rigidity and durability, the structure is compact, the mass is reduced as far as possible, and a reliable locking device is required for various adjusting mechanisms for meeting the comfort of drivers and passengers so as to ensure safety.
In the production process of the automobile seat, punching is needed, when punching is conducted manually, the precision is not high, the quality of the automobile seat is reduced, punching efficiency is low, stability during punching is poor, and waste of production materials is caused easily.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides novel automobile seat punching equipment, which solves the problems that when manual punching is carried out, the precision is low, the quality is reduced, the punching efficiency is low, the stability during punching is poor, and the waste of production materials is easily caused.
(II) technical scheme
In order to achieve the purpose, the invention is realized by the following technical scheme: a novel punching device for an automobile seat comprises a bottom box and a mounting plate, wherein the top surface of the bottom box is fixedly connected with the top surface of the mounting plate, the inner side of the mounting plate is provided with a groove body, the inner wall of the bottom box is fixedly connected with the two ends of a positioning plate, the top surface of the positioning plate is fixedly connected with the bottom end of a fixing groove, the inner side of the fixing groove is fixedly connected with the bottom end of an electric telescopic rod, the top end of the electric telescopic rod is fixedly connected with the bottom end of a locking plate, the top surface of the mounting plate is provided with slide rails, the two slide rails are symmetrically distributed on the mounting plate, the outer sides of the slide rails are slidably connected with the inner wall of a sliding frame, the top end of the sliding frame is fixedly connected with the bottom end of a support frame, the top, the top of backup pad and pneumatic telescopic link's bottom fixed connection together, pneumatic telescopic link's inboard is provided with the dead lever, the bottom of dead lever and the top surface fixed connection of fixed plate are in the same place, the bottom of fixed plate and the top surface fixed connection of processing board are in the same place, the bottom surface of processing board is provided with the processing nail, and a plurality of processing nails evenly distributed are in the bottom surface of processing board, the inboard of backup pad is provided with the rotation bearing frame, and the inboard of two rotation bearing frame is in the same place with the outside threaded connection of threaded rod, the one end of threaded rod and servo motor's extension axle fixed connection together, the other end of threaded rod and the inboard swivelling joint of rotatory ring together.
Preferably, the top surface of mounting panel is provided with the mount, and two mounts symmetric distribution are in the top surface of mounting panel, the top of mount and the outer wall fixed connection of rotatory ring are in the same place.
Preferably, the upper end of the inner wall of the bottom box is provided with a positioning frame, and the two positioning frames are symmetrically distributed on the inner wall of the bottom box.
Preferably, the top surface of locating rack is provided with the connecting rod, and two connecting rods evenly distributed are at the top surface of locating rack, the top of connecting rod and the bottom fixed connection of workstation are in the same place.
Preferably, the front of the bottom case is provided with a hinge, the two hinges are uniformly distributed on the front of the bottom case, the other end of the hinge is fixedly connected with the front of the case door, and the lower end of the front of the case door is provided with a handle.
Preferably, the middle of the side surface of the bottom box is provided with the heat dissipation window, and the two heat dissipation windows are symmetrically distributed on the outer side of the bottom box.
Preferably, the bottom surface of the bottom box is provided with a fixed cylinder, the four fixed cylinders are uniformly distributed on the bottom surface of the bottom box, and the inner side of each fixed cylinder is connected with the outer side of the rotating frame through threads.
Preferably, the position of the processing plate is parallel to that of the support frame and is perpendicular to that of the pneumatic telescopic rod.
The working principle is as follows: firstly, placing an automobile seat on a workbench, fixing and preparing for processing; secondly, the electric telescopic rod is started to drive the locking plate to be driven upwards, so that the workbench is supported, and the stability during processing is improved; then, a servo motor is started to drive the threaded rod to rotate, the threaded rod is matched with the rotary bearing frame to drive the support frame to move, and meanwhile, the sliding frame at the bottom end of the support frame is matched with the sliding rail to drive the support frame to move at the upper end of the mounting plate, so that the stability in processing is improved; finally, when the supporting frame moves, the pneumatic telescopic rod drives the fixing plate to move downwards, the machining nail is punched on the automobile seat in the workbench, and the pneumatic telescopic rod is driven by the servo motor to lift at the same speed, so that uniform punching is realized.
(III) advantageous effects
The invention provides novel automobile seat punching equipment. The method has the following beneficial effects:
1. this novel car seat drilling equipment, through the upper end installation slide rail at the mounting panel, the outside of slide rail is in the same place with the inboard sliding connection of carriage, and the top of carriage is in the same place with the bottom fixed connection of support frame, utilizes sliding connection nature between carriage and the slide rail to stability when increasing the support frame and removing improves the precision of punching.
2. This novel car seat drilling equipment installs servo motor through the top surface at the mounting panel, and servo motor's the one end fixed connection of extension axle and threaded rod is in the same place, and the outside of threaded rod is in the same place with swivel bearing frame's inboard threaded connection, and swivel bearing frame's the outside is in the same place with the inboard fixed connection of support frame, utilizes servo motor to drive the threaded rod and rotates, drives the support frame and carries out the uniform velocity migration, realizes the mode of punching of mechanical automation formula to increase the efficiency of punching.
3. This novel car seat drilling equipment, through the inner wall installation locating rack at the under casing, at the top surface installation electric telescopic handle of locating rack, at electric telescopic handle's top installation lockplate, utilize electric telescopic handle to drive the lockplate upward movement, support the workstation, increase the stability of adding man-hour, prevent to cause the waste of production material.
4. This novel car seat drilling equipment, the inboard through installing pneumatic telescopic link on the top of support frame is in the same place with the outside mechanical connection of dead lever, and the bottom of dead lever is in the same place with the top fixed connection of fixed plate, utilizes pneumatic telescopic link to drive the dead lever and carries out elevating movement, drives the fixed plate and carries out elevating movement to for processing the nail provides sufficient power, guarantee the precision of punching.
Drawings

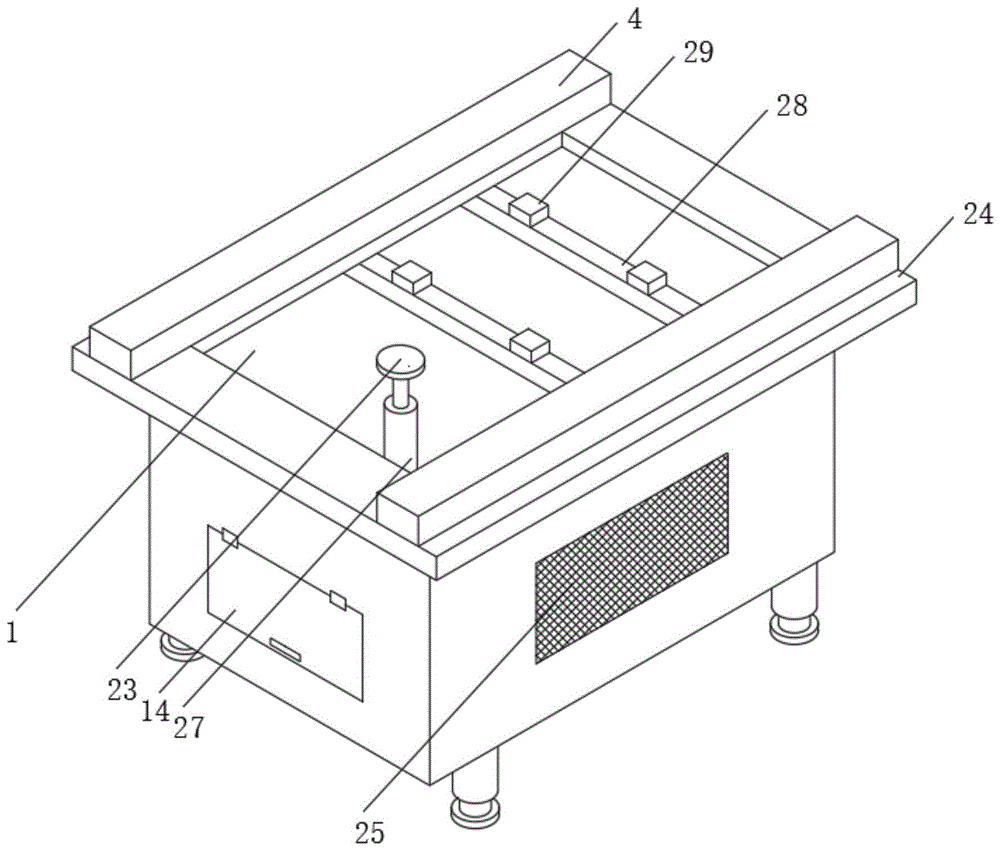

FIG. 1 is a partial perspective view of the present invention;
FIG. 2 is a front cross-sectional view of the present invention;
FIG. 3 is a side schematic view of the present invention;
FIG. 4 is a rear schematic view of the present invention;
fig. 5 is a schematic front view of the present invention.
Wherein, 1, a bottom box; 2. a fixed mount; 3. a rotating ring; 4. a slide rail; 5. a support frame; 6. a work table; 7. a support plate; 8. a pneumatic telescopic rod; 9. a fixing plate; 10. fixing the rod; 11. a carriage; 12. processing a plate; 13. processing a nail; 14. a box door; 15. a rotating frame; 16. a handle; 17. a hinge; 18. a fixed cylinder; 19. a threaded rod; 20. positioning a plate; 21. fixing grooves; 22. a rotating bearing frame; 23. a locking plate; 24. mounting a plate; 25. a heat dissipation window; 26. a servo motor; 27. an electric telescopic rod; 28. a positioning frame; 29. a connecting rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example (b):
as shown in fig. 1-5, the embodiment of the present invention provides a novel car seat punching apparatus, which includes a bottom case 1 and a mounting plate 24, wherein a top surface of the bottom case 1 is fixedly connected to a top surface of the mounting plate 24, an inner side of the mounting plate 24 is provided with a groove body, an inner wall of the bottom case 1 is fixedly connected to two ends of a positioning plate 20, a top surface of the positioning plate 20 is fixedly connected to a bottom end of a fixing groove 21, an inner side of the fixing groove 21 is fixedly connected to a bottom end of an electric telescopic rod 27, a top end of the electric telescopic rod 27 is fixedly connected to a bottom end of a locking plate 23, so as to support a working table 6 and increase stability during machining, the top surface of the mounting plate 24 is provided with two sliding rails 4, the two sliding rails 4 are symmetrically distributed on the mounting plate 24, an outer side of the sliding rail 4 is slidably, the stability of the support frame 5 during moving is improved, the top end of the sliding frame 11 is fixedly connected with the bottom end of the support frame 5, the top surface of the support frame 5 is provided with the support plates 7, the two support plates 7 are symmetrically distributed on the top surface of the support frame 5, the top ends of the support plates 7 are fixedly connected with the bottom end of the pneumatic telescopic rod 8, the inner side of the pneumatic telescopic rod 8 is provided with the fixed rod 10, the bottom end of the fixed rod 10 is fixedly connected with the top surface of the fixed plate 9, sufficient power is provided for processing, the processing quality is ensured, the bottom end of the fixed plate 9 is fixedly connected with the top surface of the processing plate 12, the bottom surface of the processing plate 12 is provided with the processing nails 13, the processing nails 13 are uniformly distributed on the bottom surface of the processing plate 12, the processing efficiency is improved by utilizing the mutual matching of the processing nails 13, the inner side of the support plate 7 is provided with, one end of the threaded rod 19 is fixedly connected with the extending shaft of the servo motor 26, and the other end of the threaded rod 19 is rotatably connected with the inner side of the rotating ring 3, so that sufficient power is provided for the movement of the support frame 5.
The top surface of the mounting plate 24 is provided with the fixing frames 2, the two fixing frames 2 are symmetrically distributed on the top surface of the mounting plate 24, the top ends of the fixing frames 2 are fixedly connected with the outer wall of the rotating ring 3 to increase the stability of the threaded rod 19 in operation, the upper end of the inner wall of the bottom box 1 is provided with the positioning frame 28, the two positioning frames 28 are symmetrically distributed on the inner wall of the bottom box 1, the top surface of the positioning frame 28 is provided with the connecting rod 29, the two connecting rods 29 are uniformly distributed on the top surface of the positioning frame 28, the top end of the connecting rod 29 is fixedly connected with the bottom end of the workbench 6 to facilitate the fixation of the workbench 6, the front surface of the bottom box 1 is provided with the hinges 17, the two hinges 17 are uniformly distributed on the front surface of the bottom box 1, the other ends of the hinges 17 are fixedly connected with the front surface of the, be provided with heat dissipation window 25 in the middle of the side of under casing 1, and two heat dissipation window 25 symmetric distribution are in the outside of under casing 1, be convenient for carry out the inside heat dissipation of under casing 1, the bottom surface of under casing 1 is provided with solid fixed cylinder 18, and four solid fixed cylinder 18 evenly distributed are in the bottom surface of under casing 1, the inboard of solid fixed cylinder 18 is in the same place with the outside threaded connection of swivel mount 15, be convenient for adjust under casing 1, comfort level when increasing the operation, the position of processing board 12 just is parallel to each other with the position of support frame 5, and with pneumatic telescopic rod 8's position mutually perpendicular, increase overall structure's stability.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a novel car seat drilling equipment, includes under casing (1) and mounting panel (24), its characterized in that: the top surface of under casing (1) is in the same place with the top surface fixed connection of mounting panel (24), the inboard of mounting panel (24) is provided with the cell body, the inner wall of under casing (1) is in the same place with the both ends fixed connection of locating plate (20), the top surface of locating plate (20) is in the same place with the bottom fixed connection of fixed slot (21), the inboard of fixed slot (21) is in the same place with the bottom fixed connection of electric telescopic handle (27), the top of electric telescopic handle (27) is in the same place with the bottom fixed connection of lockplate (23), the top surface of mounting panel (24) is provided with slide rail (4), and two slide rail (4) symmetric distribution are on mounting panel (24), the outside of slide rail (4) is in the same place with the inner wall sliding connection of carriage (11), the top of carriage (11) is in the same place with the bottom fixed connection of support frame, the top surface of the support frame (5) is provided with support plates (7), the two support plates (7) are symmetrically distributed on the top surface of the support frame (5), the top ends of the support plates (7) are fixedly connected with the bottom end of a pneumatic telescopic rod (8), a fixing rod (10) is arranged on the inner side of the pneumatic telescopic rod (8), the bottom end of the fixing rod (10) is fixedly connected with the top surface of a fixing plate (9), the bottom end of the fixing plate (9) is fixedly connected with the top surface of a processing plate (12), the bottom surface of the processing plate (12) is provided with processing nails (13), a plurality of processing nails (13) are uniformly distributed on the bottom surface of the processing plate (12), the inner sides of the support plates (7) are provided with rotary bearing frames (22), and the inner sides of the two rotary bearing frames (22) are in threaded connection with the outer side of a threaded rod (19, one end of the threaded rod (19) is fixedly connected with an extension shaft of the servo motor (26), and the other end of the threaded rod (19) is rotatably connected with the inner side of the rotating ring (3).
2. The novel automobile seat punching device as claimed in claim 1, wherein: the top surface of mounting panel (24) is provided with mount (2), and two mount (2) symmetric distribution are in the top surface of mounting panel (24), the top of mount (2) and the outer wall fixed connection of rotatory ring (3) are in the same place.
3. The novel automobile seat punching device as claimed in claim 1, wherein: the upper end of the inner wall of the bottom box (1) is provided with a positioning frame (28), and the two positioning frames (28) are symmetrically distributed on the inner wall of the bottom box (1).
4. The novel automobile seat punching device as claimed in claim 3, wherein: the top surface of locating rack (28) is provided with connecting rod (29), and two connecting rod (29) evenly distributed are at the top surface of locating rack (28), the top of connecting rod (29) is in the same place with the bottom fixed connection of workstation (6).
5. The novel automobile seat punching device as claimed in claim 1, wherein: the front of the bottom box (1) is provided with hinges (17), the two hinges (17) are uniformly distributed on the front of the bottom box (1), the other ends of the hinges (17) are fixedly connected with the front of the box door (14), and a handle (16) is arranged at the lower end of the front of the box door (14).
6. The novel automobile seat punching device as claimed in claim 1, wherein: the radiator window (25) is arranged in the middle of the side face of the bottom box (1), and the two radiator windows (25) are symmetrically distributed on the outer side of the bottom box (1).
7. The novel automobile seat punching device as claimed in claim 1, wherein: the bottom surface of the bottom box (1) is provided with fixed cylinders (18), the four fixed cylinders (18) are uniformly distributed on the bottom surface of the bottom box (1), and the inner sides of the fixed cylinders (18) are connected with the outer side of the rotating frame (15) through threads.
8. The novel automobile seat punching device as claimed in claim 1, wherein: the position of the processing plate (12) is parallel to that of the support frame (5) and is vertical to that of the pneumatic telescopic rod (8).
