CN112774279A - Sewage treatment device with anti-blocking function - Google Patents
Sewage treatment device with anti-blocking function Download PDFInfo
- Publication number
- CN112774279A CN112774279A CN202110165052.4A CN202110165052A CN112774279A CN 112774279 A CN112774279 A CN 112774279A CN 202110165052 A CN202110165052 A CN 202110165052A CN 112774279 A CN112774279 A CN 112774279A
- Authority
- CN
- China
- Prior art keywords
- sewage treatment
- fixedly connected
- block
- rod
- blocking function
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Withdrawn
Links
- 239000010865 sewage Substances 0.000 title claims abstract description 140
- 239000012535 impurity Substances 0.000 claims abstract description 50
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims description 25
- 238000009434 installation Methods 0.000 claims description 15
- 230000000149 penetrating effect Effects 0.000 claims description 3
- 238000000034 method Methods 0.000 abstract description 4
- 238000001914 filtration Methods 0.000 description 5
- 230000008878 coupling Effects 0.000 description 4
- 238000010168 coupling process Methods 0.000 description 4
- 238000005859 coupling reaction Methods 0.000 description 4
- 230000005489 elastic deformation Effects 0.000 description 3
- 230000009286 beneficial effect Effects 0.000 description 2
- 238000012986 modification Methods 0.000 description 2
- 230000004048 modification Effects 0.000 description 2
- 239000013049 sediment Substances 0.000 description 2
- 238000004140 cleaning Methods 0.000 description 1
- 239000000178 monomer Substances 0.000 description 1
- 238000007789 sealing Methods 0.000 description 1
- 238000003466 welding Methods 0.000 description 1
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D29/00—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor
- B01D29/01—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor with flat filtering elements
- B01D29/03—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor with flat filtering elements self-supporting
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D29/00—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor
- B01D29/76—Handling the filter cake in the filter for purposes other than for regenerating
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D29/00—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor
- B01D29/88—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor having feed or discharge devices
- B01D29/94—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor having feed or discharge devices for discharging the filter cake, e.g. chutes
Landscapes
- Chemical & Material Sciences (AREA)
- Chemical Kinetics & Catalysis (AREA)
- Filtration Of Liquid (AREA)
Abstract
The invention discloses a sewage treatment device with an anti-blocking function, which comprises a sewage treatment box, a sewage treatment pool and a filter plate, wherein a driving motor is installed at the left lower end of the sewage treatment box, a connecting device is arranged at the right end of an eccentric wheel, a connecting gear is arranged at the front end of a fixed rod, a fixed block is fixedly connected to the upper end of the fixed shaft, electric telescopic rods are installed at the left end and the right end of the sewage treatment box, and the sewage treatment pool is fixedly connected to one end, close to a vertical central axis of the sewage treatment box, of the connecting block. This sewage treatment plant with prevent stifled function is convenient for carry out the disturbance to rivers at the in-process to sewage treatment, smashes great impurity filth in rivers simultaneously, avoids impurity too big to cause the jam to the device, makes things convenient for rivers can be quick more through the filter, improves sewage treatment efficiency to the convenient impurity of clearing up the aquatic is cleared up, and it is very convenient to use.
Description
Technical Field
The invention relates to the field of sewage treatment, in particular to a sewage treatment device with an anti-blocking function.
Background
At present, water resources are seriously in short supply in China, and in order to reduce the consumption of water resources and recycle the water resources, some sewage needs to be treated so as to be continuously used, so that the sewage treatment has very important significance and is beneficial to the sustainable development of the society;
when sewage treatment is performed, a sewage treatment device is needed, but the sewage treatment device used in the background of the prior art still has certain disadvantages, such as:
1. the existing sewage treatment device is inconvenient to clean the filtered dirt and impurities when filtering sewage;
2. the existing sewage treatment device is inconvenient to break larger impurities in water flow, so that the device is easy to be blocked due to overlarge impurities;
3. current sewage treatment plant, rivers pass through the speed of filter slow, lead to rivers filterable efficiency not high.
Therefore, we have proposed a sewage treatment apparatus having an anti-clogging function so as to solve the above-mentioned problems.
Disclosure of Invention
The invention aims to provide a sewage treatment device with an anti-blocking function, and aims to solve the problems that a general sewage treatment device provided by the background art is inconvenient to clean filtered dirt and impurities, is inconvenient to smash larger impurities in water flow, causes overlarge impurities to easily block the device, and causes low water flow filtering efficiency due to low speed of water flow passing through a filter plate.
In order to achieve the purpose, the invention provides the following technical scheme: a sewage treatment device with an anti-blocking function comprises a sewage treatment box, a sewage treatment pool and a filter plate, wherein a driving motor is installed at the left lower end of the sewage treatment box, an eccentric wheel is fixedly connected to the output end of the driving motor, a connecting device is arranged at the right end of the eccentric wheel, a fixed rod is fixedly connected to the right end of the connecting device, a connecting gear is arranged at the front end of the fixed rod, a fixed shaft is fixedly connected to the upper end of the connecting gear, a fixed block is fixedly connected to the upper end of the fixed shaft, a fixed groove is formed in the middle of the fixed block, electric telescopic rods are installed at the left end and the right end of the sewage treatment box, a connecting block is fixedly connected to the output end of each electric telescopic rod, one end of the connecting block, close to the vertical central, the lower end of the connecting disc is fixedly connected with a mounting block, the upper end of the mounting block is fixedly connected with a blade bar, the upper end of the blade rod is fixedly connected with a fixed plate, the upper end of the sewage treatment tank is internally provided with an installation frame, the left end and the right end of the mounting frame are both provided with a limiting block, the middle part of the mounting frame is fixedly connected with a filter plate, and the lower end of the filter plate is provided with a sewage draining exit, the lower end of the sewage draining exit is provided with an impurity containing barrel, the lower end of the impurity containing barrel is fixedly connected with a convex block, the front end and the rear end below the sewage treatment tank are hinged with baffle plates, and the upper end of the baffle is provided with a limit groove, the insides of the front end and the rear end of the sewage treatment tank are rotatably connected with limit rods, and the junction of gag lever post and sewage treatment pond is provided with torsion spring, the right lower extreme fixedly connected with drain pipe of sewage treatment case, and the right-hand member of drain pipe and the end fixed connection that intakes of water pump.
Preferably, connecting device includes spliced pole, coupling spring, connecting rod and connecting plate, and the surface cover of spliced pole is equipped with coupling spring, and the middle part sliding connection of spliced pole has the connecting rod, the left end fixedly connected with connecting plate of connecting rod, the lower extreme fixed connection of spliced pole and sewage treatment case.
Preferably, the connecting column is of a T-shaped structure, and the connecting column and the connecting rod are connected in a penetrating manner.
Preferably, the connecting plate is connected with the lower end of the sewage treatment box in a sliding mode, and the left end of the connecting plate is attached to the eccentric wheel.
Preferably, the fixed rod forms a left-right sliding structure on the sewage treatment tank, and the fixed rod is connected with the connecting gear in a meshing manner.
Preferably, the sewage treatment tank forms a lifting structure in the sewage treatment box, and the lower end of the sewage treatment tank is of a honeycomb structure.
Preferably, the mounting block is in a cross-shaped structure, and the mounting block is connected with the fixing block in a clamping manner.
Preferably, the single bodies of the limiting block are symmetrically arranged about the vertical central axis of the mounting frame, and the limiting block is rotatably connected with the mounting frame.
Preferably, the impurity storage barrel constitutes on the filter and dismantles the structure, and the filter is "loudspeaker" type structure.
Preferably, the connection mode of the convex block and the fixed plate is clamping connection, and the vertical middle axis of the convex block coincides with the vertical middle axis of the fixed plate.
Compared with the prior art, the invention has the beneficial effects that: the sewage treatment device with the anti-blocking function is convenient for disturbing water flow and breaking larger impurity dirt in the water flow in the sewage treatment process, so that the device is prevented from being blocked by the overlarge impurities, the water flow can more quickly pass through the filter plate, the sewage treatment efficiency is improved, the impurities cleaned in the water can be conveniently cleaned, and the sewage treatment device is very convenient to use;
1. the device is provided with a connecting device, a fixed block and an installation block, wherein an eccentric wheel is driven to rotate by a driving motor, the eccentric wheel pushes a connecting plate to drive a connecting rod to slide on a connecting column, the connecting rod pushes a fixed rod to slide on a sewage treatment box, the fixed rod is meshed with a connecting gear to drive the connecting gear to rotate, and the fixed block is clamped and connected with the installation block, so that the installation block is driven to rotate by the connecting gear, a blade rod is conveniently driven to rotate in a sewage treatment tank to disturb water flow, and meanwhile, larger impurities in the water are crushed, and the device is prevented from being blocked;
2. the mounting frame and the filter plate are arranged, the fixing plate is driven to rotate through the blade rod, so that the fixing plate drives the lug to rotate, the lug drives the mounting frame to rotate on the limiting block through the impurity containing barrel, the filter plate is conveniently driven to rotate inside the sewage treatment pool, sewage can more quickly pass through the filter plate in the sewage treatment process, and the sewage treatment efficiency is improved;
3. be equipped with impurity containing barrel, filter the back at the filter to sewage, the filter is loudspeaker column structure, the impurity of crossing filters enters into impurity containing barrel through the drain, be convenient for collect impurity, impurity when in impurity containing barrel is collected too much, close the power, the stopper that upwards slides drives filter and impurity containing barrel from the inside roll-off in sewage treatment pond, dismantle impurity containing barrel again, be convenient for clear up the impurity of filtering off, it is very convenient to use.
Drawings
FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic view of a connecting device according to the present invention;
FIG. 3 is a front view of the connection between the connecting rod and the connecting column;
FIG. 4 is a schematic top view of the connection between the fixing rod and the connecting gear according to the present invention;
FIG. 5 is an enlarged view of the structure at A in FIG. 1 according to the present invention;
FIG. 6 is a schematic view of a top view of the connection between the sewage treatment tank and the limiting block according to the present invention;

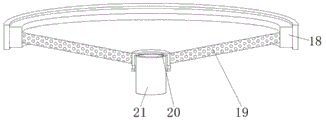

FIG. 7 is a front sectional view of the connection between the filter plate and the impurity barrel according to the present invention;
FIG. 8 is a schematic side view of the baffle plate of the present invention connected to a sewage treatment tank;
FIG. 9 is a schematic view of a connection structure of a baffle plate and a limiting groove according to the present invention;
fig. 10 is a schematic view of a three-dimensional structure of the connection between the fixing block and the mounting block of the present invention.
In the figure: 1. a sewage treatment tank; 2. a drive motor; 3. an eccentric wheel; 4. a connecting device; 401. connecting columns; 402. a connecting spring; 403. a connecting rod; 404. a connecting plate; 5. fixing the rod; 6. a connecting gear; 7. a fixed shaft; 8. a fixed block; 9. fixing grooves; 10. an electric telescopic rod; 11. connecting blocks; 12. a sewage treatment tank; 13. a connecting disc; 14. mounting blocks; 15. a blade bar; 16. a fixing plate; 17. installing a frame; 18. a limiting block; 19. a filter plate; 20. a sewage draining outlet; 21. an impurity storage barrel; 22. a bump; 23. a baffle plate; 24. a limiting groove; 25. a limiting rod; 26. a torsion spring; 27. a drain pipe; 28. and (4) a water pump.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-10, the present invention provides a technical solution: a sewage treatment device with an anti-blocking function comprises a sewage treatment box 1, a driving motor 2, an eccentric wheel 3, a connecting device 4, a fixed rod 5, a connecting gear 6, a fixed shaft 7, a fixed block 8, a fixed groove 9, an electric telescopic rod 10, a connecting block 11, a sewage treatment pool 12, a connecting disc 13, a mounting block 14, a blade rod 15, a fixed plate 16, a mounting frame 17, a limiting block 18, a filter plate 19, a sewage draining port 20, an impurity containing barrel 21, a convex block 22, a baffle plate 23, a limiting groove 24, a limiting rod 25, a torsion spring 26, a draining pipe 27 and a water pump 28, wherein the driving motor 2 is mounted at the left lower end of the sewage treatment box 1, the eccentric wheel 3 is fixedly connected with the output end of the driving motor 2, the connecting device 4 is arranged at the right end of the eccentric wheel 3, the fixed rod 5 is fixedly connected with, a fixed shaft 7 is fixedly connected to the upper end of the connecting gear 6, a fixed block 8 is fixedly connected to the upper end of the fixed shaft 7, a fixed groove 9 is formed in the middle of the fixed block 8, electric telescopic rods 10 are respectively installed at the left end and the right end of the sewage treatment box 1, a connecting block 11 is fixedly connected to the output end of the electric telescopic rod 10, a sewage treatment pool 12 is fixedly connected to one end, close to the vertical central axis of the sewage treatment box 1, of the connecting block 11, a connecting disc 13 is rotatably connected to the middle of the lower end of the sewage treatment pool 12, an installation block 14 is fixedly connected to the lower end of the connecting disc 13, a blade rod 15 is fixedly connected to the upper end of the installation block 14, a fixed plate 16 is fixedly connected to the upper end of the blade rod 15, an installation frame 17 is arranged inside the, and drain 20 has been seted up to filter 19's lower extreme, drain 20's lower extreme is provided with impurity containing barrel 21, and impurity containing barrel 21's lower extreme fixedly connected with lug 22, the equal hinged joint in both ends has baffle 23 around sewage treatment tank 12 below, and baffle 23's upper end has seted up spacing groove 24, the inside at both ends all rotates around sewage treatment tank 12 and is connected with gag lever post 25, and the junction of gag lever post 25 and sewage treatment tank 12 is provided with torsion spring 26, the right lower extreme fixedly connected with drain pipe 27 of sewage treatment box 1, and the right-hand member of drain pipe 27 and the inlet end fixed connection of water pump 28.
As shown in fig. 2 and 3, the connecting column 401 is of a T-shaped structure, the connecting column 401 and the connecting rod 403 are connected in a penetrating manner, and the eccentric wheel 3 extrudes the connecting plate 404, so that the connecting rod 403 is driven to slide on the connecting column 401, and the fixing rod 5 is driven to slide on the sewage treatment tank 1.
As in FIG. 1, the connecting plate 404 is slidably connected with the lower end of the sewage treatment tank 1, the left end of the connecting plate 404 is attached to the eccentric wheel 3, the connecting plate 404 extrudes the connecting rod 403 through the eccentric wheel 3, and the connecting rod 403 is pushed to slide on the connecting column 401.
As shown in the figures 1 and 4, the fixing rod 5 forms a left-right sliding structure on the sewage treatment tank 1, and the fixing rod 5 is connected with the connecting gear 6 in a meshing manner, so that the fixing rod 5 drives the connecting gear 6 to rotate back and forth.
As shown in fig. 1, the sewage treatment tank 12 forms a lifting structure inside the sewage treatment box 1, and the lower end of the sewage treatment tank 12 is a honeycomb structure, so that the sediment at the bottom end of the sewage treatment tank 12 can be conveniently cleaned.
As in figure 10 installation piece 14 is "ten" style of calligraphy structure, and the connected mode of installation piece 14 and fixed block 8 is connected for the block, is convenient for make installation piece 14 drive blade pole 15 rotate through fixed block 8, disturbs the rivers, smashes the impurity of aquatic.
Like in fig. 1 and fig. 6 the monomer of stopper 18 be the symmetry setting about the perpendicular axis of installing frame 17, and stopper 18 is connected for rotating with the connected mode of installing frame 17, and the stopper 18 that slides of being convenient for drives filter 19 and from the upper end roll-off of sewage treatment pond 12, clears up filter 19, avoids filter 19 to take place to block up.
Like in fig. 1 and fig. 7 impurity containing barrel 21 constitutes the dismantlement structure on filter 19, and filter 19 is "loudspeaker" type structure, is convenient for clear up the impurity filth of filtering off.
Like the connected mode of lug 22 and fixed plate 16 in fig. 5 be the block connection, and the axis coincides mutually with the perpendicular axis of fixed plate 16 in the perpendicular of lug 22, is convenient for through the block of fixed plate 16 with lug 22 to drive filter 19 and rotate in the inside of sewage treatment pond 12, make rivers more quick pass through filter 19, improved filtration efficiency.
The working principle is as follows: when the sewage treatment device with the anti-blocking function is used, firstly, the connecting block 11 drives the sewage treatment tank 12 to descend through the electric telescopic rod 10, the sewage treatment tank 12 drives the connecting disc 13 and the mounting block 14 to fall, the mounting block 14 is clamped into the fixing groove 9, then sewage is discharged into the sewage treatment tank 12 from the upper end of the sewage treatment tank 12, the driving motor 2 is started, the eccentric wheel 3 is driven to rotate through the driving motor 2, the eccentric wheel 3 is attached to the connecting plate 404, the eccentric wheel 3 pushes the connecting plate 404 to drive the connecting rod 403 to slide on the connecting column 401, the connecting spring 402 is extruded, the connecting spring 402 is elastically deformed, the connecting rod 403 pushes the fixing rod 5 to slide on the sewage treatment box 1, the fixing rod 5 is meshed with the connecting gear 6 to drive the connecting gear 6 to rotate, the connecting gear 6 drives the fixing block 8 to rotate at the lower end of the sewage treatment box 1 through the fixing shaft 7, the fixing block 8 is connected with the mounting block 14 in a clamping manner, so that the blade bar 15 is driven to rotate through the mounting block 14, the blade bar 15 rotates in the sewage treatment tank 12 in a reciprocating manner, water flow is disturbed, large impurities in the water flow are crushed, and the device is prevented from being blocked;
and the fixed plate 16 is connected with the lug 22 in a clamping manner, the fixed plate 16 drives the fixed plate 16 to rotate, so that the lug 22 drives the impurity containing barrel 21 to rotate, the impurity containing barrel 21 is fixedly connected with the lower end of the filter plate 19, so that the filter plate 19 and the mounting frame 17 rotate on the limiting block 18 in a reciprocating manner, the filter plate 19 rotates inside the sewage treatment tank 12, so that sewage can more quickly pass through the filter plate 19 in the sewage treatment process, the sewage treatment efficiency is improved, after the sewage is filtered by the filter plate 19, the filter plate 19 is of a horn-shaped structure, filtered impurities enter the impurity containing barrel 21 through the sewage discharge outlet 20, the impurities can be conveniently collected, when the impurities in the impurity containing barrel 21 are excessively collected, the power supply is turned off, the limiting block 18 slides upwards to drive the filter plate 19 and the impurity containing barrel 21 to slide out of the inside the sewage treatment tank 12, then the impurity containing barrel 21 is disassembled, so that the filtered impurities can be conveniently cleaned;
after the blade rod 15 breaks up the impurity in the water flow, the power supply is turned off, so that the water is kept standing and precipitated in the sewage treatment tank 12, when the dirt and the impurities are completely precipitated, the connecting block 11 drives the sewage treatment tank 12 to ascend through the electric telescopic rod 10, after the sewage treatment tank 12 ascends to a certain height, the torsion spring 26 generates elastic deformation by rotating the limiting rod 25, the limiting rod 25 is separated from the limiting groove 24, then the baffle 23 with the sealing strip is turned over, the sediment at the bottom end of the sewage treatment tank 12 is cleaned, the water is secondarily treated, after the cleaning is finished, the baffle 23 is turned over and the limiting rod 25 is rotated, so that the torsion spring 26 generates elastic deformation, the limiting rod 25 is clamped into the limiting groove 24, then the limiting rod 25 is loosened, the torsion spring 26 recovers the elastic deformation to limit the baffle 23, and then the electric telescopic rod 10 drives the sewage treatment tank 12 to descend to the lower end of the sewage treatment tank 1 through the connecting block, the water treated in the sewage treatment tank 1 is discharged by the water pump 28, which is the whole operation of the sewage treatment apparatus having the anti-blocking function, and the contents not described in detail in this specification belong to the prior art known to those skilled in the art.
The standard parts used in the invention can be purchased from the market, the special-shaped parts can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts conventional means such as bolts, rivets, welding and the like mature in the prior art, the machines, the parts and equipment adopt conventional models in the prior art, and the circuit connection adopts the conventional connection mode in the prior art, so that the detailed description is omitted.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that various changes in the embodiments and/or modifications of the invention can be made, and equivalents and modifications of some features of the invention can be made without departing from the spirit and scope of the invention.
Claims (10)
1. The utility model provides a sewage treatment plant with prevent stifled function, includes sewage treatment case (1), sewage treatment pond (12) and filter (19), its characterized in that: the sewage treatment device is characterized in that a driving motor (2) is installed at the lower left end of the sewage treatment box (1), an eccentric wheel (3) is fixedly connected with the output end of the driving motor (2), a connecting device (4) is arranged at the right end of the eccentric wheel (3), a fixing rod (5) is fixedly connected with the right end of the connecting device (4), a connecting gear (6) is arranged at the front end of the fixing rod (5), a fixing shaft (7) is fixedly connected with the upper end of the connecting gear (6), a fixing block (8) is fixedly connected with the upper end of the fixing shaft (7), a fixing groove (9) is formed in the middle of the fixing block (8), electric telescopic rods (10) are installed at the left end and the right end of the sewage treatment box (1), a connecting block (11) is fixedly connected with a sewage treatment pool (12) close to the vertical central axis of the sewage treatment, and the middle part of the lower end of the sewage treatment tank (12) is rotatably connected with a connecting disc (13), the lower end of the connecting disc (13) is fixedly connected with an installation block (14), the upper end of the installation block (14) is fixedly connected with a blade rod (15), the upper end of the blade rod (15) is fixedly connected with a fixing plate (16), the upper end of the sewage treatment tank (12) is internally provided with an installation frame (17), the left end and the right end of the installation frame (17) are respectively provided with a limit block (18), the middle part of the installation frame (17) is fixedly connected with a filter plate (19), the lower end of the filter plate (19) is provided with a sewage outlet (20), the lower end of the sewage outlet (20) is provided with an impurity containing barrel (21), the lower end of the impurity containing barrel (21) is fixedly connected with a convex block (22), the front, and spacing groove (24) have been seted up to the upper end of baffle (23), the inside at both ends all rotates around sewage treatment pond (12) and is connected with gag lever post (25), and gag lever post (25) and sewage treatment pond (12) junction is provided with torsion spring (26), the right lower extreme fixedly connected with drain pipe (27) of sewage treatment case (1), and the right-hand member of drain pipe (27) and the end fixed connection that intakes of water pump (28).
2. The sewage treatment device with the anti-blocking function according to claim 1, characterized in that: connecting device (4) are including spliced pole (401), connecting spring (402), connecting rod (403) and connecting plate (404), and the surface cover of spliced pole (401) is equipped with connecting spring (402), and the middle part sliding connection of spliced pole (401) has connecting rod (403), and the left end fixedly connected with connecting plate (404) of connecting rod (403), lower extreme fixed connection of spliced pole (401) and sewage treatment case (1).
3. The sewage treatment device with the anti-blocking function according to claim 2, characterized in that: the connecting column (401) is of a T-shaped structure, and the connecting column (401) is connected with the connecting rod (403) in a penetrating mode.
4. The sewage treatment device with the anti-blocking function according to claim 2, characterized in that: the connecting plate (404) is in sliding connection with the lower end of the sewage treatment box (1), and the left end of the connecting plate (404) is attached to the eccentric wheel (3).
5. The sewage treatment device with the anti-blocking function according to claim 1, characterized in that: the fixed rod (5) forms a left-right sliding structure on the sewage treatment tank (1), and the fixed rod (5) is connected with the connecting gear (6) in a meshing manner.
6. The sewage treatment device with the anti-blocking function according to claim 1, characterized in that: the sewage treatment tank (12) is of a lifting structure in the sewage treatment box (1), and the lower end of the sewage treatment tank (12) is of a honeycomb structure.
7. The sewage treatment device with the anti-blocking function according to claim 1, characterized in that: the mounting block (14) is of a cross-shaped structure, and the mounting block (14) is connected with the fixed block (8) in a clamping manner.
8. The sewage treatment device with the anti-blocking function according to claim 1, characterized in that: the single body of the limiting block (18) is symmetrically arranged about the vertical middle axis of the mounting frame (17), and the limiting block (18) is rotatably connected with the mounting frame (17).
9. The sewage treatment device with the anti-blocking function according to claim 1, characterized in that: impurity containing bucket (21) constitute on filter (19) and dismantle the structure, and filter (19) are "loudspeaker" type structure.
10. The sewage treatment device with the anti-blocking function according to claim 1, characterized in that: the lug (22) is connected with the fixing plate (16) in a clamping manner, and the vertical central axis of the lug (22) coincides with the vertical central axis of the fixing plate (16).
