CN112720642A

CN112720642A - Dicing device of steamed sponge cake for food processing

Info

Publication number: CN112720642A
Application number: CN202011498686.3A
Authority: CN
Inventors: 李林秀
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-12-18
Filing date: 2020-12-18
Publication date: 2021-04-30

Abstract

The invention relates to a cutting device, in particular to a cutting device of steamed sponge cake for food processing. Mainly provide one kind and rely on the machine to the accurate cutting of steamed sponge cake, carry out automatic partial shipment in proper order afterwards, reduce the handling capacity, the stripping and slicing device of steamed sponge cake for food processing of raising the efficiency. A cake cutting device for food processing comprises: one side of the top of the base is connected with a discharging frame; the feeding mechanism is arranged on one side of the top of the base; the cutting mechanism is arranged on the middle side of the top of the base. The steamed sponge cakes are conveyed and processed in a matching way by arranging the feeding mechanism; through setting up cutting mechanism, drive slitting cutter and slabbing cutter and rotate and remove, carry out earlier slitting back slabbing to the steamed sponge cake.

Description

Dicing device of steamed sponge cake for food processing

Technical Field

The invention relates to a cutting device, in particular to a cutting device of steamed sponge cake for food processing.

Background

The steamed sponge cake is made up by using glutinous rice as main raw material, and its taste is fragrant, and its hole is fine, and is like a needle, and its taste is sweet but not greasy, and glutinous but not sticky, so that it is specially suitable for old people and children, and its preparation method is more exquisite.

After the steamed sponge cake is made by steamed sponge cake manufacturers, workers can cut the steamed sponge cake into small pieces by using a cutting line and then separately package the steamed sponge cake, the method depends on manual cutting, the cutting is not accurate, the selling phase of the steamed sponge cake is influenced, the subsequent sequential separate packaging operation amount is large, and the efficiency is not high.

Disclosure of Invention

In order to overcome the defects that manual cutting is not accurate, the selling phase of the steamed sponge cake is influenced, the subsequent sequential separated packaging operation amount is large, and the efficiency is not high, the technical problem to be solved is as follows: provided is a cake cutting device for food processing, which can accurately cut steamed sponge cakes by a machine and then automatically and sequentially subpackage the steamed sponge cakes, reduce the operation amount and improve the efficiency.

The technical scheme of the invention is as follows: a cake cutting device for food processing comprises:

the discharging frame is connected to one side of the top of the base;

the feeding mechanism is arranged on one side of the top of the base;

the cutting mechanism is arranged on the middle side of the top of the base.

Further, feed mechanism includes:

the mounting seat is arranged on one side of the top of the base, and the air cylinder is arranged at the upper part of the mounting seat;

the telescopic rod of the air cylinder is connected with a telescopic push rod, and the telescopic push rod is connected with the discharging frame in a sliding manner;

the two sides of the telescopic push rod are both connected with first racks;

the guide frames are symmetrically arranged at the top of the base, and the first rack is connected with the guide frames on the same side in a sliding manner;

the first gear set is symmetrically arranged on two sides of the top of the base and meshed with the first rack on the same side;

the inner walls of the gears on one side of the first gear set are connected with the one-way clutches;

and a first belt pulley assembly is connected between the middle side of the top of the base and the first gear set.

Further, the cutting mechanism includes:

the middle side of the top of the base is provided with a supporting seat, and the top of the supporting seat is provided with a servo motor;

the top of the base is provided with a plurality of groups of supporting frames;

the cutting tool is rotatably connected to the support frame on one side, and a second belt pulley assembly is connected between a rotating shaft of the cutting tool and an output shaft of the servo motor;

the third belt pulley assembly is rotatably connected between the 2 groups of supporting frames;

2 second gear sets are connected between a transmission shaft at one side of the third belt pulley set and a rotating shaft of the slitting cutter;

the two sides of the rotating shaft of the slitting cutter are both connected with the first cam;

the first cam is rotatably connected with the movable connecting rods, and a cutting tool is connected between the inner sides of the movable connecting rods;

the top of the base is symmetrically provided with a supporting plate which is connected with the dicing cutter in a sliding way;

the top of the base is connected with a limiting frame.

Further, still including clamping mechanism, clamping mechanism includes:

the top of the base is symmetrically provided with the movable slotted plates;

the inner sides of the upper parts of the movable groove plates are symmetrically connected with the reset springs, second wedge-shaped blocks are connected between the inner sides of the reset springs, and the second wedge-shaped blocks are connected with the movable groove plates on the same side in a sliding manner;

first wedge, telescopic push rod one side all is connected with 2 first wedges, and first wedge all cooperates with homonymy second wedge.

Further, still including flattening the mechanism, flattening the mechanism including:

the supporting bracket is connected with the middle side of the top of the base;

the upper part of the support bracket is connected with a flattening wheel in a sliding way, and 2 limiting springs are connected between the flattening wheel and the support bracket;

the cam rotating shaft is rotatably connected to one side of the top of the base, and fourth belt pulley assemblies are connected between two sides of the cam rotating shaft and the rotating shaft on one side of the third belt pulley assembly;

the second cam is arranged on the cam rotating shaft and matched with the flattening wheel;

and the two sides of the inner wall of the support bracket are both connected with limiting plates.

Further, still including quantitative discharge mechanism, quantitative discharge mechanism including:

the bearing frames are symmetrically arranged at the lower part of the base;

the upper part of the bearing frame is rotatably connected with a sheave rotating shaft, and two sides of the sheave rotating shaft are connected with transmission gears;

the sheave rotating shaft is connected with a rotating wheel;

the upper part of the directional discharging groove plate is connected with a limit groove plate;

and 2 sector gears are connected to a rotating shaft at one side of the third belt pulley assembly and meshed with the transmission gear at the same side.

Further, still including automatic ration storage mechanism and storage frame, automatic ration storage mechanism is including:

the lower part of the base is provided with a movable guide plate;

the material storage frame is arranged on the movable guide plate in a sliding mode, and a plurality of special-shaped supports are connected to two sides of the material storage frame;

and second racks are connected between the upper parts of the transverse homolateral special-shaped supports and meshed with the transmission gear.

Furthermore, the flattening wheel is made of an anti-sticking material.

The beneficial effects are that: the steamed sponge cakes are conveyed and processed in a matching way by arranging the feeding mechanism; the cutting mechanism is arranged to drive the strip cutting tool and the block cutting tool to rotate and move, and the steamed sponge cake is firstly cut into strips and then cut into blocks; by arranging the clamping mechanism and the flattening mechanism, when the steamed sponge cake is subjected to slitting and slicing, the steamed sponge cake is clamped, the steamed sponge cake is prevented from being driven in the cutting process to influence the cutting effect, and then the steamed sponge cake after being cut is flattened in a small amplitude to finish the appearance of the steamed sponge cake; through quantitative discharge mechanism and automatic quantitative storage mechanism, collect the steamed sponge cake that the cutting has finished in proper order automatically, prevent that the steamed sponge cake from concentrating to collect adhesion each other, influence the sales volume.

Drawings

Fig. 1 is a schematic perspective view of the present invention.

Fig. 2 is a schematic perspective view of the feeding mechanism and the clamping mechanism of the present invention.

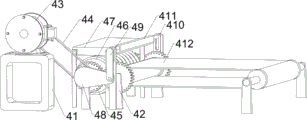

Fig. 3 is a schematic perspective view of the cutting mechanism of the present invention.

Fig. 4 is a schematic perspective view of the flattening mechanism of the present invention.

Fig. 5 is a schematic perspective view of the quantitative discharging mechanism and the automatic quantitative material storing mechanism of the present invention.

Fig. 6 is an exploded view of a portion of the metering mechanism of the present invention.

In the reference symbols: a base, a 2.. a discharge frame, a 3.. a feeding mechanism, a 31.. a mounting seat, a 32.. an air cylinder, a 33.. a telescopic push rod, a 34.. a guide frame, a 35.. a first rack, a 36.. a first gear set, a 37.. a one-way clutch, a 38.. a first belt pulley set, a 4.. a cutting mechanism, a 41.. a support seat, a 42.. a support frame, a 43.. a servo motor, a 44.. a second belt pulley set, a 45.. a second gear set, a 46.. a cutting cutter, a 47.. a limiting frame, a 48.. a first cam, a 49.. a movable connecting rod, a 410.. a support plate, a 411.. a cutting cutter, a 412.. a third belt pulley set, a 5.. a storage frame, a 6.. a 61.. a clamping mechanism, a wedge block 62, a first wedge-shaped block, a return spring, a 7.. a flattening mechanism, a 71.. a support bracket, a 72.. a fourth pulley assembly, a 73.. a cam rotating shaft, a 74.. a second cam, a 75.. a flattening wheel, a 76.. a limiting spring, a 77.. a limiting plate, an 8.. a quantitative discharging mechanism, an 81.. a bearing bracket, an 82.. a sector gear, an 83.. a transmission gear, an 84.. a sheave rotating shaft, an 85.. a rotating wheel, an 86.. a limiting groove plate, an 87.. an oriented discharging groove plate, a 9.. an automatic quantitative storage mechanism, a 91.. a special-shaped bracket, a 92.. a second rack, and a 93.. a guide plate.

Detailed Description

Embodiments of the present invention will be described in detail below with reference to the accompanying drawings.

Example 1

The utility model provides a cutting device of steamed sponge cake for food processing, as shown in figure 1, including base 1, ejection of compact frame 2, feed mechanism 3 and cutting mechanism 4, base 1 top left side is connected with ejection of compact frame 2, and base 1 top left front side is equipped with feed mechanism 3, and base 1 top middle side is equipped with cutting mechanism 4.

The staff can place the steamed sponge cake in ejection of compact frame 2, starts feed mechanism 3 and cutting mechanism 4 work afterwards, and feed mechanism 3 work drives the steamed sponge cake and moves right and get into cutting mechanism 4, and cutting mechanism 4 work carries out slitting and stripping to the steamed sponge cake simultaneously, and the stripping and slicing finishes, the staff collect the steamed sponge cake can, all handle and finish, and the staff stops feed mechanism 3 and cutting mechanism 4 work.

Example 2

On the basis of the embodiment 1, as shown in fig. 2 and fig. 3, the feeding mechanism 3 comprises a mounting seat 31, a cylinder 32, a telescopic push rod 33, a guide frame 34, first rack 35, first gear train 36, one-way clutch 37 and first pulley subassembly 38, base 1 top left side is equipped with mount pad 31, mount pad 31 upper portion is equipped with cylinder 32, the telescopic link end connection of cylinder 32 has flexible push rod 33, flexible push rod 33 and play material frame 2 sliding connection, flexible push rod 33 front and back both sides all are connected with first rack 35, base 1 top symmetry is equipped with guide 34, first rack 35 and homonymy guide 34 sliding connection, base 1 top front and back bilateral symmetry is equipped with first gear train 36, first gear train 36 meshes with the first rack 35 of homonymy, the right side gear inner wall of first gear train 36 all is connected with one-way clutch 37, be connected with first pulley subassembly 38 between the right side axis of rotation of base 1 top middle side and first gear train 36.

The cutting mechanism 4 comprises a supporting seat 41, a supporting frame 42, a servo motor 43, a second belt pulley assembly 44, a second gear set 45, a slitting cutter 46, a limiting frame 47, a first cam 48, a movable connecting rod 49, a supporting plate 410, a slitting cutter 411 and a third belt pulley assembly 412, the supporting seat 41 is arranged at the middle side of the top of the base 1, the servo motor 43 is arranged at the top of the supporting seat 41, 3 groups of supporting frames 42 are arranged at the top of the base 1 and are arranged as a left side 2 and a right side 1, the slitting cutter 46 is rotatably connected to the supporting frame 42 at the left side, the second belt pulley assembly 44 is connected between the rotating shaft of the slitting cutter 46 and the output shaft of the servo motor 43, the third belt pulley assembly 412 is rotatably connected between 2 groups of supporting frames 42 at the right side, 2 second gear sets 45 are connected between the left side driving shaft of the third belt pulley assembly 412 and the rotating shaft of the slitting cutter, the first cam 48 is connected with a movable connecting rod 49 in a rotating mode, a dicing cutter 411 is connected between the inner sides of the movable connecting rods 49, supporting plates 410 are symmetrically arranged at the top of the base 1, the supporting plates 410 are connected with the dicing cutter 411 in a sliding mode, the top of the base 1 is connected with a limiting frame 47, and the limiting frame 47 is located above the dicing cutter 46.

The working personnel can place the steamed sponge cake in the discharging frame 2, start the servo motor 43 and the air cylinder 32, the telescopic rod of the air cylinder 32 extends to drive the bottommost steamed sponge cake to move rightwards through the telescopic push rod 33, simultaneously, the telescopic push rod 33 moves rightwards and drives the first gear sets 36 on two sides to rotate through the first racks 35 on two sides, the first gear sets 36 rotate and drive the steamed sponge cake to move rightwards through the first belt pulley assemblies 38 to be contacted with the slitting cutters 46, the output shaft of the servo motor 43 rotates and drives the slitting cutters 46 to rotate through the second belt pulley assemblies 44, the slitting cutters 46 rotate and drive the third belt pulley assemblies 412 to rotate through the second gear sets 45, simultaneously, the slitting cutters 46 rotate and also drive the movable connecting rod 49 to rotate through the first cam 48, the movable connecting rod 49 rotates and drives the dicing cutters 411 to reciprocate up and down between the supporting plates 410, thus, the steamed sponge cake can, then, the steamed sponge cake is diced by a dicing cutter 411, the diced steamed sponge cake enters a third belt pulley assembly 412, the third belt pulley assembly 412 rotates to drive the steamed sponge cake to move rightwards, a worker only needs to stand at the right side of the device to collect the diced steamed sponge cake, when a telescopic rod of a cylinder 32 retracts, a telescopic push rod 33 drives first racks 35 at two sides to move leftwards and reset, under the action of a one-way clutch 37, the first gear set 36 cannot rotate reversely, the first belt pulley assembly 38 stops moving, and the reciprocating operation is carried out, so that the steamed sponge cake can be diced.

Example 3

On the basis of embodiment 2, as shown in fig. 2 to 6, the clamping device further includes a clamping mechanism 6, the clamping mechanism 6 includes a movable groove plate 61, first wedge blocks 62, second wedge blocks 63 and a return spring 64, the movable groove plate 61 is symmetrically arranged on the top of the base 1, the movable groove plate 61 is located above the right portion of the first belt pulley assembly 38, the return springs 64 are symmetrically connected to the inner sides of the upper portions of the movable groove plate 61, the second wedge blocks 63 are connected between the inner sides of the return springs 64, the second wedge blocks 63 are slidably connected with the movable groove plate 61 on the same side, the right side of the telescopic push rod 33 is connected with 2 first wedge blocks 62, and the first wedge blocks 62 are matched with the second wedge blocks 63 on the same side.

Still including mechanism 7 flattens, mechanism 7 flattens is including support holder 71, fourth pulley assembly 72, cam shaft 73, second cam 74, flatten wheel 75, spacing spring 76 and limiting plate 77, base 1 top middle part inboard is connected with support holder 71, support holder 71 is located third pulley assembly 412 top, support holder 71 upper portion sliding connection has flatten wheel 75, be connected with 2 spacing springs 76 between flatten wheel 75 right side and the support holder 71 right part, base 1 top right side rotary type is connected with cam shaft 73, all be connected with fourth pulley assembly 72 between cam shaft 73 front and back both sides and the third pulley assembly 412 right side axis of rotation, be equipped with second cam 74 on the cam shaft 73, second cam 74 and the cooperation of flattening wheel 75, support holder 71 inner wall front and back both sides all are connected with limiting plate 77.

The quantitative discharging device is characterized by further comprising a quantitative discharging mechanism 8, the quantitative discharging mechanism 8 comprises a bearing frame 81, sector gears 82, a transmission gear 83, a sheave rotating shaft 84, a rotating wheel 85, a limiting groove plate 86 and a directional discharging groove plate 87, the bearing frame 81 is symmetrically arranged on the lower portion of the base 1, the upper portion of the bearing frame 81 is rotatably connected with the sheave rotating shaft 84, the front side and the rear side of the sheave rotating shaft 84 are respectively connected with the transmission gear 83, the sheave rotating shaft 84 is connected with the rotating wheel 85, the directional discharging groove plate 87 is slidably arranged on the sheave rotating shaft 84, the upper portion of the directional discharging groove plate 87 is connected with the limiting

groove plate

86, 2 sector gears 82 are connected to a right rotating shaft of the third belt pulley assembly.

Still including automatic ration storage mechanism 9 and storage frame 5, automatic ration storage mechanism 9 is equipped with movable baffle 93 including heterotypic support 91, second rack 92 and movable guide plate 93 on the right side of 1 lower part of base, and the gliding formula is equipped with storage frame 5 on the movable baffle 93, and both sides all are connected with 3 heterotypic supports 91 around the storage frame 5, all are connected with second rack 92 between horizontal homonymy heterotypic support 91 upper portion, and second rack 92 meshes with drive gear 83.

When the telescopic push rod 33 drives the bottommost steamed sponge cake to move rightwards, the first wedge-shaped block 62 is driven to move rightwards to be in contact with the second wedge-shaped block 63, the second wedge-shaped block 63 moves inwards to extrude and limit the steamed sponge cake entering the first belt pulley assembly 38, the reset spring 64 is compressed at the moment, when the steamed sponge cake is cut into blocks and enters the third belt pulley assembly 412, the third belt pulley assembly 412 drives the steamed sponge cake to move rightwards continuously, the third belt pulley assembly 412 rotates and drives the cam rotating shaft 73 to rotate through the fourth belt pulley assembly 72, the cam rotating shaft 73 rotates and drives the flat pressing wheel 75 to reciprocate leftwards and rightwards on the supporting bracket 71 through the second cam 74 to flatten the moved steamed sponge cake, the limit spring 76 changes accordingly, the flattened steamed sponge cake continues to move rightwards to enter the directional discharging groove plate 87, the third belt pulley assembly 412 rotates and drives the transmission gear 83 to rotate intermittently through the sector gear 82, when the transmission gear 83 rotates, the rotating wheel 85 is driven to rotate, meanwhile, the second rack 92 drives the special-shaped support 91 and the storage frame 5 to move rightwards, steamed sponge cakes downwards rotate through the rotating wheel 85 to enter the storage frame 5, when the transmission gear 83 stops rotating, all parts after the steamed sponge cakes are driven to stop working, the operation is repeated, the steamed sponge cakes can be sequentially arranged in the storage frame 5, when the storage frame 5 moves to the right side of the base 1, the steamed sponge cakes are just filled, a worker can collect the steamed sponge cakes which are cut into blocks, when the telescopic rod of the air cylinder 32 retracts, the first wedge block 62 moves leftwards and is not in contact with the second wedge block 63, the reset spring 64 compresses and resets to drive the second wedge block 63 to move outwards to reset, and the operation is repeated, and the steamed sponge cakes can be cut into blocks.

The above examples are merely representative of preferred embodiments of the present invention, and the description thereof is more specific and detailed, but not to be construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, various changes, modifications and substitutions can be made without departing from the spirit of the present invention, and these are all within the scope of the present invention. Therefore, the protection scope of the present patent shall be subject to the appended claims.

Claims

1. A device for cutting steamed sponge cake for food processing is characterized by comprising:

the discharging frame (2) is connected to one side of the top of the base (1);

the feeding mechanism (3) is arranged on one side of the top of the base (1);

the cutting mechanism (4) is arranged on the middle side of the top of the base (1).

2. The apparatus for cutting steamed sponge cake for food processing as claimed in claim 1, wherein the feeding mechanism (3) comprises:

the mounting seat (31) is arranged on one side of the top of the base (1), and the air cylinder (32) is arranged on the upper portion of the mounting seat (31);

the telescopic rod of the cylinder (32) is connected with a telescopic push rod (33), and the telescopic push rod (33) is connected with the discharging frame (2) in a sliding manner;

the two sides of the telescopic push rod (33) are both connected with the first rack (35);

the top of the base (1) is symmetrically provided with the guide frames (34), and the first rack (35) is connected with the guide frames (34) on the same side in a sliding manner;

the first gear set (36) is symmetrically arranged on two sides of the top of the base (1), and the first gear set (36) is meshed with the first rack (35) on the same side;

the inner wall of one side gear of the first gear set (36) is connected with the one-way clutch (37);

a first belt pulley assembly (38) is connected between the middle side of the top of the base (1) and the first gear set (36).

3. The apparatus for cutting steamed sponge cake for food processing as claimed in claim 1, wherein the cutting mechanism (4) comprises:

the middle side of the top of the base (1) is provided with a supporting seat (41), and the top of the supporting seat (41) is provided with a servo motor (43);

the top of the base (1) is provided with a plurality of groups of supporting frames (42);

a slitting cutter (46), wherein the slitting cutter (46) is rotationally connected to the supporting frame (42) at one side, and a second belt pulley component (44) is connected between a rotating shaft of the slitting cutter (46) and an output shaft of the servo motor (43);

the third pulley assembly (412) is rotatably connected between the 2 groups of supporting frames (42);

2 second gear sets (45) are connected between a transmission shaft at one side of the third belt pulley assembly (412) and a rotating shaft of the slitting cutter (46);

the two sides of the rotating shaft of the slitting cutter (46) are connected with the first cam (48);

the first cam (48) is rotatably connected with the movable connecting rods (49), and the inner sides of the movable connecting rods (49) are connected with a cutting tool (411);

the supporting plate (410) is symmetrically arranged at the top of the base (1), and the supporting plate (410) is connected with the dicing cutter (411) in a sliding manner;

the top of the base (1) is connected with a limiting frame (47).

4. The apparatus for cutting steamed sponge cake for food processing as claimed in claim 2 or 3, further comprising a clamping mechanism (6), wherein the clamping mechanism (6) comprises:

the top of the base (1) is symmetrically provided with the movable groove plates (61);

the inner sides of the upper parts of the movable groove plates (61) are symmetrically connected with the return springs (64), second wedge blocks (63) are connected between the inner sides of the return springs (64), and the second wedge blocks (63) are connected with the movable groove plates (61) on the same side in a sliding manner;

first wedge (62), flexible push rod (33) one side all is connected with 2 first wedge (62), and first wedge (62) all cooperates with homonymy second wedge (63).

5. The apparatus for slicing steamed sponge cake for food processing as claimed in claim 4, further comprising a flattening mechanism (7), wherein the flattening mechanism (7) comprises:

the middle side of the top of the base (1) is connected with the supporting bracket (71);

the upper part of the supporting bracket (71) is connected with a flattening wheel (75) in a sliding way, and 2 limiting springs (76) are connected between the flattening wheel (75) and the supporting bracket (71);

a cam rotating shaft (73), wherein one side of the top of the base (1) is rotatably connected with the cam rotating shaft (73), and fourth belt pulley assemblies (72) are connected between the two sides of the cam rotating shaft (73) and the rotating shaft at one side of the third belt pulley assembly (412);

the second cam (74) is arranged on the cam rotating shaft (73), and the second cam (74) is matched with the flattening wheel (75);

the two sides of the inner wall of the support bracket (71) are both connected with the limit plates (77).

6. The apparatus for cutting steamed sponge cake into pieces for food processing according to claim 5, further comprising a quantitative discharging mechanism (8), wherein the quantitative discharging mechanism (8) comprises:

the bearing frame (81) is symmetrically arranged at the lower part of the base (1);

the upper part of the bearing frame (81) is rotatably connected with a sheave rotating shaft (84), and both sides of the sheave rotating shaft (84) are connected with transmission gears (83);

the rotating wheel (85) is connected to the sheave rotating shaft (84);

the directional discharging groove plate (87) is arranged on the sheave rotating shaft (84) in a sliding mode, and the upper portion of the directional discharging groove plate (87) is connected with the limiting groove plate (86);

and 2 sector gears (82) are connected to a rotating shaft at one side of the third belt pulley assembly (412), and the sector gears (82) are meshed with the transmission gear (83) at the same side.

7. The apparatus for cutting steamed sponge cake into pieces for food processing according to claim 6, further comprising an automatic quantitative storage mechanism (9) and a storage frame (5), wherein the automatic quantitative storage mechanism (9) comprises:

the lower part of the base (1) is provided with a movable guide plate (93);

the material storage frame (5) is arranged on the movable guide plate (93) in a sliding mode, and a plurality of special-shaped supports (91) are connected to the two sides of the material storage frame (5);

and the second racks (92) are connected between the upper parts of the transverse same-side special-shaped supports (91), and the second racks (92) are meshed with the transmission gear (83).

8. The apparatus for cutting steamed sponge cake for food processing according to claim 5, wherein: the flattening wheel (75) is made of anti-sticking materials.
