CN112720055B - Digit control machine tool with sparge water cyclic utilization structure - Google Patents
Digit control machine tool with sparge water cyclic utilization structure Download PDFInfo
- Publication number
- CN112720055B CN112720055B CN202110098429.9A CN202110098429A CN112720055B CN 112720055 B CN112720055 B CN 112720055B CN 202110098429 A CN202110098429 A CN 202110098429A CN 112720055 B CN112720055 B CN 112720055B
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- control machine
- machine tool
- numerical control
- connecting rod
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 title claims abstract description 54
- 125000004122 cyclic group Chemical group 0.000 title description 2
- 238000000746 purification Methods 0.000 claims abstract description 41
- 239000007788 liquid Substances 0.000 claims abstract description 27
- 238000004140 cleaning Methods 0.000 claims abstract description 24
- 239000002699 waste material Substances 0.000 claims abstract description 20
- 238000004064 recycling Methods 0.000 claims abstract description 19
- 238000005406 washing Methods 0.000 claims abstract description 18
- 238000004062 sedimentation Methods 0.000 claims abstract description 14
- 238000001125 extrusion Methods 0.000 claims description 24
- 230000001681 protective effect Effects 0.000 claims description 14
- 238000001556 precipitation Methods 0.000 claims description 11
- 239000012629 purifying agent Substances 0.000 claims description 10
- 244000309464 bull Species 0.000 claims description 9
- 239000012459 cleaning agent Substances 0.000 claims description 7
- 238000002347 injection Methods 0.000 claims description 7
- 239000007924 injection Substances 0.000 claims description 7
- OKTJSMMVPCPJKN-UHFFFAOYSA-N Carbon Chemical compound [C] OKTJSMMVPCPJKN-UHFFFAOYSA-N 0.000 claims description 6
- 238000007789 sealing Methods 0.000 claims description 6
- 238000003756 stirring Methods 0.000 claims description 6
- 238000001179 sorption measurement Methods 0.000 claims description 4
- 239000007921 spray Substances 0.000 claims description 4
- 239000006261 foam material Substances 0.000 claims description 2
- 239000000463 material Substances 0.000 claims description 2
- 239000010865 sewage Substances 0.000 abstract description 20
- 230000000694 effects Effects 0.000 abstract description 15
- XEEYBQQBJWHFJM-UHFFFAOYSA-N Iron Chemical compound [Fe] XEEYBQQBJWHFJM-UHFFFAOYSA-N 0.000 description 4
- 238000001914 filtration Methods 0.000 description 3
- 229910052799 carbon Inorganic materials 0.000 description 2
- 238000011010 flushing procedure Methods 0.000 description 2
- 239000006260 foam Substances 0.000 description 2
- 229910052742 iron Inorganic materials 0.000 description 2
- 239000000243 solution Substances 0.000 description 2
- 239000008400 supply water Substances 0.000 description 2
- 206010024796 Logorrhoea Diseases 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000003749 cleanliness Effects 0.000 description 1
- 239000003599 detergent Substances 0.000 description 1
- 239000003814 drug Substances 0.000 description 1
- 230000003028 elevating effect Effects 0.000 description 1
- 238000000034 method Methods 0.000 description 1
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B23—MACHINE TOOLS; METAL-WORKING NOT OTHERWISE PROVIDED FOR
- B23Q—DETAILS, COMPONENTS, OR ACCESSORIES FOR MACHINE TOOLS, e.g. ARRANGEMENTS FOR COPYING OR CONTROLLING; MACHINE TOOLS IN GENERAL CHARACTERISED BY THE CONSTRUCTION OF PARTICULAR DETAILS OR COMPONENTS; COMBINATIONS OR ASSOCIATIONS OF METAL-WORKING MACHINES, NOT DIRECTED TO A PARTICULAR RESULT
- B23Q11/00—Accessories fitted to machine tools for keeping tools or parts of the machine in good working condition or for cooling work; Safety devices specially combined with or arranged in, or specially adapted for use in connection with, machine tools
- B23Q11/10—Arrangements for cooling or lubricating tools or work
- B23Q11/1069—Filtration systems specially adapted for cutting liquids
Landscapes
- Engineering & Computer Science (AREA)
- Mechanical Engineering (AREA)
- Cleaning By Liquid Or Steam (AREA)
Abstract
The invention relates to the technical field of numerical control machines, in particular to a numerical control machine with a washing water recycling structure, which comprises a device main body, wherein the device main body comprises a numerical control machine main body, a waste liquid inlet is formed in the right side of the top end of the numerical control machine main body, a sedimentation and purification tank is formed in the numerical control machine main body, the waste liquid inlet is inserted into the sedimentation and purification tank, a first connecting pipeline is inserted into the bottom end of the sedimentation and purification tank, and a clean water tank is formed in the numerical control machine main body. The device can effectively block and protect splashed sewage, protects the working environment around the main body of the numerical control machine, is matched with the functions of the automatic purification mechanism and the control mechanism, can be used for recycling the sewage after purification, avoids waste of water resources, saves the cleaning cost of the numerical control machine, has high automation degree, greatly reduces the labor intensity of cleaning personnel, and further improves the convenience and the cleaning effect of the device during cleaning.
Description
Technical Field
The invention relates to the technical field of numerical control machine tools, in particular to a numerical control machine tool with a washing water recycling structure.
Background
Numerical control machine tool is one kind and gives the automation equipment of instruction through the control code, and it is after using a period, and there are a large amount of greasy dirt and the garrulous iron fillings in the surface, in order can be better to clear away greasy dirt and the iron fillings on lathe surface, the operator generally scribbles the sanitizer to the lathe surface, then handheld shower nozzle washes, consequently can know that a current numerical control machine tool has satisfied people's user demand basically, still has following problem.
In order to ensure the stability of the numerical control machine tool in use, the numerical control machine tool is generally washed by a handheld spray head, but because the surface of the traditional numerical control machine tool is not provided with a protection mechanism, thereby causing the splashing of the sewage when the machine tool is cleaned, influencing the surrounding environment, increasing the difficulty for the subsequent cleaning of the cleaning personnel, and the traditional numerical control machine tool cannot be used for a plurality of times after collecting the sewage after cleaning, thereby causing a great deal of water resource waste, increasing the cleaning cost, the damage to the surrounding ecological environment is caused, and therefore, a numerical control machine with a washing water recycling structure is urgently needed to solve the problem that the traditional numerical control machine not only can solve the problem that sewage splashes around when being washed, but also can be matched with a part of structure to enable the device to form an automatic circulation flow of sewage collection, sewage purification and secondary use.
Disclosure of Invention
The invention aims to provide a numerical control machine tool with a washing water recycling structure, and aims to solve the problems that sewage splashes when the traditional numerical control machine tool is cleaned and the traditional numerical control machine tool cannot recycle the sewage.
In order to achieve the purpose, the invention provides the following technical scheme: a numerical control machine tool with a washing water recycling structure comprises a machine tool main body, wherein the machine tool main body comprises a numerical control machine tool main body, a waste liquid inlet is formed in the right side of the top end of the numerical control machine tool main body, a precipitation purification tank is formed in the numerical control machine tool main body, the waste liquid inlet is inserted in the precipitation purification tank, a first connecting pipeline is inserted at the bottom end of the precipitation purification tank, a clean water tank is formed in the numerical control machine tool main body, the bottom end of the first connecting pipeline is inserted in the clean water tank, a second connecting pipeline is inserted at the left end of the clean water tank, the left end of the second connecting pipeline is fixedly connected with a third connecting pipeline through an adapter pipe, a water pump is fixedly connected to the top end of the third connecting pipeline, the right end of the water pump is fixedly connected to the outer wall of the numerical control machine tool main body, a fourth connecting pipeline is fixedly connected to the top end of the water pump, and a fifth connecting pipeline is fixedly connected to the top end of the fourth connecting pipeline through an adapter pipe, a first hose is fixedly connected to the right end of the fifth connecting pipeline through an adapter, a cleaning nozzle is fixedly connected to the right end of the first hose, a lifting mechanism is arranged on the right side of the waste liquid inlet and comprises an output motor, the right end of the numerical control machine body is provided with the output motor through a bolt, a first connecting rod is fixedly connected to the left end of the output motor, a first cavity is formed in the top end of the numerical control machine body, the first connecting rod is inserted into the first cavity, a worm is fixedly connected to the left end of the first connecting rod, two groups of fixed side plates are fixedly connected to the inner wall of the top end of the first cavity, a first gear and a second gear are respectively and fixedly connected to one end of the two groups of fixed side plates connected with the first cavity through a rotating shaft, the first gear is meshed with the second gear, the bottom end of the first gear is meshed with the worm, and a protective baffle is slidably connected to the inner wall of the left side of the first cavity, the right end of the protective baffle is meshed with a second gear, the left end of the protective baffle is fixedly connected with a sealing plate, an automatic purification mechanism is arranged above the sedimentation and purification tank and comprises a purifying agent placing cavity, the right end of the numerical control machine body is fixedly connected with the purifying agent placing cavity, the bottom end of the purifying agent placing cavity is fixedly connected with a sixth connecting pipeline, the bottom end of the sixth connecting pipeline is fixedly connected with a seventh connecting pipeline through a switching pipe, the seventh connecting pipeline is inserted in the sedimentation and purification tank, a first ball valve is arranged in the sixth connecting pipeline, a second connecting rod is fixedly connected with the left end of the first ball valve, a second cavity is arranged in the numerical control machine body, a second connecting rod bearing is connected to the inner wall of the left end of the second cavity, the outer wall of the second connecting rod is fixedly connected with a third gear, and a first rack plate is inserted in the sedimentation and purification tank, the top end of the first rack plate is inserted into the second cavity, the bottom end of the first rack plate is fixedly connected with a floating plate, the inner walls of the left side and the right side of the waste liquid inlet are fixedly connected with mounting plates through bolts, a filter plate and an active carbon adsorption layer are respectively and fixedly connected between the two mounting plates, the right side of the clean water tank is provided with a control mechanism, the control mechanism comprises a second ball valve, the first connecting pipeline is internally provided with a second ball valve, the right end of the second ball valve is fixedly connected with a third connecting rod, the main body of the numerical control machine tool is internally provided with a third cavity, the right end of the third connecting rod is in bearing connection with the inner wall of the right end of the third cavity, the outer wall of the third connecting rod is fixedly connected with a first bevel gear, the inner wall of the bottom end of the third cavity is in bearing connection with a fourth connecting rod, the top end of the fourth connecting rod is fixedly connected with a second bevel gear, and the outer wall of the second bevel gear is meshed with the first bevel gear, the utility model discloses a hydraulic pump, including first hose, first spring, first connecting rod, second connecting rod, third chamber, first chamber, second chamber, first connecting rod, second connecting rod, third chamber, first chamber, second chamber, first chamber, first connection, first, second, first connection, second, first connection.
Preferably, a first sliding groove is formed in the inner wall of the left side of the first cavity, a first sliding block is connected to the inner side of the first sliding groove in a sliding mode, and one end, far away from the first sliding groove, of the first sliding block is fixedly connected to the protective baffle.
Preferably, the floating plate is made of foam, and the inner shape of the floating plate is hollow.
Preferably, a second sliding groove is formed in the inner wall of the sleeve, a second sliding block is connected to the inner portion of the second sliding groove in a sliding mode, and one end, far away from the second sliding groove, of the second sliding block is fixedly connected to the connecting plate.
Preferably, the automatic liquid injection mechanism comprises an outer pipe, the outer wall of the fifth connecting pipeline is fixedly connected with the outer pipe, the bottom end of the outer pipe is fixedly connected with two groups of supporting columns, the bottom ends of the two groups of supporting columns are fixedly connected with the numerical control machine tool main body, the top end of the outer pipe is provided with a cleaning agent placing cavity, the bottom end of the cleaning agent placing cavity is fixedly connected with a second hose, the inner wall bearing at the bottom end of the fifth connecting pipeline is connected with a sixth connecting rod, the outer wall of the sixth connecting rod is fixedly connected with a stirring blade, a fourth cavity is formed in the outer pipe, the sixth connecting rod is inserted in the fourth cavity, the top end of the sixth connecting rod is fixedly connected with a rotating plate, the rotating plate is connected with a hinge rod through a rotating shaft, the inner wall of the fourth cavity is fixedly connected with a fixed plate, a push rod penetrates through the fixed plate, and one end, far away from the rotating plate, of the hinge rod is connected with the push rod through a rotating shaft, the left end of the push rod is fixedly connected with an extrusion head, and an extrusion groove is formed in the outer pipe.
Preferably, a third sliding groove is formed in the top end of the fourth chamber, a third sliding block is connected to the inside of the third sliding groove in a sliding mode, one end, far away from the third sliding groove, of the third sliding block is fixedly connected to the connecting block, and one end, far away from the third sliding block, of the connecting block is fixedly connected to the push rod.
Preferably, the shape of the left end of the extrusion head and the shape of the left end of the extrusion groove are both arc-shaped, and the shape of the left end of the extrusion head and the shape of the left end of the extrusion groove are matched with each other.
Preferably, swing mechanism includes fixed baseplate, digit control machine tool main part top fixedly connected with fixed baseplate, and fixed baseplate inner bearing is connected with the bull stick, bull stick bottom fixedly connected with second handle, bull stick top fixedly connected with disc, fixed baseplate top right side fixedly connected with back shaft, and back shaft top fixed connection in wash the shower nozzle, back shaft outer wall fixedly connected with swinging plate, and the inside spacing groove of having seted up of swinging plate, spacing inslot portion sliding connection has the sliding block, and sliding block bottom fixed connection in disc.
Preferably, a fourth sliding groove is formed in the fixed base, a fourth sliding block is connected to the inside of the fourth sliding groove in a sliding mode, one end, far away from the fourth sliding groove, of the fourth sliding block is fixedly connected to a seventh connecting rod, and one end, far away from the fourth sliding block, of the seventh connecting rod is fixedly connected to the swinging plate.
Compared with the prior art, the invention has the beneficial effects that:
the numerical control machine tool with the flushing water recycling structure is provided with a lifting mechanism, an automatic purification mechanism and a control mechanism, when the surface of the main body of the numerical control machine tool needs to be flushed, a water pump and an output motor are started, so that a protective baffle and a sealing plate are driven to move upwards, sewage can be protected through the protective baffle at the moment, the flushing effect is ensured, meanwhile, the splashing of the sewage is avoided, the cleanliness of the surrounding environment is improved, meanwhile, the device can automatically complete the sewage treatment process of collecting, filtering and purifying foam through the action of the automatic purification mechanism, meanwhile, through the action of the control mechanism, an operator can automatically control a sedimentation purification tank to supply water to a first connecting pipeline, so that a worker can independently supply water to the inside of the first connecting pipeline, and through the lifting mechanism, the splashed sewage can be effectively blocked and protected, the device has the advantages that the working environment around the main body of the numerical control machine tool is protected, and the automatic purification mechanism and the control mechanism are matched to realize the recycling of the device after sewage purification, so that the waste of water resources is avoided, the cleaning cost of the numerical control machine tool is saved, the automation degree of the device is high, the labor intensity of cleaning personnel is greatly reduced, and the convenience and the cleaning effect of the device during cleaning are further improved; be provided with automatic liquid mechanism and swing mechanism of annotating simultaneously, effect through automatic liquid mechanism of annotating, make the device when cleaning the digit control machine tool main part through wasing the shower nozzle, can be automatically to the inside ration of clear water add the sanitizer, the clean effect of device has been guaranteed, traditional people has been changed and the mode of paining the sanitizer is done, the cleaning efficiency of device and the convenience when wasing have been promoted, effect through swing mechanism, make the device can drive and wash the shower nozzle and swing, thereby carry out comprehensive cleanness to digit control machine tool main part surface, the condition at clean dead angle is avoided appearing.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.
FIG. 1 is a schematic front sectional view of the present invention;
FIG. 2 is a schematic view of a partial structure of the lifting mechanism of the present invention in a front view;
FIG. 3 is a schematic top sectional view of a lifting mechanism according to the present invention;
FIG. 4 is a schematic view of a partial structure of the control mechanism of the present invention in a front view;

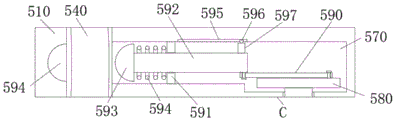

FIG. 5 is a schematic view of a partial structure of an automatic liquid injection mechanism and a swing mechanism of the present invention in front elevation;
FIG. 6 is a schematic top sectional view of a swing mechanism according to the present invention;
FIG. 7 is an enlarged view of the structure at A in FIG. 1 according to the present invention;
FIG. 8 is an enlarged view of the structure of FIG. 4B according to the present invention;
FIG. 9 is an enlarged view of the structure of FIG. 5 at C according to the present invention;
fig. 10 is an enlarged view of the structure of fig. 5D according to the present invention.
In the figure: 100. a device main body; 110. a numerically controlled machine tool body; 120. a waste liquid inlet; 130. a sedimentation purification tank; 140. a first connecting pipe; 150. a clean water tank; 160. a second connecting pipe; 170. a third connecting pipe; 180. a water pump; 190. a fourth connecting pipe; 191. a fifth connecting pipe; 192. a first hose; 193. cleaning the spray head; 200. a lifting mechanism; 210. an output motor; 220. a first connecting rod; 230. a first chamber; 231. a first chute; 232. a first slider; 240. a worm; 250. fixing the side plate; 260. a first gear; 270. a second gear; 280. a protective baffle; 290. a sealing plate; 300. an automatic purification mechanism; 310. a purifying agent placing cavity; 320. a sixth connecting pipe; 330. a seventh connecting pipe; 340. a first ball valve; 350. a second connecting rod; 360. a second chamber; 370. a third gear; 380. a first rack plate; 390. a floating plate; 391. mounting a plate; 392. a filter plate; 393. an activated carbon adsorption layer; 400. a control mechanism; 410. a second ball valve; 420. a third connecting rod; 430. a third chamber; 440. a first bevel gear; 450. a fourth connecting rod; 460. a second bevel gear; 470. a fourth gear; 480. a sleeve; 490. a first spring; 491. a connecting plate; 492. a fifth connecting rod; 493. a first handle; 494. a second rack plate; 495. a second chute; 496. a second slider; 500. an automatic liquid injection mechanism; 510. an outer tube; 520. a support pillar; 530. a cleaning agent placing cavity; 540. a second hose; 550. a sixth connecting rod; 560. a stirring blade; 570. a fourth chamber; 580. rotating the plate; 590. a hinged lever; 591. a fixing plate; 592. a push rod; 593. an extrusion head; 594. extruding a groove; 595. a third chute; 596. a third slider; 597. connecting blocks; 600. a swing mechanism; 610. a fixed base; 611. a fourth chute; 612. a fourth slider; 613. a seventh connecting rod; 620. a rotating rod; 630. a second handle; 640. a disc; 650. a support shaft; 660. a swing plate; 670. a limiting groove; 680. and a slider.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1-10, the present invention provides an embodiment: a numerical control machine tool with a washing water recycling structure comprises a machine tool main body 100, the machine tool main body 100 comprises a machine tool main body 110, a waste liquid inlet 120 is formed in the right side of the top end of the machine tool main body 110, a precipitation purification tank 130 is formed in the machine tool main body 110, the waste liquid inlet 120 is inserted in the precipitation purification tank 130, a first connecting pipeline 140 is inserted in the bottom end of the precipitation purification tank 130, a clean water tank 150 is formed in the machine tool main body 110, the bottom end of the first connecting pipeline 140 is inserted in the clean water tank 150, a second connecting pipeline 160 is inserted in the left end of the clean water tank 150, the left end of the second connecting pipeline 160 is fixedly connected with a third connecting pipeline 170 through an adapter pipe, a water pump 180 is fixedly connected to the top end of the third connecting pipeline 170, the right end of the water pump 180 is fixedly connected to the outer wall of the machine tool main body 110, and a fourth connecting pipeline 190 is fixedly connected to the top end of the water pump 180, the top end of the fourth connecting pipeline 190 is fixedly connected with a fifth connecting pipeline 191 through an adapter tube, the right end of the fifth connecting pipeline 191 is fixedly connected with a first hose 192 through an adapter, the right end of the first hose 192 is fixedly connected with a cleaning nozzle 193, the right side of the waste liquid inlet 120 is provided with a lifting mechanism 200, the lifting mechanism 200 comprises an output motor 210, the right end of the numerical control machine main body 110 is provided with the output motor 210 through a bolt, the left end of the output motor 210 is fixedly connected with a first connecting rod 220, the top end of the numerical control machine main body 110 is provided with a first cavity 230, the first connecting rod 220 is inserted into the first cavity 230, the left end of the first connecting rod 220 is fixedly connected with a worm 240, the inner wall of the top end of the first cavity 230 is fixedly connected with two groups of fixed side plates 250, and the end of the two groups of fixed side plates 250 connected with the first cavity 230 is respectively and fixedly connected with a first gear 260 and a second gear 270 through a rotating shaft, the first gear 260 is meshed with the second gear 270, the bottom end of the first gear 260 is meshed with the worm 240, the inner wall of the left side of the first chamber 230 is slidably connected with a protective baffle 280, the right end of the protective baffle 280 is meshed with the second gear 270, the left end of the protective baffle 280 is fixedly connected with a sealing plate 290, an automatic purification mechanism 300 is arranged above the precipitation purification tank 130, the automatic purification mechanism 300 comprises a purifying agent placing cavity 310, the right end of the numerical control machine tool body 110 is fixedly connected with the purifying agent placing cavity 310, the bottom end of the purifying agent placing cavity 310 is fixedly connected with a sixth connecting pipeline 320, the bottom end of the sixth connecting pipeline 320 is fixedly connected with a seventh connecting pipeline 330 through a transfer pipe, the seventh connecting pipeline 330 is inserted into the precipitation purification tank 130, a first ball valve 340 is arranged inside the sixth connecting pipeline 320, the left end of the first ball valve 340 is fixedly connected with a second connecting rod 350, and a second chamber 360 is arranged inside the numerical control machine tool body 110, the second connecting rod 350 is bearing-connected to the inner wall of the left end of the second chamber 360, the outer wall of the second connecting rod 350 is fixedly connected with a third gear 370, the first rack plate 380 is inserted inside the sedimentation and purification tank 130, the top end of the first rack plate 380 is inserted inside the second chamber 360, the bottom end of the first rack plate 380 is fixedly connected with a floating plate 390, the inner walls of the left and right sides of the waste liquid inlet 120 are fixedly connected with mounting plates 391 through bolts, a filter plate 392 and an active carbon adsorption layer 393 are respectively and fixedly connected between the two mounting plates 391, the right side of the clean water tank 150 is provided with a control mechanism 400, the control mechanism 400 comprises a second ball valve 410, the second ball valve 410 is mounted inside the first connecting pipeline 140, the right end of the second ball valve 410 is fixedly connected with a third connecting rod 420, the third chamber 430 is arranged inside the NC machine tool body 110, and the right end of the third connecting rod 420 is bearing-connected to the inner wall of the right end of the third chamber 430, a first bevel gear 440 is fixedly connected to the outer wall of the third connecting rod 420, a fourth connecting rod 450 is connected to the inner wall bearing at the bottom end of the third chamber 430, a second bevel gear 460 is fixedly connected to the top end of the fourth connecting rod 450, the outer wall of the second bevel gear 460 is meshed with the first bevel gear 440, a fourth gear 470 is fixedly connected to the outer wall of the fourth connecting rod 450, a sleeve 480 is fixedly connected to the inner wall at the left end of the third chamber 430, a first spring 490 is fixedly connected to the inner wall of the sleeve 480, a connecting plate 491 is fixedly connected to the right end of the first spring 490, a fifth connecting rod 492 is fixedly connected to the right end of the connecting plate 491, a first handle 492 is fixedly connected to the right end of the fifth connecting rod 492, a second rack 494 is fixedly connected to the front end of the fifth connecting rod 492, the second rack 494 is meshed with the fourth gear 470, an automatic liquid injection mechanism 500 is arranged outside the fifth connecting pipe 191, and a swing mechanism 600 is arranged below the first hose 192, through above-mentioned elevating system 200, can effectively block the protection to the sewage that splashes, the operational environment around digit control machine tool main part 110 has been protected, cooperate automatic purification mechanism 300 and control mechanism 400's effect simultaneously, make the device can accomplish the recycling behind the sewage purification, the waste of water resource has been avoided, the cleaning cost of digit control machine tool has been saved, and the device degree of automation is high, greatly reduced cleanup crew's intensity of labour, the convenience and the clean effect of device when clean have further been promoted.
The material of the floating plate 390 is foam material, and the inner shape of the floating plate 390 is hollow, so that the floating plate 390 can move upwards under the action of sewage.
The second spout 495 has been seted up to the inner wall of sleeve 480, and inside sliding connection has a second slider 496 of second spout 495, and the one end fixed connection in connecting plate 491 of second slider 496 keeping away from second spout 495 has promoted the stability of connecting plate 491 when moving about through the inside gliding effect of second slider 496 in second spout 495.
The automatic liquid injection mechanism 500 comprises an outer tube 510, an outer tube 510 is fixedly connected to the outer wall of a fifth connecting tube 191, two groups of supporting pillars 520 are fixedly connected to the bottom end of the outer tube 510, the bottom ends of the two groups of supporting pillars 520 are fixedly connected to the numerical control machine tool main body 110, a cleaning agent placing cavity 530 is installed at the top end of the outer tube 510, a second hose 540 is fixedly connected to the bottom end of the cleaning agent placing cavity 530, a sixth connecting rod 550 is connected to the inner wall of the bottom end of the fifth connecting tube 191 through a bearing, a stirring blade 560 is fixedly connected to the outer wall of the sixth connecting rod 550, a fourth cavity 570 is formed in the outer tube 510, the sixth connecting rod 550 is inserted into the fourth cavity 570, a rotating plate 580 is fixedly connected to the top end of the sixth connecting rod 550, the rotating plate 580 is connected to a hinge rod 590 through a rotating shaft, a fixing plate 591 is fixedly connected to the inner wall of the fourth cavity 570, a push rod 592 penetrates through the fixing plate 592, one end of the hinge rod 590 is connected to the push rod 592, push rod 592 left end fixedly connected with extrusion head 593, the inside extrusion groove 594 of having seted up of outer tube 510, through the effect of automatic liquid mechanism 500 of annotating for the device is when cleaning digit control machine tool main part 110 through rinsing shower nozzle 193, can add the sanitizer to the inside ration of clear water automatically, has guaranteed the cleaning performance of device, has changed traditional artificial mode of paining the sanitizer, has promoted the cleaning efficiency of device and the convenience when wasing.
The shape of the left end of the extrusion head 593 and the shape of the left end of the extrusion groove 594 are both arranged to be arc-shaped, and the shape of the left end of the extrusion head 593 and the shape of the left end of the extrusion groove 594 are matched with each other, so that when the extrusion head 593 enters the interior of the extrusion groove 594 due to the elastic effect of the extrusion groove 594, the second hose 540 can be extruded and closed at the moment.
The fixed base 610 is provided with a fourth sliding groove 611 inside, the fourth sliding groove 611 is connected with a fourth slider 612 inside in a sliding manner, one end of the fourth slider 612 far away from the fourth sliding groove 611 is fixedly connected to the seventh connecting rod 613, one end of the seventh connecting rod 613 far away from the fourth slider 612 is fixedly connected to the swinging plate 660, and the stability of the seventh connecting rod 613 and the swinging plate 660 during swinging is improved through the sliding effect of the fourth slider 612 inside the fourth sliding groove 611.
The working principle is as follows: during cleaning, the water pump 180 and the output motor 210 are started, at this time, water is supplied to the fifth connecting pipe 191, the stirring blade 560 and the sixth connecting rod 550 are driven to rotate by the impact of water flow, the rotating plate 580 is driven to rotate by the rotation of the sixth connecting rod 550, so that the push rod 592 and the extrusion head 593 are driven to reciprocate left and right, at this time, the second hose 540 can discharge quantitatively, the detergent entering the fifth connecting pipe 191 can be stirred by the stirring blade 560, the rotating rod 620 and the disc 640 can be driven to rotate by rotating the second handle 630, so that the swinging plate 660 swings in a reciprocating manner with the support shaft 650 as a center, the cleaning spray head 193 swings in a reciprocating manner, after the output motor 210 is started, the first connecting rod 220 and the worm 240 are driven to rotate by the output motor 210, the first gear 260 and the second gear 270 can be driven to rotate by the worm 240, thereby driving the protective baffle 280 and the sealing plate 290 to move upwards, when sewage enters the interior of the sedimentation and purification tank 130 through the waste liquid inlet 120, filtering is performed through the mounting plate 391 and the filtering plate 392, the floating plate 390 is floated through the sewage and simultaneously drives the first rack plate 380 to move upwards, the third gear 370 is driven to rotate and the first ball valve 340 is opened, and at the moment, the purification liquid medicine enters the interior of the sedimentation and purification tank 130 through the sixth connecting pipeline 320 and the seventh connecting pipeline 330, thereby completing sewage treatment;
pressing the first handle 493 can drive the fifth connecting rod 492 and the second rack plate 494 to move leftwards, the first spring 490 is extruded to deform, the fourth gear 470 can be driven to rotate through the second rack plate 494, so that the second bevel gear 460 and the first bevel gear 440 are driven to rotate, the second ball valve 410 can be opened through the first bevel gear 440, water can be supplied into the first connecting pipeline 140 through the second ball valve 410, the first handle 493 is loosened, the second ball valve 410 can be closed through the elastic action of the first spring 490, at this moment, the water supply is stopped, and the operation is finished.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (9)
1. A numerical control machine tool having a washing water recycling structure, comprising a machine tool body (100), said machine tool body (100) comprising a machine tool body (110), characterized in that: a waste liquid inlet (120) is formed in the right side of the top end of the numerical control machine tool main body (110), a precipitation purification tank (130) is formed in the numerical control machine tool main body (110), the waste liquid inlet (120) is inserted into the precipitation purification tank (130), a first connecting pipeline (140) is inserted into the bottom end of the precipitation purification tank (130), a clean water tank (150) is formed in the numerical control machine tool main body (110), the bottom end of the first connecting pipeline (140) is inserted into the clean water tank (150), a second connecting pipeline (160) is inserted into the left end of the clean water tank (150), the left end of the second connecting pipeline (160) is fixedly connected with a third connecting pipeline (170) through a transfer pipe, a water pump (180) is fixedly connected to the top end of the third connecting pipeline (170), the right end of the water pump (180) is fixedly connected to the outer wall of the numerical control machine tool main body (110), and a fourth connecting pipeline (190) is fixedly connected to the top end of the water pump (180), the top end of the fourth connecting pipeline (190) is fixedly connected with a fifth connecting pipeline (191) through a transfer pipe, the right end of the fifth connecting pipeline (191) is fixedly connected with a first hose (192) through a joint, the right end of the first hose (192) is fixedly connected with a cleaning spray head (193), the right side of the waste liquid inlet (120) is provided with a lifting mechanism (200), the lifting mechanism (200) comprises an output motor (210), the right end of the numerical control machine tool main body (110) is provided with the output motor (210) through a bolt, the left end of the output motor (210) is fixedly connected with a first connecting rod (220), the top end of the numerical control machine tool main body (110) is provided with a first cavity (230), the first connecting rod (220) is inserted into the first cavity (230), the left end of the first connecting rod (220) is fixedly connected with a worm (240), and the inner wall of the top end of the first cavity (230) is fixedly connected with two groups of fixed side plates (250), one end of each of the two groups of fixed side plates (250) connected with the first cavity (230) is fixedly connected with a first gear (260) and a second gear (270) through a rotating shaft respectively, the first gear (260) is meshed with the second gear (270), the bottom end of the first gear (260) is meshed with the worm (240), the inner wall of the left side of the first cavity (230) is connected with a protective baffle (280) in a sliding manner, the right end of the protective baffle (280) is meshed with the second gear (270), the left end of the protective baffle (280) is fixedly connected with a sealing plate (290), an automatic purification mechanism (300) is arranged above the sedimentation purification tank (130), the automatic purification mechanism (300) comprises a purifying agent placing cavity (310), the right end of the numerical control machine body (110) is fixedly connected with a purifying agent placing cavity (310), and the bottom end of the purifying agent placing cavity (310) is fixedly connected with a sixth connecting pipeline (320), the bottom end of the sixth connecting pipeline (320) is fixedly connected with a seventh connecting pipeline (330) through a transfer pipe, the seventh connecting pipeline (330) is inserted into the sedimentation and purification tank (130), a first ball valve (340) is installed inside the sixth connecting pipeline (320), a second connecting rod (350) is fixedly connected with the left end of the first ball valve (340), a second cavity (360) is formed inside the numerical control machine tool main body (110), the second connecting rod (350) is in bearing connection with the inner wall of the left end of the second cavity (360), a third gear (370) is fixedly connected with the outer wall of the second connecting rod (350), a first rack plate (380) is inserted into the sedimentation and purification tank (130), the top end of the first rack plate (380) is inserted into the second cavity (360), a floating plate (390) is fixedly connected with the bottom end of the first rack plate (380), and mounting plates (391) are fixedly connected with the inner walls of the left side and the right side of the waste liquid inlet (120) through bolts, a filter plate (392) and an activated carbon adsorption layer (393) are fixedly connected between the two groups of mounting plates (391) respectively, a control mechanism (400) is arranged on the right side of the clean water tank (150), the control mechanism (400) comprises a second ball valve (410), the second ball valve (410) is mounted inside the first connecting pipeline (140), a third connecting rod (420) is fixedly connected to the right end of the second ball valve (410), a third chamber (430) is formed inside the numerical control machine tool main body (110), a right end bearing of the third connecting rod (420) is connected to the right end inner wall of the third chamber (430), a first bevel gear (440) is fixedly connected to the outer wall of the third connecting rod (420), a fourth connecting rod (450) is connected to the inner wall bearing at the bottom end of the third chamber (430), a second bevel gear (460) is meshed with the first bevel gear (440) and is fixedly connected to the top end of the fourth connecting rod (450), the outer wall of the fourth connecting rod (450) is fixedly connected with a fourth gear (470), the inner wall of the left end of the third chamber (430) is fixedly connected with a sleeve (480), the inner wall of the sleeve (480) is fixedly connected with a first spring (490), the right end of the first spring (490) is fixedly connected with a connecting plate (491), the right end of the connecting plate (491) is fixedly connected with a fifth connecting rod (492), the right end of the fifth connecting rod (492) is fixedly connected with a first handle (493), the front end of the fifth connecting rod (492) is fixedly connected with a second rack plate (494), the second rack plate (494) is meshed with the fourth gear (470), the automatic liquid injection mechanism (500) is arranged outside the fifth connecting pipeline (191), and the swing mechanism (600) is arranged below the first hose (192).
2. The numerical control machine tool having a washing water recycling structure according to claim 1, wherein: first spout (231) have been seted up to first cavity (230) left side inner wall, and first spout (231) inside sliding connection has first slider (232), the one end fixed connection of first spout (231) is kept away from in first slider (232) is in guard flap (280).
3. The numerical control machine tool having a washing water recycling structure according to claim 1, wherein: the material of the floating plate (390) is foam material, and the inner shape of the floating plate (390) is hollow.
4. The numerical control machine tool having a washing water recycling structure according to claim 1, wherein: a second sliding groove (495) is formed in the inner wall of the sleeve (480), a second sliding block (496) is connected inside the second sliding groove (495) in a sliding mode, and one end, far away from the second sliding groove (495), of the second sliding block (496) is fixedly connected to the connecting plate (491).
5. The numerical control machine tool having a washing water recycling structure according to claim 1, wherein: the automatic liquid injection mechanism (500) comprises an outer pipe (510), the outer wall of a fifth connecting pipeline (191) is fixedly connected with the outer pipe (510), the bottom end of the outer pipe (510) is fixedly connected with two groups of supporting columns (520), the bottom ends of the two groups of supporting columns (520) are fixedly connected to a numerically-controlled machine tool main body (110), a cleaning agent placing cavity (530) is installed at the top end of the outer pipe (510), the bottom end of the cleaning agent placing cavity (530) is fixedly connected with a second hose (540), the inner wall bearing at the bottom end of the fifth connecting pipeline (191) is connected with a sixth connecting rod (550), the outer wall of the sixth connecting rod (550) is fixedly connected with a stirring blade (560), a fourth cavity (570) is formed in the outer pipe (510), the sixth connecting rod (550) is inserted into the fourth cavity (570), and a rotating plate (580) is fixedly connected to the top end of the sixth connecting rod (550), the improved extrusion device is characterized in that the rotating plate (580) is connected with a hinge rod (590) through a rotating shaft, the inner wall of the fourth cavity (570) is fixedly connected with a fixing plate (591), a push rod (592) penetrates through the inside of the fixing plate (591), one end, far away from the rotating plate (580), of the hinge rod (590) is connected with the push rod (592) through a rotating shaft, the left end of the push rod (592) is fixedly connected with an extrusion head (593), and an extrusion groove (594) is formed in the outer tube (510).
6. The numerical control machine tool having a washing water recycling structure according to claim 5, wherein: third spout (595) have been seted up to fourth cavity (570) top, and third spout (595) inside sliding connection has third slider (596), one end fixed connection in connecting block (597) that third spout (595) were kept away from in third slider (596), and one end fixed connection in push rod (592) that third slider (596) were kept away from in connecting block (597).
7. The numerical control machine tool having a washing water recycling structure according to claim 5, wherein: the left end shape of the extrusion head (593) and the left end shape of the extrusion groove (594) are both arc-shaped, and the left end shape of the extrusion head (593) and the left end shape of the extrusion groove (594) are matched with each other.
8. The numerical control machine tool having a washing water recycling structure according to claim 1, wherein: swing mechanism (600) is including fixed baseplate (610), digit control machine tool main part (110) top fixedly connected with fixed baseplate (610), and fixed baseplate (610) inner bearing is connected with bull stick (620), bull stick (620) bottom fixedly connected with second handle (630), bull stick (620) top fixedly connected with disc (640), fixed baseplate (610) top right side fixedly connected with back shaft (650), and back shaft (650) top fixed connection in washing shower nozzle (193), back shaft (650) outer wall fixedly connected with swing board (660), and swing board (660) inside spacing groove (670) have been seted up, spacing groove (670) inside sliding connection has sliding block (680), and sliding block (680) bottom fixed connection in disc (640).
9. The numerical control machine tool having a washing water recycling structure according to claim 8, wherein: a fourth sliding groove (611) is formed in the fixed base (610), a fourth sliding block (612) is connected to the inside of the fourth sliding groove (611) in a sliding manner, one end, far away from the fourth sliding groove (611), of the fourth sliding block (612) is fixedly connected to a seventh connecting rod (613), and one end, far away from the fourth sliding block (612), of the seventh connecting rod (613) is fixedly connected to the swinging plate (660).
