本发明公开了一种户外LED显示屏清洁维护设备，包括底座，底座上装设有剪力升降机，剪力升降机上装设有工作台，工作台上装设有风机，工作台上装设有蓄水箱，蓄水箱上装设有水泵，水泵连通蓄水箱，工作台上装设有安装杆，安装杆的一侧装设有喷淋支架，安装杆上装设有超声波测距仪，安装杆的一侧装设有伸缩杆，伸缩杆的伸缩端连接有清洁擦板，通过剪力升降机进行做抬升，将工作台上升到与显示屏上部平行的位置后，根据超声波测距仪提示，来调整与显示屏距离，集成控制器启动风机对显示屏进行吹尘作业，然后喷头将清洁剂泵射在屏幕上，最后清洁擦板贴合显示屏进行擦拭，来完成对的清洁维护作业，提高了工作效率。
This invention discloses an outdoor LED display screen cleaning and maintenance device, including a base, a shear lift mounted on the base, a worktable mounted on the shear lift, a fan mounted on the worktable, a water tank mounted on the worktable, a water pump mounted on the water tank, the water pump connected to the water tank, an installation rod mounted on the worktable, a spray bracket mounted on one side of the installation rod, an ultrasonic rangefinder mounted on the installation rod, and a telescopic rod mounted on one side of the installation rod. The telescopic end of the telescopic rod is connected to a cleaning wiper. The shear lift is used to raise the worktable to a position parallel to the top of the display screen. Based on the ultrasonic rangefinder's indication, the distance between the worktable and the display screen is adjusted. An integrated controller starts the fan to blow dust off the display screen, then the spray nozzles pump cleaning agent onto the screen, and finally the cleaning wiper is used to wipe the display screen, completing the cleaning and maintenance work and improving work efficiency.
Description
Technical Field
The invention belongs to the technical field of outdoor equipment maintenance, and particularly relates to an outdoor LED display screen cleaning and maintenance device.
Background
The LED display screen is a flat panel display, is composed of small LED module panels, and is used for displaying various information such as characters, images, videos, video signals and the like. The LED display screen is widely used, and is particularly used for advertisement, display, time and administration propaganda and the like outdoors, and the effect is very good. The LED display screen is often used outdoors to achieve the purposes of propaganda and the like, and because the outdoor environment is relatively severe indoors, dust of large and small particles in the air is very much, so that the outdoor LED display screen is easy to get dirty, and the display effect is influenced.
Regularly wash and maintain the LED display screen, can prolong the life of LED display screen, improve the service quality of LED display screen, generally for artifical clean at present stage, clean efficiency is lower, has increased cleaning operation's cost of labor.
Disclosure of Invention
The invention aims to provide cleaning and maintaining equipment for an outdoor LED display screen, which aims to solve the problem of low cleaning efficiency in the prior art.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides an outdoor LED display screen cleaning and maintenance equipment, includes the base, the base facial make-up is equipped with the shear force lift, the shear force lift facial make-up is equipped with the workstation, the workstation facial make-up is equipped with the fan, the workstation facial make-up is equipped with the water storage box, the water storage box facial make-up is equipped with the water pump, water pump intercommunication water storage box, the play water end of water pump is connected with the hose, the workstation facial make-up is equipped with the installation pole, the support that sprays has been installed to one side of installation pole, the other end of hose is connected and is sprayed the water end of support, the installation pole facial make-up is equipped with ultrasonic distance meter, the telescopic link has been installed to one side of installation pole, the flexible end.
Preferably, the one end of water storage box is equipped with the perforation, the end of intaking of water pump is connected with the drinking-water pipe, the drinking-water pipe is worn out in the fenestrate one end gets into the water storage box, integrated control ware has been installed to water storage box one side, the integration has wireless information processing module and drive module in the integrated control ware.
Preferably, the workbench is provided with a storage battery.
Preferably, the fixed plate has been installed to the both sides of base, be equipped with the screw hole on the fixed plate, screw hole female connection has the threaded rod, the supporting seat has been installed to the one end that the threaded rod back-out screw hole.
Preferably, one side of the base is provided with a push rod, and the lower surface of the base is provided with a universal wheel.
Compared with the prior art, the invention has the beneficial effects that:
according to the outdoor LED display screen cleaning and maintenance equipment, the shear force lifter is used for vertically lifting, the workbench is moved to a position parallel to the upper portion of the LED display screen, then the remote control terminal sends out an instruction, after the horizontal distance between the workbench and the display screen is adjusted according to the prompt of the ultrasonic distance meter, the remote control integrated controller sequentially starts the fan, the water pump and the telescopic rod, the shear force lifter is started to move downwards at a uniform speed, the fan blows dust to the LED display screen, then the sprayer pumps a cleaning agent pumped by the water pump from the water storage tank onto the LED screen, and finally the telescopic rod pushes the cleaning wiping plate to be attached to the LED display screen for wiping, so that the cleaning and maintenance operation on the LED is completed, and the working efficiency is improved.
According to the outdoor LED display screen cleaning and maintenance equipment, the push rod is pushed to drive the universal wheel to rotate, the cleaning and maintenance equipment is moved to a proper position below the LED display screen to be cleaned, the threaded rod is rotated to enable the supporting seat to abut against the ground, the cleaning and maintenance equipment is fixed, and the cleaning and maintenance equipment is convenient to move and use.
Drawings

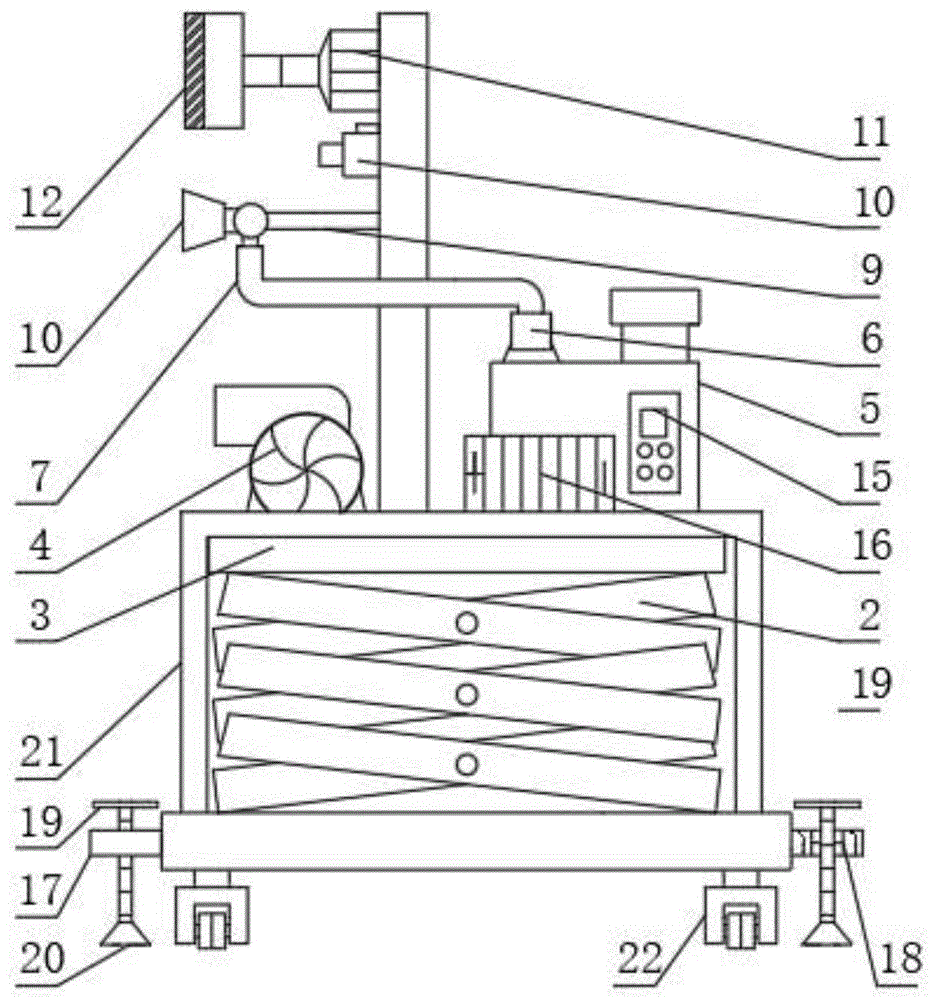

FIG. 1 is a front view partially cut-away schematic view of the present invention;
FIG. 2 is a left side schematic view of FIG. 1;
fig. 3 is a sectional view of fig. 2.
In the figure: the device comprises a base 1, a shear lifter 2, a workbench 3, a fan 4, a water storage tank 5, a water pump 6, a hose 7, an installation rod 8, a spraying support 9, an ultrasonic range finder 10, an expansion rod 11, a cleaning wiping plate 12, a perforation 13, a water pumping pipe 14, an integrated controller 15, a storage battery 16, a fixing plate 17, a threaded hole 18, a threaded rod 19, a supporting seat 20, a push rod 21 and a universal wheel 22.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
Referring to fig. 1, 2 and 3, an outdoor LED display screen cleaning and maintenance device comprises a base 1, a shear force lifter 2 is welded on the base 1, the model of the shear force lifter 2 is GTWY8-100, a workbench 3 is welded on the shear force lifter 2, a fan 4 is welded on the workbench 3, the model of the fan 4 is YE2-112M-4, the input end of the fan 4 is connected with a driving module of an integrated controller 15 through an electric wire, a water storage tank 5 is welded on the workbench 3, a water pump 6 is welded on the water storage tank 5, the model of the water pump 6 is ISG40-125, the input end of the water pump 6 is connected with the driving module of the integrated controller 15 through an electric wire, the water pump 6 is communicated with the water storage tank 5, a hose 7 is connected to the water outlet end of the water pump 6 in an interference manner, an installation rod 8 is welded on the workbench 3, a spray bracket 9 is welded on the left side of the installation rod 8, the other end, the utility model discloses a spraying support 9 has the shower nozzle, the model of shower nozzle is ZSLY-B, quantity is 6, the welding has ultrasonic ranging appearance 10 on the installation pole 8, ultrasonic ranging appearance 10's model is WP40-16DTR, ultrasonic ranging appearance 10's input passes through the drive module of connection of electric lines integrated controller 15, ultrasonic ranging appearance 10's information output part passes through the wireless information processing module of wireless signal connection integrated controller 15, the welding of installation pole 8's left side has telescopic link 11, telescopic link 11's model is XDHA12-50, the drive module of connection of electric lines integrated controller 15 is passed through to telescopic link 11's input, telescopic link 11's telescopic end welded connection has clean wiping board 12, the clean end of clean wiping board 12 is the high density sponge material.
Referring to fig. 1, fig. 2 and fig. 3, the top of water storage box 5 is equipped with perforation 13, the end interference of intaking of water pump 6 is connected with drinking-water pipe 14, the one end that drinking-water pipe 14 wore out perforation 13 gets into in the water storage box 5, the preceding welding of water storage box 5 has integrated controller 15, integrated controller 15's model is RC06, integrated wireless information processing module and the drive module have in the integrated controller 15, wireless information processing module's information output end passes through radio signal connection remote control terminal, integrated controller 15's input passes through the output of connection of electric lines battery 16, the welding has battery 16 on the workstation 3, the input of battery 16 passes through the connection of electric lines power.
Referring to fig. 1, 2 and 3, fixing plates 17 are welded on two sides of a base 1, threaded holes 18 are formed in the fixing plates 17, threaded rods 19 are connected to the threaded holes 18 in an internal thread mode, a supporting seat 20 is welded at the bottom end, where the threaded rods 19 are screwed out of the threaded holes 18, of the bottom end, a push rod 21 is welded on the right side of the base 1, universal wheels 22 are welded on the lower surface of the base 1, and the universal wheels 22 are J05S-222 in number of 4.
Do vertical lifting through starting shear force lift 2, move workstation 3 to the position parallel with LED display screen upper portion, the suggestion of rethread ultrasonic ranging appearance 10, the horizontal distance between adjustment and the display screen, then send the instruction through remote control terminal, remote control integrated control 15 starts fan 4 in proper order, water pump 6 and telescopic link 11, start shear force lift 2 uniform velocity vertical downward movement simultaneously, fan 4 blows the dirt operation to the LED display screen earlier, then shower nozzle 10 jets the detergent pump of water pump 6 extraction from the water storage box 5 on the LED screen, telescopic link 11 promotes clean wiping board 12 laminating LED display screen at last and cleans, accomplish the clean maintenance operation to LED, work efficiency is improved. Accessible promotion push rod 21 drives universal wheel 22 and rotates, and after removing the below suitable position that needs clear LED display screen with clean maintenance equipment, the rethread is rotatory with threaded rod 19, supports supporting seat 20 subaerial, accomplishes the fixed to clean maintenance equipment, makes things convenient for clean maintenance equipment's removal and use.
Claims (5)
1. The utility model provides an outdoor LED display screen cleaning maintenance equipment, includes base (1), its characterized in that: a shear force lifter (2) is arranged on the base (1), a workbench (3) is arranged on the shear force lifter (2), the workbench (3) is provided with a fan (4), the workbench (3) is provided with a water storage tank (5), the water storage tank (5) is provided with a water pump (6), the water pump (6) is communicated with the water storage tank (5), the water outlet end of the water pump (6) is connected with a hose (7), the workbench (3) is provided with a mounting rod (8), one side of the mounting rod (8) is provided with a spraying bracket (9), the other end of the hose (7) is connected with the water drawing end of the spraying bracket (9), the ultrasonic range finder (10) is arranged on the mounting rod (8), a telescopic rod (11) is arranged on one side of the mounting rod (8), and the telescopic end of the telescopic rod (11) is connected with a cleaning wiping plate (12).
2. The outdoor LED display screen cleaning and maintenance equipment according to claim 1, characterized in that: the one end of water storage box (5) is equipped with perforation (13), the end of intaking of water pump (6) is connected with drinking-water pipe (14), in the one end that perforation (13) were worn out in drinking-water pipe (14) got into water storage box (5), integrated control ware (15) have been installed to water storage box (5) one side, the integration has wireless information processing module and drive module in integrated control ware (15).
3. The outdoor LED display screen cleaning and maintenance equipment according to claim 1, characterized in that: and a storage battery (16) is arranged on the workbench (3).
4. The outdoor LED display screen cleaning and maintenance equipment according to claim 1, characterized in that: the fixing plate (17) is installed on two sides of the base (1), a threaded hole (18) is formed in the fixing plate (17), a threaded rod (19) is connected to the threaded hole (18) in an internal thread mode, and a supporting seat (20) is installed at one end, screwed out of the threaded hole (18), of the threaded rod (19).
5. The outdoor LED display screen cleaning and maintenance equipment according to claim 1, characterized in that: one side of the base (1) is provided with a push rod (21), and the lower surface of the base (1) is provided with a universal wheel (22).
