CN112682274A

CN112682274A - Engine room frame structure of wind driven generator

Info

Publication number: CN112682274A
Application number: CN202110157422.XA
Authority: CN
Inventors: 崔新维; 何家志; 胡成明; 段辰玥
Original assignee: Beijing Sanli Xinneng Science & Technology Co ltd
Current assignee: Beijing Sanli Xinneng Science & Technology Co ltd
Priority date: 2021-02-05
Filing date: 2021-02-05
Publication date: 2021-04-20

Abstract

The invention discloses a nacelle frame structure for a wind power generator. The structure adopts the form of a modular space frame and is fixedly connected to the base or the bearing seat of the wind power generator. The frame structure supports the nacelle cover, the nacelle platform, the electric control cabinet, the radiator, the hydraulic station, the nacelle crane, the converter, the transformer and other components in the nacelle of the wind turbine. The use of the frame structure can improve assembly efficiency, reduce the amount and cost of bearing materials of the engine room, simplify the design of the engine room cover, and reduce the manufacturing, transportation and installation costs of the engine room cover.

Description

Engine room frame structure of wind driven generator

Technical Field

The invention relates to the technical field of wind power generation, in particular to an engine room frame structure for a wind driven generator.

Background

The supporting structure of the cabin component of the wind driven generator is an indispensable component in the wind driven generator, supports cabin covers, cabin platforms, an electric control cabinet body, radiators, hydraulic stations, a cabin crane, a current transformer, transformers and other cabin components on one hand, and provides structural support for operation spaces and passages of unit operation and maintenance personnel on the other hand.

At present, the design of the supporting structure of the engine room components of most wind turbine generators does not carry out systematic analysis according to the overall loading characteristics and the supporting requirements of the engine room, but simply designs the connection interface and the supporting requirements in the engine room, so that the supporting structure of the engine room components is excessively heavy or insufficient in supporting capacity, and further the cost is increased or hidden troubles are brought to the safe operation of the generator set. Meanwhile, due to the fact that the whole view is not taken into consideration, designed parts are scattered, and the work of each link of manufacturing, assembling, operation and maintenance is complicated.

Disclosure of Invention

Aiming at the problems, the invention provides a cabin frame structure of a wind driven generator on the basis of comprehensively considering the bearing characteristics of a cabin and the supporting requirements of all parts of the cabin. The scheme of the invention is as follows.

The structure of the invention adopts a modular space frame form and comprises a left module group, a right module group, an upper module group, a lower module group, a rear module group and an auxiliary module group. The left module group, the right module group, the upper module group, the lower module group and the rear module group are respectively positioned at the left part, the right part, the upper part, the lower part and the rear part of the frame structure; the auxiliary module group is an auxiliary connection or support piece of the frame structure. Each module group consists of a plurality of modules; each module group comprises less than 10 modules. Each module is formed by welding or connecting profile steels in a threaded manner, and the module groups are connected in a threaded manner to form an engine room frame structure.

The left module group of the frame structure is connected with the left part of the base; the right module group is connected with the right part of the base; one end of the auxiliary module group is connected with the base or the bearing seat, and the other end of the auxiliary module group is connected with the upper module group. And meanwhile, the frame structure is provided with a corresponding connecting structure for connecting with cabin covers, a cabin platform, an electric control cabinet body, a radiator, a hydraulic station, a cabin crane, a converter, a transformer and other cabin internal parts.

The invention has the beneficial effects that: the cabin component supporting structure of the wind driven generator adopts a modular space frame form, comprehensively considers the cabin bearing characteristics and the supporting requirements of all components of the cabin, reasonably arranges the section steel of each module, improves the assembly efficiency, reduces the field maintenance workload, improves the bearing capacity of the frame structure and reduces the material cost. In addition, the cabin adopting the frame structure can simplify the design of the cabin cover sheet body and reduce the manufacturing, transportation and installation cost of the cabin cover body.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings needed to be used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings based on these drawings without creative efforts.

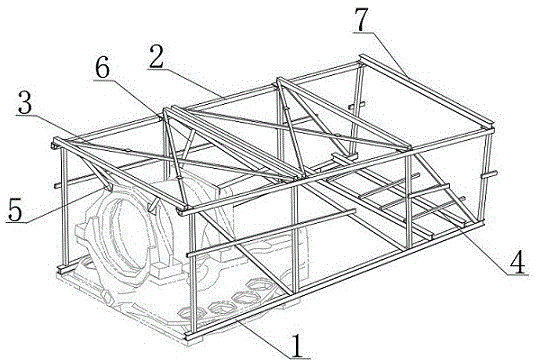

Fig. 1 is a view of a nacelle frame structure of the present invention.

FIG. 2 is a schematic diagram of a left module group and a right module group according to the present invention.

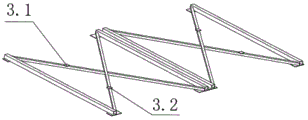

FIG. 3 is a schematic diagram of an upper module group according to the present invention.

FIG. 4 is a schematic view of a lower module of the present invention.

In the figure: 1-left module group, 2-right module group, 3-upper module group, 4-lower module group, 5-front auxiliary module group, 6-rear auxiliary module group, 7-rear module group, 1.1-side interface one, 1.2-side interface two, 1.3-side interface three, 3.1-upper interface one, 3.2-upper interface two, 4.1-lower interface one, 4.2-lower interface two.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings of the present invention. The invention provides a nacelle frame structure of a wind turbine, and preferred embodiments thereof are as follows.

As shown in fig. 1, the structure of the present invention is in the form of a modular space frame, and is composed of a left module group 1, a right module group 2, an upper module group 3, a lower module group 4, a front auxiliary module group 5, a rear auxiliary module group 6, a rear module group 7, and the like. The number of the modules contained in the left module group 1, the right module group 2, the lower module group 4 and the front and rear module groups 7 is one; the number of the modules contained in the upper module group 3, the lower module group 4, the front auxiliary module group 5 and the rear auxiliary module group 6 is two. Each module is formed by welding profile steel; the modules are connected through screw threads to form a cabin frame structure.

The left module group 1 of the frame structure is connected with the left lug plate structure of the base; the right module group 2 is connected with the right lug plate structure of the base; one end of the front auxiliary module group 5 is connected with the front upper part of the bearing seat, and the other end is connected with the upper module group 3; one end of the rear auxiliary module group 6 is connected with the rear upper part of the bearing seat, and the other end is connected with the upper module group 3. And meanwhile, according to the interface requirements of the cabin cover, the cabin platform and all parts in the cabin, the corresponding connecting structure, namely a first side interface 1.1, a second side interface 1.2, a third side interface 1.3, a first upper interface 3.1, a second upper interface 3.2, a first lower interface 4.1 and a second lower interface 4.2, is arranged on the module.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any changes or substitutions that can be easily conceived by those skilled in the art within the technical scope of the present invention are included in the scope of the present invention.

The techniques, shapes, and configurations not described in detail in the present invention are all known techniques.

Claims

1. A nacelle frame structure of a wind turbine is characterized in that: the frame structure is composed of a left module group, a right module group, an upper module group, a lower module group, a rear module group and an auxiliary module group; the left module group , the right module group, the upper module group, the lower module group and the rear module group are respectively located at the left, right, upper, lower and rear parts of the frame structure; the auxiliary module group is the auxiliary connection or support of the frame structure; Each module group described above includes several modules.

2 . The nacelle frame structure of a wind turbine according to claim 1 , wherein the frame structure is in the form of a space frame. 3 .

3. The nacelle frame structure of a wind turbine according to claim 1, wherein: the left module group is connected to the left part of the base; the right module group is connected to the right part of the base; the auxiliary module group is connected One end is connected with the base or the bearing seat, and the other end is connected with the upper module group.

4 . The nacelle frame structure of a wind turbine according to claim 1 , wherein the frame structure is provided with a nacelle cover, a nacelle platform and a connecting structure for components in the nacelle. 5 .

5 . The nacelle frame structure of a wind turbine according to claim 1 , wherein the number of modules included in each module group is less than 10. 6 .

6 . The nacelle frame structure of a wind turbine according to claim 1 , wherein each module is formed by welding or threaded connection of section steel; the nacelle frame structure is formed by threaded connection between module groups. 7 .
