CN112677242B - Integrated equipment for integrating die-cutting machine and ink-jet printer - Google Patents

Abstract

A comprehensive equipment integrating a die-cutting machine and an inkjet printer, relating to the technical field of die-cutting machines, including a die-cutting machine console and an inkjet printer body, the inkjet printer body is fixedly installed behind the die-cutting machine console On the side, a gantry frame is fixedly installed on the top of the operation table of the die-cutting machine, a T-shaped block is fixedly installed on one side of the gantry frame, and a first connecting piece is fixedly installed on one side of the operation table of the die-cutting machine. In the present invention, not only can the products be quickly transported, coded and cut, the work efficiency is increased, but also the products of different thicknesses can be conveniently transported, the practicality is increased, and the surface of the products sprayed with codes can be quickly dried to prevent The phenomenon of transfer printing occurs to prevent the material from shifting during the conveying process, which increases the accuracy of subsequent coding and cutting, reduces the waste of resources, realizes the continuous synchronous operation of cutting and coding, and increases the processing effect.

Description

A comprehensive equipment integrating die-cutting machine and inkjet printer

technical field

The invention relates to the technical field of die-cutting machines, in particular to a comprehensive device integrating a die-cutting machine and an inkjet printer.

Background technique

Die-cutting machine is also called beer machine, cutting machine, CNC stamping machine, mainly used for die-cutting of some corresponding non-metallic materials, self-adhesive, EVA, double-sided adhesive, electronics, mobile phone rubber pad, etc. breaking), indentation and bronzing operations, lamination, automatic waste discharge, die-cutting machines use steel knives, metal molds, steel wires (or templates carved from steel plates), and apply a certain pressure through the embossing plate to print or Rolling and cutting cardboard into a certain shape is an important equipment for post-press packaging processing; inkjet printer is a device that is controlled by software and uses a non-contact method to mark on products. Die cutters and inkjet printers are often used in some material cutting processes.

However, in the existing technology, after cutting the product with a die-cutting machine, it is often necessary to place the cut product at the coding place of the inkjet printer for coding operation. The two processes are separated and discontinuous, which is the effect of processing. And the efficiency is reduced; and if the surface of the printed product is not dried quickly, the phenomenon of transfer will occur; and it is easy to shift during the material conveying process, resulting in a reduction in the accuracy of cutting.

In view of this, this application is proposed.

Contents of the invention

The purpose of the present invention is to provide a comprehensive equipment integrating a die-cutting machine and a printer to solve the problems raised in the above-mentioned background technology.

To achieve the above object, the present invention provides the following technical solutions:

A comprehensive equipment integrating a die-cutting machine and an inkjet printer, including a die-cutting machine console and an inkjet printer body, the inkjet printer body is fixedly installed on the rear side of the die-cutting machine console, and the die-cutting machine A gantry frame is fixedly installed on the top of the console, a T-shaped block is fixedly installed on one side of the gantry frame, and an adjustment slot is provided on the side of the T-shaped block away from the gantry frame, and an adjustment plate is provided on the top of the T-shaped block , the interior of the adjustment tank is respectively provided with an adjustment shaft and an adjustment block, one side of the inkjet printer body is penetrated with an inkjet tube, and the end of the inkjet tube away from the inkjet printer body is connected to a jetting terminal. A connecting rod is fixedly installed on one side of the jetting dock, a first connecting piece is fixedly installed on one side of the die-cutting machine console, and an n-shaped frame is fixedly connected to the side of the top of the first connecting piece close to the main body of the inkjet printer , and the other side of the top of the first connector is fixedly connected with a U-shaped frame, the front side of the n-shaped frame is fixedly installed with a first reduction motor, and the inner lower side of the n-shaped frame is provided with a driving roller, and The inner lower side of the n-shaped frame is provided with a driven roller, the driving shaft runs through the middle of the driving roller, and the driven shaft runs through the middle of the driven roller, and the front and rear ends of the driven shaft are arranged There is a receiving plate, the front and rear sides of the top of the die-cutting machine console are symmetrically penetrated with bolts, the top of the bolts is fixedly connected to the turntable, the front side of the U-shaped frame is fixedly installed with the second reduction motor, and the U-shaped A knife seat is arranged inside the frame, and a knife is fixedly installed on the outer wall of the knife seat, and a rotating shaft runs through the middle of the knife seat.

As a further solution of the present invention: the bottom of the die-cutting machine console is fixedly connected with a support base, and the bottom of the support base is provided with anti-skid lines.

As a further solution of the present invention: the driving shaft and the driving roller are connected through an interference fit, the front end of the driving shaft penetrates the front side of the n-shaped frame and rotates with the output end of the first reduction motor, and the driving shaft The rear end of the driven shaft is connected to the rear inner wall of the n-shaped frame through bearings, the driven shaft and the driven roller are connected through interference fit, and the front and rear ends of the driven shaft are respectively connected to the two receiving plates through bearings , the bolt is connected to the n-shaped frame through threads, and the lower end of the bolt is connected to the top of the receiving plate through a bearing, the rotating shaft and the tool seat are connected through interference fit, and the front end of the rotating shaft runs through the front side of the U-shaped frame And it is rotationally connected with the output end of the second reduction motor, and the rear end of the rotating shaft runs through the rear side of the U-shaped frame, and the rotating shaft and the U-shaped frame are connected through clearance fit.

As a further solution of the present invention: the adjustment block is adapted to the adjustment slot, and the adjustment block and the adjustment slot are connected by sliding, the upper end of the adjustment shaft passes through the top of the T-shaped block and is fixedly connected with the adjustment disc, and The lower end of the adjustment shaft is connected to the bottom inner wall of the adjustment groove through a bearing, and the outer surface of the adjustment shaft inside the adjustment groove is provided with threads, and the adjustment shaft runs through the adjustment block, and the adjustment block and the adjustment shaft are connected by threads. The side of the connecting rod far away from the nozzle is fixedly connected with the side of the regulating block near the outside of the regulating tank.

As a further solution of the present invention: the front and rear parts of the die-cutting machine console away from the first connecting piece are symmetrically fixed and installed with a second connecting piece, and the second connecting piece is fixed on the side away from the die-cutting machine console A slanting plate is installed, and an auxiliary shaft and an auxiliary plate are arranged between the two slanting plates. An auxiliary groove is arranged on the outer wall of the auxiliary plate, and balls are arranged inside the auxiliary groove. shaft, the front and rear ends of the auxiliary shaft are respectively fixedly connected to the two slant plates, and there are several auxiliary shafts, and the several auxiliary shafts are equidistantly arranged between the two slant plates. There are two auxiliary plates, the two auxiliary plates are symmetrically arranged on the front side and the rear side between the two inclined plates, the auxiliary shaft runs through the auxiliary plate, and the auxiliary plate and the auxiliary shaft are connected through damping , both ends of the upper end of the vertical shaft are fixedly connected to the top and bottom inner walls of the auxiliary groove respectively, and the vertical shaft and the ball are connected through clearance fit, a part of the vertical shaft is outside the auxiliary groove, and the auxiliary groove is symmetrically arranged on Adjacent sides of two said auxiliary plates.

As a further solution of the present invention: a drying plate is fixedly installed on the side of the gantry far away from the T-shaped block, a heating cavity is arranged in the middle of the drying plate, and an intermediate frequency heating coil is fixedly installed inside the heating cavity. The top of the drying plate is provided with an air intake hole, and the bottom of the drying plate is provided with an exhaust hole, the inside of the air intake hole is fixedly installed with a fan, and the air intake hole and the exhaust hole are connected to the heating chamber. There are several air intake holes and exhaust holes.

As a further solution of the present invention: a roller is arranged behind the U-shaped frame, a U-shaped block is fixedly connected to the rear side of the inkjet printer body, and a synchronous wheel is arranged inside the U-shaped block, and the roller There is a belt between the synchronous wheel, the synchronous shaft runs through the middle of the synchronous wheel, and the outer edge of the synchronous wheel is provided with a through hole, the rear inner wall of the U-shaped block is embedded with a laser emitting end, and the U-shaped The front inner wall of the block is embedded with a laser receiving end, the rear end of the rotating shaft runs through the roller, the roller and the rotating shaft are connected by interference fit, the roller and the synchronous wheel are connected by a belt drive, and the diameter of the roller and the synchronous wheel Equal, the front and rear ends of the synchronization shaft are respectively connected to the front and rear inner walls of the U-shaped block through bearings, and the laser emitting end, laser receiving end and through holes are all compatible.

As a further solution of the present invention: the outer wall of the die-cutting machine console is provided with a controller, the controller is externally connected to a power supply, the inkjet printer body, the first decelerating motor, the second decelerating motor, and the laser emitting end , the laser receiving end, the fan and the intermediate frequency heating coil are electrically connected to the controller through wires.

Compared with prior art, the beneficial effect of the present invention is:

1. Through the first connecting piece, n-shaped frame, first geared motor, driving roller, driven roller, driving shaft, driven shaft, receiving plate, bolt, turntable, U-shaped frame, second geared motor, rotating shaft , Knife seat, cutter, jetting terminal, connecting rod, T-block, adjusting slot, adjusting disc, adjusting shaft and adjusting block, not only can quickly transport, inkjet and cut the product, but also increase work efficiency , and can facilitate the transportation of products of different thicknesses, increasing the practicability;

2. Through the combined use of the drying plate, heating chamber, air inlet, exhaust hole, fan and intermediate frequency heating coil, the surface of the product that is sprayed with code can be quickly dried to prevent transfer phenomenon;

3. By cooperating with the second connecting piece, inclined plate, auxiliary shaft, auxiliary plate, auxiliary groove, ball and vertical shaft, the feeding material is limited to prevent the material from shifting during the conveying process, increasing the The accuracy of subsequent coding and cutting reduces the waste of resources;

4. Through the cooperative use of rollers, U-shaped blocks, synchronous wheels, belts, synchronous shafts, through holes, laser transmitters and laser receivers, the synchronization of coding and cutting can be controlled to achieve continuous cutting and coding synchronous operation to increase the processing effect.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings used in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention, and thus It should be regarded as a limitation on the scope, and those skilled in the art can also obtain other related drawings based on these drawings without creative work.

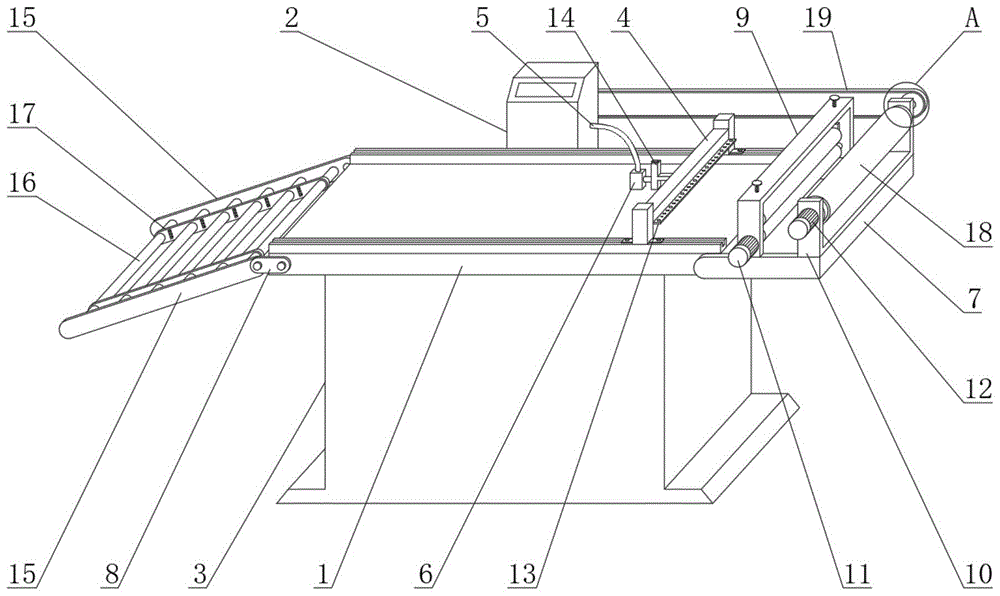

Fig. 1 is a schematic structural diagram of a comprehensive equipment integrating a die-cutting machine and an inkjet printer;

Fig. 2 is a cross-sectional view of a side view of an n-frame in a comprehensive device integrating a die-cutting machine and an inkjet printer;

Fig. 3 is a schematic structural diagram of A enlarged in a comprehensive equipment integrating a die-cutting machine and an inkjet printer;

Fig. 4 is a cross-sectional view of the side view of the inkjet printer body in a comprehensive device integrating a die-cutting machine and an inkjet printer;

Fig. 5 is a cross-sectional view of a front view of a T-shaped block in a comprehensive device integrating a die-cutting machine and an inkjet printer;

Fig. 6 is a sectional view of a top view of an auxiliary shaft and an auxiliary plate in a comprehensive device integrating a die-cutting machine and an inkjet printer;

Fig. 7 is a cross-sectional view of a side view of a drying plate in a comprehensive equipment integrating a die-cutting machine and an inkjet printer.

Marks in the figure: 1. Die-cutting machine console; 2. Inkjet printer body; 3. Support base; 4. Gantry frame; Two connectors; 9, n-shaped frame; 10, U-shaped frame; 11, the first geared motor; 12, the second geared motor; 13, drying plate; 14, T-shaped block; 15, inclined plate; 16, auxiliary shaft 17, auxiliary plate; 18, cutter; 19, belt; 20, driving roller; 21, driven roller; 22, driving shaft; 23, driven shaft; 24, receiving plate; 25, bolt; 26, turntable ;27, tool seat; 28, rotating shaft; 29, roller; 30, U-shaped block; 31, synchronous wheel; 32, synchronous shaft; 33, through hole; 34, laser emitting end; 35, laser receiving end; 36, adjustment Groove; 37, adjusting disc; 38, adjusting shaft; 39, adjusting block; 40, connecting rod; 41, auxiliary groove; 42, ball; 43, vertical shaft; 44, heating cavity; 45, air intake hole; 46, row Air hole; 47, fan; 48, intermediate frequency heating coil.

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the drawings in the embodiments of the present invention. Obviously, the described embodiments It is a part of embodiments of the present invention, but not all embodiments. The components of the embodiments of the invention generally described and illustrated in the figures herein may be arranged and designed in a variety of different configurations.

Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the claimed invention, but merely represents selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative efforts fall within the protection scope of the present invention.

It should be noted that like numerals and letters denote similar items in the following figures, therefore, once an item is defined in one figure, it does not require further definition and explanation in subsequent figures.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer" etc. The indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, or the orientation or positional relationship that is usually placed when the product of the invention is used, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying References to devices or elements must have a particular orientation, be constructed, and operate in a particular orientation and therefore should not be construed as limiting the invention. In addition, the terms "first", "second", "third", etc. are only used for distinguishing descriptions, and should not be construed as indicating or implying relative importance.

Furthermore, the terms "parallel", "perpendicular", etc. do not mean that the components are absolutely parallel or perpendicular, but may be slightly inclined. For example, "parallel" only means that its direction is more parallel than "vertical", and does not mean that the structure must be completely parallel, but can be slightly inclined.

In addition, the terms "horizontal", "vertical", "overhanging" and the like do not mean that the components are absolutely horizontal or overhanging, but may be slightly inclined. For example, "horizontal" only means that its direction is more horizontal than "vertical", and it does not mean that the structure must be completely horizontal, but can be slightly inclined.

Terms such as "approximately" and "basically" are intended to indicate that the relevant content does not require absolute precision, but may have certain deviations. For example: "approximately equal to" does not only mean absolute equality, because it is difficult to achieve absolute "equal" in the actual production and operation process, generally there is a certain deviation. Therefore, in addition to being absolutely equal, "approximately equal to" also includes the above-mentioned situation where there is a certain deviation. Take this as an example, and in other cases, unless otherwise specified, terms such as "approximately" and "basically" have similar meanings to the above.

In the description of the present invention, it should also be noted that, unless otherwise clearly specified and limited, the terms "installation", "installation", "connection" and "connection" should be understood in a broad sense, for example, it may be a fixed connection, It can also be detachably connected or integrally connected; it can be directly connected or indirectly connected through an intermediary, and it can be internal communication between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention in specific situations.

Example

In Embodiment 1 of the present invention, a comprehensive equipment integrating a die-cutting machine and an inkjet printer includes a die-cutting machine console 1 and an inkjet printer body 2, and the inkjet printer body 2 is fixedly installed on the die-cutting machine console 1 The rear side of the die-cutting machine console 1 is fixedly connected with a support base 3, and the bottom of the support base 3 is provided with anti-skid lines, and the top of the die-cutting machine console 1 is fixedly installed with a gantry 4, and one side T-shaped block 14 is fixedly installed, and T-shaped block 14 is provided with adjusting groove 36 away from the side of gantry 4, and the top of T-shaped block 14 is provided with adjusting disk 37, and the inside of adjusting groove 36 is respectively provided with adjusting shaft 38 and Adjusting block 39, the side of the inkjet printer body 2 runs through the inkjet tube 5, and the end of the inkjet tube 5 away from the inkjet printer body 2 is connected to the inkjet terminal 6, and the side of the inkjet terminal 6 is fixedly installed with the connecting rod 40, The adjustment block 39 is compatible with the adjustment groove 36, and the adjustment block 39 is connected to the adjustment groove 36 by sliding, the upper end of the adjustment shaft 38 runs through the top of the T-shaped block 14 and is fixedly connected with the adjustment disc 37, and the lower end of the adjustment shaft 38 It is connected with the bottom inner wall of the adjustment groove 36 through bearings, the outer surface of the adjustment shaft 38 in the adjustment groove 36 is provided with threads, and the adjustment shaft 38 runs through the adjustment block 39, the adjustment block 39 and the adjustment shaft 38 are connected by threads, and the connecting rod 40 The side away from the jetting terminal 6 is fixedly connected to the side of the adjustment block 39 that is close to the outside of the adjustment groove 36, and the side of the die-cutting machine console 1 is fixedly installed with the first connecting piece 7, and the top of the first connecting piece 7 is close to the inkjet printer. One side of the body 2 is fixedly connected with an n-shaped frame 9, and the other side of the top of the first connector 7 is fixedly connected with a U-shaped frame 10. The inner lower side of the frame 9 is provided with a driving roller 20, and the inner lower side of the n-type frame 9 is provided with a driven roller 21, the middle of the driving roller 20 runs through a driving shaft 22, and the middle of the driven roller 21 runs through There is a driven shaft 23, the front and rear ends of the driven shaft 23 are provided with receiving plates 24, the front and rear sides of the top of the die-cutting machine console 1 are symmetrically penetrated with bolts 25, the top of the bolts 25 is fixedly connected with a turntable 26, and the U-shaped frame The front side of 10 is fixedly installed with the second deceleration motor 12, and the inside of U-shaped frame 10 is provided with knife seat 27, and the outer wall of knife seat 27 is fixedly installed with cutter 18, and the middle of knife seat 27 runs through rotating shaft 28, and driving shaft 22 is connected with the driving roller 20 by interference fit, the front end of the driving shaft 22 runs through the front side of the n-type frame 9 and rotates with the output end of the first reduction motor 11, and the rear end of the driving shaft 22 is connected to the n-type frame 9 The inner wall of the rear side is connected by bearings, the driven shaft 23 and the driven roller 21 are connected by interference fit, and the front and rear ends of the driven shaft 23 are respectively connected to the two receiving plates 24 by bearings, and the bolts 25 are connected to the n-shaped frame 9 are connected by thread, and the lower end of the bolt 25 is connected with the top of the receiving plate 24 through a bearing, the rotating shaft 28 is connected with the knife seat 27 through interference fit, and the front end of the rotating shaft 28 runs through the front side of the U-shaped frame 10 and is connected with the second deceleration The output end of the motor 12 is rotatably connected, and the rear end of the rotating shaft 28 runs through the rear side of the U-shaped frame 10 , and the rotating shaft 28 and the U-shaped frame 10 are connected by clearance fit.

The adjustment shaft 38 is driven to rotate by turning the adjustment disc 37, and the adjustment shaft 38 drives the jetting terminal 6 to move in the vertical direction through the adjustment block 39 and the connecting rod 40, which realizes the distance debugging of the jetting jetty 6; Drive the driving shaft 22 to rotate, and the driving shaft 22 drives the driving roller 20 to rotate. When there is a transparent material between the driving roller 20 and the driven roller 21, the driving roller 20 makes the driven shaft 23 and the driven roller 21 reverse When the hour hand rotates, the transparent material can be transported to the U-shaped frame 10, and the second reduction motor 12 works to drive the rotating shaft 28 to rotate, and the rotating shaft 28 drives the cutter 18 to rotate through the knife seat 27, so that the transparent material can be cut; and by rotating The turntable 26 drives the bolt 25 to move in the vertical direction, and the bolt 25 drives the driven roller 21 to move in the vertical direction through the receiving plate 24 and the driven shaft 23, so that the distance between the driving roller 20 and the driven roller 21 can be adjusted. The distance between them is suitable for the transportation of transparent materials with different thicknesses.

In Embodiment 2 of the present invention, the front and rear parts of the die-cutting machine console 1 away from the first connecting piece 7 are symmetrically fixed and installed with the second connecting piece 8, and the second connecting piece 8 is fixed on the side away from the die-cutting machine console 1. A swash plate 15 is installed, an auxiliary shaft 16 and an auxiliary plate 17 are arranged between the two slant plates 15, the outer wall of the auxiliary plate 17 is provided with an auxiliary groove 41, the inside of the auxiliary groove 41 is provided with a ball 42, and the middle of the ball 42 runs through The vertical shaft 43, the front and rear ends of the auxiliary shaft 16 are respectively fixedly connected with the two swash plates 15, and there are several auxiliary shafts 16, and several auxiliary shafts 16 are equidistantly arranged between the two slant plates 15, and the auxiliary plates 17 Two auxiliary plates 17 are arranged symmetrically on the front side and the rear side between the two inclined plates 15, the auxiliary shaft 16 runs through the auxiliary plate 17, the auxiliary plate 17 and the auxiliary shaft 16 are connected through damping, and the vertical shaft 43 The two ends of the upper end of the upper end are respectively fixedly connected with the top and bottom inner walls of the auxiliary groove 41, and the vertical shaft 43 is connected with the ball 42 through clearance fit. A part of the vertical shaft 43 is outside the auxiliary groove 41, and the auxiliary groove 41 is symmetrically arranged on two auxiliary grooves. adjacent side of the plate 17.

Through the auxiliary shaft 16, the transparent material is conveniently transported to the die-cutting machine console 1, and then the distance between the two auxiliary plates 17 is adjusted so that the transparent material is in contact with the balls 42 of the two auxiliary plates 17, which can prevent the transparent material from being in the feeding process. The offset occurs in the middle, which makes the printing and cutting more accurate.

In Embodiment 3 of the present invention, a drying plate 13 is fixedly installed on the side of the gantry 4 away from the T-shaped block 14, and a heating chamber 44 is arranged in the middle of the drying plate 13, and an intermediate frequency heating coil 48 is fixedly installed inside the heating chamber 44, and the drying The top of the plate 13 is provided with an air inlet 45, and the bottom of the drying plate 13 is provided with an air outlet 46, and the inside of the air inlet 45 is fixedly equipped with a fan 47, and the air inlet 45 and the air outlet 46 are connected with the heating chamber 44. In communication, several air inlet holes 45 and air outlet holes 46 are provided.

The outside air is delivered to the inside of the heating chamber 44 through the air inlet 45 through the work of the fan 47, and the intermediate frequency heating coil 48 works to heat the air inside the heating chamber 44, and the heated air is discharged through the exhaust hole 46. The surface of the product is quick-drying to prevent transfer.

In Embodiment 4 of the present invention, a roller 29 is arranged behind the U-shaped frame 10, a U-shaped block 30 is fixedly connected to the rear side of the inkjet printer body 2, and a synchronous wheel 31 is arranged inside the U-shaped block 30, and the roller 29 and the synchronous A belt 19 is provided between the wheels 31, a synchronous shaft 32 runs through the middle of the synchronous wheel 31, and a through hole 33 is provided on the outer edge of the synchronous wheel 31, and a laser emitting end 34 is embedded in the rear side inner wall of the U-shaped block 30, and The front side inner wall of the U-shaped block 30 is embedded with a laser receiving end 35, the rear end of the rotating shaft 28 runs through the roller 29, the roller 29 and the rotating shaft 28 are connected by interference fit, the roller 29 and the synchronous wheel 31 are connected by a belt 19 transmission, and the roller 29 is equal to the diameter of the synchronous wheel 31, the front and rear ends of the synchronous shaft 32 are respectively connected with the inner walls of the front and rear sides of the U-shaped block 30 through bearings, and the laser emitting end 34, the laser receiving end 35 and the through hole 33 are all compatible .

During the cutting process, the rotating shaft 28 drives the roller 29 to rotate, and the roller 29 drives the synchronous wheel 31 to rotate through the belt 19 and the synchronous shaft 32. When the cutter 18 rotates one revolution, the through hole 33 returns to the distance. At this time, the laser receiving end 35 can receive the laser signal emitted by the laser transmitter 34, and can control the coding and cutting to be consistent, so that the processing effect is increased.

The outer wall of the die-cutting machine console 1 is provided with a controller, the controller is externally connected to a power supply, the inkjet printer body 2, the first decelerating motor 11, the second decelerating motor 12, the laser emitting end 34, the laser receiving end 35, the fan 47 and the The intermediate frequency heating coil 48 is electrically connected to the controller through wires.

The working principle of the present invention is:

The adjustment shaft 38 is driven to rotate by rotating the adjustment disc 37, and the adjustment shaft 38 drives the spraying terminal 6 to move in the vertical direction through the adjusting block 39 and the connecting rod 40, which realizes the distance debugging of the spraying terminal 6 and facilitates the coding operation;

Drive the driving shaft 22 to rotate through the work of the first reduction motor 11, and the driving shaft 22 drives the driving roller 20 to rotate. When there is a transparent material between the driving roller 20 and the driven roller 21, the driving roller 20 makes the driven shaft 23 And the driven roller 21 rotates counterclockwise, the transparent material can be transported to the U-shaped frame 10, the second reduction motor 12 works to drive the rotating shaft 28 to rotate, and the rotating shaft 28 drives the cutter 18 to rotate through the knife seat 27, and the transparent material can be to cut;

Turn the turntable 26 to drive the bolt 25 to move in the vertical direction, and the bolt 25 drives the driven roller 21 to move in the vertical direction through the receiving plate 24 and the driven shaft 23, so that the driving roller 20 and the driven roller can be adjusted The distance between 21 is suitable for the transportation of transparent materials with different thicknesses;

Through the auxiliary shaft 16, the transparent material is conveniently transported to the die-cutting machine console 1, and then the distance between the two auxiliary plates 17 is adjusted so that the transparent material is in contact with the balls 42 of the two auxiliary plates 17, which can prevent the transparent material from being in the feeding process. Offset occurs in the center, making the accuracy of coding and cutting higher;

The outside air is delivered to the inside of the heating chamber 44 through the air inlet 45 through the work of the fan 47, and the intermediate frequency heating coil 48 works to heat the air inside the heating chamber 44, and the heated air is discharged through the exhaust hole 46. The surface of the product can be dried quickly to prevent transfer phenomenon;

During the cutting process, the rotating shaft 28 drives the roller 29 to rotate, and the roller 29 drives the synchronous wheel 31 to rotate through the belt 19 and the synchronous shaft 32. When the cutter 18 rotates one revolution, the through hole 33 returns to the distance. At this time, the laser receiving end 35 can receive the laser signal emitted by the laser transmitter 34, and the controller can control the inkjet printer body 2 to work, so that the inkjet and the cutting can be controlled to be consistent, so that the processing effect is increased.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included within the protection scope of the present invention.

Claims (7)

1. A comprehensive equipment that integrates a die-cutting machine and an inkjet printer, including a die-cutting machine console (1) and an inkjet printer body (2), characterized in that: the inkjet printer body (2) is fixedly installed On the rear side of the die-cutting machine console (1), a gantry (4) is fixedly installed on the top of the die-cutting machine console (1), and a T-shaped block is fixedly installed on one side of the gantry (4) (14), the T-shaped block (14) is provided with an adjusting groove (36) away from the side of the gantry (4), and the top of the T-shaped block (14) is provided with an adjusting disc (37), the adjusting groove The inside of (36) is respectively provided with adjustment shaft (38) and adjustment block (39), and one side of the said inkjet printer body (2) runs through the inkjet tube (5), and the said inkjet tube (5) is away from One end of the inkjet printer body (2) is connected with a jetting terminal (6), one side of the jetting terminal (6) is fixedly installed with a connecting rod (40), and one side of the die-cutting machine console (1) is fixed A first connector (7) is installed, and the top of the first connector (7) is fixedly connected with an n-shaped frame (9) near the side of the inkjet printer body (2), and the top of the first connector (7) The other side of the U-shaped frame (10) is fixedly connected, the front side of the n-shaped frame (9) is fixedly installed with the first reduction motor (11), and the inner lower side of the n-shaped frame (9) is provided with The driving roller (20), and the inner underside of the n-type frame (9) is provided with a driven roller (21), the middle of the driving roller (20) runs through a drive shaft (22), and the driven The middle of the roller (21) runs through a driven shaft (23), and the front and rear ends of the driven shaft (23) are provided with receiving plates (24). There are bolts (25) running through the sides symmetrically, the top of the bolts (25) is fixedly connected with the turntable (26), and the front side of the U-shaped frame (10) is fixedly installed with the second reduction motor (12), and the U-shaped The inside of the frame (10) is provided with a knife seat (27), the outer wall of the knife seat (27) is fixedly equipped with a knife (18), and a rotating shaft (28) runs through the middle of the knife seat (27); The rear of the U-shaped frame (10) is provided with rollers (29), the rear side of the inkjet printer body (2) is fixedly connected with a U-shaped block (30), and the inside of the U-shaped block (30) is set A synchronous wheel (31) is arranged, a belt (19) is arranged between the roller (29) and the synchronous wheel (31), a synchronous shaft (32) runs through the center of the synchronous wheel (31), and the synchronous wheel (31 ) is provided with a through hole (33), the rear inner wall of the U-shaped block (30) is embedded with a laser emitting end (34), and the front inner wall of the U-shaped block (30) is embedded with a laser receiving end (35), the rear end of the rotating shaft (28) runs through the roller (29), the roller (29) is connected with the rotating shaft (28) through an interference fit, and the roller (29) and the synchronous wheel (31) pass through Belt (19) transmission connection, and the diameter of roller (29) and synchronous wheel (31) are equal, and the front and rear ends of described synchronous shaft (32) are respectively connected with the front and back both sides inner walls of U-shaped block (30) by bearings, The laser emitting end (34), the laser receiving end (35) and the through hole (33) are all compatible. 2. A kind of comprehensive equipment integrating a die-cutting machine and an inkjet printer according to claim 1, characterized in that: the bottom of the die-cutting machine console (1) is fixedly connected with a support base (3), so The bottom of the supporting base (3) is provided with anti-slip lines. 3. A kind of comprehensive equipment integrating die-cutting machine and inkjet printer according to claim 1, characterized in that: said drive shaft (22) is connected with drive roller (20) through interference fit, said The front end of drive shaft (22) runs through the front side of n-type frame (9) and rotates with the output end of the first reduction motor (11), and the rear end of drive shaft (22) and the rear of n-type frame (9) The side inner wall is connected by a bearing, the driven shaft (23) is connected with the driven roller (21) through an interference fit, and the front and rear ends of the driven shaft (23) are respectively connected to the two receiving plates (24) Connected by bearings, the bolt (25) is threaded with the n-type frame (9), and the lower end of the bolt (25) is connected with the top of the receiving plate (24) by a bearing, and the rotating shaft (28) is connected with the knife seat ( 27) Connected by interference fit, the front end of the rotating shaft (28) passes through the front side of the U-shaped frame (10) and is rotationally connected with the output end of the second reduction motor (12), and the rear end of the rotating shaft (28) Through the rear side of the U-shaped frame (10), the rotating shaft (28) is connected with the U-shaped frame (10) through clearance fit. 4. A comprehensive equipment integrating a die-cutting machine and an inkjet printer according to claim 1, characterized in that: the adjustment block (39) is adapted to the adjustment groove (36), and the adjustment block (39) ) is connected with the adjustment groove (36) by sliding, the upper end of the adjustment shaft (38) runs through the top of the T-shaped block (14) and is fixedly connected with the adjustment disc (37), and the lower end of the adjustment shaft (38) is connected with the adjustment The bottom inner wall of the groove (36) is connected by a bearing, and the outer surface of the adjustment shaft (38) in the adjustment groove (36) is provided with threads, and the adjustment shaft (38) runs through the adjustment block (39), and the adjustment block (39) is threadedly connected with the adjustment shaft (38), and the side of the connecting rod (40) away from the jetting terminal (6) is fixedly connected with the side of the adjustment block (39) near the outside of the adjustment groove (36). 5. A comprehensive equipment integrating a die-cutting machine and an inkjet printer according to claim 1, characterized in that: the front and rear sides of the die-cutting machine console (1) away from the first connecting piece (7) The part is symmetrically fixedly installed with a second connecting piece (8), and the side of the second connecting piece (8) away from the die-cutting machine console (1) is fixedly installed with a slanting plate (15), and the two sloping plates ( 15) are provided with an auxiliary shaft (16) and an auxiliary plate (17), the outer wall of the auxiliary plate (17) is provided with an auxiliary groove (41), and the inside of the auxiliary groove (41) is provided with a ball (42) , the middle of the ball (42) runs through a vertical shaft (43), the front and rear ends of the auxiliary shaft (16) are respectively fixedly connected with the two swash plates (15), and the auxiliary shaft (16) is provided with Several, several auxiliary shafts (16) are equidistantly arranged between the two inclined plates (15), two auxiliary plates (17) are provided, and the two auxiliary plates (17) are symmetrical The auxiliary shaft (16) penetrates through the auxiliary board (17), and the auxiliary board (17) and the auxiliary shaft (16) are damped connection, the two ends of the upper end of the vertical shaft (43) are respectively fixedly connected with the top and bottom inner walls of the auxiliary groove (41), and the vertical shaft (43) is connected with the ball (42) through clearance fit, and the vertical shaft (43 ) is outside the auxiliary groove (41), and the auxiliary groove (41) is symmetrically arranged on adjacent sides of the two auxiliary plates (17). 6. A comprehensive equipment integrating a die-cutting machine and an inkjet printer according to claim 1, characterized in that: a drying plate is fixedly installed on the side of the gantry (4) away from the T-shaped block (14) (13), a heating cavity (44) is arranged in the middle of the drying plate (13), and an intermediate frequency heating coil (48) is fixedly installed inside the heating cavity (44), and the top of the drying plate (13) is opened There is an air inlet (45), and the bottom of the drying plate (13) is provided with an air outlet (46), the inside of the air inlet (45) is fixedly equipped with a fan (47), and the air inlet (45) ) and the exhaust hole (46) are all communicated with the heating cavity (44), and the air inlet (45) and the exhaust hole (46) are all provided with several. 7. A comprehensive equipment integrating a die-cutting machine and an inkjet printer according to any one of claims 1-6, characterized in that: the outer wall of the die-cutting machine console (1) is provided with a controller, The controller is externally connected with a power supply, the inkjet printer body (2), the first gear motor (11), the second gear motor (12), the laser transmitter (34), the laser receiver (35), the fan ( 47) and the intermediate frequency heating coil (48) are electrically connected with the controller by wires.
