Abstract
The invention relates to the field of aquatic product processing, and particularly provides aquatic product cleaning equipment which comprises a spray pipe, a scrubbing rolling shaft, a speed reducing plate, a draining plate and a plurality of brush rollers, wherein the speed reducing plate is a concave arc-shaped plate, ribs are welded on the surface of the speed reducing plate, the scrubbing rolling shaft is arranged along the surface of the speed reducing plate, the spray pipe is arranged above the scrubbing rolling shaft, the draining plate is connected with the speed reducing plate, the draining plate is obliquely arranged, a plurality of draining ports are formed in the draining plate, the brush rollers are arranged along the surface of the draining plate, and a water receiving plate is welded below the draining plate. Through cleaning the cooperation of roller bearing and speed reduction plate, make aquatic products when getting into to clean between roller bearing and the speed reduction plate, can clean down through cleaning the mucus of roller bearing with aquatic products surface, the rivers of being convenient for wash away the mucus, can clean the stubborn spot on aquatic products surface through setting up of brush roller clean, clean the mucus that roller bearing and brush roller wash got off and separate through the waterlogging caused by excessive rainfall board to wash aquatic products futilely.
Description
Technical Field
The invention relates to the field of aquatic product processing, in particular to aquatic product cleaning equipment.
Background
The cleaning of the snail shells and the shellfish is an important and key process in shellfish treatment, the shellfish is difficult to clean due to the special growth environment and physiological composition of the shellfish, a large amount of impurities such as silt, mucus and the like exist on the surfaces of the shellfish, and the shellfish is difficult to clean during cleaning, so that the eating of the shellfish or subsequent processing and deep processing development are easily influenced.
Disclosure of Invention
The technical problem to be solved by the invention is as follows: the invention provides aquatic product cleaning equipment for solving the problem that silt and mucus on the surface of shellfish bodies are difficult to clean.
The technical scheme adopted by the invention for solving the technical problems is as follows: the utility model provides an aquatic products cleaning equipment, includes the shower, still includes cleans roller bearing, speed reduction plate, waterlogging caused by excessive rainfall board and a plurality of brush roller, the speed reduction plate is recessed arc panel, the skin weld of speed reduction plate has stupefied, clean the roller bearing and follow the surface setting of speed reduction plate, clean the roller bearing with the speed reduction plate contactless, the shower pipe erects clean the top of roller bearing, the waterlogging caused by excessive rainfall board links up the speed reduction plate, the waterlogging caused by excessive rainfall board slope sets up, a plurality of waterlogging caused by excessive rainfall mouths have been seted up on the waterlogging caused by excessive rainfall board, the brush roller is followed the surface setting of waterlogging caused by excessive rainfall board, the below of waterlogging caused by excessive rainfall board still welds the.
Preferably, the adjusting spring and the frame are further installed on the back face of the speed reducing plate, two ends of the adjusting spring are respectively fixed to the speed reducing plate and the frame, the number of the adjusting springs is multiple, and the adjusting springs are evenly distributed on the back face of the speed reducing plate.
Preferably, the scrubbing roller comprises a scrubbing motor, a scrubbing main shaft, a plurality of fixing seats and a scrubbing plate, the scrubbing motor is mounted on the frame, an output shaft of the scrubbing motor is connected with the scrubbing main shaft, the plurality of fixing seats are sleeved on the scrubbing main shaft, and the scrubbing plate is correspondingly mounted on the fixing seats.
Preferably, the wiping plate is an arc-shaped plate, the wiping plate protrudes towards the front side, the back side of the wiping plate is installed on the fixed seat, and the front side of the wiping plate is bonded with the sponge strip.
Preferably, the brush roller comprises a brush motor, a brush main shaft and a brush wheel, the brush motor is mounted on the rack, the finishing main shaft is connected with an output shaft of the brush motor, the number of the brush wheels is multiple, and the plurality of the brush wheels are sleeved on the brush main shaft.
Preferably, the end of the speed reducing plate is further provided with a semicircular blocking tile, one side edge of the semicircular blocking tile is welded on the speed reducing plate, and the semicircular blocking tile covers the gap between the speed reducing plate and the rack.
Preferably, a plurality of dividing columns are further mounted on the upper surface of the draining plate, the dividing columns are arranged side by side along the surface of the draining plate to form a plurality of draining channels, a plurality of mud blocking strips are arranged at the bottom of each draining channel corresponding to a draining port, each draining port is a rectangular opening, and the mud blocking strips are arranged at the lower edge of the rectangular opening along the water flow direction.
The aquatic product cleaning device has the beneficial effects that through the matching of the scrubbing rolling shaft and the speed reducing plate, when aquatic products enter between the scrubbing rolling shaft and the speed reducing plate, mucus on the surfaces of the aquatic products can be scrubbed through the scrubbing rolling shaft, the mucus can be washed away by water flow conveniently, stubborn stains on the surfaces of the aquatic products can be scrubbed completely through the arrangement of the brush roller, and the mucus and silt which are cleaned by the scrubbing rolling shaft and the brush roller are separated through the draining plate, so that the aquatic products are cleaned completely.
Drawings
The invention is further illustrated with reference to the following figures and examples.

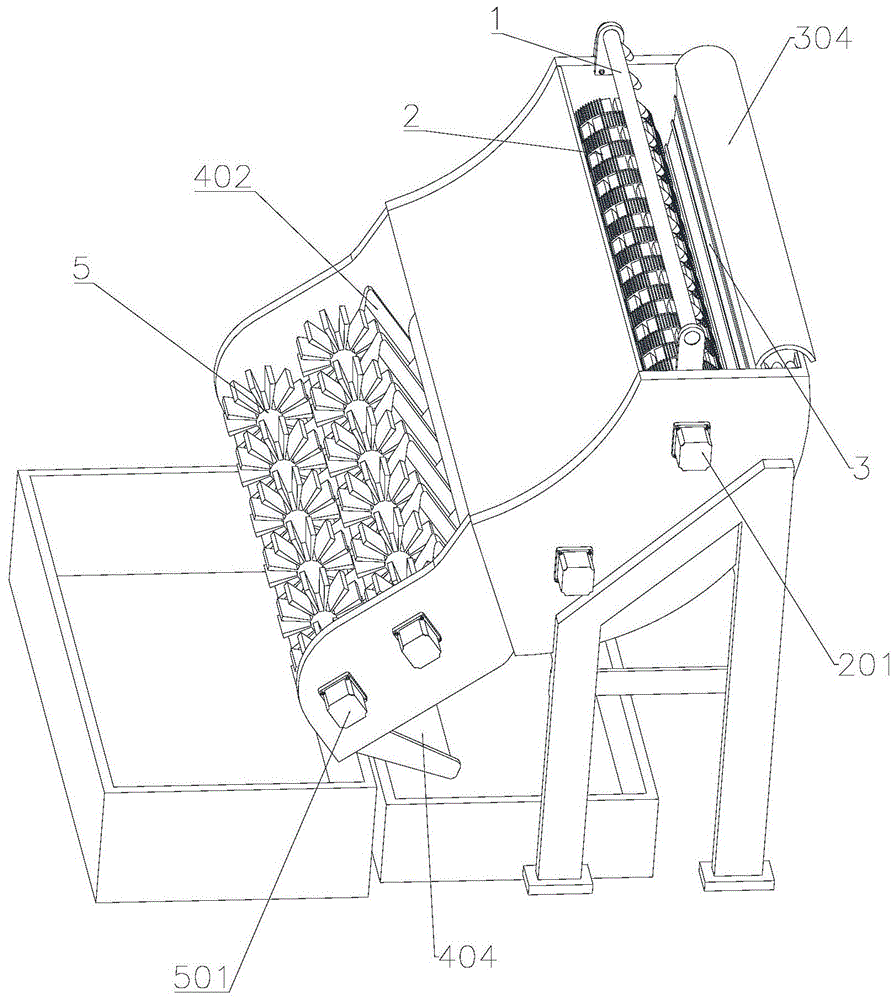

FIG. 1 is a schematic structural view of a preferred embodiment of an aquaculture cleaning apparatus according to the present invention;
FIG. 2 is a schematic view of the scrubbing roller of the aquatic product cleaning apparatus of the present invention;
FIG. 3 is a schematic view of the structure of a speed reducer of the aquatic product cleaning equipment of the present invention;
FIG. 4 is a schematic structural view of a fixed seat and a wiping plate of the aquatic product cleaning equipment;
FIG. 5 is a schematic view showing the structure of a brush roller of the aquatic product cleaning apparatus of the present invention;
FIG. 6 is a schematic view of the structure of a draining board of the aquatic product cleaning equipment of the present invention;
fig. 7 is an enlarged view at a in fig. 6.
In the figure, 1, a spray pipe, 2, a scrubbing rolling shaft, 3, a speed reducing plate, 4, a draining plate, 5, a brush roller, 201, a scrubbing motor, 202, a scrubbing main shaft, 203, a fixed seat, 204, a scrubbing plate, 205, a sponge strip, 301, an adjusting spring, 302, a rack, 303, a ridge, 304, a semicircular tile, 401, a draining port, 402, a dividing column, 403, a mud blocking strip, 404, a water receiving plate, 501, a brush motor, 502, a brush main shaft, 503 and a brush wheel.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the accompanying drawings are illustrative only for the purpose of explaining the present invention, and are not to be construed as limiting the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "axial", "radial", "circumferential", and the like, indicate orientations and positional relationships based on the orientations and positional relationships shown in the drawings, and are used merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be considered as limiting the present invention.
Furthermore, the terms "first," "second," and the like are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "connected" and "connected" are to be interpreted broadly, e.g., as being fixed or detachable or integrally connected; can be mechanically or electrically connected; may be directly connected or indirectly connected through an intermediate. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art. In addition, in the description of the present invention, "a plurality" means two or more unless otherwise specified.
As shown in fig. 1 to 7, the present invention provides an embodiment of an aquatic product cleaning device, including a spray pipe 1, a scrubbing roller 2, a speed reduction plate 3, a draining plate 4 and two brush rollers 5, wherein the spray pipe 1 is erected above the scrubbing roller 2, the scrubbing roller 2 is arranged along the surface of the speed reduction plate 3, the scrubbing roller 2 is not in contact with the speed reduction plate 3, the scrubbing roller 2 includes a scrubbing motor 201, a scrubbing main shaft 202, a fixing seat 203 and a scrubbing plate 204, the scrubbing motor 201 is installed on a frame 302, an output shaft of the scrubbing motor 201 is connected with the scrubbing main shaft 202, a plurality of fixing seats 203 are sleeved on the scrubbing main shaft 202, and the scrubbing plate 204 is correspondingly installed on the fixing seat 203. When aquatic products are cleaned, firstly, the aquatic products are poured between the scrubbing rolling shaft 2 and the speed reducing plate 3, then the scrubbing motor 201 drives the scrubbing main shaft 202 to rotate, the scrubbing plate 204 arranged on the scrubbing main shaft 202 rotates along with the scrubbing main shaft 202 to scrub the aquatic products, and meanwhile, the spray pipe 1 sprays clean water to clean the aquatic products and the scrubbing main shaft 202, so that silt is washed off.
The wiping plate 204 is an arc-shaped plate, the wiping plate 204 protrudes towards the front side, the sponge strip 205 is adhered to the front side of the wiping plate 204, and the back side of the wiping plate 204 is installed on the fixed seat 203. The sponge strip 205 that wipes the board 204 openly bonding wipes the mucus on aquatic products surface down, and the sponge strip 205 can increase the area of contact with aquatic products through deformation when contacting aquatic products surface, also can adapt to the complicated line on aquatic products surface simultaneously, fully wipes the mucus in aquatic products surface gap down, wipes down the mucus on aquatic products surface through wiping the board 204 and makes the mucus wash away by rivers smoothly to the washing to aquatic products surface mucus has been realized.
The speed reducing plate 3 is a concave arc-shaped plate, the adjusting spring 301 and the rack 302 are further installed on the back face of the speed reducing plate 3, two ends of the adjusting spring 301 are respectively fixed on the speed reducing plate 3 and the rack 302, the adjusting spring 301 is provided with a plurality of adjusting springs, and the adjusting springs 301 are evenly distributed on the back face of the speed reducing plate 3. Through the setting of adjusting spring 301 for when wasing the aquatic products of different specifications size, the reduction gear 3 can be through the compression automatically regulated of spring and scrub the distance of roller, thereby adapts to the aquatic products size and cleans.
The surface welding of retarder 3 has fillet 303, and the tip of retarder 3 still is provided with semicircle fender tile 304, and a side of semicircle fender tile 304 welds on retarder 3, and semicircle fender tile 304 covers the top in the gap of retarder 3 and frame 302. The fillet 303 on the reduction gear 3 has increased the removal resistance of aquatic products on reduction gear 3 surface, is convenient for wipe board 204 and cleans aquatic products, and semicircle fender tile 304 can prevent on the one hand that debris from falling into between reduction gear 3 and the frame 302, and on the other hand when putting into reduction gear 3 with abluent aquatic products of needs, semicircle fender tile 304 can play the guide effect and make aquatic products can get into the gap between reduction gear 3 and wipe board 204 smoothly.
The brush roller 5 is arranged along the surface of the draining board 4, the brush roller 5 comprises a brush motor 501, a brush spindle 502 and brush wheels 503, the brush motor 501 is arranged on the frame 302, the brush spindle 502 is connected with the output shaft of the brush motor 501, and the brush wheels 503 are sleeved on the brush spindle 502. After the mucus on the aquatic product surface is cleaned, the hardness of the sponge strip 205 is not enough, so that stubborn stains on the aquatic product surface cannot be wiped off, and therefore when the aquatic product passes through the brush roller 5, the stubborn stains on the aquatic product surface can be brushed through the brush wheel 503, and the aquatic product surface is sufficiently brushed and cleaned.
Draining board 4 links up the air brake 3, and draining board 4 slope sets up, has seted up a plurality of drippings mouth 401 on the draining board 4, and the last surface mounting of draining board 4 has a plurality of columns 402 of cutting apart, and a plurality of columns 402 of cutting apart set up side by side along the surface of draining board 4 and form a plurality of waterlogging caused by excessive rainfall passageways, and brush wheel 503 sets up in the waterlogging caused by excessive rainfall passageway. The post 402 of cutting apart on 4 surfaces of waterlogging caused by excessive rainfall board can make aquatic products concentrate relatively, avoids simultaneously that the brush wheel 503 is when scrubbing aquatic products, and aquatic products atress removes the problem that leads to the unable aquatic products of brush to scrub toward the both sides of brush wheel 503.
The bottom of every waterlogging caused by excessive rainfall passageway corresponds waterlogging caused by excessive rainfall mouth 401 and is provided with a plurality of fender mud strips 403, and waterlogging caused by excessive rainfall mouth 401 is the rectangle opening, and fender mud strip 403 sets up in rectangle open-ended lower limb department along the rivers direction, and the below of draining board 4 has still welded water receiving plate 404, and water receiving plate 404 slope sets up. Draining port 401 cooperation mud guard 403, make silt advance the in-process along with the rivers, some rivers are at first fallen on water receiving plate 404 from the rectangle opening part, and silt in the rivers is blocked by the fender mud guard 403 of rectangle opening lower limb and can't continue to advance by inertia and therefore fall into draining port 401, draining port 401 rectangle open-ended setting makes draining port 401 about both sides edge can hug closely the waterlogging caused by excessive rainfall, a plurality of draining ports 401 form the convenient thorough separation of rivers and silt from the waterlogging caused by excessive rainfall passageway of grid, the width of draining port 401 is less than the minimum diameter of aquatic products, make aquatic products can follow draining port 401 top smoothly through and can not drop, brush wheel 503 incessantly rotatory scrubbing also can assist aquatic products along the motion of waterlogging caused by excessive rainfall passageway simultaneously.
In the description herein, references to the description of the term "one embodiment," "some embodiments," "an example," "a specific example," or "some examples," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, a schematic representation of terms does not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
In light of the foregoing description of the preferred embodiment of the present invention, many modifications and variations will be apparent to those skilled in the art without departing from the spirit and scope of the invention. The technical scope of the present invention is not limited to the content of the specification, and must be determined according to the scope of the claims.
Claims (7)
1. The utility model provides an aquatic products cleaning equipment, includes the shower, its characterized in that: still including cleaning roller bearing, air brake, waterlogging caused by excessive rainfall board and a plurality of brush roller, the air brake is recessed arc panel, the skin weld of air brake has the fillet, clean the roller bearing edge the surface setting of air brake, clean the roller bearing with the air brake contactless, the spray pipe erects clean the top of roller bearing, the waterlogging caused by excessive rainfall board links up the air brake, the waterlogging caused by excessive rainfall board slope sets up, a plurality of waterlogging caused by excessive rainfall mouths have been seted up on the waterlogging caused by excessive rainfall board, the brush roller is followed the surface setting of waterlogging caused by excessive rainfall board, the below of waterlogging caused by excessive rainfall board still welds the water receiving board, the water receiving board slope sets up.
2. An aquacleaning apparatus according to claim 1, wherein: the back of speed reduction plate still installs adjusting spring and frame, adjusting spring's both ends are fixed respectively on speed reduction plate and frame, adjusting spring is equipped with a plurality ofly, and is a plurality of adjusting spring evenly lays at the back of speed reduction plate.
3. An aquacleaning apparatus according to claim 2, wherein: the scrubbing roller comprises a scrubbing motor, a scrubbing main shaft, a plurality of fixing seats and a scrubbing plate, wherein the scrubbing motor is installed on a rack, an output shaft of the scrubbing motor is connected with the scrubbing main shaft, the plurality of fixing seats are sleeved on the scrubbing main shaft, and the scrubbing plate is correspondingly installed on the fixing seats.
4. An aquacleaning apparatus according to claim 3, wherein: the cleaning plate is an arc-shaped plate, the cleaning plate protrudes towards the front side, the back side of the cleaning plate is installed on the fixed seat, and the front side of the cleaning plate is bonded with a sponge strip.
5. An aquacleaning apparatus according to claim 4, wherein: the brush roller comprises a brush motor, a brush main shaft and a brush wheel, the brush motor is installed on the rack, the fine finishing main shaft is connected with an output shaft of the brush motor, the number of the brush wheels is multiple, and the brush wheels are sleeved on the brush main shaft.
6. An aquacleaning apparatus according to claim 5, wherein: the end of the speed reducing plate is further provided with a semicircular retaining tile, one side edge of the semicircular retaining tile is welded on the speed reducing plate, and the semicircular retaining tile covers the gap between the speed reducing plate and the rack.
7. An aquacleaning apparatus according to claim 6, wherein: the upper surface of waterlogging caused by excessive rainfall board still installs a plurality of columns of cutting apart, and a plurality of columns of cutting apart are followed the surface of waterlogging caused by excessive rainfall board sets up side by side and forms a plurality of waterlogging caused by excessive rainfall passageways, every the bottom of waterlogging caused by excessive rainfall passageway corresponds the waterlogging caused by excessive rainfall mouth and is provided with a plurality of fender mud strips, the waterlogging caused by excessive rainfall mouth is the rectangle opening, fender mud strip sets up in rectangle open-ended lower limb department along the rivers.
