CN112648620A

CN112648620A - Garbage crushing device

Info

Publication number: CN112648620A
Application number: CN202011275985.0A
Authority: CN
Inventors: 石建伟; 侯雨辰; 艾强; 张家伟; 吕文娟; 文海罡
Original assignee: Xihua University
Current assignee: Hefei Wisdom Dragon Machinery Design Co ltd
Priority date: 2020-01-07
Filing date: 2020-01-07
Publication date: 2021-04-13
Anticipated expiration: 2040-01-07
Also published as: CN112648620B; CN111219717B; CN111219717A

Abstract

本发明涉及垃圾处理技术领域，具体涉及一种垃圾粉碎装置。具体技术方案为：一种垃圾粉碎装置，包括顶部设有进料口的粉碎炉，所述粉碎炉内横向设置有筛网，所述粉碎炉的底部设置有环形网，所述粉碎炉内竖直设置有转动轴，所述转动轴依次穿过所述环形网和筛网、且伸出所述粉碎炉底部的一端连接有第二电机，穿出所述粉碎炉顶部的一端通过轴承与所述粉碎炉固定，所述转动轴上、位于所述筛网的上方横向设置有若干个粉碎组件。本发明解决了现有技术中无法准确掌握垃圾是否充分燃烧的问题。The invention relates to the technical field of garbage disposal, in particular to a garbage crushing device. The specific technical scheme is: a garbage pulverizing device, comprising a pulverizing furnace with a feeding port at the top, a screen is arranged in the pulverizing furnace horizontally, a ring net is arranged at the bottom of the pulverizing furnace, and a vertical screen is arranged in the pulverizing furnace. A rotating shaft is directly arranged, and the rotating shaft passes through the annular net and the screen in sequence, and the end extending out of the bottom of the pulverizing furnace is connected with a second motor, and the end passing through the top of the pulverizing furnace is connected to the machine through a bearing. The pulverizing furnace is fixed, and several pulverizing components are laterally arranged on the rotating shaft above the screen. The invention solves the problem in the prior art that it is impossible to accurately grasp whether the garbage is fully burned.

Description

Garbage crushing device

Technical Field

The invention relates to the technical field of garbage treatment, in particular to a garbage crushing device.

Background

The problem of waste disposal has been a significant environmental concern worldwide. The traditional garbage disposal mode mainly comprises two modes of landfill and incineration. Landfills occupy a large amount of valuable land resources and also pollute the environment, so that the simple treatment mode is basically not adopted. Compared with landfill disposal, waste incineration is the most widely used disposal method. Through burning, not only the rubbish volume reduces greatly, can also utilize the heat electricity generation, the heat supply that burn the production simultaneously, reaches the purpose of energy reuse.

However, due to the fact that various types of garbage, especially domestic garbage containing some peel and the like with high water content can generate leachate in the stacking process of the garbage, when the garbage is burnt together, the garbage with high water content and the garbage soaked by the leachate are not easy to burn sufficiently, and the insufficient burning of the garbage can cause the generation of carcinogens such as dioxin, so that serious secondary pollution is caused, and the health of people is affected.

At present, the existing garbage incineration mode is to put garbage on a fire grate in an incinerator for incineration, and leachate in the garbage is generally removed in a filtering mode, but the mode not only wastes time, but also influences the life of residents nearby a garbage recycling station due to odor emitted by the garbage. In addition, in the process of burning the garbage, the garbage is firstly burnt from the surface of the garbage pile put in the incinerator, so that the surface temperature of the garbage pile is the highest, the internal temperature of the garbage pile is lower, and the low-temperature burning or insufficient burning is easy to occur, thereby generating toxic and harmful gases. And, rubbish is at the in-process of burning, can't learn the condition that rubbish piles inside burning, and whether unable accurate judgement rubbish piles inside complete combustion, consequently, when continuing to put into new rubbish in the incinerator, not only can give the rubbish that is burning and cover, make the rubbish of rubbish piles inside more difficult fully burn, moreover, at the in-process of newly putting into rubbish, still put out the flame easily, lead to the rubbish burning insufficient, then need ignite again. Therefore, a new garbage incineration system is urgently needed to solve the problems that whether the garbage is sufficiently combusted cannot be accurately mastered in the prior art, and the sufficient combustion of the garbage is influenced by leachate generated in the garbage stacking process.

Disclosure of Invention

Aiming at the defects of the prior art, the invention provides a garbage crushing device, which solves the problem that whether garbage is sufficiently combusted cannot be accurately mastered in the prior art.

In order to achieve the purpose, the invention is realized by the following technical scheme:

the invention discloses a garbage crushing device which comprises a crushing furnace with a feeding hole at the top, wherein a screen is transversely arranged in the crushing furnace, an annular net is arranged at the bottom of the crushing furnace, a rotating shaft is vertically arranged in the crushing furnace, the rotating shaft sequentially penetrates through the annular net and the screen, one end of the rotating shaft, which extends out of the bottom of the crushing furnace, is connected with a second motor, one end of the rotating shaft, which penetrates out of the top of the crushing furnace, is fixed with the crushing furnace through a bearing, and a plurality of crushing assemblies are transversely arranged on the rotating shaft and above the screen.

Preferably, crushing unit includes U type connecting rod, the other end of U type connecting rod rotates and is connected with the cutter, the both sides and the point portion of cutter all are provided with the cutting edge, the length in the U type groove of seting up on the U type connecting rod is greater than the length of cutter.

Preferably, two groups of crushing assemblies are transversely arranged below the screen and on the side wall of the crushing furnace respectively, and the two groups of crushing assemblies are arranged on two sides of the rotating shaft.

Preferably, the crushing subassembly includes two corresponding live rollers, the both ends of live roller through the pivot with crushing stove rotatable coupling, be provided with a plurality of in the circumference of live roller and press the tooth, two press tooth mesh mutually on the live roller, stretch out outside the crushing stove lateral wall be connected with the third motor through the belt in the pivot.

Preferably, two groups of smashing assemblies are arranged below the crushing assembly and are correspondingly arranged on two sides of the rotating shaft.

Preferably, the smashing assembly comprises a transmission shaft transversely arranged in the smashing furnace, a plurality of smashing assemblies are vertically arranged on the transmission shaft, one end of the transmission shaft is fixed on the side wall of the smashing furnace through a bearing, the other end of the transmission shaft is connected with a first bevel gear, and the first bevel gear is meshed with a second bevel gear fixed on the transmission shaft.

Preferably, the bottom of the crushing furnace is fixed with a guide groove with the bottom inclined towards one side, and an opening is arranged at the lowest inclined position.

Preferably, the bottom of the guide groove is provided with a through hole for the rotating shaft to pass through, the rotating shaft in the guide groove is provided with a protective sleeve, one end of the protective sleeve is fixed at the bottom of the crushing furnace, and the other end of the protective sleeve penetrates through the guide groove to be placed or fixed on the second motor.

The invention has the following beneficial effects:

1. according to the invention, the second spiral blade of the garbage filtering device is provided with the plurality of filtering holes, so that garbage is filtered in the conveying process, and leachate in the garbage does not need to be additionally filtered, thereby shortening the garbage treatment time.

2. According to the invention, the fan and the air outlet are arranged in the garbage drying device, so that the garbage drying speed can be increased, and the water vapor in the drying furnace can be dried and then introduced into the incinerator, so that the garbage in the incinerator is combusted more fully, and toxic and harmful gases generated in the garbage combustion process are effectively reduced.

3. The invention adopts 3 steps to carry out stepped crushing on garbage, thereby effectively shortening the garbage crushing time, and specifically comprises the following steps: the screen with the larger aperture can enable small garbage to fall down, can rapidly crush the garbage into required size, and then carries out further crushing, the crushing assembly can not cause the accumulation condition of the garbage, the garbage also falls down along with the rotation of the rotating roller, and the garbage is further crushed by the crushing assembly; in the whole process, the staying time of the garbage in the crushing furnace is greatly shortened, the garbage crushing efficiency is increased, and the garbage crushing time is shortened.

4. The invention arranges a uniform mechanism in the incinerator to make the garbage fall uniformly through the grid net, thereby making the garbage fully combusted; the method specifically comprises the following steps: when the first motor rotates, the transmission rod is driven to rotate, the transmission rod drives the circular ring to enable the circular ring to drive the sliding block to slide in the annular sliding groove, so that the circular ring does circular motion around the transmission rod, the garbage is stirred by the comb teeth fixed at the bottoms of the circular ring and the connecting rod, the garbage uniformly falls down, and the garbage is uniformly combusted.

Drawings

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the garbage filtering apparatus according to the present invention;

FIG. 3 is a schematic structural view of a garbage drying apparatus according to the present invention;

FIG. 4 is a view taken along line A-A of FIG. 3;

FIG. 5 is a schematic view of the garbage crushing apparatus according to the present invention;

FIG. 6 is a view taken along line B-B of FIG. 5;

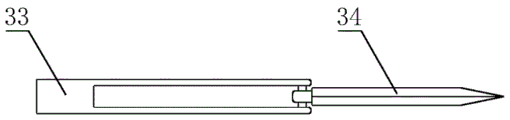

FIG. 7 is a schematic view of the shredder assembly of the present invention;

FIG. 8 is a schematic view of the mechanism of the garbage incineration apparatus of the present invention;

FIG. 9 is a view taken along line C-C of FIG. 8 (without the supporting web in cross-section);

FIG. 10 is a view from direction D-D of FIG. 8;

FIG. 11 is a schematic view of the incineration mechanism of the present invention;

FIG. 12 is an enlarged view of portion A of FIG. 11;

in the figure: the garbage filtering device 1, the garbage drying device 2, the garbage crushing device 3, the garbage incineration device 4, the incinerator 5, the grating net 6, the inlet 7, the ring 8, the connecting rod 9, the fixing block 10, the transmission rod 11, the first motor 12, the comb teeth 13, the fixing rod 14, the sliding block 15, the annular chute 16, the gas pipe 17, the receiving net 18, the gas head 19, the gas hood 20, the dust cover 21, the protective cover 22, the connecting plate 23, the spring 24, the supporting rod 25, the strip-shaped through hole 26, the feed inlet 27, the crushing furnace 28, the screen 29, the annular net 30, the rotating shaft 31, the second motor 32, the U-shaped connecting rod 33, the cutter 34, the rotating roller 35, the pressing teeth 36, the transmission shaft 37, the first bevel gear 38, the second bevel gear 39, the drying furnace 40, the driving shaft 41, the first spiral blade 42, the fourth motor 43, the cylindrical barrel 44, the feed hopper 45, the discharge hopper 46, a fifth motor 49, a spiral conveying mechanism 50, a pipeline 51, a fan 52, an air outlet 53, a guide groove 54, a protective sleeve 55 and a dust cover 56.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Unless otherwise indicated, the technical means used in the examples are conventional means well known to those skilled in the art.

Referring to fig. 1-12, the invention discloses a waste incineration disposal system, which mainly aims at the waste which is classified or the waste after being disposed, such as metal, battery and electrical equipment, which can not be incinerated or can not be incinerated. The waste incineration treatment system comprises a waste filtering device 1, a waste drying device 2, a waste crushing device 3 and a waste incineration device 4. It should be understood that: the garbage filtering device 1 is mainly used for filtering garbage by leachate in the garbage in the process of conveying the garbage, and the garbage does not need to be specially filtered. And then conveying the filtered garbage to a garbage drying device 2, and drying the garbage, wherein the garbage drying temperature is controlled below 100 ℃, so that low-temperature combustion of the garbage caused by high temperature is avoided, and harmful gas is generated. The garbage after being dried is conveyed to the garbage crushing device 3, and is crushed, so that the phenomenon that massive garbage is not easy to burn out in the combustion process is avoided, and harmful gas is generated. And finally, conveying the crushed garbage to the garbage incineration device 4 for incineration treatment, wherein in the garbage incineration process, the garbage incineration device 4 controls the uniform incineration of the garbage, so that the garbage is prevented from being burnt in a pile, the temperature inside the garbage pile is low, the external temperature is high, and the garbage can not be sufficiently combusted.

The method specifically comprises the following steps: referring to fig. 2, the garbage filtering apparatus 1 comprises a cylindrical barrel 44, a feed hopper 45 is provided on a side wall near one end of the cylindrical barrel 44, and a discharge hopper 46 is provided on a side wall near the other end; a conveying shaft 47 is arranged in the cylindrical barrel 44 along the length direction of the cylindrical barrel 44, a second helical blade 48 is arranged on the conveying shaft 47, a plurality of filter holes are formed in the second helical blade 48, a fifth motor 49 is fixed at one end, extending out of the cylindrical barrel 44, of the conveying shaft 47, the other end of the conveying shaft is fixed with the cylindrical barrel 44 through a bearing, and a liquid outlet is formed in the lowest position of the bottom of the cylindrical barrel 44. It should be understood that: the garbage filtering device 1 is obliquely arranged, the feed hopper 45 is arranged at the lower part, the discharge hopper 46 is arranged at the higher part, when the second helical blade 48 conveys garbage, the leachate in the garbage leaks down through the filtering holes on the second helical blade 48 and flows to the lowest part along the cylindrical barrel 44 to be discharged from the liquid outlet, and the discharged landfill leachate is subjected to subsequent treatment, which is not described in detail in the invention. Moreover, when the garbage drying device 2 can not realize continuous feeding of garbage in the operation process, the garbage in the garbage filtering device 1 is in a standing state in the process, and leachate in the garbage can be better filtered out, so that the garbage drying time is shortened.

The outlet of the discharging hopper 46 corresponds to the feeding hopper of the garbage drying device 2, and the garbage conveyed from the discharging hopper 46 directly enters the garbage drying device 2 for drying. Referring to fig. 3-4, the garbage drying device 2 includes a drying oven 40 and a driving shaft 41 transversely disposed in the drying oven 40, a first helical blade 42 is disposed on the driving shaft 41, a fourth motor 43 is disposed at one end of the driving shaft 41 extending out of the drying oven 40, a cavity is disposed on a side wall of the drying oven 40, and a heating wire is disposed in the cavity. It should be understood that: still be provided with temperature and humidity sensor in drying oven 40 for detect the temperature of the interior rubbish of drying oven 40, the position of concrete setting sets up according to actual conditions, preferably sets up in the bottom of drying oven 40, is convenient for measure the temperature and humidity in the rubbish, and the requirement of humidity and temperature sets up according to actual conditions. The bottom of the drying furnace 40 is provided with a discharge hole, a discharge pipe is arranged on the discharge hole, a valve is arranged on the discharge pipe, similarly, a feeding hole is arranged at the top of the drying furnace 40, a feeding hopper is arranged on the feeding hole, and a valve is arranged on the feeding hopper. In order to make the first helical blade 42 turn over the garbage better and increase the drying speed of the garbage, the driving shaft 41 is arranged at the position below the axis of the drying oven 40, so that the garbage is prevented from being accumulated at the bottom of the drying oven 40, and the first helical blade 42 cannot turn over the garbage better.

Further, in order to avoid the influence of the steam generated in the process of drying the garbage on the drying effect of the garbage (the garbage is still in a wet state due to the existence of the steam), a plurality of through holes are arranged on the side wall of the drying oven 40 close to the bottom of the drying oven, and each through hole is communicated with the fan 52 through a pipeline 51; meanwhile, a plurality of air outlet holes 53 are formed in the side wall of the drying furnace 40 close to the top of the drying furnace, each air outlet hole 53 is communicated through an air pipe, the other end of each air pipe is communicated with the incinerator 5, in the whole process, the fan 52 blows air into the drying furnace 40 to accelerate evaporation of moisture in the garbage, evaporated water vapor is discharged into the incinerator 5 through the air pipes, air is added into the incinerator 5, and therefore the temperature of garbage incineration is increased, and the garbage is fully combusted. It should be noted that: and a filter layer is arranged in each through hole and each air hole, so that the through holes and the air holes are prevented from being blocked by garbage. Simultaneously, in order to avoid moisture in the steam to cause the influence to the waste combustion, be connected to the gas drying tower with tracheal other end on, carry out the drying back to steam, again with the gas after the drying through the trachea be connected to burn burning furnace 5 on, the gas drying tower is existing equipment, the purchase just can obtain.

After the garbage is dried to meet the requirement, a valve on the discharging pipe is opened, the dried garbage is poured into a feeding hole of the spiral conveying mechanism 50, the spiral conveying mechanism 50 is started, the dried garbage is conveyed into the garbage crushing device 3 to be crushed, and a discharging hole of the spiral conveying mechanism 50 corresponds to the feeding hole 27 of the garbage crushing device 3.

Referring to fig. 5-7, the garbage crushing device 3 includes a crushing furnace 28 having a feeding port 27 at the top, a screen 29 is transversely disposed in the crushing furnace 28, a ring of annular net 30 is disposed at the bottom of the crushing furnace 28, a rotating shaft 31 is vertically disposed in the crushing furnace 28, the rotating shaft 31 sequentially penetrates through the annular net 30 and the screen 29, and one end extending out of the bottom of the crushing furnace 28 is connected to a second motor 32, one end extending out of the top of the crushing furnace 28 is fixed to the crushing furnace 28 through a bearing, and similarly, the connection between the rotating shaft 31 and the annular net 30 and the screen 29 is also fixed through a bearing, so as to prevent the rotating shaft 31 from damaging the annular net 30 and the screen 29. A plurality of crushing assemblies are transversely arranged on the rotating shaft 31 and above the screen 29, and the crushing assemblies can be arranged on the rotating shaft 31 in a staggered manner or can be arranged on the rotating shaft 31 in order. Crushing unit includes U type connecting rod 33, and U type connecting rod 33's the other end rotates and is connected with cutter 34, and cutter 34's both sides and point portion all are provided with the cutting edge.

It should be understood that: the crushing assembly only performs primary crushing on the garbage, the aperture of the screen 29 is conventionally set according to actual needs, namely the aperture of the screen 29 is set according to the size of the primarily crushed garbage, and the garbage falls from the screen 29 until the garbage is crushed to the required size; of course, if the waste itself is smaller than the diameter of the screen 29, it will fall without being crushed and will not affect the crushing of larger waste. The shredding assembly is configured to be movable primarily to avoid damage to the cutters 34 from the harder of the waste. The U-shaped link 33 should be understood as: a U-shaped groove is transversely formed in the connecting rod, a rotating rod is arranged in the U-shaped groove, and a through hole matched with the rotating rod is formed in the end part of the cutter 34, so that the cutter 34 can transversely rotate around the rotating rod; meanwhile, in order to avoid the collision between the cutter 34 and the U-shaped link 33, the length of the U-shaped groove formed in the U-shaped link 33 is greater than that of the cutter 34. Except for the connection part with the U-shaped connecting rod 33, the other side surfaces of the cutter 34 are provided with cutting edges to better crush the garbage.

Then, the garbage which is primarily crushed and falls from the screen 29 is further crushed, specifically: transversely be provided with two sets of crushing subassemblies respectively in the below of screen cloth 29, on the lateral wall of crushing stove 28, two sets of crushing subassemblies correspond the both sides that set up at axis of rotation 31, and the crushing subassembly includes two corresponding live rollers 35, and live roller 35's both ends are through pivot and crushing stove 28 rotatable coupling, specifically are: the rotating shaft is fixed with the side wall of the crushing furnace 28 through a bearing, namely the rotating shaft is fixed on the inner ring of the bearing, and the outer ring of the bearing is fixed on the side wall of the crushing furnace 28. The rotating rollers 35 are circumferentially provided with a plurality of pressing teeth 36, the pressing teeth 36 on the two rotating rollers 35 are engaged, and a rotating shaft extending out of the side wall of the crushing furnace 28 is connected with a third motor (not shown in the figure) through a belt. It should be understood that: the crushing subassembly is provided with two sets ofly, distributes in the both sides of axis of rotation 31 to axis of rotation 31 is the center, corresponds the setting. The two rotating rollers 35 in each group of crushing assemblies rotate relatively, i.e. the directions of rotation are different, one is positive rotation and the other is negative rotation, so that the garbage is further crushed. And the third motor can be arranged in the following way: the two rotating rollers 35 with the same rotating direction are driven by the same motor (only one multi-grooved wheel is fixed on the output shaft of the motor), so that the 4 rotating rollers 35 can rotate in different directions by using the two motors.

Then, the garbage crushed by the crushing assembly is further crushed, specifically: two groups of smashing assemblies are arranged below the crushing assemblies and are correspondingly arranged on two sides of the rotating shaft 31. Wherein, the crushing subassembly includes horizontal setting transmission shaft 37 in smashing stove 28, and the vertical a plurality of crushing subassembly that is provided with on transmission shaft 37, and is the same, but the setting of straggling also can neatly set up on transmission shaft 37, and this crushing subassembly is the same with the structure of the crushing subassembly of fixing on axis of rotation 31. One end of the transmission shaft 37 is fixed to the side wall of the pulverizing furnace 28 through a bearing, and the other end is connected with a first bevel gear 38, and the first bevel gear 38 is engaged with a second bevel gear 39 fixed to the transmission shaft 37. It should be understood that: the second bevel gear 39 is fixed on the rotating shaft 31, and the small end is upward and the large end is downward; the first bevel gears 38 of the two sets of reducing assemblies are correspondingly engaged on the tooth surfaces of the second bevel gears 39. When the rotating shaft 31 rotates, the second bevel gear 39 rotates, and the rotation of the second bevel gear 39 drives the two first bevel gears 38 to rotate, so as to drive the crushing assembly to rotate, thereby crushing the garbage. The crushed garbage falls down through the annular net 30 at the bottom of the crushing furnace 28, and the annular net 30 is arranged at the bottom of the crushing furnace 28 to increase the falling area of the garbage, so that the garbage can fall down more quickly, the garbage accumulation is avoided, the time is effectively saved, and the garbage can be continuously thrown into the incinerator 5.

In the invention, 3 steps are adopted to crush the garbage in a stepped way so as to shorten the time for crushing the garbage, if the garbage is crushed to the required size in one step, the garbage needs to be crushed for a long time, the consumed time is long, and the large garbage and the small garbage can be mixed together to cause the blockage of the annular net 30. By adopting the garbage crushing device 3, the screen 29 with larger aperture can make small garbage fall down, and can rapidly crush the garbage into the required size, and then perform further crushing, while the crushing component can not cause the garbage accumulation condition, and along with the rotation of the rotating roller 35, the garbage also falls down, and the garbage is further crushed by the crushing component; in the whole process, the time of the garbage staying in the crushing furnace 28 is greatly shortened.

Since the area of the endless wire 30 is large, the area of the place where the garbage falls is also large, and therefore, a guide groove 54 having a bottom inclined to one side is fixed to the bottom of the pulverizing furnace 28, and an opening corresponding to the feed port of the screw conveyor 50 is provided at the lowest inclined position, so that the pulverized garbage is conveyed to the garbage incineration apparatus 4 through the screw conveyor 50 and incinerated. Moreover, a through hole for the rotating shaft 31 to pass through is formed at the bottom of the guide groove 54, a protective sleeve 55 is arranged on the rotating shaft 31 positioned in the guide groove 54, one end of the protective sleeve 55 is fixed at the bottom of the crushing furnace 28, and the other end of the protective sleeve 55 penetrates through the guide groove 54 to be placed or fixed on the second motor 32, so that the garbage is prevented from being attached to the rotating shaft 31.

Referring to fig. 8-12, the garbage incineration apparatus 4 includes an incinerator 5 and a grid net 6 transversely disposed in the incinerator 5, an inlet 7 is disposed at the top of the incinerator 5, a discharge port of the screw conveyor 50 corresponds to the inlet 7, and garbage is thrown into the incinerator 5 through the inlet 7. The upper part of the grid net 6 is provided with an even mechanism, and the lower part is provided with an incineration mechanism. The uniform mechanism comprises a circular ring 8 and a fixed block 10 fixed at the circle center of the circular ring 8 through a connecting rod 9, the fixed block 10 is fixed on the inner wall of the circular ring 8 through the connecting rod 9, the number of the connecting rods 9 is set according to the actual situation, and the number of the connecting rods 9 is preferably two; the top of the fixed block 10 is provided with a transmission rod 11, the transmission rod 11 extends out of the inlet 7, the transmission rod 11 extending out of the inlet 7 is connected with a first motor 12 through a belt, the bottom surfaces of the circular ring 8 and the connecting rod 9 are fixed with a plurality of comb teeth 13, the top of the circular ring 8 is connected with a sliding block 15 through a plurality of fixed rods 14, the top in the incinerator 5 is provided with an annular sliding groove 16 concentric with the inlet 7, the sliding block 15 is matched with the annular sliding groove 16, the fixed rods 14 play a role in connecting the circular ring 8 and the sliding block 15, and the number of the fixed rods 14 is conventionally set. It should be understood that: the uniform mechanism is mainly used for enabling the garbage to uniformly fall through the grid net 6, so that the garbage is fully combusted; since the waste is already crushed, the rings 8, the connecting rods 9, the fixing rods 14 and the transmission rods 11 do not affect the feeding of the spiral conveying mechanism 50 into the incinerator 5. The specific process is as follows: when the first motor 12 rotates, the transmission rod 11 is driven to rotate, the transmission rod 11 drives the circular ring 8 to enable the circular ring 8 to drive the sliding block 15 to slide in the annular sliding groove 16, so that the circular ring 8 does circular motion around the transmission rod 11, the garbage is stirred by the comb teeth 13 fixed at the bottoms of the circular ring 8 and the connecting rod 9, the garbage uniformly falls, and the circle center of the circular ring 8 is concentric with that of the inlet 7. The aperture of the grid net 6 can be the same as that of the ring net 30, or can be larger than that of the ring net 30.

The burning mechanism comprises a gas pipe 17 extending into the incinerator 5 from the side wall of the incinerator 5, and the gas pipe 17 is uniformly laid below the receiving net 18, so that garbage on the receiving net 18 is burnt comprehensively. The gas pipe 17 is connected with a gas source (natural gas can be used), and the flow rate of the gas source is regulated by regulating a pressure regulating valve; the top of the gas pipe 17 is provided with a plurality of combustion components communicated with the gas pipe 17, and a bearing net 18 fixed on the inner wall of the incinerator 5 is arranged above the combustion components. The combustion assembly comprises a gas head 19, a gas cover 20 with a trapezoidal section is arranged at the top of the gas head 19, and a dust cover 21 capable of being opened and closed is arranged at the top of the gas cover 20. It should be understood that: the garbage is burnt on the receiving net 18, the aperture of the receiving net 18 is smaller than that of the grid net 6, and the garbage is prevented from falling from the receiving net 18 without being burnt. The trapezoidal cross section of the gas hood 20 is mainly to reduce the diameter of the gas head 19 and increase the pressure of the gas to be sprayed, thereby increasing the height of the flame for burning the gas. The dust cap 21 is provided on the top of the gas cap 20 to prevent ash generated by burning garbage from falling into the gas cap 20 and causing blockage, so that the burning operation cannot be performed. Moreover, during the combustion of the garbage, the gas introduced from the drying oven 40 into the incinerator 5 increases the combustion temperature of the gas, so that the garbage can be combusted more fully, and the generation of toxic and harmful gases is reduced.

The specific setting mode of the dust cover 21 is as follows: the gas cover is characterized in that protective covers 22 are symmetrically and fixedly arranged on the side wall of the gas cover 20, a connecting plate 23 is hinged to the side wall of the gas cover 20 in each protective cover 22, a spring 24 is fixed between the connecting plate 23 and the side wall of the gas cover 20, a supporting rod 25 is fixed to the top of the connecting plate 23, the other end of the supporting rod 25 is fixed to the dust cover 21, a strip-shaped through hole 26 for the supporting rod 25 to move is formed in the protective cover 22, the length of the strip-shaped through hole 26 is larger than the path of the dust cover 21 in the rotating process, and the two corresponding dust covers 21 cover the outlet of the. The specific process is as follows: after gas is introduced into the gas pipe 17, the gas enters each gas head 19, the dust-proof cover 21 is opened, the gas is sprayed out from the gas cover 20 and is ignited at the same time, an ignition port is arranged on the side wall of the incinerator 5, and manual ignition is carried out through an igniter. And the ignition is in a conventional setting which can be carried out according to actual conditions. When the dust cap 21 receives the impact force from the gas cap 20, the connecting plate 23 compresses the spring 24, so that the two combined dust caps 21 are opened. After the gas cap 20 is no longer vented, the spring will exert a reaction force on the connecting plate 23, so that the two dust caps 21 are re-combined together to cover the outlet of the gas cap 20.

Furthermore, in order to avoid the garbage ashes falling from the receiving net 18 from being accumulated on the gas pipe 17, a dust cover 56 may be disposed on the gas pipe 17, the dust cover 56 is shaped like a Chinese character 'ren', and a through hole for the gas burner 19 to pass through is disposed, so that the garbage ashes slide down to the bottom of the incinerator 5 from the side wall of the dust cover 56, and the cross section of the bottom of the incinerator 5 is inverted trapezoid, thereby preventing the garbage ashes from being accumulated at the bottom of the incinerator 5.

It should be noted that: the bearings used in the invention are all sealed bearings, and the incinerator 5 and all parts in the incinerator 5 are made of the existing high-temperature resistant materials. The side wall of the incinerator 5 between the grid net and the receiving net is provided with a plurality of connecting holes, so that power generation can be conveniently carried out by utilizing heat in the incinerator 5, and waste gas treatment can be carried out by discharging gas generated by burning garbage in the incinerator 5.

In the description of the present invention, it is to be understood that the terms "longitudinal", "lateral", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on those shown in the drawings, are merely for convenience of description of the present invention, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention.

The above-described embodiments are merely illustrative of the preferred embodiments of the present invention, and do not limit the scope of the present invention, and various modifications and improvements of the technical solutions of the present invention can be made by those skilled in the art without departing from the spirit of the present invention, and the technical solutions of the present invention are within the scope of the present invention defined by the claims.

Claims

1. The utility model provides a rubbish reducing mechanism which characterized in that: be equipped with crushing furnace (28) of feed inlet (27) including the top, transversely be provided with screen cloth (29) in crushing furnace (28), the bottom of crushing furnace (28) is provided with annular net (30), the vertical axis of rotation (31) that is provided with in crushing furnace (28), axis of rotation (31) are passed in proper order annular net (30) and screen cloth (29) and stretch out the one end of crushing furnace (28) bottom is connected with second motor (32), wears out the one end at crushing furnace (28) top pass through the bearing with it is fixed to crush furnace (28), axis of rotation (31) are last, are located the top of screen cloth (29) transversely is provided with a plurality of crushing unit.

2. A waste crushing apparatus as set forth in claim 1, wherein: crushing unit includes U type connecting rod (33), the other end of U type connecting rod (33) rotates and is connected with cutter (34), the both sides and the point portion of cutter (34) all are provided with the cutting edge, the length in the U type groove of seting up on U type connecting rod (33) is greater than the length of cutter (34).

3. A waste crushing apparatus as set forth in claim 2, wherein: two groups of crushing assemblies are transversely arranged below the screen (29) and on the side wall of the crushing furnace (28) respectively, and the two groups of crushing assemblies are arranged on two sides of the rotating shaft (31).

4. A waste crushing apparatus as set forth in claim 3, wherein: crushing subassembly includes two corresponding live-rollers (35), the both ends of live-rollers (35) through the pivot with crushing stove (28) rotatable coupling, be provided with a plurality of in the circumference of live-rollers (35) and press tooth (36), two press tooth (36) on live-rollers (35) and mesh mutually, stretch out outside crushing stove (28) lateral wall be connected with the third motor through the belt in the pivot.

5. A waste crushing apparatus as set forth in claim 1, wherein: two groups of smashing assemblies are arranged below the crushing assemblies and are correspondingly arranged on two sides of the rotating shaft (31).

6. A waste comminution device as in claim 5 wherein: the smashing assembly comprises a transmission shaft (37) transversely arranged in the smashing furnace (28), a plurality of smashing assemblies are vertically arranged on the transmission shaft (37), one end of the transmission shaft (37) is fixed on the side wall of the smashing furnace (28) through a bearing, the other end of the transmission shaft is connected with a first bevel gear (38), and the first bevel gear (38) is meshed with a second bevel gear (39) fixed on the transmission shaft (37).

7. A waste crushing apparatus as set forth in claim 1, wherein: a guide groove (54) with the bottom inclined towards one side is fixed at the bottom of the crushing furnace (28), and an opening is arranged at the lowest inclined position.

8. A waste comminution device as in claim 7 that includes: the bottom of the guide groove (54) is provided with a through hole for the rotating shaft (31) to pass through, a protective sleeve (55) is arranged on the rotating shaft (31) in the guide groove (54), one end of the protective sleeve (55) is fixed at the bottom of the crushing furnace (28), and the other end of the protective sleeve (55) penetrates through the guide groove (54) to be placed or fixed on the second motor (32).
