Abstract

本发明涉及一种护理床，尤其涉及一种医用术后康复多功能护理床。提供一种功能性多样，护理人员的工作量较小，可以能满足人们使用需求的医用术后康复多功能护理床。本发明提供了这样一种医用术后康复多功能护理床，包括有：固定部件，固定部件用于安装全部部件；第一滑轨，两个固定部件内侧均连接有第一滑轨；第二滑轨，两个固定部件顶部均设有第二滑轨；背部康复机构，第二滑轨之间的一部设有背部康复机构。采用放料桌、第一楔形块与第二楔形块之间的配合，向左推动防护栏，从而带动放料桌向右移动，方便使用者进行各种活动，同时放料桌带动第一楔形块向右移动，并向外侧压动第二楔形块，从而带动放物抽屉打开，方便使用者放置物品。

Figure 202110035801

The invention relates to a nursing bed, in particular to a medical post-operative rehabilitation multifunctional nursing bed. Provided is a medical post-operative rehabilitation multi-functional nursing bed with diverse functions and less workload of nursing staff, which can meet the needs of people. The present invention provides such a multifunctional nursing bed for post-operative medical rehabilitation, which includes: a fixing part, which is used to install all the parts; a first sliding rail, the inner sides of the two fixing parts are connected with the first sliding rail; In the slide rail, the tops of the two fixed parts are provided with a second slide rail; the back rehabilitation mechanism is provided with a back rehabilitation mechanism at a part between the second slide rails. Using the cooperation between the feeding table, the first wedge-shaped block and the second wedge-shaped block, the guardrail is pushed to the left, thereby driving the feeding table to move to the right, which is convenient for users to perform various activities, and at the same time, the feeding table drives the first wedge-shaped block. The block moves to the right and presses the second wedge-shaped block to the outside, thereby driving the storage drawer to open, which is convenient for the user to place items.

Figure 202110035801

Description

Medical postoperative rehabilitation multifunctional nursing bed
Technical Field
The invention relates to a nursing bed, in particular to a medical postoperative rehabilitation multifunctional nursing bed.
Background
In hospitals, a traditional hospital bed can only realize some basic functions, and has no critical help for the recovery of the state of an illness of a patient, in recent years, a large number of nursing beds appear, and the nursing beds often have some special functions beneficial to the recovery of the patient, and have obvious advantages compared with common hospital beds, so the traditional hospital beds are gradually replaced in the hospitals, but the existing nursing beds are still single in functionality, and some patients need to be supported by nursing staff when needing to sit up, so that the workload of the nursing staff is increased, and the patients cannot be cared for at any time, so that the normal use of people is influenced, and the use requirements of people cannot be met.
Therefore, a medical postoperative rehabilitation multifunctional nursing bed which has various functions and small workload of nursing staff and can meet the use requirements of people needs to be designed to solve the problems.
Disclosure of Invention
In order to overcome the defects that the functionality is single, the workload of nursing staff is large, and the use requirements of people cannot be met, the invention has the technical problems that: the medical postoperative rehabilitation multifunctional nursing bed has multiple functions and smaller workload of nursing personnel, and can meet the use requirements of people.
The technical scheme is as follows: a medical postoperative rehabilitation multifunctional nursing bed comprises:
a fixing part for mounting all the parts;
the inner sides of the two fixed parts are both connected with a first sliding rail;
the tops of the two fixed parts are respectively provided with a second sliding rail;
the back rehabilitation mechanism is arranged at one part between the second sliding rails;
the leg rehabilitation mechanism is arranged on the left part of the leg rehabilitation mechanism and the back rehabilitation mechanism.
Further, the back rehabilitation institution includes:
the first sliding rail is internally provided with a sliding block in a sliding manner;
two bed plates are arranged between the second slide rails, and the bed plate on one side is rotatably connected with the two second slide rails;
the top of the sliding block is rotatably provided with a first connecting plate, and the bottom of the bed plate on one side is rotatably connected with the first connecting plate;
and the guard rails are arranged on the second sliding rails in a sliding manner.
Further, the leg rehabilitation mechanism comprises:
the bed board on one side of the first U-shaped rod is provided with the first U-shaped rod in a sliding manner;
the first U-shaped rod is provided with a telescopic rod, and the telescopic rod is connected with the bed board on one side in a sliding manner;
the material placing plate is arranged between the upper part of the first U-shaped rod and the upper part of the telescopic rod;
two first springs are connected between the material placing plate and the top of the bed plate on one side, and the first springs are all sleeved on the first U-shaped rods.
Further, still include moving mechanism, moving mechanism includes:
the material placing table is arranged between the second sliding rails in a sliding mode;
the inner sides of the material placing tables are provided with first straight racks;
the top of the second sliding rail is rotatably provided with straight gears which are meshed with the first straight racks on the same side;
and the outer sides of the guard railings are respectively provided with a second straight rack, and the straight gears are respectively meshed with the second straight racks on the same side.
Further, still include supplementary rising mechanism, supplementary rising mechanism includes:
a first rotating shaft is arranged in the bed plate on one side of the first rotating shaft;
two second U-shaped rods are arranged at the bottom of the bed plate on the other side of the second U-shaped rod;
the middle part of the telescopic rod is provided with a second connecting plate which is connected with the two second U-shaped rods in a sliding manner;
the inner sides of the two second U-shaped rods are connected with second springs;
the right end of the second connecting plate is rotatably connected with a second rotating shaft;
and the winding wheel sets are connected among the first rotating shaft, the second rotating shaft and two sides of the protective guard.
Further, still including drawer mechanism, drawer mechanism includes:
two first wedge-shaped blocks are arranged on one side of the material placing table;
the bottom of the second sliding rail is provided with an article placing drawer in a sliding way;
the first supporting rods are arranged on the object placing drawers;
the first support rod is provided with a first wedge block in a sliding manner;
and a third spring is arranged between the second wedge block and the first support rod.
Further, still including massage mechanism, massage mechanism is including:
the motor is arranged at the bottom of the bed plate on one side;
the output ends of the motors are provided with third rotating shafts;
the upper part of the bed plate on one side of the second support rod is symmetrically provided with the second support rod;
the massager is rotatably connected between the two second supporting rods;
a pulley set is arranged between the massager and the two ends of the third rotating shaft.
Further, the third spring is a torsion spring.
The invention has the beneficial effects that: the invention has the beneficial effects that: 1. adopt the second connecting plate, cooperation between telescopic link and the wire winding wheelset, when the user pushes down the flitch of putting, drive the second connecting plate downstream through the telescopic link to drive the bed board on right side and swing upwards through the wire winding wheelset, when the flitch of putting is no longer pushed down to user's shank, drive second connecting plate rebound through the telescopic link, thereby drive the bed board downswing on right side through the wire winding wheelset and reset, thereby replace the nursing staff to carry out wobbling action through promoting the bed board that the slider drove the right side.
2. Adopt the cooperation between blowing table, first wedge and the second wedge, promote the rail guard left to drive the blowing table through the spur gear and remove right, the person of facilitating the use eats or other activities, and the blowing table drives first wedge and removes right simultaneously, contacts with the second wedge, presses the second wedge to the outside, thereby drives and puts thing drawer and open to the outside slip, the person of facilitating the use places article.
Drawings

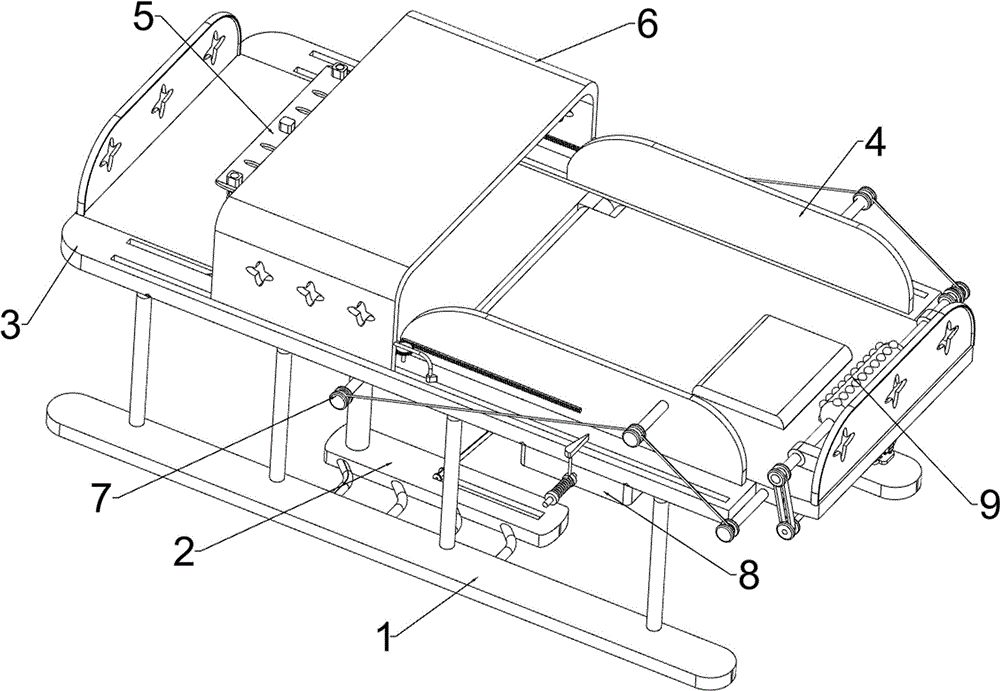

Fig. 1 is a schematic perspective view of the present invention.
Fig. 2 is a schematic perspective view of the back rehabilitation mechanism of the present invention.
Fig. 3 is a schematic perspective view of the leg rehabilitation mechanism of the present invention.
Fig. 4 is a schematic perspective view of the moving mechanism of the present invention.
Fig. 5 is a schematic perspective view of an auxiliary lifting mechanism according to the present invention.
Fig. 6 is a schematic perspective view of the drawer mechanism of the present invention.
Fig. 7 is a schematic perspective view of the massage mechanism of the present invention.
In the above drawings: 1-a fixed part, 2-a first slide rail, 3-a second slide rail, 4-a back rehabilitation mechanism, 41-a slide block, 42-a first connecting plate, 43-a bed plate, 44-a protective fence, 5-a leg rehabilitation mechanism, 51-a first U-shaped rod, 52-a telescopic rod, 53-a first spring, 54-a discharge plate, 6-a moving mechanism, 61-a discharge table, 62-a first straight rack, 63-a straight gear, 64-a second straight rack, 7-an auxiliary lifting mechanism, 71-a first rotating shaft, 72-a winding wheel set, 73-a second rotating shaft, 74-a second connecting plate, 75-a second U-shaped rod, 76-a second spring, 8-a drawer mechanism, 81-a first wedge block, 82-a discharge drawer, 83-a first supporting rod, 84-a third spring, 85-a second wedge-shaped block, 9-a massage mechanism, 91-a motor, 92-a third rotating shaft, 93-a belt pulley group, 94-a second supporting rod and 95-a massager.
Detailed Description
The invention is further described below with reference to the figures and examples.
Example 1
The utility model provides a recovered multi-functional nursing bed of medical postoperative, as shown in figure 1, including fixed part 1, first slide rail 2, second slide rail 3, back rehabilitation mechanism 4 and shank rehabilitation mechanism 5, 1 inboard of two fixed parts all is connected with first slide rail 2, and 1 tops of two fixed parts all are equipped with second slide rail 3, and the right part is equipped with back rehabilitation mechanism 4 between the second slide rail 3, and 4 left parts of back rehabilitation mechanism are equipped with shank rehabilitation mechanism 5.
The user lies flat earlier on nursing bed, then nursing staff promotes back rehabilitation mechanism 4, thereby upwards push up or put down flat with user's back, thereby reach the recovered purpose of back motion, can place user's shank on shank rehabilitation mechanism 5 simultaneously, then to 5 application of force of shank rehabilitation mechanism through the user, make shank rehabilitation mechanism 5 slide from top to bottom, thereby reach the effect of taking exercise the shank, after the rehabilitation motion, nursing staff promotes back rehabilitation mechanism 4 and resets, the user is no longer to 5 application of force of shank rehabilitation mechanism, make shank rehabilitation mechanism 5 reset.
Example 2
Based on embodiment 1, as shown in fig. 2 and 3, the back rehabilitation mechanism 4 includes a sliding block 41, a first connecting plate 42, a bed plate 43 and a protective guard 44, the sliding block 41 is slidably disposed in the first sliding rail 2, two bed plates 43 are disposed between the second sliding rails 3, the bed plate 43 on the right side is rotatably connected to the two second sliding rails 3, the first connecting plate 42 is rotatably disposed on the top of the sliding block 41, the bottom of the bed plate 43 on the right side is rotatably connected to the first connecting plate 42, and the protective guard 44 is slidably disposed on the second sliding rails 3.
The user lies flat on bed board 43, then the nursing staff promotes slider 41 right, and slider 41 drives the bed board 43 swing upwards on right side through first connecting plate 42 to upwards jack up user's back, then the nursing staff promotes slider 41 left, and slider 41 drives the bed board 43 swing downwards on right side through first connecting plate 42, thereby puts the back of user downwards, and then reaches the recovered purpose of back motion.
The leg rehabilitation mechanism 5 comprises a first U-shaped rod 51, an expansion link 52, a first spring 53 and a material placing plate 54, the first U-shaped rod 51 is arranged on the left bed board 43 in a sliding mode, the expansion link 52 is arranged on the first U-shaped rod 51, the expansion link 52 is connected with the left bed board 43 in a sliding mode, the material placing plate 54 is arranged between the upper portion of the first U-shaped rod 51 and the upper portion of the expansion link 52, two first springs 53 are connected between the top portions of the material placing plate 54 and the left bed board 43, and the first springs 53 are all sleeved on the first U-shaped rod 51.
The user places the shank on blowing board 54, then moves blowing board 54 through the shank application of force downwards pressure, first spring 53 is all compressed to drive first U-shaped pole 51 and the equal lapse of telescopic link 52, then loosen the shank, no longer move blowing board 54, drive blowing board 54 rebound under the reset action of first spring 53, first U-shaped pole 51 all upwards slides with telescopic link 52 and resets, thereby reach the effect of tempering the shank.
Example 3
Based on the embodiment 2, as shown in fig. 4 to 7, the device further includes a moving mechanism 6, the moving mechanism 6 includes a placing table 61, a first straight rack 62, a straight gear 63 and a second straight rack 64, the placing table 61 is slidably disposed between the second slide rails 3, the first straight rack 62 is disposed inside the placing table 61, the straight gears 63 are rotatably disposed on the top of the second slide rails 3, the straight gears 63 are respectively engaged with the first straight rack 62 on the same side, the second straight rack 64 is disposed outside the guard rail 44, and the straight gears 63 are respectively engaged with the second straight rack 64 on the same side.
When the material placing table 61 needs to be used, a user can push the protective guard 44 leftwards to drive the second straight rack 64 to move leftwards, so that the second straight rack 64 is meshed with the straight gear 63, the straight gear 63 is driven to rotate, the straight gear 63 drives the material placing table 61 to move rightwards through being meshed with the first straight rack 62, the material placing table 61 is made to be close to the upper half body of the user, the user can conveniently use the material placing table 61 to eat or perform other activities, when the material placing table 61 is no longer needed, the material placing table 61 is pushed leftwards, and the material placing table 61 is enabled to reset.
The lifting device is characterized by further comprising an auxiliary lifting mechanism 7, wherein the auxiliary lifting mechanism 7 comprises a first rotating shaft 71, a winding wheel set 72, a second rotating shaft 73, a second connecting plate 74, a second U-shaped rod 75 and a second spring 76, the first rotating shaft 71 is arranged inside the bed plate 43 on the right side, two second U-shaped rods 75 are arranged at the bottom of the bed plate 43 on the left side, the second connecting plate 74 is arranged in the middle of the telescopic rod 52, the second connecting plate 74 is connected with the two second U-shaped rods 75 in a sliding mode, the second springs 76 are connected to the inner sides of the two second U-shaped rods 75, the second rotating shaft 73 is connected to the right end of the second connecting plate 74 in a rotating mode, and the winding wheel set 72 is connected between the first rotating shaft 71 and the two sides of the second rotating shaft 73 and the guard rail 44.
When the discharging plate 54 is pressed downwards by the leg of the user, the telescopic rod 52 moves downwards to drive the second rotating shaft 73 to move downwards through the second connecting plate 74, the second spring 76 is compressed, the second rotating shaft 73 moves downwards to drive the first rotating shaft 71 and the bed plate 43 on the right side to swing upwards through the winding wheel set 72, when the discharging plate 54 is not pressed any more by the leg of the user, the telescopic rod 52 moves upwards to drive the second rotating shaft 73 to move upwards through the second connecting plate 74, the second spring 76 resets, the second rotating shaft 73 moves upwards to drive the first rotating shaft 71 and the bed plate 43 on the right side to swing downwards through the winding wheel set 72, and therefore the nursing staff is replaced to drive the bed plate 43 on the right side to swing through the pushing sliding block 41.
The drawer mechanism 8 comprises a first wedge-shaped block 81, an object placing drawer 82, a first supporting rod 83, a third spring 84 and a second wedge-shaped block 85, the two first wedge-shaped blocks 81 are arranged on the right side of the object placing table 61, the object placing drawer 82 is arranged at the bottom of the second sliding rail 3 in a sliding mode, the first supporting rod 83 is arranged on the object placing drawer 82, the second wedge-shaped block 85 is arranged on the first supporting rod 83 in a sliding mode, and the third spring 84 is arranged between the second wedge-shaped block 85 and the first supporting rod 83.
When needs use blowing table 61, blowing table 61 when sliding to the right side, drives first wedge 81 and moves right, and first wedge 81 contacts with second wedge 85 to outside press the second wedge 85, thereby drive and put thing drawer 82 and slide to the outside and open, the person of facilitating the use places article, when need not use and put thing drawer 82, the user can manually promote and put thing drawer 82 and slide to the inside and reset.
Still including massage mechanism 9, massage mechanism 9 is including motor 91, third pivot 92, pulley block 93, second bracing piece 94 and massager 95, and bed board 43 bottom on right side is equipped with motor 91, and the motor 91 output all is equipped with third pivot 92, and bed board 43 upper portion symmetry on right side is equipped with second bracing piece 94, and the rotary type is connected with massager 95 between two second bracing pieces 94, all is equipped with pulley block 93 between massager 95 and the third pivot 92 both ends.
The nursing staff can start the motor 91, the motor 91 drives the third rotating shaft 92 to rotate, the third rotating shaft 92 drives the massager 95 to rotate through the belt pulley set 93, so that the user is massaged, and when the massage is not needed, the nursing staff can close the motor 91 to stop rotating the massager 95.
The above examples are merely representative of preferred embodiments of the present invention, and the description thereof is more specific and detailed, but not to be construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, various changes, modifications and substitutions can be made without departing from the spirit of the present invention, and these are all within the scope of the present invention. Therefore, the protection scope of the present patent shall be subject to the appended claims.

Claims (3)

1.一种医用术后康复多功能护理床，其特征在于，包括有：1. a medical post-operative rehabilitation multifunctional nursing bed, is characterized in that, comprises: 固定部件（1），固定部件（1）用于安装全部部件；The fixed part (1), the fixed part (1) is used to install all the parts; 第一滑轨（2），两个固定部件（1）内侧均连接有第一滑轨（2）；the first slide rail (2), the inner sides of the two fixing parts (1) are connected with the first slide rail (2); 第二滑轨（3），两个固定部件（1）顶部均设有第二滑轨（3）；The second slide rail (3), the tops of the two fixed parts (1) are both provided with a second slide rail (3); 背部康复机构（4），第二滑轨（3）之间的一部设有背部康复机构（4）；A back rehabilitation mechanism (4), a back rehabilitation mechanism (4) is provided in a part between the second slide rails (3); 腿部康复机构（5），背部康复机构（4）左部设有腿部康复机构（5）；A leg rehabilitation institution (5), a back rehabilitation institution (4) is provided with a leg rehabilitation institution (5) on the left; 背部康复机构（4）包括有：Back rehabilitation facilities (4) include: 滑块（41），第一滑轨（2）内均滑动式设有滑块（41）；The slider (41), the first slide rail (2) is slidably provided with a slider (41); 床板（43），第二滑轨（3）之间设有两个床板（43），一侧的床板（43）与两个第二滑轨（3）转动式连接；a bed board (43), two bed boards (43) are arranged between the second slide rails (3), and the bed board (43) on one side is rotatably connected with the two second slide rails (3); 第一连接板（42），滑块（41）顶部转动式设有第一连接板（42），一侧的床板（43）底部与第一连接板（42）转动式连接；a first connecting plate (42), the top of the slider (41) is rotatably provided with a first connecting plate (42), and the bottom of the bed plate (43) on one side is rotatably connected with the first connecting plate (42); 防护栏（44），第二滑轨（3）上均滑动式设有防护栏（44）；The guardrail (44) and the second slide rail (3) are all slidably provided with guardrails (44); 腿部康复机构（5）包括有：Leg rehabilitation facilities (5) include: 第一U形杆（51），一侧的床板（43）上滑动式设有第一U形杆（51）；a first U-shaped rod (51), a first U-shaped rod (51) is slidably provided on the bed board (43) on one side; 伸缩杆（52），第一U形杆（51）上设有伸缩杆（52），伸缩杆（52）与一侧的床板（43）滑动式连接；a telescopic rod (52), the first U-shaped rod (51) is provided with a telescopic rod (52), and the telescopic rod (52) is slidably connected with the bed board (43) on one side; 放料板（54），第一U形杆（51）上部与伸缩杆（52）上部之间设有放料板（54）；A discharging plate (54), a discharging plate (54) is provided between the upper part of the first U-shaped rod (51) and the upper part of the telescopic rod (52); 第一弹簧（53），放料板（54）与一侧的床板（43）顶部之间连接有两个第一弹簧（53），第一弹簧（53）均套在第一U形杆（51）上；The first spring (53), two first springs (53) are connected between the discharge plate (54) and the top of the bed plate (43) on one side, and the first springs (53) are all sleeved on the first U-shaped rod ( 51) on; 还包括有移动机构（6），移动机构（6）包括有：It also includes a moving mechanism (6), and the moving mechanism (6) includes: 放料桌（61），第二滑轨（3）之间滑动式设有放料桌（61）；a feeding table (61), and a feeding table (61) is slidably arranged between the second sliding rails (3); 第一直齿条（62），放料桌（61）内侧均设有第一直齿条（62）；The first straight rack (62) and the inside of the discharging table (61) are provided with first straight racks (62); 直齿轮（63），第二滑轨（3）顶部均转动式设有直齿轮（63），直齿轮（63）均与同侧的第一直齿条（62）相啮合；The spur gear (63) and the top of the second slide rail (3) are all rotatably provided with spur gears (63), and the spur gears (63) are meshed with the first spur gear racks (62) on the same side; 第二直齿条（64），防护栏（44）外侧均设有第二直齿条（64），直齿轮（63）均与同侧的第二直齿条（64）相啮合；The second spur gear rack (64), the outer side of the guard rail (44) is provided with a second spur gear rack (64), and the spur gears (63) are meshed with the second spur gear rack (64) on the same side; 还包括有辅助上升机构（7），辅助上升机构（7）包括有：It also includes an auxiliary lifting mechanism (7), and the auxiliary lifting mechanism (7) includes: 第一转轴（71），一侧的床板（43）内部设有第一转轴（71）；a first rotating shaft (71), a first rotating shaft (71) is provided inside the bed board (43) on one side; 第二U形杆（75），另一侧的床板（43）底部设有两个第二U形杆（75）；a second U-shaped rod (75), and two second U-shaped rods (75) are provided at the bottom of the bed board (43) on the other side; 第二连接板（74），伸缩杆（52）中部设有第二连接板（74），第二连接板（74）与两个第二U形杆（75）均滑动式连接；a second connecting plate (74), a second connecting plate (74) is provided in the middle of the telescopic rod (52), and the second connecting plate (74) is slidably connected to the two second U-shaped rods (75); 第二弹簧（76），两个第二U形杆（75）的内侧均连接有第二弹簧（76）；Second springs (76), the inner sides of the two second U-shaped rods (75) are connected with second springs (76); 第二转轴（73），第二连接板（74）右端转动式连接有第二转轴（73）；the second rotating shaft (73), the right end of the second connecting plate (74) is rotatably connected with the second rotating shaft (73); 绕线轮组（72），第一转轴（71）、第二转轴（73）和防护栏（44）两侧之间均连接有绕线轮组（72）；A winding wheel set (72), a winding wheel set (72) is connected between the first rotating shaft (71), the second rotating shaft (73) and both sides of the guardrail (44); 还包括有抽屉机构（8），抽屉机构（8）包括有：It also includes a drawer mechanism (8), and the drawer mechanism (8) includes: 第一楔形块（81），放料桌（61）的一侧设有两个第一楔形块（81）；a first wedge-shaped block (81), two first wedge-shaped blocks (81) are provided on one side of the feeding table (61); 放物抽屉（82），第二滑轨（3）底部均滑动式设有放物抽屉（82）；The storage drawer (82), and the bottom of the second slide rail (3) is slidably provided with the storage drawer (82); 第一支撑杆（83），放物抽屉（82）上均设有第一支撑杆（83）；the first support rod (83), and the first support rod (83) is provided on the storage drawer (82); 第二楔形块（85），第一支撑杆（83）上均滑动式设有第二楔形块（85）；The second wedge-shaped block (85), and the second wedge-shaped block (85) is slidably provided on the first support rod (83); 第三弹簧（84），第二楔形块（85）与第一支撑杆（83）之间均设有第三弹簧（84）。A third spring (84), a third spring (84) is provided between the second wedge block (85) and the first support rod (83). 2.如权利要求1所述的一种医用术后康复多功能护理床，其特征在于，还包括有按摩机构（9），按摩机构（9）包括有：2. The multifunctional nursing bed for post-operative medical rehabilitation according to claim 1, further comprising a massage mechanism (9), and the massage mechanism (9) includes: 电机（91），一侧的床板（43）底部设有电机（91）；a motor (91), a motor (91) is provided at the bottom of the bed board (43) on one side; 第三转轴（92），电机（91）输出端均设有第三转轴（92）；The third rotating shaft (92) and the output end of the motor (91) are provided with a third rotating shaft (92); 第二支撑杆（94），一侧的床板（43）上部对称设有第二支撑杆（94）；The second support rod (94), the upper part of the bed board (43) on one side is symmetrically provided with the second support rod (94); 按摩器（95），两个第二支撑杆（94）之间转动式连接有按摩器（95）；A massager (95), a massager (95) is rotatably connected between the two second support rods (94); 皮带轮组（93），按摩器（95）与第三转轴（92）两端之间均设有皮带轮组（93）。The belt pulley group (93) is provided with a belt pulley group (93) between the massager (95) and both ends of the third rotating shaft (92). 3.如权利要求1所述的一种医用术后康复多功能护理床，其特征在于：第三弹簧（84）为扭力弹簧。3. The multifunctional nursing bed for post-operative medical rehabilitation according to claim 1, wherein the third spring (84) is a torsion spring.
CN202110035801.1A 2021-01-12 2021-01-12 Medical postoperative rehabilitation multifunctional nursing bed Expired - Fee Related CN112618206B (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202110035801.1A CN112618206B (en) 2021-01-12 2021-01-12 Medical postoperative rehabilitation multifunctional nursing bed

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202110035801.1A CN112618206B (en) 2021-01-12 2021-01-12 Medical postoperative rehabilitation multifunctional nursing bed

Publications (2)

Publication Number Publication Date
CN112618206A CN112618206A (en) 2021-04-09
CN112618206B true CN112618206B (en) 2022-03-08

Family

ID=75293872

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202110035801.1A Expired - Fee Related CN112618206B (en) 2021-01-12 2021-01-12 Medical postoperative rehabilitation multifunctional nursing bed

Country Status (1)

Country Link
CN (1) CN112618206B (en)

Families Citing this family (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN113599109B (en) * 2021-08-10 2023-04-21 河南省赛福德医疗科技有限公司 Bed for orthopedics postoperative hospitalization
CN114504212B (en) * 2022-02-10 2024-09-13 玛瑜科创服务(南京)有限公司 Apartment bed with automatic retractable guardrail

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN205073088U (en) * 2015-10-14 2016-03-09 江苏日新医疗设备有限公司 Cervical and lumbar vertebra treatment traction table
CN205626338U (en) * 2016-04-08 2016-10-12 葛艳 A nursing bed for shank is recovered
CN109907901A (en) * 2019-02-13 2019-06-21 南京林业大学 A kind of multifunctional nursing bed for the elderly
CN212067163U (en) * 2019-12-30 2020-12-04 曹媛媛 A kind of leg rehabilitation exercise physiotherapy device for hospital bed

Family Cites Families (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2001000485A (en) * 1999-06-21 2001-01-09 Katagiri Shishu Kogei:Kk Leg training apparatus
CN208464492U (en) * 2017-10-25 2019-02-05 杨华荣 Neurology department's bed for recovery and neurology department's health multiplexing equipment
CN108969228B (en) * 2018-05-18 2020-08-18 滨州医学院附属医院 Medical sickbed convenient for family members to feed patients
CN209713626U (en) * 2018-11-30 2019-12-03 滕绪莉 A kind of TCM nursing massage bed
CN210698060U (en) * 2019-07-30 2020-06-09 贵州省黔南布依族苗族自治州中医医院 Multifunctional nursing bed
CN111658362A (en) * 2020-07-06 2020-09-15 温州市人民医院 Nursing and rehabilitation device for obstetrics and gynecology department

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN205073088U (en) * 2015-10-14 2016-03-09 江苏日新医疗设备有限公司 Cervical and lumbar vertebra treatment traction table
CN205626338U (en) * 2016-04-08 2016-10-12 葛艳 A nursing bed for shank is recovered
CN109907901A (en) * 2019-02-13 2019-06-21 南京林业大学 A kind of multifunctional nursing bed for the elderly
CN212067163U (en) * 2019-12-30 2020-12-04 曹媛媛 A kind of leg rehabilitation exercise physiotherapy device for hospital bed

Also Published As

Publication number Publication date
CN112618206A (en) 2021-04-09

Similar Documents

Publication Publication Date Title
CN207024194U (en) A kind of Orthopaedic nursing bed
CN112618206B (en) Medical postoperative rehabilitation multifunctional nursing bed
CN112043522B (en) Nursing sickbed capable of reducing secondary injury to patient in moving process
CN112842741B (en) Medical auxiliary sitting-up equipment for paralytic bed patient
CN113116650B (en) Medical orthopedic postoperative rehabilitation chair
CN207768645U (en) A kind of wheel chair (bed) for recovery
CN107049652A (en) One kind can it is electronic can singlehanded self-help insurance rise and sit massage and help just anal cleaning moving bed
CN107174432B (en) Multifunctional nursing bed
CN211962417U (en) A nursing device for anti-infection and rehabilitation
CN112535588A (en) Rehabilitation nursing bed
CN117017645A (en) Critical care turning device
CN2224612Y (en) Multifunctional hospital bed
CN207477624U (en) A kind of care bed
CN219680981U (en) Sickbed with lower limb rehabilitation function
CN215994568U (en) Multi-functional nursing bed body with adjustable backplate
CN111467155A (en) A kind of multifunctional posture changing nursing bed device
CN113662773A (en) A device for turning over a nursing bed for the elderly
CN112842756A (en) Medical nursing sickbed wadding replacing device
CN112022550A (en) A kind of intensive care multifunctional nursing bed and using method thereof
CN112842832A (en) Medical leg auxiliary rehabilitation device
CN113633094B (en) Electric automatic lifting health care table
CN220002159U (en) Forward and reverse rotation nursing bed mechanism with gear rack
CN113893099B (en) Sickbed with auxiliary turning-over function
CN212592798U (en) A new type of multifunctional home care bed
CN218607154U (en) Nursing bed capable of monitoring vital signs of patient

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
CB03 Change of inventor or designer information
CB03 Change of inventor or designer information

Inventor after: Yuan Li

Inventor after: Yan Qiaoer

Inventor after: Xu Jintao

Inventor before: Xu Jintao

TA01 Transfer of patent application right
TA01 Transfer of patent application right

Effective date of registration: 20220209

Address after: 315000 No.57, Xingning Road, Yinzhou District, Ningbo City, Zhejiang Province

Applicant after: NINGBO MEDICAL CENTER LIHUILI Hospital

Address before: Room 201, building a, Nanjing qiaomengyuan, No.100 Tianjiao Road, Qilin science and Technology Innovation Park, Jiangning District, Nanjing, Jiangsu 211100

Applicant before: Xu Jintao

GR01 Patent grant
GR01 Patent grant
CF01 Termination of patent right due to non-payment of annual fee
CF01 Termination of patent right due to non-payment of annual fee

Granted publication date: 20220308
