Abstract
本发明公开了一种层板安装组件及家具，所述家具本体包括层板以及用于安装层板的层板安装组件。所述层板安装组件包括：型材框体，带有沿着竖直方向布置的型材腔；托臂，用于支撑层板；托臂紧固件，与所述托臂连接；托臂紧锁片，穿设固定于所述型材框体的型材腔内，且与所述托臂紧固件连接。本发明中的家具本体的结构形式可以有多种，本发明中层板安装组件可以应用于多种家具结构形式中，可以将安装组件置于家具的后侧，实现悬浮效果，打破了常规的两侧固定方式。本发明可实现安装不同材质的层板，可以是木层板、型材框玻璃层板；不限层板材质，通用性极好，而常规的层板连接方式不能通用在木层板和铝框玻璃层板上。
The invention discloses a laminate board installation assembly and furniture. The furniture body comprises a laminate board and a laminate board installation assembly for installing the laminate board. The laminate mounting assembly includes: a profile frame with profile cavities arranged in a vertical direction; a support arm for supporting the laminate; a support arm fastener, which is connected to the support arm; the support arm is tightly locked The sheet is penetrated and fixed in the profile cavity of the profile frame body, and is connected with the bracket arm fastener. There are various structural forms of the furniture body in the present invention, and the middle-layer board installation assembly of the present invention can be applied to various furniture structural forms, and the installation assembly can be placed on the rear side of the furniture to achieve a suspension effect, breaking the conventional two side fixation. The invention can realize the installation of laminates of different materials, which can be wood laminates and profile frame glass laminates; the material of laminates is not limited, and the versatility is excellent, while the conventional laminate connection method cannot be universally used for wood laminates and aluminum frames. on glass laminates.
Description
Technical Field
The invention belongs to the technical field of household products, and particularly relates to a laminate mounting assembly and furniture.
Background
In current multiple furniture product, the installing component of plywood exposes in the sight usually for furniture is regular inadequately, influences the appearance aesthetic property of whole house product, and the plywood is fixed in a certain high department usually moreover, and its height can not be adjusted, can not satisfy different customer's demand.
Disclosure of Invention
To solve the above problems, the present invention provides a laminate mounting assembly so that the height of a laminate is adjustable.
The technical scheme of the invention is as follows: a panel mounting assembly comprising:
a profile frame with profile cavities arranged along a vertical direction;
the bracket arm is used for supporting the laminate;
the bracket arm fastener is connected with the bracket arm;
and the bracket arm locking piece is fixedly arranged in the section cavity of the section frame body in a penetrating way and is connected with the bracket arm fastening piece.
When the laminate is installed by using the invention, various installation methods can be adopted for installation, for example, the bracket arm fastener can be firstly connected with the bracket arm locking piece, then the bracket arm locking piece is fixedly arranged in the section cavity of the section frame body in a penetrating way, the bracket arm locking piece can be fixed at the required height according to the actual requirement, then the bracket arm is connected with the bracket arm fastener, and finally the laminate is installed on the bracket arm. A plurality of sets of laminate mounting assemblies can be arranged to mount the laminates according to requirements, and the plurality of laminate mounting assemblies can be arranged on the same side of the laminates, for example, the rear side of the laminates, so that the laminate suspension effect can be realized; the conventional two-side fixing mode is broken through, so that the whole laminate is more concise and attractive in appearance.
The present invention, although a deck mounting assembly, is also applicable to supports other than decks.
Preferably, the bracket arm locking piece and the bracket arm fastening piece are connected through a connecting piece, and the connecting piece penetrates through the bracket arm fastening piece and the bracket arm locking piece and locks and fixes the bracket arm locking piece in the profile cavity. The bracket arm locking piece and the bracket arm fastener can be connected through the connecting piece, and meanwhile, the bracket arm locking piece can be fixed in the section bar cavity. After the plywood is installed, when still needing to adjust the plywood height, can be through dismouting connecting piece again for the trailing arm lock piece be located required high position department can, this kind of height-adjusting control mode is simple convenient.
In order to facilitate the disassembly and assembly, the bracket arm fastener is preferably detachably connected with the bracket arm.
The detachable connecting structure between the bracket arm fastener and the bracket arm has various forms, the conventional structures can be adopted, preferably, the bracket arm fastener is provided with a clamping groove, the bracket arm comprises a clamping part matched with the clamping groove, and the clamping part is provided with a clamping structure matched with the clamping groove. The bracket arm fastener and the bracket arm can be clamped and connected in a clamping mode, the clamping groove can be in various structural forms, and the clamping groove can be in various structural forms.
Preferably, the bracket arm includes a connecting portion fixedly connected to the layer board, and a left supporting portion and a right supporting portion separately formed by the connecting portion and respectively supporting the layer board. According to the invention, the left supporting part and the right supporting part are respectively matched with the two laminates, so that one supporting arm can simultaneously support the two laminates, the number of installation parts of the laminates is reduced, and the whole structure is more concise and attractive.
Preferably, a positioning notch is formed in the left supporting portion and/or the right supporting portion, and a positioning protrusion matched with the positioning notch is formed in the laminate. When the laminate is positioned and installed, the laminate is accurately positioned and installed through the matching of the positioning notch and the positioning bulge.
In order to facilitate the assembly and disassembly, the connecting part and the laminate are preferably connected through screws. After the laminated plate is placed on the left supporting part and/or the right supporting part, the side wall of the laminated plate and the connecting part can be connected and fixed through a plurality of screws.
Preferably, the bracket arm further comprises a sealing cover matched with the left supporting part and/or the right supporting part. When the left supporting part and/or the right supporting part are not matched with the laminate, the laminate can be packaged through the sealing cover, the overall attractiveness can be improved, the structural form of the sealing cover can be various, and the structural form of the sealing cover can be set according to the requirement.
Preferably, the left supporting part and the right supporting part are provided with positioning grooves, and the sealing cover is provided with positioning lugs matched with the positioning grooves. The closing cap can realize the encapsulation of closing cap through the cooperation of locating convex block and constant head tank, and this kind of mode dismouting is comparatively convenient, and the locating convex block can set up to a plurality ofly.
The invention also provides furniture, which comprises a furniture body, wherein the furniture body comprises the laminate and the laminate mounting assembly for mounting the laminate.
Compared with the prior art, the invention has the beneficial effects that:
(1) the furniture body can be in various structural forms, the laminate mounting assembly can be applied to various furniture structural forms, the mounting assembly can be arranged on the rear side of the furniture, the suspension effect is realized, and the conventional two-side fixing mode is broken through.
(2) According to the invention, the bracket arm locking piece penetrates into the profile frame, the position can be positioned as required, and then the bracket arm and the laminate are hung, so that the laminate can be adjusted up and down; the conventional laminate is generally fixed by using a connecting piece, and the adjustable height at will cannot be realized.
(3) According to the invention, the bracket arm fastener and the bracket arm locking plate are covered by the bracket arm, so that the invisible connection mode is realized, and the appearance is more attractive.
(4) The invention can realize the installation of laminates made of different materials, such as wood laminates and section frame glass laminates; the material of the laminated plate is not limited, the universality is excellent, and the conventional laminated plate connecting mode can not be universally used on the wood laminated plate and the aluminum frame glass laminated plate.
Drawings

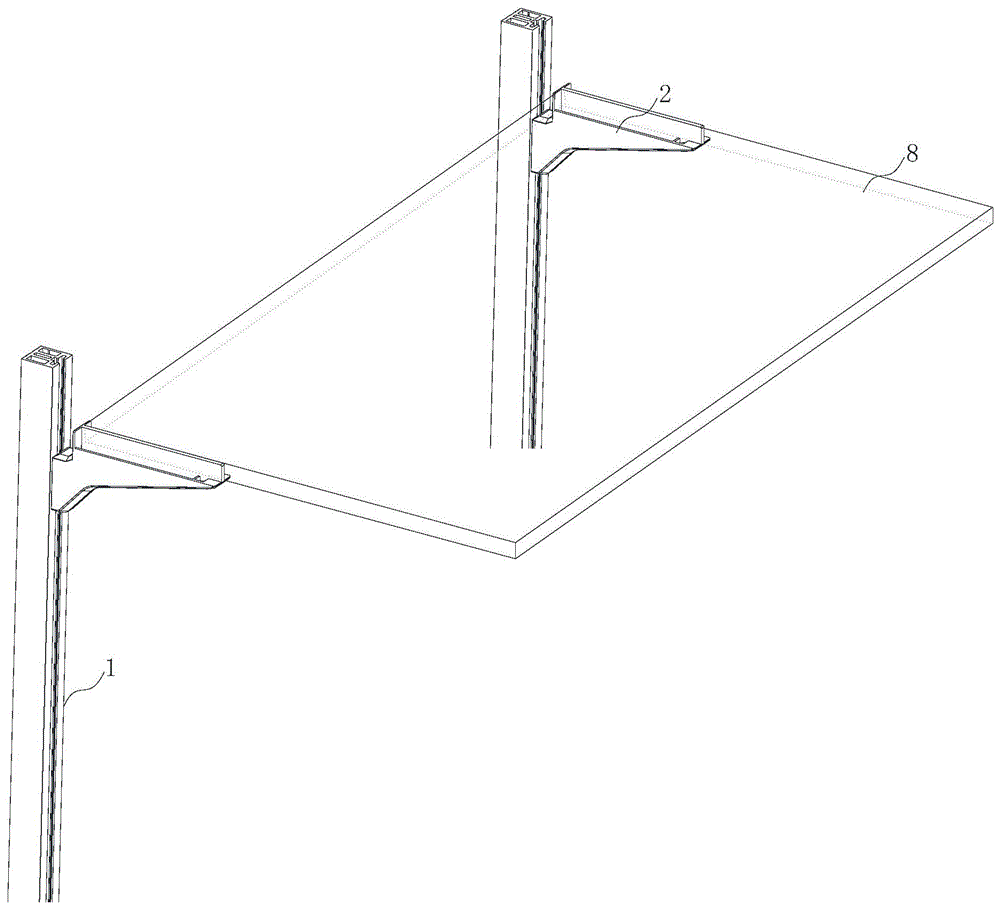

FIG. 1 is a schematic structural diagram of the present invention.
Fig. 2 is an exploded view of the present invention.
FIG. 3 is a schematic view of the bracket arm fastener of the present invention.
FIG. 4 is a schematic view of the structure of the bracket arm of the present invention.
Fig. 5 is a schematic structural view of another view angle of the bracket arm according to the present invention.
Reference numerals:
1. a section frame body; 2. a bracket arm; 3. a bracket arm fastener; 4. the supporting arm tightly locks the sheet; 5. a positioning notch; 6. sealing the cover; 7. positioning a groove; 8. laminating the board; 9. a connecting portion; 10. positioning the bump; 11. a clamping part; 12. a clamping structure; 13. a clamping groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The present embodiment is a laminate mounting assembly, as shown in fig. 1 and 2, including:
a profile frame 1 with profile cavities arranged in a vertical direction;
the bracket arm 2 is used for supporting the layer plate 8;
the bracket arm fastener 3 is connected with the bracket arm 2;
and the bracket arm locking piece 4 is fixedly arranged in the section cavity of the section frame body 1 in a penetrating way and is connected with the bracket arm fastening piece 3.
When this embodiment is used for installing the laminate 8, various installation methods can be adopted for installation, for example, the bracket fastening piece 3 can be connected with the bracket 2 locking piece, the bracket locking piece 4 is inserted into the section cavity fixed on the section frame body 1, the bracket locking piece 4 can be fixed at a required height according to actual needs, then the bracket 2 is connected with the bracket fastening piece 3, and finally the laminate 8 is installed on the bracket 2. A plurality of sets of laminate mounting assemblies can be arranged to mount the laminate 8 according to requirements, and a plurality of laminate mounting assemblies can be arranged on the same side of the laminate 8, for example, can be arranged on the rear side, so that the suspension effect of the laminate 8 can be realized; breaks through the conventional two-side fixing mode, and the whole laminated plate 8 looks more concise and beautiful.
The present embodiment, although being a deck mounting assembly, is also applicable to some support other than the deck 8.
In the embodiment, the bracket arm locking piece 4 is connected with the bracket arm fastening piece 3 through a connecting piece, the connecting piece penetrates through the bracket arm fastening piece 3 and the bracket arm locking piece 4, and the bracket arm locking piece 4 is locked and fixed in the profile cavity. The bracket arm locking piece 4 and the bracket arm fastening piece 3 can be connected through the connecting piece in the embodiment, and meanwhile, the bracket arm locking piece 4 can be fixed in the section bar cavity. After the plywood 8 is installed, when still needing to adjust 8 high of plywood, can be through dismouting connecting piece again for trailing arm locking plate 4 is located required high position department can, this kind of height-adjusting control mode is simple convenient.
In order to facilitate the disassembly and assembly, the bracket arm fastener 3 and the bracket arm 2 are detachably connected in the embodiment. The detachable connecting structure between the bracket arm fastener 3 and the bracket arm 2 in this embodiment has various forms, and various conventional structures can be adopted, as shown in fig. 3 and 5, a clamping groove 13 is provided on the bracket arm fastener 3 in this embodiment, the bracket arm 2 includes a clamping portion 11 matched with the clamping groove 13, and a clamping structure 12 matched with the clamping groove 13 is provided on the clamping portion 11. In this embodiment, the bracket arm fastening member 3 and the bracket arm 2 can be clamped together, and the clamping groove 13 can be formed in various structures, and the clamping groove 13 can be arranged obliquely on two opposite sides of the bracket arm fastening member 3, and the clamping structure 12 matched with the clamping groove 13 is arranged on the clamping portion 11 of the bracket arm 2.
In addition, the bracket 2 includes a connection portion 9 fixedly connected to the layer board 8, and a left support portion and a right support portion separately formed by the connection portion 9 and respectively supporting the layer board 8. Can be through left supporting part and right supporting part respectively with two plywood 8 cooperations in this embodiment, can realize that a trailing arm 2 supports two plywood 8 simultaneously, reduce the installation component of plywood 8 for it is whole succinct pleasing to the eye more.
In the embodiment, the left support part and/or the right support part are/is provided with a positioning notch 5, and the laminated plate 8 is provided with a positioning bulge matched with the positioning notch 5. When the laminate 8 is positioned and installed, the laminate 8 is accurately positioned and installed through the matching of the positioning notch 5 and the positioning protrusion.
In order to facilitate the assembly and disassembly, the connecting part 9 and the layer plate 8 are connected through screws in the embodiment. After the laminate 8 is placed on the left support portion and/or the right support portion, the side wall of the laminate 8 and the connecting portion 9 can be fixed by screws in this embodiment.
In addition, as shown in fig. 4, the bracket arm 2 in this embodiment further includes a cover 6 that is matched with the left support portion and/or the right support portion. When the left support part and/or the right support part are not matched with the laminate 8, the left support part and/or the right support part can be packaged through the cover 6, the integral aesthetic property can be improved, in addition, the structural form of the cover 6 can be various, and the structural form of the cover 6 can be set according to the requirement. In this embodiment, the left and right support portions are provided with positioning grooves 7, and the sealing cover 6 is provided with positioning bumps 10 matching with the positioning grooves 7. The sealing cover 6 can be packaged by the positioning convex block 10 and the positioning groove 7, the mode is convenient to disassemble and assemble, and the positioning convex block 10 can be arranged into a plurality of modes.
The above-described laminate mounting assembly is applied to a furniture product, such as that shown in fig. 1 and 2, which includes a furniture body including a laminate 8 and a laminate mounting assembly as described above for mounting the laminate 8. The furniture body in the embodiment can be in various structural forms, the middle-layer board installation component can be applied to various furniture structural forms, the installation component can be arranged on the rear side of the furniture, the suspension effect is achieved, and the conventional two-side fixing mode is broken through. In addition, the embodiment can realize the installation of laminated plates made of different materials, such as wood laminated plates and section frame glass laminated plates; the material of the laminated plate is not limited, the universality is excellent, and the conventional laminated plate connecting mode can not be universally used on the wood laminated plate and the aluminum frame glass laminated plate.
Although terms such as reference numerals in the figures are used more often herein, the possibility of using other terms is not excluded. These terms are used merely to more conveniently describe and explain the nature of the present invention; they are to be construed as being without limitation to any additional limitations that may be imposed by the spirit of the present invention.
