Abstract

The invention discloses a computer-based cloud computing data storage system, comprising a non-slip base, an installation backplane, a heat dissipation side plate, a ventilation component, a data storage body, an anti-collision component, a shock-absorbing component, a limit component and a dust-blocking top plate. One end of the edge of the top end face of the anti-skid base is fixedly installed with a mounting back plate, and one side of the end face of the mounting back plate is fixed and installed with a dust-proof top plate, and both sides of the top end face of the anti-skid base are fixed by screws. , the end face of the heat dissipation side plate on the top side of the anti-skid base is fixedly installed with a ventilation component; the data storage system based on computer cloud computing has a small size and a small footprint; the overall structure is firmly installed, and the installation and disassembly are convenient and quick, and easy to maintain; It has a stable structure, and has good anti-collision and buffering effects, which can effectively reduce the problem of equipment being impacted; at the same time, it has good heat dissipation effect and can effectively prolong the service life of the equipment.

Description

A computer-based cloud computing data storage system

technical field

The invention relates to the field of computer equipment, in particular to a computer-based cloud computing data storage system.

Background technique

Cloud computing is a type of distributed computing, which refers to decomposing huge data computing processing programs into countless small programs through the network "cloud", and then processing and analyzing these small programs through a system composed of multiple servers to obtain results and returned to the user. In the early days of cloud computing, simply put, it was simple distributed computing, solving task distribution and merging computing results. Therefore, cloud computing is also called grid computing. Through this technology, the processing of tens of thousands of data can be completed in a very short time, so as to achieve a powerful network service.

The core of cloud computing is that many computer resources can be coordinated together, so that users can obtain unlimited resources through the network, and the resources obtained are not limited by time and space; when working, strong data storage is required The data storage system is usually composed of data storage. The data storage system in the prior art has a large volume, and during operation, the heating effect is serious, thus affecting the service life of the equipment; at the same time, the buffering effect of the data storage system is relatively high. Poor, inconvenient installation, easy to cause equipment damage in the event of a collision, therefore, it is necessary to design a computer-based cloud computing data storage system.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a computer-based cloud computing data storage system, which is compact and occupies a small space; the overall structure is firm to install, the installation and disassembly are convenient and quick, and the maintenance is convenient; it has a stable structure, good anti-collision and buffering effects, and can It can effectively reduce the problem of equipment when it is impacted; at the same time, the heat dissipation effect is good, which can effectively prolong the service life of the equipment.

The object of the present invention can be realized through the following technical solutions:

A computer-based cloud computing data storage system, comprising a non-slip base, an installation back plate, a heat dissipation side plate, a ventilation component, a data storage body, an anti-collision component, a shock-absorbing component, a limit component and a dust-blocking top plate. One end of the edge of the top end face is fixedly installed with an installation back plate, and one side of the end face of the installation back plate is fixed and installed with a dust-blocking top plate, and both sides of the top end face of the anti-skid base are fixed with screws. A ventilation assembly is fixedly installed on the end face of the heat dissipation side plate on the top side of the base, and a data storage body is arranged in the center of the top end face of the anti-skid base. The shock-absorbing assembly is connected to the anti-skid base and the dust-blocking top plate, several anti-collision assemblies are fixedly installed on both sides of the end face of the data storage body, and a limit assembly is installed in the center of the end face of the installation back plate, and the limit assembly is connected to the data The memory body is fixedly connected;

The ventilation assembly includes a beam frame, a casing, a fixed frame, a heat dissipation motor, a spiral fan blade and a ventilation net. A ventilation net is fixedly installed in the center of the end face of the heat dissipation side plate, and a beam frame is fixed and installed on the outer side of the ventilation net by screws. , the outer side of the end face of the beam frame is fixed and installed with a casing, the inner end face of the casing is fixed with a fixed frame by screws, and the inside of the fixed frame is fixed and installed with a heat dissipation motor by screws, the heat dissipation motor One side of the fan is connected with a helical fan blade through a transmission shaft.

As a further solution of the present invention, anti-skid feet are fixedly installed around the bottom end face of the anti-skid base.

As a further solution of the present invention: through holes are opened on both end faces of the casing, and one end of the spiral fan blade is located outside the ventilation net through the through holes, and the through holes on the other side of the casing pass through screws. The installation cover is fixedly installed.

As a further solution of the present invention: the shock-absorbing assembly includes a first rubber plate, a load-bearing plate, a fitting and fixing block, a vertical beam bracket and a second rubber plate, and the first rubber plate is fixedly installed on the top of the anti-skid base by screws end face, and the top of the first rubber plate is attached to the bottom end face of the data storage body, the second rubber plate is fixedly installed on the bottom end face of the dust-proof top plate by screws, and the bottom of the second rubber plate is connected with the data storage body. The top end face is attached and connected, the vertical beam bracket is fixedly installed on the center of the back end face of the data storage body by screws, the bottom of the vertical beam bracket is connected and installed with a fitting fixing block, and the bottom end face of the fitting fixing block is fixed and installed There is a load-bearing plate, and the bottom of the load-bearing plate is fixedly connected with the top end face of the anti-skid base.

As a further solution of the present invention: the anti-collision assembly includes a crash pad, a locking screw and a coil spring, the anti-collision pad is fitted and installed on one side of the outer wall of the data storage body, and the anti-collision pad is A locking screw is fixedly installed in the center of the end face, and a coil spring is sleeved and installed on the outer side of the locking screw, and one end of the locking screw is connected and installed with a locking nut through the heat dissipation side plate.

As a further solution of the present invention: the limit component includes a limit support, a limit block, a mounting seat, a limit card slot and a limit frame, and the limit support is fixedly installed on the mounting back plate by screws. The center of the end face, the center of the end face of the limit support is fixedly installed with a limit block by screws, a limit frame is arranged on one side of the end face of the limit block, and the mounting seat is fixed on the back of the data storage body by screws. In the center of the end face, one end face of the mounting seat is provided with a limit card slot, the limit card block is clamped and installed inside the limit card slot, and the limit frame is located on the outer side of the limit card slot.

The beneficial effects of the present invention are as follows: the computer-based cloud computing data storage system is compact and occupies a small space; the overall structure is firm to install, the installation and disassembly are convenient and quick, and the maintenance is convenient; the anti-collision component can improve the buffer effect, and the buffer effect and The limit component can have a stable structure, with good anti-collision and buffering effects, thereby effectively reducing the problem of equipment being impacted; at the same time, the ventilation component can speed up the rate of ventilation and heat dissipation, and the heat dissipation effect is good, which can effectively prolong the use of the equipment life.

Description of drawings

In order to facilitate the understanding of those skilled in the art, the present invention will be further described below with reference to the accompanying drawings.

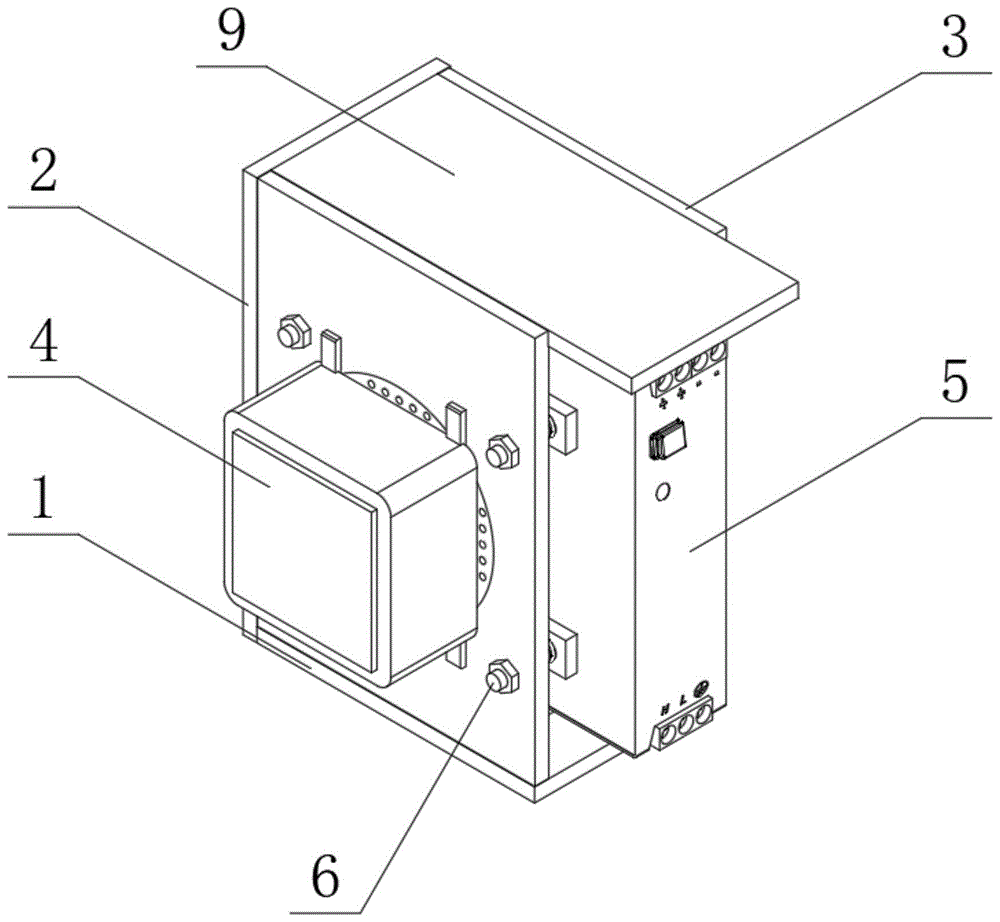

1 is a schematic diagram of the first overall structure of the present invention;

2 is a schematic diagram of the second overall structure of the present invention;

Fig. 3 is the partial structure schematic diagram of the present invention;

4 is a partial side view of the present invention;

5 is a partial cross-sectional view of the present invention;

In the picture: 1. Anti-skid base; 2. Installation back plate; 3. Heat dissipation side plate; 4. Ventilation component; 5. Data storage body; 6. Anti-collision component; 7. Cushioning component; 8. Limiting component; 9 41, beam frame; 42, chassis; 43, fixed frame; 44, cooling motor; 45, installation cover; 46, spiral fan blade; 47, ventilation net; 61, anti-collision pad; 62 , locking screw; 63, coil spring; 71, first rubber plate; 72, load-bearing plate; 73, fitting and fixing block; 74, vertical beam bracket; 75, second rubber plate; 81, limit bearing; 82 , Limit card block; 83, Mounting seat; 84, Limit card slot; 85, Limit frame.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below with reference to the embodiments. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

As shown in Figure 1-5, a computer-based cloud computing data storage system includes a non-slip base 1, a mounting back plate 2, a heat dissipation side plate 3, a ventilation component 4, a data storage body 5, an anti-collision component 6, and a shock-absorbing component 7. The limit component 8 and the dust-proof top plate 9, the top end face edge of the anti-skid base 1 is fixedly installed with the installation back plate 2, and the end face side of the installation back plate 2 is fixedly installed with the dust-proof top plate 9 and the anti-skid base 1 by screws. The heat dissipation side plate 3 is fixedly installed on both sides of the top end face of the anti-skid base 1 by screws, the end face of the heat dissipation side plate 3 on the top side of the anti-skid base 1 is fixedly installed with a ventilation component 4, and the center of the top end face of the anti-skid base 1 is provided with a data storage body 5. The top and bottom of the data storage body 5 are provided with shock-absorbing components 7 , and the data storage body 5 is connected with the anti-skid base 1 and the dust-blocking top plate 9 through the shock-absorbing components 7 , and several end faces of the data storage body 5 are fixedly installed on both sides. The anti-collision assembly 6, the limit assembly 8 is installed in the center of the end face of the installation back plate 2, and the limit assembly 8 is fixedly connected with the data storage body 5;

The ventilation assembly 4 includes a beam frame 41, a casing 42, a fixed frame 43, a heat dissipation motor 44, a spiral fan blade 46 and a ventilation net 47. The ventilation net 47 is fixedly installed in the center of the end face of the heat dissipation side plate 3, and the outside of the ventilation net 47 passes through. The cross beam frame 41 is fixedly installed with screws, the outer side of the end face of the cross beam frame 41 is fixedly installed with the casing 42, the inner end face side of the casing 42 is fixedly installed with the fixed frame 43, and the inside of the fixed frame 43 is fixed and installed by the screw There is a heat dissipation motor 44, and one side of the heat dissipation motor 44 is connected and installed with a spiral fan blade 46 through a transmission shaft.

As an embodiment of the present invention, anti-skid feet are fixedly installed around the bottom end face of the anti-skid base 1 ; the anti-skid feet at the bottom of the anti-skid base 1 can improve the anti-skid effect of the anti-skid base 1 .

As an embodiment of the present invention, through holes are opened on both end faces of the casing 42 , and one end of the spiral fan blade 46 is located outside the ventilation net 47 through the through hole, and the through hole on the other side of the casing 42 is inside the through hole. The installation cover 45 is fixedly installed by screws; in the interior of the beam frame 41, when the cooling motor 44 installed on the side of the fixed frame 43 is working, the helical fan blade 46 is driven to rotate through the transmission shaft, so that the ventilation net 47 and the through holes can speed up the operation. The heat dissipation rate of the data storage body 5; by installing the cover plate 45, the parts inside the casing 42 can be easily installed and removed.

As an embodiment of the present invention, the shock absorbing assembly 7 includes a first rubber plate 71 , a bearing plate 72 , a fitting block 73 , a vertical beam bracket 74 and a second rubber plate 75 , and the first rubber plate 71 is fixed and installed by screws On the top end surface of the anti-skid base 1, and the top of the first rubber plate 71 is attached to the bottom end surface of the data storage body 5, the second rubber plate 75 is fixedly installed on the bottom end surface of the dust-proof top plate 9 by screws, and the second rubber plate 75 The bottom of the plate 75 is attached and connected to the top end face of the data storage body 5, the vertical beam bracket 74 is fixedly installed on the center of the back end face of the data storage body 5 by screws, and the bottom of the vertical beam bracket 74 is connected and installed with a fitting fixing block 73, which is attached to the bottom of the vertical beam bracket 74. The bottom end face of the closing block 73 is fixedly installed with a bearing plate 72, and the bottom of the bearing plate 72 is fixedly connected with the top end face of the anti-skid base 1; The top end face is limited, and the vertical beam bracket 74 is supported by the bearing plate 72 and the fitting and fixing block 73, so that the center of the back of the data storage body 5 is fixed by the vertical beam bracket 74, so that the overall structure of the data storage body 5 can be improved. Firmness, thereby reducing the impact of vibration and shock on the data storage body 5.

As an embodiment of the present invention, the anti-collision assembly 6 includes an anti-collision pad 61, a locking screw 62 and a coil spring 63. The anti-collision pad 61 is fitted and installed on one side of the outer wall of the data storage body 5. The anti-collision pad The center of the end face of the plate 61 is fixedly installed with a locking screw 62, and the outer side of the locking screw 62 is sleeved and installed with a coil spring 63, and one end of the locking screw 62 is connected and installed with a locking nut through the heat dissipation side plate 3; After the anti-collision pad 61 is attached to the end face of the data storage body 5 and fixed by the locking nut and the locking screw 62 , the coil spring 63 enables the anti-collision pad 61 to have a displacement buffer effect on the data storage body 5 . , so as to effectively reduce the damage to the equipment caused by shaking.

As an embodiment of the present invention, the limit assembly 8 includes a limit support 81 , a limit block 82 , a mounting seat 83 , a limit slot 84 and a limit frame 85 , and the limit support 81 is fixed and installed by screws In the center of the end face of the installation back plate 2, the limit block 82 is fixedly installed on the center of the end face of the limit support 81 by screws, and a limit frame 85 is arranged on the side of the end face of the limit block 82. The mounting seat 83 is fixed and installed on the In the center of the back end face of the data storage body 5, a limit card slot 84 is defined on one end face of the mounting seat 83, the limit card block 82 is snap-fitted inside the limit card slot 84, and the limit frame 85 is located in the limit card slot The outer side of 84; on the back of the data storage body 5, after the limit card slot 84 on the side of the mounting seat 83 is engaged with the limit block 82 on the end face of the limit support 81, the limit bracket 85 can avoid the The limit block 82 slides out of the limit card slot 84 , and both sides of the back of the data storage body 5 are connected and fixed with the mounting backplane 2 , so that the back of the data storage body 5 has good installation and disassembly convenience.

The working principle of the present invention: the anti-skid feet at the bottom of the anti-skid base 1 can improve the anti-skid effect of the anti-skid base 1; on the top of the anti-skid base 1, the bottom of the data storage body 5 is connected to the The top end face is limited, and the vertical beam bracket 74 is supported by the bearing plate 72 and the fitting and fixing block 73, so that the center of the back of the data storage body 5 is fixed by the vertical beam bracket 74, so that the overall structure of the data storage body 5 can be improved. Firmness, thereby reducing the impact of vibration and impact on the data storage body 5, on the back of the data storage body 5, the limit card slot 84 on the side of the mounting seat 83 and the limit block 82 on the end face of the limit support 81 are locked. After being closed, the limit block 82 can be prevented from slipping out of the limit card slot 84 by the limit frame 85, and both sides of the back of the data storage body 5 are connected and fixed with the installation backplane 2, so that the back of the data storage body 5 has Good installation and disassembly convenience, on both sides of the data storage body 5, after the crash pads 61 are attached to the end face of the data storage body 5, after being fixed by the locking nut and the locking screw 62, through the screw The spring 63 can make the anti-collision pad 61 have a displacement buffering effect on the data storage body 5, thereby effectively reducing equipment damage caused by shaking; when the data storage body 5 works for a long time, the ventilation assembly 4 is used for heat dissipation and cooling, and the casing 42 passes through The beam frame 41 is fixedly installed on the outer side of the heat dissipation side plate 3. Inside the beam frame 41, when the heat dissipation motor 44 installed on the side of the fixed frame 43 is working, the helical fan blade 46 is driven to rotate through the transmission shaft, so as to pass the ventilation net 47 and the fan blade 46. The through holes speed up the heat dissipation rate of the data storage body 5; the parts inside the casing 42 can be easily installed and removed by installing the cover plate 45; The anti-collision component 6 installed on the side, the shock-absorbing component 7 between the anti-skid base 1 and the dust-blocking top plate 9, and the limit component 8 installed on the side of the installation back plate 2 can improve the overall structural stability and anti-collision of the data storage body 5. In addition, the heat dissipation rate of the data storage body 5 can be improved by installing the ventilation assembly 4 installed on the side of the backplane 2 .

The above-disclosed preferred embodiments of the present invention are provided only to help illustrate the present invention. The preferred embodiments do not exhaust all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. The present specification selects and specifically describes these embodiments in order to better explain the principles and practical applications of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is to be limited only by the claims and their full scope and equivalents.

Claims (1)

1. A computer-based cloud computing data storage system, characterized in that it comprises a non-slip base (1), an installation backplane (2), a heat dissipation side plate (3), a ventilation assembly (4), a data storage body (5), an anti-collision assembly (6), a shock-absorbing assembly (7), a limit assembly (8) and a dust-blocking top plate (9), a mounting back plate (2) is fixedly mounted on one end of the edge of the top end face of the anti-skid base (1), And the end surface side of the installation back plate (2) is fixedly installed with a dust-blocking top plate (9) by screws, and a heat dissipation side plate (3) is fixed and installed on both sides of the top end surface of the anti-skid base (1) by screws. A ventilation assembly (4) is fixedly installed on the end face of the heat dissipation side plate (3) on the top side of the anti-skid base (1), and a data memory body (5) is arranged in the center of the top end face of the anti-skid base (1). The top and bottom of the body (5) are provided with shock-absorbing assemblies (7), and the data storage body (5) is connected with the anti-skid base (1) and the dust-blocking top plate (9) through the shock-absorbing assembly (7), the data storage Several anti-collision assemblies (6) are fixedly installed on both sides of the end face of the main body (5), and a limit assembly (8) is installed in the center of the end face of the mounting back plate (2), and the limit assembly (8) and the data memory The body (5) is fixedly connected; The ventilation assembly (4) includes a beam frame (41), a casing (42), a fixed frame (43), a heat dissipation motor (44), a spiral fan blade (46) and a ventilation net (47). (3) A ventilation net (47) is fixedly installed in the center of the end face, and a beam frame (41) is fixed and installed on the outside of the ventilation net (47) by screws. A casing (42), a fixing frame (43) is fixedly installed on one side of the inner end face of the casing (42) by screws, and a heat dissipation motor (44) is fixed and installed in the interior of the fixing frame (43) by screws, and the heat dissipation One side of the motor (44) is connected and installed with a helical fan blade (46) through a transmission shaft; Anti-skid feet are fixedly installed around the bottom end face of the anti-skid base (1); Both end faces of the casing (42) are provided with through holes, and one end of the spiral fan blade (46) passes through the through holes and is located on the outside of the ventilation net (47). A mounting cover (45) is fixedly installed inside the through hole by screws; The shock absorbing assembly (7) includes a first rubber plate (71), a load-bearing plate (72), a fitting and fixing block (73), a vertical beam bracket (74) and a second rubber plate (75). The rubber plate (71) is fixedly installed on the top end surface of the anti-skid base (1) by screws, and the top of the first rubber plate (71) is connected with the bottom end surface of the data storage body (5) in a close fit, and the second rubber plate ( 75) It is fixedly installed on the bottom end face of the dust-blocking top plate (9) by screws, and the bottom of the second rubber plate (75) is attached to the top end face of the data storage body (5), and the vertical beam bracket (74) passes through The screw is fixedly installed on the center of the back end face of the data storage body (5), the bottom of the vertical beam bracket (74) is connected and installed with a fitting fixing block (73), and the bottom end face of the fitting fixing block (73) is fixedly installed There is a load-bearing plate (72), and the bottom of the load-bearing plate (72) is fixedly connected with the top end face of the anti-skid base (1); The anti-collision assembly (6) includes an anti-collision backing plate (61), a locking screw (62) and a coil spring (63), and the anti-collision backing plate (61) is fitted and installed on the data storage body (5). On one side of the outer wall, a locking screw (62) is fixedly installed in the center of the end face of the anti-collision pad (61), and a coil spring (63) is sleeved and installed on the outer side of the locking screw (62). The locking screw One end of (62) is connected and installed with a locking nut through the heat dissipation side plate (3); The limit assembly (8) includes a limit support (81), a limit block (82), a mounting seat (83), a limit slot (84) and a limit frame (85), the limit The support (81) is fixedly installed on the center of the end face of the installation back plate (2) by screws, and the center of the end surface of the limit support (81) is fixedly installed with a limit block (82) by screws, and the limit block One side of the end face of (82) is provided with a limiting frame (85), the mounting seat (83) is fixedly mounted on the center of the back end face of the data storage body (5) by screws, and one end face of the mounting seat (83) is provided with a A limit card slot (84), the limit card block (82) is snap-fitted inside the limit card slot (84), and the limit frame (85) is located on the outer side of the limit card slot (84) .
