Abstract

本发明公开了一种废油脂制备可生物降解的润滑油及其制备工艺，该制备工艺中通过使用废油脂回收设备对废油脂进行处理回收，该废油脂回收设备通过回收分离箱中的过滤板将废油脂中的废渣清除，去除了废油脂中的固体杂质，然后通过加热板将废油脂加热，由于水的沸点比油脂沸点低，控制水沸腾汽化从油脂中排出，将废油脂充分提纯，然后将通过第二驱动电机实现回收分离箱的自动倾斜，将废油脂倾倒出后经过脱色，实现废油脂可以用于生产润滑油，变废为宝；该废油脂回收设备能够将废油脂中的杂质充分去除，保证了润滑油的品质，且该废油脂回收设备结构简单，自动化程度高，不仅提高了废油脂的回收效率，还降低了润滑油的生产成本。

Figure 202110074931

The invention discloses a biodegradable lubricating oil prepared from waste oil and a preparation process thereof. In the preparation process, waste oil is processed and recovered by using a waste oil recovery device, and the waste oil recovery device is used to recover a filter plate in a separation box. The waste residue in the waste grease is removed, the solid impurities in the waste grease are removed, and then the waste grease is heated by the heating plate. Since the boiling point of water is lower than that of the grease, the boiling and vaporization of the water is controlled to be discharged from the grease, and the waste grease is fully purified. Then, the automatic tilting of the recovery separation box will be realized through the second drive motor, and the waste oil will be decolorized after being dumped out, so that the waste oil can be used to produce lubricating oil, turning waste into treasure; the waste oil recovery equipment can The impurities are fully removed to ensure the quality of the lubricating oil, and the waste oil recovery equipment has a simple structure and a high degree of automation, which not only improves the recovery efficiency of the waste oil, but also reduces the production cost of the lubricating oil.

Figure 202110074931

Description

Biodegradable lubricating oil prepared from waste oil and fat and preparation process thereof
Technical Field
The invention relates to the field of chemical industry, in particular to biodegradable lubricating oil prepared from waste oil and fat and a preparation process thereof.
Background
The waste oil refers to animal and vegetable oil which is produced in the production and operation processes of the catering service industry and can not be eaten any more, and can be generally divided into drainage oil, swill oil and frying oil according to the source. In the past, due to the lack of effective supervision and reasonable utilization, waste oil and fat is discharged into a sewer without being treated for a long time, so that not only is resource waste caused, but also a series of problems of blocking urban sewage pipe networks and the like are caused.
Meanwhile, a large amount of harmful substances such as sewage, garbage, bacteria and the like are mixed in the waste oil, and some illegal vendors process the waste oil through precipitation, filtration, decoloration, deodorization, washing, dehydration, essence addition and the like, then permeate the fresh rapeseed oil to flow into the edible oil market, enter common people dining tables, and recycle the oil, have completely contradictory and legal reasons and seriously damage the health of consumers, so that the key of the invention is how to reasonably change the waste oil into valuables and scientifically utilize the waste oil.
Disclosure of Invention
In order to overcome the technical problems, the invention aims to provide biodegradable lubricating oil prepared from waste oil and fat and a preparation process thereof, wherein the preparation process comprises the following steps: the waste oil and fat is treated and recovered by using waste oil and fat recovery equipment, waste residues in the waste oil and fat are removed by a filter plate in a recovery separation box, solid impurities in the waste oil and fat are removed, then the waste oil and fat is heated by a heating plate, the boiling point of water is lower than that of the oil and fat, water is controlled to boil and vaporize and is discharged from the oil and fat, the waste oil and fat is fully purified, then the automatic inclination of the recovery separation box is realized by a second driving motor, the waste oil and fat is decolorized after being poured out, the waste oil and fat can be used for producing lubricating oil, the problems that the existing waste oil and fat is not treated and discharged for a long time, not only resource waste is caused, but also environmental pollution is caused, or the waste oil and fat flows into an edible oil market after being treated, and the health of consumers is damaged are solved.
The purpose of the invention can be realized by the following technical scheme:
a biodegradable lubricating oil prepared from waste oil and fat comprises the following components in parts by weight: 90-110 parts of recovered oil, 15-25 parts of sodium hydroxide, 15-25 parts of sodium carbonate, 2-3 parts of fatty alcohol emulsifier and 2-3 parts of methanol;
the biodegradable lubricating oil is prepared by the following steps:
the method comprises the following steps: opening a sealing cover of waste oil recovery equipment, adding waste oil into an inner cavity of a recovery separation box from a feed inlet, enabling the waste oil to pass through an obliquely arranged filter plate, and intercepting waste residues in the waste oil at one side of the filter plate;
step two: starting the heating plate, heating the waste oil and fat by the heating plate, keeping the temperature at the condition of 100-;
step three: when the water in the waste oil is completely discharged, a first driving motor is started, the first driving motor operates to drive a transmission rod to rotate through a first transmission gear, so that a filter plate slides in a guide groove through a guide rod until the filter plate slides to one end, close to a condensation pipe, of the guide groove, and the filter plate takes out waste residues in the waste oil and collects the waste residues to one side, far away from an oil outlet, of an inner cavity of a recovery separation box;
Step four: a second driving motor is started, the second driving motor operates to drive a second transmission gear to rotate, and the second transmission gear is meshed with the gear plate, so that the guide rail is driven to rotate on the outer roller and the inner roller through the transmission rail, and the recovery separation box is inclined;
step five: the recycling separation box is continuously inclined until the oil outlet nozzle enters the inner cavity of the flow guide cover, at the moment, the waste oil and fat with water discharged enters the oil storage box with activated clay in the inner cavity through the oil outlet nozzle and the flow guide cover, and the waste oil and fat with water discharged is decolorized by the activated clay to obtain recycled oil;
step six: stirring the recovered oil at 85-100 ℃ for 30-40min, adding sodium hydroxide and sodium carbonate, continuously stirring for 1-3h, heating to 115-136 ℃, adding a fatty alcohol emulsifier, continuously stirring for 1-2h, adding methanol, and continuously stirring for 1-2h to obtain the biodegradable lubricating oil.
As a further scheme of the invention: waste oil recovery plant is including retrieving mechanism, water storage tank, batch oil tank, condensation hose, kuppe, buffering backing plate, one side bottom of retrieving the mechanism is connected with the batch oil tank through the connecting seat, the top of batch oil tank is connected to one side top of retrieving the mechanism through condensation hose, the opposite side bottom of retrieving the mechanism is connected with the batch oil tank through the connecting seat, the top of batch oil tank is close to one side of retrieving the mechanism and installs the buffering backing plate, the kuppe is installed to one side of retrieving the mechanism is kept away from at the top of batch oil tank, the cross-section of kuppe is fan-shaped.
As a further scheme of the invention: retrieve mechanism is including adjusting chassis, installation frid, recovery separator box, guide rail, transmission track, operation mouth, play oil nozzle, condenser pipe, sealed lid, be provided with the installation frid directly over adjusting the chassis, the installation frid comprises two risers and a diaphragm, three guide rail, three are installed in the outside of installation frid the guide rail equidistance distributes, is located the centre install the transmission track on the guide rail, the guide rail all is half-circular with the transmission track, the one end of guide rail is installed on one side of installation frid, the bottom at the installation frid is installed to the other end of guide rail, a bottom edge and the guide rail fixed connection of installation frid, the operation mouth has been seted up to the opposite side of installation frid, install the recovery separator box in the inner chamber of installation frid.
As a further scheme of the invention: the top of recovery separator box rotates installs sealed lid, the below that recovery separator box top is located sealed lid has seted up the charge door, the one side bottom that recovery separator box is close to the operation mouth has seted up row cinder notch, be provided with sealing door on the row cinder notch, the condenser pipe is installed to the top that recovery separator box one side is located row cinder notch, the condenser pipe is connected with the condenser hose, a glib is installed at the opposite side top of recovery separator box, it is the cooperation component with the kuppe to go out glib.
As a further scheme of the invention: the hot plate is installed to the inner chamber bottom of retrieving the separator box, the position that the bottom of retrieving the separator box is located between hot plate and the row cinder notch is run through the bearing and is installed the transfer line, install the filter on the transfer line, the guide bar is all installed at the both sides top of filter, the guide way has all been seted up at the inner chamber both sides top of retrieving the separator box, the guide way is the arc, two the guide bar respectively with two guide way sliding connection.
As a further scheme of the invention: one side of the recovery separation box is provided with a first driving motor, the first driving motor is installed in an inner cavity of the installation groove plate, one end of an output shaft of the first driving motor and one end of the transmission rod are respectively sleeved with a first transmission gear, and the two first transmission gears are in transmission connection through a toothed belt.
As a further scheme of the invention: the adjusting chassis is a square frame, a supporting plate is arranged between two sides of the adjusting chassis, a mounting plate is arranged between the supporting plate and one end of the adjusting chassis, a second driving motor is arranged at the top of the mounting plate, first U-shaped clamping plates are arranged at two ends of the top of the supporting plate, a second transmission gear is rotatably arranged in an inner cavity of each first U-shaped clamping plate and on an output shaft of each second driving motor, the second transmission gear and a transmission rail are matched components, second U-shaped clamping plates are arranged at four corners of the top of the adjusting chassis, outer rollers are rotatably arranged in inner cavities of the second U-shaped clamping plates, four outer rollers are respectively in rolling connection with the outer sides of two guide rails at two ends, connecting plates are arranged in the middle positions of two ends of the adjusting chassis, and inner rollers are rotatably arranged on the connecting plates through rotating shafts, and the two inner rollers are respectively in rolling connection with the inner sides of the two guide rails at the two ends.
As a further scheme of the invention: the transmission rail is provided with a groove, a gear plate is arranged in the groove, and the gear plate is in meshed connection with the second transmission gear.
As a further scheme of the invention: a preparation process for preparing biodegradable lubricating oil from waste oil comprises the following steps:
the method comprises the following steps: opening a sealing cover of waste oil recovery equipment, adding waste oil into an inner cavity of a recovery separation box from a feed inlet, enabling the waste oil to pass through an obliquely arranged filter plate, and intercepting waste residues in the waste oil at one side of the filter plate;
step two: starting the heating plate, heating the waste oil and fat by the heating plate, keeping the temperature at the condition of 100-;
step three: when the water in the waste oil is completely discharged, a first driving motor is started, the first driving motor operates to drive a transmission rod to rotate through a first transmission gear, so that a filter plate slides in a guide groove through a guide rod until the filter plate slides to one end, close to a condensation pipe, of the guide groove, and the filter plate takes out waste residues in the waste oil and collects the waste residues to one side, far away from an oil outlet, of an inner cavity of a recovery separation box;
Step four: a second driving motor is started, the second driving motor operates to drive a second transmission gear to rotate, and the second transmission gear is meshed with the gear plate, so that the guide rail is driven to rotate on the outer roller and the inner roller through the transmission rail, and the recovery separation box is inclined;
step five: the recycling separation box is continuously inclined until the oil outlet nozzle enters the inner cavity of the flow guide cover, at the moment, the waste oil and fat with water discharged enters the oil storage box with activated clay in the inner cavity through the oil outlet nozzle and the flow guide cover, and the waste oil and fat with water discharged is decolorized by the activated clay to obtain recycled oil;
step six: stirring the recovered oil at 85-100 ℃ for 30-40min, adding sodium hydroxide and sodium carbonate, continuously stirring for 1-3h, heating to 115-136 ℃, adding a fatty alcohol emulsifier, continuously stirring for 1-2h, adding methanol, and continuously stirring for 1-2h to obtain the biodegradable lubricating oil.
The invention has the beneficial effects that:
the invention relates to a biodegradable lubricating oil prepared from waste oil and a preparation process thereof, which comprises the steps of adding the waste oil and fat into an inner cavity of a recovery separation box from a feed inlet by opening a sealing cover of waste oil and fat recovery equipment, enabling the waste oil and fat to pass through an obliquely arranged filter plate, retaining waste residues in the waste oil and fat at one side of the filter plate, starting a heating plate, heating the waste oil and fat by the heating plate and keeping the temperature at 120 ℃, evaporating moisture in the waste oil and fat to leave the oil and fat at the moment, discharging the water and fat through a condenser pipe, gradually liquefying water vapor to form water drops when the water vapor passes through a condenser hose, guiding the water to enter a water storage tank for storage, starting a first driving motor when the moisture in the waste oil and fat is completely discharged, driving a transmission rod to rotate through a first transmission gear so that the filter plate slides in a guide groove through the guide rod until the filter plate slides to one end of the guide groove close to the condenser pipe, at the moment, the filter plate drags out waste residues in the waste oil and fat and collects the waste residues to one side, far away from the oil outlet nozzle, of the inner cavity of the recovery separation box, a second driving motor is started, the second driving motor operates to drive a second transmission gear to rotate, the second transmission gear is meshed with the gear plate, so that the guide rail is driven to rotate on the outer roller and the inner roller through the transmission track, the recovery separation box is inclined continuously until the oil outlet nozzle enters the inner cavity of the flow guide cover, the waste oil and fat with water discharged at the moment enter the oil storage box with activated clay added in the inner cavity through the oil outlet nozzle and the flow guide cover, the waste oil and fat with water discharged enters an oil storage box with activated clay added in the inner cavity, the recovered oil is decolorized through the activated clay to obtain recovered oil, and the recovered oil, sodium hydroxide, sodium carbonate, fatty alcohol emulsifier and methanol are prepared into the biodegradable lubricating oil;
The lubricating oil is prepared from the waste oil and fat through recovery and other raw materials, has good biodegradability, and solves the problems of resource waste and environmental pollution caused by random discharge of the waste oil and fat, so that the waste oil and fat has certain economic benefit, waste is turned into wealth, and the problem that the waste oil and fat flows into the edible oil market to damage the health of people is indirectly solved;
in the preparation process, waste oil and fat are treated and recovered by using waste oil and fat recovery equipment, waste residues in the waste oil and fat are removed by a filter plate in a recovery separation box, solid impurities in the waste oil and fat are removed, then the waste oil and fat are heated by a heating plate, water is controlled to boil and vaporize to be discharged from the oil and fat due to the fact that the boiling point of water is lower than that of the oil and fat, the waste oil and fat are fully purified, then the recovery separation box is automatically inclined by a second driving motor, the waste oil and fat are poured out and decolorized, and the waste oil and fat can be used for producing lubricating oil; the waste oil recovery equipment can fully remove impurities in the waste oil, ensures the quality of lubricating oil, has simple structure and high automation degree, not only improves the recovery efficiency of the waste oil, but also reduces the production cost of the lubricating oil.
Drawings
The invention will be further described with reference to the accompanying drawings.

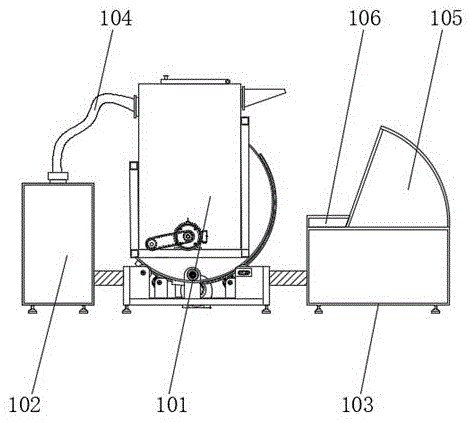

FIG. 1 is a schematic view of a waste oil and fat recovery apparatus according to the present invention;
FIG. 2 is a schematic view of the recovery mechanism of the present invention;
FIG. 3 is a schematic view showing the internal structure of the recovery and separation tank according to the present invention;
FIG. 4 is a view showing the connection of the filter plate, the guide bar and the driving bar according to the present invention;
FIG. 5 is a connection view of the transmission rod, the first driving motor and the first transmission gear in the present invention;
FIG. 6 is an assembled schematic view of the top of the adjustment chassis of the present invention;
fig. 7 is a sectional view of the guide rail and the transmission rail of the present invention.
In the figure: 101. a recovery mechanism; 102. a water storage tank; 103. an oil storage tank; 104. a condensing hose; 105. a pod; 106. a cushion plate; 107. adjusting the underframe; 108. installing a groove plate; 109. a recovery separation tank; 110. a guide rail; 111. a drive rail; 112. an operation port; 113. an oil outlet nozzle; 114. a condenser tube; 115. a sealing cover; 116. heating plates; 117. a slag discharge port; 118. a filter plate; 119. a guide groove; 120. a feed inlet; 121. a guide bar; 122. a transmission rod; 123. a first drive motor; 124. a first drive gear; 125. a support plate; 126. mounting a plate; 127. a second drive motor; 128. a first U-shaped clamp plate; 129. a second transmission gear; 130. a second U-shaped clamp plate; 131. an outer roller; 132. a connecting plate; 133. an inner roller; 134. a gear plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example 1:
referring to fig. 1-7, this embodiment is a method for preparing biodegradable lubricating oil from waste oil, where the biodegradable lubricating oil comprises the following components in parts by weight: 90 parts of recovered oil, 15 parts of sodium hydroxide, 15 parts of sodium carbonate, 2 parts of fatty alcohol emulsifier and 2 parts of methanol;
a preparation process for preparing biodegradable lubricating oil from waste oil comprises the following steps:
the method comprises the following steps: opening a sealing cover 115 of the waste oil and fat recovery device, adding the waste oil and fat into an inner cavity of the recovery separation box 109 from a feeding port 120, enabling the waste oil and fat to pass through an obliquely arranged filter plate 118, and intercepting waste residues in the waste oil and fat at one side of the filter plate 118;
step two: starting the heating plate 116, heating the waste oil and fat by the heating plate 116, keeping the temperature at 100 ℃, evaporating moisture in the waste oil and fat to separate the oil and fat, discharging the water and fat through the condensing pipe 114, gradually liquefying the water vapor to form water drops when the water vapor passes through the condensing hose 104, and guiding the water drops to enter the water storage tank 102 for storage;
Step three: when the moisture in the waste oil is completely discharged, a first driving motor 123 is started, the first driving motor 123 runs to drive a transmission rod 122 to rotate through a first transmission gear 124, so that the filter plate 118 slides in the guide groove 119 through the guide rod 121 until the filter plate slides to one end of the guide groove 119 close to the condensation pipe 114, and at the moment, the filter plate 118 uniformly takes out the waste residues in the waste oil and collects the waste residues to one side of the inner cavity of the recovery separation box 109, which is far away from the oil outlet 113;
step four: the second driving motor 127 is started, the second driving motor 127 operates to drive a second transmission gear 129 to rotate, and the second transmission gear 129 is meshed with the gear plate 134, so that the guide rail 110 is driven to rotate on the outer roller 131 and the inner roller 133 through the transmission rail 111, and the recovery separation box 109 is inclined;
step five: the recycling separation tank 109 is continuously inclined until the oil outlet 113 enters the inner cavity of the air guide sleeve 105, at the moment, the waste oil with the moisture discharged enters the oil storage tank 103 with the activated clay added in the inner cavity through the oil outlet 113 and the air guide sleeve 105, and the waste oil with the moisture discharged is decolorized by the activated clay to obtain recycled oil;
step six: stirring the recovered oil at 85 ℃ for 30min, adding sodium hydroxide and sodium carbonate, continuously stirring for 1h, heating to 115 ℃, adding a fatty alcohol emulsifier, continuously stirring for 1h, adding methanol, and continuously stirring for 1h to obtain the biodegradable lubricating oil.
Example 2:
referring to fig. 1-7, this embodiment is a method for preparing biodegradable lubricating oil from waste oil, where the biodegradable lubricating oil comprises the following components in parts by weight: 110 parts of recovered oil, 25 parts of sodium hydroxide, 25 parts of sodium carbonate, 3 parts of fatty alcohol emulsifier and 3 parts of methanol;
a preparation process for preparing biodegradable lubricating oil from waste oil comprises the following steps:
the method comprises the following steps: opening a sealing cover 115 of the waste oil and fat recovery device, adding the waste oil and fat into an inner cavity of the recovery separation box 109 from a feeding port 120, enabling the waste oil and fat to pass through an obliquely arranged filter plate 118, and intercepting waste residues in the waste oil and fat at one side of the filter plate 118;
step two: starting the heating plate 116, heating the waste oil and fat by the heating plate 116, keeping the temperature at 120 ℃, evaporating moisture in the waste oil and fat to separate the oil and fat, discharging the water and fat through the condensing pipe 114, gradually liquefying the water vapor to form water drops when the water vapor passes through the condensing hose 104, and guiding the water drops to enter the water storage tank 102 for storage;
step three: when the moisture in the waste oil is completely discharged, a first driving motor 123 is started, the first driving motor 123 runs to drive a transmission rod 122 to rotate through a first transmission gear 124, so that the filter plate 118 slides in the guide groove 119 through the guide rod 121 until the filter plate slides to one end of the guide groove 119 close to the condensation pipe 114, and at the moment, the filter plate 118 uniformly takes out the waste residues in the waste oil and collects the waste residues to one side of the inner cavity of the recovery separation box 109, which is far away from the oil outlet 113;
Step four: the second driving motor 127 is started, the second driving motor 127 operates to drive a second transmission gear 129 to rotate, and the second transmission gear 129 is meshed with the gear plate 134, so that the guide rail 110 is driven to rotate on the outer roller 131 and the inner roller 133 through the transmission rail 111, and the recovery separation box 109 is inclined;
step five: the recycling separation tank 109 is continuously inclined until the oil outlet 113 enters the inner cavity of the air guide sleeve 105, at the moment, the waste oil with the moisture discharged enters the oil storage tank 103 with the activated clay added in the inner cavity through the oil outlet 113 and the air guide sleeve 105, and the waste oil with the moisture discharged is decolorized by the activated clay to obtain recycled oil;
step six: stirring the recovered oil at 100 ℃ for 40min, adding sodium hydroxide and sodium carbonate, continuously stirring for 3h, heating to 136 ℃, adding a fatty alcohol emulsifier, continuously stirring for 2h, adding methanol, and continuously stirring for 2h to obtain the biodegradable lubricating oil.
Example 3:
referring to fig. 1 to 7, the waste grease recovery apparatus in this embodiment includes a recovery mechanism 101, a water storage tank 102, an oil storage tank 103, a condensation hose 104, a diversion cover 105, and a buffer liner 106, wherein the bottom of one side of the recovery mechanism 101 is connected to the oil storage tank 103 through a connecting seat, the top of the oil storage tank 103 is connected to the top of one side of the recovery mechanism 101 through the condensation hose 104, the bottom of the other side of the recovery mechanism 101 is connected to the oil storage tank 103 through a connecting seat, the buffer liner 106 is installed on one side of the top of the oil storage tank 103 close to the recovery mechanism 101, the diversion cover 105 is installed on one side of the top of the oil storage tank 103 far from the recovery mechanism 101, and the section of the diversion cover 105 is fan-shaped;
The recovery mechanism 101 comprises an adjusting underframe 107, an installation groove plate 108, a recovery separation box 109, a guide rail 110, a transmission rail 111, an operation opening 112, an oil outlet nozzle 113, a condensation pipe 114 and a sealing cover 115, an installation groove plate 108 is arranged right above the adjusting bottom frame 107, the installation groove plate 108 is composed of two vertical plates and a horizontal plate, the outer side of the mounting groove plate 108 is provided with three guide rails 110, the three guide rails 110 are distributed at equal intervals, the guide rail 110 in the middle is provided with a transmission track 111, the guide rail 110 and the transmission rail 111 are both in a semicircular shape, one end of the guide rail 110 is installed on one side of the installation groove plate 108, the other end of the guide rail 110 is installed at the bottom of the installation groove plate 108, one edge of the bottom of the installation groove plate 108 is fixedly connected with the guide rail 110, an operation opening 112 is formed in the other side of the installation groove plate 108, and a recovery separation box 109 is installed in an inner cavity of the installation groove plate 108;
the top of the recovery separation box 109 is rotatably provided with a sealing cover 115, the top of the recovery separation box 109 is positioned below the sealing cover 115 and is provided with a feeding port 120, the bottom of one side of the recovery separation box 109, which is close to the operation port 112, is provided with a slag discharge port 117, a sealing door is arranged on the slag discharge port 117, a condensation pipe 114 is arranged above the slag discharge port 117 on one side of the recovery separation box 109, the condensation pipe 114 is connected with a condensation hose 104, the top of the other side of the recovery separation box 109 is provided with an oil outlet 113, and the oil outlet 113 and the flow guide cover 105 are matched components;
A heating plate 116 is installed at the bottom of an inner cavity of the recovery separation box 109, a transmission rod 122 is installed at the position, located between the heating plate 116 and a slag discharge port 117, of the bottom of the recovery separation box 109 in a penetrating mode through a bearing, a filter plate 118 is installed on the transmission rod 122, guide rods 121 are installed on the tops of two sides of the filter plate 118, guide grooves 119 are formed in the tops of two sides of the inner cavity of the recovery separation box 109, the guide grooves 119 are arc-shaped, and the two guide rods 121 are respectively connected with the two guide grooves 119 in a sliding mode;
a first driving motor 123 is arranged on one side of the recovery separation box 109, the first driving motor 123 is installed in an inner cavity of the installation groove plate 108, first transmission gears 124 are sleeved on output shafts of the first driving motor 123 and one end of the transmission rod 122, and the two first transmission gears 124 are in transmission connection through a toothed belt;
the adjusting chassis 107 is a square frame, a support plate 125 is installed between two sides of the adjusting chassis 107, an installation plate 126 is installed between the support plate 125 and one end of the adjusting chassis 107, a second driving motor 127 is installed at the top of the installation plate 126, first U-shaped clamping plates 128 are installed at two ends of the top of the support plate 125, second transmission gears 129 are installed in inner cavities of the first U-shaped clamping plates 128 and output shafts of the second driving motor 127 in a rotating manner, the second transmission gears 129 and the transmission rails 111 are matched members, second U-shaped clamping plates 130 are installed at four corners of the top of the adjusting chassis 107, outer rollers 131 are installed in inner cavities of the second U-shaped clamping plates 130 in a rotating manner, the four outer rollers 131 are respectively connected with the outer sides of the two guide rails 110 at two ends in a rolling manner, and connecting plates 132 are installed at the middle positions of two ends of the adjusting chassis 107, the connecting plate 132 is rotatably provided with inner rollers 133 through a rotating shaft, and the two inner rollers 133 are respectively in rolling connection with the inner sides of the two guide rails 110 at the two ends;
The transmission rail 111 is provided with a groove, a gear plate 134 is mounted in the groove, and the gear plate 134 is in meshed connection with the second transmission gear 129.
Referring to fig. 1-7, the working process of the waste oil and fat recovery apparatus in this embodiment is as follows:
the method comprises the following steps: opening a sealing cover 115 of the waste oil and fat recovery device, adding the waste oil and fat into an inner cavity of the recovery separation box 109 from a feeding port 120, enabling the waste oil and fat to pass through an obliquely arranged filter plate 118, and intercepting waste residues in the waste oil and fat at one side of the filter plate 118;
step two: starting the heating plate 116, heating the waste oil and fat by the heating plate 116, keeping the temperature at 120 ℃ of 100-;
step three: when the moisture in the waste oil is completely discharged, a first driving motor 123 is started, the first driving motor 123 runs to drive a transmission rod 122 to rotate through a first transmission gear 124, so that the filter plate 118 slides in the guide groove 119 through the guide rod 121 until the filter plate slides to one end of the guide groove 119 close to the condensation pipe 114, and at the moment, the filter plate 118 uniformly takes out the waste residues in the waste oil and collects the waste residues to one side of the inner cavity of the recovery separation box 109, which is far away from the oil outlet 113;
Step four: the second driving motor 127 is started, the second driving motor 127 operates to drive a second transmission gear 129 to rotate, and the second transmission gear 129 is meshed with the gear plate 134, so that the guide rail 110 is driven to rotate on the outer roller 131 and the inner roller 133 through the transmission rail 111, and the recovery separation box 109 is inclined;
step five: the recycling separation tank 109 is continuously inclined until the oil outlet 113 enters the inner cavity of the air guide sleeve 105, at the moment, the waste oil with the water discharged enters the oil storage tank 103 with activated clay added in the inner cavity through the oil outlet 113 and the air guide sleeve 105, the weight ratio of the activated clay to the illegal cooking oil is 1-3:50, and the waste oil with the water discharged is decolorized by the activated clay to obtain the recycled oil.
In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The foregoing is illustrative and explanatory only and is not intended to be exhaustive or to limit the invention to the precise embodiments described, and various modifications, additions, and substitutions may be made by those skilled in the art without departing from the scope of the invention or exceeding the scope of the claims.

Claims (4)

1.一种废油脂制备可生物降解的润滑油，其特征在于，该可生物降解的润滑油包括以下重量份组分：回收油90-110份、氢氧化钠15-25份、碳酸钠15-25份、脂肪醇类乳化剂2-3份、甲醇2-3份；1. a kind of waste grease prepares biodegradable lubricating oil, it is characterized in that, this biodegradable lubricating oil comprises following components by weight: 90-110 parts of recovered oil, 15-25 parts of sodium hydroxide, 15 parts of sodium carbonate -25 parts, 2-3 parts of fatty alcohol emulsifier, 2-3 parts of methanol; 该可生物降解的润滑油由以下步骤制备得到：The biodegradable lubricating oil is prepared by the following steps: 步骤一：打开废油脂回收设备的密封盖(115)，将废油脂从加料口(120)加入至回收分离箱(109)的内腔中，废油脂穿过倾斜设置过滤板(118)，废油脂中的废渣截留于过滤板(118)的一侧；Step 1: Open the sealing cover (115) of the waste grease recovery equipment, add the waste grease from the feeding port (120) into the inner cavity of the recovery separation box (109), the waste grease passes through the inclined filter plate (118), and the waste grease passes through the inclined filter plate (118). The waste residue in the grease is retained on one side of the filter plate (118); 步骤二：启动加热板(116)，加热板(116)将废油脂升温并保温于100-120℃条件下，此时废油脂中的水分汽化离开油脂，经过冷凝管(114)排出，水蒸气经过冷凝软管(104)时逐渐液化形成水珠，经过导流进入储水罐(102)中储存；Step 2: start the heating plate (116), the heating plate (116) heats up the waste grease and keeps the temperature at 100-120°C. At this time, the water in the waste grease vaporizes and leaves the grease, and is discharged through the condensation pipe (114), and the water vapor is discharged. When passing through the condensing hose (104), it gradually liquefies to form water droplets, and enters the water storage tank (102) for storage through diversion; 步骤三：待废油脂中的水分完全排出，启动第一驱动电机(123)，第一驱动电机(123)运转通过第一传动齿轮(124)带动传动杆(122)转动，从而使得过滤板(118)通过导向杆(121)在导向槽(119)中滑动，直至滑至导向槽(119)靠近冷凝管(114)一端，此时过滤板(118)将废油脂中的废渣均捞出并收集至回收分离箱(109)内腔远离出油嘴(113)的一侧；Step 3: After the moisture in the waste grease is completely discharged, start the first drive motor (123), and the first drive motor (123) drives the transmission rod (122) to rotate through the first transmission gear (124), thereby making the filter plate (123). 118) Slide in the guide groove (119) through the guide rod (121) until the guide groove (119) is close to one end of the condenser pipe (114), at this time, the filter plate (118) removes the waste residue in the waste grease and removes it. Collect to the side of the inner cavity of the recovery separation box (109) away from the oil outlet (113); 步骤四：启动第二驱动电机(127)，第二驱动电机(127)运转带动一个第二传动齿轮(129)转动，由于第二传动齿轮(129)与齿轮板(134)啮合连接，从而通过传动轨道(111)带动导轨(110)在外滚轮(131)以及内滚轮(133)上转动，从而将回收分离箱(109)倾斜；Step 4: Start the second drive motor (127), the second drive motor (127) rotates and drives a second transmission gear (129) to rotate, because the second transmission gear (129) is meshed with the gear plate (134), thereby passing The transmission track (111) drives the guide rail (110) to rotate on the outer roller (131) and the inner roller (133), thereby tilting the recovery separation box (109); 步骤五：回收分离箱(109)继续倾斜直至出油嘴(113)进入导流罩(105)的内腔中，此时排出水分的废油脂经过出油嘴(113)、导流罩(105)进入内腔加有活性白土的储油箱(103)中，排出水分的废油脂经过活性白土脱色后得到回收油；Step 5: The recovery and separation box (109) continues to be tilted until the oil outlet (113) enters the inner cavity of the shroud (105). At this time, the waste grease discharged from the water enters through the oil outlet (113) and the shroud (105). In the oil storage tank (103) with activated clay in the inner cavity, the waste oil that discharges water is decolorized by the activated clay to obtain recovered oil; 步骤六：将回收油在85-100℃条件下搅拌30-40min，之后加入氢氧化钠和碳酸钠继续搅拌1-3h，之后升温至115-136℃后加入脂肪醇类乳化剂继续搅拌1-2h，之后加入甲醇继续搅拌1-2h，得到该可生物降解的润滑油；Step 6: Stir the recovered oil at 85-100°C for 30-40min, then add sodium hydroxide and sodium carbonate to continue stirring for 1-3h, then heat up to 115-136°C, add fatty alcohol emulsifier and continue stirring for 1- 2h, then add methanol and continue stirring for 1-2h to obtain the biodegradable lubricating oil; 所述废油脂回收设备包括回收机构(101)、储水罐(102)、储油箱(103)、冷凝软管(104)、导流罩(105)、缓冲垫板(106)，所述回收机构(101)的一侧底部通过连接座连接有储油箱(103)，所述储油箱(103)的顶部通过冷凝软管(104)连接至回收机构(101)的一侧顶部，所述回收机构(101)的另一侧底部通过连接座连接有储油箱(103)，所述储油箱(103)的顶部靠近回收机构(101)的一侧安装有缓冲垫板(106)，所述储油箱(103)的顶部远离回收机构(101)的一侧安装有导流罩(105)，所述导流罩(105)的截面呈扇形；The waste grease recovery equipment includes a recovery mechanism (101), a water storage tank (102), an oil storage tank (103), a condensation hose (104), a shroud (105), and a buffer pad (106). An oil storage tank (103) is connected to the bottom of one side of the mechanism (101) through a connection seat, and the top of the oil storage tank (103) is connected to the top of one side of the recovery mechanism (101) through a condensation hose (104). An oil storage tank (103) is connected to the bottom of the other side of the mechanism (101) through a connecting seat, and a buffer plate (106) is installed on the side of the top of the oil storage tank (103) close to the recovery mechanism (101). A shroud (105) is installed on the side of the top of the fuel tank (103) away from the recovery mechanism (101), and the section of the shroud (105) is fan-shaped; 所述回收机构(101)包括调节底架(107)、安装槽板(108)、回收分离箱(109)、导轨(110)、传动轨道(111)、操作口(112)、出油嘴(113)、冷凝管(114)、密封盖(115)，所述调节底架(107)的正上方设置有安装槽板(108)，所述安装槽板(108)由两块立板和一块横板组成，所述安装槽板(108)的外侧安装有三个导轨(110)，三个所述导轨(110)等距分布，位于中间的所述导轨(110)上安装有传动轨道(111)，所述导轨(110)与传动轨道(111)均呈半圆环形，所述导轨(110)的一端安装在安装槽板(108)的一侧上，所述导轨(110)的另一端安装在安装槽板(108)的底部，所述安装槽板(108)的底部一棱边与导轨(110)固定连接，所述安装槽板(108)的另一侧开设有操作口(112)，所述安装槽板(108)的内腔中安装有回收分离箱(109)；The recovery mechanism (101) includes an adjustment chassis (107), an installation groove plate (108), a recovery separation box (109), a guide rail (110), a transmission track (111), an operation port (112), and an oil outlet (113) ), a condensation pipe (114), a sealing cover (115), an installation groove plate (108) is provided directly above the adjustment chassis (107), and the installation groove plate (108) consists of two vertical plates and a horizontal The installation groove plate (108) is provided with three guide rails (110) on the outer side, the three guide rails (110) are equally spaced, and the guide rail (110) in the middle is installed with a transmission track (111) , the guide rail (110) and the transmission track (111) are both semi-circular, one end of the guide rail (110) is installed on one side of the installation groove plate (108), and the other end of the guide rail (110) is installed on the The bottom of the installation groove plate (108) is fixedly connected with the guide rail (110) at the bottom edge of the installation groove plate (108), and the other side of the installation groove plate (108) is provided with an operation port (112), A recovery separation box (109) is installed in the inner cavity of the installation groove plate (108); 所述回收分离箱(109)的顶部转动安装有密封盖(115)，所述回收分离箱(109)顶部位于密封盖(115)的下方开设有加料口(120)，所述回收分离箱(109)靠近操作口(112)的一侧底部开设有排渣口(117)，所述排渣口(117)上设置有密封门，所述回收分离箱(109)一侧位于排渣口(117)的上方安装有冷凝管(114)，所述冷凝管(114)与冷凝软管(104)连接，所述回收分离箱(109)的另一侧顶部安装有出油嘴(113)，所述出油嘴(113)与导流罩(105)为配合构件；A sealing cover (115) is rotatably installed on the top of the recovery and separation box (109), and a feeding port (120) is provided on the top of the recovery and separation box (109) below the sealing cover (115). 109) A slag discharge port (117) is opened at the bottom of one side close to the operation port (112), a sealing door is provided on the slag discharge port (117), and one side of the recovery separation box (109) is located at the slag discharge port (117). 117) is installed above the condensation pipe (114), the condensation pipe (114) is connected with the condensation hose (104), the other side of the recovery separation box (109) is installed on the top of the oil outlet (113), so Described that the oil nozzle (113) and the air guide cover (105) are matching components; 所述回收分离箱(109)的内腔底部安装有加热板(116)，所述回收分离箱(109)的底部位于加热板(116)与排渣口(117)之间的位置通过轴承贯穿安装有传动杆(122)，所述传动杆(122)上安装有过滤板(118)，所述过滤板(118)的两侧顶部均安装有导向杆(121)，所述回收分离箱(109)的内腔两侧顶部均开设有导向槽(119)，所述导向槽(119)呈弧形，两个所述导向杆(121)分别与两个导向槽(119)滑动连接；A heating plate (116) is installed at the bottom of the inner cavity of the recovery and separation box (109), and the bottom of the recovery and separation box (109) is located between the heating plate (116) and the slag discharge port (117) through a bearing. A transmission rod (122) is installed, a filter plate (118) is installed on the transmission rod (122), and guide rods (121) are installed on the tops of both sides of the filter plate (118). Guide grooves (119) are provided on the tops of both sides of the inner cavity of 109), the guide grooves (119) are arc-shaped, and the two guide rods (121) are respectively slidably connected with the two guide grooves (119); 所述回收分离箱(109)的一侧设置有第一驱动电机(123)，所述第一驱动电机(123)安装在安装槽板(108)的内腔中，所述第一驱动电机(123)的输出轴与传动杆(122)的一端上均套接有第一传动齿轮(124)，两个所述第一传动齿轮(124)之间通过齿形带传动连接。One side of the recovery separation box (109) is provided with a first drive motor (123), the first drive motor (123) is installed in the inner cavity of the installation groove plate (108), the first drive motor (123) A first transmission gear (124) is sleeved on the output shaft of 123) and one end of the transmission rod (122), and the two first transmission gears (124) are connected by a toothed belt. 2.根据权利要求1所述的一种废油脂制备可生物降解的润滑油，其特征在于，所述调节底架(107)为方形框架，所述调节底架(107)的两侧之间安装有支撑板(125)，所述支撑板(125)与调节底架(107)一端之间安装有安装板(126)，所述安装板(126)的顶部安装有第二驱动电机(127)，所述支撑板(125)的顶部两端均安装有第一U形夹板(128)，所述第一U形夹板(128)的内腔中以及第二驱动电机(127)的输出轴上均转动安装有第二传动齿轮(129)，所述第二传动齿轮(129)与传动轨道(111)为配合构件，所述调节底架(107)顶部的四个拐角处均安装有第二U形夹板(130)，所述第二U形夹板(130)的内腔中转动安装有外滚轮(131)，四个所述外滚轮(131)分别与位于两端的两个导轨(110)的外侧滚动连接，所述调节底架(107)的两端中间位置均安装有连接板(132)，所述连接板(132)上通过转轴转动安装有内滚轮(133)，两个所述内滚轮(133)分别与位于两端的两个导轨(110)的内侧滚动连接。2 . The biodegradable lubricating oil prepared from waste grease according to claim 1 , wherein the adjusting bottom frame ( 107 ) is a square frame, and between two sides of the adjusting bottom frame ( 107 ) A support plate (125) is installed, an installation plate (126) is installed between the support plate (125) and one end of the adjustment chassis (107), and a second drive motor (127) is installed on the top of the installation plate (126). ), a first U-shaped splint (128) is installed on both ends of the top of the support plate (125), the inner cavity of the first U-shaped splint (128) and the output shaft of the second drive motor (127) The second transmission gear (129) is rotatably installed on the upper part, and the second transmission gear (129) and the transmission track (111) are matched components, and the four corners of the top of the adjustment chassis (107) are installed with the first transmission gear (129). Two U-shaped splints (130), outer rollers (131) are rotatably installed in the inner cavity of the second U-shaped splint (130), and the four outer rollers (131) are respectively connected with the two guide rails (110 at both ends) ) outside rolling connection, the two ends of the adjustment chassis (107) are installed with connecting plates (132) at the intermediate positions, and the connecting plates (132) are rotated and installed with inner rollers (133) through the rotating shaft. The inner rollers (133) are respectively in rolling connection with the inner sides of the two guide rails (110) located at both ends. 3.根据权利要求2所述的一种废油脂制备可生物降解的润滑油，其特征在于，所述传动轨道(111)上开设有凹槽，所述凹槽中安装有齿轮板(134)，所述齿轮板(134)与第二传动齿轮(129)啮合连接。3. The biodegradable lubricating oil prepared from waste grease according to claim 2, wherein a groove is formed on the transmission track (111), and a gear plate (134) is installed in the groove. , the gear plate (134) is engaged with the second transmission gear (129). 4.根据权利要求1所述的一种废油脂制备可生物降解的润滑油的制备工艺,其特征在于，包括以下步骤：4. a kind of waste grease according to claim 1 prepares the preparation technology of biodegradable lubricating oil, is characterized in that, comprises the following steps: 步骤一：打开废油脂回收设备的密封盖(115)，将废油脂从加料口(120)加入至回收分离箱(109)的内腔中，废油脂穿过倾斜设置过滤板(118)，废油脂中的废渣截留于过滤板(118)的一侧；Step 1: Open the sealing cover (115) of the waste grease recovery equipment, add the waste grease from the feeding port (120) into the inner cavity of the recovery separation box (109), the waste grease passes through the inclined filter plate (118), and the waste grease passes through the inclined filter plate (118). The waste residue in the grease is retained on one side of the filter plate (118); 步骤二：启动加热板(116)，加热板(116)将废油脂升温并保温于100-120℃条件下，此时废油脂中的水分汽化离开油脂，经过冷凝管(114)排出，水蒸气经过冷凝软管(104)时逐渐液化形成水珠，经过导流进入储水罐(102)中储存；Step 2: start the heating plate (116), the heating plate (116) heats up the waste grease and keeps the temperature at 100-120°C. At this time, the water in the waste grease vaporizes and leaves the grease, and is discharged through the condensation pipe (114), and the water vapor is discharged. When passing through the condensing hose (104), it gradually liquefies to form water droplets, and enters the water storage tank (102) for storage through diversion; 步骤三：待废油脂中的水分完全排出，启动第一驱动电机(123)，第一驱动电机(123)运转通过第一传动齿轮(124)带动传动杆(122)转动，从而使得过滤板(118)通过导向杆(121)在导向槽(119)中滑动，直至滑至导向槽(119)靠近冷凝管(114)一端，此时过滤板(118)将废油脂中的废渣均捞出并收集至回收分离箱(109)内腔远离出油嘴(113)的一侧；Step 3: After the moisture in the waste grease is completely discharged, start the first drive motor (123), and the first drive motor (123) drives the transmission rod (122) to rotate through the first transmission gear (124), thereby making the filter plate (123). 118) Slide in the guide groove (119) through the guide rod (121) until the guide groove (119) is close to one end of the condenser pipe (114), at this time, the filter plate (118) removes the waste residue in the waste grease and removes it. Collect to the side of the inner cavity of the recovery separation box (109) away from the oil outlet (113); 步骤四：启动第二驱动电机(127)，第二驱动电机(127)运转带动一个第二传动齿轮(129)转动，由于第二传动齿轮(129)与齿轮板(134)啮合连接，从而通过传动轨道(111)带动导轨(110)在外滚轮(131)以及内滚轮(133)上转动，从而将回收分离箱(109)倾斜；Step 4: Start the second drive motor (127), the second drive motor (127) rotates and drives a second transmission gear (129) to rotate, because the second transmission gear (129) is meshed with the gear plate (134), thereby passing The transmission track (111) drives the guide rail (110) to rotate on the outer roller (131) and the inner roller (133), thereby tilting the recovery separation box (109); 步骤五：回收分离箱(109)继续倾斜直至出油嘴(113)进入导流罩(105)的内腔中，此时排出水分的废油脂经过出油嘴(113)、导流罩(105)进入内腔加有活性白土的储油箱(103)中，排出水分的废油脂经过活性白土脱色后得到回收油；Step 5: The recovery and separation box (109) continues to be tilted until the oil outlet (113) enters the inner cavity of the shroud (105). At this time, the waste grease discharged from the water enters through the oil outlet (113) and the shroud (105). In the oil storage tank (103) with activated clay in the inner cavity, the waste oil that discharges water is decolorized by the activated clay to obtain recovered oil; 步骤六：将回收油在85-100℃条件下搅拌30-40min，之后加入氢氧化钠和碳酸钠继续搅拌1-3h，之后升温至115-136℃后加入脂肪醇类乳化剂继续搅拌1-2h，之后加入甲醇继续搅拌1-2h，得到该可生物降解的润滑油。Step 6: Stir the recovered oil at 85-100°C for 30-40min, then add sodium hydroxide and sodium carbonate to continue stirring for 1-3h, then heat up to 115-136°C, add fatty alcohol emulsifier and continue stirring for 1- After 2 hours, methanol was added to continue stirring for 1-2 hours to obtain the biodegradable lubricating oil.
CN202110074931.6A 2021-01-20 2021-01-20 Biodegradable lubricating oil prepared from waste oil and fat and preparation process thereof Active CN112574807B (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202110074931.6A CN112574807B (en) 2021-01-20 2021-01-20 Biodegradable lubricating oil prepared from waste oil and fat and preparation process thereof

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202110074931.6A CN112574807B (en) 2021-01-20 2021-01-20 Biodegradable lubricating oil prepared from waste oil and fat and preparation process thereof

Publications (2)

Publication Number Publication Date
CN112574807A CN112574807A (en) 2021-03-30
CN112574807B true CN112574807B (en) 2022-07-29

Family

ID=75145517

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202110074931.6A Active CN112574807B (en) 2021-01-20 2021-01-20 Biodegradable lubricating oil prepared from waste oil and fat and preparation process thereof

Country Status (1)

Country Link
CN (1) CN112574807B (en)

Families Citing this family (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN113201383B (en) * 2021-05-14 2023-06-13 深高蓝德环保科技集团股份有限公司 Biodegradable lubricating grease and preparation method thereof
CN116672736B (en) * 2023-08-03 2023-10-03 福建省金鹿日化股份有限公司 Mosquito repellent liquid raw materials emulsion purification equipment

Family Cites Families (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
TR200802665A2 (en) * 2008-04-17 2009-11-23 Tübi̇tak- Türki̇ye Bi̇li̇msel Ve Teknoloji̇k Araştirma Kurumu Batch production processes of fatty acid alkyl esters using homogeneous alkali polymeric gel catalyst (hapjek).
CN103726357B (en) * 2013-12-09 2016-04-13 山东济宁锦祥化工有限公司 A kind of antistatic emulsion type lubricant
CN108002620A (en) * 2017-10-23 2018-05-08 惠安县科联农业科技有限公司 Effluent sewerage oil-sewage separation device
CN207792773U (en) * 2018-01-17 2018-08-31 广州瑞净机电设备有限公司 Automatic slag-discharging grease separator
CN209113534U (en) * 2018-09-11 2019-07-16 安徽新弘环保设备科技有限公司 A kind of heavy duty detergent slagging-off oil separation equipment
CN109772017A (en) * 2019-03-27 2019-05-21 泰奥星（天津）有限公司 New lubricant filtering recovering device
CN211497154U (en) * 2019-12-05 2020-09-15 梁荷 Kitchen garbage separating device

Also Published As

Publication number Publication date
CN112574807A (en) 2021-03-30

Similar Documents

Publication Publication Date Title
CN110935409B (en) Purification device that propolis was used
CN112113407A (en) Fodder drying equipment
CN107721118A (en) A kind of multistage sludge high effective dehydration device
CN112574807A (en) Biodegradable lubricating oil prepared from waste oil and fat and preparation process thereof
CN110407903B (en) Processing equipment of high-purity phytosterol ester
CN222250355U (en) Kitchen sewage treatment device based on condensation deoiling
CN113800737A (en) Centrifugal sludge dewatering equipment for sludge restoration
CN113072254A (en) Integrated treatment system and method for rural sewage
CN217988524U (en) Skin care products production is with material separation purification device
CN220288114U (en) Biodiesel raw material dehydration equipment
CN219541316U (en) Kitchen garbage screening dross removal mechanism
CN220520455U (en) Efficient purification equipment for waste grease
CN219185870U (en) Energy-saving fractionating tower equipment for lubricating oil production
CN113182312B (en) Kitchen waste treatment system and method
CN219308096U (en) Wastewater treatment device
CN114774196A (en) Distillation device for extracting plant essential oil by steam distillation method
CN107188983B (en) The automation extraction process of carragheen
CN224071388U (en) Purification equipment for lubricating oil production and processing
CN213865893U (en) Mud treatment facility for building site
CN205760105U (en) A kind of modified model sodium formate filters evaporation purifying plant
CN223602084U (en) A filtration device for processing traditional Chinese medicine herbal tea beverages
CN114702389A (en) Purification device for extracting by-product alkyne ester from waste water of kungfu acid process
CN213977319U (en) Waste water treatment cauldron is used in prednisone production
CN224062480U (en) Distillation tower with diuron waste water distillation recovery is used
CN223732154U (en) High-efficient concentrated circulation extraction system of accuse temperature tea polyphenol

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
TA01 Transfer of patent application right
TA01 Transfer of patent application right

Effective date of registration: 20211230

Address after: 234099 room 402, building 3, Suzhou yard community, Bianyang Second Road, Yongqiao District, Suzhou City, Anhui Province

Applicant after: Tian Zhihong

Address before: 234000 room 206, Netease united innovation center, Suzhou hi tech Zone, Anhui Province

Applicant before: Anhui Lianya New Material Co.,Ltd.

TA01 Transfer of patent application right
TA01 Transfer of patent application right

Effective date of registration: 20220707

Address after: 201400 No. 18 Baishi Road, Xinghuo Development Zone, Fengxian District, Shanghai

Applicant after: SHANGHAI ZHONGQI ENVIRONMENT TECHNOLOGY CO.,LTD.

Address before: 234099 room 402, building 3, Suzhou yard community, Bianyang Second Road, Yongqiao District, Suzhou City, Anhui Province

Applicant before: Tian Zhihong

GR01 Patent grant
GR01 Patent grant
