CN112568762A

CN112568762A - Rubbing device for bath

Info

Publication number: CN112568762A
Application number: CN202010814410.5A
Authority: CN
Inventors: 胡晋铭
Original assignee: Guangdong Shunde Qiwei Electric Appliance Technology Co ltd
Current assignee: Guangdong Shunde Qiwei Electric Appliance Technology Co ltd
Priority date: 2020-08-13
Filing date: 2020-08-13
Publication date: 2021-03-30

Abstract

The invention discloses a bath rubbing device, which relates to the technical field of bathroom equipment and comprises a body, a telescopic sleeve, a gear box, a control device and a battery, wherein the telescopic sleeve wraps a handle of the body, the handle is connected with the telescopic sleeve in a sliding manner, the gear box is arranged at the top of the body, the control device and the battery sleeve are both arranged in the handle, the telescopic sleeve is connected with a charging seat in a sliding manner, the telescopic sleeve is provided with a button hole and a telescopic adjusting hole, one side of the body is provided with a power button, and the other side of the body is provided with a first positioning switch and a second positioning switch. The utility model has the advantages of convenient installation and disassembly, safety, reliability, cleanness, sanitation, time saving and labor saving compared with manual bath rubbing, effective waterproof protection of the parts and long service life.

Description

Rubbing device for bath

Technical Field

The invention relates to the technical field of bathroom equipment, in particular to a bath rubbing device.

Background

In daily life, especially when bathing, towels or chemical fiber fabrics are the preferred rubbing tools for most people. When the bath is carried out, the dirt on the surface of the skin can be cleaned, and the microcirculation and the blood circulation of the epidermis can be promoted.

However, the existing bath tools still have a plurality of defects, a large amount of water resources are wasted in manual bath, the cleaning is not thorough enough, a large amount of bacteria and dirt still remain on the body, pores are blocked, and long-term development can cause acne on the back or other skin diseases. Therefore, there is a need for a bath device to solve the above problems.

Disclosure of Invention

The invention aims to provide a bath scrubber to solve the problem of inconvenience in manual scrubbing in the background technology.

In order to achieve the purpose, the invention provides the following technical scheme: the bath rubbing device is characterized by comprising a machine body, a telescopic sleeve, a gear box, a control device and a battery, wherein the telescopic sleeve wraps a handle of the machine body, the handle is connected with the telescopic sleeve in a sliding mode, the gear box is arranged at the top of the machine body, the control device and the battery sleeve are arranged inside the handle, and the telescopic sleeve is connected with a charging seat in a sliding mode. Preferably, the telescopic sleeve is provided with a button hole and a telescopic adjusting hole, one side of the machine body is provided with a power button, and the other side of the machine body is provided with a first positioning switch and a second positioning switch.

Preferably, one side of the gear box is connected with the rotary brush head, and the other side of the gear box is connected with the control device.

Preferably, the control device comprises an inner shell, a driving motor and an indicator light, the inner shell comprises a first shell and a second shell, a second sealing ring is arranged between the first shell and the second shell, the driving motor is electrically connected with the indicator light, and the driving motor and the indicator light are fixedly connected with the inner shell.

Preferably, the right side of the control device is provided with a battery sleeve, the battery sleeve is made of silica gel materials, the lower end of the first shell is provided with a connecting hole, and the control device is fixedly connected with the battery sleeve through the connecting hole.

Preferably, the body is provided with a charging seat matched with the body, the charging seat comprises a seat support and a shell, a charging device and a drain hole are arranged in the shell, and the drain hole is located at the bottom of the shell and penetrates through the shell.

Preferably, the charging device comprises a charging pin, a charging module, a silica gel pad and a spring, the charging pin is electrically connected with the charging module, the charging module is connected with the silica gel pad, and the spring is connected to the middle of the bottom of the silica gel pad.

Preferably, prevent curling hair circle includes first ring, second ring diameter is less than first ring diameter, just second ring and first ring inscribe, first ring periphery evenly is provided with the friction tooth, and the inboard is provided with 4 buckles, the buckle is located below the second ring.

Preferably, a third sealing ring is arranged between the gear box and the control device.

Preferably, a guide device is arranged in the handle, the guide device comprises a guide hole and an elastic element, and the elastic element is arranged above the guide hole.

Compared with the prior art, the bath rubbing device has the beneficial effects that: compared with manual bath, the invention saves time and labor, and has the advantages of simple structure and convenient use. The user can adjust the length of the back scrubbing device according to needs, particularly when the back is scrubbed, the back is difficult to be cleaned by manual scrubbing due to the limitation of hand joints, the back can be cleaned easily by extending the scrubbing device through the telescopic sleeve, and the back scrubbing device can be used in a shortened state under other use conditions, so that the back scrubbing device is more convenient and flexible to use. Meanwhile, the invention is also provided with a plurality of waterproof devices, so that internal parts can be effectively protected, and the service life is long.

Drawings

FIG. 1 is a schematic structural view of a bath device according to the present invention;

FIG. 2 is a front view of the bath device of the present invention;

FIG. 3 is a schematic view of a charging stand;

FIG. 4 is a cross-sectional view of the charging dock;

FIG. 5 is a schematic structural diagram of a charging port;

FIG. 6 is an enlarged view at A of FIG. 4;

FIG. 7 is a schematic view of the internal structure of the bath device of the present invention;

FIG. 8 is an enlarged view taken at A of FIG. 7;

FIG. 9 is an enlarged view of FIG. 7 at B;

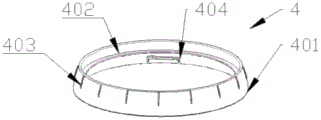

FIG. 10 is a schematic view of the structure of the anti-curl ring;

FIG. 11 is a schematic view of a first housing member of the inner housing;

FIG. 12 is a schematic view of a gearbox configuration;

FIG. 13 is a schematic structural view of the bellows;

FIG. 14 is a schematic view of the guide structure;

fig. 15 is a side view of the guide.

In the figure: 1-host computer, 101-body, 1011-handle, 1012-power button, 1013-first positioning switch, 1014-second positioning switch, 1015-first spring, 102-telescopic sleeve, 1021-button hole, 1022-telescopic adjusting hole, 103-gear box, 1031-base, 1032-face cover, 1033-gear set, 1034-first sealing ring, 1035-transmission shaft, 104-control device, 104101-first shell, 10410201-connecting hole, 104102-second shell, 1042-driving motor, 1043-indicator light, 1044-control switch, 1045-second sealing ring, 105-charging port, 1051-third thimble, 1052-fourth thimble, 106-battery sleeve, 107-guiding device, 1071-guiding hole, 1072-elastic sheet, 5-third sealing ring, 3-rotary brush, 4-curl prevention ring, 401-first ring, 402-second ring, 403-friction tooth, 404-buckle, 2-charging seat, 201-seat support, 202-shell, 2021-charging device, 2021101-first thimble, 2021102-second thimble, 2022-charging module, 2023-silica gel pad, 2024-second spring, 203-water drain hole, 204-guide post.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-15, an embodiment of the present invention is provided: a bath rubbing device comprises a body 101, a telescopic sleeve 102, a gear box 103, a control device 104, a battery sleeve 106, the body 101, the telescopic sleeve 102, the gear box 103, the control device 104 and the battery sleeve 106 form a whole body of the body 1, the telescopic sleeve 102 wraps a handle 1011 of the body 101, the handle 1011 is in sliding connection with the telescopic sleeve 102, the gear box 103 is arranged at the top of the body 101, the control device 104 and the battery sleeve 106 are both arranged inside the handle 1011, the telescopic sleeve 102 is in sliding connection with a charging seat 2, the telescopic sleeve 102 is provided with a button hole 1021 and a telescopic adjusting hole 1022, one side of the body 101 is provided with a power button 1012, the other side is provided with a first positioning switch 1013 and a second positioning switch 1014, the battery sleeve 106 is connected below the first positioning switch 1013, the battery sleeve 106 is made of silica gel material, when the bath rubbing device is in a shortened state, the edge of the first positioning switch 1013 is slightly higher, the telescopic sleeve 102 cannot slide downwards at will, a user presses the first positioning switch 1013 to cause slight deformation of the battery sleeve 106, the edge of the first positioning switch 1013 is flush with the machine body 101, the telescopic sleeve 102 can be pulled downwards at the moment, the telescopic adjusting hole 1022 moves to the second positioning switch 1014 (the bottom of the second positioning switch 1014 is connected with the first spring 1015), the second positioning switch 1014 bounces, the edge of the second positioning switch 1014 is slightly higher than the machine body 101, the second positioning switch 1014 tightly clamps the telescopic sleeve 102 at the moment, the user cannot continuously pull the telescopic sleeve 102 downwards, and the bath device is in an extension state at the moment.

One side of the gear box 103 is connected with the rotary brush head 3, and the other side is connected with the control device 104. The gear box 103 comprises a base 1031, a face cover 1032, a gear set 1033 and a first sealing ring 1034, wherein the gear set 1033 comprises a plurality of gears and a transmission shaft 1035, the transmission shaft 1035 penetrates through the face cover 1032, a rotary brush head 3 is arranged on one side of the face cover 1032, and the transmission shaft 1035 is connected with the rotary brush head 3. In use, a small amount of water will enter the body 101 from the rotating brush head 3 along the axis of rotation, and the first sealing ring 1034 effectively protects the gear set 1033 in the gear box 103. Be provided with between face lid 1032 and the rotatory brush head 3 and prevent curling hair 4, prevent curling hair 4 and include first ring 401, second ring 402 diameter is less than first ring 401 diameter, and second ring 402 and first ring 401 inscribe, and first ring 401 periphery evenly is provided with a plurality of friction tooth 403, and the inboard is provided with 4 buckles 404, and buckle 404 is located below the second ring 402. The hair curling prevention ring 4 fills up the gap between the face cover 1032 and the rotary brush head 3, so as to prevent the hair of the user from touching the transmission shaft 1035 and causing the risk of hair curling, and in addition, in order to further block the hair, the second ring 402 can form a block when the hair slightly rubs into the bottom of the rotary brush head 3, so that the hair cannot further penetrate.

The control device 104 includes an inner shell, a driving motor 1042, an indicator light 1043, and a control switch 1044, the inner shell includes a first shell 01 and a second shell 02, a second sealing ring 1045 is disposed between the first shell 01 and the second shell 02, the driving motor 1042 is electrically connected to the indicator light 1043 and the control switch 1044, and the driving motor 1042, the indicator light 1043, and the control switch 1044 are all fixedly connected to the inner shell. The control switch 1044 is connected with the power button 1012, the indicator light 1043 is turned on when the motor rotates according to the bath device, and is turned off when the electric bath device is in a standby state, the power button 1012 is made of transparent plastic, and the light of the indicator light 1043 can penetrate through the button.

The control device 104 is connected with the battery sleeve 106, the lower end of the first shell member 01 is provided with a connecting hole 0201, the control device 104 is fixedly and hermetically connected with the battery sleeve 106, and the batteries in the battery sleeve 106 and an electric circuit between the control device 104 and the batteries achieve a waterproof effect.

The body 101 is provided with the charging seat 2 that matches with it, the charging seat 2 includes the seat support 201, casing 202, be provided with charging device 2021 in the casing 202, the wash port 203 is located the casing 202 bottom, run through casing 202, the ware of giving a rubdown with a damp towel can be laid in the charging seat 2 after finishing using, remaining drop on the ware of giving a rubdown with a damp towel fuselage 101 flows to casing 202 inside along the body 101, because the wash port 203 runs through casing 202, the drop can directly flow out outside casing 202, keep the ware of giving a rubdown with a damp towel and casing 202 inside dry and comfortable, avoid breeding the bacterium.

The charging device 2021 includes a charging pin, a charging module 2022, a silicone pad 2023, and a second spring 2024, the charging pin is electrically connected to the charging module 2022, the silicone pad 2023 is connected to the lower portion of the charging module 2022, the second spring 2024 is connected to the central position of the bottom of the silicone pad 2023, the charging pin includes a first thimble 2021101 and a second thimble 2021102, and a guide column 204 is disposed between the first thimble 2021101 and the second thimble 2021102. When the bath device is charged, the charging port 105 on the bath device body 101 contacts the guide column 204 first, the bath device body 101 can be directed downward vertically under the guide of the guide column 204, the guide device 107 is arranged at the charging port 105, the guide hole 1071 of the guide device 107 is nested with the guide column 204, the third thimble 1051 and the fourth thimble 1052 are accurately positioned to the first thimble 2021101 and the second thimble 2021102, because the bottom of the silica gel pad 2023 is connected under the first thimble 2021101 and the second thimble 2021102, the bottom of the silica gel pad 2023 is further connected with the second spring 2024, the first thimble 2021101 and the second thimble 2021102 have elasticity, so as to ensure effective contact between the first thimble 1051 and the fourth thimble 1052, and the first thimble 2021101 and the second thimble 2021102 are connected with the elastic element 1072 in the guide device 107, even if the bath device body 101 is not aligned with the charging seat 2 completely vertically, the elastic element 1072 can adjust the height of the first thimble 2021101 and the second thimble 2021102, the third thimble 1051 and the fourth thimble 1052 are fully contacted with the first thimble 2021101 and the second thimble 2021102, so that smooth charging is ensured.

A third sealing ring 5 is arranged between the gear box 103 and the control device 104, and the third sealing ring 5 effectively protects the connection between the driving motor 1042 and the gear box 103, so as to prevent the gear box 103 or the control device 104 from water inflow and damaging the gear set 1033 or the driving motor 1042.

It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A bath rub is characterized in that, comprises a body, a telescopic sleeve, a gear box, a control device, a battery, the telescopic sleeve wraps the handle of the fuselage, the handle is slidably connected with the telescopic sleeve, the The gear box is arranged on the top of the fuselage, the control device and the battery sleeve are arranged inside the handle, and the telescopic sleeve is slidably connected with the charging base.

2 . The bathtub according to claim 1 , wherein the telescopic sleeve is provided with a button hole and a telescopic adjustment hole, one side of the body is provided with a power button, and the other side is provided with a first positioning hole. 3 . switch, second positioning switch.

3 . The shower according to claim 1 , wherein one side of the gear box is connected to the rotating brush head, and the other side is connected to the control device. 4 .

4. The bathtub according to claim 1, wherein the control device comprises an inner casing, a driving motor, and an indicator light, the inner casing comprises a first casing, a second casing, the first casing A second sealing ring is arranged between a shell piece and the second shell piece, the driving motor is electrically connected with the indicator light, and both the driving motor and the indicator light are fixedly connected to the inner shell.

5 . The shower according to claim 1 , wherein a battery cover is provided on the right side of the control device, the battery cover is made of silicone material, and a connection is provided at the lower end of the first shell. 6 . The control device is fixedly connected to the battery sleeve through the connecting hole.

6 . The shower according to claim 1 , wherein the body is provided with a matching charging base, the charging base comprises a base support and a casing, and a charging device is arranged in the casing. 7 . and a drainage hole, the drainage hole is located at the bottom of the casing and runs through the casing.

7 . The shower according to claim 6 , wherein the charging device comprises a charging pin, a charging module, a silicone pad, and a spring, the charging pin is electrically connected to the charging module, and the charging module Connect the silicone pad at the bottom, and connect the spring in the middle of the bottom of the silicone pad.

8. The shower according to claim 3, wherein the anti-curling hair ring comprises a first ring and a second ring, the diameter of the second ring is smaller than the diameter of the first ring, and the diameter of the second ring is smaller than that of the first ring. The second ring is inscribed with the first ring, friction teeth are evenly arranged on the periphery of the first ring, and four buckles are arranged on the inner side, and the buckles are located under the second ring.

9 . The bathtub according to claim 2 , wherein a third sealing ring is arranged between the gear box and the control device. 10 .

10 . The bathtub according to claim 1 , wherein a guide device is provided in the handle, and the guide device comprises a guide hole and an elastic element, and the elastic element is arranged above the guide hole. 11 .
