Abstract
The invention relates to the technical field related to automobile cleaning, in particular to a mechanical automatic automobile cleaning device, which comprises a bracket; the upper end slidable mounting of support has the crossbeam by actuating mechanism driven, and the lower extreme of crossbeam is fixed with through the connecting rod and accepts the board, the lower extreme symmetry of accepting the board is provided with two and washes the subassembly, and washes the subassembly and is accepting the adjusting part of board upper end with the setting and be connected, washes the subassembly and includes brush roll and third motor, and the both ends pivot of brush roll runs through the both ends of U-shaped spare, and rotates with the output shaft that supplies liquid subassembly and third motor respectively and be connected, the pivot and the slider of slidable mounting on the U-shaped spare of brush roll rotate and are connected, and the slider passes through the spring and is connected with the one end of U. The brush roller is novel in design, and the brush roller is arranged on the sliding block and provides interference avoidance adjustment through the spring, so that the brush roller can be properly adjusted according to the widths of different positions on an automobile in the brushing process, and the automobile is prevented from being damaged.
Description
Technical Field
The invention relates to the technical field related to automobile cleaning, in particular to mechanical automatic automobile cleaning equipment.
Background
The prior art discloses a car self-cleaning device, it includes: the automatic cleaning device for the automobile comprises a base, a pair of lifting platforms are mounted on the base, stand columns are mounted on the outer sides of the lifting platforms, rotating shafts are mounted in the stand columns, cleaning brushes are mounted on the rotating shafts, fixing columns are mounted on the outer sides of the stand columns and connected with a baffle through fixing bolts, supporting columns are mounted on the outer sides of the fixing columns and connected with a top cross beam, and water spraying heads and cleaning agent spraying heads are mounted on the top cross beam.
However, in a specific use process, the distance between the two rotating shafts is fixed, and when a vehicle is cleaned, the vehicle is easily damaged or incompletely cleaned because the widths of the vehicles are not completely the same.
Disclosure of Invention
The invention aims to provide mechanical automatic automobile cleaning equipment to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme:
a mechanical automatic cleaning device for an automobile comprises a bracket; the utility model discloses a washing device, including support, connecting rod, scrubbing component, regulation subassembly, liquid supply assembly and third motor, the upper end slidable mounting of support has the crossbeam by actuating mechanism driven, and the lower extreme of crossbeam is fixed with through the connecting rod and accepts the board, the lower extreme symmetry of accepting the board is provided with two and washes the subassembly, and washes the subassembly and carry out opposite movement or opposite movement by setting up the regulating assembly drive of accepting the board upper end, wherein, washes the subassembly and includes brush roll and third motor, and the both ends pivot of brush roll runs through the both ends of U-shaped spare, and rotates with the output shaft that supplies liquid subassembly and third motor respectively and be connected, the pivot and the slider of slidable mounting on the U-.
As a further scheme of the invention: the driving mechanism comprises a first motor and a threaded rod, an output shaft of the first motor is rotatably connected with the threaded rod through a transmission belt, a second threaded sleeve is connected to the threaded rod in a threaded mode, and the second threaded sleeve is fixed to one end of the cross beam.
As a still further scheme of the invention: the adjusting part comprises a bidirectional threaded rod and a second motor, the bidirectional threaded rod is rotatably installed on the bearing plate, the second motor drives the bidirectional threaded rod to rotate, the bidirectional threaded rod is connected with two first threaded sleeves which are symmetrical about vertical lines, and the first threaded sleeves are fixedly connected with a U-shaped part through connecting blocks which penetrate through the through grooves in the bearing plate.
As a still further scheme of the invention: the U-shaped part comprises a vertical plate and transverse plates fixed at two ends of the vertical plate.
As a still further scheme of the invention: the brush roller comprises an inner barrel and a sponge body wrapped on the outer side of the inner barrel, two ends of the inner barrel are fixedly connected and communicated with a rotating shaft arranged in a hollow structure, through holes are formed in the inner barrel and the sponge body, and the through holes in the inner barrel and the sponge body are located on the same central axis.
As a still further scheme of the invention: the liquid supply assembly comprises a water tank and a cleaning liquid tank, the water tank and the cleaning liquid tank are respectively communicated with a conveying pipe arranged at the lower end of the cross beam through a guide pipe, an electromagnetic valve is arranged in the guide pipe, and the lower end of the conveying pipe is rotatably connected and communicated with a rotating shaft on the inner barrel through a communicating pipe and a rotating joint fixed on the communicating pipe.
As a still further scheme of the invention: the lower end of the bearing plate is also provided with a water spray disc which is communicated with the conveying pipe through another communicating pipe.
Compared with the prior art, the invention has the beneficial effects that: the brush roller is novel in design, the brush roller is mounted on the sliding block, interference avoidance adjustment is provided through the spring, so that the brush roller can be properly adjusted according to the widths of different positions on an automobile in the brushing process, the automobile is prevented from being damaged, and the practicability is high.
Drawings

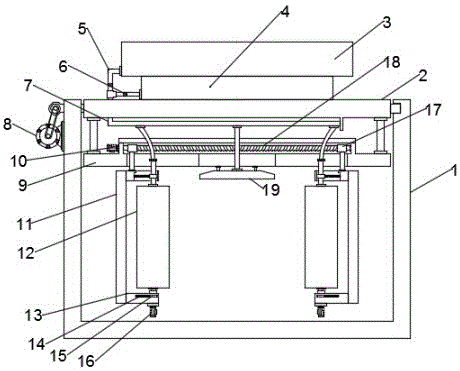

Fig. 1 is a schematic structural diagram of a mechanical automatic automobile cleaning device.
Fig. 2 is a side view of a mechanical automatic car washing apparatus.
FIG. 3 is a schematic view of a brush roller of the automatic cleaning device for a mechanical automobile.
Fig. 4 is a sectional view of a brush roller in the automatic cleaning apparatus for a mechanical vehicle.
In the figure: 1-support, 2-crossbeam, 3-water tank, 4-cleaning liquid tank, 5-guide pipe, 6-electromagnetic valve, 7-delivery pipe, 8-first motor, 9-bearing plate, 10-second motor, 11-vertical plate, 12-brush roller, 1201-sponge, 1202-through hole, 1203-inner cylinder, 13-transverse plate, 14-spring, 15-slide block, 16-third motor, 17-first threaded sleeve, 18-bidirectional threaded rod, 19-water spray disk, 20-threaded rod, 21-second threaded sleeve.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example one
Referring to fig. 1 to 4, in an embodiment of the present invention, a mechanical automatic cleaning apparatus for an automobile includes a bracket 1; the upper end slidable mounting of support 1 has crossbeam 2 by actuating mechanism drive, and the lower extreme of crossbeam 2 is fixed with through the connecting rod and accepts board 9, the lower extreme symmetry of accepting board 9 is provided with two and washes the subassembly, and washes the subassembly and carry out opposite movement or opposite movement by the adjusting part drive that sets up in accepting the board 9 upper end, wherein washes the subassembly and include brush roll 12 and third motor 16, and the both ends pivot of brush roll 12 runs through the both ends of U-shaped spare, and rotate with the output shaft of liquid supply unit and third motor 16 respectively and be connected, the pivot of brush roll 12 rotates with slider 15 of slidable mounting on the U-shaped spare to be connected, and slider 15 is connected with the one end of U-shaped spare through spring 14 to make, brush roll 12 can carry out moderate regulation according to the width of different positions on the car in the process of washing, prevent to cause the damage to the car.
Particularly, actuating mechanism includes first motor 8 and threaded rod 20, the output shaft of first motor 8 pass through the drive belt with threaded rod 20 rotates and is connected, threaded rod 20 goes up threaded connection has second threaded sleeve 21, and second threaded sleeve 21 is fixed with the one end of crossbeam 2, and first motor 8 drives threaded rod 20 and drives crossbeam 2 through second threaded sleeve 21's effect and remove when rotating to the whole of installing in crossbeam 2 lower extreme removes, realizes the comprehensive washing of car.
Further, the adjusting part includes that the rotation is installed and is accepted the two-way threaded rod 18 of board 9 upper end and drive two-way threaded rod 18 pivoted second motor 10, threaded connection has two first threaded sleeve 17 about perpendicular symmetry wherein on the two-way threaded rod 18, and first threaded sleeve 17 through running through the connecting block and the U-shaped spare fixed connection who accepts the logical groove on the board 9, drives the U-shaped spare through the effect drive of first threaded sleeve 17 and connecting block and adjusts the removal when second motor 10 drive two-way threaded rod 18 rotates.
Still further, the U-shaped member includes a vertical plate 11 and a horizontal plate 13 fixed to both ends of the vertical plate 11.
In the embodiment of the invention, the brush roller 12 comprises an inner barrel 1203 and a sponge body 1201 wrapped outside the inner barrel 1203, two ends of the inner barrel 1203 are fixedly connected and communicated with a rotating shaft arranged in a hollow structure, through holes 1202 are formed in the inner barrel 1203 and the sponge body 1201, the through holes 1202 in the inner barrel 1203 and the sponge body 1201 are located on the same central axis, and in the brushing process, water sprayed from the through holes 1202 is matched with the sponge body 1201 to improve the cleaning effect.
In the embodiment of the invention, the liquid supply assembly comprises a water tank 3 and a cleaning liquid tank 4, the water tank 3 and the cleaning liquid tank 4 are respectively communicated with a conveying pipe 7 arranged at the lower end of the cross beam 2 through a guide pipe 5, an electromagnetic valve is arranged in the guide pipe 5, the lower end of the conveying pipe 7 is rotatably connected and communicated with a rotating shaft on the inner cylinder 1203 through a communicating pipe and a rotating joint fixed on the communicating pipe, conveying of cleaning liquid and clear water is realized through the electromagnetic valve, and vehicle cleaning is realized.
Example two
The invention further provides another embodiment in the specific implementation process to complete the application, specifically, a water spraying disc 19 is further installed at the lower end of the bearing plate 9, the water spraying disc 19 is communicated with the delivery pipe 7 through another communicating pipe, and the water spraying disc 19 is used for cleaning the top of the automobile.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (7)
1. A mechanical automatic automobile cleaning device comprises a bracket (1); the utility model discloses a brush roller cleaning device, including support (1), crossbeam (2), connecting rod, scrubbing assembly, liquid supply assembly and third motor (16), the upper end slidable mounting of support (1) has crossbeam (2) by actuating mechanism drive, and the lower extreme of crossbeam (2) is fixed with through the connecting rod and accepts board (9), the lower extreme symmetry of accepting board (9) is provided with two and washes the subassembly, and washes the subassembly and carry out opposite movement or opposite movement by setting up the adjusting part drive in accepting board (9) upper end, its characterized in that, wash the subassembly and include brush roller (12) and third motor (16), the both ends of U-shaped spare are run through in the pivot of both ends of brush roller (12), and rotate with the output shaft of liquid supply assembly and third motor (16) respectively and be connected, the pivot and the slider (15) of slidable mounting on the U-shaped spare rotate.
2. The mechanical automatic automobile cleaning device is characterized in that the driving mechanism comprises a first motor (8) and a threaded rod (20), an output shaft of the first motor (8) is rotatably connected with the threaded rod (20) through a transmission belt, a second threaded sleeve (21) is in threaded connection with the threaded rod (20), and the second threaded sleeve (21) is fixed with one end of the cross beam (2).
3. The automatic mechanical automobile cleaning equipment as claimed in claim 1, wherein the adjusting assembly comprises a two-way threaded rod (18) rotatably mounted at the upper end of the bearing plate (9) and a second motor (10) driving the two-way threaded rod (18) to rotate, two first threaded sleeves (17) symmetrical about a perpendicular line are connected to the two-way threaded rod (18) in a threaded manner, and the first threaded sleeves (17) are fixedly connected with the U-shaped part through connecting blocks penetrating through the through grooves in the bearing plate (9).
4. A mechanical automatic cleaning device for automobiles according to claim 3, characterized in that said U-shaped member comprises a vertical plate (11) and transverse plates (13) fixed to both ends of the vertical plate (11).
5. The mechanical automatic automobile cleaning device as claimed in claim 1, wherein the brush roller (12) comprises an inner barrel (1203) and a sponge body (1201) wrapped outside the inner barrel (1203), two ends of the inner barrel (1203) are fixedly connected and communicated with a rotating shaft arranged in a hollow structure, through holes (1202) are formed in the inner barrel (1203) and the sponge body (1201), and the through holes (1202) in the inner barrel (1203) and the sponge body (1201) are located on the same central axis.
6. The mechanical automatic automobile cleaning equipment according to claim 5, wherein the liquid supply assembly comprises a water tank (3) and a cleaning liquid tank (4), the water tank (3) and the cleaning liquid tank (4) are respectively communicated with a conveying pipe (7) arranged at the lower end of the cross beam (2) through a guide pipe (5), an electromagnetic valve is installed in the guide pipe (5), and the lower end of the conveying pipe (7) is rotatably connected and communicated with a rotating shaft on the inner cylinder (1203) through a communicating pipe and a rotary joint fixed on the communicating pipe.
7. The automatic mechanical automobile washing device as claimed in claim 6, characterized in that a water spray disk (19) is further mounted at the lower end of the bearing plate (9), and the water spray disk (19) is communicated with the delivery pipe (7) through another communicating pipe.
