Disclosure of Invention
The invention aims to: in order to solve the problem that (have certain limitation in convenient, dismantlement, the use), provide a wall paper fixer for indoor decoration.
The technical scheme adopted by the invention is as follows: the utility model provides a wall paper fixer for indoor decoration, includes equipment device main part, background board and goes up fixed plate, one side fixedly connected with background board of equipment device main part, fixed plate on the top fixedly connected with of background board, fixed plate under the bottom fixedly connected with of background board, the top swing joint of fixed plate has first show board down.
Go up one side fixedly connected with observation area of fixed plate, one side fixedly connected with light of observation area, one side fixedly connected with protection window of first show board, protection window's top swing joint has a roll curtain, outside one side fixedly connected with connecting wire of first show board, the bottom fixedly connected with switch of connecting wire.
The bottom fixedly connected with first spout of first show board, one side fixedly connected with embedded groove of roll up the curtain, the inside swing joint of embedded groove has the fastener, one side swing joint of fastener is connected with the stay cord, the top fixedly connected with second spout of first show board.
The surface embedding of first show board is connected with the wall paper, the fixed frame of one side fixedly connected with of wall paper, the first corner of top one side fixedly connected with of fixed frame, the top swing joint of first corner has the laminating corner, the inside fixedly connected with magnetic force piece of laminating corner, the top opposite side fixedly connected with second corner of fixed frame, bottom one side fixedly connected with third corner of fixed frame.
Preferably, a backlight is fixedly connected to the surface of the background plate.
Preferably, the interior of the illuminating lamp is fixedly connected with an inner groove.
Preferably, the first sliding groove is movably connected with a movable ball inside.
Preferably, one side of the top of the protection window is fixedly connected with a first clamping block, and one side of the bottom of the protection window is fixedly connected with a second clamping block.
Preferably, one side of the inside of the device body is movably connected with a second display board.
Preferably, the bottom end of the equipment device main body is fixedly connected with an anti-skid foot.
Preferably, go up the observation area of fixed plate one side, the light of observation area one side, the protection window of first show board one side, the roll curtain at protection window top, the connecting wire of the outside one side of first show board, the switch of connecting wire bottom constitutes lighting mechanism jointly.
Preferably, the first sliding groove at the bottom of the first display board, the embedded groove on one side of the roller shutter, the clamping piece inside the embedded groove, the pull rope movably connected on one side of the clamping piece, and the second sliding groove at the top of the first display board jointly form a fixing mechanism.
Preferably, the wall paper on the surface of the first display board, the fixed frame on one side of the wall paper, the first corner on one side of the top of the fixed frame, the attaching corner on the top end of the first corner, the magnetic block inside the attaching corner, the second corner on the other side of the top of the fixed frame and the third corner on one side of the bottom of the fixed frame jointly form a connecting mechanism.
In summary, due to the adoption of the technical scheme, the invention has the beneficial effects that:
1. according to the invention, the inner groove is fixedly connected inside the illuminating lamp, when the illuminating lamp is used, most lamps are required to be fixed on the periphery, because the lamps are fixed on the top, the lamps are arranged to be protruded, the attractive effect is not good, and the lamps can be broken by touching.
2. According to the invention, the movable ball is movably connected inside the first chute, when the display is carried out through the display board, the display board can slide inside the chute, when the sliding block type contact is adopted, the sliding is not smooth, so that the sliding is difficult to cause the situation of clamping the shell when in use, the movable ball is arranged inside the chute through the arrangement of the movable ball, when the display board is moved through use, the movable ball arranged inside can assist the display board to move conveniently, so that the situation of clamping the shell is not caused, and the device embodies the practicability.
3. In the invention, an observation area at one side of an upper fixed plate, an illuminating lamp at one side of the observation area, a protective window at one side of a first display board, a roller shutter at the top of the protective window, a connecting wire at one side of the outer part of the first display board and a switch at the bottom of the connecting wire jointly form an illuminating mechanism, wall cloth is used for decorating the wall cloth, when a user purchases the wall cloth, the user needs to watch the wall cloth so as to be convenient for the user to select a self-mind apparatus, most of the wall cloth are pictures of electronic boards, the wall cloth can not be fixed according to a real object to reflect beauty, and can reflect beauty according to a light source, the main body is fixed by a lower fixed plate through the illuminating mechanism, when the user watches the wall cloth, the user can watch the wall cloth in the observation area, the illuminating lamp is arranged at one side of the observation area, the protective window can be opened through the switch at one side, the top has a roll of curtain, when need not show, can put down the roll of curtain for shelter from, can effectually guarantee can not gather a large amount of dust on the wall paper, and the device has embodied the practicality.
4. In the invention, a first sliding groove at the bottom of a first display board, an embedded groove at one side of a roller shutter, a clamping piece in the embedded groove, a pull rope is movably connected and connected at one side of the clamping piece, a second sliding groove at the top of the first display board jointly form a fixing mechanism, most of the existing equipment is directly fixed on a wall through a clamp or an adhesive when a user watches through the display board, the angle is inconvenient to change when the user watches through the display board, the first sliding groove and the second sliding groove are fixed in the upper fixing plate block and the lower fixing plate block respectively when too many samples exist and can not be prevented easily when the user watches through the display board, certain limitation is realized, the fixing mechanism is arranged, the display board can slide in the first sliding groove and the second sliding groove by combining the use of the first display board, the first sliding groove and the second sliding groove are fixed in the upper fixing plate block and the lower fixing plate block respectively, when needs were watched, the pull-out can, the fastener is on the roll screen, fixes in the inside of embedded groove by the fastener, can reach rotatory effect through the pulling stay cord, and the surface of stay cord has the ball, and relatively fixed stay cord is inside to have movable ball, and the surface has the recess, and the cooperation ball uses, the pulling of being convenient for, and the device has embodied the practicality.
5. In the invention, the wall cloth on the surface of a first display board, the fixed frame on one side of the wall cloth, the first corner on one side of the top of the fixed frame, the joint corner at the top end of the first corner, the magnetic block inside the joint corner, the second corner on the other side of the top of the fixed frame and the third corner on one side of the bottom of the fixed frame jointly form a connecting mechanism, most of the existing fixing is arranged on the fixed frame in a rolling curtain mode when the wall cloth is fixed through the display board, the collection is troublesome, the wall cloth is also troublesome to fix and cannot be quickly fixed by workers, the wall cloth is disassembled and replaced, the wall cloth is arranged on the fixed frame through the connecting mechanism, the first corner, the second corner and the third corner are used for fixing four corners, one corner is not marked, the material of the corner is an iron material, and the joint corner is arranged above the corner, set up by the magnetic force piece and form, when needs are fixed through the corner, can take off the corner of laminating from the corner, when treating fixed wall paper, can fix laminating, should set up quick dismantlement and the change of being convenient for, the device has embodied the practicality.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

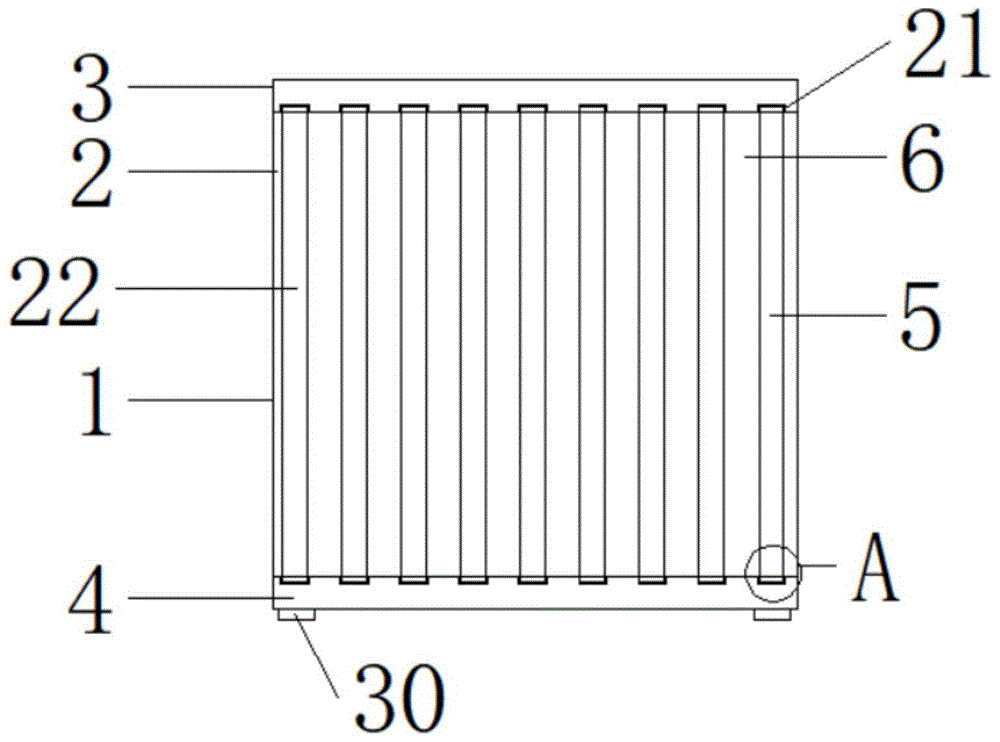

Referring to fig. 1-5, the present invention provides a technical solution: the utility model provides a wall paper fixer for indoor decoration, includes equipment device main part 1, background board 2 and goes up fixed plate 3, one side fixedly connected with background board 2 of equipment device main part 1, fixed plate 3 on the top fixedly connected with of background board 2, fixed plate 4 under the bottom fixedly connected with of background board 2, the top swing joint of lower fixed plate 4 has first show board 5.
Go up one side fixedly connected with observation area 7 of fixed plate 3, one side fixedly connected with light 8 of observation area 7, one side fixedly connected with protection window 10 of first show board 5, the top swing joint of protection window 10 has a roll curtain 11, outside one side fixedly connected with connecting wire 12 of first show board 5, the bottom fixedly connected with switch 13 of connecting wire 12.
The bottom of first show board 5 is fixedly connected with first spout 14, one side fixedly connected with embedded groove 16 of roll screen 11, and the inside swing joint of embedded groove 16 has fastener 17, and one side swing joint of fastener 17 is connected with stay cord 18, the top fixedly connected with second spout 21 of first show board 5.
The surface embedding of first show board 5 is connected with wall paper 23, the fixed frame 24 of one side fixedly connected with of wall paper 23, the first corner 25 of top one side fixedly connected with of fixed frame 24, the top swing joint of first corner 25 has laminating corner 26, the inside fixedly connected with magnetic force piece 27 of laminating corner 26, the top opposite side fixedly connected with second corner 28 of fixed frame 24, the fixedly connected with third corner 29 of bottom one side fixedly connected with of fixed frame 24.
Preferably, the backlight 6 is fixedly connected to the surface of the background plate 2, the background plate is a main body panel of the equipment device main body, and in order to further embody the viewing effect of the wall cloth, the backlight 6 is arranged on the surface of the background plate 2, and the opening is also opened by the switch.
Preferably, the inside fixedly connected with inner groovy 9 of light 8, when using the light, and the lamp most likely all need be fixed peripherally, because fix at the top, setting up can be outstanding, pleasing to the eye effect also can not be fine, still probably touched and broken, through setting up inner groovy 9, inner groovy 9 is recessed in the inside of last fixed plate, laminate its light 8 in the inside of its inner groovy 9, come to carry out the parallel and level with the plane of last fixed plate, can increase beautifully, also be difficult for breaking because of touching, the device has embodied the practicality.
Preferably, the inside swing joint of first spout 14 has movable ball 15, when carrying out the show through the show board, and the show board can carry out the gliding in the inside of spout, when adopting the contact of slider formula, probably not so smooth and easy during the slip, make when using, be difficult to slide, cause the condition of card shell, through setting up movable ball 15, movable ball 15 sets up in the inside of spout, when removing the show board through the use, the movable ball 15 of inside setting can assist the show board to carry out convenient removal, so that can not cause the condition of card shell, the device has embodied the practicality.
Preferably, the first fixture block 19 of top one side fixedly connected with of protection window 10, the second fixture block 20 of bottom one side fixedly connected with of protection window 10, when using the show board to slide in the inside of spout, need guarantee the inside that can not the roll-off spout, through setting up first fixture block 19, second fixture block 20, set up respectively at upper and lower, set up the most marginal position at the spout, be the biggest displacement distance of show board promptly, when preventing to cause the slip, break away from the inside of spout, the device has embodied the practicality.
Preferably, there is second show board 22 inside one side swing joint of equipment device main part 1, owing to show carrying out a plurality of plates, just need set up a plurality of devices and watch, the extravagant space of effect very, accomplish the availability in space not, show board 22 through setting up the second, inside is provided with a plurality of people show board, the wall cloth of fixed difference simultaneously, so that the user watches, need watch which, can with which show board pull out can, the device has embodied the convenience.
Preferably, the bottom fixedly connected with antiskid foot 30 of equipment device main part 1, because when using, the thing of the setting of this equipment is more, ground is more smooth, need prevent in the slip by oneself, through setting up antiskid foot 30, antiskid foot 30 sets up the bottom at the bottom of bottom plate, for anti-skidding material, can prevent that equipment from because of receiving the effect of some power, and cause the effect of sideslipping, strengthened the ground power of grabbing of equipment to ground, convenient to use, the device has embodied the protectiveness.
Preferably, the observation area 7 on one side of the upper fixed plate 3, the illuminating lamp 8 on one side of the observation area 7, the protective window 10 on one side of the first display board 5, the roller blind 11 on the top of the protective window 10, the connecting wire 12 on one side outside the first display board 5, and the switch 13 at the bottom of the connecting wire 12 jointly form an illuminating mechanism, the wall cloth is used for decorating the wall cloth, when a user purchases the wall cloth, the user needs to watch the wall cloth so as to select the heart instrument of the user, most of the wall cloth are pictures of electronic boards, the wall cloth can not be fixed according to the real object to reflect attractiveness, and the wall cloth can reflect attractiveness according to the light source, by arranging the illuminating mechanism, the main body is fixed by the lower fixed plate 4, when the wall cloth is watched, the user can watch the wall cloth in the observation area 7, the illuminating lamp 8 is arranged on one side of the observation area 7, the switch 13 on one side can be opened, the protective window 10 is arranged around, the top has a roll of curtain, when need not show, can put down roll of curtain 11 for shelter from, can effectually guarantee can not gather a large amount of dust on the wall paper, and the device has embodied the practicality.
Preferably, the first sliding groove 14 at the bottom of the first display board 5, the embedded groove 16 at one side of the roller shutter 11, the clamping member 17 inside the embedded groove 16, the pulling rope 18 movably connected to one side of the clamping member 17, and the second sliding groove 21 at the top of the first display board 5 jointly form a fixing mechanism, when the display board is used for watching a user, most of the existing equipment is directly fixed on a wall through a clamp or an adhesive, and when the user watches the display board, the angle is not convenient to change, and when the samples are too many, the fixing mechanism is not easy to prevent, the use of the display board has certain limitation, by arranging the fixing mechanism, the display board is fixed through the first sliding groove 14 and the second sliding groove 21, the first sliding groove 14 and the second sliding groove 21 are respectively fixed inside the upper fixing plate 3 and the lower fixing plate 4, the first sliding groove 14 and the second sliding groove 21 can slide inside the display board, when needs are watched, the pulling-out can, fastener 17 is on rolling up the curtain, fix in the inside of embedded groove 16 by fastener 17, can reach rotatory effect through pulling stay cord 18, and the surface of stay cord 18 has the ball, and relatively fixed stay cord is inside to have movable ball, and the surface has the recess, and the cooperation ball uses, is convenient for spur, and the device has embodied the practicality.
Preferably, the wall cloth 23 on the surface of the first display board 5, the fixing frame 24 on one side of the wall cloth 23, the first corner 25 on one side of the top of the fixing frame 24, the attaching corner 26 on the top end of the first corner 25, the magnetic block 27 inside the attaching corner 26, the second corner 28 on the other side of the top of the fixing frame 24, and the third corner 29 on one side of the bottom of the fixing frame 24 constitute a connecting mechanism together, most of the existing fixing is performed by rolling up a curtain when the wall cloth is fixed by the display board, which is troublesome in collection, and the fixing of the wall cloth is also cumbersome, which does not allow a worker to quickly fix and disassemble and replace the wall cloth, by setting the connecting mechanism, the wall cloth 23 is arranged on the fixing frame 24, the first corner 25, the second corner 28 and the third corner 39 are used for fixing four corners, and a total of four corners are arranged, one of which is not marked, and the material of corner is the iron material, and laminating corner 26 is in the top of corner, sets up by the magnetic force piece and forms, when needs are fixed through the corner, can take off laminating corner 26 from the corner, when treating fixed wall paper 23, can fix laminating, should set up quick dismantlement and the change of being convenient for, the device has embodied the practicality.
The working principle is as follows: firstly, by arranging the inner groove 9, the inner groove 9 is recessed into the upper fixed plate, and the illuminating lamp 8 is attached to the inner part of the inner groove 9 to be flush with the plane of the upper fixed plate, so that the appearance is improved, the upper fixed plate is not easy to break due to touch, and the device embodies the practicability;
then, by arranging the movable ball 15, the movable ball 15 is arranged inside the sliding groove, when the display board is moved by using the movable ball 15, the display board can be conveniently moved by the aid of the movable ball 15 arranged inside, so that the shell can not be clamped, and the device embodies practicability;
then, through setting up the lighting mechanism, fix the body by the lower fixed plate 4, while watching the wall cloth, users can watch in the observation area 7, one side of the observation area 7 has lighting lamps 8, open through the switch 13 of one side, the protective window 10 is around the apparatus body 1, the top has rolling blinds, when needing not to demonstrate, can put down the rolling blind 11, used for sheltering from, can guarantee effectively that will not gather a large amount of dust on the wall cloth, the apparatus has embodied the practicability;
next, by arranging a fixing mechanism, the first display board 5 is fixed through a first chute 14 and a second chute 21, the first chute 14 and the second chute 21 are respectively fixed inside the upper fixing plate 3 and the lower fixing plate 4, the display board can slide inside through the arranged first chute 14 and the arranged second chute 21, when the display board needs to be watched, the display board can be pulled out, the clamping piece 17 is arranged on the roller shutter and fixed inside the embedded groove 16 through the clamping piece 17, the rotating effect can be achieved by pulling the pull rope 18, the surface of the pull rope 18 is provided with a ball, the relatively fixed pull rope is internally provided with a movable ball, the surface is provided with a groove, the fixing mechanism is matched with the ball for use, and the pulling is convenient, and the device embodies practicability;
finally, through setting up coupling mechanism, wall paper 23 sets up on fixed frame 24, first corner 25, second corner 28 and third corner 39, be used for fixing four angles, be provided with four corners altogether, one is not marked, and the material of corner is the iron material, laminating corner 26 is in the top of corner, set up by the magnetic block and form, when needs are fixed through the corner, can take off laminating corner 26 from the corner, treat when fixed wall paper 23, can fix laminating, should set up the quick dismantlement and the change of being convenient for, the device has embodied the practicality, this is exactly the theory of operation of this indoor wall paper fixer for the design.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents and improvements made within the spirit and principle of the present invention are intended to be included within the scope of the present invention.
