Abstract
The invention provides an electromagnetic heating type stainless steel pot food roasting machine, which comprises a frame, a machine body arranged on the upper part of the frame, and a control mechanism arranged at the bottom of the frame, wherein a heating mechanism is arranged below the machine body, a function board is transversely and fixedly arranged at the top in the machine body, a movable groove is formed in the bottom surface of the function board along the long axis direction, a plurality of tooth I's are arranged on the inner wall array of the upper part of the movable groove, a plurality of stir-frying mechanisms are connected in the movable groove in a sliding manner, each stir-frying mechanism comprises an annular frame and a stir-frying plate, a plurality of tooth II's which are meshed and matched with the tooth I's are arranged on the annular frame in an annular array manner, a connecting plate is fixedly arranged on the inner wall of the annular frame in the diameter direction, and the stir-frying plates are connected to two sides of the connecting plate through compression springs. Comprehensive, efficient and practical.
Description
Technical Field
The invention relates to the technical field of roasting machines, in particular to an electromagnetic heating type stainless steel pot food roasting machine.
Background
The roasting machine is used for roasting dozens of roasted food such as chestnuts, peanuts, melon seeds, walnuts and the like, has multiple functions, has the advantages of being green, environment-friendly, heat-insulating, energy-saving, luxurious, sanitary, convenient and fast, labor-saving, time-saving, high in yield and the like, and is the most ideal and most advanced roasting equipment at present.
The development of the roasting machine can not be supported by the nut roasting industry, the development of the roasting industry also promotes the technical progress and development of the nut roasting industry, along with the growth of the nut roasting industry, higher requirements and updated concepts are provided for the skilled worker technology and the heating mode, and the energy conservation, the environmental protection, the quality, the temperature and the speed of the nut roasting industry to the roasting machine are higher in the processing and development process of the nut roasting industry.
At present, roasting machines on the market are all general heating methods, are mostly gas tanks and the like, can produce pollution in the use process, are not uniform in heating, are difficult to control in duration and mostly are iron pot bodies, and are extremely easy to stick to the pot and burnt. In addition, the existing stir-frying structure is fixed and rigid, the stir-frying range is limited, and the stir-frying structure is not beneficial to uniformly stir-frying.
Disclosure of Invention
Aiming at the existing problems, the invention provides the electromagnetic heating type stainless steel pot body food roasting machine, which is characterized in that stainless steel replaces an iron pot, a heat conducting iron sheet layer is used as an auxiliary material, and a dynamic stir-frying mechanism is matched, so that the sufficient heating efficiency is ensured, the problem that the coke is burnt and sticks to the pot is greatly reduced, and the electromagnetic heating type stainless steel pot body food roasting machine is comprehensive, efficient and practical.
In order to achieve the above object, the present invention adopts the following technical solutions:
the utility model provides an electromagnetic heating type stainless steel pot body food roasting machine, which comprises a frame, install in the organism on frame upper portion, install in the control mechanism of frame bottom, the organism below is equipped with heating mechanism, the top transversely has set firmly the function board in the organism, the activity groove has been seted up along the long axis direction to the function board bottom surface, activity groove upper portion inner wall array is equipped with a plurality of tooth one, sliding connection has a plurality of stir-fry mechanisms that turn over in the activity groove, it includes the annular frame to turn over the stir-fry mechanism, turn over the stir-fry board, annular frame outer wall annular array has a plurality of tooth two with tooth one meshing adaptation, the annular frame inner wall has set firmly the connecting plate in diameter direction, the connecting plate both sides.
As a further optimization of the invention, the machine body is made of stainless steel, and the upper part of the machine body is hinged with a feeding door.
As a further optimization of the invention, the heating mechanism comprises a heat conducting iron sheet layer, an electromagnetic coil heating layer and a heat insulation layer which are sequentially arranged from top to bottom.
As a further optimization of the invention, the bottom of the function board is wavy, the movable groove is correspondingly wavy, two side walls in the movable groove are provided with a wavy first sliding groove, two side walls of the annular frame are provided with an annular second sliding groove, the second sliding groove is internally and slidably connected with a sliding block, and the other end of the sliding block is in sliding connection with the first sliding groove in a matched manner, so that the annular frame is in sliding connection with the movable groove.
As a further optimization of the invention, two connecting rings are also slidably arranged in the second sliding groove, steel wires are tied on the connecting rings, winding rollers are rotatably arranged at two sides of the machine body, the two steel wires are respectively wound on the corresponding winding rollers, a motor for driving the winding rollers to rotate is arranged outside the machine body, and the motor is electrically controlled and connected by a control mechanism.
As a further optimization of the invention, a vertical plate is longitudinally and fixedly arranged on the side, close to the discharge port, in the machine body, one of the winding rollers is arranged on the vertical plate, and the other winding roller is arranged on the inner wall of the machine body, which is different from the discharge port.
As a further optimization of the invention, at least 1 stir-frying mechanism is arranged, and a plurality of stir-frying mechanisms are connected in sequence through a steel wire rope.
As a further optimization of the invention, the stir-frying plates are arranged vertically to the annular frame, and the stir-frying plates on the two sides are combined to form a complete circle.
As a further optimization of the invention, a plurality of flow guide holes are arranged on the stir-frying plate in a penetrating way.
Due to the adoption of the technical scheme, the invention has the beneficial effects that:
the electromagnetic heating type stainless steel pot food roasting machine provided by the invention has the advantages that the stainless steel replaces an iron pot, the heat conducting iron sheet layer is used as an auxiliary material, and the dynamic stir-frying mechanism is matched, so that the sufficient heating efficiency is ensured, the problem of burnt and pot sticking is greatly reduced, and the electromagnetic heating type stainless steel pot food roasting machine is comprehensive, efficient and practical.
The stir-frying machine is provided with a plurality of stir-frying mechanisms, under the winding and unwinding action of a steel wire rope (the winding action of a winding roller under the operation of a motor), the stir-frying mechanisms slide along the first sliding grooves in the movable grooves, and can reciprocate from left to right or from right to left along the machine body, and meanwhile, due to the fact that the first teeth and the second teeth are meshed, the stir-frying mechanisms rotate and move, meanwhile, due to the fact that the movable grooves are arranged in a wave shape, the comprehensive stir-frying machine can realize left-right reciprocating motion, synchronous rotation and up-down motion, stir-frying uniformity is remarkably improved.
The stir-frying mechanism is integrally detachably mounted, is convenient to replace and install, and can be installed in a plurality of ways as required, the efficiency is controllable, and the flexibility is strong. Meanwhile, the stir-frying plates are connected through the compression springs, the rotating and stirring range can be changed adaptively, the materials attached to the wall and the materials at the bottom can be touched a little, and stir-frying dead angles are avoided.
Drawings
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a view showing the structure of the body of the present invention;

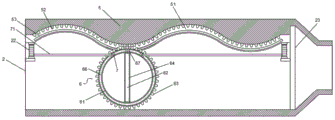

FIG. 3 is a cross-sectional view of the body of the present invention (without the stir-fry mechanism);
FIG. 4 is a schematic view of the stir plate of the present invention;
in the figure: the device comprises a frame 1, a machine body 2, a feeding door 21, a wind-up roll 22, a vertical plate 23, a control mechanism 3, a heating mechanism 4, a function plate 5, a movable groove 51, a first tooth 52, a first chute 53, a stir-frying mechanism 6, an annular frame 61, a stir-frying plate 62, a second tooth 63, a connecting plate 64, a compression spring 65, a second chute 66, a sliding connection block 67, a diversion hole 68, a connecting ring 7 and a steel wire rope 71.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments of the present invention without any inventive step, are within the scope of the present invention.
An electromagnetic heating type stainless steel pot food roasting machine is shown in figures 1 to 4 and comprises a frame 1, a machine body 2 arranged on the upper portion of the frame 1 and a control mechanism 3 arranged at the bottom of the frame 1, wherein a heating mechanism 4 is arranged below the machine body 2 (a heat radiation fan is arranged at the bottom of the frame and is of a conventional structure, and the heat radiation mechanism and the heating mechanism are electrically controlled and connected by the control mechanism as shown in the figures). Organism 2 adopts stainless steel, and 2 upper portions of organism are articulated to have seted up feed door 21 for to wherein adding the goods of waiting to turn over the stir-fry, and the organism lateral wall still can be articulated to set up the maintenance door, is used for the change of the installation of inside components and parts, and not shown in the figure (equally have moisture discharge hole etc. do not detailed here), the organism is conventional roasting machine barrel, and this application mainly improves the point and turns over the structure of stir-fry for the organism is inside, and other functional part can refer to prior art design installation.
Specifically, heating mechanism 4 is including the heat conduction iron sheet layer, the solenoid zone of heating, the insulating layer that from top to bottom set gradually, and it heaies up to generate heat by solenoid promptly, and the skin is protected by the insulating layer, avoids scalding, then sets up the heat conduction iron sheet layer towards the inlayer of organism to the heating efficiency is guaranteed to the quick heat conduction of iron sheet, on the basis of using the stainless steel material organism, has both guaranteed to be heated to bake and fry the effect, the sticking problem that also avoids. In addition, the heating mechanism can be supported and installed below the machine body through a telescopic mechanism (a hydraulic telescopic rod or an electric telescopic rod and the like), and when the heating mechanism is used, the distance between the heating mechanism and the bottom surface of the machine body is adjusted through the telescopic adjustment of the telescopic mechanism, so that the heating effect is adjusted.
Further, a function board 5 is transversely and fixedly arranged at the top in the machine body 2, a movable groove 51 is arranged on the bottom surface of the function board 5 along the long axis direction, a plurality of first tooth 52 are arranged on the inner wall array of the upper part of the movable groove 51, a plurality of stir-frying mechanisms 6 (at least 1 as shown in the figure) are connected in the movable groove 51 in a sliding manner, each stir-frying mechanism 6 comprises an annular frame 61 and a stir-frying board 62, a plurality of second tooth 63 meshed and matched with the first tooth 52 are arranged on the outer wall of the annular frame 61 in an annular array manner, a connecting board 64 is fixedly arranged on the inner wall of the annular frame 61 in the diameter direction, the stir-frying boards 62 are connected to the two sides of the connecting board 64 through compression springs 65, the stir-frying boards 62 and the annular frame 61 are vertically arranged, the two stir-frying boards 62 are combined to form a complete circle, the circle is arranged, the arc wall of the stir-frying boards, and simultaneously, the dispersion effect is improved.
The bottom of the function board 5 is wavy, the movable groove 51 is correspondingly wavy, wavy sliding grooves 53 are formed in two side walls of the movable groove 51, annular sliding grooves 66 are formed in two side walls of the annular frame 61, sliding blocks 67 are connected in the sliding grooves 66 in a sliding mode, and the other ends of the sliding blocks 67 are connected in the sliding grooves 53 in a sliding mode in an adaptive mode, so that the annular frame 61 is connected with the movable groove 51 in a sliding mode. Furthermore, all the sliding connection sliding blocks are matched in the first sliding groove and the second sliding groove, the two ends of each sliding connection block are detachably connected with the corresponding sliding block through screws or bolts and the like, and specific connecting pieces are not limited here.
Furthermore, two connecting rings 7 are slidably arranged in the second sliding groove 66, a steel wire 71 is tied on the connecting rings 7, the inner walls of the two sides of the machine body 2 are respectively and rotatably provided with a wind-up roll 22, the two steel wire 71 are respectively wound on the corresponding wind-up rolls 22, a motor (not shown in the figure) for driving the wind-up rolls 22 to rotate is arranged outside the machine body 2, and the motor is electrically controlled and connected by the control mechanism 3. Specifically, a vertical plate 23 is longitudinally and fixedly arranged on the side, close to the discharge port, of the machine body 2, one of the winding rollers 22 is installed on the vertical plate 23, and the other winding roller 22 is installed on the inner wall, different from the discharge port, of the machine body 2. When a plurality of stir-frying mechanisms are arranged, the adjacent stir-frying mechanisms are connected in sequence through the steel wire cables 71.
The electromagnetic heating type stainless steel pot food roasting machine provided by the invention has the advantages that the stainless steel replaces an iron pot, the heat conducting iron sheet layer is used as an auxiliary material, and the dynamic stir-frying mechanism is matched, so that the sufficient heating efficiency is ensured, the problem of burnt and pot sticking is greatly reduced, and the electromagnetic heating type stainless steel pot food roasting machine is comprehensive, efficient and practical.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The above examples are only intended to illustrate the technical solution of the present invention, but not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it will be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; and such modifications or substitutions do not depart from the spirit and scope of the corresponding technical solutions of the embodiments of the present invention.
Claims (9)
1. The utility model provides an electromagnetic heating type stainless steel pot body food roasting machine, includes the frame, installs in the organism on frame upper portion, installs in the control mechanism of frame bottom, and the organism below is equipped with heating mechanism, its characterized in that: the top transversely has set firmly the function board in the organism, and the activity groove has been seted up along the long axis direction to the function board bottom surface, and activity groove upper portion inner wall array is equipped with a plurality of tooth one, and it has a plurality of stir-fry mechanisms of turning over to slide in the activity groove, turns over the stir-fry mechanism and includes annular frame, turns over the stir-fry board, and annular frame outer wall annular array has a plurality of tooth two with tooth one meshing adaptation, and annular frame inner wall has set firmly the connecting plate in the diameter direction, and the connecting plate both sides are even through compression spring have turn over the stir-.
2. The electromagnetic heating type stainless steel pot food roasting machine of claim 1, characterized in that: the machine body is made of stainless steel, and a feeding door is hinged to the upper portion of the machine body.
3. The electromagnetic heating type stainless steel pot food roasting machine of claim 1, characterized in that: the heating mechanism comprises a heat conduction iron sheet layer, an electromagnetic coil heating layer and a heat insulation layer which are sequentially arranged from top to bottom.
4. The electromagnetic heating type stainless steel pot food roasting machine of claim 1, characterized in that: the bottom of the function board is wavy, the movable groove is correspondingly wavy, a wavy sliding groove I is formed in two side walls in the movable groove, an annular sliding groove II is formed in two side walls of the annular frame, a sliding connection block is connected in the sliding groove II in a sliding mode, and the other end of the sliding connection block is connected in the sliding groove I in a sliding mode in an adaptive mode so as to achieve sliding connection of the annular frame relative to the movable groove.
5. The electromagnetic heating type food roasting machine with stainless steel pan body of claim 4, characterized in that: two connecting rings are further arranged in the second sliding groove in a sliding mode, steel wire ropes are tied on the connecting rings, a winding roller is rotatably installed in the machine body, the two steel wire ropes are respectively wound on the corresponding winding rollers, a motor for driving the winding roller to rotate is installed outside the machine body, and the motor is electrically controlled and connected by a control mechanism.
6. The electromagnetic heating type stainless steel pot food roasting machine of claim 5, characterized in that: the side of the machine body close to the discharge port is fixedly provided with a vertical plate in the longitudinal direction, one of the winding rollers is arranged on the vertical plate, and the other winding roller is arranged on the inner wall of the machine body different from the discharge port.
7. The electromagnetic heating type stainless steel pot food roasting machine of claim 5, characterized in that: the stir-frying mechanism is at least provided with 1, and the stir-frying mechanisms are sequentially connected through a steel wire cable.
8. The electromagnetic heating type stainless steel pot food roasting machine of claim 1, characterized in that: the stir-frying plates are perpendicular to the annular frame, and the stir-frying plates on the two sides are combined to form a complete circle.
9. The electromagnetic heating type stainless steel pot food roasting machine of claim 1, characterized in that: a plurality of flow guide holes are formed in the stir-frying plate in a penetrating mode.
