CN112544541A

CN112544541A - Novel aquaculture system

Info

Publication number: CN112544541A
Application number: CN202011404500.3A
Authority: CN
Inventors: 王根连; 马坤; 沈东�; 朱恺
Original assignee: Zhejiang Qingxi Turtle Industry Co ltd
Current assignee: Zhejiang Qingxi Turtle Industry Co ltd
Priority date: 2020-12-03
Filing date: 2020-12-03
Publication date: 2021-03-26
Anticipated expiration: 2040-12-03
Also published as: CN112544541B

Abstract

The invention discloses a novel aquaculture system, wherein a cylinder is fixedly connected with one of plate bodies, a first lead screw motor is arranged on one of slide blocks, a first sleeve body is sleeved on the output end of the first lead screw motor, a second sleeve body is sleeved on the output end of the second lead screw motor, two connecting bodies are arranged on the second sleeve body, and a brush is arranged on a bottom plate; the end of intaking of diversion pump with breed the case intercommunication, the other end of diversion pump passes through the diversion pipe with first disinfect box intercommunication, the second disinfect box with transition room intercommunication, ozone generator passes through the oxygen guide pipe with the second disinfect box intercommunication, the one end of third disinfect box with the second disinfect box intercommunication, the other end of third disinfect box with breed the case intercommunication, set up through above-mentioned structure, make novel aquaculture system function is more comprehensive, has promoted user experience and has felt.

Description

Novel aquaculture system

Technical Field

The invention relates to the technical field of aquaculture, in particular to a novel aquaculture system.

Background

Aquaculture is the production activity of breeding, cultivating and harvesting aquatic animals and plants under artificial control. Generally comprises the whole process of cultivating aquatic products from seedlings under manual management, and can also comprise the multiplication of aquatic resources in a broad sense. Aquaculture has modes of rough culture, intensive culture, high-density intensive culture and the like. However, the existing aquaculture system has single function and poor user experience.

Disclosure of Invention

The invention aims to provide a novel aquaculture system, and aims to solve the technical problems that an aquaculture system in the prior art is single in function and poor in user experience.

In order to achieve the purpose, the novel aquaculture system comprises a aquaculture box, a frame, a plate body, a sliding block, a cylinder, a first lead screw motor, a first sleeve body, a driving piece, a second lead screw motor, a second sleeve body, a connecting body, a bottom plate, a brush, a water guide pump, a water guide pipe, a first disinfection box, two partition plates, a first ultraviolet lamp, a first vertical plate, a second vertical plate, a water baffle, a second disinfection box, an ozone generator, an oxygen guide pipe, a third disinfection box, a frame body, a quartz sleeve and a second ultraviolet lamp;

the frame is arranged above the breeding box, the number of the plate bodies is two, the two plate bodies are symmetrically arranged on the frame, a first slide rail is arranged on the inner side wall of each plate body, a slide block is arranged in each first slide rail, the cylinder is fixedly connected with one of the plate bodies, the output end of the cylinder is fixedly connected with the slide block, a first lead screw motor is arranged on one of the slide blocks, a first sleeve body is sleeved on the output end of the first lead screw motor, the driving piece is arranged on the first sleeve body, the output end of the driving piece is fixedly connected with a second lead screw motor, a second sleeve body is sleeved on the output end of the second lead screw motor, the second sleeve body is provided with two connecting bodies, and the bottom plate is fixedly connected with the two connecting bodies respectively, the hair brushes are arranged on the bottom plate;

the water inlet end of the water diversion pump is communicated with the culture box, the other end of the water diversion pump is communicated with the first disinfection box through the water diversion pipe, the two clapboards are respectively fixedly connected with the first disinfection box and divide the first disinfection box into two irradiation chambers and a transition chamber, the first ultraviolet lamp is arranged in each irradiation chamber, the first vertical plate and the second vertical plate are respectively in multiple numbers and are arranged in the transition chamber in a staggered manner, gaps are arranged on each first vertical plate and each second vertical plate, the water baffle is arranged between the first vertical plate and the second vertical plate, water passing holes are arranged on the water baffle, the second disinfection box is communicated with the transition chamber, the ozone generator is communicated with the second disinfection box through the oxygen diversion pipe, one end of the third disinfection box is communicated with the second disinfection box, the other end of the third disinfection box with breed the case intercommunication, the support body sets up the bottom of third disinfection box, second ultraviolet lamp sets up on the support body, just quartz sleeve cover is established the outside of second ultraviolet lamp.

The novel aquaculture system further comprises two side plates, wherein the two side plates are arranged on two sides of the bottom plate, and each side plate is provided with the hairbrush.

Wherein, novel aquaculture system still includes the filter screen, the filter screen is arranged in the inside of leading water pipe.

Wherein, novel aquaculture system still includes the ozone booster pump, the ozone booster pump sets up on the oxygen guide pipe.

Wherein, novel aquaculture system is still including storing the bin of disinfectant to and the measuring pump, the bin passes through the measuring pump with third disinfect box intercommunication.

The invention has the beneficial effects that: the connecting body is driven to rotate by the rotation of the driving piece, so that the bottom plate is driven to rotate, the brush is further enabled to clean dirt at the bottom of the breeding box, in addition, the left and right movement of the first sleeve body can be realized by the positive and negative rotation of the first screw rod motor, the left and right movement of the second screw rod motor is further driven, the positive and negative rotation of the second screw rod motor is simultaneously realized, the second sleeve body can move up and down, in addition, the sliding block can be driven by the stretching of the air cylinder to move back and forth in the first sliding rail, the front, back, left, right and up and down movement of the bottom plate can be realized by the structural arrangement, so that the breeding boxes with different sizes, depths or widths can be cleaned and decontaminated, the applicability is stronger, the satisfaction degree of a user is improved, and simultaneously, the water in the breeding boxes is pumped by the water pump after the cleaning and, later through the leading water pipe gets into extremely the transition room, through first ultraviolet lamp is to flowing through the water of first disinfect box shines, later water gets into extremely in the second disinfect box, ozone generator action, through the oxygen guide pipe to let in ozone in the second disinfect box to play the sterilization and restrain the alga and breed, reach the purpose of effectively killing the bacterium, later water gets into extremely the third disinfect box, second ultraviolet lamp shines once more to the water of flowing through and disinfects, through the sterile water of disinfecting flow back extremely breed the incasement, accomplish the disinfection, disinfect to water through a lot of, can play better bactericidal effect to water, promote aquaculture system disinfection effect of disinfecting, novel aquaculture system function is more comprehensive, and user experience feels higher.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

FIG. 1 is a schematic view of the overall structure of the cultivation box of the present invention.

FIG. 2 is a schematic view showing the internal structure of the cultivation box of the present invention.

Fig. 3 is a schematic diagram of a part of the structure of the novel aquaculture system of the invention.

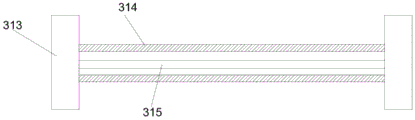

Fig. 4 is a partial structural schematic of fig. 3 of the present invention.

201-culture box, 202-frame, 203-plate body, 204-slide block, 205-cylinder, 206-first screw rod motor, 207-first sleeve body, 208-driving piece, 209-second screw rod motor, 210-second sleeve body, 211-connecting body, 212-bottom plate, 213-brush, 214-first slide rail, 215-side plate, 216-second slide rail, 217-telescopic rod, 218-elastic piece, 301-water pump, 302-water conduit, 303-first disinfection box, 304-partition plate, 305-first ultraviolet lamp, 306-first vertical plate, 307-second vertical plate, 308-water baffle, 309-second disinfection box, 310-ozone generator, 311-oxygen conduit, 312-third disinfection box, 313-frame body, 314-quartz sleeve, 315-second ultraviolet lamp, 316-irradiation chamber, 317-transition chamber, 318-notch, 319-water through hole, 320-filter screen, 321-ozone booster pump, 322-storage tank, 323-metering pump, 324-driving motor, 325-shaft rod, 326-rotating component, 327-first sheet body, 328-second sheet body, 329-third sheet body, 330-fourth sheet body and 331-arc sheet body.

Detailed Description

Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are illustrative and intended to be illustrative of the invention and are not to be construed as limiting the invention.

In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships illustrated in the drawings, and are used merely for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the devices or elements referred to must have a particular orientation, be constructed in a particular orientation, and be operated, and thus, are not to be construed as limiting the present invention. Further, in the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.

Referring to fig. 1 to 4, the present invention provides a novel aquaculture system, which comprises a aquaculture tank 201, a frame 202, a plate body 203, a slider 204, a cylinder 205, a first lead screw motor 206, a first sleeve 207, a driving member 208, a second lead screw motor 209, a second sleeve 210, a connecting body 211, a bottom plate 212, a brush 213, a water pump 301, a water conduit 302, a first disinfection tank 303, two partition plates 304, a first ultraviolet lamp 305, a first vertical plate 306, a second vertical plate 307, a water baffle 308, a second disinfection tank 309, an ozone generator 310, an oxygen conduit 311, a third disinfection tank 312, a frame body 313, a quartz sleeve 314, and a second ultraviolet lamp 315;

the frame 202 is arranged above the breeding box 201, the number of the plate bodies 203 is two, the two plate bodies 203 are symmetrically arranged on the frame 202, the inner side wall of each plate body 203 is provided with a first slide rail 214, each first slide rail 214 is internally provided with a slide block 204, the air cylinder 205 is fixedly connected with one of the plate bodies 203, the output end of the air cylinder 205 is fixedly connected with the slide block 204, one of the slide blocks 204 is provided with a first lead screw motor 206, the output end of the first lead screw motor 206 is sleeved with the first sleeve body 207, the driving part 208 is arranged on the first sleeve body 207, the output end of the driving part 208 is fixedly connected with the second lead screw motor 209, the output end of the second lead screw motor 209 is sleeved with the second sleeve body 210, and the second sleeve body 210 is provided with two connecting bodies 211, the bottom plate 212 is fixedly connected with the two connecting bodies 211 respectively, and is located below the two connecting bodies 211, and the brush 213 is arranged on the bottom plate 212;

the water inlet end of the water diversion pump 301 is communicated with the culture box 201, the other end of the water diversion pump 301 is communicated with the first disinfection box 303 through the water diversion pipe 302, the two partition plates 304 are respectively fixedly connected with the first disinfection box 303 and divide the first disinfection box 303 into two irradiation chambers 316 and a transition chamber 317, the first ultraviolet lamp 305 is arranged in each irradiation chamber 316, the first vertical plates 306 and the second vertical plates 307 are multiple in number and are arranged in the transition chamber 317 in a staggered manner, gaps 318 are arranged on each first vertical plate 306 and each second vertical plate 307, the water baffle 308 is arranged between the first 306 vertical plates and the second vertical plates 307, water through holes 319 are arranged on the water baffle 308, the second disinfection box 309 is communicated with the transition chamber 317, the ozone generator 310 is communicated with the second disinfection box 309 through the oxygen diversion pipe 311, one end of the third sterilizing box 312 is communicated with the second sterilizing box 309, the other end of the third sterilizing box 312 is communicated with the culture box 201, the frame body 313 is arranged at the bottom of the third sterilizing box 312, the second ultraviolet lamp 315 is arranged on the frame body 313, and the quartz sleeve 314 is sleeved outside the second ultraviolet lamp 315.

In this embodiment, the driving member 208 rotates to drive the connecting member 211 to rotate, so as to drive the bottom plate 212 to rotate, so that the brush 213 cleans dirt at the bottom of the cultivation box 201, in addition, the first lead screw motor 206 rotates forward and backward, so as to realize the left and right movement of the first sleeve 207, so as to drive the second lead screw motor 209 to move left and right, and simultaneously, the second lead screw motor 209 rotates forward and backward, so as to move the second sleeve 210 up and down, in addition, the cylinder 205 can extend and retract to drive the slider 204 to move forward and backward in the first slide rail 214, by the above structural arrangement, the bottom plate 212 can move forward and backward, left and right, and up and down, so as to clean the cultivation box 201 with different sizes, depths or widths, so that the applicability is stronger, and the cleaning of the cultivation box 201 is simpler and more efficient, thereby improving the user satisfaction. Through water pump 301 extraction breed the water in the case 201, later pass through leading water pipe 302 enters into extremely transition room 317, through first ultraviolet lamp 305 convection current the water of first disinfect box 303 shines, later water enters into extremely in the second disinfect box 309, ozone generator 310 action, through oxygen guide pipe 311 to let in ozone in the second disinfect box 309 to play the sterilization and restrain the alga reproduction, reach the purpose of effectively killing the bacterium, later water enters into extremely third disinfect box 312, second ultraviolet lamp 315 shines once more to the water of flowing through and disinfects, and the water through the disinfection of disinfecting flows back extremely in the breed case 201, accomplishes the disinfection, disinfects through disinfecting water many times, can play better bactericidal effect to water, promotes aquaculture system disinfection effect of disinfecting. Novel aquaculture system function is more comprehensive, and user experience feels higher.

Further, the novel aquaculture system further comprises two side plates 215, the two side plates 215 are arranged on two sides of the bottom plate 212, and the brush 213 is arranged on each side plate 215.

In this embodiment, be provided with on the curb plate 215 brush 213 on the bottom plate 212 brush 213 is right when breeding the case 201 bottom and removing dirt, curb plate 215 can be right breed the case 201 lateral wall and remove dirt at the bottom, realize more comprehensive decontamination, promote breed the cleanliness factor of case 201.

Further, two sides of the bottom plate 212 are provided with second sliding rails 216, and each second sliding rail 216 is slidably provided with the side plate 215. An expansion link 217 is arranged between each side plate 215 and the corresponding connecting body 211. An elastic member 218 is sleeved outside each of the telescopic rods 217, and two ends of each of the elastic members 218 are respectively and fixedly connected with the side plate 215 and the connecting body 211.

In this embodiment, the elastic member 218 is a spring, when the side plate 215 abuts against the side wall of the cultivation box 201, the brush 213 on the side plate 215 can tightly abut against the side wall of the cultivation box 201 under the action of the elastic force of the elastic member 218 itself, so that the side wall of the cultivation box 201 can be cleaned more cleanly, and the satisfaction of a user can be improved. The telescopic rod 217 has a telescopic function, and the telescopic rod 217 is used for supporting the side plate 215.

Further, the novel aquaculture system further comprises a filter screen 320, and the filter screen 320 is arranged inside the water conduit 302.

In this embodiment, the filter screen 320 can filter the water flowing through the water conduit 302 to remove impurities and purify the water.

Further, the novel aquaculture system further comprises an ozone booster pump 321, and the ozone booster pump 321 is arranged on the oxygen introducing pipe 311.

In this embodiment, the ozone booster pump 321 can effectively accelerate the ozone entering the second disinfection chamber, so as to achieve a better sterilization effect on water.

Further, the aquaculture system further comprises a storage tank 322 for storing the disinfectant, and a metering pump 323, wherein the storage tank 322 is communicated with the third disinfection tank 312 through the metering pump 323.

In this embodiment, the metering pump 323 can deliver the disinfectant in the storage tank 322 to the third disinfectant tank 312, thereby achieving a better disinfecting effect on water.

Further, the aquaculture system further comprises a driving motor 324, a shaft 325 and a plurality of rotating assemblies 326, wherein the driving motor 324 is disposed above the third sterilization box 312, one end of the shaft 325 is fixedly connected with the output end of the driving motor 324, the other end of the shaft 325 is inserted into the third sterilization box 312, the plurality of rotating assemblies 326 are circumferentially distributed on the shaft 325, each rotating assembly 326 comprises a first plate 327, a second plate 328, a third plate 329 and a fourth plate 330, the first plate 327 and the third plate 329 are fixedly connected with the shaft 325, the second plate 328 is fixedly connected with the first plate 327 and is located at one end of the first plate 327 away from the shaft 325, the second plate 328 is obliquely disposed on the shaft 325, and the fourth plate 330 is fixedly connected with the third plate 329, and is located at one end of the third blade 329 far away from the shaft rod 325, and the fourth blade 330 is obliquely arranged on the shaft rod 325.

In this embodiment, the driving motor 324 rotates to drive the shaft 325 to rotate, so as to drive the plurality of rotating assemblies 326 to rotate, so that the disinfectant is fully mixed with the water, and the water in the third sterilization tank 312 is further sterilized and disinfected.

Further, the aquaculture system further comprises a plurality of arc-shaped pieces 331, and two ends of each arc-shaped piece 331 are fixedly connected with the second sheet body 328 and the fourth sheet body 330 respectively.

In this embodiment, a plurality of arc piece 331's setting can improve rotating assembly 326 is to the stirring effect of water for disinfectant and water mix more fully in the short time, play better disinfection effect of disinfecting.

While the invention has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes in form and detail may be made therein without departing from the spirit and scope of the invention as defined by the appended claims.

Claims

1. A novel aquaculture system is characterized in that,

the device comprises a culture box, a rack, a plate body, a sliding block, an air cylinder, a first lead screw motor, a first sleeve body, a driving piece, a second lead screw motor, a second sleeve body, a connecting body, a bottom plate, a brush, a water guide pump, a water guide pipe, a first disinfection box, two partition plates, a first ultraviolet lamp, a first vertical plate, a second vertical plate, a water baffle plate, a second disinfection box, an ozone generator, an oxygen guide pipe, a third disinfection box, a frame body, a quartz sleeve and a second ultraviolet lamp;

2. A novel aquaculture system according to claim 1,

the novel aquaculture system further comprises two side plates, wherein the two side plates are arranged on two sides of the bottom plate and are provided with the hairbrush.

3. A novel aquaculture system according to claim 1,

the novel aquaculture system further comprises a filter screen, and the filter screen is arranged inside the water conduit.

4. A novel aquaculture system according to claim 1,

the novel aquaculture system further comprises an ozone booster pump, and the ozone booster pump is arranged on the oxygen introducing pipe.

5. A novel aquaculture system according to claim 1,

the novel aquaculture system further comprises a storage tank for storing disinfectant and a metering pump, and the storage tank is communicated with the third disinfection tank through the metering pump.
