Abstract
The invention discloses a dustproof intelligent electric power cabinet for electric power, which comprises a cabinet body, wherein a fixing plate in the horizontal direction is fixedly connected to the upper portion of the interior of the cabinet body, a dust removal box is fixedly mounted on the upper portion of the left side of the fixing plate, a dust suction device is fixedly mounted on the right side of the interior of the dust removal box, a vertical slide rail II is fixedly connected to the middle of the lower surface of the left side of the fixing plate, a vertical electric sliding cylinder II is slidably mounted on the right side of the vertical slide rail II, a dust sensor is fixedly mounted on the surface of the right side of the vertical electric sliding cylinder II, transverse slide rails are fixedly connected to the upper side and the lower side of the middle of the interior of the cabinet body, transverse electric sliding cylinders are slidably mounted on the surfaces of the transverse slide rails, the number of the transverse slide rails. The dust collector is beneficial to absorbing dust in the cabinet body, realizes automatic dust prevention, avoids the defect of manual dust removal, and is time-saving and labor-saving.
Description
Technical Field
The invention relates to the field of dust prevention of electric power cabinets, in particular to a dust-proof intelligent electric power cabinet for electric power.
Background
Along with the development of the times, the living standard of people is continuously improved, the power resource is widely applied to the life, in the field of power infrastructure, a power cabinet is common equipment, the power cabinet is common power infrastructure, a large number of power components can be installed in the power cabinet, and the power cabinet is practical.
And do not have systematic dustproof facilities in the current electric power cabinet, often carry out the clearance of dust in the electric power cabinet regularly through the staff, not only waste time and energy, dustproof effect is also not good moreover to the dust can not in time be handled and pile up on electric power unit, can lead to electric power unit to receive the interference of dust and influence its normal work, still can accelerate electric power unit's ageing, is unfavorable for the reality and uses.
Disclosure of Invention
The invention aims to provide a dustproof intelligent electric power cabinet for electric power, which aims to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme:
a dustproof intelligent electric power cabinet for electric power comprises a cabinet body, wherein a fixed plate in the horizontal direction is fixedly connected above the inner part of the cabinet body, a dust removing box is fixedly installed above the left side of the fixed plate, a dust collecting device is fixedly installed on the right side of the inner part of the dust removing box, a vertical slide rail II is fixedly connected in the middle of the lower surface of the left side of the fixed plate, a vertical electric sliding cylinder II is slidably installed on the right side of the vertical slide rail II, a dust sensor is fixedly installed on the surface of the right side of the vertical electric sliding cylinder II, a horizontal slide rail is fixedly connected on the upper side and the lower side of the middle of the inner part of the cabinet body, a horizontal electric sliding cylinder is slidably installed on the surface of the horizontal slide rail II, two vertical slide rails I are fixedly connected between the two horizontal electric sliding cylinders, a vertical electric sliding cylinder I is slidably installed on the surface of the, be provided with a dust absorption section of thick bamboo between two mounts, a dust absorption section of thick bamboo is cylindrical structure, and both sides surface middle part fixedly connected with rotary rod about a dust absorption section of thick bamboo, the rotary rod upper end rotates and is connected with the axle sleeve to fixed linking to each other through the mount of axle sleeve with the top, in the mount of below is passed to the rotary rod below, and rotate through the bearing and connect, the rotary rod lower extreme rotates and installs motor one, dust absorption section of thick bamboo left side top rotates and is connected with the adapter, and the dust absorption hose is installed to the adapter top, and the other end and the dust.
As a further scheme of the invention: the cabinet is characterized in that cabinet doors are hinged to the left side and the right side of the front surface of the cabinet body, door handles are fixedly mounted in the middle of the front surface of each cabinet door, and heat dissipation windows are arranged in the middle of the left side and the right side of the outer portion of the cabinet body.
As a further scheme of the invention: the cabinet body is characterized in that pull rings are fixedly connected to the left side and the right side above the outer portion of the cabinet body, and bases are fixedly connected to the left side and the right side below the outer portion of the cabinet body.
As a further scheme of the invention: an air box is arranged at the bottom in the cabinet body, and a dust screen in the horizontal direction is fixedly connected above the air box.
As a further scheme of the invention: the left side and the right side of the bottom in the air box are provided with two motors, fan blades are rotatably arranged above the two motors, the number of the two motors is two, the surfaces of the left side and the right side of the two motors are fixedly connected with a motor frame two, and the left end and the right end of the motor frame two are fixedly connected with the inner walls of the left side and the right side of the air box.
As a further scheme of the invention: the surface of the right side of the first motor is fixedly connected with a first motor frame, and the other end of the first motor frame is fixedly connected with the lower part of the surface of the first vertical electric sliding cylinder.
As a further scheme of the invention: a groove is formed in the middle of the surface of the right side of the fixing plate, and the dust collection hose penetrates through the middle of the groove.
As a still further scheme of the invention: dust collection holes are formed in the periphery of the wall of the dust collection barrel, a dust collection net is fixedly installed in the dust collection barrel, and the dust collection net is of a cylindrical structure.
Compared with the prior art, the invention has the beneficial effects that:
1. through setting up perpendicular electric sliding cylinder two and carrying out the up-and-down slide rail on perpendicular slide rail two, thereby realize that the dust sensor of installing on perpendicular electric sliding cylinder two carries out all-round control to the internal dust of cabinet, and a dust absorption section of thick bamboo is through erecting the up-and-down motion of electric sliding cylinder one on perpendicular slide rail one, and carry out the side-to-side motion on the horizontal slide rail through horizontal electric sliding cylinder, thereby realize that a dust absorption section of thick bamboo carries out all-round dust absorption to the internal all-round dust absorption of cabinet according to dust sensor's detection position, and at the dust absorption in-process, motor one rotates and can drive the rotary rod and rotate, thereby realize the rotatory dust absorption of a dust absorption section of thick bamboo, make.
2. And in the dust absorption process, rotate through motor two and drive the flabellum and rotate to blow the dust that will fall on the electric power part surface, more be favorable to absorbing the dust of the internal of cabinet, realize automatic dustproof, avoided the drawback of artifical dust removal, labour saving and time saving.
Drawings
Fig. 1 is a schematic structural diagram of a dustproof intelligent power cabinet for electric power.
Fig. 2 is an internal structure schematic diagram of a cabinet body in a dustproof intelligent electric power cabinet for electric power.
Fig. 3 is an enlarged schematic view of the structure a in fig. 2.

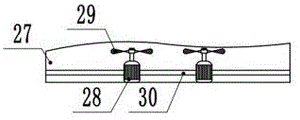

Fig. 4 is a schematic diagram of the internal structure of a wind box in a dustproof intelligent power cabinet for electric power.
Fig. 5 is a schematic perspective view of a fixing plate in a dustproof intelligent power cabinet for electric power.
Fig. 6 is a schematic perspective view of a dust collection net in the dustproof intelligent electric power cabinet for electric power.
In the figure: 1-cabinet body, 2-cabinet door, 3-door handle, 4-pull ring, 5-base, 6-heat dissipation window, 7-fixing plate, 8-dust removal box, 9-dust collection device, 10-dust collection hose, 11-adapter, 12-dust collection barrel, 13-fixing frame, 14-bearing, 15-rotating rod, 16-motor I, 17-motor frame I, 18-shaft sleeve, 19-vertical slide rail I, 20-vertical electric slide cylinder I, 21-vertical slide rail II, 22-vertical electric slide cylinder II, 23-dust sensor, 24-horizontal slide rail, 25-horizontal electric slide cylinder, 26-dust screen, 27-bellows, 28-motor II, 29-fan blade, 30-motor frame II, 31-dust collection hole, 32-slot, 33-dust suction net.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example one
Referring to fig. 1-6, a dustproof intelligent electric power cabinet for electric power comprises a cabinet body 1, a fixing plate 7 is fixedly connected to the upper portion inside the cabinet body 1 in the horizontal direction, a dust removal box 8 is fixedly mounted on the upper portion of the left side of the fixing plate 7, and a dust collection device 9 is fixedly mounted on the right side inside the dust removal box 8.
Moreover, a vertical slide rail II 21 is fixedly connected in the middle of the lower surface of the left side of the fixing plate 7, a vertical electric sliding cylinder II 22 is slidably mounted on the right side of the vertical slide rail II 21, a dust sensor 23 is fixedly mounted on the surface of the right side of the vertical electric sliding cylinder II 22, transverse slide rails 24 are fixedly connected on the upper and lower sides of the middle of the inside of the cabinet body 1, transverse electric sliding cylinders 25 are slidably mounted on the surfaces of the transverse slide rails 24, the number of the transverse electric sliding cylinders 24 and the number of the transverse electric sliding cylinders 25 are respectively two, a vertical slide rail I19 is fixedly connected between the two transverse electric sliding cylinders 25, a vertical electric sliding cylinder I20 is slidably mounted on the left side surface of the vertical slide rail I19, horizontal fixing frames 13 are respectively fixedly connected above and in the middle of the left side surface of the vertical electric sliding cylinder I20, a dust collection tube 12 is arranged between the two fixing frames 13, the dust, the rotation of 15 upper ends of rotary rod is connected with axle sleeve 18 to 13 fixed links to each other through axle sleeve 18 and mount of top, in the mount 13 of below is passed to 15 below of rotary rod, and rotate through bearing 14 and connect, 15 lower extremes of rotary rod rotate and install motor 16, 12 left sides upper sides of suction tube rotate and are connected with adapter 11, and dust absorption hose 10 is installed to adapter 11 top, and dust absorption hose 10's the other end links to each other with dust extraction 9 is fixed.
Specifically, the left and right sides of the front surface of the cabinet body 1 are hinged with cabinet doors 2, door handles 3 are fixedly mounted in the middle of the front surface of the cabinet doors 2, heat dissipation windows 6 are arranged in the middle of the left and right sides of the outside of the cabinet body 1, the heat dissipation windows 6 have a good heat dissipation effect on the electric power cabinet, pull rings 4 are fixedly connected to the left and right sides of the outside of the cabinet body 1, bases 5 are fixedly connected to the left and right sides of the outside of the cabinet body 1, an air box 27 is arranged at the bottom of the inside of the cabinet body 1, a dust screen 26 in the horizontal direction is fixedly connected to the upper side of the air box 27, and dust in the cabinet body.
Specifically, 16 right side fixed surface of motor one is connected with motor frame one 17, and motor frame one 17 other end links to each other with vertical electric sliding cylinder one 20 fixed surface below, 7 right side surface middle parts of fixed plate are equipped with fluting 32, and inside dust absorption hose 10 passed in the middle of the fluting 32, 12 section of thick bamboo walls of suction tube are equipped with dust absorption hole 31 all around to fixed mounting has dust absorption net 33 in the suction tube 12, and dust absorption net 33 is cylindrical structure, and dust absorption net 33 can prevent that big graininess object from entering into dust extraction 9 in, plays fine protection effect.
Example two
Referring to fig. 1-6, a dustproof intelligent electric power cabinet for electric power comprises a cabinet body 1, a fixing plate 7 is fixedly connected to the upper portion inside the cabinet body 1 in the horizontal direction, a dust removal box 8 is fixedly mounted on the upper portion of the left side of the fixing plate 7, and a dust collection device 9 is fixedly mounted on the right side inside the dust removal box 8.
Moreover, a vertical slide rail II 21 is fixedly connected in the middle of the lower surface of the left side of the fixing plate 7, a vertical electric sliding cylinder II 22 is slidably mounted on the right side of the vertical slide rail II 21, a dust sensor 23 is fixedly mounted on the surface of the right side of the vertical electric sliding cylinder II 22, transverse slide rails 24 are fixedly connected on the upper and lower sides of the middle of the inside of the cabinet body 1, transverse electric sliding cylinders 25 are slidably mounted on the surfaces of the transverse slide rails 24, the number of the transverse electric sliding cylinders 24 and the number of the transverse electric sliding cylinders 25 are respectively two, a vertical slide rail I19 is fixedly connected between the two transverse electric sliding cylinders 25, a vertical electric sliding cylinder I20 is slidably mounted on the left side surface of the vertical slide rail I19, horizontal fixing frames 13 are respectively fixedly connected above and in the middle of the left side surface of the vertical electric sliding cylinder I20, a dust collection tube 12 is arranged between the two fixing frames 13, the dust, the rotation of 15 upper ends of rotary rod is connected with axle sleeve 18 to 13 fixed links to each other through axle sleeve 18 and mount of top, in the mount 13 of below is passed to 15 below of rotary rod, and rotate through bearing 14 and connect, 15 lower extremes of rotary rod rotate and install motor 16, 12 left sides upper sides of suction tube rotate and are connected with adapter 11, and dust absorption hose 10 is installed to adapter 11 top, and dust absorption hose 10's the other end links to each other with dust extraction 9 is fixed.
Specifically, the left and right sides of the front surface of the cabinet body 1 are hinged with cabinet doors 2, door handles 3 are fixedly mounted in the middle of the front surface of the cabinet doors 2, heat dissipation windows 6 are arranged in the middle of the left and right sides of the outside of the cabinet body 1, the heat dissipation windows 6 have a good heat dissipation effect on the electric power cabinet, pull rings 4 are fixedly connected to the left and right sides of the outside of the cabinet body 1, bases 5 are fixedly connected to the left and right sides of the outside of the cabinet body 1, an air box 27 is arranged at the bottom of the inside of the cabinet body 1, a dust screen 26 in the horizontal direction is fixedly connected to the upper side of the air box 27, and dust in the cabinet body.
Specifically, 16 right side fixed surface of motor one is connected with motor frame one 17, and motor frame one 17 other end links to each other with vertical electric sliding cylinder one 20 fixed surface below, 7 right side surface middle parts of fixed plate are equipped with fluting 32, and inside dust absorption hose 10 passed in the middle of the fluting 32, 12 section of thick bamboo walls of suction tube are equipped with dust absorption hole 31 all around to fixed mounting has dust absorption net 33 in the suction tube 12, and dust absorption net 33 is cylindrical structure, and dust absorption net 33 can prevent that big graininess object from entering into dust extraction 9 in, plays fine protection effect.
Referring to fig. 4, the second embodiment is different from the first embodiment in that two motors 28 are arranged on the left and right sides of the bottom in the air box 27, fan blades 29 are rotatably mounted above the motors 28, the number of the motors 28 is two, two motor frames 30 are fixedly connected to the surfaces of the left and right sides of the two motors 28, the left and right ends of the motor frames 30 are fixedly connected with the inner walls of the left and right sides of the air box 27, and the motors 28 rotate to drive the fan blades 29 to rotate, so that dust falling on the surface of an electric component is blown up, the dust in the cabinet body 1 can be absorbed more conveniently, and the dust absorption effect is better.
The invention realizes that the dust sensor 23 arranged on the vertical electric sliding cylinder II 22 carries out omnibearing monitoring on dust in the cabinet body 1 by arranging the vertical electric sliding cylinder II 22 to carry out up-and-down sliding on the vertical sliding rail II 21, the dust suction cylinder 12 carries out up-and-down movement on the vertical sliding rail I19 through the vertical electric sliding cylinder I20 and carries out left-and-right movement on the transverse sliding rail 24 through the transverse electric sliding cylinder 25, thereby realizing that the dust suction cylinder 12 carries out omnibearing dust suction on the cabinet body 1 according to the detection direction of the dust sensor 23, and in the dust suction process, the motor I16 rotates to drive the rotating rod 15 to rotate, thereby realizing the rotary dust suction of the dust suction cylinder 12, leading the dust suction to be more thorough, having better dustproof effect, and in the dust suction process, the fan blades 29 are driven to rotate through the rotation of the motor II 28, thereby blowing up the dust falling on the surface of the electric power component, being more beneficial to absorbing the dust in the cabinet body, realize automatic dustproof, avoided the drawback of artifical dust removal, labour saving and time saving.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (8)
1. A dustproof intelligent electric power cabinet for electric power comprises a cabinet body (1), wherein a fixing plate (7) in the horizontal direction is fixedly connected to the upper portion inside the cabinet body (1), a dust removing box (8) is fixedly mounted on the upper portion of the left side of the fixing plate (7), a dust suction device (9) is fixedly mounted on the right side inside the dust removing box (8), and the dustproof intelligent electric power cabinet is characterized in that a vertical slide rail II (21) is fixedly connected to the middle of the lower surface of the left side of the fixing plate (7), a vertical electric sliding cylinder II (22) is slidably mounted on the right side of the vertical slide rail II (21), a dust sensor (23) is fixedly mounted on the right side surface of the vertical electric sliding cylinder II (22), transverse slide rails (24) are fixedly connected to the upper side and the lower side of the middle inside the cabinet body (1), transverse electric sliding cylinders (25) are slidably mounted on the surfaces of the transverse slide rails (24), the transverse slide rails (24) and, vertical sliding rail I (19) is slidably mounted on the left side surface of a vertical sliding rail I (20), fixing frames (13) in the horizontal direction are fixedly connected to the upper portion and the middle portion of the left side surface of the vertical sliding rail I (20) respectively, a dust collection cylinder (12) is arranged between the two fixing frames (13), the dust collection cylinder (12) is of a cylindrical structure, a rotary rod (15) is fixedly connected to the middle portion of the surface of the upper side and the lower side of the dust collection cylinder (12), a shaft sleeve (18) is rotatably connected to the upper end of the rotary rod (15) and fixedly connected with the fixing frame (13) above the upper portion through the shaft sleeve (18), the lower portion of the rotary rod (15) penetrates through the fixing frame (13) below the lower portion and is rotatably connected through a bearing (14), a motor I (16) is rotatably mounted at the lower end of the rotary rod (15), an adapter (11) is rotatably connected, the other end of the dust collection hose (10) is fixedly connected with a dust collection device (9).
2. The dustproof intelligent power cabinet for power, according to claim 1, wherein the cabinet body (1) is hinged with the cabinet doors (2) at the left and right sides of the front surface, the door handle (3) is fixedly installed at the middle part of the front surface of the cabinet doors (2), and the cabinet body (1) is provided with the heat dissipation window (6) at the middle part of the left and right sides of the outer part.
3. The dustproof intelligent electric power cabinet for electric power according to claim 2, wherein pull rings (4) are fixedly connected to the left side and the right side above the outside of the cabinet body (1), and bases (5) are fixedly connected to the left side and the right side below the outside of the cabinet body (1).
4. The dustproof intelligent electric power cabinet for electric power according to claim 1, wherein an air box (27) is arranged at the bottom in the cabinet body (1), and a horizontal dustproof net (26) is fixedly connected above the air box (27).
5. The dustproof intelligent electric power cabinet for electric power according to claim 4, wherein two motors (28) are arranged on the left side and the right side of the inner bottom of the air box (27), fan blades (29) are rotatably mounted above the two motors (28), the number of the two motors (28) is two, two motor frames (30) are fixedly connected to the surfaces of the left side and the right side of the two motors (28), and the left end and the right end of each motor frame (30) are fixedly connected with the inner walls of the left side and the right side of the air box (27).
6. The dustproof intelligent electric power cabinet for electric power of claim 1, wherein a first motor frame (17) is fixedly connected to the right side surface of the first motor (16), and the other end of the first motor frame (17) is fixedly connected with the lower portion of the surface of the first vertical electric sliding cylinder (20).
7. The dustproof intelligent power cabinet for power, according to claim 1, wherein a slot (32) is formed in the middle of the right side surface of the fixing plate (7), and the dust collection hose (10) penetrates through the middle inner part of the slot (32).
8. The dustproof intelligent electric power cabinet for electric power of claim 1, wherein dust collection holes (31) are formed around the wall of the dust collection cylinder (12), a dust collection net (33) is fixedly installed in the dust collection cylinder (12), and the dust collection net (33) is of a cylindrical structure.
