Abstract

The invention discloses a heat dissipation electric cabinet controlled by electric automation, which comprises an electric cabinet body, a cabinet door is hinged on the outer end surface of the electric cabinet body, a display panel is embedded in the front end surface of the top of the electric cabinet body, and the side of the display panel is A warning light is set at the side position, the bottom of the electrical cabinet body is fixedly connected with a base, and an energy-saving heat dissipation component is installed on the inner top of the electrical cabinet body. and the extrusion rod moves, and when the extrusion rod moves, the moving contact at its end will directly contact the contact switch, and the auxiliary cooling fan will be turned on by turning on the contact switch, and then on the basis of the original heat dissipation mechanism, it can be realized in When the temperature is too high, the auxiliary heat dissipation mechanism inside the electrical cabinet body is automatically activated to facilitate the expansion of the heat dissipation of the electrical cabinet body, so that the electrical cabinet body can self-regulate when facing different temperatures, and achieve the purpose of saving energy and reducing consumption.

Description

A heat dissipation electric cabinet and its alarm system controlled by electric automation

technical field

The invention relates to the technical field of electrical equipment, in particular to a heat dissipation electrical cabinet controlled by electrical automation and an alarm system thereof.

Background technique

The electrical cabinet is made of steel to protect the normal operation of the components. The materials for the electrical cabinet are generally divided into two types: hot-rolled steel plate and cold-rolled steel plate. Compared with hot-rolled steel plate, cold-rolled steel plate is softer and more suitable for electrical appliances. The production of cabinets, electrical cabinets are widely used mainly in chemical industry, environmental protection industry, power system, metallurgical system, industry, nuclear power industry, fire safety monitoring, transportation industry, etc.;

However, the existing electrical cabinet generally needs to cool its interior through a heat dissipation mechanism during operation, and the electrical components inside the electrical cabinet will dissipate heat during operation, and the electrical cabinet is also easily affected by the external environment temperature. Therefore, At present, multiple sets of heat dissipation mechanisms are generally used to dissipate heat inside the electrical cabinet. When the internal temperature of the electrical cabinet tends to normal temperature, the operation of multiple sets of heat dissipation mechanisms will inevitably cause energy consumption and waste. When the temperature of the cabinet is too high, because the heat dissipation mechanism cannot be opened in time, it is easy to cause damage to the electrical components inside the electrical cabinet.

Contents of the invention

The present invention provides a heat dissipation electrical cabinet controlled by electrical automation and its alarm system, which can effectively solve the problem that the existing electrical cabinet generally needs to be cooled by a heat dissipation mechanism during operation, and the electrical cabinet is in the During operation, the internal electrical components will dissipate heat, and the electrical cabinet is also easily affected by the external environment temperature. Therefore, multiple sets of heat dissipation mechanisms are generally used to dissipate heat inside the electrical cabinet. When the internal temperature of the electrical cabinet tends to normal temperature , the operation of multiple heat dissipation mechanisms will inevitably cause energy consumption and waste, and the existing electrical cabinets cannot open the heat dissipation mechanisms in time when the temperature is too high, which will easily cause damage to the electrical components inside the electrical cabinet phenomenon of the problem.

In order to achieve the above object, the present invention provides the following technical solutions: a heat dissipation electrical cabinet controlled by electrical automation, comprising an electrical cabinet body, a cabinet door is hinged on the outer end surface of the electrical cabinet body, and a A display panel, a warning light is provided at the side of the display panel, a base is fixedly connected to the bottom of the electrical cabinet body, and an energy-saving and heat-dissipating component is installed on the inner top of the electrical cabinet body, and the energy-saving and heat-dissipating component includes a fan bracket, a second The first heat dissipation fan, the second heat dissipation fan, the gas collection hood, the auxiliary cooling fan, the heat collection conical bucket, the heat conduction metal strip, the heat collection flow channel, the fixed bracket, the movable plate, the guide slider, the heat-absorbing expansion silica gel sheet, the extruded circular Protruding head, moving rod, limit baffle, extrusion rod, supporting spring, moving contact, mounting seat, contact switch, heat dissipation flow channel, gas barrier plate, spoiler, movable shaft, cooling bucket and protective grid;

Fan brackets are fixedly installed at the bottom and top of the inside of the electrical cabinet body, and a first cooling fan is fixed inside the fan bracket at the bottom of the inside of the electrical cabinet body, inside the fan bracket at the top of the inside of the electrical cabinet body A second heat dissipation fan is embedded and fixedly installed, and the bottom edge of the second heat dissipation fan is fixedly connected with an air collecting hood, and auxiliary cooling fans are fixedly installed on both sides of the electrical cabinet body at equal distances, and the inside of the electrical cabinet body A heat-collecting conical bucket is fixedly installed at the position corresponding to the top and the second cooling fan, and heat-conducting metal strips are fixedly installed on the inner sides of the heat-collecting cone-shaped bucket at equal distances;

The top of the heat-collecting conical bucket is fixedly connected with a heat-collecting runner, and both sides of the bottom of the heat-collecting runner are fixedly connected with the inner wall of the electrical cabinet body through a fixed bracket, and the top of the fixed bracket is movably connected with a movable plate. The movable plate is slidably connected with the fixed bracket through the guide slider at the bottom end, the heat-collecting flow channel is embedded and bonded with heat-absorbing and expanding silica gel sheets on both sides, and one end of the movable plate is close to the heat-absorbing and expanding silica gel sheet An extruded circular protrusion is fixedly installed at the position, and the other end of the movable plate is fixedly connected with a moving rod. Pressing rod, the outer side of the pressing rod is sleeved with a supporting spring, and the end of the pressing rod away from the limit stop plate is fixedly connected with a moving contact, and the position corresponding to the inner wall of the electrical cabinet body and the moving contact is fixed and installed by screws There is a mounting seat, and a contact switch is embedded in the position corresponding to the moving contact on the inner side of the mounting seat;

The top of the heat collecting flow channel is fixedly connected with a heat dissipation flow channel, a gas barrier plate is fixedly installed on one side of the heat dissipation flow channel close to the heat collection flow channel, and a spoiler is fixedly installed on the other side of the heat dissipation flow channel, and The ends of the gas barrier plate and the spoiler are connected to the inner wall of the heat dissipation flow channel through movable shafts. The end of the heat dissipation flow channel is located outside the top of the electrical cabinet body and is connected to a cooling bucket, and one side of the cooling bucket is embedded and fixed. A protective grid is installed.

Preferably, the inside of the electrical cabinet body is located between the two auxiliary cooling fans, and an electrical installation board is fixedly installed, and the electrical installation board is fixedly connected to the electrical cabinet body through a quick disassembly mechanism, and the quick disassembly mechanism Including limit side plate, limit socket, limit side buckle, limit pin hole and limit pin;

The electrical appliance installation board is embedded and installed inside the limiting side plate, and the limiting side plate is fixedly connected to the inner wall of the electrical cabinet body, and the upper and lower sides of the end of the limiting side plate are provided with limiting jacks. The inner side of the hole is embedded and fitted with the limit side buckle, and the other side of the limit side plate and the corresponding position of the limit side buckle are provided with a limit pin hole, and the limit pin hole runs through the limit side buckle, and the limit The inner side of the positioning pin hole is embedded and fitted to connect the limiting pin.

Preferably, a limit chute is provided in the middle of the top of the fixed bracket, the guide slider is embedded and slidably connected in the limit chute, and the movable plate is slidably connected to the limit chute through the guide slider at its bottom.

Preferably, the input ends of the first cooling fan and the second cooling fan are electrically connected to the output end of the internal power supply of the electrical cabinet, and the input ends of the warning light and the auxiliary cooling fan are electrically connected to the output end of the contact switch. Connection, and the contact switch is connected to the internal power supply of the electrical cabinet through the connecting wire.

Preferably, the limit pin passes through the limit side plate and connects with the limit pin hole inside the limit side buckle, and the limit pin fits with the limit pin hole.

Preferably, the middle ends of the back of the base are equidistantly connected with inlet pipes, and both sides of the base are provided with air intake and pollution prevention components, and the air intake and pollution prevention components include air intake slots, fitting chute , Embedded mounting plate, pollution barrier net and fixed end plate;

Both sides of the base are equidistantly and uniformly provided with air intake slots, and the inner side of the base is provided with a fitting chute corresponding to the position of the air intake slot, and the inside of the fitting chute is embedded and connected with a fitting The fitting installation plate is fixedly bonded with a dirt-blocking screen inside, and one end of the fitting installation plate is fixedly installed with a fixed end plate at a position outside the fitting chute.

Preferably, the thickness of the fitting installation plate is equal to the inner diameter of the fitting chute, and a sealing sheet is provided at the joint between the fixed end plate and the fitting chute.

Preferably, a drying and dehumidification assembly is embedded in the middle of the front of the base, and the drying and dehumidification assembly includes a connecting frame, a disassembly box, a sealing plate and microholes;

A connection frame is embedded in the middle of the front of the base, and a disassembly box is embedded and connected to the inside of the connection frame. One end of the disassembly box is connected to a sealing plate at the edge of the front of the base, and the outer surface of the disassembly box is uniformly provided with micropores.

Preferably, a moisture-proof board is installed at the bottom of the base, and a desiccant is filled inside the disassembly box.

An alarm system for a heat dissipation electric cabinet controlled by electrical automation, the alarm system includes a signal acquisition module, a signal transmission module and a display alarm module;

The signal acquisition module is used to collect temperature information inside the electrical cabinet, and respond to the over-temperature information when the internal temperature of the electrical cabinet is too high, and the signal transmission module transmits the over-temperature information reflected by the signal acquisition module, And respond to the information of overheating by displaying the alarm module, so as to start the emergency cooling device in time.

Compared with the prior art, the beneficial effect of the present invention is that the structure of the present invention is scientific and reasonable, and the use is safe and convenient:

1. In the present invention, the first heat dissipation fan and the second heat dissipation fan can perform heat dissipation treatment on the internal electrical components of the electrical cabinet body when it is running, so as to maintain the operating temperature inside the electrical cabinet body, and when the temperature is too high, through The heat collecting flow channel is used to collect the heat air flow, and when the heat carried by the heat air flow is too high, and after the heat-absorbing expansion silicon sheet is heated, it uses the principle of thermal expansion to push the moving rod and the extrusion rod to move, and the extrusion When the pressure rod moves, the moving contact at its end will directly contact the contact switch, so that the auxiliary cooling fan can be turned on by turning on the contact switch, and then on the basis of the original heat dissipation mechanism, it can automatically start the electric cooling fan when the temperature is too high. The auxiliary heat dissipation mechanism inside the cabinet body facilitates the expansion of the heat dissipation capacity of the electrical cabinet body, so that the electrical cabinet body can self-regulate when facing different temperatures, so as to achieve the purpose of energy saving and consumption reduction;

When the heat collecting runner collects heat airflow, the heat airflow blown out by the first cooling fan and the second cooling fan can be quickly and concentratedly introduced into the heat collecting runner through the heat collecting conical bucket and the heat-conducting metal strips at its side ends, thereby making the heat collecting The inside of the hot runner can reflect the temperature inside the electrical cabinet body more realistically. At the same time, when collecting heat air, the gas barrier and spoiler inside the heat dissipation runner can prolong the discharge time of the heat air, so that the heat air can be collected Stay in the hot runner for a longer time to facilitate the thermal reaction of the heat-absorbing and expanding silica gel sheet. At the same time, when the electrical cabinet body needs auxiliary heat dissipation, the movable shaft is used to facilitate the deflection of the gas barrier plate and the spoiler in the heat dissipation flow channel. The hot air flow is quickly discharged from the cooling bucket to achieve rapid heat dissipation.

2. Through the limit side plate, limit jack, limit side buckle, limit pin hole and limit pin, it is convenient for people to install electrical components, so that the electrical installation plate can be disassembled quickly and conveniently, thereby reducing the People are concerned about the difficulty of installing and dismounting electrical components. At the same time, through the fixing mechanism composed of limit side buckles and limit pins, the electrical installation plate has higher stability after installation, thereby ensuring the normal and stable operation of electrical components.

3. Through the air intake slot, fitting chute, fitting mounting plate, dirt-blocking screen and fixed end plate, the external cooling airflow can be easily introduced into the electrical cabinet body when the first cooling fan and the second cooling fan are running At the same time, when the airflow enters the electrical cabinet body, the dust and sundries mixed in the airflow can be blocked and filtered by the dirt-blocking mesh on the inside of the fitting mounting plate, thereby preventing dust and sundries from directly entering into the electrical cabinet Pollution and damage to the electrical components inside the electrical cabinet body;

At the same time, since the pollution blocking screen is connected with the base through the fitted installation plate, when people need to clean the pollution blocking screen, they only need to disassemble the fitted mounting plate, which is convenient for operation and maintenance;

4. By connecting the frame, dismantling box, sealing plate and micro holes, the inside of the base can provide the function of moisture absorption and dehumidification for the inner side of the base, thereby preventing external moisture and moisture from directly entering the electrical cabinet body through the base, further preventing Moisture and moisture liquefy into condensation inside the electrical cabinet body, causing damage to electrical components, and the disassembly box is easy to install, making it more convenient for people to add desiccant to it.

5. Through the direct application of the air intake and pollution prevention components and the drying and dehumidification components, the electrical cabinet body can block the adverse environmental factors from the outside to the greatest extent during operation, so that the internal environment of the electrical cabinet body can be reduced during actual operation. It can maintain a dust-free and dry environment, thereby ensuring the normal operation of its internal electrical components, improving the adaptability of the electrical cabinet body to external environmental factors, and expanding its scope of use.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the description, and are used together with the embodiments of the present invention to explain the present invention, and do not constitute a limitation to the present invention.

In the attached picture:

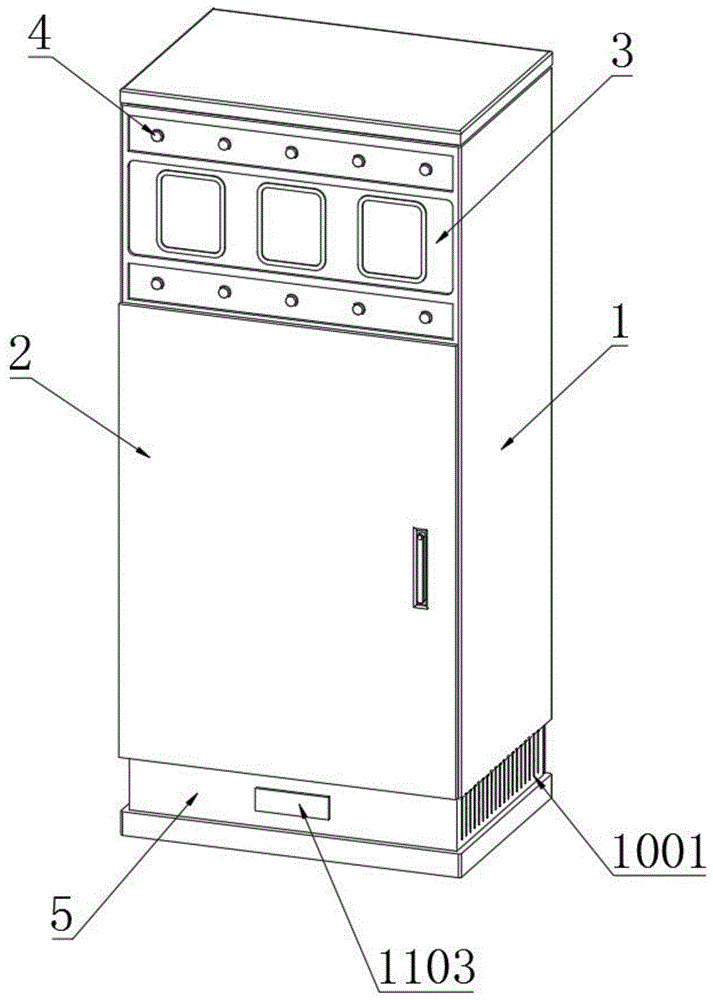

Fig. 1 is a structural representation of the present invention;

Fig. 2 is a schematic diagram of the internal structure of the electrical cabinet body of the present invention;

Fig. 3 is a schematic diagram of the installation structure of the heat collecting conical bucket of the present invention;

Fig. 4 is a structural schematic diagram of an energy-saving heat dissipation assembly of the present invention;

Fig. 5 is a schematic diagram of the connection structure of the extrusion rod of the present invention;

Fig. 6 is a schematic structural view of the quick disassembly mechanism of the present invention;

Fig. 7 is a schematic structural view of the air intake and anti-pollution assembly of the present invention;

Fig. 8 is a schematic structural view of the drying and dehumidification assembly of the present invention;

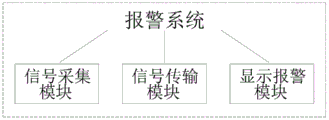

Fig. 9 is a structural block diagram of the alarm system of the present invention;

Labels in the figure: 1. Electrical cabinet body; 2. Cabinet door; 3. Display panel; 4. Warning light; 5. Base;

6. Energy-saving heat dissipation components; 601, fan support; 602, first heat dissipation fan; 603, second heat dissipation fan; 604, gas collection hood; 605, auxiliary cooling fan; 606, heat collection conical bucket; ; 608, heat collecting runner; 609, fixed bracket; 610, movable plate; 611, guide slider; 612, endothermic expansion silica gel sheet; 613, extrusion circular convex head; ; 616, extrusion rod; 617, support spring; 618, moving contact; 619, mounting seat; 620, contact switch; 621, cooling runner; 622, gas barrier plate; 623, spoiler; ; 625, cooling bucket; 626, protective grid;

7. Electrical installation plate; 8. Quick disassembly mechanism; 801. Limiting side plate; 802. Limiting jack; 803. Limiting edge buckle; 804. Limiting pin hole; 805. Limiting pin;

9. Inlet pipe; 10. Air intake and pollution blocking component; 1001. Air intake notch; 1002. Fitting chute; 1003. Fitting installation plate;

11. Drying and dehumidifying component; 1101. Connection frame; 1102. Disassembly box; 1103. Sealing plate; 1104. Microhole.

Detailed ways

The preferred embodiments of the present invention will be described below in conjunction with the accompanying drawings. It should be understood that the preferred embodiments described here are only used to illustrate and explain the present invention, and are not intended to limit the present invention.

Embodiment: As shown in Figures 1-8, the present invention provides a technical solution, a heat dissipation electrical cabinet controlled by electrical automation, including an electrical cabinet body 1, a cabinet door 2 hinged on the outer end surface of the electrical cabinet body 1, and the electrical cabinet body 1. A display panel 3 is embedded in the front end of the top, and a warning light 4 is installed at the side of the display panel 3. The bottom of the electrical cabinet body 1 is fixedly connected with a base 5. An energy-saving and heat-dissipating component 6 is installed on the inside and top of the electrical cabinet body 1, which is energy-saving and heat-dissipating. Assembly 6 includes a fan bracket 601, a first cooling fan 602, a second cooling fan 603, a gas collecting hood 604, an auxiliary cooling fan 605, a heat collecting cone 606, a heat conducting metal strip 607, a heat collecting runner 608, a fixed bracket 609, Movable plate 610, guide slider 611, heat-absorbing expansion silica gel sheet 612, extruding circular protrusion 613, moving rod 614, limit stop plate 615, extruding rod 616, supporting spring 617, moving contact 618, mounting seat 619 , contact switch 620, heat dissipation flow channel 621, gas barrier plate 622, spoiler 623, movable shaft 624, heat dissipation bucket 625 and protective grid 626;

A fan bracket 601 is fixedly installed at the bottom and top of the inside of the electrical cabinet body 1, and a first cooling fan 602 is fixed inside the fan bracket 601 at the bottom of the inside of the electrical cabinet body 1, and is located at the top of the inside of the electrical cabinet body 1. The inside of the fan support 601 is embedded with a second heat dissipation fan 603, and the bottom edge of the second heat dissipation fan 603 is fixedly connected with an air collecting cover 604, and both sides of the electrical cabinet body 1 are equidistantly fixed with auxiliary cooling fans. 605, a heat-collecting conical bucket 606 is fixedly installed at the top of the inner side of the electrical cabinet body 1 and the corresponding position of the second heat dissipation fan 603, and heat-conducting metal strips 607 are fixedly installed on the inner sides of the heat-collecting conical bucket 606 at equal distances;

The top of the heat-collecting conical bucket 606 is fixedly connected with a heat-collecting runner 608, and both sides of the bottom of the heat-collecting runner 608 are fixedly connected with the inner wall of the electrical cabinet body 1 through a fixed bracket 609, and the top of the fixed bracket 609 is movably connected with a movable plate 610. The movable plate 610 is slidingly connected between the guide slider 611 at the bottom end and the fixed bracket 609, and the middle part of the top of the fixed bracket 609 is provided with a limit chute, and the guide slider 611 is embedded and slidably connected in the limit chute, and the movable plate 610 passes through The sliding connection between the guide slider 611 at the bottom end and the limit chute is convenient for the sliding connection between the movable plate 610 and the fixed bracket 609, and the heat-collecting runner 608 is embedded and bonded with heat-absorbing expansion silica gel sheets 612 on both sides. , one end of the movable plate 610 close to the endothermic expansion silica gel sheet 612 is fixedly installed with an extruded circular protrusion 613, the other end of the movable plate 610 is fixedly connected with a moving rod 614, and the end of the moving rod 614 is fixedly installed with a limit stop plate 615, the middle part of one end of the limit stop plate 615 is fixedly connected with an extruding rod 616, and the outer side of the extruding rod 616 is sleeved with a support spring 617, and one end of the extruding rod 616 away from the limit stop plate 615 is fixedly connected with a moving contact 618, the electrical cabinet The position corresponding to the inner wall of the main body 1 and the moving contact 618 is fixed with a mounting base 619 by screws, and the inner side of the mounting base 619 is embedded with a contact switch 620 at a position corresponding to the moving contact 618. The first cooling fan 602 and the second cooling fan 603 The input terminals of the electric cabinet are electrically connected to the output terminals of the internal power supply of the electrical cabinet, the input terminals of the warning light 4 and the auxiliary cooling fan 605 are electrically connected to the output terminals of the contact switch 620, and the contact switch 620 is connected to the internal power supply of the electrical cabinet through the connecting wire. The power supply is connected to facilitate starting the auxiliary cooling fan 605 and the warning light 4 through the contact switch 620;

The top of the heat collecting flow channel 608 is fixedly connected with a heat dissipation flow channel 621, and a gas barrier plate 622 is fixedly installed on one side of the heat dissipation flow channel 621 close to the heat collection flow channel 608, and a spoiler 623 is fixedly installed on the other side of the heat dissipation flow channel 621. Moreover, the ends of the gas barrier plate 622 and the spoiler 623 are movably connected with the inner wall of the heat dissipation flow channel 621 through a movable rotating shaft 624, and the end of the heat dissipation flow channel 621 is located at the outer position of the top of the electrical cabinet body 1 and is connected with a heat dissipation bucket 625, and A protective grid 626 is fixedly embedded in one side of the cooling bucket 625 .

The inside of the electrical cabinet body 1 is located between the two auxiliary cooling fans 605, and an electrical installation board 7 is fixedly installed. The electrical installation board 7 is fixedly connected to the electrical cabinet body 1 through a quick disassembly mechanism 8. The quick disassembly mechanism 8 includes a limit Position side plate 801, limit jack 802, limit side buckle 803, limit pin hole 804 and limit pin 805;

The electrical installation board 7 is embedded and installed on the inside of the limit side plate 801, and the limit side plate 801 is fixedly connected with the inner wall of the electrical cabinet body 1, and the limit jack 802 is provided on both sides of the limit side plate 801 end, and the limit plug The inner side of the hole 802 is embedded and fitted with the limit side buckle 803, and the other side of the limit side plate 801 and the position corresponding to the limit side buckle 803 are provided with a limit pin hole 804, and the limit pin hole 804 runs through the limit side buckle 803 , and the inside of the limit pin hole 804 is embedded and fitted to connect the limit pin 805, the limit pin 805 passes through the limit side plate 801 and is connected between the limit pin hole 804 inside the limit side buckle 803, the limit pin 805 and the limit pin The fit between the positioning pin holes 804 facilitates the fastness of the connection between the limiting side buckle 803 and the limiting side plate 801 through the limiting pin 805 .

The middle ends of the back of the base 5 are equidistantly connected with inlet pipes 9, and both sides of the base 5 are provided with air intake and pollution prevention components 10, which include air intake notches 1001, fitting chute 1002, Combined mounting plate 1003, dirt blocking screen 1004 and fixed end plate 1005;

Both sides of the base 5 are equidistantly provided with air intake notches 1001, and the inner side of the base 5 is provided with a fitting chute 1002 at a position corresponding to the air intake notch 1001, and the inner side of the fitting chute 1002 is fitted and connected with a fitting chute. Fitting installation plate 1003, the interior of the fitting installation plate 1003 is fixedly bonded with a dirt-blocking screen 1004, and one end of the fitting installation plate 1003 is fixedly installed at a position outside the fitting chute 1002, and a fixed end plate 1005 is fixedly installed on the inside of the fitting installation plate 1003. The thickness is equal to the inner diameter of the fitting chute 1002, and the joint between the fixed end plate 1005 and the fitting chute 1002 is provided with a sealing plate, which facilitates the installation and connection of the fitting mounting plate 1003 and ensures the sealing after connection.

A drying and dehumidification assembly 11 is embedded in the middle of the front of the base 5, and the drying and dehumidification assembly 11 includes a connecting frame 1101, a disassembly box 1102, a sealing plate 1103 and a microhole 1104;

The middle part of the front of the base 5 is embedded with a connection frame 1101, and the inner side of the connection frame 1101 is embedded with a disassembly box 1102. One end of the disassembly box 1102 is connected to a sealing plate 1103 at the front edge of the base 5, and a moisture-proof plate is installed at the bottom of the base 5. The inner side of the box 1102 is filled with desiccant, so that the inner side of the base 5 has higher moisture absorption and dehumidification capabilities, ensuring the dryness of the inner side of the electrical cabinet body 1, and the outer surface of the dismantling box 1102 is evenly provided with micropores 1104.

As shown in Fig. 9, a kind of alarm system of the radiating electrical cabinet of electrical automation control, the alarm system comprises signal acquisition module, signal transmission module and display alarm module;

The signal acquisition module is used to collect the temperature information inside the electrical cabinet, and respond to the over-temperature information when the internal temperature of the electrical cabinet is too high, and the signal transmission module transmits the over-temperature information reflected by the signal acquisition module, and displays an alarm The module responds to the information of overheating, so that the emergency cooling device can be activated in time.

The working principle and use process of the present invention: in the actual application process of the heat dissipation electric cabinet controlled by the electric automation, firstly, when the electric cabinet body 1 is running, the first heat dissipation fan 602 and the second heat dissipation fan 603 inside it are used to control the heat dissipation. The internal electrical components are heat-dissipated. At this time, the heat airflow blown out by the first heat dissipation fan 602 and the second heat dissipation fan 603 can be collected by the heat-collecting cone bucket 606, and can be improved by the heat-conducting metal strip 607 during collection. The collection effect of the heat-collecting conical bucket 606 on the thermal air flow is that the heat-collecting conical bucket 606 transports the thermal airflow to the heat-collecting runner 608 after the thermal airflow is collected;

And when the thermal air flow enters the heat collecting runner 608, and when the temperature inside the electrical cabinet body 1 is at a normal temperature, the thermal air flow will be directly introduced into the heat dissipation runner 621 after staying inside the heat collecting runner 608, Since the inner side of the heat dissipation flow channel 621 is provided with a gas barrier 622 and a spoiler 623, the gas barrier 622 and the spoiler 623 can delay the discharge time of the heat flow, so that the heat flow can stay longer in the heat collection flow channel 608 At last, the thermal air flow is discharged from the inside of the electrical cabinet body 1 by the cooling bucket 625 at the end of the cooling channel 621;

And when the heat carried inside the thermal airflow is too high, that is, when the temperature inside the electrical cabinet body 1 is too high, the thermal airflow will directly act on the heat-absorbing and expanding silica gel sheets 612 on both sides of the heat-collecting runner 608, and absorb heat. After the heat-expandable silica gel sheet 612 is affected by the high-temperature thermal air flow, due to the principle of its own thermal expansion, the heat-absorbing expansion silica gel sheet 612 will expand to the outside of the heat-collecting runner 608. The protruding head 613 will then be squeezed by the heat-absorbing and expanding silica gel sheet 612, so the movable plate 610 will slide along the guide slider 611 at the bottom along the fixed bracket 609, and when the movable plate 610 slides, its The moving rod 614 at one end will drive the extruding rod 616 and the moving contact 618 to move together, and at the same time the support spring 617 shrinks, and when the moving contact 618 moves to contact with the contact switch 620, the contact switch 620 operates at this time, and passes Contact the switch 620 to start the auxiliary cooling fan 605, and after the first heat dissipation fan 602, the second heat dissipation fan 603 and the auxiliary cooling fan 605 are all turned on, the wind force produced by the thermal air flow inside the heat dissipation flow channel 621 is compared with that of the first heat dissipation fan 602. When the first radiating fan 602 and the second radiating fan 603 are in operation, the airflow will generate more wind, so the gas barrier 622 and the spoiler 623 inside the radiating channel 621 will be deflected by the movable shaft 624 at its end to In this way, the diameter of the heat dissipation flow channel 621 can be quickly opened, so as to facilitate the rapid discharge of the heat flow and realize rapid heat dissipation. Through the above heat dissipation method, the basis of heat dissipation in the first heat dissipation fan 602 and the second heat dissipation fan 603 is realized. In combination with timely opening of the auxiliary cooling fan 605 to strengthen the heat dissipation effect inside the electrical cabinet body 1, so that the electrical cabinet body 1 can self-regulate and respond in time when dealing with sudden high temperature conditions, and through the above methods to achieve Automatic regulation, so that the electrical cabinet body 1 will not cause excessive energy consumption during normal operation, thereby avoiding energy waste;

In addition, after the moving contact 618 touches the contact switch 620, since the warning light 4 is connected to the contact switch 620, the warning light 4 will also run in time, so as to remind the staff in time, and then facilitate the staff to timely check the electrical cabinet body. 1 for maintenance, and after the auxiliary cooling fan 605 has been running for a period of time, and when the temperature inside the electrical cabinet body 1 tends to normal temperature, the thermal air flow inside the heat collecting runner 608 cannot expand the heat-absorbing expansion silica gel sheet 612, Therefore, the heat-absorbing expansion silicone sheet 612 will return to its original shape, and the deformation of the support spring 617 will be used to drive the extrusion rod 616 and the moving contact 618 to reset in time, so as to disconnect the contact switch 620 and make the auxiliary cooling Fan 605 stops running, so that the electrical cabinet body 1 runs at a normal temperature;

During the heat dissipation process of the first heat dissipation fan 602 and the second heat dissipation fan 603, the air intake slot 1001 on the side of the base 5 facilitates the timely delivery of the external cooling airflow to the inside of the electrical cabinet body 1, and at the same time, the external airflow enters to the bottom When inside the seat 5, the dust and sundries mixed in the external airflow can be blocked and filtered through the dirt-blocking screen 1004 on the outside of the air intake slot 1001, thereby preventing dust and sundries from entering the electrical cabinet body 1. Its internal electrical components cause pollution and damage;

At the same time, after the airflow enters the base 5, the desiccant filled inside the disassembly box 1102 can absorb the moisture and moisture in the airflow, thereby preventing the moisture and moisture from liquefying inside the electrical cabinet body 1, so that the electrical appliances damage to components;

And when people need to maintain the electrical cabinet body 1, the limit pin 805 is pulled out from the inside of the limit pin hole 804, and then the limit side buckle 803 is pulled out from the inside of the limit jack 802, so that it can be convenient The maintenance personnel can quickly and conveniently release the restriction of the electrical installation plate 7 by the limiting side plate 801, thereby facilitating the maintenance personnel to quickly and conveniently disassemble and maintain the electrical components installed on the electrical installation board 7, thereby improving the maintenance efficiency;

At the same time, when people need to clean the pollution blocking screen 1004, they only need to pull out the fitting installation plate 1003 from the inside of the fitting chute 1002, and then it is convenient for people to clean and replace the pollution blocking screen 1004, and the operation is convenient , and when the desiccant inside the disassembly box 1102 is consumed, the sealing plate 1103 is uncovered, and then the disassembly box 1102 is pulled out from the connection frame 1101, so that maintenance personnel can add desiccant in time to make the electrical cabinet body 1 to maintain a long-lasting drying effect.

Finally, it should be noted that: the above is only a preferred example of the present invention, and is not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it can still The technical solutions recorded in the foregoing embodiments are modified, or some of the technical features are equivalently replaced. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included within the protection scope of the present invention.

Claims (9)

1. The utility model provides an electric automation control's heat dissipation regulator cubicle, includes regulator cubicle body (1), regulator cubicle body (1) outside terminal surface articulates there is cabinet door (2), display panel (3) are installed in the positive terminal surface embedding in regulator cubicle body (1) top, display panel (3) avris position department is provided with warning light (4), regulator cubicle body (1) bottom fixedly connected with base (5), its characterized in that: the energy-saving heat dissipation assembly comprises an electrical cabinet body (1), wherein an energy-saving heat dissipation assembly (6) is mounted at the top of the inner side of the electrical cabinet body (1), and the energy-saving heat dissipation assembly (6) comprises a fan support (601), a first heat dissipation fan (602), a second heat dissipation fan (603), a gas collecting hood (604), an auxiliary cooling fan (605), a heat collection conical hopper (606), a heat conduction metal strip (607), a heat collection flow channel (608), a fixed support (609), a movable plate (610), a guide slider (611), a heat absorption expansion silica gel sheet (612), an extrusion round raised head (613), a movable rod (614), a limiting baffle disc (615), an extrusion rod (616), a support spring (617), a movable contact (618), a mounting seat (619), a contact switch (620), a heat dissipation flow channel (621), a gas blocking plate (622), a spoiler (623), a movable rotating shaft (624), a heat dissipation hopper (625) and a protective grid mesh (626);

fan supports (601) are fixedly mounted at the bottom and the top of the inner side of the electrical cabinet body (1), a first heat dissipation fan (602) is fixedly mounted at the inner side of the fan support (601) at the bottom of the inner side of the electrical cabinet body (1), a second heat dissipation fan (603) is fixedly mounted at the inner side of the fan support (601) at the top of the inner side of the electrical cabinet body (1) in an embedded manner, a gas collecting hood (604) is fixedly connected to the bottom edge of the second heat dissipation fan (603), auxiliary cooling fans (605) are fixedly mounted at equal intervals on the two side edges of the inner side of the electrical cabinet body (1), conical heat collecting hoppers (606) are fixedly mounted at positions corresponding to the second heat dissipation fans (603) on the top of the inner side of the electrical cabinet body (1), and heat conducting metal strips (607) are fixedly mounted at equal intervals at the inner side ends of the conical heat collecting hoppers (606);

the top end of the heat collection conical hopper (606) is fixedly connected with a heat collection flow channel (608), both sides of the bottom end of the heat collection flow passage (608) are fixedly connected with the inner wall of the electrical cabinet body (1) through a fixing support (609), the top of the fixed support (609) is movably connected with a movable plate (610), the movable plate (610) is connected with the fixed bracket (609) in a sliding way through a guide sliding block (611) at the bottom end of the movable plate, heat absorption expansion silica gel sheets (612) are fixedly embedded into the edge parts of the two sides of the heat collection flow passage (608), an extrusion circular raised head (613) is fixedly arranged at the part of the edge part of one end of the movable plate (610) close to the heat absorption expansion silica gel sheet (612), the edge part of the other end of the movable plate (610) is fixedly connected with a movable rod (614), a limit stop disc (615) is fixedly arranged at the end part of the moving rod (614), the middle part of one end of the limit baffle disc (615) is fixedly connected with an extrusion rod (616), a supporting spring (617) is sleeved on the outer side of the extrusion rod (616), one end of the extrusion rod (616) far away from the limit stop disc (615) is fixedly connected with a movable contact (618), a mounting seat (619) is fixedly arranged at the position of the inner wall of the electrical cabinet body (1) corresponding to the movable contact (618) through a screw, a contact switch (620) is embedded and installed at the position, corresponding to the movable contact (618), of the inner side of the mounting seat (619);

the top end of the heat collection flow channel (608) is fixedly connected with a heat dissipation flow channel (621), a gas blocking plate (622) is fixedly mounted on one side inside the heat dissipation flow channel (621) close to the heat collection flow channel (608), a spoiler (623) is fixedly mounted on the other side inside the heat dissipation flow channel (621), the ends of the gas blocking plate (622) and the spoiler (623) are movably connected with the inner wall of the heat dissipation flow channel (621) through a movable rotating shaft (624), a heat dissipation hopper (625) is connected to the position, located on the outer side of the top of the electrical cabinet body (1), of the end of the heat dissipation flow channel (621), and a protection grid (626) is fixedly mounted on one side inside the heat dissipation hopper (625) in an embedded mode;

the input ends of the first cooling fan (602) and the second cooling fan (603) are electrically connected with the output end of the power supply in the electrical cabinet, the input ends of the warning lamp (4) and the auxiliary cooling fan (605) are electrically connected with the output end of the contact switch (620), and the contact switch (620) is connected with the power supply in the electrical cabinet through a connecting wire.

2. The electrical automation controlled heat dissipation electrical cabinet of claim 1, wherein: an electrical appliance mounting plate (7) is fixedly mounted at a position, located between the two auxiliary cooling fans (605), on the inner side of the electrical cabinet body (1), the electrical appliance mounting plate (7) is fixedly connected with the electrical cabinet body (1) through a quick dismounting mechanism (8), and the quick dismounting mechanism (8) comprises a limiting side plate (801), a limiting jack (802), a limiting side buckle (803), a limiting pin hole (804) and a limiting pin (805);

the electric appliance mounting plate (7) is embedded and mounted on the inner side of a limiting side plate (801), the limiting side plate (801) is fixedly connected with the inner wall of the electric cabinet body (1), limiting insertion holes (802) are formed in the upper side and the lower side of the end portion of the limiting side plate (801), the limiting insertion holes (803) are embedded and connected with the limiting side in a matching mode, limiting pin holes (804) are formed in positions corresponding to the limiting side insertion holes (803) on the other side of the limiting side plate (801), the limiting pin holes (804) penetrate through the limiting side insertion holes (803), and limiting pins (805) are embedded and connected with the inner side of the limiting pin holes (804) in a matching mode.

3. The electrical automation controlled heat dissipation electrical cabinet of claim 1, wherein: the middle of the top end of the fixed support (609) is provided with a limiting sliding groove, the guide sliding block (611) is embedded into the limiting sliding groove in a sliding connection mode, and the movable plate (610) is connected with the limiting sliding groove in a sliding mode through the guide sliding block (611) at the bottom end of the movable plate.

4. The electrical automation controlled heat dissipation electrical cabinet of claim 2, wherein: the limiting pin (805) penetrates through the limiting side plate (801) to be connected with a limiting pin hole (804) in the limiting side buckle (803), and the limiting pin (805) is matched with the limiting pin hole (804).

5. The electrical automation controlled heat dissipation electrical cabinet of claim 1, wherein: the middle end of the back of the base (5) is equidistantly connected with a wire inlet pipe (9), the edge parts of two sides of the base (5) are respectively provided with an air inlet pollution preventing component (10), and the air inlet pollution preventing component (10) comprises an air inlet notch (1001), an embedded sliding groove (1002), an embedded mounting plate (1003), a pollution preventing partition net (1004) and a fixed end plate (1005);

base (5) both sides limit portion equal equidistance has evenly seted up notch of admitting air (1001), base (5) limit portion inboard and notch of admitting air (1001) correspond position department and have seted up gomphosis spout (1002), gomphosis spout (1002) inboard embedding agrees with to be connected with gomphosis mounting panel (1003), gomphosis mounting panel (1003) inside fixed bonding has the dirt of hindering and separates net (1004), gomphosis mounting panel (1003) one end is located gomphosis spout (1002) outside position department fixed mounting has fixed end plate (1005).

6. The electrical automation controlled heat dissipation electrical cabinet of claim 5, wherein: the thickness of the embedding mounting plate (1003) is equal to the inner diameter of the embedding sliding groove (1002), and a sealing sheet is arranged at the joint of the fixed end plate (1005) and the embedding sliding groove (1002).

7. The electrical automation controlled heat dissipation electrical cabinet of claim 1, wherein: a drying and dampness eliminating assembly (11) is embedded in the middle of the front face of the base (5), and the drying and dampness eliminating assembly (11) comprises a connecting frame (1101), a disassembling box (1102), a sealing plate (1103) and micropores (1104);

connecting frame (1101) is installed in the middle embedding of base (5) front, connecting frame (1101) inboard embedding is connected with dismantles box (1102), it is connected with closing plate (1103) to dismantle box (1102) one end and be located base (5) front limit portion position department, and dismantles box (1102) outside surface and has evenly seted up micropore (1104).

8. An electrical automation controlled heat dissipation electrical cabinet as claimed in claim 7, wherein: the base (5) bottom is installed the dampproofing board, dismantle the inboard drier that is filled with of box (1102).

9. The alarm system of an electrical automation controlled heat dissipation electrical cabinet of any one of claims 1 to 8, wherein: the alarm system comprises a signal acquisition module, a signal transmission module and a display alarm module;

the signal acquisition module is used for collecting temperature information inside the electrical cabinet and responding the information of the overhigh temperature when the temperature inside the electrical cabinet is overhigh, and the signal transmission module transmits the information of the overhigh temperature reflected by the signal acquisition module and responds the information of the overhigh temperature through the display alarm module so as to start the emergency heat dissipation device in time.
