本发明提供了一种车轮的加工方法、车轮及车辆，其中，车轮的加工方法，包括轮辐加工步骤，轮辐加工步骤包括：步骤S1：制作轮辐毛坯，轮辐毛坯的材质为钢；步骤S2：将轮辐毛坯加热至Ac3温度以上；步骤S3：将轮辐毛坯放入至热成型模具中进行成型加工和冷却处理；步骤S4：对轮辐毛坯的螺孔位置进行软化处理；步骤S5：在轮辐毛坯的螺孔位置加工螺孔，并在轮辐毛坯上加工风孔和中心孔。本申请的技术方案有效地解决了相关技术中的螺母容易松动的问题。
The present invention provides a wheel processing method, a wheel and a vehicle, wherein the wheel processing method includes a spoke processing step, and the spoke processing step includes: step S1: making a spoke blank, and the material of the spoke blank is steel; step S2: making The spoke blank is heated to a temperature above Ac3; Step S3: put the spoke blank into a thermoforming die for forming and cooling; Step S4: soften the screw hole position of the spoke blank; Step S5: place the spoke blank on the screw The hole locations are machined with screw holes, and the air holes and center holes are machined in the spoke blank. The technical solution of the present application effectively solves the problem of easy loosening of nuts in the related art.
Description
Technical Field
The invention relates to the technical field of vehicles, in particular to a wheel machining method, a wheel and a vehicle.
Background
The steel wheel comprises a spoke and a rim, and in order to realize light weight of the automobile wheel, the fatigue performance of the steel wheel is required to be met by improving the strength of a wheel material, so that the strength of the wheel material is higher and higher.
However, the strength of the spoke is too high, so that the nut connected with the automobile is not matched, and the nut is easy to loosen.
Disclosure of Invention
The invention mainly aims to provide a wheel machining method, a wheel and a vehicle, and aims to solve the problem that nuts in the related art are easy to loosen.
In order to achieve the above object, according to one aspect of the present invention, there is provided a method for machining a wheel, including a spoke machining step including: step S1: manufacturing a spoke blank, wherein the spoke blank is made of steel; step S2: heating the spoke blank to a temperature above Ac 3; step S3: placing the spoke blank into a thermal forming die for forming and cooling; step S4: softening the screw hole position of the spoke blank; step S5: and machining screw holes in the screw hole positions of the spoke blanks, and machining air holes and central holes in the spoke blanks.
Further, the softening treatment is a laser softening treatment.
Further, the screw hole position is a circular softened area, and the difference between the radial dimension of the circular softened area and the radial dimension of the screw hole is in the range of 0 to 5 mm.
According to another aspect of the present invention, there is provided a wheel comprising a spoke and a rim, the spoke being welded to an inner side of the rim, the spoke having a screw hole position with a strength of between 500MPa and 1050 MPa.
Further, the strength of the spoke is 1300MPa or more.
Further, the spoke includes installation section, changeover portion, intermediate segment and the terminal segment that connects gradually.
Further, the installation section includes annular protrusion, and the internal surface of installation section corresponds the position of annular protrusion and is provided with the concave part, and the screw position of spoke is located annular protrusion, and the screw position of spoke is provided with the screw.
Further, the screw hole is a plurality of, and a plurality of screw holes are arranged along annular bulge circumference interval.
Furthermore, still be provided with the centre bore on the installation section, a plurality of screw encircle the outside at the centre bore, are provided with the wind hole on the interlude.
According to another aspect of the present invention, there is provided a vehicle comprising a wheel, the wheel being as described above.
By applying the technical scheme of the invention, the wheel machining method comprises the spoke machining step which comprises the following steps: step S1: manufacturing a spoke blank, wherein the spoke blank is made of steel; step S2: heating the spoke blank to a temperature above Ac 3; step S3: placing the spoke blank into a thermal forming die for forming and cooling; step S4: softening the screw hole position of the spoke blank; step S5: and machining screw holes in the screw hole positions of the spoke blanks, and machining air holes and central holes in the spoke blanks. Through the spoke that the processing step of above-mentioned spoke can obtain for the structural strength that the spoke is located the screw position is less than the structural strength of other parts, and like this, the nut can closely be connected in the screw position to firmly extrude on the contact surface of spoke, prevent that the nut is not hard up easily. Therefore, the technical scheme of the application effectively solves the problem that the nut is easy to loosen in the related technology.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this application, illustrate embodiments of the invention and, together with the description, serve to explain the invention and not to limit the invention. In the drawings:

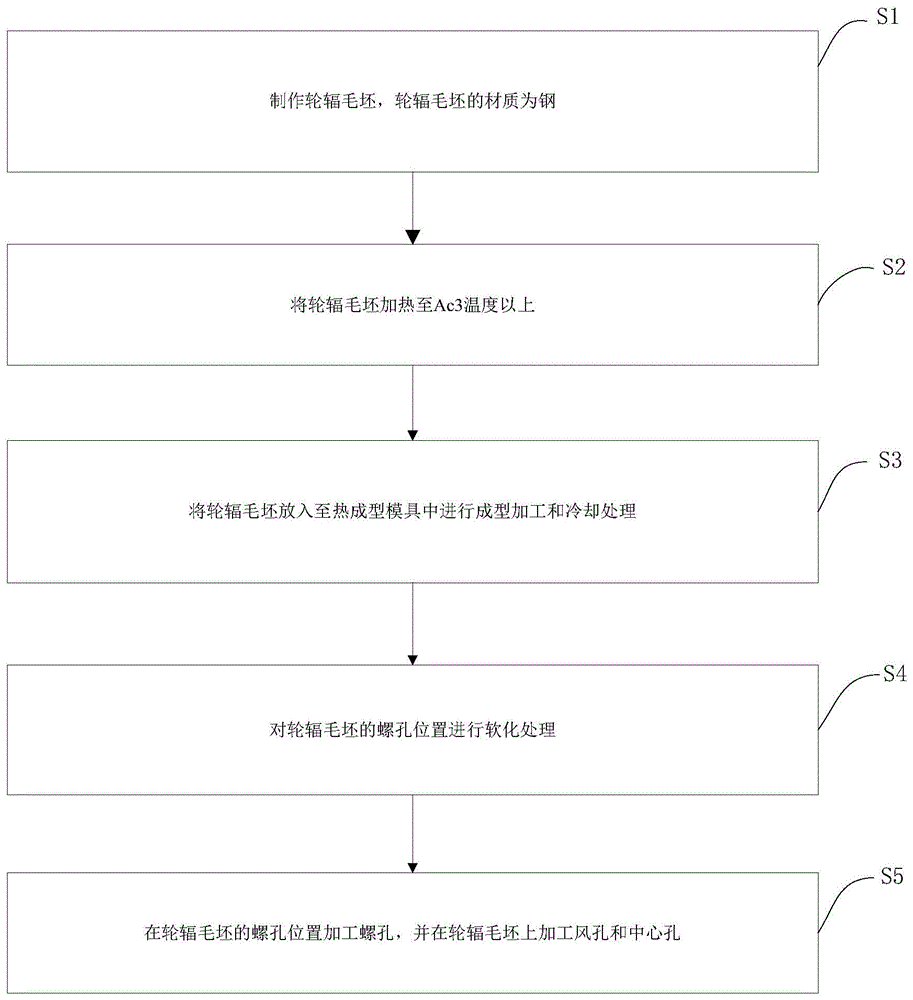

fig. 1 shows a flow chart of the spoke machining steps of the method for machining a wheel according to the invention;
figure 2 shows a schematic front view of an embodiment of a wheel according to the invention;
FIG. 3 shows a cross-sectional schematic view of the wheel of FIG. 2; and
fig. 4 shows an enlarged schematic view at a of fig. 3.
Wherein the figures include the following reference numerals:
10. a spoke; 11. an installation section; 111. a recess; 12. a transition section; 13. a middle section; 14. an end segment; 15. a screw hole; 16. a central bore; 17. a wind hole; 20. a wheel rim.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. The following description of at least one exemplary embodiment is merely illustrative in nature and is in no way intended to limit the invention, its application, or uses. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It is noted that the terminology used herein is for the purpose of describing particular embodiments only and is not intended to be limiting of example embodiments according to the present application. As used herein, the singular forms "a", "an" and "the" are intended to include the plural forms as well, and it should be understood that when the terms "comprises" and/or "comprising" are used in this specification, they specify the presence of stated features, steps, operations, devices, components, and/or combinations thereof, unless the context clearly indicates otherwise.
The relative arrangement of the components and steps, the numerical expressions and numerical values set forth in these embodiments do not limit the scope of the present invention unless specifically stated otherwise. Meanwhile, it should be understood that the sizes of the respective portions shown in the drawings are not drawn in an actual proportional relationship for the convenience of description. Techniques, methods, and apparatus known to those of ordinary skill in the relevant art may not be discussed in detail but are intended to be part of the specification where appropriate. In all examples shown and discussed herein, any particular value should be construed as merely illustrative, and not limiting. Thus, other examples of the exemplary embodiments may have different values. It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, further discussion thereof is not required in subsequent figures.
As shown in fig. 1 and 2, the method for processing a wheel according to the present embodiment includes a spoke processing step, and is characterized in that the spoke processing step includes: step S1: manufacturing a spoke blank, wherein the spoke blank is made of steel; step S2: heating the spoke blank to a temperature above Ac 3; step S3: placing the spoke blank into a thermal forming die for forming and cooling; step S4: softening the screw hole position of the spoke blank; step S5: and machining screw holes in the screw hole positions of the spoke blanks, and machining air holes and central holes in the spoke blanks.
By applying the technical scheme of the embodiment, the spoke can be obtained through the spoke processing steps, so that the structural strength of the spoke at the screw hole position is lower than that of other parts, and the nut can be tightly connected to the screw hole position and firmly extruded on the contact surface of the spoke, and the nut is prevented from being easily loosened. Therefore, the technical scheme of the embodiment effectively solves the problem that the nut is easy to loosen in the related art.
In the embodiment, the spoke blank has small plastic deformation resistance at high temperature, and the rebound of the spoke blank after quenching in the hot forming die is small, so the hot forming technology has the technical advantages of good formability, small deformation resistance, high forming precision and the like.
In the present embodiment, the spoke machining step is performed in order of step S1, step S2, step S3, step S4, and step S5. Here, step S3 and step S4 may be performed simultaneously or independently.
Of course, in other embodiments not shown in the drawings, the spoke processing step may be performed in sequence according to step S1, step S2, step S3, step S5 and step S4.
Ac3 is a temperature at which ferrite is completely transformed into austenite when the steel is heated. The screw hole position can be an annular area on the spoke blank or a partial circular area on the spoke blank. Heating the spoke blank to be above Ac3 temperature and keeping the temperature for a period of time, and taking out the spoke blank after the ferrite structure in the spoke blank is completely austenitized. And (3) placing the spoke blank into a hot forming die for forming and cooling, so that a martensite structure can be obtained in the spoke blank.
As shown in fig. 1, the softening treatment is a laser softening treatment. The laser softening treatment can ensure that the material strength is matched with the nut strength while the light weight of the wheel is ensured. Meanwhile, the precision of laser softening treatment is high, and the processing efficiency of the softening treatment is improved.
As shown in fig. 1, in order to sufficiently reduce the structural strength of the screw hole position of the spoke blank, the coupling strength of the nut is ensured. The screw hole of the spoke blank is a circular softening area, the radial size of the circular softening area is larger than that of the screw hole, and the difference between the radial size of the circular softening area and the radial size of the screw hole is in the range of 0-5 mm. The difference between the radial dimension of the circular softened area and the radial dimension of the threaded hole is 0 or 1mm or 2mm or 3mm or 5 mm.
The present application also provides a wheel, which, as shown in fig. 2 to 4, includes wheel disc 10 and rim 20. Spoke 10 is welded to the inside of rim 20, and the strength of the screw hole position of spoke 10 is between 500MPa and 1050 MPa. The strength of the screw hole between 500MPa and 1050MPa effectively reduces the strength of wheel disc 10, and enables the strength of wheel disc 10 to match the strength of the nut while ensuring the weight reduction of the wheel. Preferably, the strength of the screw hole locations of wheel disc 10 is between 600MPa and 900 MPa. The strength of the screw hole position of spoke 10 is specifically 600MPa or 800 MPa or 900MPa or 1000 MPa.
As shown in fig. 2-4, spoke 10 has a strength of 1300MPa or greater after thermoforming of spoke 10. Thus, under the condition of meeting the fatigue life of the workpiece, the weight can be greatly reduced, and the light weight is realized.
As shown in fig. 2 and 3, the wheel disc 10 includes a mounting section 11, a transition section 12, an intermediate section 13, and an end section 14, which are connected in series. Thus, forming wheel spoke 10 in multiple segments can meet structural strength requirements and practical use requirements.
As shown in fig. 3 and 4, the mounting segment 11 includes an annular protrusion, and a recess 111 is provided on an inner surface of the mounting segment 11 at a position corresponding to the annular protrusion. The screw holes of the spokes 10 are located on the annular projection, and the screw holes 15 are provided at the screw holes of the spokes 10. The provision of the annular projection provides the mounting section 11 with sufficient structural strength.
As shown in fig. 3 and 4, in order to improve the reliability of fastening the wheel disc 10, the screw holes 15 are plural, and the plural screw holes 15 are arranged at intervals in the circumferential direction of the annular projecting portion.
As shown in fig. 2 and 3, in order to facilitate the installation and fixation of the wheel, the installation section 11 is further provided with a central hole 16, and a plurality of screw holes 15 are surrounded on the outer side of the central hole 16. To facilitate the smooth passage of gas from spoke 10, intermediate section 13 is provided with air holes 17.
In the application, the rim comprises a rim body and a bending flange, the bending flange is connected with the circumferential edge of one axial end of the rim body, bends and extends along the radial direction of the rim body and then is attached to the end section 14 so as to form a combined part with the spoke, and the axial width of the combined part is more than or equal to 5mm and less than or equal to 25 mm. Thus, when the end section 14 is welded to the bent flange, the size of the above-mentioned joint portion enables the end section 14 to have a sufficient contact area with the bent flange, ensuring the joint effect and ensuring sufficient connection strength between the spoke and the rim.
In the present application, the middle section 13 is a spoke, a first end of the spoke is connected to the transition section 12, and a ratio of a length of a second end of the spoke in a circumferential direction of the rim to a circumferential length of the rim is equal to or greater than 1/48 and equal to or less than 1/12. Like this, through optimizing the ratio of the ascending length in circumference of the rim of edge of the second end of spoke and the circumferential length of rim, avoid leading to the ascending length undersize of spoke edge rim in circumference because of the ratio undersize between the two, ensure that the welding bead structure between spoke and rim is enough long on the circumferential direction of rim, thereby guarantee welding stability between the two, can also avoid leading to the spoke to be too big along the ascending length in circumference of rim because of the ratio between the two is too big, ensure that ventilation hole 17 has enough big overflow area.
Preferably, the ratio of the length of the second ends of the spokes in the circumferential direction of the rim to the circumferential length of the rim is 1/24.
Optionally, the number of spokes is not less than 4 and not more than 20. In this way, while ensuring that the spoke 10 can provide a stable support for the rim, it ensures that the ventilation holes 17 have a sufficiently large flow area.
The application also provides a vehicle, and in the embodiment, the vehicle comprises wheels, and the wheels are the wheels. Since the wheel can ensure the light weight of the wheel and can match the strength of the spoke with the strength of the nut, the vehicle with the wheel can achieve the same effect.
In the description of the present invention, it is to be understood that the orientation or positional relationship indicated by the orientation words such as "front, rear, upper, lower, left, right", "lateral, vertical, horizontal" and "top, bottom", etc. are usually based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and in the case of not making a reverse description, these orientation words do not indicate and imply that the device or element being referred to must have a specific orientation or be constructed and operated in a specific orientation, and therefore, should not be considered as limiting the scope of the present invention; the terms "inner and outer" refer to the inner and outer relative to the profile of the respective component itself.
Spatially relative terms, such as "above … …," "above … …," "above … …," "above," and the like, may be used herein for ease of description to describe one device or feature's spatial relationship to another device or feature as illustrated in the figures. It will be understood that the spatially relative terms are intended to encompass different orientations of the device in use or operation in addition to the orientation depicted in the figures. For example, if a device in the figures is turned over, devices described as "above" or "on" other devices or configurations would then be oriented "below" or "under" the other devices or configurations. Thus, the exemplary term "above … …" can include both an orientation of "above … …" and "below … …". The device may be otherwise variously oriented (rotated 90 degrees or at other orientations) and the spatially relative descriptors used herein interpreted accordingly.
It should be noted that the terms "first", "second", and the like are used to define the components, and are only used for convenience of distinguishing the corresponding components, and the terms have no special meanings unless otherwise stated, and therefore, the scope of the present invention should not be construed as being limited.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
