Abstract
The invention discloses a rotary internal spraying automatic cleaning device, which comprises: the cleaning device comprises a cleaning chamber, an internal spraying assembly, a rotary supporting assembly and a supporting frame; the support frame is positioned at the outer side of the cleaning chamber, a track platform is arranged on the support frame, and the rotary support assembly is arranged on the support frame and moves along the track platform so as to enter and exit the cleaning chamber; the internal spraying component is fixedly connected with the rotary supporting component. According to the rotary internal spraying automatic cleaning device, the inner spray head can effectively clean the interior of a steel coil in the axial direction and the radial direction through the design of the rotary supporting component and the internal spraying component, so that the cleaning effect and the cleaning quality are improved, the cleaning cost is reduced, the cleaning safety is improved, and the practicability is high.
Description
Technical Field
The invention relates to the technical field of cleaning, in particular to a rotary internal spraying automatic cleaning device.
Background
In the prior art, during steel acid pickling, an external spray cleaning device is mostly adopted to carry out acid pickling on the outside of spirally arranged steel, but the inside of the steel is manually washed by a water pump. The manual cleaning has the defects of low working efficiency, unsatisfactory cleaning effect, incapability of meeting the requirement of cleaning quality and the like, and has the disadvantages of severe working environment, inconvenient operation and potential safety hazard.
Disclosure of Invention
The invention mainly solves the technical problem of providing a rotary internal spraying automatic cleaning device, which can solve the problems existing in the existing analysis method.
In order to solve the technical problems, the invention adopts a technical scheme that: the utility model provides a spout self-cleaning device in rotatory which characterized in that includes: the cleaning device comprises a cleaning chamber, an internal spraying assembly, a rotary supporting assembly and a supporting frame; the support frame is positioned at the outer side of the cleaning chamber, a track platform is arranged on the support frame, and the rotary support assembly is arranged on the support frame and moves along the track platform so as to enter and exit the cleaning chamber; the internal spraying component is fixedly connected with the rotary supporting component.
In a preferred embodiment of the present invention, there are more than two rotary support assemblies, which are arranged side by side on the support frame; each rotary supporting piece comprises a rotary supporting rod, a bidirectional output speed reducing motor, a rail car and a rotary control assembly; the bidirectional output speed reducing motor is fixed on the support frame, and the rail car is arranged on the rail platform and can move along the rail platform; the rail car is fixedly connected with the power output end of the bidirectional output speed reducing motor; the rotary control assembly is installed on the rail car, the rotary supporting rod is horizontally arranged, one end of the rotary supporting rod is fixedly connected with the rotary control assembly, and the other end of the rotary supporting rod faces the cleaning chamber.
In a preferred embodiment of the present invention, the rotation support assembly further includes a support member, the support member is mounted on an inner wall surface of the cleaning chamber on a side away from the support frame, and the rotation support rod enters the cleaning chamber and then is placed on the support member.
In a preferred embodiment of the present invention, the supporting member has a trapezoidal structure.
In a preferred embodiment of the present invention, the rotation control assembly includes a rotating electrical machine, a universal rotating device and a rotating support frame, the rotating support rod is horizontally arranged, one end of the rotating support rod, which is far away from the cleaning chamber, penetrates through the rotating support frame and is fixedly connected with the universal rotating device, and a power output end of the rotating electrical machine is connected with the universal rotating device.
In a preferred embodiment of the invention, the internal spray assembly comprises a telescopic cylinder, a water spray rod, a water supply hose and a water pump, wherein the telescopic cylinder is horizontally fixed on the rail car, the water spray rod is fixedly connected with a piston rod of the telescopic cylinder, the water spray rod is of a hollow structure, the water supply hose is arranged in the water spray rod, and one end of the water supply hose, which is far away from the rail car, is provided with an internal spray head penetrating out of the water spray rod; the other end of the water supply hose extends out of the water spray rod and is connected with the water pump.
In a preferred embodiment of the present invention, the water pump is connected to the water supply tank.
In a preferred embodiment of the invention, a washing water tank is arranged at the bottom of the cleaning chamber, and a water outlet of the washing water tank is communicated with the water supply tank.
In a preferred embodiment of the invention, a filter is further installed on the water outlet of the washing pool.
In a preferred embodiment of the invention, the top end of the cleaning chamber is provided with a hook for hanging the steel coil.
The invention has the beneficial effects that: according to the rotary internal spraying automatic cleaning device, the inner spray head can effectively clean the interior of a steel coil in the axial direction and the radial direction through the design of the rotary supporting component and the internal spraying component, so that the cleaning effect and the cleaning quality are improved, the cleaning cost is reduced, the cleaning safety is improved, and the practicability is high.
Drawings
FIG. 1 is a schematic perspective view of a rotary internal-spraying automatic cleaning device according to a preferred embodiment of the present invention;

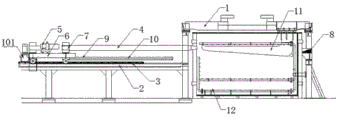

FIG. 2 is a schematic side view of the cleaning chamber;
FIG. 3 is a schematic view of the connection structure of the rotating control assembly;
the parts in the drawings are numbered as follows: 1. the cleaning device comprises a cleaning chamber, 2. a support frame, 3. a track platform, 4. a rotary supporting rod, 5. a bidirectional output speed reducing motor, 6. a track vehicle, 7. a rotary control assembly, 8. a support piece, 9. a water spraying rod, 10. a water supply hose, 101. a water pump, 102. an inner spray head, 11. a lifting hook, 12. a washing water tank, 13. an outer spray head, 71. a rotary motor, 72. a universal rotating head and 73. a rotary support frame.
Detailed Description
The following detailed description of the preferred embodiments of the present invention, taken in conjunction with the accompanying drawings, will make the advantages and features of the invention easier to understand by those skilled in the art, and thus will clearly and clearly define the scope of the invention.
Referring to fig. 1-3, an embodiment of the present invention includes:
example 1
The invention discloses a rotary internal spraying automatic cleaning device, which comprises: cleaning chamber 1, support frame 2, interior subassembly and the rotation support subassembly of spouting.
Lifting hook 11 is installed on the top of purge chamber 1, lifting hook 11 is used for hanging the steel coil and puts wash in the purge chamber 1 to adjust the height that the steel coil was rolled up, make it hang and put on the runing rest of runing rest subassembly.
A washing water tank 12 is arranged at the bottom of the cleaning chamber 1, and a filter (not shown) is further installed on a water outlet of the washing water tank 12. A plurality of outer nozzles 13 are further mounted on the inner wall surface of the cleaning chamber 1, and the outer nozzles 13 are used for cleaning the outside of the steel coil.
The support frame 2 is positioned at the outer side of the cleaning chamber 1, and a track platform 3 is arranged on the support frame.
The rotary supporting components are more than two and are arranged on the supporting frame 2 side by side. Specifically, each of the rotary support assemblies includes a rotary support rod 4, a bidirectional output gear motor 5, a rail car 6, a rotary control assembly 7, and a support 8. The bidirectional output speed reducing motor 5 is fixed on the support frame 2, the rail car 6 is arranged on the rail platform 3, and the rail car 6 is fixedly connected with a power output end of the bidirectional output speed reducing motor 5 so as to move forwards or backwards along the rail platform 3 under the pushing of the bidirectional output speed reducing motor 5. The rotary control component 7 is installed on the rail car 6, the rotary supporting rod is horizontally arranged 4, one end of the rotary supporting rod is fixedly connected with the rotary control component 7, and the rotary supporting rod is driven by the rotary control component 7 to rotate in situ. The supporting piece 8 is of a trapezoidal structure, is arranged on the inner wall surface of one side, far away from the supporting frame 2, of the cleaning chamber 1, has the same height as the rotary supporting frame 4, plays a supporting role, and prevents the rotary supporting frame 4 from being hung on a steel coil and then being incapable of keeping horizontal. When the rail car 6 moves forward along the rail platform 3 under the action of the bidirectional output speed reducing motor 5 to drive the rotary supporting rod 4 to enter the cleaning chamber 1, the front end of the rotary supporting rod 4 is loaded on the supporting member 8.
The rotation control assembly 7 comprises a rotating motor 71, a universal rotating head 72 and a rotating support frame 73, the rotating support rod 4 is horizontally arranged, one end of the rotating support rod, which is far away from the cleaning chamber 1, penetrates through the rotating support frame 73 and is fixedly connected with the universal rotating head 72, the power output end of the rotating motor 71 is connected with the universal rotating head 72 to drive the universal rotating head 72 to rotate and drive the rotating support rod 4 to rotate in the original position.
The rotation support rod 4 rotates in situ, so that the hung steel coil rotates, and different positions in the radial direction inside the steel coil can be cleaned.
The internal spraying assembly comprises a telescopic cylinder (not shown), a water spraying rod 9, a water supply hose 10 and a water pump 101, the telescopic cylinder is horizontally fixed on the rail car 6, the water spraying rod 9 is fixedly connected with a piston rod of the telescopic cylinder, the water spraying rod 9 is of a hollow structure, the water supply hose 10 is arranged in the water spraying rod 9, and one end, far away from the rail car 6, of the water supply hose 10 is provided with an internal spray head 102 penetrating out of the water spraying rod 9; the other end of the water supply hose 10 extends from the water spray bar 9 and is connected to the water pump 101. The telescopic cylinder can adjust the distance that water spray rod 9 stretches into cleaning chamber 1 to interior shower nozzle 102 on the adjustment stretches into the position of the axial direction in the steel coil of strip makes the inside all can be washed, improves the degree of consistency that washes.
In addition, the water pump 101 is connected with the feed water tank (not shown), the feed water tank pass through the pipeline with the delivery port of wash basin 12 is connected to the pickling solution after will washing filters the back and purifies the back and flow back in the feed water tank and recycle, improves the utilization ratio of water resource, reduces sewage discharge.
The working principle of the rotary internal spraying automatic cleaning device is as follows:
the bidirectional output speed reducing motor is started to push the rail car to move forwards (to the cleaning chamber) along the rail platform, and in the process, the rotary supporting rod is driven to move forwards and extend into the cleaning chamber, and finally the rotary supporting rod is arranged on a supporting piece on the inner wall surface of the cleaning chamber; then hanging the steel coil on the rotary supporting rod by a lifting hook; the rotation control assembly is started to drive the two rotation support rods to do in-situ rotation movement, so that the steel coil is driven to rotate, the water pump is started, cleaning water enters the water supply hose and washes the inner wall surface of the steel coil through the inner spray head; the spray head extends into the depth of the steel coil in the length adjustment of the telescopic rod, and the rotation of the steel coil is combined, so that the purpose of cleaning all the inside of the steel coil is achieved.
The invention discloses a rotary internal spraying automatic cleaning device, which has the following advantages:
1. through the design of the rotary supporting component and the internal spraying component, the internal spraying head can effectively clean the interior of the steel coil in the axial direction and the radial direction, so that the cleaning effect and the cleaning quality are improved;
2. through the design of the rotary supporting component, the cleaning device can be withdrawn from the cleaning chamber after cleaning, is convenient to maintain, can also prevent from being corroded by pickling solution, prolongs the service life, and has low cleaning cost and high safety performance.
The foregoing descriptions of specific exemplary embodiments of the present invention have been presented for purposes of illustration and description. It is not intended to limit the invention to the precise form disclosed, and obviously many modifications and variations are possible in light of the above teaching. The exemplary embodiments were chosen and described in order to explain certain principles of the invention and its practical application to enable one skilled in the art to make and use various exemplary embodiments of the invention and various alternatives and modifications as are suited to the particular use contemplated. It is intended that the scope of the invention be defined by the claims and their equivalents.
Claims (10)
1. The utility model provides a spout self-cleaning device in rotatory which characterized in that includes: the cleaning device comprises a cleaning chamber, an internal spraying assembly, a rotary supporting assembly and a supporting frame; the support frame is positioned at the outer side of the cleaning chamber, a track platform is arranged on the support frame, and the rotary support assembly is arranged on the support frame and moves along the track platform so as to enter and exit the cleaning chamber; the internal spraying component is fixedly connected with the rotary supporting component.
2. The rotary internal spray automatic cleaning device according to claim 1, wherein more than two rotary supporting components are arranged on the supporting frame side by side; each rotary supporting piece comprises a rotary supporting rod, a bidirectional output speed reducing motor, a rail car and a rotary control assembly; the bidirectional output speed reducing motor is fixed on the support frame, and the rail car is arranged on the rail platform and can move along the rail platform; the rail car is fixedly connected with the power output end of the bidirectional output speed reducing motor; the rotary control assembly is installed on the rail car, the rotary supporting rod is horizontally arranged, one end of the rotary supporting rod is fixedly connected with the rotary control assembly, and the other end of the rotary supporting rod faces the cleaning chamber.
3. The rotary internal spraying automatic cleaning device as claimed in claim 2, wherein the rotary support assembly further comprises a support member, the support member is mounted on an inner wall surface of the cleaning chamber on a side away from the support frame, and the rotary support rod enters the cleaning chamber and then is loaded on the support member.
4. A rotary internal spray automatic cleaning device according to claim 3, wherein said support member is of trapezoidal configuration.
5. The automatic cleaning device with internal spraying and rotating functions as claimed in claim 2, wherein the rotating control assembly comprises a rotating motor, a universal rotating device and a rotating support frame, the rotating support rod is horizontally arranged, one end of the rotating support rod, which is far away from the cleaning chamber, penetrates through the rotating support frame and is fixedly connected with the universal rotating device, and a power output end of the rotating motor is connected with the universal rotating device.
6. The rotary internal-spraying automatic cleaning device according to claim 2, wherein the internal-spraying assembly comprises a telescopic cylinder, a water spraying rod, a water supply hose and a water pump, the telescopic cylinder is horizontally fixed on the rail car, the water spraying rod is fixedly connected with a piston rod of the telescopic cylinder, the water spraying rod is of a hollow structure, the water supply hose is arranged in the water spraying rod, and an internal spray head penetrating out of the water spraying rod is arranged at one end of the water supply hose, which is far away from the rail car; the other end of the water supply hose extends out of the water spray rod and is connected with the water pump.
7. A rotary internal spray automatic cleaning device according to claim 6, wherein said water pump is connected to a water supply tank.
8. A rotary internal spray automatic cleaning device according to claim 7, wherein a washing water tank is provided at the bottom of the cleaning chamber, and a water outlet of the washing water tank is communicated with the water supply tank.
9. A rotary internal spray automatic cleaning device according to claim 8, wherein a filter is further mounted on the outlet of the washing basin.
10. The automatic cleaning device of claim 7, wherein the top end of the cleaning chamber is provided with a hook for hanging the steel coil.
