Abstract
The invention belongs to the technical field of architectural decoration, and particularly relates to an assembly type wall panel sliding assembly, which comprises a panel, a movable base, a connecting piece and a rail keel; the movable base is provided with wheels and threaded holes; one end of the connecting piece is fixedly connected with the threaded hole, and the other end of the connecting piece is fixedly connected with the panel; the rail keel is provided with a slide rail groove and a wheel groove, and the wheel groove is in rolling fit with the wheel; the panel is driven to move, so that the connecting piece slides along the slide rail groove and is linked with the wheels to roll along the wheel groove, and the panel is translated; according to the invention, the connecting piece is respectively and fixedly connected with the movable base and the panel, and the movable base and the rail keel can roll through the wheels, so that the panel can be horizontally moved left and right, the panel is opened in a pressing sliding mode, the equipment belt can be hidden in the panel, and the indoor wall surface is more attractive in decoration.
Description
Technical Field
The invention belongs to the technical field of architectural decoration, and particularly relates to an assembly type wall panel sliding assembly.
Background
The medical equipment belt is generally installed on the bedside wall in a hospital ward, provides various service facilities such as various gas terminals, a talkback calling system, a data interface, a lighting or air-conditioning switch, a power switch, a bedside lamp and the like for patients, and is an essential gas terminal control part of a central oxygen supply and central suction system. The existing medical equipment belt installed on the bedside wall of a sickbed causes inconvenience for medical care personnel and patients, for example, when a serious patient lies on the bed or leans against the bedside wall, the medical care personnel can disturb or hit the patient when the equipment belt is connected with a plug connector, or the patient can block the connector on the equipment belt or get an electric shock carelessly to cause life danger; if the exposed equipment belt is installed in the old-age apartment, the indoor decoration effect is influenced, and the old people who live in the apartment can feel dislike and have bad mood when seeing the equipment belt.
In the prior art, the device is exposed outside, and the panel or a side hung door opening mode is adopted, so that the space in the sleeve is influenced, and the operation is inconvenient; or the sliding door is opened, two exposed tracks are generally arranged, the cleaning is inconvenient, and the translation function of the panel cannot be realized. Therefore, there is a need for improvement based on this.
Disclosure of Invention
The present invention is directed to overcoming the above-mentioned disadvantages and drawbacks, and providing a sliding assembly for a wall panel.
In order to achieve the purpose, the invention adopts the following technical scheme:
an assembled wall panel slide assembly comprising:
a panel;
the movable base is provided with wheels and is provided with a threaded hole;
one end of the connecting piece is fixedly connected with the threaded hole, and the other end of the connecting piece is fixedly connected with the panel;
the rail keel is provided with a slide rail groove and a wheel groove, and the wheel groove is in rolling fit with the wheel; the panel is driven to move, so that the connecting piece slides along the slide rail groove and is linked with the wheels to roll along the wheel groove, and the panel is translated.
As the preferred scheme, the both sides of activity base are equipped with the joint groove respectively, and the upper and lower both ends correspondence of joint groove is equipped with the indent to make the wheel normal running fit in the indent.
As preferred scheme, track fossil fragments are two, two track fossil fragments parallel arrangement, and are equipped with spacing draw-in groove respectively, and mounting screw in the spacing draw-in groove to make track fossil fragments be fixed in former wall.
Preferably, the connecting piece comprises a pressing head, a sleeve and a movable pipe, the sleeve is respectively clamped and matched with the pressing head and the movable pipe, and the pressing head and the movable pipe respectively protrude out of two ends of the sleeve.
Preferably, the interior of the pressing head is a cavity, and the movable tube is inserted into the cavity; the pressing head is provided with a first wedge-shaped column, the movable pipe is provided with a second wedge-shaped column, and the second wedge-shaped column is in contact fit with the first wedge-shaped column.
As an optimal scheme, the inner wall of the sleeve is uniformly provided with first grooves and connecting blocks in the circumferential direction, the first grooves and the connecting blocks are distributed at intervals, the inner wall of the connecting block is provided with second grooves, and the second grooves and the first grooves are in one-to-one correspondence with the first wedge-shaped columns respectively.
Preferably, the top end of the connecting block is provided with a triangular groove and a tangent plane, the triangular groove is in clamping fit with the second wedge-shaped column, and the tangent plane is in sliding fit with the second wedge-shaped column.
Preferably, the first wedge-shaped column is in sliding fit with the first groove and the second groove respectively, and the second wedge-shaped column is in sliding fit with the first groove.
As preferred scheme, telescopic inner wall still is equipped with spacing step, and the bottom of first recess and second recess is located to spacing step to carry on spacingly to first wedge post.
Preferably, the outer wall of the sleeve is provided with threads, and the threads are in running fit with the threaded holes; the threaded hole is internally provided with a limiting groove and an inner groove, and the thread is abutted against the limiting groove.
Compared with the prior art, the invention has the beneficial effects that:
1. the movable base and the rail keel can roll through the wheels, so that the panel can be horizontally moved left and right.
2. The panel is opened in a pressing sliding mode, the equipment belt can be hidden inside the panel, and the indoor wall surface is more attractive in decoration.
3. The movable base is fixedly connected with the panel through the pressing connecting piece, and the panel is moved up or down through the pressing dislocation of the pressing head and the movable tube by utilizing the dislocation fit between the pressing head and the movable tube through pressing the panel. The press head, the movable pipe and the sleeve are ingenious in structural design, simple in structure and convenient to operate.
4. The invention adopts a full-dry construction mode for installation, and has the advantages of quick installation, environmental protection, convenience for cleaning and sanitation.
Drawings

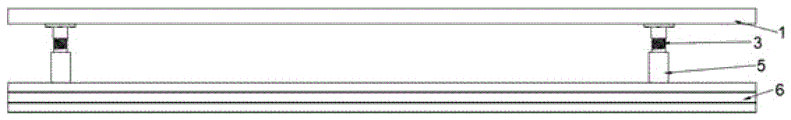

FIG. 1 is a schematic view of the structural connection of an assembled wall panel slide assembly according to embodiment 1 of the present invention;
FIG. 2 is an exploded view of an assembled wall panel slide assembly of example 1 of the present invention;
FIG. 3 is a schematic view of another perspective of an assembled wall panel slide assembly according to embodiment 1 of the present invention;
figure 4 is a schematic structural view of a rail runner of embodiment 1 of the present invention;
figure 5 is a schematic cross-sectional view of a rail runner of example 1 of the present invention;
FIG. 6 is a schematic view showing the connection of the panel, the pressing head, the sleeve and the movable base according to embodiment 1 of the present invention;
FIG. 7 is a schematic view of the structure of a panel according to embodiment 1 of the present invention;
FIG. 8 is a schematic structural view of a movable base according to embodiment 1 of the present invention;
FIG. 9 is a schematic view showing the structure of a pressing head according to embodiment 1 of the present invention;
FIG. 10 is a schematic structural view of a movable tube according to embodiment 1 of the present invention;
FIG. 11 is a schematic structural view of a sleeve according to embodiment 1 of the present invention;
FIG. 12 is an assembled view of the movable tube, the sleeve and the pressing head according to embodiment 1 of the present invention;
FIG. 13 is a schematic view of the connection between the pressing head and the fixing base in embodiment 1 of the present invention;
FIG. 14 is a schematic view showing the connection of the sleeve to the movable base in embodiment 1 of the present invention;
FIG. 15 is a schematic view showing the connection of the pressing head and the movable tube in the initial state according to embodiment 1 of the present invention;
FIG. 16 is a schematic view showing the coplanar arrangement of the wedge-shaped inclined surfaces and the triangular groove inclined surfaces of the second wedge-shaped post according to embodiment 1 of the present invention;
FIG. 17 is a schematic view of the engagement of a second wedge post with a triangular groove in accordance with embodiment 1 of the present invention;
FIG. 18 is a schematic view showing the coplanar wedge-shaped inclined plane and cut plane of the second wedge-shaped column of example 1 of the present invention;
FIG. 19 is a schematic view of the connection of a second wedge-shaped column to a first wedge-shaped column according to example 1 of the present invention;
FIG. 20 is a schematic view showing the connection between the pressing head and the movable tube after the rotation in embodiment 1 of the present invention;
fig. 21 is a schematic view of a panel pressed state in embodiment 1 of the present invention;
fig. 22 is a schematic view of sliding the panel left and right in embodiment 1 of the present invention;
in the figure: 1 panel, 11 fixing bases, 2 activity bases, 21 screw hole, 22 spacing groove, 23 inner groovy, 24 wheels, 25 joint groove, 26 inner groovy, 3 press heads, 31 first wedge post, 32 cavity, 4 movable tubes, 41 second wedge post, 42 pipe, 43 boss, 44 spring, 5 sleeve, 51 first recess, 52 connecting block, 521 second recess, 522 triangle groove, 523 tangent plane, 53 spacing step, 6 track fossil fragments, 61 slide rail groove, 62 spacing draw-in grooves, 63 race.
Detailed Description
In order to more clearly illustrate the embodiments of the present invention, the following description will explain the embodiments of the present invention with reference to the accompanying drawings. It is obvious that the drawings in the following description are only some examples of the invention, and that for a person skilled in the art, other drawings and embodiments can be derived from them without inventive effort.
Example 1:
as shown in fig. 1 to 14, the present embodiment provides an assembly type wall panel sliding assembly including: panel 1, activity base 2, press head 3, activity pipe 4, sleeve 5 and track fossil fragments 6.
Four fixing seats 11 are installed on the panel 1 in this embodiment, the fixing seats 11 are respectively fixed at four corners of the panel 1 by screws or bolts, the fixing seats 11 are used for being connected with the pressing head 3, and when the panel 1 is pressed, the fixing seats 11 at the four positions are simultaneously linked with the pressing head 3 to move.
One end of the pressing head 3 in this embodiment is provided with eight first wedge-shaped columns 31, the eight first wedge-shaped columns 31 are uniformly arranged along the circumferential direction of the pressing head 3, the other end of the pressing head 3 is provided with a thread, and the thread is fixedly connected with the fixing base 11. One end of the pressing head 3 close to the first wedge-shaped column 31 is a cavity 32, and the cavity 32 is used for sleeving the movable tube 4, so that the pressing head 3 is matched with the movable tube 4.
The movable tube 4 in this embodiment includes a boss 43 and a circular tube 42, the boss 43 is sleeved with a spring 44, and the diameter of the boss 43 is smaller than the diameter of the circular tube 42, so that the spring 44 abuts against the end of the circular tube 42. The diameter of the tube 42 is smaller than the diameter of the cavity, so that the tube 42 is sleeved in the cavity 32. Four second wedge-shaped columns 41 are arranged on the circular tube, and the four second wedge-shaped columns 41 are uniformly distributed along the circumferential direction of the circular tube 42. One end of the second wedge-shaped column 41 is flush with the end of the round tube 42, and the other end is a wedge-shaped inclined surface.
The sleeve 5 in this embodiment is sleeved outside the pressing head 3 and the movable tube 4, and is movably engaged with the pressing head 3 and the movable tube 4, respectively. The inner wall of the sleeve 5 is uniformly provided with four first grooves 51 and four connecting blocks 52 along the circumferential direction, and the first grooves 51 and the connecting blocks 52 are distributed on the inner wall of the sleeve 5 at intervals. The inner wall of the connecting block 52 is provided with a second groove 521, and the second groove 521 and the first groove 51 correspond to the first wedge-shaped column 31 one by one, so that the first wedge-shaped column 31 slides along the first groove 51 and the second groove 521.
The first wedge-shaped column 31 is respectively in sliding fit with the first groove 51 and the second groove 521, and the second wedge-shaped column 41 is in sliding fit with the first groove 51; the first wedge post 31 is in contact engagement with the second wedge post 41.
In addition, the inner wall of sleeve 5 still is equipped with spacing step 53, and the bottom of first recess 51 and second recess 521 is located to spacing step 53 to carry on spacingly to first wedge post 31, when the press head 3 overlaps in sleeve 5, first wedge post 31 supports and leans on in spacing step 53.
The top end of the connecting block 52 is provided with a triangular groove 522 and a tangent plane 523, the triangular groove 522 is in clamping fit with the second wedge-shaped column 41, and the inclined directions of the triangular groove 522 and the tangent plane 523 are the same, so that the triangular groove 522 and the tangent plane 523 can be in sliding fit with the wedge-shaped inclined plane of the second wedge-shaped column 41.
The movable base 2 in this embodiment is provided with a threaded hole 21, and a limit groove 22 and an inner groove 23 are arranged in the threaded hole 21; the outer wall of the sleeve 5 is provided with threads, the threads of the sleeve 5 are in running fit with the threaded hole 21, the threads of the sleeve 5 abut against the limiting groove 22, and the spring 44 abuts against the inner groove 23. To achieve the connection of the sleeve 5 with the mobile base 2.
In addition, the both sides of activity base 2 correspond respectively and are equipped with joint groove 25, the upper and lower both ends of each joint groove 25 correspond respectively and set up inner groovy 26, inner groovy 26 is used for installing wheel 24, two parallel wheels 24 of every joint groove 25 installation, two parallel wheels 24 are even as an organic whole through the connecting rod, preset's clearance has between two parallel wheels 24 simultaneously, the connecting rod of wheel 24 both sides inserts respectively in the inner groovy 26 at the upper and lower both ends of joint groove 25, in order to be fixed in the joint groove 25 of activity base 2 one side with two parallel wheels 24. Similarly, the snap-in groove 25 on the other side of the movable base 2 is correspondingly provided with two wheels 24.
The rail keel 6 in this embodiment is provided with a slide rail groove 61, a limiting clamping groove 62 and a wheel groove 63, the wheel groove 63 is matched with the wheel 24, a convex strip is arranged in the middle of the wheel groove 63, a preset gap between the convex strip and two wheels is matched, and the convex strip is used for limiting the wheel 24 to prevent the wheel from being clamped. Spacing draw-in groove 62 is used for fixing the nailing when on the wall body is installed to track fossil fragments 6, reserves certain space, makes things convenient for the nailing, prevents that the protruding horizontal slip that influences movable base 2 of nail. The sleeve 5 moves along the rail groove 61, thereby achieving the right and left sliding of the panel.
As shown in fig. 15 to 20, the inner wall of the sleeve 5 is schematically illustrated. As shown in fig. 15, the pressing head 3 is engaged with the movable tube 4 in an initial state, and at this time, one end of the first wedge-shaped column 31 in the first groove 51 abuts against the limit step 53, and the other end abuts against the second wedge-shaped column 41. As shown in fig. 16, when the first wedge post 31 slides along the first groove 51, the wedge-shaped slope of the second wedge post 41 is in the same direction as the slope of the triangular groove 522. As shown in fig. 17, the first wedge post 31 slides into the triangular groove 522 along the inclined surface of the triangular groove 522, and is engaged with the triangular groove 522. As shown in fig. 18, the first wedge-shaped post 31 in the second groove 521 pushes the second wedge-shaped post 41 out of the triangular groove 522, so that the wedge-shaped slope of the second wedge-shaped post 41 is in the same direction as the tangent surface 523. As shown in fig. 19, the first wedge post 31 slides down the cut surface 523 into the first groove 51. As shown in fig. 20, the first wedge post 31 and the second wedge post 41 enter the first groove 51 and return to the initial position.
The press-telescoping process of the assembled wall panel of the present embodiment is as follows:
when pressing panel 1, the motion of panel 1 drive presser head 3, the 41 post motions of first wedge post 31 linkage second wedge in the first recess 51, when second wedge post 41 moves to the inclined plane of wedge inclined plane and triangular groove 522 and is in same direction, the 41 post landing of second wedge can be along the inclined plane of triangular groove 522 to the triangular groove 522 in, and second wedge post 41 is when sliding to the triangular groove 522, the wedge inclined plane butt in the first wedge post 31 of second recess 521 for first wedge post 31 falls back to first recess 51 in, second wedge post 41 and triangular groove 522 joint mutually.
When the panel 1 is pressed again, the panel 1 drives the pressing head 3 to move, the first wedge-shaped column 31 in the second groove 521 moves, the second wedge-shaped column 41 in the triangular groove 522 is ejected, and the spring 44 is compressed. When the second wedge-shaped column 41 moves to a position where the wedge-shaped inclined plane and the tangent plane 523 are in the same direction, the spring 44 is restored from the compressed state, and under the action of the spring force, the second wedge-shaped column 41 slides down into the first groove 51 along the tangent plane 523 until the first wedge-shaped column 31 abuts against the limit step 53 again. At this time, the pressing head 3 and the movable tube 4 are returned to the initial positions, thereby completing the rotation between the pressing head 3 and the movable tube 4.
The installation steps of the assembled wall panel sliding assembly of the embodiment are as follows:
specifically, the pressing head, the sleeve and the movable pipe are assembled, the pressing head is inserted into the sleeve, and the first wedge-shaped column is matched with the first groove and the second groove respectively so that the first wedge-shaped column is abutted against the limiting step; then inserting the movable tube into the cavity of the pressing head, and moving the second wedge-shaped column along the first groove until the second wedge-shaped column is abutted against the first wedge-shaped column; and finally, sleeving the spring on the boss of the movable pipe. (see fig. 12)
The threaded hole of the movable base and the thread of the sleeve are rotatably installed, so that the thread abuts against the limiting groove, and the spring abuts against the inner groove. And the screw thread of the pressing head is matched with the fixed seat in a rotating way, so that the assembly of the pressing telescopic assembly is completed. (see, e.g., FIGS. 13 to 14)
And a bolt or a bolt penetrates through the fixed seat by using a pistol drill so as to be fixed at a preset position on the back surface of the panel. Four fixing seats are preset on each panel, the pressing head is rotatably connected with the fixing seats through threads, and each panel corresponds to four groups of pressing telescopic assemblies. (see, e.g., FIGS. 6-7)
Two parallel rail keels are fixed on the original wall by screws, and wheels of the movable base are clamped in the rail keels along the sliding rail grooves. (as in FIG. 1)
As shown in fig. 21 to 22, the panels and other wall panels are in the same plane, and when the panels are pressed down, the panels move down, the plane of the panels being lower than the plane of the other panels; when a force is applied to the left, the panel slides to the left to expose the equipment belt. When the wall panel is closed, force is applied rightwards, the panel slides leftwards to the set position, the panel is pressed downwards, the panel moves upwards, and the panel returns to the original position and is flush with other wall panels.
The equipment belt of this embodiment can hide inside the panel, and indoor wall is decorative more pleasing to the eye. The panel is opened in a pressing sliding mode, and compared with a vertical hinged door mode, the panel does not occupy the space in the sleeve and is convenient to open; compare in moving the door, the track is built-in, presses the dislocation earlier, and the horizontal slip is again, and equipment area is accomplished the face and is leveled with whole wall, does not have the arch, and is more humanized, prevents to cause the bruise to convenient clearance health. The installation mode adopts the all-dry construction, and the installation is quick, environment-friendly and pollution-free.
Example 2:
the present embodiment provides an assembled wall panel sliding assembly, which is different from embodiment 1 in that:
in the embodiment, only two fixed seats are required to be installed on the panel, and the distance between the two fixed seats corresponds to the distance between two rail keels which are fixed on the original wall in parallel; meanwhile, the pressing head, the movable pipe, the sleeve and the movable base are correspondingly arranged two times respectively, and the assembly of the pressing head, the movable pipe, the sleeve and the movable base is completed, so that the panel can move up or down or slide left and right, the material is saved, the assembly and the disassembly are convenient, and the operation is simple.
Other specific configurations can refer to embodiment 1.
Although the present invention has been described in detail with reference to the above embodiments, the present invention is not limited to the above embodiments, and may include other equivalent embodiments without departing from the spirit of the present invention, and the scope of the present invention is determined by the scope of the appended claims.
Claims (10)
1. An assembled wall panel slide assembly comprising:
a panel;
the movable base is provided with wheels and is provided with a threaded hole;
one end of the connecting piece is fixedly connected with the threaded hole, and the other end of the connecting piece is fixedly connected with the panel;
the rail keel is provided with a slide rail groove and a wheel groove, and the wheel groove is in rolling fit with the wheel; the panel is driven to move, so that the connecting piece slides along the slide rail groove and is linked with the wheels to roll along the wheel groove, and the panel is translated.
2. The assembly-type wall panel sliding assembly according to claim 1, wherein the movable base is provided with a locking groove at each of two sides thereof, and the locking groove is provided with an inner concave hole at each of upper and lower ends thereof, so that the wheel is rotatably fitted into the inner concave hole.
3. The assembly type wall panel sliding assembly according to claim 2, wherein the number of the rail keels is two, the two rail keels are arranged in parallel and are respectively provided with a limiting clamping groove, and a screw is installed in the limiting clamping groove so that the rail keels can be fixed on the original wall.
4. The assembly type wall panel sliding assembly according to claim 3, wherein the connecting member comprises a pressing head, a sleeve and a movable tube, the sleeve is respectively in clamping fit with the pressing head and the movable tube, and the pressing head and the movable tube respectively protrude out of two ends of the sleeve.
5. The assembly type wall panel sliding assembly according to claim 4, wherein the interior of the pressing head is a cavity, and the movable tube is inserted into the cavity; the pressing head is provided with a first wedge-shaped column, the movable pipe is provided with a second wedge-shaped column, and the second wedge-shaped column is in contact fit with the first wedge-shaped column.
6. An assembled wall panel sliding assembly according to claim 5, wherein the inner wall of the sleeve is uniformly provided with first grooves and connecting blocks along the circumferential direction, the first grooves and the connecting blocks are distributed at intervals, the inner wall of the connecting block is provided with second grooves, and the second grooves and the first grooves are respectively in one-to-one correspondence with the first wedge-shaped columns.
7. An assembled wall panel slide assembly as set forth in claim 6, wherein the connecting block has a triangular groove at its top end for snap-fitting engagement with the second wedge post and a cut surface for sliding engagement with the second wedge post.
8. An assembled wall panel slide assembly as set forth in claim 6, wherein said first wedge-shaped post slidably engages said first and second grooves, respectively, and said second wedge-shaped post slidably engages said first groove.
9. An assembled wall panel sliding assembly according to claim 6, wherein the inner wall of the sleeve is further provided with a limiting step, and the limiting step is arranged at the bottom end of the first groove and the second groove to limit the first wedge-shaped column.
10. An assembled wall panel slide assembly as set forth in claim 4, wherein said sleeve has threads on an outer wall thereof for rotational engagement with said threaded bore; the threaded hole is internally provided with a limiting groove and an inner groove, and the thread is abutted against the limiting groove.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011324506.XA CN112443099B (en) | 2020-11-23 | 2020-11-23 | Assembled wall panel sliding assembly |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011324506.XA CN112443099B (en) | 2020-11-23 | 2020-11-23 | Assembled wall panel sliding assembly |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN112443099A true CN112443099A (en) | 2021-03-05 |
| CN112443099B CN112443099B (en) | 2024-06-21 |
Family
ID=74737277
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202011324506.XA Active CN112443099B (en) | 2020-11-23 | 2020-11-23 | Assembled wall panel sliding assembly |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112443099B (en) |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN116892278A (en) * | 2023-08-30 | 2023-10-17 | 北京住总装饰有限责任公司 | A wall for building decoration |
| CN119571982A (en) * | 2024-12-30 | 2025-03-07 | 中国建筑第八工程局有限公司 | Wall surface decoration structure suitable for cantilever wall of damper and construction method thereof |
Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN206346434U (en) * | 2016-12-14 | 2017-07-21 | 浙江亚厦装饰股份有限公司 | A kind of metope hanging device of levelling decoration panel |
| CN207829266U (en) * | 2018-01-20 | 2018-09-07 | 广东省美术设计装修工程有限公司 | Furred ceiling structure |
| CN214498162U (en) * | 2020-11-23 | 2021-10-26 | 浙江亚厦装饰股份有限公司 | Assembled shingle nail slip subassembly |
-
2020
- 2020-11-23 CN CN202011324506.XA patent/CN112443099B/en active Active
Patent Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN206346434U (en) * | 2016-12-14 | 2017-07-21 | 浙江亚厦装饰股份有限公司 | A kind of metope hanging device of levelling decoration panel |
| CN207829266U (en) * | 2018-01-20 | 2018-09-07 | 广东省美术设计装修工程有限公司 | Furred ceiling structure |
| CN214498162U (en) * | 2020-11-23 | 2021-10-26 | 浙江亚厦装饰股份有限公司 | Assembled shingle nail slip subassembly |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN116892278A (en) * | 2023-08-30 | 2023-10-17 | 北京住总装饰有限责任公司 | A wall for building decoration |
| CN119571982A (en) * | 2024-12-30 | 2025-03-07 | 中国建筑第八工程局有限公司 | Wall surface decoration structure suitable for cantilever wall of damper and construction method thereof |
Also Published As
| Publication number | Publication date |
|---|---|
| CN112443099B (en) | 2024-06-21 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN112443099A (en) | Assembled shingle nail slip subassembly | |
| CN112443087A (en) | Assembly type wallboard structure capable of hiding equipment belt and installation method | |
| US20050248243A1 (en) | Modular sub-cabinet for motion furniture | |
| CN214498162U (en) | Assembled shingle nail slip subassembly | |
| CN214498146U (en) | Assembled wallboard structure capable of hiding equipment belt | |
| CN211037961U (en) | Sleeping cabin | |
| CN214498205U (en) | Assembly type wall panel pressing telescopic assembly | |
| CN112443107B (en) | Assembled wall panel presses flexible subassembly | |
| CN214498163U (en) | Press head for assembled wall | |
| CN114776957B (en) | But angle modulation's photovoltaic inverter | |
| CN214696585U (en) | Assembled wall is with activity pipe | |
| CN214498204U (en) | Assembled wall is with movable base | |
| CN214498164U (en) | Assembled is track fossil fragments for wall | |
| US11891852B1 (en) | Rail assemblies and methods of mounting rail assemblies to panels | |
| CN210659649U (en) | Cabinet door wheel convenient to adjust | |
| CN208534278U (en) | a sliding seat | |
| CN112443101A (en) | Assembled is track fossil fragments for wall | |
| CN213116037U (en) | Assembled convenient fire door that prevents of dismantling | |
| CN106073263B (en) | Modularized intelligent seat with support | |
| CN112443098A (en) | Assembled wall is with activity pipe | |
| CN218845838U (en) | Portable wisdom WI-FI down lamp of easy dismouting | |
| CN218816003U (en) | Electric invisible pocket door | |
| CN223587582U (en) | Gluing device for window frame and glass after assembly | |
| CN112353152B (en) | Metal furniture bolt hole body structure | |
| CN214220190U (en) | Assembled dysmorphism furred ceiling structure of convenient maintenance |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
