本发明涉及医疗器械的技术领域，且公开了麻醉科用麻醉器具放置箱，包括箱体，箱体的上表面开设有内槽，内槽内部的两侧均设置用于对麻醉器具进行放置的麻醉器具放置机构，且每个麻醉器具放置机构内均设置有便于自动控制开合的自动开关机构，通过设置自动开关机构与麻醉器具放置机构，当医生将盖板在箱体上打开时，即可自动带动两个器具放置板将麻醉器具在两个长方形槽内移出至内槽内，经由设置两个相对称的器具放置板，医生可将不同的麻醉器具分类放置在两个器具放置板内，从而使医生在打开箱体时可以快速将麻醉器具取出，同时没有设置额外的驱动力，可以避免箱体重量的提升，达到在便于医生携带的同时，可以快速拿取麻醉器具使用的效果。
The invention relates to the technical field of medical instruments, and discloses an anesthesia appliance placement box for anesthesiology, including a box body, an inner groove is opened on the upper surface of the box body, and both sides inside the inner groove are provided with a place for placing anesthesia appliances. Anesthesia appliance placement mechanism, and each anesthesia appliance placement mechanism is provided with an automatic switch mechanism that facilitates automatic control of opening and closing. By setting the automatic switch mechanism and anesthesia appliance placement mechanism, when the doctor opens the cover on the box, that is It can automatically drive two device placement boards to move the anesthesia devices out of the two rectangular slots into the inner slot. By setting two symmetrical device placement boards, doctors can classify different anesthesia devices into the two device placement boards. , so that the doctor can quickly take out the anesthesia device when opening the box, and at the same time, no additional driving force is set, which can avoid the increase of the weight of the box, and achieve the effect of quickly taking the anesthesia device for use while being convenient for the doctor to carry.
Description
Technical Field
The invention relates to the technical field of medical instruments, in particular to an anesthesia apparatus placing box for an anesthesia department.
Background
The anesthesia discipline is a comprehensive discipline, which contains knowledge of multiple disciplines, has wide range, not only meets the requirements of operations, but also participates in rescue work of various departments, painless delivery of gynecology, painless abortion and the like, an anesthesia apparatus is required to be used by an anesthesia department doctor when performing anesthesia on a patient, the anesthesia apparatus is mostly placed in an anesthesia placing box before being used in order to ensure that the anesthesia apparatus is not influenced by bacteria in the outside air, the prior patent No. CN11811861A proposes an anesthesia apparatus placing box convenient for the anesthesia department, structures such as a driving motor, a reciprocating screw rod, a screw pipe, a moving rod, a connecting rod and the like are arranged, wherein the rotation of the reciprocating screw rod can be controlled by controlling the starting of the driving motor, the reciprocating screw rod can control the movement of the moving plate, the screw pipe can drive the moving rod and the moving rod, so that an apparatus rack on the moving plate can be extended out of a box body when a box cover is opened, make things convenient for medical personnel's use, and add the weight that box was placed in anesthesia that structures such as driving motor can be very big increase anesthesia in the case is placed to anesthesia, and the doctor still need use specific switch to place the case with anesthesia and open simultaneously, consequently produces the situation of damage when driving motor, has probably to lead to anesthesia to place the unable normally open situation of case and produces, and this anesthesia places the case and places the utensil of anesthesia usefulness together, is not convenient for the quick anesthetic utensil that finds need use of doctor.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the anesthesia apparatus placing box for the anesthesia department has the advantages that the weight of the box body can be prevented from being increased, the effect that a doctor can conveniently carry the box body and can quickly take anesthesia apparatuses for use is achieved, the problem that the weight of the anesthesia apparatus placing box can be greatly increased due to the fact that a driving motor and other structures are added into the anesthesia apparatus placing box is solved, meanwhile, the doctor needs to use a specific switch to open the anesthesia apparatus placing box, and therefore when the driving motor is damaged, the situation that the anesthesia apparatus placing box cannot be normally opened can be caused, the anesthesia apparatus placing box places the apparatuses for anesthesia together, and the problem that the doctor cannot conveniently and quickly find the anesthesia apparatus needed to be used is solved.
(II) technical scheme
In order to avoid the increase of the weight of the box body and achieve the effect that a doctor can conveniently carry the box body and can quickly take an anesthesia apparatus for use, the invention provides the following technical scheme: an anesthesia apparatus placing box for anesthesia department comprises a box body, wherein an inner groove is formed in the upper surface of the box body, a hinge is fixedly installed on the rear side surface of the box body, a cover plate is hinged to the box body through the hinge, a square annular plate is fixedly installed on one side, close to the box body, of the cover plate, a holding groove is formed in the surface, far away from the hinge, of the cover plate, anesthesia apparatus placing mechanisms for placing anesthesia apparatuses are arranged on two sides of the inner portion of the inner groove, a fixed column is included in each anesthesia apparatus placing mechanism, the fixed column is fixedly installed on the inner side wall surface of the inner groove, the length of the fixed column is identical to the width of the inner groove, a rectangular groove is formed in the surface of the inner side of the fixed column, a sterilization lamp is inlaid in the upper wall surface of the rectangular groove, a switch button is arranged above the sterilization lamp and is movably connected to the upper surface of, and each anesthesia apparatus placing mechanism is internally provided with an automatic switch mechanism which is convenient for automatic control of opening and closing.
Preferably, the front side and the rear side of the outer part of the appliance placing plate are both provided with a vertical plate, the two vertical plates are both connected inside the rectangular groove in a sliding way, the heights of the vertical plates are consistent with the heights in the rectangular grooves, the wall surfaces of the two vertical plates close to one side are respectively provided with a square groove, the inside of each square groove is connected with a pressing plate in a sliding way, and the lower end of each pressure plate is fixedly provided with two compression springs, one end of each compression spring, which is far away from the pressure plate, is fixedly arranged on the bottom wall surface in the square groove, and the ends of the two pressing plates close to each other are respectively and fixedly arranged on the front side and the rear side of the outer part of the appliance placing plate, the appliance placing plate is connected between the two vertical plates in a vertical sliding way through the two pressing plates, the appliance placing plate is connected inside the rectangular groove in a sliding way through two vertical plates, the lower surface of the appliance placing plate is provided with a tooth socket, and the tooth socket is positioned in the middle of the lower surface of the appliance placing plate, and the upper surface of the appliance placing plate is provided with an appliance placing groove.
Preferably, the activity groove has all been seted up to the both sides wall face in the rectangle inslot, and two activity grooves are the symmetry setting in the rectangle inslot, and the equal sliding connection in inside of every activity groove has the fly leaf, and the height of fly leaf is highly uniform with the activity inslot, and one side that two movable plates are close to respectively fixed mounting on two vertical boards keep away from one side surperficial mutually, and two risers are in the inside of rectangle inslot through two fly leaves sliding connection, and one side fixed mounting that the inside groove inner wall was kept away from to two risers has the closure plate, and the shape size of closure plate is the same with the shape size of rectangle inslot cross section.
Preferably, each automatic switch mechanism comprises a hollow groove and an L-shaped channel, the hollow groove is arranged on the bottom wall surface in the rectangular groove, the inside of the hollow groove is communicated with the left side of the outside of the fixed column, the L-shaped channel is arranged in the fixed column, the L-shaped channel is positioned on one side, close to the inner wall of the inner groove, in the fixed column, the L-shaped channel is arranged in an L shape, the lower part in the L-shaped channel is communicated with the inside of the hollow groove, a rotating shaft is arranged in the hollow groove, two ends of the rotating shaft are respectively and rotatably connected to two side wall surfaces in the hollow groove, a round tooth is fixedly arranged on the outside of the rotating shaft, the round tooth is rotatably connected to the inside of the hollow groove through the rotating shaft, a connecting rope is wound and fixed on the outside of the round tooth, one end, far away from the rotating shaft, of the connecting rope extends to the upper end of the fixed column through the inside of the L-shaped channel, the circular teeth are in meshed connection with the tooth grooves.
Preferably, the top in the L shape channel is provided with the pulley, and the dwang has been cup jointed to the inside of pulley, and the both ends of dwang are fixed mounting respectively on the both sides wall face in the L shape channel, and the pulley passes through the dwang and rotates the inside of connecting at L shape channel.
Preferably, each automatic switch mechanism also comprises a bottom groove, the bottom groove is arranged on the bottom wall of the inner groove, a round shaft is arranged inside the bottom groove, two ends of the round shaft are respectively and rotatably connected on two side wall surfaces in the bottom groove, a driving wheel is fixedly arranged outside the round shaft and is rotatably connected inside the bottom groove through the round shaft, and the round shaft and the rotating shaft are sleeved with a transmission crawler belt which is positioned at one side of the connecting rope far away from the round teeth, the transmission caterpillar band and the connecting rope are arranged in a staggered manner, the round shaft and the rotating shaft are synchronously connected in a transmission manner through the transmission caterpillar band, one side of the transmission wheel, which is far away from the rotating shaft, is provided with a rotating tooth, two ends of the rotating tooth are respectively connected in the bottom groove in a rotating manner, and the rotating teeth are meshed and connected with the outer part of the driving wheel, one side of the rotating teeth, which is far away from the driving wheel, is provided with a tooth column, the tooth column is connected with the inner part of the rotating shaft in a sliding way, and the tooth column is meshed and connected with the rotating teeth.
Preferably, the spacing groove has all been seted up to the both sides wall surface in the kerve, and the equal sliding connection in inside of every spacing groove has spacing post, and two spacing posts are fixed mounting respectively in the outside both sides of tooth post, and the tooth post is through the inside of two spacing post sliding connection at the kerve, and one side fixed mounting that the tooth post is close to the commentaries on classics tooth has the spreader, and the spreader is located the tooth post top, and the upper surface laminating of spreader is on the lower surface that the board was placed to the utensil.
Preferably, the both sides of box upper surface all are provided with the automatic supporting mechanism of the fixed apron of being convenient for, all include draw-in groove and spout in every automatic supporting mechanism, the draw-in groove is seted up on the upper surface of box, the spout is seted up on the apron is close to inside groove one side on the surface, and the inside swing joint of spout has the square column, one side that the square column upper end is close to the spout is provided with the gyro wheel, the gyro wheel rotates to be connected on one side that the square column is close to the spout, the one end swing joint that the spout was kept away from to the square column is in the inside of draw-in groove, the bar surface that apron one side was kept away from to the square column has seted up the standing groove, diapire fixed mounting in the standing groove.
Preferably, the cross slot has all been seted up to the inside both sides of draw-in groove, and the equal fixed mounting in inside of every cross slot has long post, and long post sets up in the cross slot and is the U font, and the inside of cross slot is provided with the round bar, and the both ends of round bar rotate respectively to be connected in the inside of two cross slots, and the round bar cup joints the inside of keeping away from spout one end at the square column.
(III) advantageous effects
Compared with the prior art, the invention provides an anesthesia apparatus placing box for an anesthesia department, which has the following beneficial effects:
1. this anesthesia department places case with anesthesia apparatus, place the mechanism with anesthesia apparatus through setting up automatic switch mechanism, when the doctor will lap and open on the box, can drive two apparatuses automatically and place the board and shift out anesthesia apparatus to the inside groove in two rectangular grooves, make the tooth post rise simultaneously and place the board with the apparatus and carry out the jacking to inside groove inside top, place the board simultaneously via setting up two symmetrical apparatuses, the doctor can place the board with different anesthesia apparatus classification in two apparatuses are placed in, thereby make the doctor take out anesthesia apparatus fast when opening the box, do not have the extra drive power of setting up simultaneously, can avoid the promotion of box weight, reach when being convenient for the doctor to carry, can take the effect that anesthesia apparatus used fast.
2. This anesthesia department places case with anesthesia apparatus, through holding hold the groove and rotate the apron on the box and open, and rotate the apron to be the right angle form with the box, can make two utensils place the board and take anesthesia to move out the rectangular inslot with the utensil, supply the doctor to take the use, reach the effect that the doctor can be faster take anesthesia apparatus use.
3. This anesthesia department places case with anesthesia utensil through setting up pivot and transmission track cooperation tooth post, when the circular tooth places the board with the utensil and removes out in the rectangular groove, tooth post and spreader are synchronous to place the board with the utensil and upwards jacking between two risers, and then can make the doctor more conveniently observe the position that anesthesia utensil placed the inboard at the utensil, it is more convenient to make the doctor take simultaneously.
4. This anesthesia department places case with anesthesia utensil through setting up spacing groove and spacing post, can guarantee the stability that the tooth post rises via spacing post slides in the spacing groove, cooperates the spreader simultaneously can avoid the utensil to place the board and rise and bear the unstable situation of gravity, and then reaches to guarantee that the utensil places the board and rise stable effect between two risers.
5. This anesthesia department places case with anesthesia utensil through setting up clamp plate and compression spring, places the board to the utensil through two square grooves and prescribes a limit to, prevents that the square groove from producing the situation of rocking about when rising, cooperates compression spring simultaneously and can alleviate the utensil and place the pressure that produces after placing anesthesia utensil in the board, and cooperation closed plate can place the board shrink when getting into the rectangular groove at the utensil, guarantees the inside leakproofness of rectangular groove.
6. This anesthesia department places case with anesthesia apparatus, through setting up draw-in groove and square column cooperation spout, when the apron rotates to be the right angle form with the box, can make the square column rise to the top in the spout automatically, square column, apron are three horn structures with the box this moment to it is the right angle form to stabilize the support on the box with the apron through the square column, avoids the apron to receive the situation of gravity whereabouts, the effectual convenience that improves when the doctor uses.
7. This anesthesia department places case with anesthesia apparatus, through setting up standing groove and extension spring, can be the right angle with apron and box are fixed, and when reclosing the apron on the box, the extension spring is the inside that the form block of rotation got into the standing groove this moment to can not produce the gap when making apron and box closed, and then the utilization efficiency of effectual improvement box inner space.
8. This anesthesia department places case with anesthesia apparatus through setting up the pulley and being connected the rope, carries out the auxiliary stay when the rebound to connecting the rope via the pulley and removes, can alleviate the damage that the rope received when upwards rotating of connecting, can change the direction when connecting the rope upward movement simultaneously, makes to connect the rope and can follow the apron and stretch to can guarantee to connect the normal work operation of rope.
9. This anesthesia department places case with anesthesia apparatus, through setting up apron and square ring board cooperation shift knob, can open the sterilamp again when the apron drives square ring board again and shift knob contact is pressed to anesthesia apparatus in the box is disinfected and is preserved, and can follow opening or closing of apron and control the switch situation of sterilamp voluntarily, can reach the effect that the maximize utilized the energy.
Drawings
FIG. 1 is a schematic perspective view of a closed case according to the present invention;

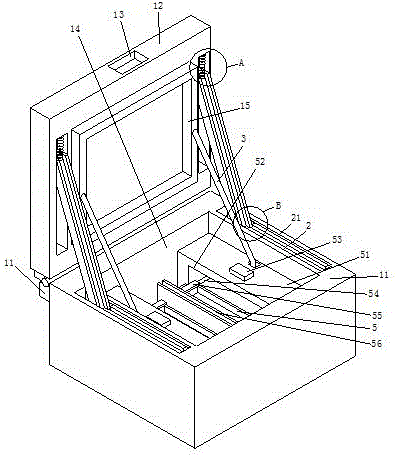

FIG. 2 is a schematic perspective view of the case of the present invention in an open state;
FIG. 3 is an enlarged view of a portion of FIG. 2A;
FIG. 4 is an enlarged view of a portion of FIG. 2 at B according to the present invention;
FIG. 5 is a front view, partially in section, of the housing of FIG. 2 in accordance with the present invention;
FIG. 6 is a schematic perspective view of the instrument placement board of FIG. 2 according to the present invention;
FIG. 7 is a side view, partially in section, of the hollow trough of FIG. 5 in accordance with the present invention.
In the figure: 1. a box body; 11. a hinge; 12. a cover plate; 13. a holding groove; 14. an inner tank; 15. a square ring plate; 2. an automatic support mechanism; 21. a card slot; 22. a square column; 23. a placement groove; 24. a chute; 25 rollers; 26. a round bar; 27. a transverse groove; 28. a long column; 29. a tension spring; 3. an automatic opening and closing mechanism; 31. an L-shaped channel; 32. connecting ropes; 33. a pulley; 34. an empty groove; 35. round teeth; 36. a rotating shaft; 37. a drive track; 38. a circular shaft; 39. a driving wheel; 41. rotating the teeth; 42. a limiting groove; 43. a limiting column; 44. a tooth post; 45. a cross post; 46. a bottom groove; 5. an anesthesia apparatus placement mechanism; 51. fixing a column; 52. a rectangular groove; 53. a switch button; 54. a movable groove; 55. a vertical plate; 56. a closing plate; 57. a square groove; 58. a movable plate; 59. an appliance placement plate; 61. an appliance placement slot; 62. a compression spring; 63. pressing a plate; 64. a tooth socket; 65. a sterilizing lamp.
Detailed Description
The present invention will be described in further detail with reference to the drawings, wherein like elements are designated by like reference numerals, wherein the terms "front", "rear", "left", "right", "upper" and "lower", "bottom" and "top" used in the following description refer to directions in the drawings, and the terms "inner" and "outer" refer to directions toward and away from, respectively, the geometric center of a particular element.
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides the following technical solutions: an anesthesia apparatus placing box for anesthesia department comprises a box body 1, an inner groove 14 is arranged on the upper surface of the box body 1, a hinge 11 is fixedly arranged on the rear side surface of the box body 1, the box body 1 is hinged with a cover plate 12 through the hinge 11, a square ring plate 15 is fixedly arranged on one side of the cover plate 12 close to the box body 1, a holding groove 13 is arranged on the surface of one side of the cover plate 12 far away from the hinge 11, anesthesia apparatus placing mechanisms 5 for placing anesthesia apparatuses are arranged on both sides of the inner part 14, a fixed column 51 is included in each anesthesia apparatus placing mechanism 5, the fixed column 51 is fixedly arranged on the inner side wall surface of the inner groove 14, the length of the fixed column 51 is the same as the width of the inner part 14, a rectangular groove 52 is arranged on the surface of the inner side of the fixed column 51, a sterilizing lamp 65 is inlaid on the upper wall surface of the rectangular groove 52, a switch button 53 is arranged above, and shift knob 53 is telecommunications connection with sterilamp 65, the inside sliding connection of rectangular groove 52 has the utensil to place board 59, and every anesthesia utensil places all to be provided with the automatic switch mechanism 3 that the automatic control of being convenient for opened and shut in the mechanism 5, when opening the apron 12 on the box 1, square ring board 15 and shift knob 53 phase separation, can close sterilamp 65 this moment, can reopen sterilamp 65 when apron 12 drives square ring board 15 again and shift knob 15 contact is pressed, thereby the anesthesia utensil to in the box 1 is disinfected and is preserved, and can follow opening or closing of apron 12 and automatically control the on-off situation of sterilamp 65, can reach the effect that the maximize utilized the energy.
The front side and the rear side of the outer part of the appliance placing plate 59 are both provided with a vertical plate 55, the two vertical plates 55 are both connected inside the rectangular groove 52 in a sliding manner, the height of the vertical plate 55 is consistent with that in the rectangular groove 52, the wall surface of one side, close to the two vertical plates 55, of each vertical plate 55 is provided with a square groove 57, the inner part of each square groove 57 is connected with a pressing plate 63 in a sliding manner, the lower end of each pressing plate 63 is fixedly provided with two compression springs 62, one ends, far away from the pressing plates 63, of the compression springs 62 are fixedly arranged on the bottom wall surface in the square grooves 57, the ends, close to the two pressing plates 63, of the two pressing plates 63 are respectively fixedly arranged on the front side and the rear side of the outer part of the appliance placing plate 59, the appliance placing plate 59 is connected between the two vertical plates 55 in a vertical sliding manner through the two vertical plates, the tooth grooves 64 are positioned in the middle of the lower surface of the appliance placing plate 59, the appliance placing groove 61 is formed in the upper surface of the appliance placing plate 59, the movable grooves 54 are formed in the two side wall surfaces in the rectangular groove 52, the two movable grooves 54 are symmetrically arranged in the rectangular groove 52, the movable plate 58 is connected to the inner part of each movable groove 54 in a sliding mode, the height of each movable plate 58 is consistent with that of the corresponding movable groove 54, the side, close to the two movable plates 58, of each movable plate 58 is fixedly arranged on the surface, far away from the side, of each vertical plate 55, the two vertical plates 55 are connected to the inner part of the rectangular groove 52 in a sliding mode through the two movable plates 58, the closing plate 56 is fixedly arranged on the side, far away from the inner wall of the inner groove 14, the closing plate 56 is the same as the shape and the size of the cross section in the rectangular groove 52, and the pressing plate 63 and the, the utensil is placed board 59 and can be driven clamp plate 63 and slide in two square grooves 57, places board 59 via two square grooves 57 to the utensil simultaneously and prescribes a limit to, prevents that square groove 57 from producing the situation of rocking about when rising, cooperates compression spring 62 simultaneously and can alleviate the utensil and place the pressure that produces after placing anesthesia utensil in the board 59, and cooperation closure plate 56 can be when the utensil is placed the board shrink and is got into rectangular groove 52, guarantees the inside leakproofness of rectangular groove 52.
Each automatic switch mechanism 3 comprises a hollow groove 34 and an L-shaped channel 31, the hollow groove 34 is arranged on the bottom wall surface in the rectangular groove 52, the inside of the hollow groove 34 is communicated with the left side outside the fixed column 51, the L-shaped channel 31 is arranged inside the fixed column 51, the L-shaped channel 31 is positioned on one side, close to the inner wall of the inner groove 14, in the fixed column 51, the L-shaped channel 31 is arranged in an L shape, the lower part in the L-shaped channel 31 is communicated with the inside of the hollow groove 34, a rotating shaft 36 is arranged inside the hollow groove 34, two ends of the rotating shaft 36 are respectively and rotatably connected to two side wall surfaces in the hollow groove 34, a round tooth 35 is fixedly arranged outside the rotating shaft 36, the round tooth 35 is rotatably connected inside the hollow groove 34 through the rotating shaft 36, a connecting rope 32 is wound and fixed outside the round tooth 35, one end, far away from the rotating shaft 36, extends to the upper end of the fixed column 51 through the inside of the L, and one end of the connecting rope 32 far from the rotating shaft 36 is fixedly connected to the surface of the square ring plate 15 close to one side of the inner groove 14, the round tooth 35 is meshed with the toothed groove 64, the holding groove 13 is held, the cover plate 12 is rotated and opened on the box body, the cover plate 12 is rotated to be right-angled to the box body 1, at the moment, the cover plate 12 drives the connecting rope 32 to stretch the rotating shaft 36, the rotating shaft 36 drives the round tooth 35 to rotate under the action of the winding and loosening force of the connecting rope 32 while the connecting rope 32 stretches, the round tooth 35 is meshed with the toothed groove 64 while rotating, so that the toothed groove 64 is driven to drive the appliance placing plate 59 and move the appliance placing plate 59 out of the rectangular groove 52, the appliance placing plate 59 is exposed in the inner groove 14, the appliance placing plates 59 on both sides are subjected to the operation, and the two appliance placing plates 59 are driven to move out of the rectangular groove 52 with the anesthesia appliance for taking by a doctor, the effect that the doctor can take the anesthesia apparatus for use more quickly is achieved.
Top in the L-shaped groove 31 is provided with pulley 33, the dwang has been cup jointed to pulley 33's inside, the both ends difference fixed mounting of dwang is on the both sides wall face in the L-shaped groove 31, pulley 33 rotates the inside of connecting at L-shaped groove 31 through the dwang, when connecting rope 32 and removing in L-shaped groove 31, carry out the auxiliary stay when the rebound to connecting rope 32 via pulley 33 and remove, can alleviate the damage that connects rope 32 and receive when upwards rotating, the direction when connecting rope 32 upward movement can be changed simultaneously, make and connect rope 32 and can follow apron 12 and stretch, thereby can guarantee the normal work operation of connecting rope 32.
Each automatic switch mechanism 3 also comprises a bottom groove 46, the bottom groove 46 is arranged on the bottom wall of the inner groove 14, a round shaft 38 is arranged inside the bottom groove 46, two ends of the round shaft 38 are respectively connected to two side wall surfaces in the bottom groove 46 in a rotating manner, a driving wheel 39 is fixedly arranged outside the round shaft 38, the driving wheel 39 is connected inside the bottom groove 46 in a rotating manner through the round shaft 38, a driving crawler 37 is sleeved on the round shaft 38 and the rotating shaft 36, the driving crawler 37 is positioned on one side of the connecting rope 32 far away from the round teeth 35, the driving crawler 37 and the connecting rope 32 are arranged in a staggered manner, the round shaft 38 and the rotating shaft 36 are in synchronous transmission connection through the driving crawler 37, a rotating tooth 41 is arranged on one side of the driving wheel 39 far away from the rotating shaft 36, two ends of the rotating tooth 41 are respectively connected inside the bottom groove 46 in a rotating manner, the rotating tooth 41 is meshed with the outside of the driving wheel 39, a tooth, the tooth post 44 is connected inside the rotating shaft 36 in a sliding manner, the tooth post 44 is connected with the rotating tooth 41 in a meshing manner, the two side wall surfaces in the bottom groove 46 are respectively provided with a limiting groove 42, the inside of each limiting groove 42 is connected with a limiting post 43 in a sliding manner, the two limiting posts 43 are respectively fixedly arranged at two sides of the outside of the tooth post 44, the tooth post 44 is connected inside the bottom groove 46 in a sliding manner through the two limiting posts 43, one side of the tooth post 44 close to the rotating tooth 41 is fixedly provided with a cross post 45, the cross post 45 is positioned above the tooth post 44, the upper surface of the cross post 45 is attached to the lower surface of the appliance placing plate 59, through the arrangement of the limiting grooves 42 and the limiting posts 43, when the tooth post 44 ascends in the bottom groove 46, the two limiting posts 43 move and ascend in the two limiting grooves 42, the ascending stability of the tooth post 44 can be ensured through the sliding of the limiting posts 43 in the limiting grooves 42, and the situation that the appliance placing plate 59 ascends, further, the effect of ensuring the stable rising of the instrument placing plate 59 between the two vertical plates 55 is achieved, by arranging the rotating shaft 36 and the transmission caterpillar 37 to be matched with the tooth posts, the rotating shaft 36 can drive the transmission caterpillar 37 to synchronously rotate while rotating, the transmission caterpillar 37 can drive the round shaft 38 to drive the transmission wheel 39 and the transmission caterpillar 37 to rotate in the same direction, the transmission wheel 39 is meshed with the rotary teeth 41 while rotating, the transmission wheel 39 drives the rotary teeth 41 to rotate, the rotary teeth 41 can rotate in the opposite rotating direction to the transmission wheel 39, and simultaneously the rotary teeth 41 can drive the tooth posts 44 to rise in the bottom groove 46 while the round teeth 35 move the instrument placing plate 59 out of the rectangular groove 52, the tooth posts 44 and the cross posts 45 rise synchronously, so that the instrument placing plate 59 is lifted upwards between the two vertical plates 55, and further a doctor can conveniently observe the position of the anesthesia instrument in the instrument placing plate 59, meanwhile, the doctor can take the medicine more conveniently.
The automatic supporting mechanisms 2 convenient for fixing the cover plate 12 are arranged on two sides of the upper surface of the box body 1, each automatic supporting mechanism 2 comprises a clamping groove 21 and a sliding groove 24, the clamping groove 21 is arranged on the upper surface of the box body 1, the sliding groove 24 is arranged on the surface of one side, close to the inner groove 14, of the cover plate 12, a square column 22 is movably connected inside the sliding groove 24, a roller 25 is arranged on one side, close to the sliding groove 24, of the upper end of the square column 22, the roller 25 is rotatably connected to one side, close to the sliding groove 24, of the square column 22, one end, far away from the sliding groove 24, of the square column 22 is movably connected inside the clamping groove 21, a placing groove 23 is arranged on the bar surface of one side, far away from the cover plate 12, a tension spring 29 is fixedly arranged on the bottom wall inside the placing groove 23, one end, far away from the placing groove 23, of the tension spring 29 is fixedly arranged on the, at this time, the tension spring 29 will pull the end of the square column 22 far from the cover plate 12 to slide on the upper surface of the long column 28, and the round bar 26 slides to the side of the long column 28 close to the cover plate 12, at this time, the cover plate 12 and the box body 1 can be fixed to be a right angle, and when the cover plate 12 is closed on the box body 1 again, the tension spring 29 is in a rotating shape to be clamped into the inside of the placing groove 23, so that no gap is generated when the cover plate 12 and the box body 1 are closed, and the utilization efficiency of the space in the box body 1 is effectively improved.
The inside both sides of draw-in groove 21 all seted up the transverse groove 27, the inside all fixed mounting of every transverse groove 27 has long post 28, long post 28 sets up in transverse groove 27 and is the U-shaped, the inside of transverse groove 27 is provided with round bar 26, the both ends of round bar 26 rotate respectively and connect in the inside of two transverse grooves 27, and round bar 26 cup joints the inside of the square column 22 one end of keeping away from spout 24, through setting up draw-in groove 21 and square column cooperation spout 24, when apron 12 rotates to be the right angle form with box 1, through driving round bar 26 with square column 22 and moving to the one side that is close to apron 12 in the inside of transverse groove 27, and block round bar 26 on one side that long post 28 is close to apron 12, the upper end of square column 22 receives extension spring 29 to produce the tensile force simultaneously, rise to the top in spout 24 automatically, square column 22 this moment, apron 12 is the triangle-shaped structure with box 1, thereby stabilize apron 12 on box 1 through square column 22 and support and be the right angle form, the cover plate 12 is prevented from falling under the gravity, and the convenience of a doctor in use is effectively improved.
When in use, the utility model is used,
first step, when opening through with apron 12 on the box 1, square ring board 15 and shift knob 53 phase separation, can close sterilamp 65 this moment, can open sterilamp 65 again when apron 12 drives square ring board 15 and shift knob 15 contact again and presses, thereby to the anesthesia ware in the box 1 sterilization save, and can follow opening or closing of apron 12 and automatically control the on-off situation of sterilamp 65, can reach the effect that the maximize utilized the energy.
Second step, through setting up clamp plate 63 and compression spring 62, when the utensil is placed board 59 and is risen between two risers, the utensil is placed board 59 and can be driven clamp plate 63 and slide in two square grooves 57, place board 59 via two square grooves 57 and prescribe a limit to the utensil simultaneously, prevent that square groove 57 from producing the situation of rocking about rising, cooperation compression spring 62 can alleviate the utensil and place the pressure that produces in the board 59 after placing anesthesia utensil simultaneously, and cooperation closure plate 56 can be when the board shrink gets into rectangular groove 52 is placed to the utensil, guarantee the inside leakproofness of rectangular groove 52.
Third, hold groove 13 and rotate the apron 12 on the box and open through holding, and rotate apron 12 to be the right angle form with box 1, apron 12 drives and connects rope 32 and stretch to pivot 36 this moment, pivot 36 receives the effort that connects rope 32 winding and loosen when connecting rope 32 is tensile and drives circular tooth 35 and rotate, circular tooth 35 meshes with tooth's socket 64 when rotating, thereby drive tooth's socket 64 and make utensil place board 59 and move utensil place board 59 out of rectangular groove 52, make utensil place board 59 expose in the inside of inner groove 14, the utensil place board 59 of both sides is all carried out this operation, thereby make two utensil place boards 59 take anesthetic utensil to move out of rectangular groove 52 with the area, supply the doctor to take the use, reach the effect that the doctor can more quick take anesthetic utensil and use.
The fourth step, carry out the auxiliary stay through pulley 33 to connecting rope 32 and remove when upwards moving, can alleviate the damage that connects rope 32 and receive when upwards rotating, can change the direction when connecting rope 32 upward movement simultaneously, make to connect rope 32 and can follow apron 12 and stretch to can guarantee to connect the normal work operation of rope 32.
Fifthly, through setting up spacing groove 42 and spacing post 43, when the tooth post 44 rose in the kerve 46, two spacing posts 43 moved in two spacing grooves 42 and rose, slided in spacing groove 42 via spacing post 43 and can guarantee the stability that the tooth post 44 rose, cooperation spreader 45 can avoid the utensil to place board 59 and rise and bear the unstable situation of gravity simultaneously, and then reach and guarantee that the utensil places board 59 stable effect that rises between two risers 55.
Sixthly, through setting up pivot 36 and transmission track 37 cooperation tooth post, pivot 36 can drive transmission track 37 and also carry out synchronous rotation when rotating, transmission track 37 can make drive round axle 38 make drive wheel 39 and transmission track 37 carry out the rotation of equidirectional, drive wheel 39 meshes with bull gear 41 when rotating, drive wheel 39 drives bull gear 41 and rotates and can make bull gear 41 be the rotation direction opposite with drive wheel 39 and rotate, and bull gear 41 rotates simultaneously and can drive tooth post 44 and rise in the inside of kerve 46, when round tooth 35 places board 59 removal of utensil out of rectangular groove 52, tooth post 44 and heel 45 rise in step, thereby place board 59 with the utensil and upwards lift up between two risers 55, and then can make the doctor more conveniently observe the position of anesthesia utensil in board 59 is placed to the utensil, make the doctor take more convenient simultaneously.
Seventhly, through setting up standing groove 23 and extension spring 29, when the doctor is placing round bar 26 on long post 28, extension spring 29 will stimulate square column 22 and keep away from the one end of apron 12 and slide on long post 28 upper surface this moment, and make round bar 26 landing to long post 28 be close to on one side of apron 12, can be the right angle with the box 1 is fixed this moment, and when reclosing apron 12 on box 1, extension spring 29 is the inside that the form block got into standing groove 23 of rotating this moment, thereby can not produce the gap when making apron 12 and box 1 closed, and then the utilization efficiency of effectual improvement box 1 inner space.
Eighth step, through setting up draw-in groove 21 and square column cooperation spout 24, when apron 12 rotates to be the right angle form with box 1, move to one side that is close to apron 12 in the inside of cross slot 27 through driving square column 22, and with round rod 26 block on one side that long post 28 is close to apron 12, square column 22's upper end receives extension spring 29 to produce the tensile force simultaneously, the top in automatic rising to spout 24, square column 22 this moment, apron 12 is three horn structure with box 1, thereby it is the right angle form to stabilize apron 12 on box 1 through square column 22, avoid apron 12 to receive the situation of gravity whereabouts, the effectual convenience that improves when the doctor uses.
