Abstract
The invention provides a container of a sanitation garbage truck, which comprises a container door, a crushing box body structure and universal wheels, wherein the container door is hinged with the crushing box body structure, the crushing and filtering structure is arranged, waste plastic products are crushed by a crushing knife, after crushing, the up-to-standard waste products can fall into a collecting cavity structure from a filter screen frame, so that the waste products can be prevented from occupying a large amount of space due to overlarge volume, and the collecting cavity structure is arranged, so that when the waste products fall into a collecting cavity shell, a filter screen layer can vibrate under the action of a vibrator, so that plastic powder above the filter screen layer falls onto the bottom of the collecting cavity shell, the phenomena that hands are pricked by the plastic powder and the like when the crushed products are collected are avoided, and the container can be automatically reset under the action of a pull rope after the throwing force of a knife rest and the crushing knife is lost through the crushing rod structure, therefore, the waste plastic products are prevented from being scratched by the crushing knife when being placed into the box body.
Description
Technical Field
The invention relates to the technical field of environmental protection, in particular to a container of an environmental sanitation garbage truck.
Background
Garbage is the most common thing in our lives, and the kinds of garbage are also very many, and can be classified into recyclable garbage, non-recyclable garbage, harmful substances, etc., and once the garbage is not properly treated, the environment will be polluted, but when some plastic garbage is recycled, the volume is large, for example: the plastic barrel, the plastic bookshelf and the like occupy a large amount of space when being placed into the garbage can, and a large amount of gaps are formed between objects, so that the space of the garbage can cannot be effectively utilized.
Disclosure of the invention technical problem (1)
Aiming at the defects of the prior art, the invention provides a container of a sanitation garbage truck, which solves the problems that when some plastic garbage is recycled, the volume is large, for example: the plastic barrel, the plastic bookshelf and the like occupy a large amount of space when being placed into the garbage can, and a large amount of gaps are generated between objects, so that the space of the garbage can cannot be effectively utilized.
(II) technical scheme
In order to achieve the purpose, the invention is realized by the following technical scheme: the utility model provides a sanitation garbage truck packing box, its structure includes chamber door, crushing box structure, universal wheel, chamber door and crushing box structure hinged joint, install in crushing box structure bottom and mechanical connection in universal wheel upper end, crushing box structure includes belt, motor, collects chamber structure, box, crushing filtration, the motor is connected with crushing filtration through the belt, the motor bottom is installed in the box bottom and mechanical connection, it places in the box bottom to collect the chamber structure, crushing filtration installs in the box inside, it is located under crushing filtration to collect the chamber structure.
As preferred, smash filtration structure and include electric lift, supplementary lifter, clamp plate frame structure, crushing pole structure, filter screen frame, the electric lift lower extreme welds mutually with clamp plate frame structure upper end, supplementary lifter distributes in the electric lift both sides, and supplementary lifter lower extreme welds mutually with clamp plate frame structure upper end, crushing pole structure both ends run through in filter screen frame lateral wall, clamp plate frame structure is directly over the filter screen frame, supplementary lifter is equipped with four altogether.
Preferably, pressure grillage structure includes magnetic sheet, overhead gage, recess, side shield, the embedding of magnetic sheet upper end is installed in the side shield and is bonded through glue solution, recess and side shield integrated configuration, the magnetic sheet is equipped with two altogether, and the magnetic sheet all has stronger magnetism.
Preferably, the two sides of the upper baffle are provided with side baffles which are connected through hinges, and the included angle between the bottom surface of the upper baffle and one end of each side baffle close to the upper baffle ranges from 140 degrees to 160 degrees.
Preferably, the crushing rod structure comprises a cutter rest rod, a middle shaft rod, a crushing cutter structure and a double-groove belt pulley, wherein the middle shaft rod is welded on two sides of the cutter rest rod, the middle shaft rod is installed in the double-groove belt pulley in a penetrating mode, and the crushing cutter structure is installed on the cutter rest rod in an embedded mode.
Preferably, the crushing cutter structure comprises a cutter frame seat, a pull rope, a fixing block, a connecting clamping block, a limiting sliding block and a crushing cutter, wherein the crushing cutter is installed above the cutter frame seat, the lower end of the cutter frame seat is welded with the upper end of the connecting clamping block, the cutter frame seat and the limiting sliding block are of an integrated structure, and the outer ring of the crushing cutter is of a sharp-pointed end structure, so that the crushing cutter can better crush waste plastic products.
Preferably, the fixed block is connected with the connecting clamping block through a pull rope, the pull rope is buckled on the fixed block, and the pull rope is made of rubber materials.
Preferably, the collecting cavity structure comprises a filter screen layer, a vibrator, a collecting cavity shell and a supporting foot frame, the filter screen layer is arranged above the supporting foot frame and bonded with the supporting foot frame, the upper end of the vibrator is mechanically connected with the middle lower end of the filter screen layer, the supporting foot frame is arranged in the collecting cavity shell, and the supporting foot frame is made of rubber materials.
(III) advantageous effects
The invention provides a container of a sanitation garbage truck. The method has the following beneficial effects:
1. according to the invention, the crushing and filtering structure is arranged, the double-groove belt pulley is driven to rotate by the belt on the motor, so that the cutter frame rod rotates together with the double-groove belt pulley under the driving of the double-groove belt pulley, when the cutter frame rod rotates, the cutter frame seat and the crushing cutter are thrown out under the action of the rotating force, the internal pull rope is stretched, the crushing cutter is used for impacting and crushing the waste plastic products, and after crushing, the waste products reaching the standard fall into the collecting cavity structure from the filter screen frame, so that the phenomenon that the waste products occupy a large amount of space due to overlarge volume can be avoided.
2. According to the invention, by arranging the collecting cavity structure, when the plastic powder falls into the collecting cavity shell, the filter screen layer can vibrate under the action of the vibrator, so that the plastic powder above the filter screen layer falls onto the bottom of the collecting cavity shell, and the phenomenon that the plastic powder pricks hands when a crushed product is collected is avoided.
3. According to the invention, the crushing rod structure is arranged, after crushing is finished, the motor is turned off, and when the knife rest seat and the crushing knife lose the throwing force, the crushing knife can be automatically reset under the action of the pulling force of the pulling rope, so that the crushing knife is retracted into the knife rest rod, and the crushing knife is prevented from scratching waste plastic products when the waste plastic products are placed in the box body.
Drawings
FIG. 1 is a schematic view of a container of a sanitation truck according to the present invention;
FIG. 2 is a front view of the crushing box of the present invention;
FIG. 3 is a schematic front view of a pulverizing filter arrangement according to the present invention;

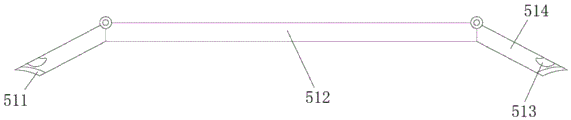

FIG. 4 is a schematic structural view of a platen frame according to the present invention in front view;
FIG. 5 is a schematic structural view of a crushing rod according to the present invention in a front view;
FIG. 6 is a front view of the crushing blade of the present invention;
fig. 7 is a structural schematic diagram of the collecting cavity in a front view.
In the figure: a box door-1, a crushing box body structure-2, a universal wheel-3, a belt-21, a motor-22, a collecting cavity structure-23, a box body-24, a crushing and filtering structure-25, an electric lifter-251, an auxiliary lifting rod-252, a pressure plate frame structure-253, a crushing rod structure-254, a filter screen frame-255, a magnetic plate-511, an upper baffle-512, a groove-513, a side baffle-514, a knife rest rod-541, a middle shaft rod-542, a crushing knife structure-543, a double-groove belt pulley-544, a knife rest seat-431, a pull rope-432, a fixed block-433, a connecting block-434, a limiting slide block-435, a crushing knife-436, a filter screen layer-231, a vibrator-232, a collecting cavity shell-233, a motor-22, a collecting cavity structure-, A supporting foot stand-234.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in figures 1 to 7:
example 1
The embodiment of the invention provides a container of a sanitation garbage truck, which structurally comprises a container door 1, a crushing box body structure 2 and a universal wheel 3, wherein the container door 1 is hinged with the crushing box body structure 2, the upper end of the universal wheel 3 is installed at the bottom of the crushing box body structure 2 and is mechanically connected with the crushing box body structure, the crushing box body structure 2 comprises a belt 21, a motor 22, a collection cavity structure 23, a box body 24 and a crushing and filtering structure 25, the motor 22 is connected with the crushing and filtering structure 25 through the belt 21, the bottom of the motor 22 is installed at the inner bottom of the box body 24 and is mechanically connected with the inner bottom of the box body 24, the collection cavity structure 23 is placed at the inner bottom of the box body 24, the crushing and filtering structure 25 is installed inside the box body 24.
Wherein, smash filtration 25 and include electric lift 251, supplementary lifter 252, pressure plate frame structure 253, smash pole structure 254, filter screen frame 255, electric lift 251 lower extreme welds mutually with pressure plate frame structure 253 upper end, supplementary lifter 252 distributes in electric lift 251 both sides, and supplementary lifter 252 lower extreme welds mutually with pressure plate frame structure 253 upper end, smash pole structure 254 both ends and run through in filter screen frame 255 lateral wall, pressure plate frame structure 253 is directly over filter screen frame 255, supplementary lifter 252 is equipped with four altogether, and all is used for supplementary pressure plate frame structure 253 to carry out the effect of going up and down.
Wherein, pressure grillage structure 253 includes magnetic sheet 511, last baffle 512, recess 513, side shield 514, the embedding of magnetic sheet 511 upper end is installed in side shield 514 and is bonded through glue solution, recess 513 and side shield 514 integrated configuration, magnetic sheet 511 is equipped with two altogether, and magnetic sheet 511 all has stronger magnetism, causes the side shield 514 bottom can adsorb on filter screen frame 255 effectively.
The two sides of the upper baffle plate 512 are provided with side baffle plates 514 and are connected through hinges, the included angle between the bottom surface of the upper baffle plate 512 and one end of the side baffle plate 514 close to the upper baffle plate 512 is 140-160 degrees, and the upper baffle plate 512 is used for separating scraps to splash out when the upper baffle plate is used for crushing.
The crushing rod structure 254 comprises a knife rest rod 541, a middle shaft rod 542, a crushing knife structure 543 and a double-groove belt pulley 544, wherein the middle shaft rod 542 is welded on two sides of the knife rest rod 541, the middle shaft rod 542 is installed in the double-groove belt pulley 544 in a penetrating manner, and the crushing knife structure 543 is installed on the knife rest rod 541 in an embedded manner.
The crushing knife structure 543 comprises a knife rest seat 431, a pull rope 432, a fixing block 433, a connecting clamping block 434, a limiting sliding block 435 and a crushing knife 436, the crushing knife 436 is installed above the knife rest seat 431, the lower end of the knife rest seat 431 is welded with the upper end of the connecting clamping block 434, the knife rest seat 431 and the limiting sliding block 435 are of an integrated structure, and the outer ring of the crushing knife 436 is of a sharp-pointed end structure, so that waste plastic products can be crushed better.
The fixed block 433 is connected with a connecting fixture block 434 through a pull rope 432, the pull rope 432 is buckled on the fixed block 433, and the pull rope 432 is made of rubber and used for assisting the knife rest base 431 to reset.
The specific working process is as follows:
when plastic waste products such as plastic barrels, plastic book shelves and the like are treated, firstly, the electric lifter 251 is controlled to operate, the electric lifter 251 drives the upper baffle 512 to move upwards, the upper baffle 512 moves upwards stably under the action of the auxiliary lifting rod 252, the box door 1 is opened, the side baffle 514 is also opened, the waste plastic products are placed between the pressure plate frame structure 253 and the filter screen frame 255, after the waste products are placed, the electric lifter 251 is controlled to operate to drive the upper baffle 512 to move downwards, the motor 22 is started to operate, the double-groove belt pulley 544 is driven to rotate by the belt 21 on the motor 22, the knife rest bar 541 rotates along with the double-groove belt pulley 544, when the knife rest bar 541 rotates, the knife rest seat 431 and the crushing knife 436 are thrown out under the action of the rotating force, the pull rope 432 inside is stretched, the waste plastic products are impacted and crushed by the crushing knife 436, after the crushing, up to standard waste products will drop from filter screen frame 255 to inside collecting cavity structure 23, after the crushing, close motor 22 operation, after knife rest seat 431 and crushing sword 436 lose the whipping force, will be automatic re-setting under the pulling force effect of stay cord 432, cause crushing sword 436 to go in retracting knife rest rod 541, with this avoid putting into box 24 inside with waste plastic products, crushing sword 436 is with its fish tail, with this can avoid waste products volume too big, and occupy a large amount of spaces.
Example 2
The embodiment of the invention provides a container of a sanitation garbage truck, which structurally comprises a container door 1, a crushing box body structure 2 and a universal wheel 3, wherein the container door 1 is hinged with the crushing box body structure 2, the upper end of the universal wheel 3 is installed at the bottom of the crushing box body structure 2 and is mechanically connected with the crushing box body structure, the crushing box body structure 2 comprises a belt 21, a motor 22, a collection cavity structure 23, a box body 24 and a crushing and filtering structure 25, the motor 22 is connected with the crushing and filtering structure 25 through the belt 21, the bottom of the motor 22 is installed at the inner bottom of the box body 24 and is mechanically connected with the inner bottom of the box body 24, the collection cavity structure 23 is placed at the inner bottom of the box body 24, the crushing and filtering structure 25 is installed inside the box body 24.
Wherein, smash filtration 25 and include electric lift 251, supplementary lifter 252, pressure plate frame structure 253, smash pole structure 254, filter screen frame 255, electric lift 251 lower extreme welds mutually with pressure plate frame structure 253 upper end, supplementary lifter 252 distributes in electric lift 251 both sides, and supplementary lifter 252 lower extreme welds mutually with pressure plate frame structure 253 upper end, smash pole structure 254 both ends and run through in filter screen frame 255 lateral wall, pressure plate frame structure 253 is directly over filter screen frame 255, supplementary lifter 252 is equipped with four altogether, and all is used for supplementary pressure plate frame structure 253 to carry out the effect of going up and down.
Wherein, pressure grillage structure 253 includes magnetic sheet 511, last baffle 512, recess 513, side shield 514, the embedding of magnetic sheet 511 upper end is installed in side shield 514 and is bonded through glue solution, recess 513 and side shield 514 integrated configuration, magnetic sheet 511 is equipped with two altogether, and magnetic sheet 511 all has stronger magnetism, causes the side shield 514 bottom can adsorb on filter screen frame 255 effectively.
The two sides of the upper baffle plate 512 are provided with side baffle plates 514 and are connected through hinges, the included angle between the bottom surface of the upper baffle plate 512 and one end of the side baffle plate 514 close to the upper baffle plate 512 is 140-160 degrees, and the upper baffle plate 512 is used for separating scraps to splash out when the upper baffle plate is used for crushing.
The crushing rod structure 254 comprises a knife rest rod 541, a middle shaft rod 542, a crushing knife structure 543 and a double-groove belt pulley 544, wherein the middle shaft rod 542 is welded on two sides of the knife rest rod 541, the middle shaft rod 542 is installed in the double-groove belt pulley 544 in a penetrating manner, and the crushing knife structure 543 is installed on the knife rest rod 541 in an embedded manner.
The crushing knife structure 543 comprises a knife rest seat 431, a pull rope 432, a fixing block 433, a connecting clamping block 434, a limiting sliding block 435 and a crushing knife 436, the crushing knife 436 is installed above the knife rest seat 431, the lower end of the knife rest seat 431 is welded with the upper end of the connecting clamping block 434, the knife rest seat 431 and the limiting sliding block 435 are of an integrated structure, and the outer ring of the crushing knife 436 is of a sharp-pointed end structure, so that waste plastic products can be crushed better.
The fixed block 433 is connected with a connecting fixture block 434 through a pull rope 432, the pull rope 432 is buckled on the fixed block 433, and the pull rope 432 is made of rubber and used for assisting the knife rest base 431 to reset.
The collecting cavity structure 23 includes a filter screen layer 231, a vibrator 232, a collecting cavity shell 233 and a supporting foot frame 234, the filter screen layer 231 is mounted above and bonded to the supporting foot frame 234, the upper end of the vibrator 232 is mechanically connected to the middle and lower ends of the filter screen layer 231, the supporting foot frame 234 is mounted inside the collecting cavity shell 233, and the supporting foot frame 234 is made of rubber and is used for reducing and buffering the vibration force generated by the vibrator 232.
The specific working process is as follows:
when plastic waste products such as plastic barrels, plastic book shelves and the like are treated, firstly, the electric lifter 251 is controlled to operate, the electric lifter 251 drives the upper baffle 512 to move upwards, the upper baffle 512 moves upwards stably under the action of the auxiliary lifting rod 252, the box door 1 is opened, the side baffle 514 is also opened, the waste plastic products are placed between the pressure plate frame structure 253 and the filter screen frame 255, after the waste products are placed, the electric lifter 251 is controlled to operate to drive the upper baffle 512 to move downwards, the motor 22 is started to operate, the double-groove belt pulley 544 is driven to rotate by the belt 21 on the motor 22, the knife rest bar 541 rotates along with the double-groove belt pulley 544, when the knife rest bar 541 rotates, the knife rest seat 431 and the crushing knife 436 are thrown out under the action of the rotating force, the pull rope 432 inside is stretched, the waste plastic products are impacted and crushed by the crushing knife 436, after the crushing, the waste products which reach the standard will fall into the collecting cavity structure 23 from the filter screen frame 255, after the crushing is finished, the motor 22 is turned off, after the knife rest seat 431 and the crushing knife 436 lose the throwing force, the waste products will automatically reset under the pulling force of the pulling rope 432, so that the crushing knife 436 goes in the knife rest retracting rod 541, the waste plastic products are prevented from being placed into the box body 24, the crushing knife 436 scratches the waste plastic products, the vibrator 232 is started to operate, when the waste plastic products fall into the collecting cavity shell 233, the filter screen layer 231 vibrates under the action of the vibrator 232, the plastic powder above the filter screen layer 231 falls to the bottom of the collecting cavity shell 233, and the phenomena that the hands are pricked by the plastic powder and the like are avoided when the crushed products are collected.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a sanitation garbage truck packing box, its structure includes chamber door (1), crushing box structure (2), universal wheel (3), chamber door (1) and crushing box structure (2) hinged joint, install in crushing box structure (2) bottom and mechanical connection its characterized in that in universal wheel (3) upper end:
smash box structure (2) including belt (21), motor (22), collect chamber structure (23), box (24), smash filtration (25), motor (22) are connected with smash filtration (25) through belt (21), bottom and mechanical connection in box (24) are installed to motor (22) bottom, collect chamber structure (23) and place bottom in box (24), smash filtration (25) and install inside box (24), it is located smash filtration (25) under to collect chamber structure (23).
2. The sanitation garbage truck container of claim 1, wherein: smash filtration (25) including electronic riser (251), supplementary lifter (252), clamp plate frame structure (253), crushing rod structure (254), filter screen frame (255), electronic riser (251) lower extreme welds mutually with clamp plate frame structure (253) upper end, supplementary lifter (252) distribute in electronic riser (251) both sides, and supplementary lifter (252) lower extreme welds mutually with clamp plate frame structure (253) upper end, crushing rod structure (254) both ends are run through in filter screen frame (255) lateral wall, clamp plate frame structure (253) are directly over filter screen frame (255).
3. The sanitation garbage truck container of claim 2, wherein: the pressure plate frame structure (253) comprises a magnetic plate (511), an upper baffle (512), a groove (513) and a side baffle (514), wherein the upper end of the magnetic plate (511) is embedded in the side baffle (514) and is bonded through glue solution, and the groove (513) and the side baffle (514) are integrated.
4. The sanitation garbage truck container of claim 3, wherein: the two sides of the upper baffle (512) are provided with side baffles (514) which are connected through hinges, and the included angle range between the bottom surface of the upper baffle (512) and one end of the side baffle (514) close to the upper baffle (512) is between 140 and 160.
5. The sanitation garbage truck container of claim 2, wherein: the crushing rod structure (254) comprises a knife rest rod (541), a middle shaft rod (542), a crushing knife structure (543) and a double-groove belt pulley (544), wherein middle shaft rods (542) are welded on two sides of the knife rest rod (541), the middle shaft rods (542) are installed in the double-groove belt pulley (544) in a penetrating mode, and the crushing knife structure (543) is installed on the knife rest rod (541) in an embedded mode.
6. The sanitation garbage truck container of claim 5, wherein: broken sword structure (543) include tool rest seat (431), stay cord (432), fixed block (433), connect fixture block (434), spacing slider (435), broken sword (436), install in tool rest seat (431) top, tool rest seat (431) lower extreme and connection fixture block (434) upper end weld mutually, tool rest seat (431) and spacing slider (435) structure as an organic whole.
7. The sanitation garbage truck container of claim 6, wherein: the fixed block (433) is connected with a connecting fixture block (434) through a pull rope (432), and the pull rope (432) is buckled on the fixed block (433).
8. The sanitation garbage truck container of claim 1, wherein: the collecting cavity structure (23) comprises a filter screen layer (231), a vibrator (232), a collecting cavity shell (233) and a supporting foot frame (234), wherein the filter screen layer (231) is arranged above the supporting foot frame (234) and is bonded with the supporting foot frame, the upper end of the vibrator (232) is mechanically connected with the middle lower end of the filter screen layer (231), and the supporting foot frame (234) is arranged inside the collecting cavity shell (233).
