The invention discloses a construction supporting device of a steel rail telescopic regulator, which comprises: the left fixing piece and the right fixing piece are oppositely arranged; the left supporting unit and the right supporting unit are arranged oppositely, the left supporting unit and the right supporting unit are both provided with a unilateral steel rail telescopic regulator fixing groove, the left supporting unit is connected to the left fixing piece, the left supporting unit can reciprocate relative to the left fixing piece along the horizontal direction, the right supporting unit is connected to the right fixing piece, and the right supporting unit can reciprocate relative to the right fixing piece along the horizontal direction; and the first transverse connecting rod is arranged between the left supporting unit and the right supporting unit, two ends of the first transverse connecting rod are respectively connected with the left supporting unit and the right supporting unit, and the length of the first transverse connecting rod is adjustable. The invention also provides a construction system of the steel rail telescopic regulator. The supporting device of the invention aims to improve the laying precision of the steel rail telescopic regulator.
Description
Technical Field
The invention relates to the technical field of steel rail telescopic adjusters, in particular to a construction supporting device and a construction system of a steel rail telescopic adjuster.
Background
Rail expansion adjusters are one of the important track components of a railway. The traditional rail expansion adjuster is a non-use rail structure and is usually laid on a sleeper through hoisting. At present, the universal steel rail telescopic regulator supporting die is lacked, the steel rail telescopic regulator is deformed during hoisting in the construction process, the precision is not convenient to adjust during laying, the precision of the steel rail telescopic regulator after the fastener is installed is not up to standard, and the telescopic regulation of the steel rail telescopic regulator per se is influenced.
Disclosure of Invention
The invention mainly aims to provide a construction supporting device and a construction system for a steel rail telescopic regulator, and aims to solve the technical problem of low construction precision caused by no support when the steel rail telescopic regulator is laid in the prior art.
In order to achieve the above object, the present invention provides a construction supporting device for a rail expansion and contraction adjuster, comprising:
the left fixing piece and the right fixing piece are oppositely arranged;
the left supporting unit and the right supporting unit are arranged oppositely, the left supporting unit and the right supporting unit are both provided with a single-side steel rail telescopic regulator fixing groove, the left supporting unit is connected to the left fixing piece, the left supporting unit can reciprocate relative to the left fixing piece along the horizontal direction, the right supporting unit is connected to the right fixing piece, and the right supporting unit can reciprocate relative to the right fixing piece along the horizontal direction; and
the first transverse connecting rod is arranged between the left supporting unit and the right supporting unit, two ends of the first transverse connecting rod are respectively connected with the left supporting unit and the right supporting unit, and the length of the first transverse connecting rod is adjustable.
Optionally, the method further includes:
the second transverse connecting rod is arranged between the left supporting unit and the left fixing piece, two ends of the second transverse connecting rod are respectively connected with the left supporting unit and the left fixing piece, and the length of the second transverse connecting rod is adjustable.
Optionally, the method further includes:
the third transverse connecting rod is arranged between the right supporting unit and the right fixing piece, two ends of the third transverse connecting rod are respectively connected with the right supporting unit and the right fixing piece, and the length of the third transverse connecting rod is adjustable;
wherein the third transverse connecting rod is parallel to the axis of the second transverse connecting rod.
Optionally, the left supporting unit and the right supporting unit both include:
the supporting piece is movably connected to the left fixing piece or the right fixing piece along the horizontal direction; and
an adjuster tray movably disposed in the supporter in a vertical direction, and having the one-side rail expansion adjuster fixing groove.
Optionally, the supporting member is movably disposed on the supporting surface along the horizontal direction;
one end of the supporting piece is connected with the left fixing piece or the right fixing piece, and the other end of the supporting piece is connected with the first transverse connecting piece.
Optionally, the supporting member is a screw rod, the screw rod is in threaded connection with the regulator tray along the vertical direction, and the bottom end of the screw rod is movably connected with the supporting surface.
Optionally, the left fixture comprises a base support tripod, the base support tripod being fixedly connected to the ground;
the right fixing piece comprises a protection wall hook which is fixedly connected to the protection wall.
In a second aspect, the present invention further provides a rail expansion and contraction adjuster construction system for fixing a rail expansion and contraction adjuster in laying construction, comprising:
a hanger device suspending the rail expansion adjuster; and
at least 2 groups of steel rail telescopic regulator construction supporting devices, wherein the unilateral part of the steel rail telescopic regulator is fixed in a unilateral steel rail telescopic regulator fixing groove of the steel rail telescopic regulator construction supporting device, and the at least 2 groups of steel rail telescopic regulator construction supporting devices are arranged along the length direction of the steel rail telescopic regulator at intervals.
Optionally, the method further includes:
and the canopy device is movably arranged on the steel rail telescopic regulator to cover the steel rail telescopic regulator.
Optionally, the spreader apparatus includes:
the portal frame is arranged on the ground; and
the carrying pole beam hanger is arranged on a cross beam of the portal frame;
wherein, the steel rail telescopic regulator is detachably connected with the shoulder pole beam hanger.
According to the construction supporting device for the steel rail telescopic regulator, provided by the technical scheme of the invention, the single-side part of the steel rail telescopic regulator is respectively fixed through the left supporting unit and the right supporting unit which are oppositely arranged, and then the left supporting unit and the right supporting unit are moved on the corresponding left fixing piece or right fixing piece to realize the integral movement of the left supporting unit and the right supporting unit, namely the integral left-right adjustment of the steel rail telescopic regulator is realized. In addition, the embodiment of the invention realizes the adjustment of the space between the sleepers in the steel rail telescopic regulator through the first transverse connecting piece with the adjustable length between the left supporting unit and the right supporting unit，Thereby improving the construction precision of the steel rail telescopic regulator.
The invention also provides a construction system of the steel rail telescopic regulator, the steel rail telescopic regulator with heavier weight is hoisted above the sleeper through a hoisting device, then the steel rail telescopic regulator is supported and fixed through the plurality of groups of steel rail telescopic regulator construction supporting devices, the steel rail telescopic regulator is integrally moved to a preset position and the precision of the steel rail telescopic regulator can be adjusted through the matching of the plurality of groups of steel rail telescopic regulator construction supporting devices, and the track distance of the steel rail telescopic regulator can be determined through the length of the first transverse connecting rod. Thereby being favorable for laying the steel rail telescopic regulator at a preset position during cast-in-situ and improving the laying precision of the steel rail telescopic regulator.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the structures shown in the drawings without creative efforts.
FIG. 1 is a schematic structural view of an embodiment of a construction supporting device of a steel rail expansion and contraction adjuster according to the present invention;
FIG. 2 is an enlarged view of a portion of FIG. 1 at A;

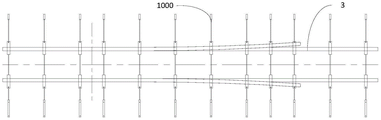

FIG. 3 is a top plan view of an embodiment of the rail adjuster construction system of the present invention with the spreader apparatus not shown;
fig. 4 is a schematic view of a canopy device according to an embodiment of the construction system of the rail expansion and contraction adjuster of the present invention.
The reference numbers illustrate:
| reference numerals | Name (R) | Reference numerals | Name (R) |
| 1 | |
2 | |
| 3 | Rail expansion adjuster | 1000 | Construction supporting device for steel rail |
| 100 | Left fixed |
200 | |
| 300 | |
310 | |
| 311 | Pulley |
320 | |
| 321 | Tray |
322 | Rail |
| 323 | Rail support |
324 | |
| 325 | Stock rail |
326 | |
| 327 | Rail bottom supporting base plate of |
330 | Unilateral rail expansion adjuster fixed |
| 340 | Connecting |
400 | First |
| 410 | |
420 | Connecting |
| 500 | Second |
600 | Third |
| 2000 | Canopy |
2100 | |
| 2200 | Canopy frame |
The implementation, functional features and advantages of the objects of the present invention will be further explained with reference to the accompanying drawings.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that all directional indicators (such as upper, lower, left, right, front and rear … …) in the embodiment of the present invention are only used to explain the relative position relationship between the components, the movement situation, etc. in a specific posture (as shown in the drawing), and if the specific posture is changed, the directional indicator is changed accordingly.
In the present invention, unless otherwise explicitly stated or limited, the terms "connected", "fixed", and the like are to be understood broadly, for example, "fixed" may be fixedly connected, may be detachably connected, or may be integrated; can be mechanically or electrically connected; they may be directly connected or indirectly connected through intervening media, or they may be connected internally or in any other suitable relationship, unless expressly stated otherwise. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
In addition, if there is a description of "first", "second", etc. in an embodiment of the present invention, the description of "first", "second", etc. is for descriptive purposes only and is not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, the meaning of "and/or" appearing throughout includes three juxtapositions, exemplified by "A and/or B" including either A or B or both A and B. In addition, technical solutions between various embodiments may be combined with each other, but must be realized by a person skilled in the art, and when the technical solutions are contradictory or cannot be realized, such a combination should not be considered to exist, and is not within the protection scope of the present invention.
Rail expansion adjusters are one of the important track components of a railway. Traditional rail expansion adjustment ware is often laid on the sleeper through hoist and mount as an unusual track structure, lacks general rail expansion adjustment ware support mould at present, leads to rail expansion adjustment ware in the work progress to warp easily at hoist and mount in-process, and the precision is not convenient for adjust when laying for the precision of rail expansion adjustment ware is not up to standard after the fastener installation, and then influences the flexible regulation of itself of follow-up rail expansion adjustment ware.
Therefore, the embodiment of the invention provides a construction supporting device for a steel rail expansion and contraction regulator, which supports the steel rail expansion and contraction regulator at a preset position before hoisting and laying the steel rail expansion and contraction regulator on a sleeper, and can adjust the position of the steel rail expansion and contraction regulator in the supporting process. According to the embodiment of the invention, the single-side part of the steel rail telescopic regulator is respectively fixed by the left supporting unit and the right supporting unit which are oppositely arranged, and then the left supporting unit and the right supporting unit integrally move by the movement of the left supporting unit and the right supporting unit in the corresponding left fixing piece or the right fixing piece, namely the steel rail telescopic regulator is integrally adjusted left and right. In addition, the distance between the sleepers in the steel rail telescopic regulator is adjusted through the first transverse connecting piece with the adjustable length between the left supporting unit and the right supporting unit, so that the construction precision of the steel rail telescopic regulator is improved.
The inventive concept of the present application will be further elucidated with reference to the drawings as well as some specific embodiments.
In this embodiment, a construction supporting device 1000 for a rail expansion and contraction regulator is used for supporting the rail expansion and contraction regulator during installation and construction of the rail expansion and contraction regulator, and is adjusted with high precision. It is to be understood that the rail expansion and contraction adjuster in the embodiment of the present application may be a straight line type, a zigzag line type, or a curved line type, which is not limited in the present application.
In this embodiment, the construction supporting device 1000 for the steel rail expansion adjuster comprises:
a left fixing member 100 and a right fixing member 200 which are oppositely arranged;
the left supporting unit 300 and the right supporting unit are oppositely arranged, the left supporting unit 300 and the right supporting unit are both provided with a single-side steel rail telescopic regulator fixing groove, the left supporting unit 300 is connected to the left fixing piece 100, the left supporting unit 300 can reciprocate relative to the left fixing piece 100 along the horizontal direction, the right supporting unit is connected to the right fixing piece 200, and the right supporting unit can reciprocate relative to the right fixing piece 200 along the horizontal direction; and the number of the first and second groups,
the first transverse connecting rod 400 is arranged between the left supporting unit 300 and the right supporting unit 400, two ends of the first transverse connecting rod 400 are respectively connected with the left supporting unit 300 and the right supporting unit, and the length of the first transverse connecting rod 400 is adjustable.
Specifically, the left anchor 100 and the right anchor 200 are fixedly coupled to the ground on the left and right sides of the rail expansion/contraction regulator, respectively. It is worth mentioning that the ground can be a base surface on two sides of the rail or a construction surface of the bridge and can also be a fixed object such as a protective wall. The left and right fixtures 100 and 200 may be installed along a line perpendicular to the length direction of the rail.
The left side of the rail expansion and contraction adjusting device 3 is installed in the single rail expansion and contraction adjusting device fixing groove 330 of the left support unit 300, and the left support unit 300 moves left and right in the horizontal direction on the corresponding left fixing member 100, so that the left side of the rail expansion and contraction adjusting device 3 can be driven to move left and right in the horizontal plane. Correspondingly, the right side part of the rail expansion and contraction regulator 3 is installed in the single-side rail expansion and contraction regulator fixing groove 330 of the right support unit, the right support unit moves left and right on the corresponding right fixing member 200 along the horizontal direction, and in this embodiment, a first transverse connecting rod 400 is further included between the left support unit 300 and the right support unit to connect the two units into a whole, so that the right side part of the rail expansion and contraction regulator can be driven to move left and right on the horizontal plane. And then can drive rail flexible adjustment ware 3 whole and remove about on the horizontal plane to adjust rail flexible adjustment ware 3 whole to suitable position, so that the rail flexible adjustment ware 3 of laying can whole adjust to suitable position. And then laid on the track bed 2.
In this embodiment, the length of the first transverse connecting rod 400 is adjustable, that is, the gauge between the left single-sided portion and the right single-sided portion of the construction supporting device 1000 for the rail expansion adjuster 3 laid by the construction supporting device 1000 for the rail expansion adjuster is adjustable, so that the rail expansion adjuster has various specifications, and the construction requirements under various standards are met. Or, when the rail telescopic adjusters 3 are hoisted by the hoisting tool, the gauge between the rail telescopic adjusters is adjusted in place by the first transverse connecting rod 400, and the influence on the gauge caused by the deformation during hoisting by the hoisting tool is avoided.
As an alternative to the present embodiment, the first transverse connecting rod 400 may include a sleeve fixedly connected to either one of the left and right supporting units 300 and 300, having a screw thread on a circumferential inner sidewall thereof, and a screw rotatably connected to the other one of the left and right supporting units 300 and 300. The axes of the screw and the sleeve are both arranged approximately horizontally, and part of the screw is connected in the sleeve in a threaded manner. When the first transverse connecting rod 400 needs to be adjusted, the screw rod is rotated.
As another alternative to the embodiment, referring to fig. 1, the first transverse connecting rod 400 may include a left screw 410 pivotally connected to the left supporting unit 300, a right screw pivotally connected to the right supporting unit, and a connecting cylinder 420 located between the left screw and the right screw. Two ends of the circumferential inner side wall of the connecting cylinder 420 are respectively provided with opposite thread sections, wherein a part of the left screw 410 is in threaded connection with the left end of the connecting cylinder 420, a part of the right screw is in threaded connection with the right end of the connecting cylinder 420, and the axes of the three are collinear. So that when it is necessary to adjust the length of the first transverse bar 400, it is sufficient to rotate the connecting cylinder 420.
The movable connection of the left supporting unit 300 on the left fixing member 100 may be that the left supporting unit 300 horizontally slides on the left fixing member 100 through a guide rail, or that the left supporting unit 300 horizontally moves on the left fixing member 100 through a screw slider structure. However, this structure is relatively precise and is not suitable for use in construction sites. In order to facilitate assembly, disassembly and use on a track construction site, referring to fig. 1, in some embodiments, the rail expansion and contraction adjuster construction supporting device 1000 further includes a second transverse connecting rod 500, the second transverse connecting rod 500 is disposed between the left supporting unit 300 and the left fixing member 100, two ends of the second transverse connecting rod 500 are respectively connected to the left supporting unit 300 and the left fixing member 100, and a length of the second transverse connecting rod 500 is adjustable.
Specifically, in the present embodiment, the left fixture 100, the second transverse connecting rod 500, the left supporting unit 300, the first transverse connecting rod 400, the right supporting unit, and the right fixture 200 are sequentially arranged from left to right and span the track construction section. At this time, the left supporting unit 300 is driven to move relative to the left fixing member 100 by extending or shortening the length of the second transverse connecting rod 500.
Optionally, in this embodiment, the axis of the second transverse bar 500 is arranged substantially horizontally.
It should be noted that the specific structure of the second transverse bar 500 can refer to the specific structure of the first transverse bar 400, and the detailed description thereof is omitted here.
In this embodiment, the horizontal distance between the left fixing member 100 and the left supporting unit 300 is adjusted by the second transverse connecting rod 500 having an adjustable length between the left fixing member 100 and the left supporting unit 300, so that the relative movement of the left supporting unit 300 with respect to the left fixing member 100 in the horizontal plane is realized. The second transverse connecting rod 500 of this structure is a rod member, thereby facilitating the assembly and disassembly of the supporting device at the time of construction.
Further, the construction supporting device 1000 of the steel rail telescopic adjuster further comprises a third transverse connecting rod 600, the third transverse connecting rod 600 is arranged between the right supporting unit and the right fixing member 200, two ends of the third transverse connecting rod 600 are respectively connected with the right supporting unit and the right fixing member 200, and the length of the third transverse connecting rod 600 is adjustable.
Wherein the third transverse bar 600 is parallel to the axis of the second transverse bar 500.
In this embodiment, the length of the third transverse connecting rod 600 is extended or shortened to drive the right supporting unit to move relative to the right fixing member 200. It should be noted that the specific structure of the third transverse bar 600 can refer to the specific structure of the first transverse bar 400, and the detailed description thereof is omitted here.
In this embodiment, the horizontal distance between the right fixing member 200 and the right supporting unit is adjusted by the third transverse connecting rod 600 having an adjustable length between the right fixing member 200 and the right supporting unit, thereby achieving the relative movement of the right supporting unit with respect to the right fixing member 200 in the horizontal plane. The third transverse connecting rod 600 of this structure is a rod member, thereby facilitating the assembly and disassembly of the supporting device during construction.
The third transverse link 600, in cooperation with the second transverse link 500, can integrally adjust the interval between the left support unit 300 and the right support unit as a whole with respect to the left and right fixtures 100 and 200. Therefore, the construction and adjustment of the steel rail telescopic regulator under various working conditions can be met through the set of supporting device, and the universality of the supporting device is realized.
In the process of constructing the rail expansion and contraction regulator 3, in order to further improve the construction accuracy of the rail expansion and contraction regulator 3, the height of the rail expansion and contraction regulator 3 needs to be further adjusted, so that the rail expansion and contraction regulator 3 is supported at a proper height by the rail expansion and contraction regulator construction supporting device 1000. Thus, in some embodiments, the left support unit 300 and the right support unit each include:
a supporter 310, the supporter 310 being movably connected to the left fixing member 100 or the right fixing member 200 in a horizontal direction; and the number of the first and second groups,
the conditioner tray 320, the conditioner tray 320 is movably provided to the supporter 310 in a vertical direction, and the conditioner tray 320 has a one-sided rail expansion and contraction conditioner fixing groove 330.
Specifically, the supporter 310 is a connecting portion of the left supporting unit 300 or the right supporting unit for connecting with the left fixing member 100 or the corresponding right fixing member 200. The adjuster tray 320 has a one-sided rail adjuster fixing groove 330 to hold a one-sided portion of the rail adjuster. And the adjuster tray 320 can also move in the vertical direction, that is, the height of the rail telescopic adjuster is adjusted by adjusting the relative position between the adjuster tray 320 and the support 310, which is beneficial to accurately support the rail telescopic adjuster at the designed height.
Further, the supporting member 310 is movably disposed on the supporting surface in a horizontal direction.
Wherein one end of the supporting member 310 is connected to the left fixing member 100 or the right fixing member 200, and the other end is connected to the first transverse connecting rod 400.
Specifically, in the present embodiment, the supporting member 310 can move horizontally and leftwards and rightwards on the supporting surface, so as to further support the supporting member 310 on the ground, thereby making the supporting device more stable for supporting the rail expansion and contraction adjuster. The supporting surface can be the ground of a construction section and also can be a base plate 1 of a ballastless track.
At this time, the second transverse connecting rod 500 and the third transverse connecting rod 600 in this embodiment may be arranged in a suspended manner, so as to further facilitate the detachment and installation of the supporting device in this embodiment.
It will be readily appreciated that the support member may be a sliding trolley which slides on the base plate 1 from side to side by means of wheels. Of course, referring to fig. 1 and 2, as an alternative to this embodiment, the supporting member 310 is a screw rod, the screw rod is screwed to the adjuster tray 320 along the vertical direction, and the bottom end of the screw rod is movably connected with the supporting surface.
Specifically, referring to fig. 2, the regulator tray 320 includes a tray main body 321, and a screw is threaded into a threaded hole of the tray main body 321. The lower end of the screw protrudes from the lower end surface of the tray main body 321 and is mounted with a pulley 311 or a universal wheel so that the screw can move on the base surface or the base plate 1. When the height of the steel rail telescopic adjuster 3 needs to be adjusted, the screw rod is rotated.
Further, in order to rotate the screw rod, a connection nut 340 is connected to the screw rod through threads, the upper end face of the connection nut 340 abuts against the lower end face of the tray main body 321, so that when the height of the steel rail telescopic adjuster 3 is adjusted, the connection nut 340 is screwed by using tools such as a wrench, the connection nut 340 can drive the screw rod to rotate relative to the tray main body 321, the lower end of the screw rod abuts against the base plate 1, the tray main body 321 can ascend or descend, and then the height value of the steel rail telescopic adjuster 3 is adjusted.
In this embodiment, the supporting member 310 is a screw, which is simple and reliable in structure and convenient to assemble at the construction site.
Further, referring to fig. 2, the top end surface of the tray body of the conditioner tray 320 may be a slope, specifically, a slope of 1: 40. Two rail brace fixing bolts 322 are fixedly connected to the top end face of the tray main body 321. For example, the rail brace bolts 322 may be welded to the pallet body 321. A rail brace fixing nut 323 is connected to the rail brace fixing bolt 322. Basic rail support frame 324 and basic rail support frame base plate 325 are sequentially mounted between inner rail support frame fixing nut 323 and the top end face from top to bottom, and basic rail support frame 324 and basic rail support frame base plate 325 are tightly pressed on the top end face through rail support frame fixing nut 323. Referring also to fig. 2, the holes in the stock rail bracket 324 and the stock rail bracket base plate 325 are oblong holes or rectangular holes to facilitate left and right adjustment of the stock rail bracket 324 and the stock rail bracket base plate 325, thereby improving the accuracy of the fixation of the regulator tray 320.
A point rail bracket 326 and a point rail bracket rail bottom supporting base plate 327 are sequentially arranged between the rail support bracket fixing nut 323 at the outer side and the top end surface from top to bottom. The point rail bracket 326 and the point rail bracket rail base support pad 327 are pressed against the top end face by respective rail bracket fixing nuts 323. And the holes on the point rail support 326 and the point rail support rail bottom support cushion plate 327 are oblong holes or rectangular holes, so as to facilitate the left and right adjustment of the point rail support 326 and the point rail support rail bottom support cushion plate 327. In this embodiment, the adjuster tray 320 is fixed by the rail brace fixing nuts 323 and the corresponding bolts, thereby facilitating the disassembly and assembly of the adjuster tray 320.
A single-sided rail pantograph fixing slot 330 is defined between the stock rail bracket 324 and the point rail bracket 326.
In some embodiments, the left fixture 100 includes a base support tripod that is fixedly attached to the ground. Referring to fig. 1, the base support tripod is fixed to the base by a bar-planting ground anchor. The left end of the second transverse connecting rod 500 is pivoted to the vertical wall of the base support tripod.
The right fixing member 200 includes a protection wall hook fixedly connected to the protection wall. Referring to fig. 1, the hook for a protective wall is constructed in a shape of a 20866which covers an upper end portion of the protective wall. The right end of the third transverse connecting rod 600 is pivoted on the right side wall of the base support tripod.
The embodiment of the invention also provides a construction system of the steel rail telescopic regulator, which comprises:
a spreader device (not shown) that suspends the rail expansion adjusters 3; and the number of the first and second groups,
at least 2 groups of steel rail expansion adjuster construction supporting devices 1000, the unilateral part of the steel rail expansion adjuster 3 is fixed in the unilateral steel rail expansion adjuster fixing groove 330 of the steel rail expansion adjuster construction supporting device 1000, and at least 2 groups of steel rail expansion adjuster construction supporting devices 1000 are arranged along the length direction of the steel rail expansion adjuster at intervals.
The specific structure of the construction supporting device 1000 for the steel rail telescopic adjuster refers to the above-mentioned embodiments, and since the construction system for the steel rail telescopic adjuster adopts all technical solutions of all the above-mentioned embodiments, all beneficial effects brought by the technical solutions of the above-mentioned embodiments are at least achieved, and are not repeated here.
Referring to fig. 3, at least 2 sets of the construction supporting devices 1000 for the rail expansion and contraction adjusters are provided at intervals along the length direction of the rail expansion and contraction adjusters 3, thereby integrally supporting the rail expansion and contraction adjusters 3 on the construction site. And the multiple groups of steel rail telescopic regulator construction supporting devices 1000 are mutually matched, so that the integral horizontal left-right regulation of the steel rail telescopic regulator 3 is realized, and one part of the steel rail telescopic regulator 3 can be regulated, namely the precision of the part meets the construction requirement. The deformation of the rail expansion adjuster 3 is avoided. It will be readily appreciated that, with reference to fig. 3, the spacing between at least 2 sets of rail expansion joint construction supports 1000 is not limited, and that the spacing may be determined based on the specific weight distribution of the rail expansion joints 3, since the weight of the rail expansion joints 3 supports are not uniform.
It is easy to understand, traditional rail expansion adjustment ware 3 only hoists through the hoist, appears hoisting deformation easily, the rail expansion adjustment ware supports not firm problem, and then has influenced the precision of laying of rail expansion adjustment ware 3, finally influences the flexible precision of rail expansion adjustment ware itself.
Therefore, this embodiment provides a rail telescopic adjuster construction system's general frock, this frock is carried the rail telescopic adjuster 3 that weight is heavier to the railway roadbed 2 top through the hoist device, then supports fixedly rail telescopic adjuster 3 through the flexible adjuster construction strutting arrangement 1000 of multiunit rail, and can be through the cooperation of the flexible adjuster construction strutting arrangement 1000 of multiunit rail with rail telescopic adjuster 3 global movement to preset position and adjust its precision, and rail telescopic adjuster 3's the length of the first transverse connection pole 400 of gauge accessible is confirmed. Therefore, the shape of the steel rail telescopic regulator 3 is kept to avoid deformation during laying, the steel rail telescopic regulator 3 is laid at a preset position during cast-in-place, and the laying precision of the steel rail telescopic regulator 3 is improved.
And this flexible regulator construction system of rail is general frock, can use in bridge, tunnel lamp multiple occasion.
In order to meet the requirements of sun shading, rain proofing and concrete engine heat preservation in construction, in some embodiments, the rail expansion adjuster construction system further comprises:
the canopy device 2000, the canopy device 2000 is movably disposed on the rail expansion/contraction regulator 3 to cover the rail expansion/contraction regulator 3.
Specifically, the canopy device 2000 is slidable on the track and the rail expansion/contraction regulator 3, and can cover the rail expansion/contraction regulator 3 to perform operations such as warm air gun temperature rise, water mist spray moisture retention, grouting and filling of the strut hole immediately after final set removal of the mold, and the like in the canopy.
Referring to fig. 4, the canopy includes a canopy frame 2200, and canopy cloth is covered on the canopy frame 2200. The canopy frame 2200 has a running gear 2100 at the bottom, and the running gear 2100 may comprise a rubber wheel with a rim, and runs on the track or the rail telescopic adjuster 3 through the rubber wheel with a rim.
It will be readily appreciated that the canopy frame 2200 may be a fixed canopy frame, i.e. the canopy device is wholly movable on the track or rail telescopic adjuster, or may be a telescopic canopy, so that the canopy is deployed in the direction of extension of the track when required for use.
In some embodiments, the spreader apparatus comprises:
the portal frame is arranged on the ground; and the number of the first and second groups,
the carrying pole beam hanger is arranged on a cross beam of the portal frame;
wherein the rail expansion adjuster 3 is detachably connected to the shoulder pole beam hanger.
Particularly, the shoulder pole beam lifting appliance is symmetrical, so that the two side parts of the steel rail telescopic regulator can be synchronously, symmetrically and stably lifted together by matching with a portal frame. So as to improve the laying quality of the steel rail expansion adjuster.
The above description is only an alternative embodiment of the present invention, and not intended to limit the scope of the present invention, and all modifications and equivalents of the present invention, which are made by the contents of the present specification and the accompanying drawings, or directly/indirectly applied to other related technical fields, are included in the scope of the present invention.
Claims (9)
1. The utility model provides a rail regulator construction strutting arrangement that stretches out and draws back which characterized in that includes:
the left fixing piece and the right fixing piece are oppositely arranged;
the left supporting unit and the right supporting unit are arranged oppositely, the left supporting unit and the right supporting unit are both provided with a single-side steel rail telescopic regulator fixing groove, the left supporting unit is connected to the left fixing piece, the left supporting unit can reciprocate relative to the left fixing piece along the horizontal direction, the right supporting unit is connected to the right fixing piece, and the right supporting unit can reciprocate relative to the right fixing piece along the horizontal direction; and
the first transverse connecting rod is arranged between the left supporting unit and the right supporting unit, two ends of the first transverse connecting rod are respectively connected with the left supporting unit and the right supporting unit, and the length of the first transverse connecting rod is adjustable;
the left supporting unit and the right supporting unit both comprise:
a support member movably connected to the left fixing member or the right fixing member in the horizontal direction; and
an adjuster tray movably provided to the supporter in a vertical direction, and having the one-side rail expansion adjuster fixing groove;
the support piece is movably arranged on a support surface along the horizontal direction, wherein the support surface is the upper surface of a base plate of the ballastless track;
the regulator tray includes:
a tray main body;
the tray comprises a tray main body, two rail support frame fixing bolts and rail support frame fixing nuts, wherein a basic rail support frame and a basic rail support frame base plate are sequentially arranged between the rail support frame fixing nuts on the inner side and the top end face of the tray main body from top to bottom, and the basic rail support frame base plate are tightly pressed on the top end face through the rail support frame fixing nuts; and the point rail support rail bottom supporting base plate are sequentially arranged between the rail support fixing nut and the top end surface from top to bottom, and are pressed on the top end surface through the corresponding rail support fixing nut.
2. The rail telescopic adjuster construction support apparatus of claim 1, further comprising:
the second transverse connecting rod is arranged between the left supporting unit and the left fixing piece, two ends of the second transverse connecting rod are respectively connected with the left supporting unit and the left fixing piece, and the length of the second transverse connecting rod is adjustable.
3. The rail adjuster construction support device of claim 2, further comprising:
the third transverse connecting rod is arranged between the right supporting unit and the right fixing piece, two ends of the third transverse connecting rod are respectively connected with the right supporting unit and the right fixing piece, and the length of the third transverse connecting rod is adjustable;
wherein the third transverse connecting rod is parallel to the axis of the second transverse connecting rod.
4. A rail adjuster construction support device according to claim 1, wherein one end of the support member is connected to the left or right mount and the other end is connected to the first transverse connecting rod.
5. The construction support device of a rail expansion adjuster as claimed in claim 1, wherein said support member is a threaded rod, said threaded rod is threadedly connected to said adjuster tray in said vertical direction, and a bottom end of said threaded rod is movably connected to said support surface.
6. A rail adjuster construction support device according to claim 1 wherein said left mount comprises a base support tripod, said base support tripod being fixedly attached to the ground;
the right fixing piece comprises a protection wall hook which is fixedly connected to the protection wall.
7. The utility model provides a rail expansion adjustment ware construction system for fixed rail expansion adjustment ware when laying the construction, its characterized in that includes:
a hanger device suspending the rail expansion adjuster; and
at least 2 sets of rail expansion joint construction supports according to any one of claims 1 to 6, wherein a single side portion of the rail expansion joint is fixed in a single side rail expansion joint fixing groove of the rail expansion joint construction support, and at least 2 sets of rail expansion joint construction supports are spaced apart along a length direction of the rail expansion joint.
8. The rail expansion joint actuator construction system of claim 7, further comprising:
and the rain shed device is movably arranged on the steel rail telescopic regulator to cover the steel rail telescopic regulator.
9. A rail adjuster construction system according to claim 7, wherein the spreader means comprises:
the portal frame is arranged on the ground; and
the carrying pole beam hanger is arranged on a cross beam of the portal frame;
wherein, the steel rail telescopic regulator is detachably connected with the shoulder pole beam hanger.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011135182.5A CN112376331B (en) | 2020-10-21 | 2020-10-21 | Rail expansion adjustment ware construction strutting arrangement and construction system |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011135182.5A CN112376331B (en) | 2020-10-21 | 2020-10-21 | Rail expansion adjustment ware construction strutting arrangement and construction system |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN112376331A CN112376331A (en) | 2021-02-19 |
| CN112376331B true CN112376331B (en) | 2022-09-13 |
Family
ID=74580477
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202011135182.5A Active CN112376331B (en) | 2020-10-21 | 2020-10-21 | Rail expansion adjustment ware construction strutting arrangement and construction system |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112376331B (en) |
Families Citing this family (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN115467200B (en) * | 2022-08-16 | 2024-02-02 | 中铁四局集团第五工程有限公司 | A power rail row adjustment device |
| CN116856211B (en) * | 2023-05-18 | 2025-12-09 | 中交二公局铁路建设有限公司 | Track equipment for urban track shield section construction and use method thereof |
Family Cites Families (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN203080372U (en) * | 2013-03-01 | 2013-07-24 | 中铁一局集团有限公司 | Lower bearing type adjusting support frame for track |
| CN103452018B (en) * | 2013-08-20 | 2015-07-15 | 中铁十七局集团第二工程有限公司 | Track gauge correction method for double-block type ballastless track construction |
| KR20170002829A (en) * | 2015-06-30 | 2017-01-09 | (주)엘더스티앤엘 | Gage Adjusting And Insulation Apparatus For Railroad Construction |
| CN204849494U (en) * | 2015-07-29 | 2015-12-09 | 中国铁道科学研究院铁道建筑研究所 | Rail expansion device suitable for curve and sharp location |
| CN106436499B (en) * | 2016-11-01 | 2019-01-22 | 五冶集团上海有限公司 | A kind of streetcar track mounting device and its installation and application |
| CN206448113U (en) * | 2016-12-19 | 2017-08-29 | 中铁第五勘察设计院集团有限公司 | A kind of rail brace frame for urban track traffic Monolithic Track Bed Construction |
-
2020
- 2020-10-21 CN CN202011135182.5A patent/CN112376331B/en active Active
Also Published As
| Publication number | Publication date |
|---|---|
| CN112376331A (en) | 2021-02-19 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN102155089B (en) | Self-jacking construction platform integrating vertical transportation equipment and mold base | |
| CN112376331B (en) | Rail expansion adjustment ware construction strutting arrangement and construction system | |
| CN106703264B (en) | A kind of Super High cell curtain wall indoor mechanical automation installation method | |
| CN106300145A (en) | Installation special tool arranged by city or farm-to-market road power consumption cable | |
| CN210395777U (en) | Curtain wall unit body combined installation device | |
| CN204454226U (en) | A kind of welded suspension centre adjustable and balancing beam of I-shaped steel | |
| CN201495036U (en) | Device for mounting and adjusting trolley line support of traveling car | |
| CN205309681U (en) | Support arrangement for a chassis for making rail vehicle | |
| KR101705142B1 (en) | Roadbed construction equipment improved operation of the railway track | |
| CN203529790U (en) | Overhanging type hoisting positioning device with function of space fine adjusting | |
| CN210739564U (en) | Engineering pipeline fixing device | |
| CN114227123A (en) | Subway vehicle roof steel structure assembly welding device based on three-dimensional coordinate system | |
| CN110847966B (en) | Lower support-free adjustable suspended formwork construction method | |
| CN214946837U (en) | Support for installing valve | |
| CN213387599U (en) | A tension jack lifting device | |
| CN208267214U (en) | Frame suspended ceiling mounting structure | |
| CN211141419U (en) | A central air-conditioning air duct mounting bracket | |
| CN117587724A (en) | Bottom die structure for cantilever pouring and construction method thereof | |
| CN215441903U (en) | Prefabricated utility tunnel sand cushion layer leveling frame | |
| CN215408679U (en) | Trolley suitable for inclined ground | |
| CN214531447U (en) | Ceiling mounting framework | |
| CN208844376U (en) | A kind of flat tiny fragments of stone, coal, etc. device of railway | |
| CN210177287U (en) | Automatic pillow dividing platform | |
| CN202359509U (en) | Bridge wet joint operation vehicle | |
| CN208039898U (en) | Civil engineering construction support |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
