Abstract
The invention discloses a novel ventilation energy-saving aluminum alloy door and window, which comprises an installation wall body, wherein the surface of the installation wall body is movably connected with a door and window body through a fixed window frame and a hinge, the door and window body is in a split design, the positions of the installation wall body, which are positioned at two sides of the door and window body, are both fixedly connected with a movable frame, the top of an inner cavity of the movable frame is fixedly connected with a driving motor, and the output end of the driving motor is fixedly connected. According to the invention, the device can achieve a self-cleaning function through the movable frame, the cleaning frame, the water inlet pipe, the coiling device, the communicating pipe, the water pump, the water supply pipe, the driving motor, the screw block, the screw rod, the moving rod, the electric telescopic rod, the moving plate, the transverse pipe, the pressurizing nozzle and the brush plate, and the problems that an aluminum alloy door and window in the existing market does not have a good self-cleaning function, is influenced by environmental factors in the use process, a large amount of dust is easily adhered to the surface of outer glass, and the normal use of the window is influenced due to the large potential safety hazard of manual cleaning are.
Description
Technical Field
The invention relates to the technical field of aluminum alloy doors and windows, in particular to a novel ventilation energy-saving aluminum alloy door and window.
Background
An aluminum alloy door and window, which is made of aluminum alloy extruded section bars as frames, stiles and sash materials, is called aluminum alloy door and window for short, is called aluminum door and window for short, comprises a bar which takes aluminum alloy as a stress bar and bears and transfers dead weight and load, a base material, wood and plastic composite door and window, is called aluminum-wood composite door and window for short, and is extremely widely used and deeply loved by people, an energy-saving door and window is a door and window for increasing lighting and ventilating area or representing the character and character characteristics of modern buildings, the energy-saving door and window can improve the optical performance, the thermal performance and the sealing performance of materials, the structure of the door and window is improved to achieve the expected effect, and the energy-saving door and window should be considered from the following aspects: firstly, door and window materials; secondly, glass; thirdly, the energy saving of the doors and windows is the integral energy saving, all in all, the energy saving of the doors and windows not only depends on materials, but also depends on glass and further depends on the processes of the doors and windows, in order to increase the lighting and ventilation area or represent the character features of modern buildings, the doors and windows of the buildings are larger and larger, and the curtain wall buildings are full glass, so that the heat loss of the doors and windows accounts for more than 40% of the total heat loss of the buildings, the energy saving of the doors and windows is the key of the energy saving of the buildings, the doors and windows are not only sensitive parts of energy sources, but also relate to the lighting, ventilation, sound insulation and vertical surface modeling, and thus, higher requirements are provided for the energy saving of the doors and windows, and the energy saving treatment mainly aims at improving.
Along with the progress of times and the development of science and technology, aluminum alloy door and window's house fitment in-process is used in a large number, and aluminum alloy door and window on the existing market does not possess the effectual function of automatically cleaning, receives environmental factor influence in the use, and a large amount of dusts of outside glass surface easy adhesion, manual cleaning has great potential safety hazard, influences the normal use of window.
Disclosure of Invention
The invention aims to provide a novel ventilating energy-saving aluminum alloy door and window, which has the advantage of good self-cleaning effect and solves the problems that the aluminum alloy door and window in the existing market does not have the function of good self-cleaning effect, is influenced by environmental factors in the use process, a large amount of dust is easily adhered to the surface of outer glass, great potential safety hazard exists in manual cleaning, and the normal use of the window is influenced.
In order to achieve the purpose, the invention provides the following technical scheme: the novel ventilation energy-saving aluminum alloy door and window comprises an installation wall body, wherein the surface of the installation wall body is movably connected with a door and window body through a fixed window frame and a hinge, the door and window body is of a split design, the installation wall body is fixedly connected with a movable frame at the positions of two sides of the door and window body, the top of an inner cavity of the movable frame is fixedly connected with a driving motor, the output end of the driving motor is fixedly connected with a screw rod, the bottom of the screw rod is movably connected with the joint of the movable frame through a bearing, the surface of the screw rod is in threaded connection with a screw block, one side of the screw block is fixedly connected with a movable rod, one side of the movable rod, which is far away from the screw block, is fixedly connected with a cleaning frame, the top of the inner cavity of the cleaning frame is fixedly connected with an electric, the water pump is fixedly connected to the top of the installation wall body, the water outlet end of the water pump is communicated with a communicating pipe, the right side of the communicating pipe is communicated with a coiling device, the bottom of the coiling device is communicated with a water inlet pipe, and the bottom of the water inlet pipe is communicated with the joint of the transverse pipe.
Preferably, the other side of the screw block is fixedly connected with a sliding rod, and a sliding groove matched with the sliding rod for use is formed in an inner cavity of the movable frame.
Preferably, the wire hole is formed in the top of the left side of the inner cavity of the movable frame, and the inner cavity of the wire hole is fixedly connected with the protective ring.
Preferably, the water inlet end of the water pump is communicated with a tap water pipe, and one side of the tap water pipe, which is far away from the water pump, is communicated with a municipal pipeline.
Preferably, the surface of the brush plate is fixedly connected with bristles, and the bristles are in close contact with the surface of the glass when the electric telescopic rod moves for the maximum stroke.
Preferably, the surface of the door and window body is fixedly connected with glass, the contact surface of the glass and the door and window body is fixedly connected with a sealing rubber strip, and the glass is of a double-layer rubber clamping type.
Preferably, the surface of the transverse pipe is communicated with pressurized nozzles, and the arrangement distance between the pressurized nozzles is 8 cm.
Preferably, the cleaning method of the novel ventilating energy-saving aluminum alloy door and window comprises the following cleaning steps:
A. the screw rod is driven to rotate by starting the driving motor, the screw block is driven to move by the rotation of the screw rod, the moving rod is driven to move by the movement of the screw block, and the cleaning frame is driven to move by the movement of the moving rod;
B. the running water is pumped to the inner cavity of the communicating pipe along the water supply pipe by starting the water pump, is transmitted to the inner cavity of the water inlet pipe through the extension pipe of the inner cavity of the reel device, then enters the inner cavity of the transverse pipe, and finally is sprayed out along the pressurizing spray head;
C. the movable plate is driven to move by starting of the electric telescopic rod, the transverse pipe and the brush plate are driven to move by the movement of the movable plate, the brush plate is made to be attached to the surface of glass, and the self-cleaning effect of the door and window is better by spraying of the pressurizing spray head and scrubbing of the brush plate.
Compared with the prior art, the invention has the following beneficial effects:
1. according to the invention, the device can achieve a self-cleaning function through the movable frame, the cleaning frame, the water inlet pipe, the coiling device, the communicating pipe, the water pump, the water supply pipe, the driving motor, the screw block, the screw rod, the moving rod, the electric telescopic rod, the moving plate, the transverse pipe, the pressurizing nozzle and the brush plate, and the problems that an aluminum alloy door and window in the existing market does not have a good self-cleaning function, is influenced by environmental factors in the use process, a large amount of dust is easily adhered to the surface of outer glass, and the normal use of the window is influenced due to the large potential safety hazard of manual cleaning are.
2. Through the use of the sliding rod and the sliding groove, the phenomenon that the use of the screw block is influenced by clamping stagnation during moving can be effectively avoided, and the smoothness of the screw block during use is improved;
through the arrangement and use of the wiring hole and the protective ring, the equipment can be more conveniently penetrated and wired, and the electrical connection operation of a user is facilitated;
the water supply of the equipment is more convenient and the water supply of the equipment is convenient through the connection of the tap water pipe;
by determining the stroke of the electric telescopic rod, the equipment can be cleaned more thoroughly, and the cleaning quality of the equipment is improved;
by using the double-layer laminated material, the aluminum alloy window can be more energy-saving and environment-friendly to use, and is convenient for daily use of a user;
through confirming the range interval between the pressure boost shower nozzle, can make the clean spraying effect of equipment better, convenient to use user's clean use.
Drawings
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic diagram of the internal structure of the movable frame according to the present invention;
FIG. 3 is a schematic view of the internal structure of the cleaning frame according to the present invention;

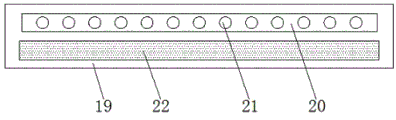

FIG. 4 is a schematic view of the surface structure of the moving plate according to the present invention.
In the figure: 1. installing a wall body; 2. a door and window body; 3. sealing rubber strips; 4. glass; 5. moving the frame; 6. cleaning the frame; 7. a water inlet pipe; 8. a reel winder; 9. a communicating pipe; 10. a water pump; 11. a water supply pipe; 12. a drive motor; 13. a screw block; 14. a slide bar; 15. a chute; 16. a screw; 17. a travel bar; 18. an electric telescopic rod; 19. moving the plate; 20. a transverse tube; 21. a pressurized spray head; 22. and (7) brushing the board.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the referred device or element must have a specific orientation, be configured in a specific orientation, and operate, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, such as "connected," which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The installation wall 1, the door and window body 2, the sealing rubber strip 3, the glass 4, the moving frame 5, the cleaning frame 6, the water inlet pipe 7, the coiling device 8, the communicating pipe 9, the water pump 10, the water supply pipe 11, the driving motor 12, the screw block 13, the sliding rod 14, the sliding chute 15, the screw rod 16, the moving rod 17, the electric telescopic rod 18, the moving plate 19, the transverse pipe 20, the pressurizing nozzle 21 and the brushing plate 22 are all universal standard parts or parts known by technicians in the field, and the structure and the principle of the installation wall are known by technicians or conventional experimental methods.
Referring to fig. 1-4, a novel ventilation energy-saving aluminum alloy door and window comprises an installation wall body 1, wherein the surface of the installation wall body 1 is movably connected with a door and window body 2 through a fixed window frame and a hinge, the door and window body 2 is designed to be split, the installation wall body 1 is fixedly connected with a movable frame 5 at both sides of the door and window body 2, the top of the inner cavity of the movable frame 5 is fixedly connected with a driving motor 12, the output end of the driving motor 12 is fixedly connected with a screw 16, the bottom of the screw 16 is movably connected with the joint of the movable frame 5 through a bearing, the surface of the screw 16 is in threaded connection with a screw block 13, one side of the screw block 13 is fixedly connected with a movable rod 17, one side of the movable rod 17 far away from the screw block 13 is fixedly connected with a cleaning frame 6, the top of the inner cavity of the cleaning frame 6 is fixedly connected with an electric telescopic rod, the top of the installation wall body 1 is fixedly connected with a water pump 10, the water outlet end of the water pump 10 is communicated with a communicating pipe 9, the right side of the communicating pipe 9 is communicated with a coiling device 8, the bottom of the coiling device 8 is communicated with a water inlet pipe 7, and the bottom of the water inlet pipe 7 is communicated with the joint of a transverse pipe 20.
In this embodiment, specifically, the slide bar 14 is fixedly connected to the other side of the screw block 13, the inner cavity of the movable frame 5 is provided with the slide groove 15 matched with the slide bar 14 for use, and through the use of the slide bar 14 and the slide groove 15, the phenomenon that the screw block 13 is blocked when moving to affect use can be effectively avoided, and the smoothness of the screw block 13 during use is improved.
In this embodiment, it is concrete, remove the left top in 5 inner chambers of frame and seted up the line hole, and the inner chamber fixedly connected with guard ring in line hole, through the use of seting up of line hole and guard ring, can make things convenient for running through of equipment more to walk the line, convenient to use person's electric connection operation.
In this embodiment, it is concrete, the end intercommunication of intaking of water pump 10 has water pipe, and one side intercommunication that water pipe kept away from water pump 10 has municipal administration pipeline, and through water pipe's connection, the water that can make equipment is more convenient, and the water supply of the equipment of being convenient for is used.
In this embodiment, specifically, the brush bristles are fixedly connected to the surface of the brush plate 22, the brush bristles are in a close contact state with the surface of the glass 4 when the electric telescopic rod 18 moves by a maximum stroke, and by determining the stroke of the electric telescopic rod 18, the cleaning of the device can be more thorough and clean, and the cleaning quality of the device is improved.
In this embodiment, specific, the fixed surface of door and window body 2 is connected with glass 4, and glass 4 and door and window body 2's contact surface fixedly connected with joint strip 3, glass 4 are double-deck doubling type, through the use of double-deck doubling type material, can make the use of aluminum alloy window more energy-concerving and environment-protective, convenient to use person's daily use.
In this embodiment, specifically, the surface intercommunication of violently managing 20 has pressure boost shower nozzle 21, and the range interval between pressure boost shower nozzle 21 is 8cm, through confirming the range interval between pressure boost shower nozzle 21, can make the clean spraying effect of equipment better, convenient to use person's clean use.
The novel cleaning method of the ventilation energy-saving aluminum alloy door and window comprises the following cleaning steps:
A. the screw 16 is driven to rotate by starting the driving motor 12, the screw block 13 is driven to move by the rotation of the screw 16, the moving rod 17 is driven to move by the movement of the screw block 13, and the cleaning frame 6 is driven to move by the movement of the moving rod 17;
B. running water is pumped to the inner cavity of the communicating pipe 9 along the water supply pipe 11 by starting the water pump 10, is transmitted to the inner cavity of the water inlet pipe 7 through the extension pipe of the inner cavity of the reel device 8, then enters the inner cavity of the transverse pipe 20, and finally is sprayed out along the pressurizing nozzle 21;
C. the movable plate 19 is driven to move by starting the electric telescopic rod 18, the transverse pipe 20 and the brush plate 22 are driven to move by moving the movable plate 19, the brush plate 22 is made to be attached to the surface of the glass 4, and the self-cleaning effect of the door and window is better by spraying the pressurizing spray head 21 and brushing the brush plate 22.
When the device is used, the screw rod 16 is driven to rotate by starting the driving motor 12, the screw block 13 is driven to move by rotating the screw rod 16, the moving rod 17 is driven to move by moving the screw block 13, the cleaning frame 6 is driven to move by moving the moving rod 17, tap water is pumped to the inner cavity of the communicating pipe 9 along the water supply pipe 11 by starting the water pump 10, the tap water enters the inner cavity of the transverse pipe 20 after being transmitted to the inner cavity of the water inlet pipe 7 through the extension pipe of the inner cavity of the reel 8, and is finally sprayed out along the pressurizing nozzle 21, the moving plate 19 is driven to move by starting the electric telescopic rod 18, the transverse pipe 20 and the brush plate 22 are driven to move by moving the brush plate 19, so that the brush plate 22 is attached to the surface of the glass 4, the self-cleaning effect of doors and windows is better by spraying of the pressurizing nozzle 21 and brushing of the brush plate 22, and the, influenced by environmental factor in the use, a large amount of dust easily adheres to outside position surface, and there is great potential safety hazard in manual cleaning, influences the problem of window normal use, is fit for using widely.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. Novel energy-conserving al-alloy door & window ventilates, including installation wall body (1), its characterized in that: the surface of the installation wall body (1) is movably connected with a door and window body (2) through a fixed window frame and a hinge, the door and window body (2) is designed to be opened, the positions of two sides of the installation wall body (1) located on the door and window body (2) are fixedly connected with a movable frame (5), the top of an inner cavity of the movable frame (5) is fixedly connected with a driving motor (12), the output end of the driving motor (12) is fixedly connected with a screw rod (16), the bottom of the screw rod (16) is movably connected with the joint of the movable frame (5) through a bearing, the surface thread of the screw rod (16) is connected with a screw block (13), one side of the screw block (13) is fixedly connected with a movable rod (17), one side of the movable rod (17) far away from the screw block (13) is fixedly connected with a cleaning frame (6), and the top of the inner cavity of the, the utility model discloses a wall brush, including electric telescopic handle (18), the output fixedly connected with movable plate (19) of electric telescopic handle (18), the surface of movable plate (19) bottom is fixedly connected with violently manages (20) and brush board (22) in proper order, the top fixedly connected with water pump (10) of installation wall body (1), the play water end intercommunication of water pump (10) has communicating pipe (9), the right side intercommunication of communicating pipe (9) has a set ware (8), the bottom intercommunication of set ware (8) of book has inlet tube (7), the bottom of inlet tube (7) is linked together with the junction of violently managing (20).
2. The novel ventilation energy-saving aluminum alloy door and window as claimed in claim 1, characterized in that: the other side of the screw block (13) is fixedly connected with a sliding rod (14), and a sliding groove (15) matched with the sliding rod (14) for use is formed in the inner cavity of the movable frame (5).
3. The novel ventilation energy-saving aluminum alloy door and window as claimed in claim 1, characterized in that: the wire-passing hole is formed in the top of the left side of the inner cavity of the movable frame (5), and a protective ring is fixedly connected to the inner cavity of the wire-passing hole.
4. The novel ventilation energy-saving aluminum alloy door and window as claimed in claim 1, characterized in that: the water inlet end of the water pump (10) is communicated with a tap water pipe, and one side, far away from the water pump (10), of the tap water pipe is communicated with a municipal pipeline.
5. The novel ventilation energy-saving aluminum alloy door and window as claimed in claim 1, characterized in that: the surface of the brush plate (22) is fixedly connected with bristles, and the bristles are in close contact with the surface of the glass (4) when the electric telescopic rod (18) moves for the maximum stroke.
6. The novel ventilation energy-saving aluminum alloy door and window as claimed in claim 1, characterized in that: the glass door and window comprises a door and window body (2), wherein the surface of the door and window body (2) is fixedly connected with glass (4), the contact surface of the glass (4) and the door and window body (2) is fixedly connected with a sealing rubber strip (3), and the glass (4) is of a double-layer rubber clamping type.
7. The novel ventilation energy-saving aluminum alloy door and window as claimed in claim 1, characterized in that: the surface of the transverse pipe (20) is communicated with pressurizing nozzles (21), and the arrangement distance between the pressurizing nozzles (21) is 8 cm.
8. The novel cleaning method of the ventilation energy-saving aluminum alloy door and window is characterized by comprising the following steps of: the cleaning steps are as follows:
A. the screw rod (16) is driven to rotate by starting the driving motor (12), the screw block (13) is driven to move by the rotation of the screw rod (16), the moving rod (17) is driven to move by the movement of the screw block (13), and the cleaning frame (6) is driven to move by the movement of the moving rod (17);
B. running water is pumped to the inner cavity of the communicating pipe (9) along the water supply pipe (11) by starting the water pump (10), is transmitted to the inner cavity of the water inlet pipe (7) through the telescopic pipe of the inner cavity of the coiling device (8), then enters the inner cavity of the transverse pipe (20), and finally is sprayed out along the pressurizing spray head (21);
C. the movable plate (19) is driven to move by starting the electric telescopic rod (18), the transverse pipe (20) and the brush plate (22) are driven to move by the movement of the movable plate (19), the brush plate (22) is enabled to be attached to the surface of the glass (4), and the self-cleaning effect of the door and window is enabled to be better by spraying of the pressurizing spray head (21) and brushing of the brush plate (22).
