本发明公开了一种可进行监控录像的路灯，包括底座、灯杆，所述灯杆设置为空心结构，灯杆内设有传动管轴Ⅱ，传动管轴Ⅱ下端设有主齿轮Ⅱ，所述传动管轴Ⅱ内设有传动轴Ⅱ，所述传动轴Ⅱ上端设有传动组件；所述灯杆下侧设有动力组件，所述动力组件下侧设有底座，所述灯杆一侧设有螺杆，螺杆一端设有主齿轮Ⅲ，灯杆另一侧设有限位块；所述灯杆一侧设有限位槽，所述限位槽一侧设有摄像组件，所述灯杆上端设有照明组件。本发明控制摄像组件升降，方便维修，控制照明灯旋转、角度调节，方便调节照明范围；控制摄像组件旋转，方便调节监控范围。
The invention discloses a street lamp capable of monitoring and video recording, comprising a base and a lamp pole, wherein the lamp pole is set as a hollow structure, a transmission tube shaft II is arranged in the lamp pole, and a main gear II is arranged at the lower end of the transmission tube shaft II, so that the The transmission tube shaft II is provided with a transmission shaft II, and the upper end of the transmission shaft II is provided with a transmission component; the lower side of the light pole is provided with a power component, the lower side of the power component is provided with a base, and one side of the light pole is provided A screw is provided, one end of the screw is provided with a main gear III, and the other side of the light pole is provided with a limit block; one side of the light pole is provided with a limit slot, one side of the limit slot is provided with a camera assembly, and the upper end of the light pole Comes with lighting components. The invention controls the lifting and lowering of the camera assembly, facilitates maintenance, controls the rotation and angle adjustment of the lighting lamp, and facilitates the adjustment of the lighting range; and controls the rotation of the camera assembly to facilitate the adjustment of the monitoring range.
Description
Technical Field
The invention belongs to the technical field of street lamps, and particularly relates to a street lamp capable of monitoring and recording videos.
Background
Street lamps refer to lamps providing a road with an illumination function, and generally to lamps in a road illumination range in traffic illumination. Street lamps are widely used in various places requiring illumination. With the development of economy, the existing street lamps not only have the function of illumination, but also can monitor and record the road conditions.
The prior street lamp has the following defects in use: 1) the street lamp is usually a fixed structure, the irradiation range of the street lamp is fixed, and the angle of the street lamp cannot be adjusted; 2) the camera shooting assembly of the street lamp is fixedly arranged on the lamp post, so that the camera shooting assembly is inconvenient to maintain and replace, the angle of the camera shooting assembly is not adjustable, and the monitoring range is limited; 3) the direction of the illuminating lamp can not rotate, and the illuminating range is small.
Disclosure of Invention
The invention aims to overcome the defects in the prior art, and provides a street lamp capable of monitoring and recording video, wherein a camera assembly is controlled to lift, so that the maintenance is convenient, the rotation and the angle adjustment of an illuminating lamp are controlled, and the illumination range is convenient to adjust; the camera shooting assembly is controlled to rotate, and the monitoring range is conveniently adjusted.
In order to achieve the purpose, the invention adopts the technical scheme that:
a street lamp capable of carrying out monitoring video comprises a base and a lamp post, wherein the lamp post is of a hollow structure, a transmission tube shaft II is arranged in the lamp post, a main gear II is arranged at the lower end of the transmission tube shaft II, a transmission shaft II is arranged in the transmission tube shaft II, and a transmission assembly is arranged at the upper end of the transmission shaft II; the lower side of the lamp post is provided with a power assembly, the lower side of the power assembly is provided with a base, one side of the lamp post is provided with a screw, one end of the screw is provided with a main gear III, and the other side of the lamp post is provided with a limiting block; a limiting groove is formed in one side of the lamp post, a camera shooting assembly is arranged on one side of the limiting groove, and a lighting assembly is arranged at the upper end of the lamp post;
the camera shooting assembly comprises a chassis II, a fixed seat, a threaded hole, a through hole, a bottom plate II, a gear ring II and a camera, wherein the fixed seat is movably connected to the lamp post, and a locking device is arranged on the lower side of the fixed seat and used for limiting the fixed seat; the screw rod is rotated to drive the fixing seat to move up and down; a chassis II is arranged on one side of the fixed seat and fixedly connected with the fixed seat, and a guide groove II is formed in the chassis II; be equipped with bottom plate II on the fixing base, II one ends of bottom plate set up in the spacing inslot, and II other ends of bottom plate set up in guide slot II, II one side of bottom plate are equipped with the camera, and rotatory bottom plate II drives the camera and rotates, adjusts the control position.
Preferably, the lighting assembly comprises a chassis I, a guide groove I, a bottom plate I, a gear ring and a lighting lamp, wherein the chassis I is arranged on the lamp post, the guide groove I is arranged on the chassis I, the bottom plate I is arranged on the chassis I, the gear ring I is arranged on the bottom plate I, one end of the bottom plate I is arranged in the guide groove I, and the lighting lamp is arranged on the bottom plate I; rotating the bottom plate I drives the lighting lamp to rotate, and the lighting position is adjusted.
Preferably, a sliding groove is formed in the bottom plate I, a lead screw is arranged on the upper side of the bottom plate I, and the lead screw is connected to the bottom plate I through a bearing; the screw rod is provided with a sliding plate, the sliding plate is arranged in the sliding groove and is in threaded connection with the screw rod, the illuminating lamp is arranged on the sliding plate, one side of the sliding plate is provided with a supporting rod, one end of the supporting rod is hinged with the sliding plate, and the other end of the supporting rod is hinged with the bottom plate I; lead screw one end is equipped with driven gear I, and rotatory driven gear I drives the lead screw and rotates, drives slide, light removal, adjusts the light angle.
Preferably, power component includes quick-witted case, motor, transmission hollow shaft I, transmission shaft I, master gear IV, handle, lamp pole one side is equipped with quick-witted case, machine case one side is equipped with the motor, and motor one side is equipped with transmission hollow shaft I, be equipped with transmission shaft I in the transmission hollow shaft I, be equipped with master gear I on the transmission shaft I, master gear I one side is equipped with master gear IV, I one end of transmission shaft is equipped with the handle, and pulling transmission shaft I, master gear I meshes with master gear II, drives transmission hollow shaft II and rotates, and pulling transmission shaft I, master gear III meshes with master gear IV, drives the screw rod rotation, and the control subassembly of making a video recording goes up and down.
Preferably, the transmission assembly comprises a support, an air cylinder, a top plate, a limiting plate, a transmission gear I, a transmission gear II and a transmission gear III, the support is arranged on the chassis I, the air cylinder is arranged on the support and fixed on the support, the top plate is arranged on the upper side of the air cylinder, the transmission shaft II is respectively connected with the support and the top plate through bearings, and the limiting plate is arranged at the upper end of the transmission shaft II; and a transmission gear I, a transmission gear II and a transmission gear III are arranged on the transmission shaft II, the transmission shaft II is controlled by the air cylinder to move up and down, the transmission gear I is meshed with the driven gear I to drive the screw rod to rotate, the transmission shaft II is moved, the transmission gear II is meshed with the gear ring I to drive the bottom plate I to rotate, the transmission shaft II is moved, and the transmission gear III is meshed with the gear ring II to drive the bottom plate II to rotate.
Preferably, the locking subassembly includes locking piece, spring, stay cord, connecting block, lamp pole one side is equipped with the locking piece, and the locking piece passes through the spring and links to each other with the lamp pole, locking piece one end is equipped with the stay cord, and stay cord one end is equipped with the connecting block, and the connecting block passes through the bearing and is connected with master gear III, and pulling transmission shaft I, master gear III and the meshing of master gear IV, the connecting block removes, drives the stay cord, the locking piece removes and gets into the lamp pole, does not hinder the subassembly of making a video recording and reciprocates, the subassembly of making a video recording rises to the top, promotes I removal of transmission shaft, and the original position is replied to the connecting block.
Compared with the prior art, the invention has the beneficial effects that:
1) through setting up the subassembly of making a video recording, conveniently monitor the road surface, through setting up bottom plate II, camera, rotating bottom plate II drives the camera and rotates, conveniently adjusts monitoring position
2) The driving shaft I is pulled through the arrangement of the locking assembly, the main gear III is meshed with the main gear IV, the connecting block moves to drive the pull rope and the locking block to move into the lamp post without hindering the upward and downward movement of the camera shooting assembly, the camera shooting assembly rises to the top to push the driving shaft I to move, the connecting block returns to the original position, the locking block extends out under the action of the spring, and the camera shooting assembly is limited;
3) the illuminating lamp is driven to rotate and the illuminating position is adjusted by arranging the chassis I, the guide groove I, the bottom plate I, the gear ring and the illuminating lamp and rotating the bottom plate I;
4) the bottom plate I, the sliding groove and the screw rod are arranged, the driven gear I is rotated to drive the screw rod to rotate, the sliding plate and the illuminating lamp are driven to move, and the angle of the illuminating lamp is adjusted;
5) the power assembly is arranged, the transmission shaft I is pulled, the main gear I is meshed with the main gear II to drive the transmission tubular shaft II to rotate, the transmission shaft I is pulled, the main gear III is meshed with the main gear IV to drive the screw to rotate, the camera shooting assembly is controlled to lift, the motor finishes lifting of the camera shooting assembly and rotation of the transmission tubular shaft II, the structure is simple, and cost is saved;
6) through setting up transmission assembly, cylinder control transmission shaft II reciprocates, and drive gear I drives the lead screw rotation with I meshing of driven gear, and removal transmission shaft II drives I rotations of bottom plate with I meshing of ring gear, removal transmission shaft II, and drive gear III drives II rotations of bottom plate with II meshing of ring gear.
Drawings

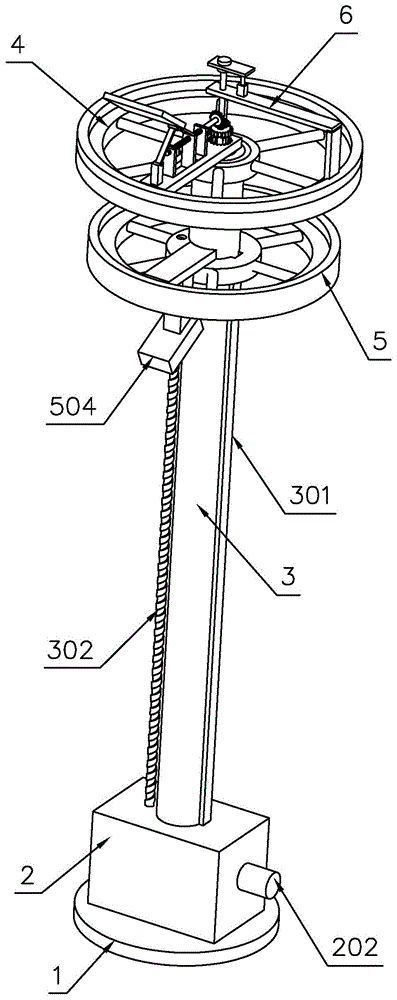

FIG. 1 is a schematic structural diagram of a street lamp capable of monitoring video recording according to the present invention;
FIG. 2 is a schematic structural view of a street lamp lighting assembly capable of monitoring video recording according to the present invention;
FIG. 3 is a schematic structural diagram of a street lamp camera assembly capable of monitoring video recording according to the present invention;
FIG. 4 is a schematic structural diagram of a street lamp base plate II capable of monitoring and recording videos according to the invention;
FIG. 5 is a schematic structural diagram of a street lamp driving assembly capable of monitoring and video recording according to the present invention;
FIG. 6 is a schematic view of a street lamp with a monitoring video function at one side according to the present invention;
FIG. 7 is a schematic structural diagram of a streetlamp locking assembly capable of monitoring video recording according to the present invention;
in the figure: 1-base, 2-power assembly, 201-cabinet, 202-motor, 203-transmission tube shaft I, 204-transmission shaft I, 205-main gear I, 206-main gear II, 207-main gear III, 208-main gear IV, 209-handle, 3-lamp pole, 301-limiting block, 302-screw, 303-limiting groove, 4-lighting assembly, 401-chassis I, 4011-guide groove I, 402-base plate I, 4021-sliding groove, 4022-gear ring I, 403-lead screw, 404-driven gear I, 405-sliding plate, 406-support rod, 407-lighting lamp, 5-camera shooting assembly, 501-chassis II, 5011-guide groove II, 502-fixing seat, 5021-threaded hole and 5022-through hole, 503-a bottom plate II, 5031-a gear ring II, 504-a camera, 6-a transmission assembly, 601-a support, 602-a cylinder, 603-a top plate, 604-a limiting plate, 605-a transmission gear I, 606-a transmission gear II, 607-a transmission gear III, 7-a transmission shaft II, 8-a transmission shaft II, 9-a locking assembly, 901-a locking block, 902-a spring, 903-a pull rope and 904-a connecting block.
Detailed Description
For the convenience of understanding of those skilled in the art, the technical solution of the present invention will be further described in detail with reference to fig. 1 to 7.
A street lamp capable of monitoring and video recording comprises a base 1 and a lamp post 3, wherein the lamp post 3 is of a hollow structure, a transmission tube shaft II 8 is arranged in the lamp post 3, a main gear II 206 is arranged at the lower end of the transmission tube shaft II 8, a transmission shaft II 7 is arranged in the transmission tube shaft II 8, and a transmission assembly 6 is arranged at the upper end of the transmission shaft II 7; a power assembly 2 is arranged on the lower side of the lamp post 3, a base 1 is arranged on the lower side of the power assembly 2, a screw 302 is arranged on one side of the lamp post 3, a main gear III 207 is arranged at one end of the screw 302, and a limiting block 301 is arranged on the other side of the lamp post 3; a limiting groove 303 is formed in one side of the lamp post 3, a camera shooting assembly 5 is arranged on one side of the limiting groove 303, and a lighting assembly 4 is arranged at the upper end of the lamp post 3;
the camera shooting assembly 5 comprises a chassis II 501, a fixed seat 502, a threaded hole 5021, a through hole 5022, a bottom plate II 503, a gear ring II 5031 and a camera 504, wherein the fixed seat 502 is movably connected with the lamp post 3, and a locking device is arranged on the lower side of the fixed seat 502 to limit the fixed seat 502; a threaded hole 5021 is formed in the fixed seat 502, the threaded hole 5021 is in threaded connection with the screw 302, a through hole 5022 is formed in the fixed seat 502, the limiting block 301 is arranged in the through hole 5022, and the screw 302 is rotated to drive the fixed seat 502 to move up and down; a chassis II 501 is arranged on one side of the fixed seat 502, the chassis II 501 is fixedly connected with the fixed seat 502, and a guide groove II 5011 is formed in the chassis II 501; the fixing seat 502 is provided with a base plate II 503, one end of the base plate II 503 is arranged in the limiting groove 303, the other end of the base plate II 503 is arranged in the guide groove II 5011, one side of the base plate II 503 is provided with a camera 504, and the base plate II 503 is rotated to drive the camera 504 to rotate so as to adjust the monitoring position.
The lighting assembly 4 comprises a base plate I401, a guide groove I4011, a base plate I402, a gear ring and a lighting lamp 407, the base plate I401 is arranged on the lamp post 3, the guide groove I4011 is arranged on the base plate I401, the base plate I402 is arranged on the base plate I401, the gear ring I4022 is arranged on the base plate I402, one end of the base plate I402 is arranged in the guide groove I4011, and the lighting lamp 407 is arranged on the base plate I402; the rotating base plate I402 drives the illuminating lamp 407 to rotate, and the illuminating position is adjusted.
A sliding groove 4021 is formed in the base plate I402, a lead screw 403 is arranged on the upper side of the base plate I402, and the lead screw 403 is connected to the base plate I402 through a bearing; a sliding plate 405 is arranged on the lead screw 403, the sliding plate 405 is arranged in the sliding groove 4021, the sliding plate 405 is in threaded connection with the lead screw 403, the illuminating lamp 407 is arranged on the sliding plate 405, a support rod 406 is arranged on one side of the sliding plate 405, one end of the support rod 406 is hinged with the sliding plate 405, and the other end of the support rod 406 is hinged with the base plate I402; one end of the screw 403 is provided with a driven gear I404, the driven gear I404 is rotated to drive the screw 403 to rotate, the sliding plate 405 and the illuminating lamp 407 are driven to move, and the angle of the illuminating lamp 407 is adjusted.
The power assembly 2 comprises a case 201, a motor 202, a transmission tube shaft I203, a transmission shaft I204, a main gear I205, a main gear IV 208 and a handle 209, wherein the case 201 is arranged on one side of the lamp post 3, the motor 202 is arranged on one side of the case 201, the transmission tube shaft I203 is arranged on one side of the motor 202, the transmission shaft I204 is arranged in the transmission tube shaft I203, the main gear I205 is arranged on the transmission shaft I204, the main gear IV 208 is arranged on one side of the main gear I205, the handle 209 is arranged at one end of the transmission shaft I204, the transmission shaft I204 is pulled, the main gear I205 is meshed with the main gear II 206 to drive the transmission tube shaft II 8 to rotate, the transmission shaft I204 is pulled, the main gear III 207 is meshed with the main gear IV 208.
The transmission assembly 6 comprises a support 601, an air cylinder 602, a top plate 603, a limiting plate 604, a transmission gear I605, a transmission gear II 606 and a transmission gear III 607, the support 601 is arranged on the chassis I401, the air cylinder 602 is arranged on the support 601, the air cylinder 602 is fixed on the support 601, the top plate 603 is arranged on the upper side of the air cylinder 602, a transmission shaft II 7 is respectively connected with the support 601 and the top plate 603 through a bearing, and the limiting plate 604 is arranged at the upper end of the transmission shaft II 7; the transmission shaft II 7 is provided with a transmission gear I605, a transmission gear II 606 and a transmission gear III 607, the cylinder 602 controls the transmission shaft II 7 to move up and down, the transmission gear I605 is meshed with the driven gear I404 to drive the screw 403 to rotate, the transmission shaft II 7 is moved, the transmission gear II 606 is meshed with the gear ring I4022 to drive the bottom plate I402 to rotate, the transmission shaft II 7 is moved, and the transmission gear III 607 is meshed with the gear ring II 5031 to drive the bottom plate II 503 to rotate.
The locking assembly 9 comprises a locking block 901, a spring 902, a pull rope 903 and a connecting block 904, wherein the locking block 901 is arranged on one side of the lamp post 3, the locking block 901 is connected with the lamp post 3 through the spring 902, the pull rope 903 is arranged at one end of the locking block 901, the connecting block 904 is arranged at one end of the pull rope 903, the connecting block 904 is connected with the main gear III 207 through a bearing, the transmission shaft I204 is pulled, the main gear III 207 is meshed with the main gear IV 208, the connecting block 904 moves to drive the pull rope 903 and the locking block 901 to move into the lamp post 3 without hindering the vertical movement of the camera shooting assembly 5, the camera shooting assembly 5 rises to the top and pushes the transmission shaft I204 to move, the connecting block 904 returns to the original position, and is extended by the.
A street lamp capable of monitoring and recording videos comprises the following working processes:
when the camera shooting assembly needs to be maintained, the transmission shaft I is pulled, the master gear III is meshed with the master gear IV, the connecting block moves to drive the pull rope and the locking block to move into the lamp pole without hindering the upward and downward movement of the camera shooting assembly, the motor is turned on to drive the transmission pipe shaft I, the transmission shaft I, the master gear III, the master gear IV and the screw rod to rotate, the fixing seat moves downwards, after the maintenance is completed, the motor rotates reversely, the fixing seat moves upwards to the top, the motor is turned off, the transmission shaft I is pushed to move, the connecting block returns to the original position, the locking block extends out under the action of a spring; the driving shaft I is pushed, the main gear I is meshed with the main gear II, when the lighting angle is adjusted, the air cylinder controls the driving shaft II to move, the driving gear I is meshed with the driven gear I to drive the screw rod to rotate, and the lighting lamp angle is adjusted; when the illumination range needs to be adjusted, the air cylinder controls the transmission shaft II to move, and the transmission gear II is meshed with the gear ring I to drive the bottom plate I to rotate and drive the illuminating lamp to rotate; when the camera shooting range needs to be adjusted, the air cylinder controls the transmission shaft II to move, the transmission gear III is meshed with the gear ring II to drive the base plate II to rotate, the camera is driven to rotate, and the camera shooting range is adjusted.
The foregoing is merely exemplary and illustrative of the present invention and various modifications, additions and substitutions may be made by those skilled in the art to the specific embodiments described without departing from the scope of the present invention as defined in the accompanying claims.
Claims (6)
1. A street lamp capable of carrying out monitoring video recording comprises a base and a lamp post and is characterized in that the lamp post is of a hollow structure, a transmission tube shaft II is arranged in the lamp post, a main gear II is arranged at the lower end of the transmission tube shaft II, a transmission shaft II is arranged in the transmission tube shaft II, and a transmission assembly is arranged at the upper end of the transmission shaft II; the lower side of the lamp post is provided with a power assembly, the lower side of the power assembly is provided with a base, one side of the lamp post is provided with a screw, one end of the screw is provided with a main gear III, and the other side of the lamp post is provided with a limiting block; a limiting groove is formed in one side of the lamp post, a camera shooting assembly is arranged on one side of the limiting groove, and a lighting assembly is arranged at the upper end of the lamp post;
the camera shooting assembly comprises a chassis II, a fixed seat, a threaded hole, a through hole, a bottom plate II, a gear ring II and a camera, the fixed seat is movably connected to the lamp post, and a locking device is arranged on the lower side of the fixed seat; the fixing seat is provided with a threaded hole, the threaded hole is in threaded connection with the screw rod, the fixing seat is provided with a through hole, and the limiting block is arranged in the through hole; a chassis II is arranged on one side of the fixed seat and fixedly connected with the fixed seat, and a guide groove II is formed in the chassis II; be equipped with bottom plate II on the fixing base, II one ends of bottom plate set up in spacing inslot, and II other ends of bottom plate set up in guide slot II, II one side of bottom plate are equipped with the camera.
2. The street lamp capable of being monitored and recorded with a video according to claim 1, wherein the lighting assembly comprises a first base plate, a first guide groove, a first bottom plate, a gear ring and a lighting lamp, the first base plate is arranged on the lamp post, the first guide groove is arranged on the first base plate, the first bottom plate is arranged on the first base plate, the gear ring is arranged on the first bottom plate, one end of the first bottom plate is arranged in the first guide groove, and the lighting lamp is arranged on the first bottom plate.
3. The street lamp capable of being monitored and recorded with a video according to claim 1, wherein a sliding groove is arranged on the base plate I, a lead screw is arranged on the upper side of the base plate I, and the lead screw is connected to the base plate I through a bearing; the screw rod is provided with a sliding plate, the sliding plate is arranged in the sliding groove and is in threaded connection with the screw rod, the illuminating lamp is arranged on the sliding plate, one side of the sliding plate is provided with a supporting rod, one end of the supporting rod is hinged with the sliding plate, and the other end of the supporting rod is hinged with the bottom plate I; one end of the screw rod is provided with a driven gear I.
4. The streetlamp capable of monitoring video recording according to claim 1, wherein the power assembly comprises a case, a motor, a transmission pipe shaft I, a transmission shaft I, a main gear IV and a handle, the case is arranged on one side of the lamp pole, the motor is arranged on one side of the case, the transmission pipe shaft I is arranged on one side of the motor, the transmission shaft I is arranged in the transmission pipe shaft I, the main gear I is arranged on the transmission shaft I, the main gear IV is arranged on one side of the main gear I, and the handle is arranged at one end of the transmission shaft I.
5. The street lamp capable of being monitored and recorded with a video according to claim 1, wherein the transmission assembly comprises a support, an air cylinder, a top plate, a limiting plate, a transmission gear I, a transmission gear II and a transmission gear III, the support is arranged on the chassis I, the air cylinder is arranged on the support and fixed on the support, the top plate is arranged on the upper side of the air cylinder, the transmission shaft II is respectively connected with the support and the top plate through a bearing, and the limiting plate is arranged at the upper end of the transmission shaft II; and a transmission gear I, a transmission gear II and a transmission gear III are arranged on the transmission shaft II.
6. The streetlamp capable of monitoring video recording according to claim 1, wherein the locking assembly comprises a locking block, a spring, a pull rope and a connecting block, the locking block is arranged on one side of the lamp post and connected with the lamp post through the spring, the pull rope is arranged at one end of the locking block, the connecting block is arranged at one end of the pull rope, and the connecting block is connected with the main gear III through a bearing.
