Abstract
The invention is suitable for the technical field of blood sampling, and provides a blood bag bracket for a transfusion station, which comprises an annular hanging and taking mechanism, wherein the annular hanging and taking mechanism comprises a plurality of hanging and taking units, two adjacent hanging and taking units are connected through a pin shaft to form the annular hanging and taking mechanism, each hanging and taking unit comprises a body, the body is connected with a plurality of hanging and placing parts through connecting parts, each hanging and placing part is provided with at least one hanging rod, the hanging rods are used for hanging blood bags, two ends of the body are respectively provided with a connecting male head and a connecting female port movably connected with the connecting male head through the pin shaft, and the transmission part is used for being matched with a driving mechanism to enable the hanging and taking units to move according to a set track, and the blood bag bracket has the advantages that: the annular is hung and is got every and hang and get all to have a plurality of peg on the unit in the mechanism, can place a plurality of blood bags, and the annular is hung the quantity of getting the mechanism and is a plurality of and distribute from top to bottom, can effectually save space to a large amount of blood bags of orderly storage temporarily.
Description
Technical Field
The invention relates to a blood bag bracket, in particular to a blood bag bracket for a blood transfusion station.
Background
Blood sampling is a process of taking blood samples through veins and arteries by medical staff due to inspection or other related requirements, and generally, blood samples are taken through veins in many and common ways. According to the requirements of blood station quality management standards, before a blood bag is sent to a blood using unit by a blood sampling mechanism, procedures such as labeling, proofreading, secondary packaging and the like need to be carried out on the blood bag.
In order to realize the mechanized operation of blood bag packing, the blood bag is mostly conveyed to the stations of labeling, proofreading, secondary packing and the like by a belt like the traditional assembly line. However, during the belt transportation process, the blood bag may be clamped by the gap between the belt and the guide rail and roll back into the belt, which may damage the blood bag. And the belt conveying mode has limited treatment capacity on blood bags, and cannot meet the requirement of large-batch and high-stability blood bag treatment.
Disclosure of Invention
An embodiment of the present invention provides a blood bag holder for a transfusion station, and aims to solve the technical problems in the prior art determined in the background art.
The embodiment of the invention is realized in such a way that the blood bag bracket for the transfusion station comprises an annular hanging mechanism, wherein the annular hanging mechanism comprises a plurality of hanging units, two adjacent hanging units are connected through a pin shaft to form the annular hanging mechanism, each hanging unit comprises a body, the body is connected with a plurality of hanging parts through connecting parts, each hanging part is provided with at least one hanging rod, the hanging rods are used for hanging blood bags, two ends of the body are respectively provided with a connecting male head and a connecting female port movably connected with the connecting male head through a pin shaft, the body is also provided with a transmission part, and the transmission part is matched with a driving mechanism to enable the hanging units to move according to a set track.
As a further scheme of the invention: the annular hanging and taking mechanisms are distributed up and down, each annular hanging and taking mechanism is driven to operate by a corresponding driving mechanism, or the annular hanging and taking mechanisms are driven to operate by the same driving mechanism.
As a still further scheme of the invention: the transmission part is provided with a rack, and the mounting height of the rack is higher than that of the body.
As a still further scheme of the invention: the driving mechanism comprises a motor reducer and a rotating cylinder, the rotating cylinder is fixedly connected to the output end of the motor reducer, a plurality of continuous teeth are arranged at the opening position of the rotating cylinder, and the teeth are used for being matched with the rack to drive the hanging unit to move.
As a still further scheme of the invention: the annular hanging mechanism is characterized by further comprising an outer shell used for packaging the annular hanging mechanism, a plurality of supporting legs are arranged at the bottom of the outer shell, and a feeding door and a taking door are arranged on the outer shell.
As a still further scheme of the invention: the refrigeration device is connected with the outer shell through a pipeline and used for inputting cold energy to the outer shell, and the refrigeration device is connected with the controller.
As a still further scheme of the invention: still install scanning device on the inner wall of shell body, scanning device is used for scanning the bar code information on the blood bag in order to obtain blood bag information, scanning device and controller, be equipped with the data interface who is used for the output data on the controller.
Compared with the prior art, the invention has the beneficial effects that: every string gets all to have a plurality of peg on the unit in the mechanism is got to the annular string, can place a plurality of blood bags, the annular is hung the quantity of getting the mechanism and is a plurality of and distribute about being, can effectually save space, and a large amount of blood bags of orderly storage temporarily, the annular is hung and is got mechanism's cyclic motion, operating personnel can put into the blood bag to the empty peg that corresponds according to actual conditions on, it is very convenient, operating personnel only need hang the blood bag put to the peg on can, the operation is thus simple, and the information of blood bag can automatic collection, very big saving manpower.
Drawings

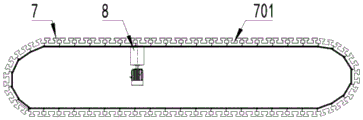

Fig. 1 is a schematic structural view of an annular hanging mechanism in a blood bag bracket for a transfusion station.
Fig. 2 is a schematic structural view of a hanging unit in a blood bag holder for a transfusion station.
Fig. 3 is a schematic diagram of the engagement between the hanging unit and the driving mechanism in the blood bag holder for the transfusion station.
Fig. 4 is a top view of a hanging unit in a blood bag holder for a transfusion station.
Fig. 5 is a schematic view of a driving mechanism in a blood bag holder for a transfusion station.
Fig. 6 is a schematic structural view of a blood bag holder for a transfusion station.
In the drawings: 1-outer shell, 2-feeding gate, 3-fetching gate, 4-refrigerating device, 5-supporting leg, 6-controller, 7-annular hanging mechanism, 701-hanging unit, 7011-body, 7012-hanging part, 7013-connecting part, 7014-transmission part, 7015-hanging rod, 7016-rack, 7017-connecting male head, 7018-connecting female port, 8-driving mechanism, 801-motor reducer, 802-rotating cylinder and 803-tooth.
Detailed Description
Reference will now be made in detail to the exemplary embodiments, examples of which are illustrated in the accompanying drawings. When the following description refers to the accompanying drawings, like numbers in different drawings represent the same or similar elements unless otherwise indicated. The implementations described in the exemplary embodiments below are not intended to represent all implementations consistent with the present disclosure. Rather, they are merely examples of apparatus and methods consistent with certain aspects of the present disclosure, as detailed in the appended claims.
Specific implementations of the present invention are described in detail below with reference to specific embodiments.
As shown in fig. 1 to 4, a structure diagram of a blood bag holder for a transfusion station according to an embodiment of the present invention includes an annular hanging mechanism 7, where the annular hanging mechanism 7 includes a plurality of hanging units 701, two adjacent hanging units 701 are connected by a pin to form the annular hanging mechanism 7, each hanging unit 701 includes a body 7011, the body 7011 is connected to a plurality of hanging portions 7012 by a connecting portion 7013, each hanging portion 7012 is provided with at least one hanging rod 7015, the hanging rods 7015 are used for hanging a blood bag, two ends of the body 7011 are respectively provided with a connecting male head 7017 and a connecting female port 7018 movably connected to the connecting male head 7017 by a pin, the body 7011 is further provided with a transmission portion 7014, and the transmission portion 7014 is used for cooperating with a driving mechanism 8 to enable the hanging units 701 to move along a set trajectory.
In the embodiment of the present invention, two adjacent hanging units 701 are connected by a pin to form an annular hanging mechanism 7, and the annular hanging mechanism 7 performs a circular motion, so that in an actual application, an operator can place a blood bag on a corresponding empty hanging rod 7015 according to an actual situation.
In this embodiment, every string gets all to have a plurality of peg 7015 on the unit 701 in the mechanism 7 is got to the annular string, can place a plurality of blood bags, and 7 cyclic motion are got to the annular string in addition, and operating personnel can put into the blood bag to the empty peg 7015 that corresponds according to actual conditions on, very convenient, operating personnel only need with the blood bag hang put to peg 7015 on can, easy operation.
As shown in fig. 1 to 4, as a preferred embodiment of the present invention, the number of the annular hanging and taking mechanisms 7 is plural and is distributed vertically, each annular hanging and taking mechanism 7 is driven by a corresponding driving mechanism 8 to operate, or a plurality of annular hanging and taking mechanisms 7 are driven by the same driving mechanism 8 to operate.
In the embodiment of the invention, the annular hanging and taking mechanisms 7 are distributed vertically, so that the space can be effectively saved, and a large number of blood bags can be stored temporarily and orderly. For the driving mode of the annular hanging and taking mechanism 7, when a plurality of annular hanging and taking mechanisms 7 are driven by the same driving mechanism 8 to operate, the driving mechanism 8 can output a plurality of rotary powers by setting a synchronous belt, a gear and the like.
As shown in fig. 1 to 4, as another preferred embodiment of the present invention, a rack 7016 is disposed on the transmission portion 7014, and the installation height of the rack 7016 is higher than that of the main body 7011.
In the embodiment of the present invention, the installation height of the rack 7016 is higher than that of the main body 7011, so as to prevent the male connection port 7017 and the female connection port 7018 from interfering with the rack 7016 and other components after the connection is completed due to the limitation of the installation position.
As shown in fig. 3 to 5, as another preferred embodiment of the present invention, the driving mechanism 8 includes a motor reducer 801 and a rotating cylinder 802, the rotating cylinder 802 is fixedly connected to an output end of the motor reducer 801, a plurality of continuous teeth 803 are provided at an opening position of the rotating cylinder 802, and the teeth 803 are used for cooperating with a rack 7016 to drive the hooking unit 701 to move.
When the motor reducer 801 outputs power, the motor reducer 801 drives the rotating cylinder 802 to rotate, and the teeth 803 rotate synchronously, in the embodiment of the present invention, the axial direction of the rotating cylinder 802 is perpendicular to the moving direction of the rack 7016, and the rotating cylinder 802 can drive the hooking unit 701 to move along a set track, and after the current hooking unit 701 is disengaged from the rotating cylinder 802, the rotating cylinder 802 continues to be in meshing transmission with the next hooking unit 701.
When a plurality of the annular hanging mechanisms 7 are driven by the same driving mechanism 8 to operate, the number of the rotating cylinders 802 is multiple, the belt pulleys are coaxially fixed on two adjacent rotating cylinders 802, the two adjacent belt pulleys are connected through the synchronous belt, only one motor is needed to be used as power output at the moment, and the simplification of the structure is realized.
As shown in fig. 6, as another preferred embodiment of the present invention, the present invention further comprises an outer casing 1 for enclosing the annular hanging mechanism 7, the bottom of the outer casing 1 is provided with a plurality of legs 5, and the outer casing 1 is provided with a feeding door 2 and a material taking door 3.
In the embodiment of the invention, an operator can hang the blood bags on the annular hanging and taking mechanism 7 through the feeding door 2, the annular hanging and taking mechanism 7 can store a plurality of blood bags, and similarly, the operator can take the blood bags out of the annular hanging and taking mechanism 7 from the taking door 3.
As shown in fig. 6, as another preferred embodiment of the present invention, a refrigeration device 4 is further installed on the outer casing 1, the refrigeration device 4 is connected to the outer casing 1 through a pipe for inputting refrigeration to the outer casing 1, and the refrigeration device 4 is connected to a controller 6.
Preferably, the cooling capacity in the embodiment of the present invention is cold air, which can ensure that the inside of the outer shell 1 is in a low temperature state to meet the requirement of temporary storage of the blood bag, specifically, the temperature inside the outer shell 1 can be set by the controller 6, and redundant description is not described here in this embodiment.
As shown in fig. 6, as another preferred embodiment of the present invention, a scanning device is further installed on an inner wall of the outer shell 1, the scanning device is used for scanning barcode information on a blood bag to obtain blood bag information, the scanning device is connected to the controller 6, and the controller 6 is provided with a data interface for outputting data.
In the embodiment of the invention, in order to conveniently record information on a corresponding blood bag, a scanning device is further installed on the inner wall of the outer shell 1, when the scanning device can be a scanning probe or a scanning gun, when the number of the annular hanging and taking mechanisms 7 is multiple, the number of the scanning devices is also correspondingly multiple, and when the annular hanging and taking mechanisms 7 circularly move, the scanning device can correspondingly store the information after scanning two-dimensional code or bar code information on the blood bag, of course, the repeatedly acquired information is removed, and after the blood bag is cleaned or collected, the information of the blood bag can be directly acquired from a data interface on the controller 6, so that the blood bag cleaning device is very convenient and greatly saves manpower.
With the above embodiments, it is easy to understand that the working principle of the present invention is: two adjacent hanging units 701 are connected through a pin shaft to form an annular hanging mechanism 7, a motor reducer 801 outputs power to drive a rotating cylinder 802 to rotate, teeth 803 can synchronously rotate to drive the hanging units 701 to move along a set track, after the hanging units 701 are separated from the rotating cylinder 802, the rotating cylinder 802 can continuously mesh with the next hanging unit 701 for transmission so as to realize that the annular hanging mechanism 7 circularly moves, moreover, the installation height of the rack 7016 is higher than that of the body 7011, the purpose that the connecting male head 7017 and the connecting female port 7018 are prevented from position interference with components such as the rack 7016 after the connection is finished due to the limitation of the installation position is realized, when in practical application, an operator can put blood bags onto corresponding empty hanging rods 7015 according to the actual situation, the annular hanging mechanism 7 can store a plurality of blood bags per se, and in the process that the blood bags move along with the annular hanging mechanism 7, after the scanning device scans the two-dimensional code or the bar code information on the blood bag, the information can be correspondingly stored, the repeatedly acquired information is removed, and after the blood bag is cleaned or collected, the information of the blood bag is directly acquired from the data interface on the controller 6, so that the method is very convenient and greatly saves labor; and in the use, refrigerating plant 4 can be to outer casing 1 input cold volume to satisfy the demand that the blood bag realized interim storage, the temperature in the outer casing 1 can be set up through controller 6.
The embodiment of the invention discloses a blood bag bracket for a transfusion station, wherein each hanging unit 701 in an annular hanging and taking mechanism 7 is provided with a plurality of hanging rods 7015 for placing a plurality of blood bags, the annular hanging and taking mechanisms 7 are distributed vertically, so that the space can be effectively saved, a large number of blood bags can be stored in a temporary and orderly manner, the annular hanging and taking mechanisms 7 move circularly, an operator can place the blood bags on the corresponding empty hanging rods 7015 according to actual conditions, the blood bag bracket is very convenient, the operator only needs to hang the blood bags on the hanging rods 7015, the operation is simple, the information of the blood bags can be automatically collected, and the labor is greatly saved.
Other embodiments of the disclosure will be apparent to those skilled in the art from consideration of the specification and practice of the disclosure herein. This application is intended to cover any variations, uses, or adaptations of the disclosure following, in general, the principles of the disclosure and including such departures from the present disclosure as come within known or customary practice within the art to which the disclosure pertains. It is intended that the specification and examples be considered as exemplary only, with a true scope and spirit of the disclosure being indicated by the following claims.
It will be understood that the present disclosure is not limited to the precise arrangements described above and shown in the drawings and that various modifications and changes may be made without departing from the scope thereof. The scope of the present disclosure is limited only by the appended claims.

Claims (7)
1. A blood bag bracket for a transfusion station comprises an annular hanging mechanism (7) and is characterized in that, the annular hanging and taking mechanism (7) comprises a plurality of hanging and taking units (701), two adjacent hanging and taking units (701) are connected through a pin shaft to form the annular hanging and taking mechanism (7), the hanging unit (701) comprises a body (7011), the body (7011) is connected with a plurality of hanging parts (7012) through connecting parts (7013), each hanging part (7012) is provided with at least one hanging rod (7015), the hanging rod (7015) is used for hanging the blood bag, two ends of the main body (7011) are respectively provided with a connecting male head (7017) and a connecting female port (7018) movably connected with the connecting male head (7017) through a pin shaft, the hanging unit is characterized in that the body (7011) is further provided with a transmission part (7014), and the transmission part (7014) is used for being matched with the driving mechanism (8) to enable the hanging unit (701) to move according to a set track.
2. A blood bag carrier for a transfusion station as claimed in claim 1, wherein said annular hanging and taking mechanisms (7) are distributed up and down, each of said annular hanging and taking mechanisms (7) is driven by a corresponding driving mechanism (8), or a plurality of said annular hanging and taking mechanisms (7) are driven by the same driving mechanism (8).
3. The blood bag bracket for the transfusion station as claimed in claim 1, wherein the transmission part (7014) is provided with a rack (7016), and the rack (7016) is installed at a height higher than that of the main body (7011).
4. The blood bag bracket for the transfusion station as claimed in claim 3, wherein the driving mechanism (8) comprises a motor reducer (801) and a rotating cylinder (802), the rotating cylinder (802) is fixedly connected to the output end of the motor reducer (801), a plurality of continuous teeth (803) are arranged at the opening position of the rotating cylinder (802), and the teeth (803) are used for being matched with a rack (7016) to drive the hanging unit (701) to move.
5. A blood bag carrier for a transfusion station according to claim 1 or 2 or 3 or 4, further comprising an outer casing (1) for enclosing the annular hanging and taking mechanism (7), wherein the outer casing (1) is provided with a plurality of legs (5) at the bottom, and the outer casing (1) is provided with a feeding door (2) and a taking door (3).
6. A blood bag carrier for a transfusion station according to claim 5, characterized in that a refrigerating device (4) is further installed on the outer shell (1), the refrigerating device (4) is connected with the outer shell (1) through a pipeline for inputting cold energy to the outer shell (1), and the refrigerating device (4) is connected with the controller (6).
7. The blood bag carrier for the transfusion station as claimed in claim 6, wherein the inner wall of the outer shell (1) is further provided with a scanning device, the scanning device is used for scanning bar code information on the blood bag to obtain the blood bag information, the scanning device and the controller (6) are provided with a data interface for outputting data on the controller (6).
