Abstract

The invention relates to the field of automatic processing equipment for automobile parts, in particular to automatic grinding equipment for an automobile shifting fork, which comprises: the automatic polishing machine comprises a rack, a tool clamp and an automatic polishing device; the frock clamp includes: the fixed bracket is fixedly arranged on the workbench; the movable bracket is slidably arranged on the fixed bracket; the sleeve positioning mechanism is fixedly arranged on the movable support, and the working end of the sleeve positioning mechanism is abutted against the two end faces of the sleeve part and the inner wall of the sleeve part; the fork head positioning mechanism is fixedly arranged on the fixed support, and the working end of the fork head positioning mechanism is abutted against the outer wall of one end of the fork head close to the sleeve part; and the non-working part of the first linear driver is fixedly connected with the fixed support, and the output end of the first linear driver is fixedly connected with the movable support. The equipment is used for polishing one end, far away from the sleeve portion, of the fork head of the shifting fork, the shifting fork is rapidly fixed through the original tool clamp, the feeding speed and the discharging speed are high, and the whole machining efficiency is high.

Description

Automatic grinding equipment of car shift fork
Technical Field
The invention relates to the field of automatic processing equipment for automobile parts, in particular to automatic grinding equipment for an automobile shifting fork.
Background
The shifting fork is a component on the automobile gearbox, is connected with a speed change handle and is positioned at the lower end of the handle, and shifts a middle speed change wheel to change the input/output speed ratio, and the shifting fork is mainly used for shifting gears of a clutch.
When the automobile shifting fork is produced, the shifting fork needs to be ground, and when the existing equipment is used for grinding, the shifting fork is low in production efficiency and poor in quality due to the fact that the shifting fork is manually operated and adjusted in position.
Disclosure of Invention
For solving above-mentioned technical problem, provide an automatic grinding equipment of car shift fork, this equipment is used for polishing the one end that the sleeve portion was kept away from to the jaw of shift fork, and it has accomplished the quick fixation to the shift fork through original frock clamp, and material loading, unloading are fast, have the advantage that whole machining efficiency is high.
In order to achieve the above purposes, the technical scheme adopted by the invention is as follows:
the utility model provides an automatic equipment of polishing of car shift fork, is including the equipment of polishing that is used for polishing the shift fork, and the shift fork mainly includes the sleeve part and with sleeve part fixed connection's jaw, the equipment of polishing includes:
a frame;
the workbench is arranged on the frame;
the tooling clamp is arranged on the workbench and used for fixing the sleeve part and the outer wall of one end, close to the sleeve part, of the fork head;
the working end of the automatic polishing device is arranged beside the tool clamp and is used for polishing one end of the fork head far away from the sleeve part;
the frock clamp includes:
the fixed bracket is fixedly arranged on the workbench;
the movable bracket is slidably arranged on the fixed bracket;
the sleeve positioning mechanism is fixedly arranged on the movable support, and the working end of the sleeve positioning mechanism is abutted against the two end faces of the sleeve part and the inner wall of the sleeve part;
the fork head positioning mechanism is fixedly arranged on the fixed support, and the working end of the fork head positioning mechanism is abutted against the outer wall of one end of the fork head close to the sleeve part;
and the non-working part of the first linear driver is fixedly connected with the fixed support, and the output end of the first linear driver is fixedly connected with the movable support.
Preferably, the work table includes:
the rotary disc is rotatably arranged on the rack and is in a disc shape arranged horizontally, the tool clamps are provided with a plurality of tool clamps, and the plurality of tool clamps are all arranged on the rotary disc and are uniformly distributed around the axis of the rotary disc;
the first rotary driver is fixedly arranged on the rack, and an output shaft of the first rotary driver is in transmission connection with the rotary disc.
Preferably, the worktable further comprises a stabilizing mechanism for stabilizing the rotary disk so that the rotary disk cannot shake when the automatic grinding device works, and the stabilizing mechanism comprises:
the annular bracket is coaxially arranged above or below the rotary disc;
the lifting mechanism is fixedly arranged on the rack, the output end of the lifting mechanism is fixedly connected with the annular support, and the lifting mechanism is used for driving the annular support to vertically lift so that the annular support is close to or far away from the rotary disc;
the stabilizing module is provided with at least one and is uniformly distributed around the axis of the annular support, the stabilizing module is fixedly connected with the annular support, and the stabilizing module is used for fixing the rotary disc so that the rotary disc cannot move.
Preferably, the lifting mechanism includes:
the bottom plate is arranged right above or right below the annular support and is fixedly connected with the rack;
the guide posts are provided with a plurality of guide posts and are uniformly distributed around the annular bracket, and the guide posts are vertically arranged and are fixedly connected with the annular bracket;
the guide sleeves are the same in number as the guide columns and correspond to the guide columns one by one, the guide columns are connected with the guide sleeves in a sliding mode, and the guide sleeves are fixedly connected with the bottom plate;
and the non-working part and the output end of the second linear driver are respectively and fixedly connected with the bottom plate and the annular bracket, and the driving direction of the second linear driver is parallel to the axis of the guide post.
Preferably, the stabilizing module comprises a first positioning column, the first positioning column is vertically arranged and is fixedly connected with the annular support, and a positioning hole which is coaxial with the first positioning column and is in clearance fit or transition fit is arranged on the rotary disc.
Preferably, the stabilizing module further comprises a clamping module for clamping two end faces of the rotating disc, and the clamping module comprises:
the supporting block is fixedly arranged on the annular bracket;
the first pressing plate is arranged at one end of the annular bracket, which is far away from the supporting block;
the first pressing mechanism is fixedly arranged on the annular bracket, and the output end of the first pressing mechanism is fixedly connected with the first pressing plate;
under the working state, the supporting block and the first pressing plate are respectively abutted against two end faces of the annular bracket.
Preferably, the sleeve positioning mechanism comprises:
the first positioning plate is fixedly connected with the movable bracket and abuts against one end face of the sleeve part;
the second positioning column is fixedly connected with the first positioning plate and is vertical to the abutting surface of the first positioning plate and the sleeve part, and the outer peripheral surface of the second positioning column abuts against the inner peripheral surface of the sleeve part;
the second pressure plate is abutted against one end face, away from the first positioning plate, of the sleeve part, and is provided with a through hole for avoiding the second positioning column;
and the second pressing mechanism is fixedly arranged on the movable support, and the output end of the second pressing mechanism is fixedly connected with the second pressing plate.
Preferably, the fork positioning mechanism comprises:
the second positioning plate is fixedly arranged on the fixed support and is abutted against the bottom surface of one end, close to the sleeve part, of the fork head;
and the two third positioning columns are respectively arranged on two sides of the fork head and abut against the side surface of one end, close to the sleeve part, of the fork head.
Preferably, the automatic grinding device includes:
the industrial robot is arranged beside the workbench;
the second rotary driver is fixedly arranged at the output end of the industrial robot;
and the grinding head is fixedly arranged on an output shaft of the second rotary driver.
Preferably, the automatic grinding device further comprises a constant force control device, a non-working part of the constant force control device is fixedly connected with the output end of the industrial robot, and a non-working part of the second rotary driver is fixedly connected with the output end of the constant force control device.
Compared with the prior art, the invention has the beneficial effects that:
the invention is used for polishing one end of the fork head of the shifting fork far away from the sleeve part, the shifting fork is rapidly fixed by an original tool clamp, the feeding and discharging speed is high, the integral processing efficiency is high, and the method for rapidly fixing the shifting fork comprises the following steps: the first linear driver drives the sleeve positioning mechanism to be close to the fork positioning mechanism, the sleeve part is sleeved on the second positioning column, the second pressing mechanism drives the second pressing plate to move to the position right above the sleeve part and press downwards, the second positioning column penetrates through a through hole in the second pressing plate, the second pressing plate abuts against one end face of the sleeve part and presses the other end face of the sleeve part onto the first positioning plate, and meanwhile the inner circumferential surface of the sleeve part abuts against the outer circumferential surface of the second positioning column; at the moment, a certain gap still exists between the two sides of the fork and the third positioning column, then the first linear driver drives the sleeve positioning mechanism to move towards the direction far away from the fork positioning mechanism, and the two sides of the fork are tightly abutted to the peripheral face of the third positioning column.
Drawings
FIG. 1 is a perspective view of the present invention;
FIG. 2 is a front view of the present invention after the automatic grinding apparatus is hidden;
FIG. 3 is a perspective view of the present invention after the automatic grinding apparatus is hidden;
FIG. 4 is an enlarged view of a portion of FIG. 3;
FIG. 5 is a perspective view of a turntable and tooling fixture of the present invention;
FIG. 6 is a perspective view of a first rotary drive and stabilizing mechanism of the present invention;
FIG. 7 is a perspective view of a tooling fixture of the present invention;

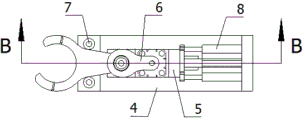

FIG. 8 is a top view of the tooling fixture of the present invention;
FIG. 9 is a cross-sectional view at section B-B of FIG. 8;
FIG. 10 is a perspective view of the automatic grinding apparatus of the present invention;
the reference numbers in the figures are:
1-a rotary disc; 1 a-a positioning hole;
2-a first rotary drive;
3-a stabilizing mechanism; 3 a-a ring-shaped support; 3 b-a lifting mechanism; 3b 1-bottom plate; 3b 2-guide posts; 3b 3-guide sleeve; 3b4 — second linear drive; 3 c-a stabilizing module; 3c1 — first positioning column; 3c 2-support block; 3c3 — first platen; 3c4 — first hold-down mechanism;
4-fixing the bracket;
5-a movable support;
6-a sleeve positioning mechanism; 6 a-a first positioning plate; 6 b-a second positioning column; 6 c-a second platen; 6 d-a second hold-down mechanism;
7-a jaw positioning mechanism; 7 a-a second positioning plate; 7 b-a third positioning column;
8-a first linear driver;
9-automatic grinding device; 9 a-an industrial robot; 9 b-a second rotary drive; 9 c-grinding head; 9 d-constant force control device.
Detailed Description
The following description is presented to disclose the invention so as to enable any person skilled in the art to practice the invention. The preferred embodiments in the following description are given by way of example only, and other obvious variations will occur to those skilled in the art.
As shown in fig. 1 and 7, an automatic grinding device for a shift fork of an automobile comprises a grinding device for grinding the shift fork, wherein the shift fork mainly comprises a sleeve portion and a fork head fixedly connected with the sleeve portion, and the grinding device comprises:
a frame;
the workbench is arranged on the frame;
the tooling clamp is arranged on the workbench and used for fixing the sleeve part and the outer wall of one end, close to the sleeve part, of the fork head;
the working end of the automatic polishing device 9 is arranged beside the tool clamp and is used for polishing one end of the fork head far away from the sleeve part;
the frock clamp includes:
the fixed bracket 4 is fixedly arranged on the workbench;
the movable bracket 5 is slidably arranged on the fixed bracket 4;
the sleeve positioning mechanism 6 is fixedly arranged on the movable support 5, and the working end of the sleeve positioning mechanism 6 is abutted against the two end surfaces of the sleeve part and the inner wall of the sleeve part;
the fork head positioning mechanism 7 is fixedly arranged on the fixed support 4, and the working end of the fork head positioning mechanism 7 is abutted against the outer wall of one end of the fork head close to the sleeve part;
and the non-working part of the first linear driver 8 is fixedly connected with the fixed bracket 4, and the output end of the first linear driver is fixedly connected with the movable bracket 5.
The working principle of the device is as follows:
firstly, install the shift fork on frock clamp by staff or can be used for automatic feeding's mechanical equipment, the installation order is:
step one, placing a sleeve part in a working interval of a sleeve positioning mechanism 6;
secondly, placing the fork head in a working area of the fork head positioning mechanism 7;
thirdly, the sleeve positioning mechanism 6 clamps and fixes two end faces of the sleeve and the inner wall of the sleeve, the first linear driver 8 drives the movable support 5 to slide on the fixed support 4, so that the sleeve positioning mechanism 6 arranged on the movable support 5 moves towards the direction far away from the fork positioning mechanism 7 along with the movable support 5, the outer wall of one end, close to the sleeve part, of the fork is tightly abutted against the working end of the fork positioning mechanism 7, and the fixing of the shifting fork is completed;
step four, polishing one end of the fork head, which is far away from the sleeve part, by an automatic polishing device 9;
and finally, taking out the shifting fork from the tool clamp by a worker or mechanical equipment capable of being used for automatic blanking.
Further, as shown in fig. 2 and 3, the work table includes:
the rotary disc 1 is rotatably arranged on the rack, the rotary disc 1 is in a horizontally arranged disc shape, a plurality of tool fixtures are arranged on the rotary disc 1 and are uniformly distributed around the axis of the rotary disc 1;
the first rotary driver 2 is fixedly installed on the rack, and an output shaft of the first rotary driver 2 is in transmission connection with the rotary disc 1.
The working principle of the workbench is as follows: the rotary disc 1 is provided with six stations, each station is provided with a tooling fixture, the first rotary driver 2 is an index plate, the number of the automatic grinding devices 9 is four, the automatic grinding devices 9 are used for grinding the front face, the back face, the outer peripheral face and the inner peripheral face of the fork head respectively, the four automatic grinding devices 9 correspond to the four stations respectively, and the two vacant stations are adjacently arranged and are used for feeding and discharging respectively.
Further, as shown in fig. 2, 3 and 4, the working table further includes a stabilizing mechanism 3 for stabilizing the rotating disc 1 against shaking when the automatic grinding device 9 is in operation, and the stabilizing mechanism 3 includes:
the annular support 3a is coaxially arranged above or below the rotary disk 1;
the lifting mechanism 3b is fixedly arranged on the rack, the output end of the lifting mechanism 3b is fixedly connected with the annular support 3a, and the lifting mechanism 3b is used for driving the annular support 3a to vertically lift so that the annular support 3a is close to or far away from the rotary disk 1;
and the stabilizing modules 3c are provided with at least one and are uniformly distributed around the axis of the annular support 3a, the stabilizing modules 3c are fixedly connected with the annular support 3a, and the stabilizing modules 3c are used for fixing the rotary disk 1 so that the rotary disk cannot move.
The working principle of the stabilizing mechanism 3 is as follows:
when the first rotary driver 2 drives the rotary disk 1 to rotate, the stabilizing module 3c releases the fixation of the rotary disk 1, and the lifting mechanism 3b drives the annular support 3a to be far away from the rotary disk 1, so that the annular support 3a and the stabilizing module 3c cannot influence the rotation of the rotary disk 1;
when the rotation of the first rotary driver 2 driving the rotary disc 1 is finished, the lifting mechanism 3b drives the annular support 3a to be close to the rotary disc 1, so that the rotary disc 1 enters the working interval of the stabilizing module 3c, the stabilizing module 3c fixes the rotary disc 1 to prevent the rotary disc from moving, and the automatic grinding device 9 is enabled to process the fork head, and the tool clamp and the rotary disc 1 cannot shake.
Further, as shown in fig. 2, the lifting mechanism 3b includes:
the bottom plate 3b1 is arranged right above or right below the annular bracket 3a and is fixedly connected with the frame;
the guide posts 3b2 are provided with a plurality of guide posts and are uniformly distributed around the annular bracket 3a, and the guide posts 3b2 are vertically arranged and are fixedly connected with the annular bracket 3 a;
the guide sleeves 3b3 are the same in number as the guide posts 3b2 and correspond to the guide posts 3b2 one by one, the guide posts 3b2 are connected with the guide sleeves 3b3 in a sliding mode, and the guide sleeves 3b3 are fixedly connected with the bottom plate 3b 1;
and the second linear driver 3b4 is provided with at least one, the non-working part and the output end of the second linear driver 3b4 are fixedly connected with the bottom plate 3b1 and the annular bracket 3a respectively, and the driving direction of the second linear driver 3b4 is parallel to the axis of the guide post 3b 2.
The operating principle of the lifting mechanism 3b is as follows: the guide post 3b2 and the guide sleeve 3b3 are combined to form a guide mechanism, the annular bracket 3a and the bottom plate 3b1 are guided to approach or separate from each other by the guide mechanism, the second linear actuator 3b4 is an air cylinder, and the second linear actuator 3b4 is used for driving the annular bracket 3a to move towards the direction approaching or separating from the bottom plate 3b 1.
Further, as shown in fig. 5 and 6, the stabilizing module 3c includes a first positioning column 3c1, the first positioning column 3c1 is vertically arranged and fixedly connected with the annular bracket 3a, and the rotating disk 1 is provided with a positioning hole 1a which is coaxial with the first positioning column 3c1 and is in clearance fit or transition fit.
The working principle of the stabilization module 3 c: the first positioning column 3c1 is a cylinder, the top of the first positioning column 3c1 is a round table with a thin top and a thick bottom, and a smooth diameter, the positioning hole 1a is a round hole, when the lifting mechanism 3b drives the ring-shaped support 3a to approach the rotary disk 1, the first positioning column 3c1 is gradually inserted into the positioning hole 1a and is matched with the positioning hole 1a, thereby preventing the rotary disk 1 from rotating in the horizontal direction.
Further, as shown in fig. 4, 5 and 6, the stabilizing module 3c further includes a clamping module for clamping two end surfaces of the rotating disc 1, and the clamping module includes:
a support block 3c2 fixedly mounted on the ring support 3 a;
a first presser plate 3c3 provided at an end of the ring bracket 3a remote from the support block 3c 2;
the first pressing mechanism 3c4 is fixedly arranged on the annular bracket 3a, and the output end of the first pressing mechanism 3c4 is fixedly connected with the first pressing plate 3c 3;
in the working state, the supporting block 3c2 and the first presser plate 3c3 abut against the two end faces of the annular bracket 3a, respectively.
The working principle of the clamping module is as follows: the first pressing mechanism 3c4 is a corner pressing cylinder, when the lifting mechanism 3b drives the annular bracket 3a to approach the rotary disk 1, the supporting block 3c2 gradually abuts against the bottom surface of the annular bracket 3a, the first pressing plate 3c3 moves to the upper part of the annular bracket 3a beyond the annular bracket 3a, and then the first pressing mechanism 3c4 drives the first pressing plate 3c3 to abut against the top surface of the annular bracket 3a, so that the two end surfaces of the rotary disk 1 are clamped by the supporting block 3c2 and the first pressing plate 3c3, and further the rotation of the rotary disk 1 in the vertical direction is prevented.
Further, as shown in fig. 7, 8 and 9, the sleeve positioning mechanism 6 includes:
a first positioning plate 6a fixedly connected to the movable bracket 5 and abutting against one end face of the sleeve portion;
a second positioning column 6b fixedly connected with the first positioning plate 6a and perpendicular to the abutting surface of the first positioning plate 6a and the sleeve portion, wherein the outer peripheral surface of the second positioning column 6b abuts against the inner peripheral surface of the sleeve portion;
a second pressing plate 6c abutting against one end face of the sleeve portion away from the first positioning plate 6a, the second pressing plate 6c being provided with a through hole for avoiding the second positioning post 6 b;
and the second pressing mechanism 6d is fixedly arranged on the movable support 5, and the output end of the second pressing mechanism 6d is fixedly connected with the second pressing plate 6 c.
The working principle of the sleeve positioning mechanism 6 is as follows: the second pressing mechanism 6d is a corner pressing cylinder, the second positioning column 6b is in a cylindrical shape as a whole, the top of the second positioning column 6b is in a circular truncated cone shape with a thin top end and a thick bottom end, the diameter of the second positioning column is smooth, a worker sleeves the sleeve portion of the shifting fork on the second positioning column 6b, then the second pressing mechanism 6d drives the second pressing plate 6c to move right above the sleeve portion and press downwards, the second positioning column 6b penetrates through a through hole in the second pressing plate 6c, the second pressing plate 6c abuts against one end face of the sleeve portion and drives the sleeve portion to slide downwards along the second positioning column 6b, the other end face of the sleeve portion is pressed on the first positioning plate 6a, meanwhile, the inner circumferential face of the sleeve portion abuts against the outer circumferential face of the second positioning column 6b, and therefore the sleeve portion is fixed by the sleeve positioning mechanism 6.
Further, as shown in fig. 7, 8 and 9, the fork positioning mechanism 7 includes:
the second positioning plate 7a is fixedly arranged on the fixed bracket 4, and the second positioning plate 7a is abutted against the bottom surface of one end of the fork head close to the sleeve part;
and two third positioning columns 7b are fixedly arranged on the fixed support 4 or the second positioning plate 7a, and the two third positioning columns 7b are respectively arranged on two sides of the fork and abut against the side surface of one end, close to the sleeve part, of the fork.
The working principle of the fork head positioning mechanism 7 is as follows: because the fork head is the position closer to the sleeve part, the width of the fork head is smaller, when the first linear driver 8 drives the movable support 5 to slide on the fixed support 4, so that the sleeve positioning mechanism 6 is close to the fork head positioning mechanism 7, a certain gap is still formed between two sides of the fork head and the third positioning column 7b on the premise that the sleeve part is fixed by the sleeve positioning mechanism 6, after the first linear driver 8 drives the sleeve positioning mechanism 6 to move towards the direction far away from the fork head positioning mechanism 7, two sides of the fork head abut against the outer peripheral surface of the third positioning column 7b, at the moment, the front surface, the back surface and two sides of the shifting fork are fixed, and the fixing of the shifting fork is completed.
Further, as shown in fig. 10, the automatic grinding apparatus 9 includes:
an industrial robot 9a arranged beside the worktable;
a second rotary actuator 9b fixedly mounted at the output end of the industrial robot 9 a;
and a grinding head 9c fixedly mounted on an output shaft of the second rotary driver 9 b.
Working principle of the automatic grinding device 9: the second rotary driver 9b is a servo motor or a servo motor with a speed reducer, the grinding head 9c is a grinding tool or a grinding wheel, the second rotary driver 9b is used for driving the grinding head 9c to rotate at a high speed to enable the grinding head to have a grinding function, and the industrial robot 9a drives the second rotary driver 9b to move according to a preset program to enable the industrial robot to grind different parts on the fork head.
Further, as shown in fig. 10, the automatic grinding device 9 further includes a constant force control device 9d, a non-working portion of the constant force control device 9d is fixedly connected to an output end of the industrial robot 9a, and a non-working portion of the second rotary actuator 9b is fixedly connected to an output end of the constant force control device 9 d.
The working principle of the constant force control device 9d is as follows:
because the mechanical arm is a rigid body, when the polishing executing device contacts with the uneven surface, the pressure on the workpiece is different at different places. When the uniform track path is adopted for polishing, the condition of damaging a polishing tool or a workpiece can occur, so that the polishing path of the joint contact surface needs to be planned in advance. However, if the uneven surface conditions are different among workpieces in a batch, the grinding path of the contact surface cannot be planned in advance.
The constant force control device 9d is specifically an AFD1100-2 type active constant force control device, and is used for solving the above problems and realizing conformal polishing of a surface to be polished. The constant force control device 9d provides a constant contact force between the grinding head 9c and the fork head, and provides a certain amount of buffer stroke for the grinding head 9c, so as to achieve the function of shape following grinding. At the surface relief, the pressure is constant and the relative distance between the grinding head 9c and the output of the industrial robot 9a is much more compressed; in the surface recess, the pressure is constant and the relative distance between the grinding head 9c and the output end of the industrial robot 9a is compressed less.
The working principle of the invention is as follows:
s100, feeding: the working personnel place the sleeve part in the working interval of the sleeve positioning mechanism 6 and place the fork in the working interval of the fork positioning mechanism 7;
s200, fixing the sleeve part through the sleeve positioning mechanism 6: the second pressing mechanism 6d drives the second pressing plate 6c to move to the position right above the sleeve portion and press downwards, the second positioning column 6b penetrates through a through hole in the second pressing plate 6c, the second pressing plate 6c abuts against one end face of the sleeve portion and presses the other end face of the sleeve portion against the first positioning plate 6a, meanwhile, the inner circumferential surface of the sleeve portion abuts against the outer circumferential surface of the second positioning column 6b, and therefore the sleeve positioning mechanism 6 finishes fixing the sleeve portion;
s300, fixing the fork through the fork positioning mechanism 7: when the sleeve positioning mechanism 6 is close to the fork positioning mechanism 7, on the premise that the sleeve part is fixed by the sleeve positioning mechanism 6, a certain gap still exists between the two sides of the fork and the third positioning column 7b, and after the sleeve positioning mechanism 6 is driven by the first linear driver 8 to move towards the direction far away from the fork positioning mechanism 7, the two sides of the fork are tightly abutted against the outer peripheral surface of the third positioning column 7 b;
s400, transferring materials: the working table drives the tool clamp to sequentially pass through each station, so that the fork head is respectively polished on the front side, the back side, the outer peripheral surface and the inner peripheral surface by the four automatic polishing devices 9;
s410, the stabilizing module 3c releases the fixation of the rotary disk 1, the lifting mechanism 3b drives the annular support 3a to be away from the rotary disk 1, and the first rotary driver 2 drives the rotary disk 1 to rotate for 60 degrees;
s420, when the rotation of the rotary disc 1 is finished, the lifting mechanism 3b drives the annular support 3a to be close to the rotary disc 1, so that the rotary disc 1 enters a working area of the stabilizing module 3c, the stabilizing module 3c fixes the rotary disc 1 to prevent the rotary disc 1 from moving, and the automatic grinding device 9 can not shake when processing a fork head;
s421, the first positioning column 3c1 is gradually inserted into the positioning hole 1a and is in clearance fit with the positioning hole 1a, thereby preventing the rotation of the turn disc 1 in the horizontal direction;
s422, the supporting block 3c2 gradually abuts against the bottom surface of the annular bracket 3a, the first pressing plate 3c3 moves over the annular bracket 3a to the upper side of the annular bracket 3a, and then the first pressing mechanism 3c4 drives the first pressing plate 3c3 to abut against the top surface of the annular bracket 3a, so that the two end surfaces of the rotating disk 1 are clamped by the supporting block 3c2 and the first pressing plate 3c 3;
s500, processing: the second rotary driver 9b is used for driving the grinding head 9c to rotate at a high speed to enable the grinding head to have a grinding function, the constant force control device 9d provides constant contact force between the grinding head 9c and the fork head, and the industrial robot 9a drives the second rotary driver 9b to move according to a preset program to enable the second rotary driver 9b to grind different parts on the fork head;
s600, blanking: and the working personnel take out the processed shifting fork from the tool clamp.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are merely illustrative of the principles of the invention, but that various changes and modifications may be made without departing from the spirit and scope of the invention, which fall within the scope of the invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (10)

1. The utility model provides an automatic equipment of polishing of car shift fork, is including the equipment of polishing that is used for polishing the shift fork, and the shift fork mainly includes the sleeve part and with sleeve part fixed connection's jaw, the equipment of polishing includes:
a frame;
the workbench is arranged on the frame;
the tooling clamp is arranged on the workbench and used for fixing the sleeve part and the outer wall of one end, close to the sleeve part, of the fork head;
the working end of the automatic grinding device (9) is arranged beside the tool clamp and is used for grinding one end of the fork head, which is far away from the sleeve part;
its characterized in that, frock clamp includes:
the fixed bracket (4) is fixedly arranged on the workbench;
the movable bracket (5) is slidably arranged on the fixed bracket (4);
the sleeve positioning mechanism (6) is fixedly arranged on the movable support (5), and the working end of the sleeve positioning mechanism (6) is abutted against the two end faces of the sleeve part and the inner wall of the sleeve part;
the fork head positioning mechanism (7) is fixedly arranged on the fixed support (4), and the working end of the fork head positioning mechanism (7) is abutted against the outer wall of one end, close to the sleeve part, of the fork head;
and the non-working part of the first linear driver (8) is fixedly connected with the fixed support (4), and the output end of the first linear driver is fixedly connected with the movable support (5).
2. The automatic grinding apparatus of an automobile fork according to claim 1, wherein the table comprises:
the rotary disc (1) is rotatably arranged on the rack, the rotary disc (1) is in a disc shape horizontally arranged, a plurality of tool fixtures are arranged on the rotary disc (1) and are uniformly distributed around the axis of the rotary disc (1);
the first rotary driver (2) is fixedly installed on the rack, and an output shaft of the first rotary driver (2) is in transmission connection with the rotary disc (1).
3. The automatic grinding apparatus of an automobile fork according to claim 2, wherein the table further comprises a stabilizing mechanism (3) for stabilizing the rotating disc (1) against shaking when the automatic grinding device (9) is operated, the stabilizing mechanism (3) comprising:
the annular support (3 a) is coaxially arranged above or below the rotary disc (1);
the lifting mechanism (3 b) is fixedly arranged on the rack, the output end of the lifting mechanism (3 b) is fixedly connected with the annular support (3 a), and the lifting mechanism (3 b) is used for driving the annular support (3 a) to vertically lift so that the annular support (3 a) is close to or far away from the rotary disc (1);
the stabilizing modules (3 c) are provided with at least one and are uniformly distributed around the axis of the annular support (3 a), the stabilizing modules (3 c) are fixedly connected with the annular support (3 a), and the stabilizing modules (3 c) are used for fixing the rotary disk (1) so that the rotary disk cannot move.
4. The automatic grinding apparatus of an automobile fork according to claim 3, wherein the lifting mechanism (3 b) comprises:
the bottom plate (3 b 1) is arranged right above or right below the annular bracket (3 a) and is fixedly connected with the frame;
the guide posts (3 b 2) are provided with a plurality of guide posts and are uniformly distributed around the annular bracket (3 a), and the guide posts (3 b 2) are vertically arranged and are fixedly connected with the annular bracket (3 a);
the guide sleeves (3 b 3) are the same in number as the guide columns (3 b 2) and correspond to the guide columns (3 b 2) one by one, the guide columns (3 b 2) are connected with the guide sleeves (3 b 3) in a sliding mode, and the guide sleeves (3 b 3) are fixedly connected with the bottom plate (3 b 1);
and the second linear driver (3 b 4) is provided with at least one, the non-working part and the output end of the second linear driver (3 b 4) are fixedly connected with the bottom plate (3 b 1) and the annular bracket (3 a) respectively, and the driving direction of the second linear driver (3 b 4) is parallel to the axis of the guide post (3 b 2).
5. The automatic grinding equipment of an automobile shifting fork according to claim 3, wherein the stabilizing module (3 c) comprises a first positioning column (3 c 1), the first positioning column (3 c 1) is vertically arranged and fixedly connected with the annular bracket (3 a), and the rotary disk (1) is provided with a positioning hole (1 a) which is coaxial with the first positioning column (3 c 1) and is in clearance fit or transition fit.
6. The automatic grinding apparatus of an automobile fork according to any one of claims 3 or 5, wherein the stabilizing module (3 c) further comprises a clamping module for clamping both end faces of the rotating disc (1), the clamping module comprising:
a supporting block (3 c 2) fixedly mounted on the annular bracket (3 a);
a first pressure plate (3 c 3) arranged at one end of the annular bracket (3 a) far away from the supporting block (3 c 2);
the first pressing mechanism (3 c 4) is fixedly arranged on the annular bracket (3 a), and the output end of the first pressing mechanism (3 c 4) is fixedly connected with the first pressing plate (3 c 3);
in the working state, the supporting block (3 c 2) and the first pressing plate (3 c 3) respectively abut against two end faces of the annular bracket (3 a).
7. The automatic grinding apparatus of an automobile fork according to claim 1, wherein the sleeve positioning mechanism (6) comprises:
a first positioning plate (6 a) fixedly connected with the movable bracket (5) and abutted against one end face of the sleeve portion;
the second positioning column (6 b) is fixedly connected with the first positioning plate (6 a) and is vertical to the abutting surface of the first positioning plate (6 a) and the sleeve part, and the outer peripheral surface of the second positioning column (6 b) abuts against the inner peripheral surface of the sleeve part;
the second pressure plate (6 c) is abutted against one end face, away from the first positioning plate (6 a), of the sleeve part, and a through hole for avoiding the second positioning column (6 b) is formed in the second pressure plate (6 c);
and the second pressing mechanism (6 d) is fixedly arranged on the movable support (5), and the output end of the second pressing mechanism (6 d) is fixedly connected with the second pressing plate (6 c).
8. The automatic grinding apparatus of a vehicle fork according to any one of claims 1 or 7, wherein the fork head positioning mechanism (7) comprises:
the second positioning plate (7 a) is fixedly arranged on the fixed support (4), and the second positioning plate (7 a) is abutted against the bottom surface of one end, close to the sleeve part, of the fork head;
and the two third positioning columns (7 b) are respectively arranged on two sides of the fork head and abut against the side face of one end, close to the sleeve part, of the fork head.
9. The automatic grinding apparatus of an automobile fork according to claim 1, wherein the automatic grinding device (9) comprises:
an industrial robot (9 a) arranged beside the worktable;
a second rotary driver (9 b) fixedly installed at an output end of the industrial robot (9 a);
and a grinding head (9 c) fixedly mounted on an output shaft of the second rotary driver (9 b).
10. The automatic grinding apparatus for an automobile fork according to claim 9, wherein the automatic grinding means (9) further comprises a constant force control means (9 d), a non-working portion of the constant force control means (9 d) is fixedly connected to an output end of the industrial robot (9 a), and a non-working portion of the second rotary actuator (9 b) is fixedly connected to an output end of the constant force control means (9 d).
CN202011258017.9A 2020-11-11 2020-11-11 Automatic grinding equipment of car shift fork Withdrawn CN112318290A (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202011258017.9A CN112318290A (en) 2020-11-11 2020-11-11 Automatic grinding equipment of car shift fork

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202011258017.9A CN112318290A (en) 2020-11-11 2020-11-11 Automatic grinding equipment of car shift fork

Publications (1)

Publication Number Publication Date
CN112318290A true CN112318290A (en) 2021-02-05

Family

ID=74317929

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202011258017.9A Withdrawn CN112318290A (en) 2020-11-11 2020-11-11 Automatic grinding equipment of car shift fork

Country Status (1)

Country Link
CN (1) CN112318290A (en)

Cited By (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN113118660A (en) * 2021-04-21 2021-07-16 辽宁装备制造职业技术学院 Robot welding quality short-term test frock
CN114473076A (en) * 2022-01-24 2022-05-13 宁波中大力德智能传动股份有限公司 Gear disc deburring mechanism
CN115502813A (en) * 2022-10-12 2022-12-23 青岛德盛机械制造有限公司 Crank pin oil hole opening grinding and polishing device

Citations (9)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN202015957U (en) * 2011-03-29 2011-10-26 无锡威孚精密机械制造有限责任公司 Power takeoff shift fork clamp
CN102632386A (en) * 2012-04-10 2012-08-15 浙江大学台州研究院 Multi-station machine tool for plunger pump body
CN203509740U (en) * 2013-09-17 2014-04-02 南京贝奇尔机械有限公司 High-load circumferential equally-feeding device
CN204321703U (en) * 2014-12-19 2015-05-13 重庆美欧特机电制造有限公司 Shift fork boring technological equipment
CN105643347A (en) * 2014-11-10 2016-06-08 南通中集罐式储运设备制造有限公司 Operating platform
CN205325172U (en) * 2016-01-28 2016-06-22 十堰振新杰汽车悬架科技股份有限公司 Six station rotation numerical controls of automobile lug are bored and are milled combined machine tool
CN105773408A (en) * 2014-12-26 2016-07-20 重庆山青机械制造有限公司 Clamp for shifting fork grinding
KR101680650B1 (en) * 2015-12-17 2016-11-29 탑테크주식회사 Fork tilt the workpiece fixing jig
CN209681870U (en) * 2018-10-09 2019-11-26 长春市康尼克森自动化设备有限公司 A six-station rotary multifunctional fully automatic digital grinder device

Patent Citations (9)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN202015957U (en) * 2011-03-29 2011-10-26 无锡威孚精密机械制造有限责任公司 Power takeoff shift fork clamp
CN102632386A (en) * 2012-04-10 2012-08-15 浙江大学台州研究院 Multi-station machine tool for plunger pump body
CN203509740U (en) * 2013-09-17 2014-04-02 南京贝奇尔机械有限公司 High-load circumferential equally-feeding device
CN105643347A (en) * 2014-11-10 2016-06-08 南通中集罐式储运设备制造有限公司 Operating platform
CN204321703U (en) * 2014-12-19 2015-05-13 重庆美欧特机电制造有限公司 Shift fork boring technological equipment
CN105773408A (en) * 2014-12-26 2016-07-20 重庆山青机械制造有限公司 Clamp for shifting fork grinding
KR101680650B1 (en) * 2015-12-17 2016-11-29 탑테크주식회사 Fork tilt the workpiece fixing jig
CN205325172U (en) * 2016-01-28 2016-06-22 十堰振新杰汽车悬架科技股份有限公司 Six station rotation numerical controls of automobile lug are bored and are milled combined machine tool
CN209681870U (en) * 2018-10-09 2019-11-26 长春市康尼克森自动化设备有限公司 A six-station rotary multifunctional fully automatic digital grinder device

Cited By (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN113118660A (en) * 2021-04-21 2021-07-16 辽宁装备制造职业技术学院 Robot welding quality short-term test frock
CN114473076A (en) * 2022-01-24 2022-05-13 宁波中大力德智能传动股份有限公司 Gear disc deburring mechanism
CN114473076B (en) * 2022-01-24 2023-04-18 宁波中大力德智能传动股份有限公司 Gear disc deburring mechanism
CN115502813A (en) * 2022-10-12 2022-12-23 青岛德盛机械制造有限公司 Crank pin oil hole opening grinding and polishing device
CN115502813B (en) * 2022-10-12 2026-03-03 青岛德盛机械制造有限公司 Crank pin oil hole opening polishing device

Similar Documents

Publication Publication Date Title
CN112318290A (en) Automatic grinding equipment of car shift fork
CN210677573U (en) Three-turning work station
CN105364650A (en) Automatic crank shaft grinding and cleaning machine
CN1090074C (en) Automatic machine tool with multiple processing units
CN118255158B (en) Loading and unloading equipment for production lines
CN210209079U (en) Laser etching equipment
KR20170009060A (en) Apparatus for changing a workpiece of a turning center
CN216731225U (en) Automatic sliding bearing oil groove polishing machine
CN112974995A (en) Automatic cycle CNC CNC engraving and milling machine
CN109531234B (en) Rotary disc type machining equipment
CN215147978U (en) Polishing mechanism and polishing system with same
CN118268634B (en) Middle ball panel forming device and forming method thereof
CN115365585B (en) An automatic loading and unloading production system for gear chamfering
CN114682852B (en) Multi-station chamfering equipment for swash plate of automobile air conditioner compressor
CN205870245U (en) Can process terminal surface of work piece and burnishing machine of excircle
CN113618363B (en) Precise servo electronic press capable of adjusting pressing direction
CN214489239U (en) Pressing positioning laser welding device
CN217316497U (en) One drags a full-automatic hinge welding equipment
CN215999166U (en) Seat chassis welding machine
CN110142474B (en) Automobile air conditioner evaporator bowl cover processingequipment
CN115446219A (en) Automatic feeding device of numerical control lathe and using method
CN215511779U (en) Full-automatic glass processing system
CN117226366B (en) Welding robot is equipped to ocean harbour machinery high-end
CN113102889A (en) Thin-wall drill base body processing system
CN218427478U (en) Polishing device

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
WW01 Invention patent application withdrawn after publication

Application publication date: 20210205

WW01 Invention patent application withdrawn after publication
