CN112308186A

CN112308186A - An automatic analysis device for material purchase price

Info

Publication number: CN112308186A
Application number: CN202011392311.9A
Authority: CN
Inventors: 张煜; 郭亚琨; 张涛; 张律; 张蕾; 丁锐; 朱昆贤; 王刚; 张琳
Original assignee: Zaozhuang Power Supply Co of State Grid Shandong Electric Power Co Ltd; State Grid Corp of China SGCC
Current assignee: Zaozhuang Power Supply Co of State Grid Shandong Electric Power Co Ltd; State Grid Corp of China SGCC
Priority date: 2020-12-03
Filing date: 2020-12-03
Publication date: 2021-02-02
Anticipated expiration: 2040-12-03
Also published as: CN112308186B

Abstract

The invention discloses an automatic analysis device for material purchase price, comprising a transmission roller, a transport frame, a transport belt, a limit groove, a rear mounting frame, a support table, a stepping motor, a sensor, a turning frame, a scanning code analyzer, and a transport frame It is installed in conjunction with the conveyor belt. The conveyor belt is processed to form a limit slot. The support platform installed vertically on the rear mounting frame uses bolts to locate the stepping motor. The stepping motor shaft is installed in conjunction with the flipping frame. The code analyzer is installed at the front end of the rear mounting frame. It is an automatic analysis device for the purchase price of materials. The conveyor belt drives the material movement of the limit slot, and the stepping motor drives the turning frame to perform synchronous turning movement. The design of the counterweight shell ensures that the turning frame can be turned over. The stability of flipping realizes that the sensor stably presses the material in the limit slot. The sensor is a pressure sensor. After the sensor senses the pressure signal, it transmits the signal to the scan code analyzer, and the scan code analyzer starts to collect the material price information.

Description

Automatic analysis device for purchase price of material

Technical Field

The invention relates to the field of material price analysis, in particular to an automatic material purchase price analysis device.

Background

The purchase price of the material refers to the price of the material existing in the market for the buyer enterprise.

Price is the monetary representation of the value of a good and is the proportion of the good that is exchanged with money. Under socialist market economic conditions, supplies are also produced and circulated as commodities. Therefore, market analysis of material price is more favorable to providing more scientific data analysis for market analysis, and when the material was put in storage, the sign indicating number was swept to the manpower more, and work efficiency is low.

Disclosure of Invention

The invention aims to overcome the defects of the prior art and provide an automatic material purchase price analysis device. In order to achieve the purpose, the invention adopts the following technical scheme:

the utility model provides a material purchase price automatic analysis device, includes driving roller, transportation frame, transportation area, spacing groove, back mounting bracket, a supporting bench, step motor, sensor, roll-over stand, sweeps a code analysis appearance, and transportation frame and transportation area cooperation installation, transportation area machine-shaping limit groove, the supporting bench of the perpendicular installation of back mounting bracket uses bolt location installation step motor, and step motor pivot and roll-over stand cooperation installation, the sensor is installed at roll-over stand both ends position, sweeps a code analysis appearance and installs at back mounting bracket front end.

Preferably, the sensor is positioned and installed at the center of the installation upright post, the installation upright post and the motion disc are installed in a matched mode in the vertical direction, the shock absorption spring supports the motion disc, and the guide upright rod is installed at the through hole of the motion disc, so that the vertical motion of the motion disc is guaranteed.

Preferably, the roll-over stand comprises support and counter weight casing, and the design of support both ends integrated into one piece has the counter weight casing, and the design of counter weight casing has guaranteed roll-over stand upset stability, has realized that the sensor is stable to be pressed at the material of spacing groove.

Preferably, the sensor is a pressure sensor, the sensor senses a pressure signal and transmits the signal to the code scanning analyzer, and the code scanning analyzer starts code scanning operation.

Compared with the prior art, the invention has the following advantages: the utility model provides a material purchase price automatic analysis device, the transportation area drives the material motion of spacing groove, and step motor drives the roll-over stand and carries out synchronous turnover motion, and roll-over stand upset stability has been guaranteed in the design of counter weight casing, has realized that the sensor is stable presses the material at the spacing groove, and the sensor is pressure sensor, and the sensor experiences behind the pressure signal with signal transmission to sweeping code analysis appearance, sweep code analysis appearance and start, gathers material price information.

Drawings

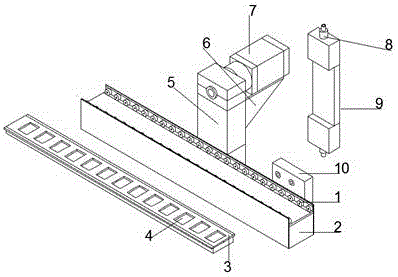

FIG. 1 is a schematic structural diagram of an automatic analyzing device for purchase price of materials according to the present invention.

Fig. 2 is a schematic view of an installation structure of the automatic material purchase price analyzing device of the present invention.

Fig. 3 is a schematic structural diagram of the sensor of the present invention.

Fig. 4 is a schematic structural view of the roll-over stand of the present invention.

In the figure: 1. driving roller, 2, transportation frame, 3, transportation area, 4, spacing groove, 5, back mounting bracket, 6, brace table 7, step motor, 8, sensor, 9, roll-over stand, 10, sweep a code analysis appearance, 11, installation stand, 12, motion dish, 13, bradyseism spring, 14, direction pole setting, 15, support, 16, counter weight casing.

Detailed Description

The invention is explained in further detail below with reference to the figures and the specific embodiments.

As shown in fig. 1, fig. 2, fig. 3 and fig. 4, a material purchase price automatic analysis device, including driving roller 1, transportation frame 2, transportation area 3, spacing groove 4, rear mounting bracket 5, brace table 6, step motor 7, sensor 8, roll-over stand 9, sweep a yard analysis appearance 10, driving roller 1 uses the pivot to install in transportation frame 2 both sides position, transportation frame 2 and transportation area 3 cooperation installation, transportation area 3 shaping spacing groove 4, rear mounting bracket 5 is installed in transportation frame 2 support body central point, brace table 6 of rear mounting bracket 5 perpendicular installation uses bolt location installation step motor 7, step motor 7 pivot and roll-over stand 9 cooperation installation, sensor 8 is installed in roll-over stand 9 both ends position, sweep a yard analysis appearance 10 and install in rear mounting bracket 5 front end position.

The sensor 8 is positioned and installed at the center of the installation upright post 11, the installation upright post 11 and the moving disc 12 are installed in a matching manner at the upper and lower positions, the shock absorption spring 13 supports the installation moving disc 12, and the guide upright rod 14 is installed at the through hole position of the moving disc 12, so that the vertical movement of the moving disc 12 is ensured.

The roll-over stand 9 comprises a support 15 and a counterweight shell 16, the counterweight shell 16 is integrally formed at two ends of the support 15, the roll-over stand 9 is guaranteed to be stable in roll-over by the aid of the counterweight shell 16, and materials pressed on the limiting groove 4 by the sensor 8 are stable.

The sensor 8 is a pressure sensor, the sensor 8 senses a pressure signal and transmits the signal to the code scanning analyzer 10, and the code scanning analyzer 10 starts code scanning operation.

The working principle of the invention is as follows: the utility model provides a material purchase price automatic analysis device, the transportation area drives the material motion of spacing groove, and step motor drives the roll-over stand and carries out synchronous turnover motion, and roll-over stand upset stability has been guaranteed in the design of counter weight casing, has realized that the sensor is stable presses the material at the spacing groove, and the sensor is pressure sensor, and the sensor experiences behind the pressure signal with signal transmission to sweeping code analysis appearance, sweep code analysis appearance and start, gathers material price information.

The pressure sensor is used as a counting sensor, so that the accuracy of material counting is guaranteed, and the intermittent scanning operation of the code scanning analyzer is realized by using the pressure signal as a trigger signal.

The foregoing is a preferred embodiment of the present invention, and it will be apparent to those skilled in the art that variations, modifications, substitutions and alterations can be made in the embodiment without departing from the principles and spirit of the invention.

Claims

1. An automatic analysis device for material purchase price, characterized in that it comprises a transmission roller (1), a transport frame (2), a transport belt (3), a limit groove (4), a rear mounting frame (5), a support table (6), stepper motor (7), sensor (8), flip frame (9), code scanning analyzer (10), drive roller (1) is installed on both sides of the transport frame (2) using a rotating shaft, the transport frame (2) It is installed in conjunction with the conveyor belt (3), the conveyor belt (3) is processed into a limiting groove (4), the rear mounting bracket (5) is installed in the center of the transport rack (2), and the rear mounting bracket (5) The vertically installed support table (6) uses bolts to locate and install the stepping motor (7). The rotating shaft of the stepping motor (7) is installed in cooperation with the turning frame (9), and the sensor (8) is installed at both ends of the turning frame (9). The scanning code analyzer (10) is installed at the front end of the rear mounting bracket (5).

2. The device for automatic analysis of material purchase prices according to claim 1, wherein the sensor (8) is positioned and installed at the center of the installation column (11), the installation column (11) and the motion plate (12) It is installed in the upper and lower positions, the cushioning spring (13) supports and installs the moving plate (12), and the guide rod (14) is installed in the through hole of the moving plate (12) to ensure the vertical movement of the moving plate (12).

3 . The device for automatic analysis of material purchase prices according to claim 1 , wherein the flip frame ( 9 ) is composed of a bracket ( 15 ) and a counterweight housing ( 16 ), and both ends of the bracket ( 15 ) are composed of a bracket ( 15 ) and a counterweight housing ( 16 ). The one-piece design is provided with a counterweight housing (16), and the design of the counterweight housing (16) ensures the inversion stability of the overturning frame (9), and enables the sensor (8) to stably press the material in the limiting groove (4).

4. An automatic analysis device for material purchase price according to claim 1, characterized in that, the sensor (8) is a pressure sensor, and the sensor (8) transmits the signal to the scanning code analyzer ( 10), the scan code analyzer (10) starts the scan code work.
