Abstract
The invention belongs to the technical field of teapot manufacturing equipment, in particular to non-heritage teapot manufacturing equipment which comprises a base and a top plate, wherein a height adjusting mechanism is arranged between the base and the top plate, fixing mechanisms are arranged at two sides of the base, a containing mechanism is movably connected inside the base, a rotating table is rotatably connected inside the top plate, a rotating mechanism is arranged inside the top plate, a sliding rod is rotatably connected to the surface of the rotating table, a second sliding block is sleeved on the sliding rod, a jacking mechanism is arranged between the second sliding block and the sliding rod, a clamping mechanism is arranged between a placing table and the second sliding block, the manual rotation and the electric rotation of the placing table are switched through the jacking mechanism and the clamping mechanism, the movement and the fixation of the base are realized through the fixing mechanism, the height of the top plate is adjusted through the height adjusting mechanism, the containing mechanism is used for containing the tools used in the teapot production.
Description
Technical Field
The invention belongs to the technical field of teapot manufacturing equipment, and particularly relates to non-heritage teapot manufacturing equipment.
Background
The most raw and other materials that will make the teapot of teapot preparation are placed on the revolving stage, it is moulding to rotate through the revolving stage, carve after air-drying and fire the formation, current revolving stage single structure, inconvenient removal and fixed, and inconvenient highly the adjusting of placing the platform, and simultaneously, need use a large amount of instruments when carving, inconvenient arranging is deposited, and need the revolving stage to rotate fast when drawing the embryo, most this moment drives the revolving stage through the motor and rotates, and if carry out when the detail preparation then need carry out manual operation to the revolving stage if installation hu zui handle etc., and current revolving stage is inconvenient to carry out manual and electrodynamic switching.
Disclosure of Invention
To solve the problems set forth in the background art described above. The invention provides a non-heritage tea pot manufacturing device which has the characteristics of convenience in collection and storage of tools, convenience in moving and fixing, convenience in height adjustment of a placing table and convenience in manual and electric switching.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a tea pot preparation equipment is created to non-relic, includes base and roof, the surperficial symmetric connection of base has two fixed blocks, the surface of fixed block is connected with flexible loop bar, and the top of flexible loop bar links to each other in the bottom of roof, the base is provided with high adjustment mechanism between the roof, fixed establishment is installed to the both sides of base, the inside swing joint of base has receiving mechanism, the inside of roof is rotated and is connected with the revolving stage, the internally mounted of roof has slewing mechanism, the surface of revolving stage is rotated and is connected with the slide bar, the top of slide bar is connected with places the platform, the second sliding block has been cup jointed on the slide bar, be provided with the tight mechanism in top between second sliding block and the slide bar, it is provided with block mechanism to place between platform.
As the preferable technical scheme of the non-heritage tea making device, the clamping mechanism comprises a fixed shell, an inserting rod, an elastic sheet and a spring button, the inserting rod is installed at the top end of the second sliding block, the elastic sheet is installed on one side of the inserting rod, the inserting rod moves in the fixed shell, the fixed shell is installed at the bottom end of the placing table, the spring button is movably connected in the fixed shell, the top end of the spring button is attached to the elastic sheet, and the spring button is clamped with a cavity in the fixed shell.
As a preferred technical scheme of the non-heritage original teapot manufacturing equipment, the height adjusting mechanism comprises a supporting rod, a hand wheel, a two-way screw rod and first sliding blocks, the two-way screw rod rotates between two fixed blocks, the two first sliding blocks are symmetrically sleeved on the two-way screw rod, the surface of each first sliding block is rotatably connected with the supporting rod through a rotating shaft, the other ends of the two supporting rods are rotatably connected with the bottom surface of the top plate through the same rotating shaft, and one side of the two-way screw rod is connected with the hand wheel.
As the preferable technical scheme of the non-heritage tea making device, the rotating mechanism comprises a gear ring, a motor main body and a gear, the motor main body is installed inside the top plate through a motor support, the bottom end of the rotating table is connected with the gear ring, the gear is sleeved on an output shaft of the motor main body, and the gear is meshed with the gear ring.
As the preferable technical scheme of the non-heritage tea making device, the jacking mechanism comprises a first jacking spring and an insertion block, the first jacking spring is sleeved on the sliding rod, one end of the first jacking spring is connected with the bottom surface of the placing table, the other end of the first jacking spring is connected with the second sliding block, the bottom end of the second sliding block is connected with four insertion blocks, four clamping grooves are formed in the surface of the rotating table, and the insertion blocks are correspondingly clamped with the clamping grooves.
As the preferable technical scheme of the non-heritage tea making device, the fixing mechanism comprises a threaded shaft and a knob, the two sides of the base are rotatably connected with the threaded shaft, the top end of the threaded shaft is connected with the knob, and the bottom end of the threaded shaft is connected with the sucker base.
As the preferable technical scheme of the non-heritage tea pot manufacturing equipment, the storage mechanism comprises a drawing cabinet, the drawing cabinet is movably connected with the base, and tools required for manufacturing the tea pot are stored in the drawing cabinet.
Compared with the prior art, the invention has the beneficial effects that: the manual rotation and electric rotation switching of the placement table is realized through the jacking mechanism and the clamping mechanism, the base is moved and fixed through the fixing mechanism, the top plate is subjected to height adjustment through the height adjusting mechanism, and appliances used in the process of manufacturing the teapot are accommodated through the accommodating mechanism.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention. In the drawings:
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A in FIG. 1;

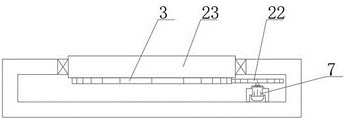

FIG. 3 is a schematic view of the internal structure of the stationary casing according to the present invention;
FIG. 4 is a schematic view showing the internal structure of the top plate according to the present invention;
FIG. 5 is a schematic structural diagram of a second slider according to the present invention;
in the figure: 1. a base; 2. a top plate; 3. a ring gear; 4. a support bar; 5. a fixed block; 6. a pull cabinet; 7. a motor main body; 8. a threaded shaft; 9. a knob; 10. a hand wheel; 11. a bidirectional screw rod; 12. a first slider; 13. a placing table; 14. a slide bar; 15. a first urging spring; 16. fixing the housing; 17. inserting a rod; 18. a second slider; 19. an insertion block; 20. a spring plate; 21. a spring button; 22. a gear; 23. and (4) rotating the table.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Examples
Referring to fig. 1-5, the present invention provides a technical solution: the utility model provides a non-relic creates teapot preparation equipment, including base 1 and roof 2, base 1's surperficial symmetric connection has two fixed blocks 5, the surface of fixed block 5 is connected with flexible loop bar, the top of flexible loop bar links to each other in the bottom of roof 2, base 1 is provided with height adjusting mechanism between roof 2, fixed establishment is installed to base 1's both sides, base 1's inside swing joint has receiving mechanism, the inside of roof 2 rotates and is connected with revolving stage 23, the internally mounted of roof 2 has slewing mechanism, the surface rotation of revolving stage 23 is connected with slide bar 14, the top of slide bar 14 is connected with places platform 13, second sliding block 18 has been cup jointed on the slide bar 14, be provided with the tight mechanism in top between second sliding block 18 and the slide bar 14, it is provided with block mechanism to place between platform 13 and.
In this embodiment, the manual rotation and the electric rotation of the placing table 13 are switched by the tightening mechanism and the clamping mechanism, the base 1 is moved and fixed by the fixing mechanism, the top plate 2 is adjusted in height by the height adjusting mechanism, and the teapot is accommodated by the accommodating mechanism.
Specifically, block mechanism includes fixed shell 16, inserted bar 17, shell fragment 20 and spring button 21, and inserted bar 17 is installed on the top of second sliding block 18, and shell fragment 20 is installed to one side of inserted bar 17, and inserted bar 17 is at the inside activity of fixed shell 16, and fixed shell 16 installs in the bottom of placing platform 13, and the inside swing joint of fixed shell 16 has spring button 21, and spring button 21's top and the laminating of shell fragment 20, the cavity block in spring button 21 and the fixed shell 16.
In this embodiment, when the insertion rod 17 enters the inside of the fixed housing 16, the elastic sheet 20 is engaged with the cavity, and when the insertion rod 17 needs to be separated from the fixed housing 16, the spring button 21 is pressed to deform the elastic sheet 20 to separate from the fixed housing 16.
Specifically, height adjusting mechanism includes bracing piece 4, hand wheel 10, two-way lead screw 11 and first sliding block 12, and two-way lead screw 11 rotates between two fixed blocks 5, and two first sliding blocks 12 have been cup jointed to the symmetry on the two-way lead screw 11, and the surface of first sliding block 12 is rotated through the pivot and is connected with bracing piece 4, and the other end of two bracing pieces 4 is rotated through the bottom surface of same pivot and roof 2 and is connected, and one side of two-way lead screw 11 is connected with hand wheel 10.
In this embodiment, the rotating hand wheel 10 drives the bidirectional screw rod 11 to rotate, so that the first sliding block 12 slides, and under the action of the rotating shaft, the supporting rod 4 rotates to adjust the height of the top plate 2.
Specifically, slewing mechanism includes ring gear 3, motor main part 7 and gear 22, and motor main part 7 passes through the motor support mounting in the inside of roof 2, and the bottom of revolving stage 23 is connected with ring gear 3, has cup jointed gear 22 on motor main part 7's the output shaft, and gear 22 and ring gear 3 mesh.
In this embodiment, the motor body 7 is started to drive the gear 22 to rotate, and since the gear 22 is engaged with the gear ring 3, when the gear 22 rotates, the gear ring 3 rotates with it, so that the rotary table 23 rotates.
Specifically, the tight mechanism in top includes first top tight spring 15 and grafting piece 19, and first top tight spring 15 cup joints on slide bar 14, and the one end of first top tight spring 15 links to each other with the bottom surface of placing platform 13, and the other end links to each other with second sliding block 18, and the bottom of second sliding block 18 is connected with four grafting pieces 19, and four draw-in grooves have been seted up on the surface of revolving stage 23, and grafting piece 19 corresponds the block with the draw-in groove.
In this embodiment, after the elastic sheet 20 is separated from the fixed housing 16, the first urging spring 15 is relaxed, the second sliding block 18 moves downward to be attached to the rotating table 23, and the inserting block 19 is correspondingly engaged with the engaging groove, so that the rotating table 23 drives the placing table 13 to rotate.
Specifically, fixed establishment includes threaded shaft 8 and knob 9, and the both sides of base 1 are rotated and are connected with threaded shaft 8, and the top of threaded shaft 8 is connected with knob 9, and the bottom of threaded shaft 8 is connected with the sucking disc base.
In this embodiment, after base 1 removed the fixed position, rotate knob 9, drive threaded shaft 8 and rotate and make sucking disc base and bottom surface laminating, with the rigidity of base 1.
Specifically, receiving mechanism includes pull cabinet 6, pull cabinet 6 and base 1 swing joint, and required instrument when preparation teapot is stored to the inside of pull cabinet 6.
In this embodiment, the pull cabinet 6 is pulled out, the internal tool is taken out, the teapot is manufactured, and the tool is put back into the pull cabinet 6 after use.
The working principle and the using process of the invention are as follows: after the invention is installed, when a base 1 moves to a fixed position, a knob 9 is rotated to drive a threaded shaft 8 to rotate to enable a sucker base to be attached to the bottom surface, the position of the base 1 is fixed, a hand wheel 10 is rotated to drive a bidirectional screw rod 11 to rotate, a first sliding block 12 slides, a supporting rod 4 rotates under the action of a rotating shaft to adjust the height of a top plate 2, manufacturing materials are placed on a placing table 13, the placing table 13 is rotated to manufacture, when an inserting rod 17 enters the inside of a fixed shell 16, an elastic sheet 20 is clamped with a cavity, when the inserting rod 17 needs to be separated from the fixed shell 16, a spring button 21 is pressed to enable the elastic sheet 20 to be deformed to be separated from the fixed shell 16, after the elastic sheet 20 is separated from the fixed shell 16, a first jacking spring 15 is relaxed, a second sliding block 18 moves downwards to be attached to a rotating table 23, and at the moment, an inserting block 19 is correspondingly clamped with a, make revolving stage 23 drive and place platform 13 and rotate, start motor main part 7 drives gear 22 and rotates, because gear 22 and ring gear 3 meshing, when gear 22 rotated, ring gear 3 rotated thereupon, made revolving stage 23 rotate, took out pull cabinet 6, took out inside instrument, makeed the teapot, put back the inside of pull cabinet 6 with the instrument again after finishing using.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a non-heritage tea-making equipment that creates teapot, includes base (1) and roof (2), its characterized in that: the surface of the base (1) is symmetrically connected with two fixed blocks (5), the surface of each fixed block (5) is connected with a telescopic loop bar, the top ends of the telescopic loop bars are connected with the bottom end of the top plate (2), a height adjusting mechanism is arranged between the top plates (2) of the base (1), fixing mechanisms are arranged on two sides of the base (1), the interior of the base (1) is movably connected with a containing mechanism, the interior of the top plate (2) is rotatably connected with a rotating platform (23), a rotating mechanism is arranged in the top plate (2), a sliding rod (14) is rotatably connected to the surface of the rotating platform (23), the top end of the sliding rod (14) is connected with a placing table (13), the sliding rod (14) is sleeved with a second sliding block (18), a jacking mechanism is arranged between the second sliding block (18) and the sliding rod (14), a clamping mechanism is arranged between the placing table (13) and the second sliding block (18).
2. A non-heritage tea making device as claimed in claim 1, wherein: the clamping mechanism comprises a fixed shell (16), an inserted bar (17), an elastic sheet (20) and a spring button (21), wherein the inserted bar (17) is installed at the top end of a second sliding block (18), the elastic sheet (20) is installed on one side of the inserted bar (17), the inserted bar (17) is movable in the fixed shell (16), the fixed shell (16) is installed at the bottom end of a placing table (13), the spring button (21) is movably connected in the fixed shell (16), the top end of the spring button (21) is attached to the elastic sheet (20), and the spring button (21) is clamped with a cavity in the fixed shell (16).
3. A non-heritage tea making device as claimed in claim 1, wherein: the height adjusting mechanism comprises a supporting rod (4), a hand wheel (10), a two-way screw rod (11) and a first sliding block (12), the two-way screw rod (11) rotates between two fixed blocks (5), the two first sliding blocks (12) are symmetrically sleeved on the two-way screw rod (11), the surface of the first sliding block (12) is connected with the supporting rod (4) in a rotating mode through a rotating shaft, the two ends of the supporting rod (4) are connected with the bottom surface of the top plate (2) in a rotating mode through the same rotating shaft, and the hand wheel (10) is connected to one side of the two-way screw rod (11).
4. A non-heritage tea making device as claimed in claim 1, wherein: slewing mechanism includes ring gear (3), motor main part (7) and gear (22), motor main part (7) pass through motor support mounting in the inside of roof (2), the bottom of revolving stage (23) is connected with ring gear (3), gear (22) have been cup jointed on the output shaft of motor main part (7), gear (22) and ring gear (3) meshing.
5. A non-heritage tea making device as claimed in claim 1, wherein: the tight mechanism in top includes tight spring in first top (15) and plug-in block (19), tight spring in first top (15) cup joints on slide bar (14), the one end of tight spring in first top (15) links to each other with the bottom surface of placing platform (13), and the other end links to each other with second sliding block (18), the bottom of second sliding block (18) is connected with four plug-in blocks (19), four draw-in grooves have been seted up on the surface of revolving stage (23), plug-in block (19) correspond the block with the draw-in groove.
6. A non-heritage tea making device as claimed in claim 1, wherein: the fixing mechanism comprises a threaded shaft (8) and a knob (9), the two sides of the base (1) are connected with the threaded shaft (8) in a rotating mode, the top end of the threaded shaft (8) is connected with the knob (9), and the bottom end of the threaded shaft (8) is connected with the sucker base.
7. A non-heritage tea making device as claimed in claim 1, wherein: the containing mechanism comprises a drawing cabinet (6), the drawing cabinet (6) is movably connected with the base (1), and tools required for manufacturing the teapot are stored in the drawing cabinet (6).
