Abstract
The invention discloses a plant irrigation device for gardens, which comprises a base, travelling wheels, a hand push rod, a water tank, a water pump, an angle adjusting mechanism, an azimuth adjusting mechanism, a stirring mechanism and a power supply mechanism, wherein the water tank is arranged at the upper end of the base, the water pump is connected to one side of the water tank through a water outlet pipe, a nozzle connecting seat is connected to one side of the water pump through a water inlet hose, a nozzle is installed on the nozzle connecting seat, the nozzle connecting seat is installed above the angle adjusting mechanism, the azimuth adjusting mechanism is connected below the angle adjusting mechanism, the stirring mechanism is installed on the water tank, and the power supply mechanism is arranged at the upper end of. According to the invention, the angle of the spray head on the spray head connecting seat is adjusted by arranging the angle adjusting mechanism, so that the adjustment of the spray angle of the spray head is realized, and the spray direction of the spray head on the spray head connecting seat is changed by matching with the direction adjusting mechanism, so that the plants in different positions of a garden are irrigated in one place, and the operation is convenient and fast.
Description
Technical Field
The invention relates to the technical field of gardens, in particular to a plant irrigation device for gardens.
Background
Gardens, refer to the natural environment and recreational areas of a particular culture. The garden is created by applying engineering technology and artistic means in a certain region and modifying the terrain (or further building a mountain, stacking stones and managing water), planting trees, flowers and plants, building buildings, arranging garden roads and the like, so that the beautiful natural environment and the rest region are called as the garden, and the traditional Chinese building is unique and has great achievements in the classical garden building.
Present gardens are all fixed unchangeable with plant irrigation equipment in the shower nozzle, can not irrigate in same place with the plant near to the distant place, need adjust irrigation equipment's position at any time, and is more troublesome, the operation is inconvenient. Therefore, a plant watering apparatus for gardens has been proposed to solve the above problems.
Disclosure of Invention
The present invention is directed to a plant watering apparatus for gardens that solves the problems set forth above in the background art.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a plant irrigation equipment is used in gardens, includes base, walking wheel, handspike, water tank, water pump, angle adjustment mechanism, position adjustment mechanism, rabbling mechanism and power supply mechanism, the base upper end is provided with the water tank, water tank one side has the water pump through going out water piping connection, water pump one side is connected with the shower nozzle connecting seat through the hose that intakes, install the shower nozzle on the shower nozzle connecting seat, the shower nozzle connecting seat is installed in angle adjustment mechanism top, the angle adjustment mechanism below is connected with position adjustment mechanism, install the rabbling mechanism on the water tank, the base upper end is provided with power supply mechanism, the base lower extreme is fixed with a plurality of walking wheels, the water tank upper end is connected with the feeder hopper, the handspike is installed to the.
As a further scheme of the invention: angle adjustment mechanism includes wedge, mounting box, first positive and negative motor, threaded rod, thread block, slide bar and wedge kicking block, wedge right side upper end is connected with the shower nozzle connecting seat, the wedge right-hand member rotates to be connected on the mounting box, the mounting box internal rotation is connected with the threaded rod, the threaded rod left end runs through the mounting box and is connected with first positive and negative motor drive, the threaded rod top is provided with the slide bar of fixing in the mounting box, threaded connection has the thread block on the threaded rod, thread block upper end is connected with the slide, slide and slide bar sliding fit, the slide upper end is fixed with the wedge kicking block, wedge kicking block upper end and wedge's inclined plane contact, the mounting box lower extreme is connected with position adjustment mechanism.
As a further scheme of the invention: and a limiting lantern ring is fixed at the upper end of the wedge-shaped plate.
As a further scheme of the invention: the azimuth adjusting mechanism comprises a rotating rod, a second positive and negative motor, a rotating shaft, a first bevel gear and a second bevel gear, wherein the lower end of the rotating rod is connected above the base in a rotating mode through a bearing seat, the upper end of the rotating rod is fixedly connected with the lower end of the mounting box, the second bevel gear is installed on the rotating rod, the second positive and negative motor is arranged on one side of the rotating rod, the rotating shaft is installed at the output end of the second positive and negative motor, the first bevel gear is installed on the rotating shaft, and the first bevel gear is in meshed transmission connection with the second bevel gear.
As a further scheme of the invention: the outer sides of the rotating rod and the second positive and negative motor are provided with outer cover frames, and the rotating rod penetrates through the outer cover frames and is rotatably connected with bearing seats embedded in the upper ends of the outer cover frames.
As a further scheme of the invention: the power supply mechanism comprises a storage battery and a solar photovoltaic panel, the storage battery is installed at the upper end of the base, the solar photovoltaic panel is installed above the base through a fixing rod, and the storage battery is respectively electrically connected with the solar photovoltaic panel, the first positive and negative motor, the second positive and negative motor and the water pump.
As a further scheme of the invention: the stirring mechanism comprises an automatic variable frequency motor, a stirring shaft and a telescopic stirring rod, wherein the stirring shaft is rotatably connected inside the water tank, the upper end of the stirring shaft penetrates through the upper end of the water tank and is in transmission connection with the automatic variable frequency motor, and the stirring shaft is provided with a plurality of telescopic stirring rods.
As a further scheme of the invention: the telescopic stirring rod comprises a telescopic cylinder, a telescopic rod and a spring, wherein the telescopic cylinder is installed on the stirring shaft, the telescopic rod is connected to the telescopic cylinder in a sliding mode, and the spring is fixed between one end, located in the telescopic cylinder, of the telescopic rod and the inner wall of the telescopic cylinder.
As a further scheme of the invention: and a check ring is fixed on the outer side of one end of the telescopic rod, which is positioned in the telescopic cylinder.
Compared with the prior art, the invention has the beneficial effects that: be convenient for remove the device through setting up walking wheel and cooperation handspike, it is used for taking out the water of water tank through the outlet pipe to set up the water pump, and get into the shower nozzle connecting seat from the hose that intakes, spraying away from the shower nozzle, set up the angle that angle adjustment mechanism is used for adjusting shower nozzle on the shower nozzle connecting seat, realize the regulation of shower nozzle spray angle, the spray position of shower nozzle on the position adjustment mechanism change shower nozzle connecting seat of deuterogamying, thereby realize that plant on a place is to gardens different positions is irrigated, it is convenient for with fertilizer and water intensive mixing to set up rabbling mechanism, avoid the waste of fertilizer and abundant give more nourishments of plant, it is convenient for give the device with electrical apparatus power supply to set up power supply mechanism, the outdoor.
Drawings
Fig. 1 is a schematic structural view of a plant watering apparatus for gardens.
Fig. 2 is a schematic view of an internal structure of a garden watering device.
Fig. 3 is a schematic structural view of a wedge plate in a plant watering apparatus for gardens.
Fig. 4 is a schematic view showing an internal structure of a water tank in a plant watering apparatus for gardens.

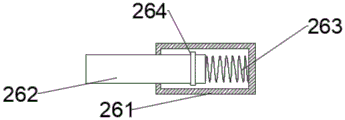

Fig. 5 is a schematic structural view of a telescopic stirring rod in the plant irrigation device for gardens.
In the figure: 1-base, 2-walking wheel, 3-mounting box, 4-wedge plate, 5-wedge top block, 6-sliding seat, 7-thread block, 8-threaded rod, 9-first positive and negative motor, 10-sliding rod, 11-nozzle connecting seat, 12-nozzle, 13-water inlet hose, 14-limiting lantern ring, 15-hand push rod, 16-water pump, 17-water outlet pipe, 18-water tank, 19-rotating rod, 20-second positive and negative motor, 21-first bevel gear, 22-second bevel gear, 23-outer housing frame, 24-automatic variable frequency motor, 25-stirring shaft, 26-telescopic stirring rod, 261-telescopic cylinder, 262-telescopic rod, 263-spring, 264-retainer ring and 27-feed hopper, 28-solar photovoltaic panel, 29-storage battery, 30-fixing rod.
Detailed Description
In the description of the present invention, it is to be understood that the terms "upper end", "lower end", "outside", "inside", "below", "above", "one side", "one end", "left end", "right end", and the like indicate orientations or positional relationships based on the orientations or positional relationships illustrated in the drawings, and are only for convenience in describing the present invention and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention.
In the present invention, unless otherwise expressly stated or limited, the terms "connected," "mounted," "secured," and the like are to be construed broadly and can, for example, be fixedly connected, releasably connected, or integral; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Example 1:
referring to fig. 1-3, a plant irrigation device for gardens comprises a base 1, walking wheels 2, a hand push rod 15, a water tank 18, a water pump 16, an angle adjusting mechanism, an orientation adjusting mechanism, a stirring mechanism and a power supply mechanism, the upper end of the base 1 is provided with a water tank 18, one side of the water tank 18 is connected with a water pump 16 through a water outlet pipe 17, one side of the water pump 16 is connected with a nozzle connecting seat 11 through a water inlet hose 13, a nozzle 12 is arranged on the nozzle connecting seat 11, the nozzle connecting seat 11 is arranged above the angle adjusting mechanism, the lower part of the angle adjusting mechanism is connected with the direction adjusting mechanism, the water tank 18 is provided with a stirring mechanism, the upper end of the base 1 is provided with a power supply mechanism, the lower end of the base 1 is fixed with a plurality of travelling wheels 2, the upper end of the water tank 18 is connected with a feed hopper 27, and a hand push rod 15 is arranged at one side of the power supply mechanism and at the upper end of the base 1.
It is specific, be convenient for remove the device through setting up walking wheel 2 and cooperation handspike 15, set up water pump 16 and be used for taking out the water of water tank 18 through outlet pipe 17, and from intake hose 13 entering shower nozzle connecting seat 11 in, spraying away from shower nozzle 12, set up the angle that angle adjustment mechanism is used for adjusting shower nozzle 12 on the shower nozzle connecting seat 11, realize the regulation of shower nozzle 12 spray angle, the position adjustment mechanism that deuterogamies changes shower nozzle connecting seat 11 and goes up the spray position of shower nozzle 12, thereby realize irrigating the plant on the gardens different positions in a place, the simple operation, it is convenient for with fertilizer and water intensive mixing to set up rabbling mechanism, avoid the waste of fertilizer and abundant give more nourishments of plant, set up the power supply with electrical apparatus power supply on the device of being convenient for, the outdoor work ability of the device is improved.
The angle adjusting mechanism comprises a wedge-shaped plate 4, a mounting box 3, a first positive and negative motor 9, a threaded rod 8, a threaded block 7, a sliding seat 6, a sliding rod 10 and a wedge-shaped top block 5, the upper end of the right side of the wedge-shaped plate 4 is connected with a spray nozzle connecting seat 11, the right end of the wedge-shaped plate 4 is rotatably connected on the mounting box 3, a threaded rod 8 is rotationally connected in the mounting box 3, the left end of the threaded rod 8 penetrates through the mounting box 3 and is in transmission connection with a first positive and negative motor 9, a sliding rod 10 fixed in the mounting box 3 is arranged above the threaded rod 8, a threaded block 7 is connected with the threaded rod 8 in a threaded manner, the upper end of the thread block 7 is connected with a sliding seat 6, the sliding seat 6 is in sliding fit with a sliding rod 10, the upper end of the sliding seat 6 is fixed with a wedge-shaped top block 5, the upper end of the wedge-shaped top block 5 is in contact with the inclined plane of the wedge-shaped plate 4, and the lower end of the mounting box 3 is connected with an azimuth adjusting mechanism.
Specifically, it is rotatory through first positive and negative motor 9 drive threaded rod 8, cooperation slide 6 and slide bar 10 spacing, make the screw thread piece 7 remove, the screw thread piece 7 removes the wedge kicking block 5 that drives the slide 6 upper end and removes, because the inclined plane contact of 5 upper ends of wedge kicking blocks and wedge plate 4, wedge plate 4 rotates around mounting box 3 when making wedge kicking block 5 remove, thereby it rotates to drive shower nozzle connecting seat 11 and shower nozzle 12 of 4 upper ends of wedge plate, and then realize the regulation of 12 injection angles of shower nozzle.
The wedge-shaped plate 4 upper end is fixed with spacing lantern ring 14, sets up spacing lantern ring 14 and when being convenient for the wedge-shaped plate 4 to rotate, gives into water hose 13 spacing for water hose 13 removes in spacing lantern ring 14, avoids into water hose 13 random removal.
The azimuth adjusting mechanism comprises a rotating rod 19, a second positive and negative motor 20, a rotating shaft, a first bevel gear 21 and a second bevel gear 22, the lower end of the rotating rod 19 is connected above the base 1 in a rotating mode through a bearing seat, the upper end of the rotating rod 19 is fixedly connected with the lower end of the mounting box 3, the second bevel gear 22 is installed on the rotating rod 19, the second positive and negative motor 20 is arranged on one side of the rotating rod 19, the rotating shaft is installed at the output end of the second positive and negative motor 20, the first bevel gear 21 is installed on the rotating shaft, and the first bevel gear 21 is in meshing transmission connection with the second bevel gear 22.
Specifically, the rotating shaft is driven to rotate and drive the first bevel gear 21 through the second positive and negative motor 20, and the first bevel gear 21 is in meshing transmission connection with the second bevel gear 22, so that the second bevel gear 22 rotates, the rotating rod 19 is driven to rotate, the rotating rod 19 rotates to drive the mounting box 3 to rotate, the nozzle connecting seat 11 and the nozzle 12 which are arranged at the upper end of the wedge-shaped plate 4 are driven to rotate, and the injection direction of the nozzle 12 is adjusted.
The outside of bull stick 19 and the positive and negative motor 20 of second is provided with dustcoat frame 23, bull stick 19 runs through dustcoat frame 23 and inlays the bearing frame rotation of establishing with dustcoat frame 23 upper end and be connected, sets up the positive and negative motor 20 of protection second not only of being convenient for of dustcoat frame 23, still gives bull stick 19 stability support.
The power supply mechanism comprises a storage battery 29 and a solar photovoltaic panel 28, the storage battery 29 is installed at the upper end of the base 1, the solar photovoltaic panel 28 is installed above the base 1 through a fixing rod 30, and the storage battery 29 is respectively electrically connected with the solar photovoltaic panel 28, the first positive and negative motor 9, the second positive and negative motor 20 and the water pump 16.
Specifically, the solar photovoltaic panel 28 converts the external solar radiation energy into electric energy and stores the electric energy in the storage battery 29, and the storage battery 29 supplies power to the electric appliances on the device, so that the outdoor working capacity of the device is improved conveniently.
Example 2:
referring to fig. 4-5, this embodiment is a garden plant watering apparatus, and the present invention is further defined based on example 1.
Rabbling mechanism includes automatic inverter motor 24, (mixing) shaft 25 and flexible puddler 26, the (mixing) shaft 25 rotates to be connected inside water tank 18, (mixing) shaft 25 upper end runs through water tank 18 upper end and is connected with the transmission of automatic inverter motor 24, install a plurality of flexible puddlers 26 on the (mixing) shaft 25, flexible puddler 26 includes telescopic tube 261, telescopic link 262 and spring 263, telescopic tube 261 is installed on (mixing) shaft 25, telescopic link 262 sliding connection is on telescopic tube 261, telescopic link 262 just is located and is fixed with spring 263 between the one end in telescopic tube 261 and the telescopic tube 261 inner wall.
Specifically, through the moment of torsion size of its self output of automatic inverter motor 24 automatic control to drive (mixing) shaft 25 rotatory, the rotatory telescopic link 262 that drives in the flexible puddler 26 of (mixing) shaft 25 and cooperation spring 263 are flexible in telescopic cylinder 261, thereby the length of automatically regulated flexible puddler 26 is convenient for to fertilizer and water intensive mixing in the water tank 18, avoids the waste of fertilizer and abundant give more nourishments of plant.
The telescopic rod 262 is fixed with retaining ring 264 on the outer side of the end in the telescopic cylinder 261, and the retaining ring 264 is arranged to prevent the telescopic rod 262 from being thrown out of the telescopic cylinder 261 due to the excessive output torque of the automatic variable frequency motor 24.
The working principle is as follows: the device is convenient to move by arranging the travelling wheels 2 and matching with the hand push rod 15, the water pump 16 is arranged for pumping water in the water tank 18 out through the water outlet pipe 17, the water enters the nozzle connecting seat 11 from the water inlet hose 13 and is sprayed out from the nozzle 12, the threaded rod 8 is driven to rotate by the first positive and negative motor 9, the limit of the sliding seat 6 and the sliding rod 10 is matched, so that the threaded block 7 moves, the threaded block 7 moves to drive the wedge-shaped top block 5 at the upper end of the sliding seat 6 to move, the wedge-shaped top block 4 rotates around the mounting box 3 when the wedge-shaped top block 5 moves, the nozzle connecting seat 11 at the upper end of the wedge-shaped plate 4 and the nozzle 12 are driven to rotate due to the contact between the upper end of the wedge-shaped top block 5 and the inclined surface of the wedge-shaped plate 4, further, the adjustment of the injection angle of the nozzle 12 is realized, make second bevel gear 22 rotate, thereby it is rotatory to drive bull stick 19, 19 rotatory drive mounting box 3 of bull stick are rotatory, thereby it is rotatory to drive shower nozzle connecting seat 11 and the shower nozzle 12 that drives 4 upper ends of wedge-shaped plate, and then realize the injection position of shower nozzle 12 and adjust, thereby realize that the plant to gardens different positions is irrigated in a place, it is convenient for with fertilizer and water intensive mixing to set up rabbling mechanism, avoid fertilizer's waste and abundant give more nourishments of plant, it is convenient for give the device with electrical apparatus power supply to set up power supply mechanism, the device's field work ability is improved.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents, improvements and the like that fall within the spirit and principle of the present invention are intended to be included therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (9)
1. The plant irrigation device for the gardens is characterized by comprising a base (1), walking wheels (2), a hand push rod (15), a water tank (18), a water pump (16), an angle adjusting mechanism, a position adjusting mechanism, an agitating mechanism and a power supply mechanism, wherein the water tank (18) is arranged at the upper end of the base (1), the water pump (16) is connected to one side of the water tank (18) through a water outlet pipe (17), a nozzle connecting seat (11) is connected to one side of the water pump (16) through a water inlet hose (13), a nozzle (12) is installed on the nozzle connecting seat (11), the nozzle connecting seat (11) is installed above the angle adjusting mechanism, the position adjusting mechanism is connected to the lower part of the angle adjusting mechanism, the agitating mechanism is installed on the water tank (18), the power supply mechanism is arranged at the upper end of the base (1), a plurality of walking wheels (2) are fixed, the water tank (18) upper end is connected with feeder hopper (27), push rod (15) are installed to base (1) upper end and be located power supply mechanism one side.
2. The irrigation device for plants in gardens as claimed in claim 1, wherein the angle adjustment mechanism comprises a wedge-shaped plate (4), a mounting box (3), a first positive and negative motor (9), a threaded rod (8), a threaded block (7), a sliding seat (6), a sliding rod (10) and a wedge-shaped top block (5), the upper end of the right side of the wedge-shaped plate (4) is connected with a spray nozzle connecting seat (11), the right end of the wedge-shaped plate (4) is rotatably connected to the mounting box (3), the threaded rod (8) is rotatably connected to the mounting box (3), the left end of the threaded rod (8) penetrates through the mounting box (3) and is in transmission connection with the first positive and negative motor (9), the sliding rod (10) fixed in the mounting box (3) is arranged above the threaded rod (8), the threaded block (7) is in threaded connection with the threaded rod (8), the sliding seat (6) is connected to the upper end, slide (6) and slide bar (10) sliding fit, slide (6) upper end is fixed with wedge kicking block (5), the inclined plane contact of wedge kicking block (5) upper end and wedge board (4), mounting box (3) lower extreme is connected with position adjustment mechanism.
3. A plant watering apparatus for gardens according to claim 2, wherein a limiting collar (14) is fixed to the upper end of the wedge plate (4).
4. The irrigation device for plants in gardens as claimed in claim 2, wherein the orientation adjustment mechanism comprises a rotating rod (19), a second positive and negative motor (20), a rotating shaft, a first bevel gear (21) and a second bevel gear (22), the lower end of the rotating rod (19) is rotatably connected above the base (1) through a bearing seat, the upper end of the rotating rod (19) is fixedly connected with the lower end of the mounting box (3), the second bevel gear (22) is mounted on the rotating rod (19), the second positive and negative motor (20) is arranged on one side of the rotating rod (19), the rotating shaft is mounted at the output end of the second positive and negative motor (20), the first bevel gear (21) is mounted on the rotating shaft, and the first bevel gear (21) is in meshing transmission connection with the second bevel gear (22).
5. A plant irrigation device for gardens as defined in claim 4, wherein the outside of bull stick (19) and second positive and negative motor (20) is provided with outer cover frame (23), bull stick (19) run through outer cover frame (23) and with the bearing frame rotation connection that outer cover frame (23) upper end was inlayed.
6. The plant irrigation device for gardens as claimed in claim 1, wherein said power supply mechanism comprises a storage battery (29) and a solar photovoltaic panel (28), said storage battery (29) is installed on the upper end of the base (1), said solar photovoltaic panel (28) is installed above the base (1) through a fixing rod (30), said storage battery (29) is respectively electrically connected with the solar photovoltaic panel (28), the first positive and negative motor (9), the second positive and negative motor (20) and the water pump (16).
7. A plant irrigation device for gardens as defined in claim 1, wherein, the rabbling mechanism includes automatic inverter motor (24), (mixing) shaft (25) and flexible puddler (26), stirring shaft (25) rotate connect inside water tank (18), the (mixing) shaft (25) upper end runs through water tank (18) upper end and is connected with automatic inverter motor (24) transmission, install a plurality of flexible puddler (26) on stirring shaft (25).
8. A plant irrigation device for gardens as defined in claim 7, wherein, flexible puddler (26) includes telescopic cylinder (261), telescopic link (262) and spring (263), telescopic cylinder (261) is installed on (25), telescopic link (262) sliding connection is on telescopic cylinder (261), spring (263) is fixed between the telescopic cylinder (261) and the telescopic cylinder (262) one end that just is located in telescopic cylinder (261).
9. A plant irrigating device for gardens according to claim 8, wherein a retaining ring (264) is fixed to the outside of one end of the telescopic rod (262) located inside the telescopic cylinder (261).
